House plan Eglan (3847)
American style home with large master suite, 2-car garage and lots of amenities
View the size of the rooms and height of the ceilings

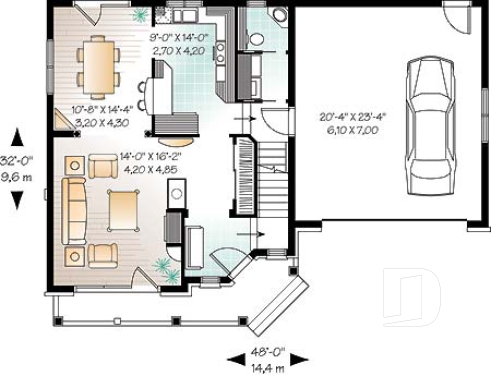

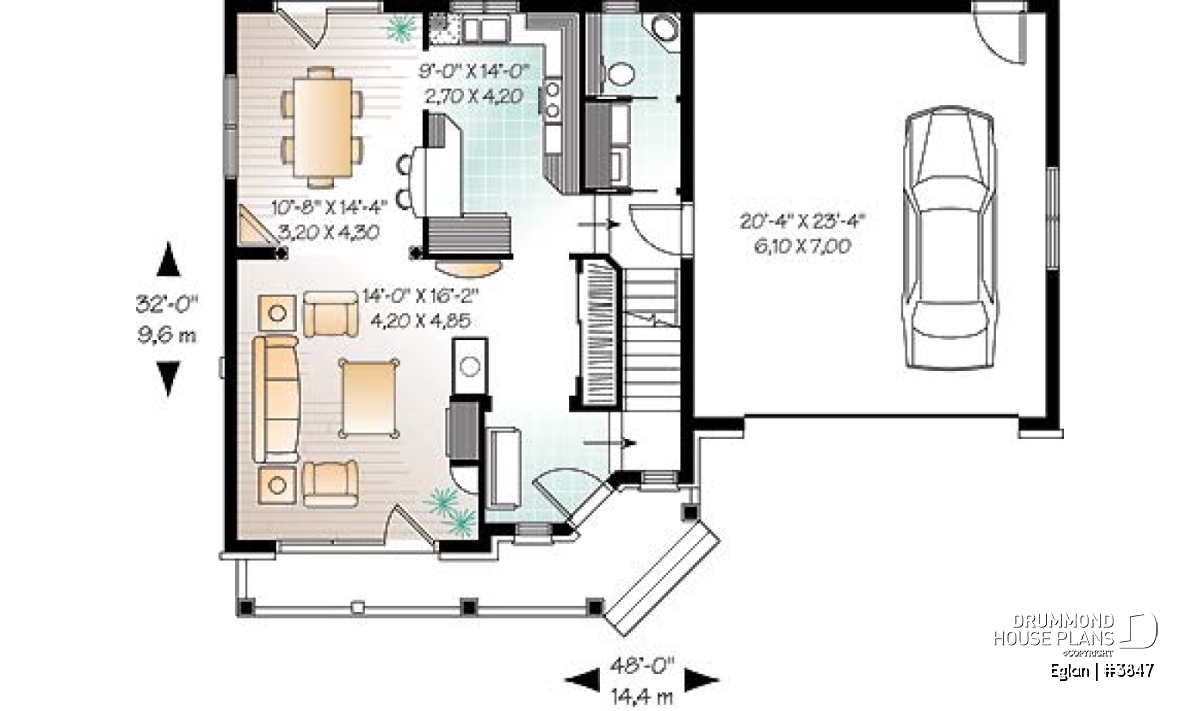

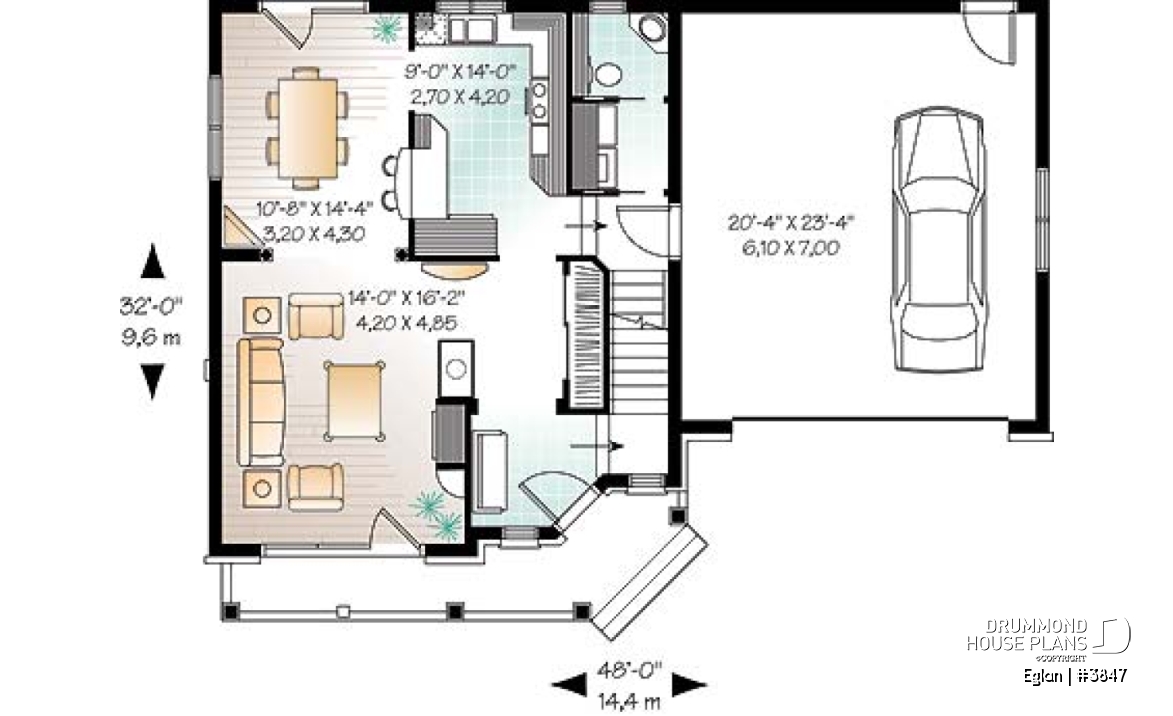

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 4'10" x 5'6" | ~ 8'0" |
| Kitchen | 8'10" x 13'10" | ~ 8'0" |
| Dining room | 10'8" x 14'2" | ~ 8'0" |
| Living room | 14'0" x 16'2" | ~ 8'0" |
| Foyer | 7'2" x 6'4" | ~ 8'0" |
| Utility room | 5'0" x 5'6" | ~ 8'0" |
| Garage | 20'4" x 23'4" | ~ 9'8" |
| Porch | 26'6" x 4'4" | N/A |
| Terrace | 8'0" x 4'0" | N/A |

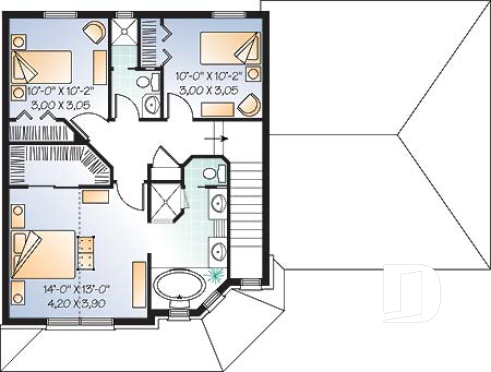

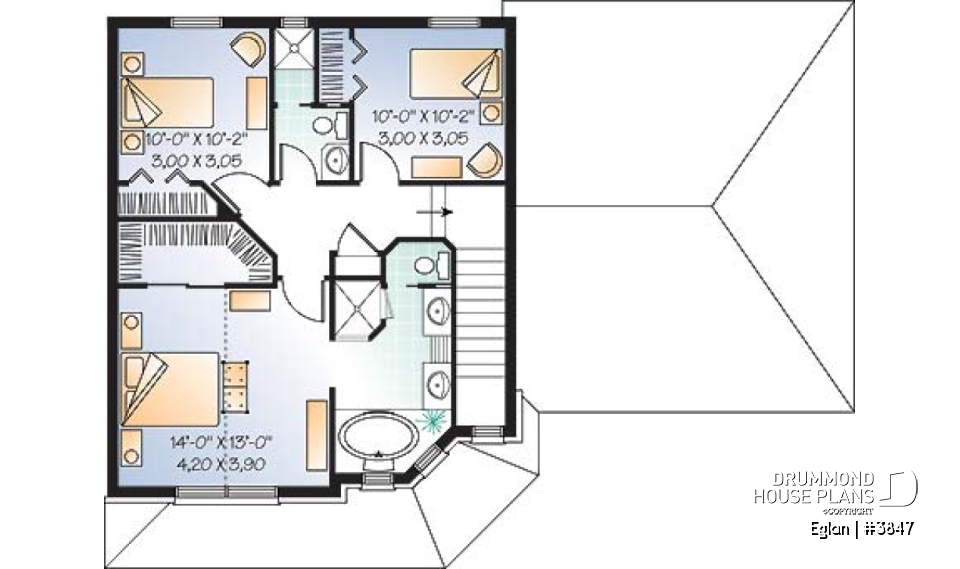

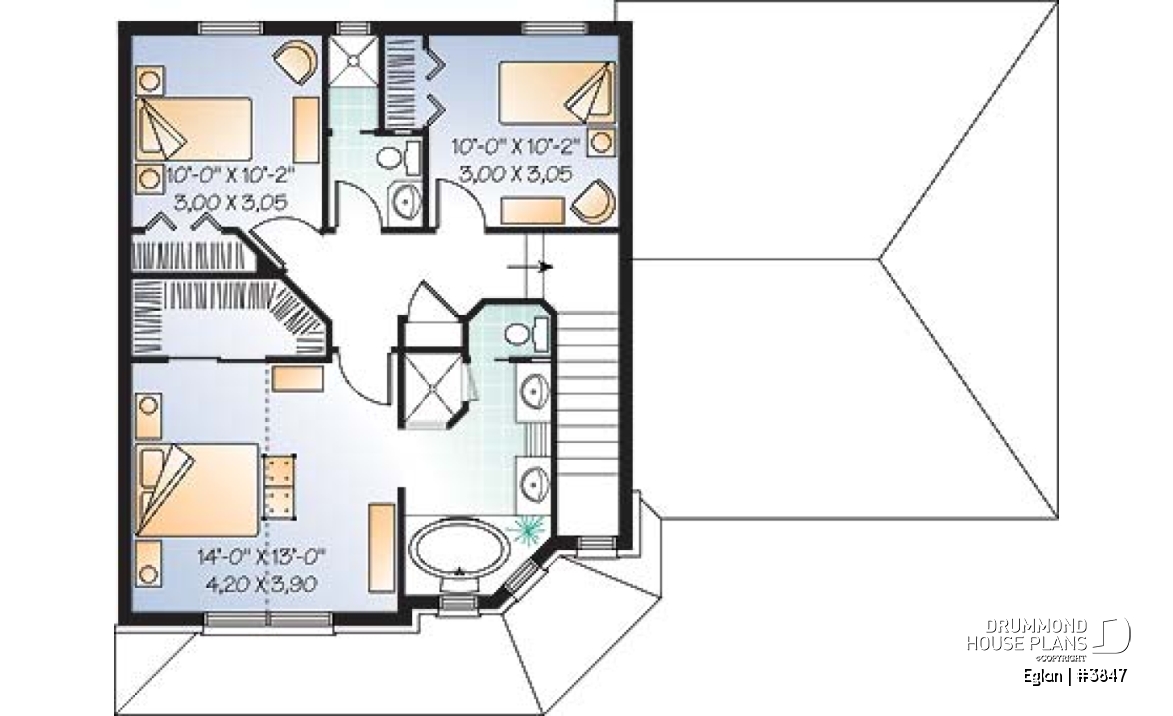

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 5'0" x 10'2" | ~ 8'0" |
| Master suite | 14'0" x 13'0" | ~ 8'0" |
| Bedroom | 10'0" x 10'2" | ~ 8'0" |
| Bedroom | 10'0" x 10'2" | ~ 8'0" |
| Linen | 3'0" x 1'4" | ~ 8'0" |
General specifications
| Total living area | 1674 sq.ft. |
| 1st level | 837 sq.ft. |
| 2nd level | 837 sq.ft. |
| Width | 48'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 28'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Two-car garage and grand master suite on second floor!
A family favorite! Covered porch outside and family room with see-thru fireplace and built-in media center, inside. 1674 sq. ft. layout creates easy flow from kitchen, dining area and family room. The master bedroom suite pampers with private bath, window-side tub, dual sinks, separate shower. Two full-sized secondary bedrooms flank a shared shower room. Two-car garage is a plus!
Distinctive elements
Covered balcony at front. Large closet at main entry. See-thru fireplace in family room and built-in media center. Original dinette area. Superb master bedroom suite. Second bathroom for children's bedrooms.
Plan feature(s)
Fireplace, Lunch counter, Gound floor laundry room, Master suite upstairs, Walk-in master bed., Separate bath and shower, Double sinks
Similar plans
Previously Viewed Plans
Questions and comments
January 07
abdu
i like this plan
how much for both planning and construction drawing
January 07
Customer service
Good day and thank you for taking the time to write
There is no planning drawing but you can find the various price options for the construction drawings listed above in the "price & options of this plan" section
Regards
Deb
January 15
Andrew
How much is the kit for this home?
January 15
Customer service
Good day and thank you for your interest in this plan.
Since we sell only plans and other documents, you will need to inquire about the cost to build this home either from a local prefabricated home builder or contractor and materials supplier.
Please let me know if I can further assist you.
Regards
Deborah
