House plan The Honeycomb 2 (4801)
2-storey house plan, one-car garage with bonus space above, fireplace, sitting area off kitchen
View the size of the rooms and height of the ceilings

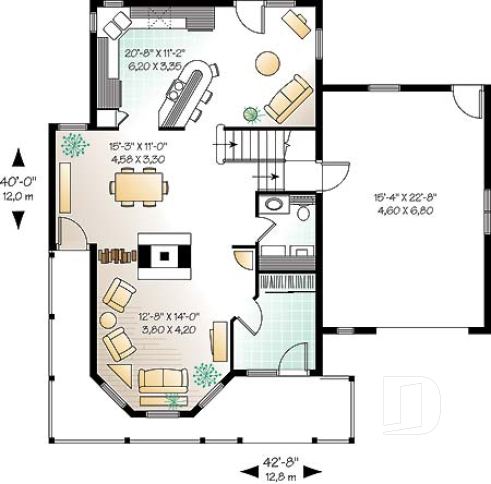

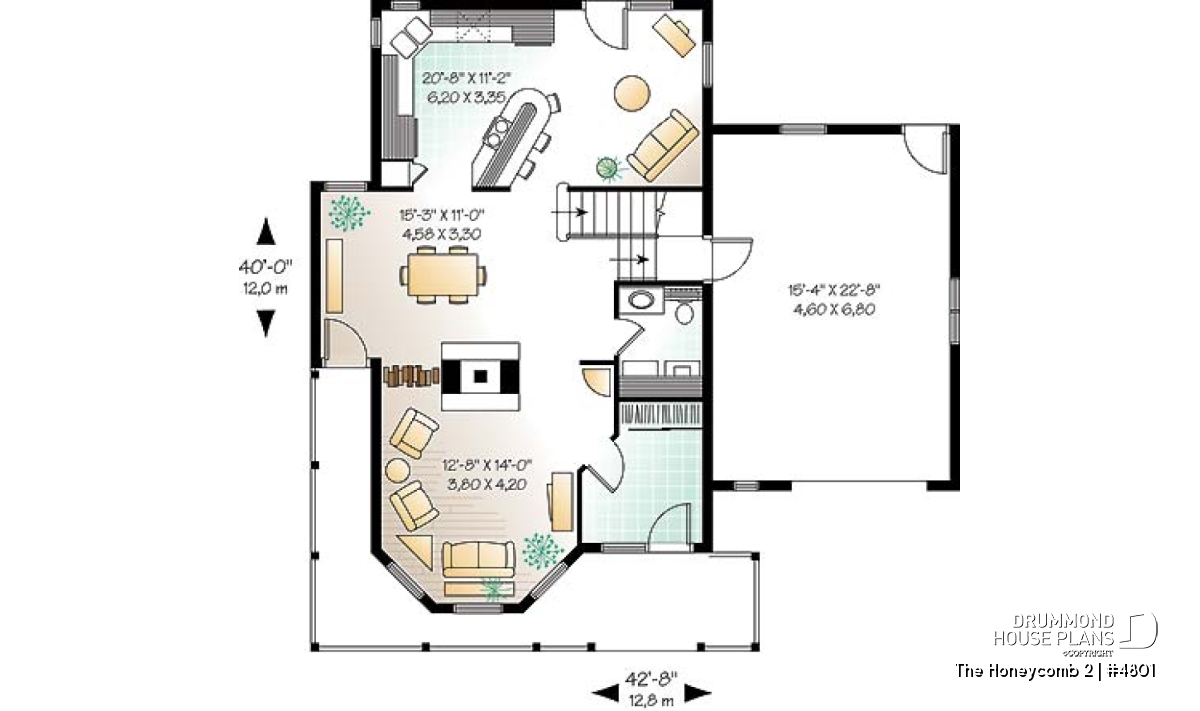

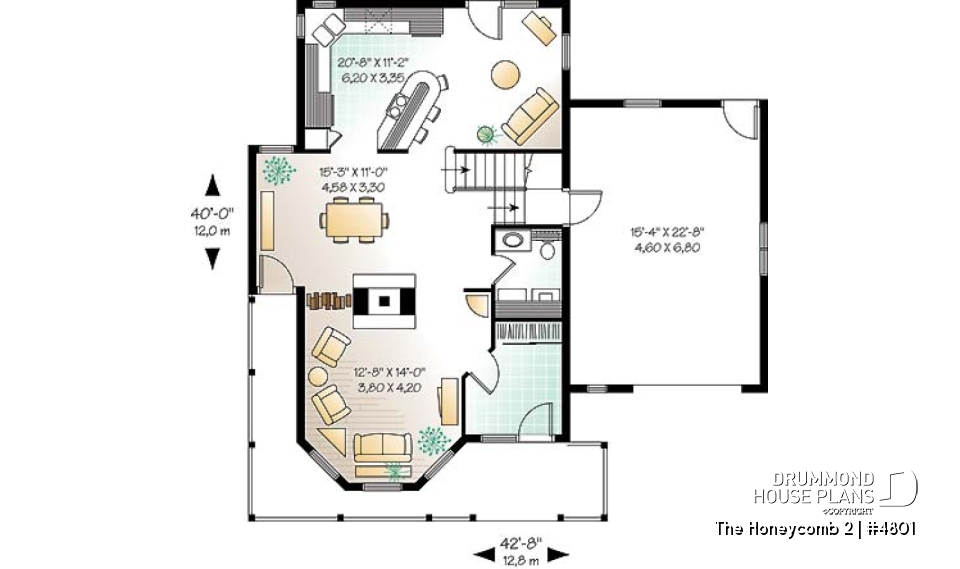

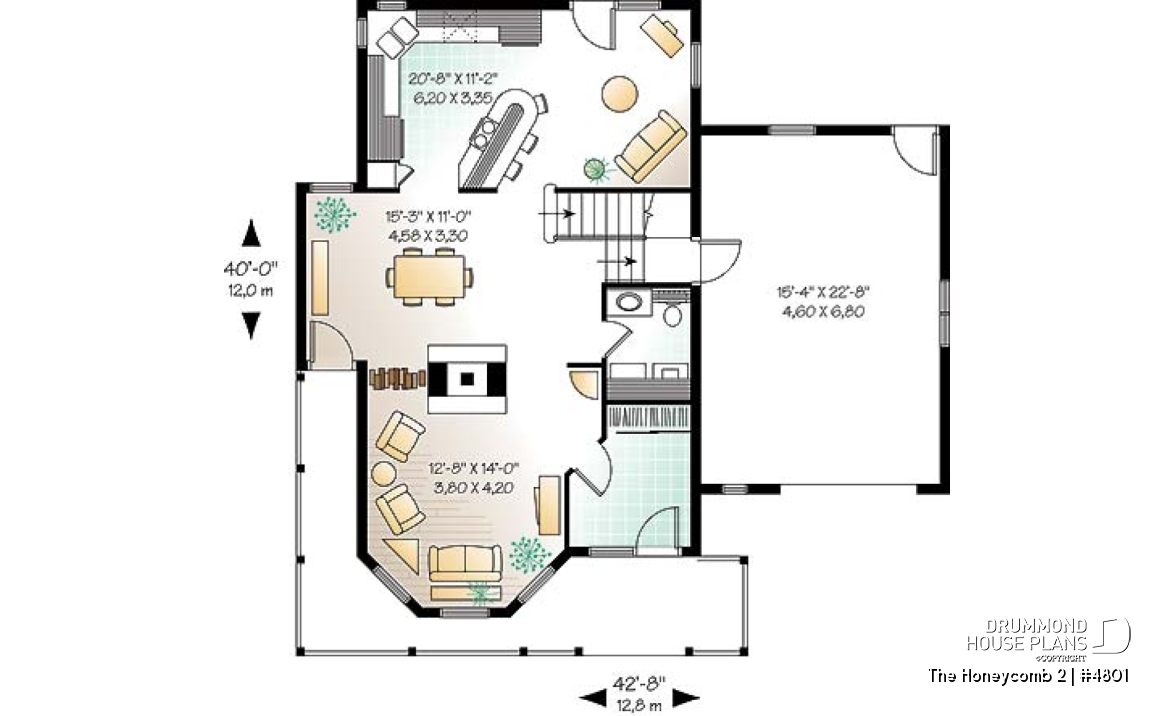

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Powder/laundry room | 5'2" x 7'2" | ~ 9'0" |
| Kitchen | 20'8" x 11'4" | ~ 9'0" |
| Pantry | 2'0" x 1'6" | N/A |
| Foyer | 7'8" x 6'2" | ~ 9'0" |
| Closet | 5'2" x 2'0" | ~ 9'0" |
| Garage | 15'4" x 22'8" | ~ 8'8" |
| Porch | 29'0" x 6'2" | N/A |
| Porch | 4'0" x 12'0" | N/A |
| Deck | 11'0" x 8'0" | N/A |
| Living room | 12'8" x 14'0" | ~ 9'0" |
| Dining room | 15'3" x 11'0" | ~ 9'0" |

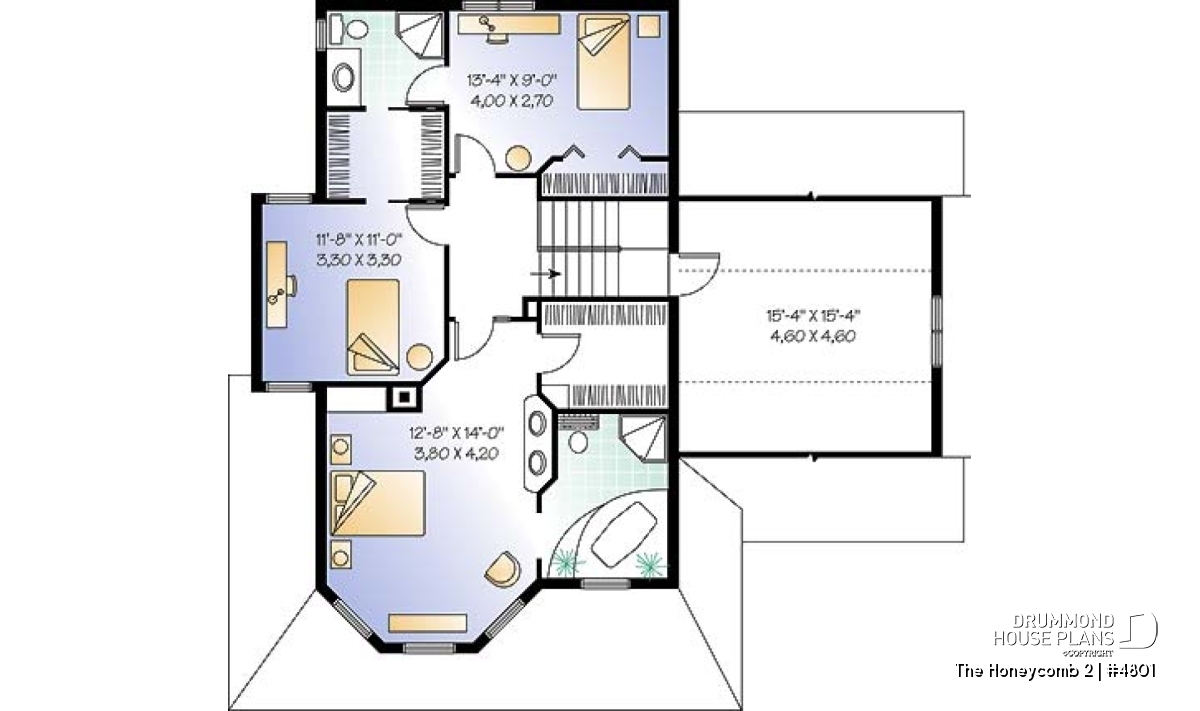

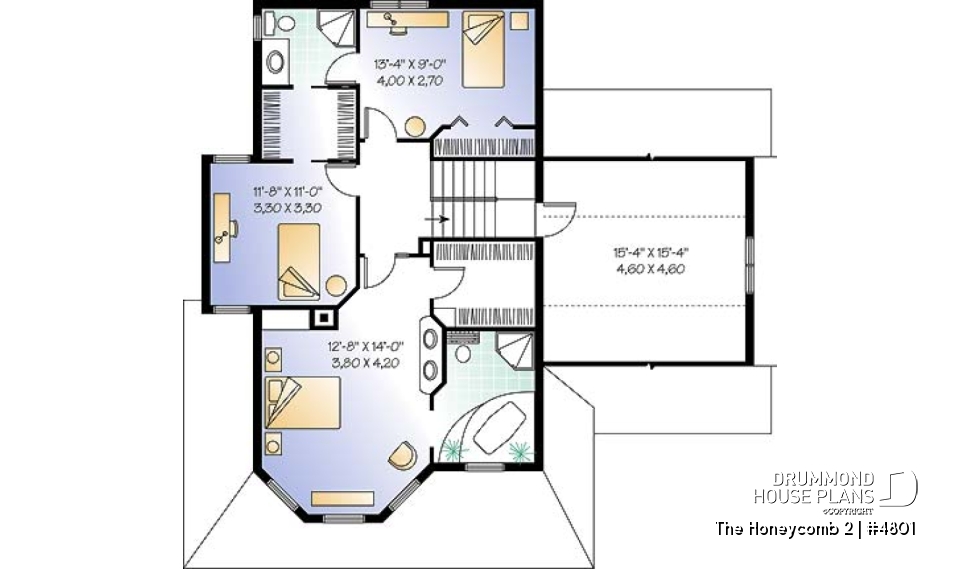

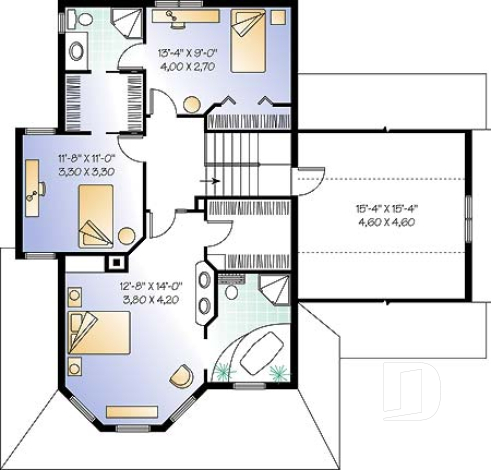

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'0" x 6'0" | ~ 8'0" |
| Master suite | 12'8" x 15'8" | ~ 8'0" |
| Full bathroom | 7'8" x 9'8" | ~ 8'0" |
| Walk-in closet | 7'8" x 5'10" | ~ 8'0" |
| Bedroom | 13'4" x 9'0" | ~ 8'0" |
| Closet | 8'5" x 2'0" | ~ 8'0" |
| Bedroom | 11'8" x 11'0" | ~ 8'0" |
| Walk-in closet | 7'0" x 4'10" | ~ 8'0" |
| Living bonus room | 15'4" x 15'4" | ~ 8'0" |
General specifications
| Total living area | 1776 sq.ft. |
| 1st level | 888 sq.ft. |
| 2nd level | 888 sq.ft. |
| Width | 42'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 28'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Victorian style 3 to 4 bedroom house plan

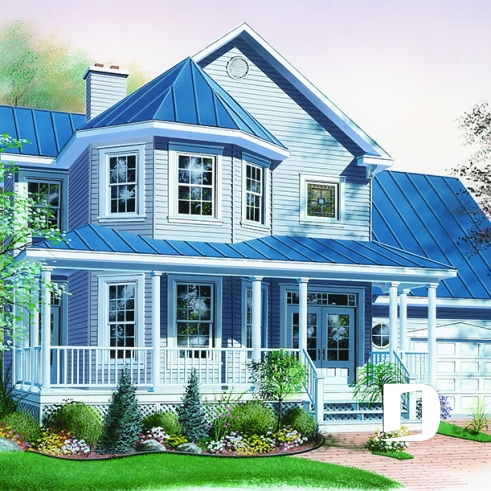

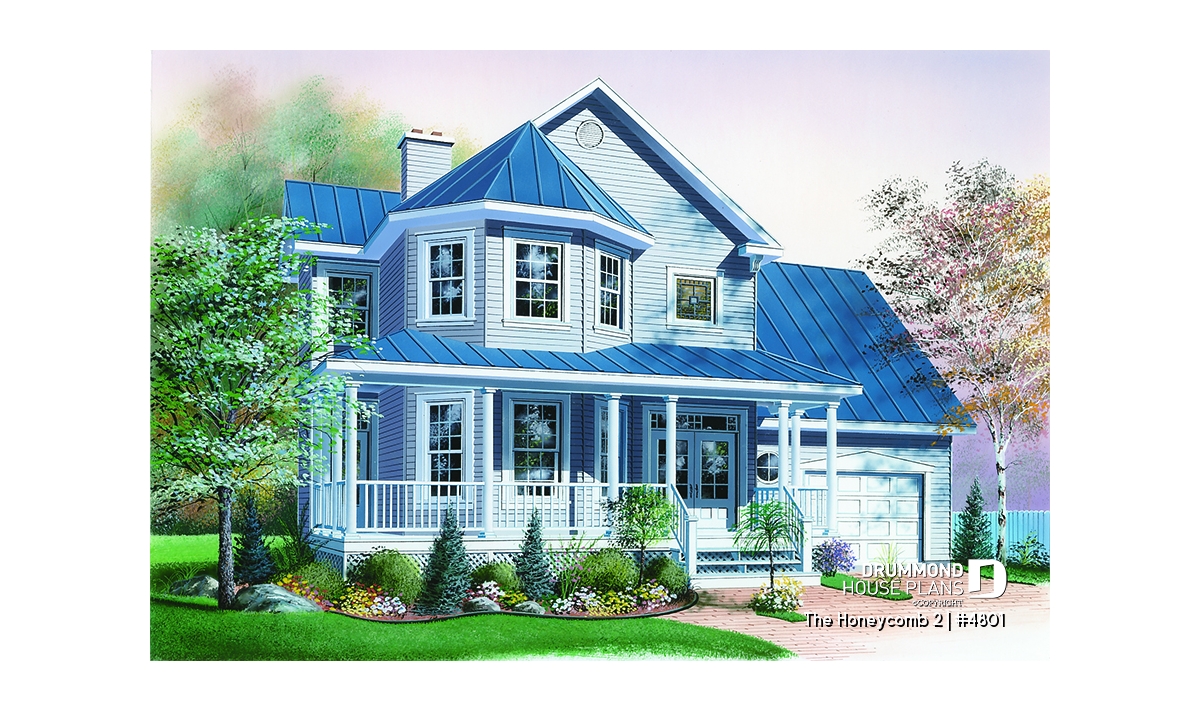

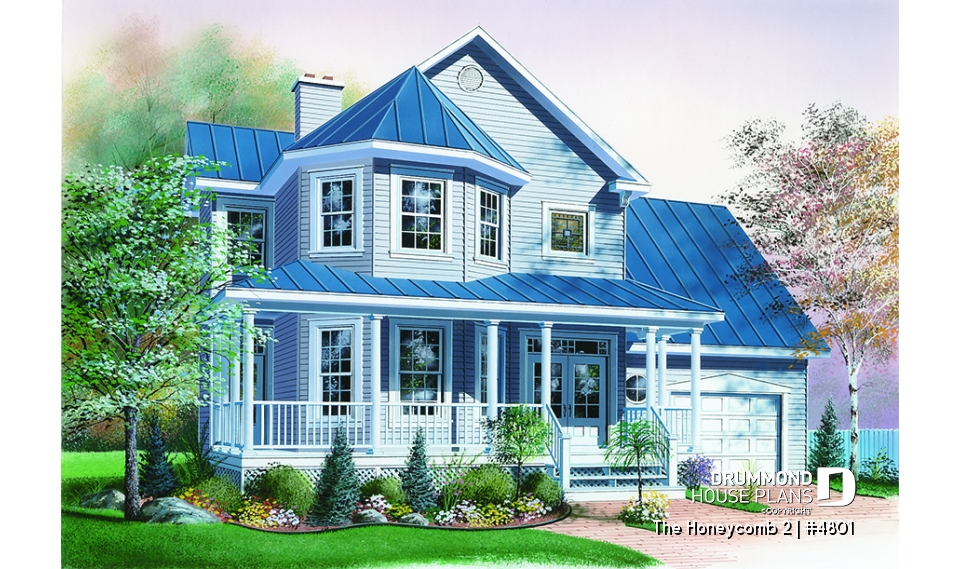

This model is truly a much sought after cottage if we judge by how many have become a part of the Quebec’s architectural decor. At first glance, it’s the exterior that attracts attention.
Here, nothing escapes the designer’s eye. A large gallery, linking the front and left façades, assures a covered access to the main entrance as well as to a second entry which opens into the dining room; an impressive turret projects out from the main façade and procures both charm and natural light to both the living room and master suite. A good sized lowered garage, which is often requested in new residential areas, proposes a very attractive bonus space above, which many homeowners will appreciate decorating as they fancy.
On the main level, an attractive and spacious foyer entrance, a large dining room sharing a two sided fireplace with the living room and a vast kitchen and dinette area with plenty of windows and utilities close by, all these elements come together to justify the infatuation for this model. On the second level, three beautiful bedrooms, each with large closets, and two full bathrooms, one of which is private to the master suite, add to the undeniable attraction for this home.
Distinctive elements
Large covered porch, see-thru fireplace, 2 bathrooms on 2nd level, built-ins, special ceiling treatments, abundant fenesration.
Plan feature(s)
Fireplace, Living bonus space, Master suite upstairs, Warparound, Sitting area, Gound floor laundry room, Panoramic view, Island, Loft, Ceiling over 8', Jack & Jill bath
Similar plans
Previously Viewed Plans
Questions and comments
March 23
John
Just wondering how code compliant for California.
March 23
Customer service
Good day and thank you for your interest in this plan.
Although our plans exceed most North American construction codes, including IRC 2006, your local municipality may require additional engineer or architect's sign off which will need to be done by a local professional.
Please let me know if you have any other questions or comments.
Regards
Deb
May 30
Shaun Griffin
hi i am purchasing this plan which is number W4801 but before i do i was wondering where this will be comming from is it drummonville quebec? and also i was wondering around how long will it be from when i purchased it until i recieve it and also i was wondering if it comes with the electrical wireing prints
June 01
Customer service
Dear Mr Griffin,
Thank you for your trust in Drummond House Plans for your future home.
The plans will be shipped from our Head Office in Drummondville, Quebec. It will take a maximum of 5 business days for the delivery. The plans include all the details needed for construction, except for the plumbing plan. Therefore, the electrical plan is included.
Please contact us again if you need further information.
Best Regards,
Customer Service Department
