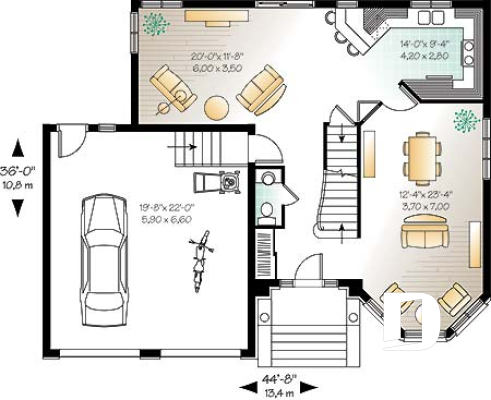

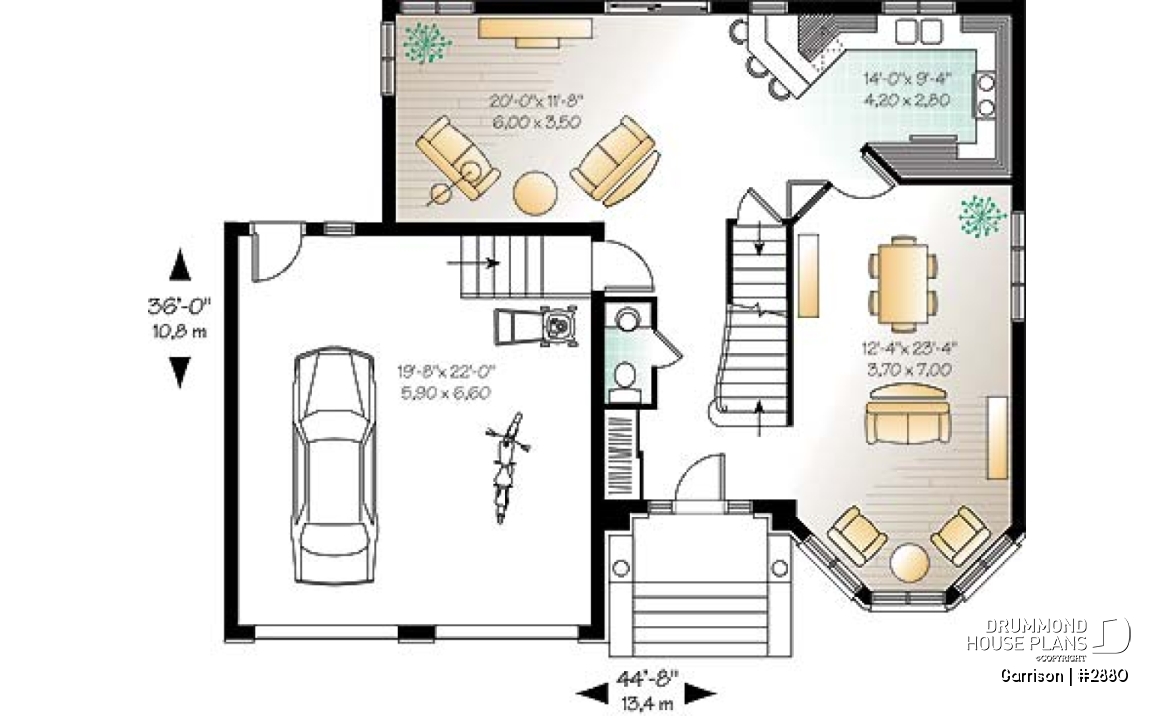

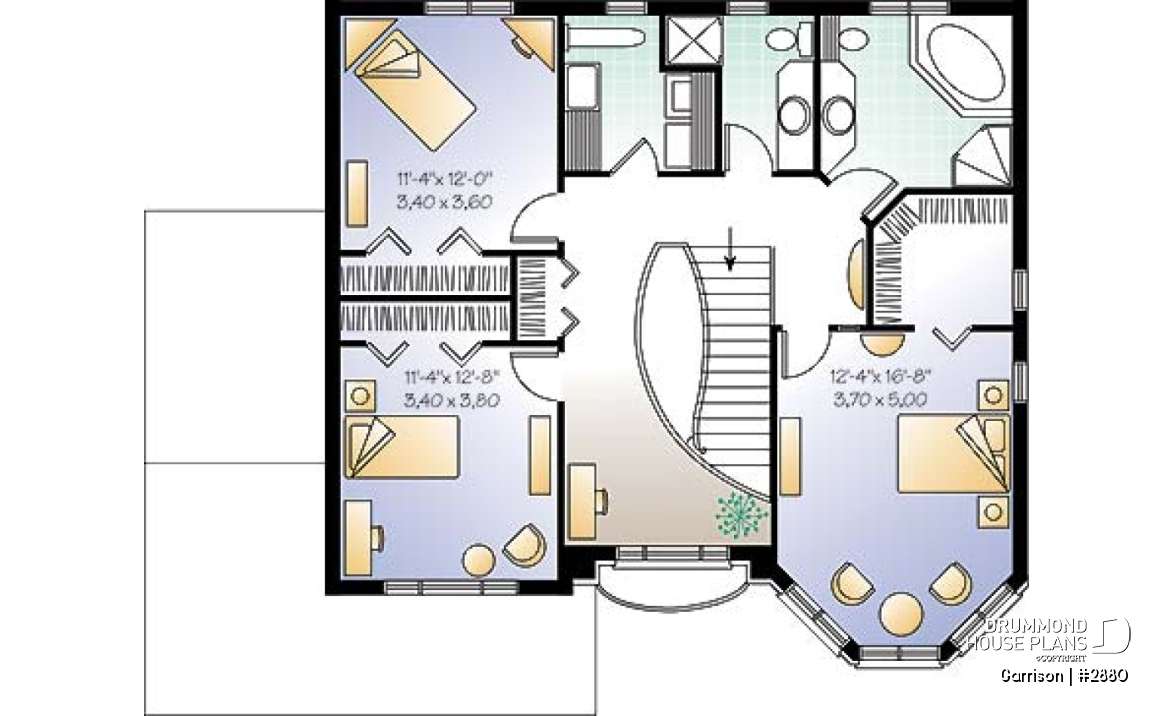

House floor plan with 2 family rooms, 3 bedrooms and 2-car garage
View the size of the rooms and height of the ceilings

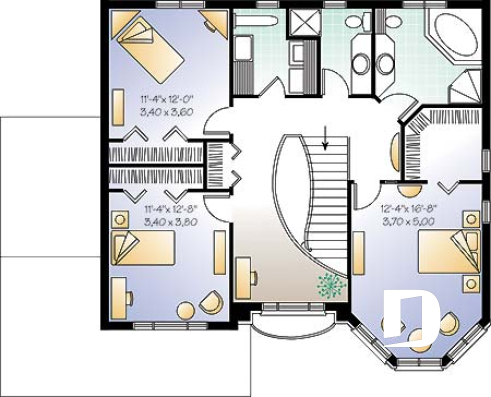

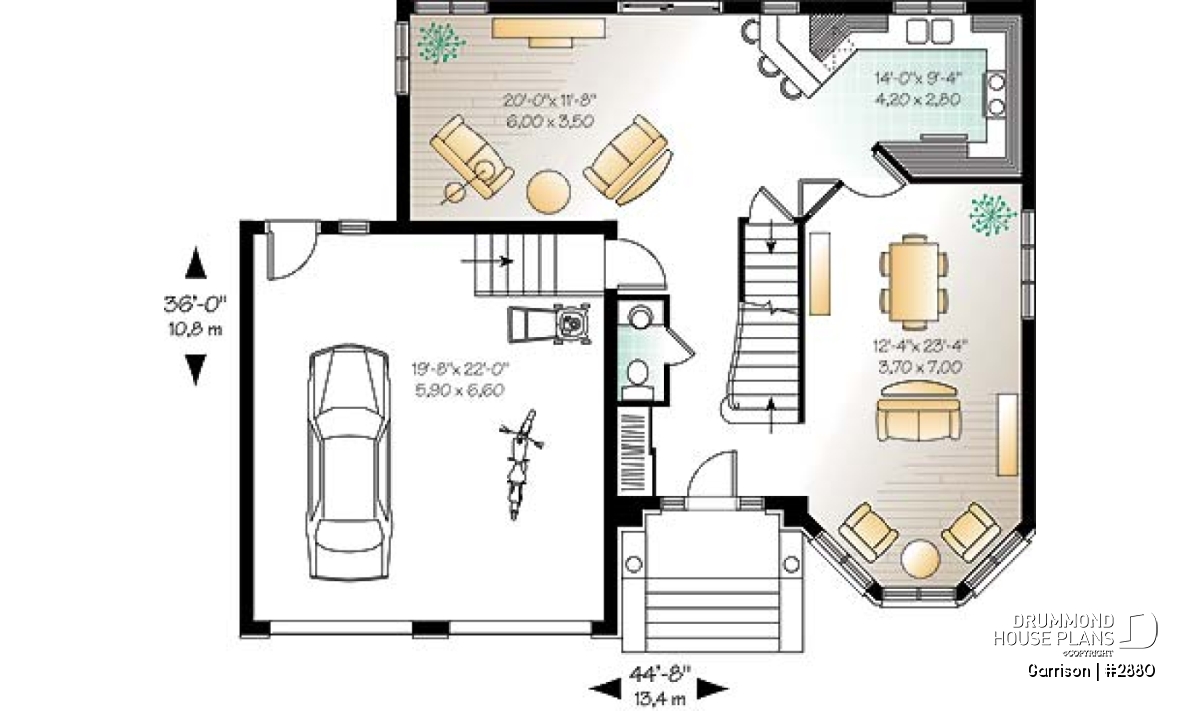

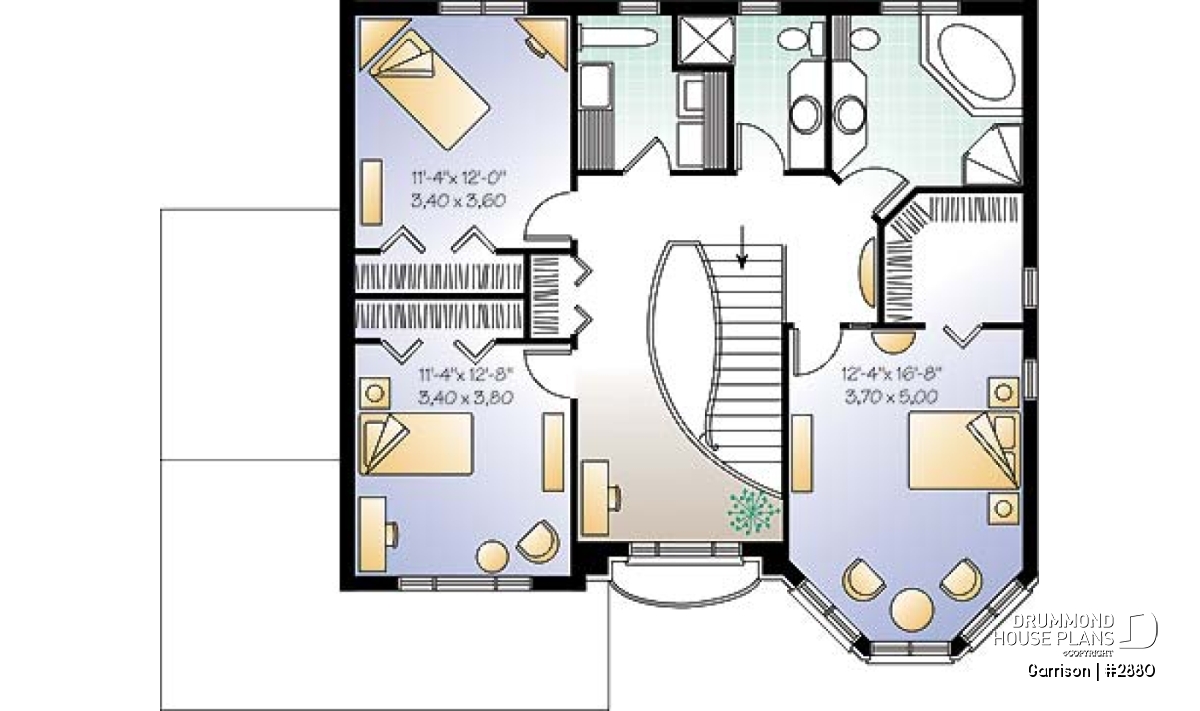

|Kitchen||14'0" x 9'4"||~ 9'0"|
|Dining room||12'4" x 23'4"||~ 9'0"|
|Great room or Family room||20'0" x 11'8"||~ 9'0"|
|Garage||19'8" x 22'0"||~ 9'2"|
|Closet||2'0" x 4'10"||~ 9'0"|
|Porch||7'4" x 3'6"||N/A|
|Terrace||10'0" x 10'0"||N/A|
|Half bath or powder room||2'8" x 6'3"||~ 9'0"|
|Full bathroom||9'11" x 9'0"||~ 8'0"|
|Full bathroom||7'8" x 8'0"||~ 8'0"|
|Bedroom||11'4" x 12'8"||~ 8'0"|
|Bedroom||11'4" x 12'0"||~ 8'0"|
|Utility room||7'10" x 8'0"||~ 8'0"|
|Bedroom||12'4" x 16'8"||~ 8'0"|
|Closet||2'0" x 4'4"||~ 8'0"|
|Total living area||2030 sq.ft.|
|1st level||916 sq.ft.|
|2nd level||1114 sq.ft.|
|Ridge height from top of foundation||33'2"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Full Basement|
|Other available foundations (a fee may apply)||Floating Slab, Crawl space|
|Builder price code||E|
|Garage type||Two-car garage (479 sq.ft.)|
|Living bonus space||-|
