House plan La Villa (3464)
Barn style house plan, 5 bedrooms, master suite, fireplace, garage, kitchen with pantry and island
View the size of the rooms and height of the ceilings

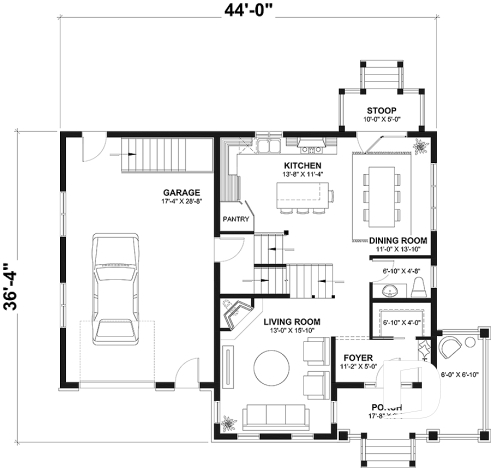

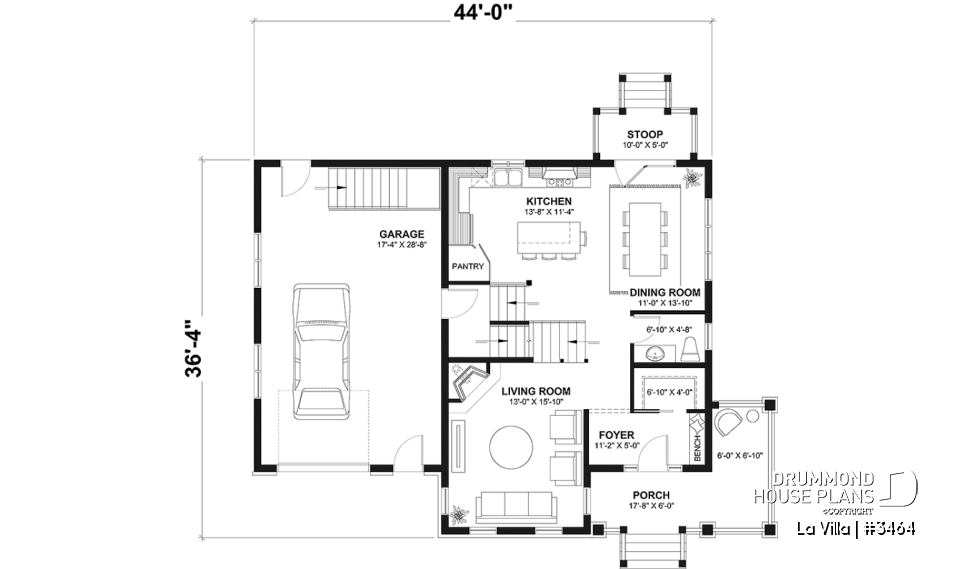

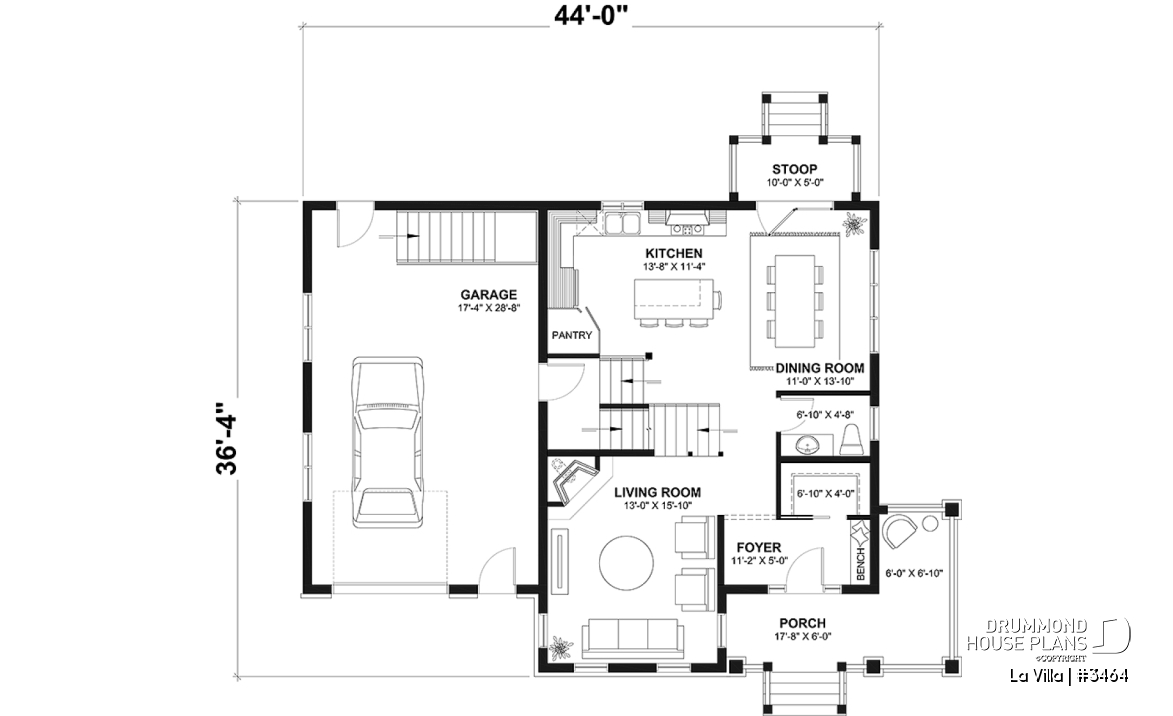

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 13'8" x 11'4" | ~ 9'0" |
| Kitchen island | 6'0" x 3'0" | N/A |
| Dining room | 11'0" x 13'10" | ~ 9'0" |
| Living room | 13'0" x 15'10" | ~ 9'0" |
| Foyer | 11'2" x 5'0" | ~ 9'0" |
| Garage | 17'4" x 28'8" | ~ 9'6" |
| Mud room | 6'10" x 4'0" | ~ 9'0" |
| Covered porch | 17'8" x 6'0" | ~ 8'8" |
| Covered porch | 6'0" x 6'10" | ~ 8'8" |
| Powder room | 6'10" x 4'8" | ~ 9'0" |
| Terrace | 10'0" x 5'0" | N/A |

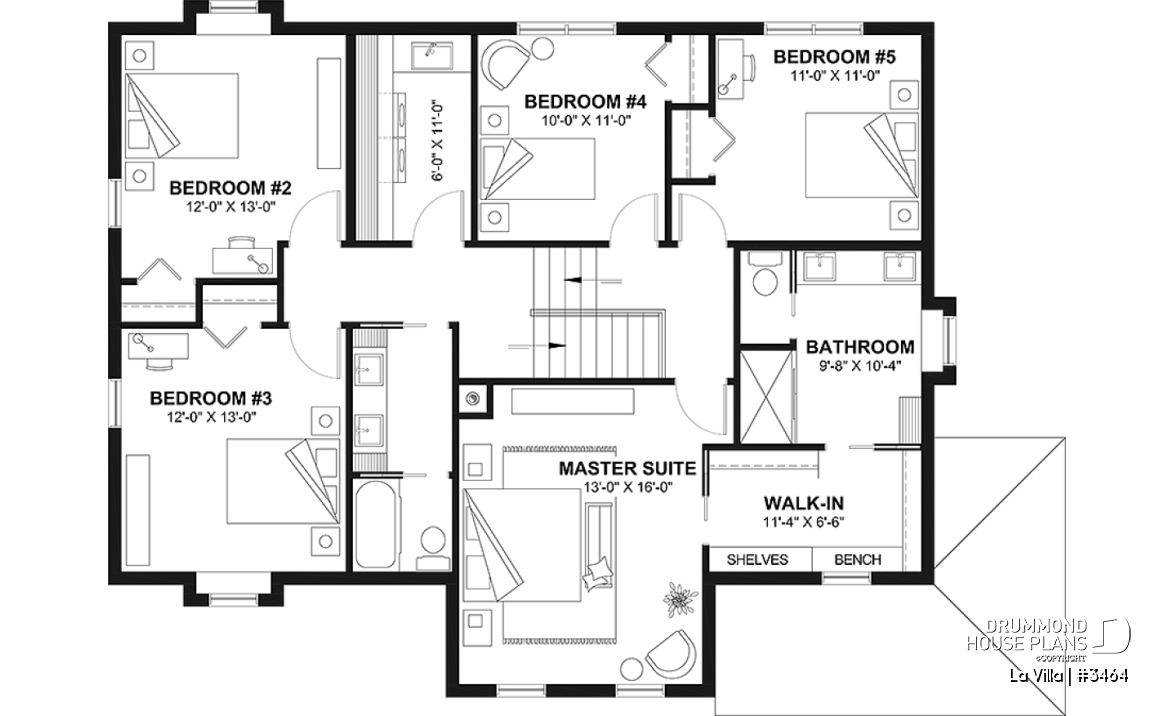

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Master suite | 13'0" x 16'0" | ~ 8'0" |
| Full bathroom | 9'8" x 10'4" | ~ 8'0" |
| Enclosed toilet space | 2'8" x 5'0" | ~ 8'0" |
| Shower | 5'0" x 3'0" | N/A |
| Linen | 2'6" x 1'2" | N/A |
| Bedroom | 12'0" x 13'0" | ~ 8'0" |
| Closet | 4'0" x 2'0" | ~ 8'0" |
| Bedroom | 12'0" x 13'0" | ~ 8'0" |
| Closet | 4'0" x 2'0" | ~ 8'0" |
| Bedroom | 10'0" x 11'0" | ~ 8'0" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Laundry room | 6'0" x 11'0" | ~ 8'0" |
| Bathroom | 5'4" x 13'0" | ~ 8'0" |

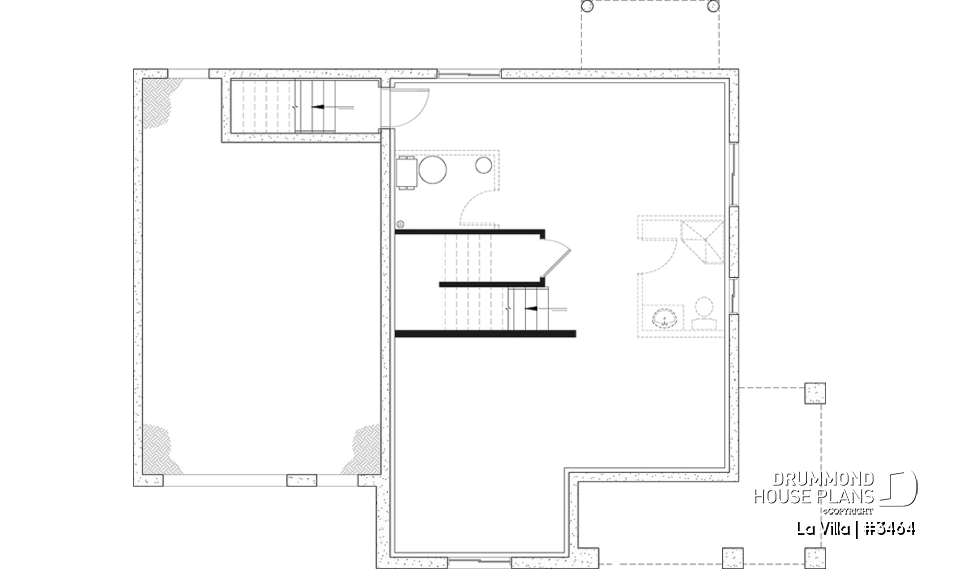

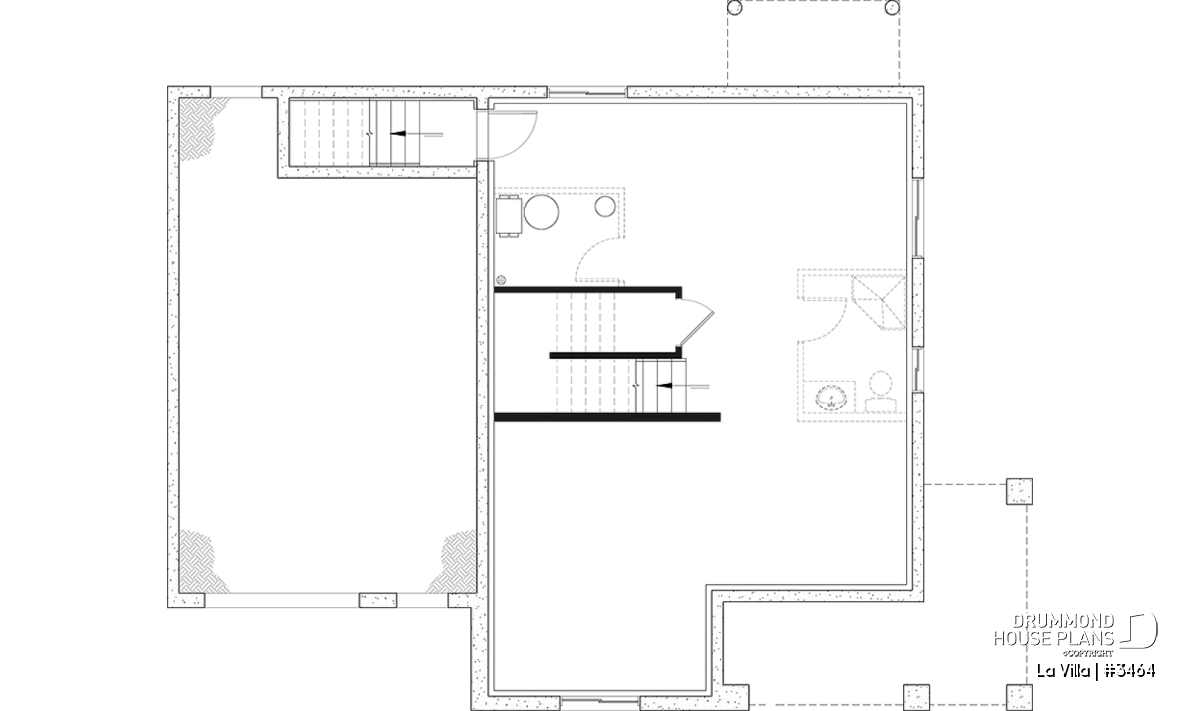

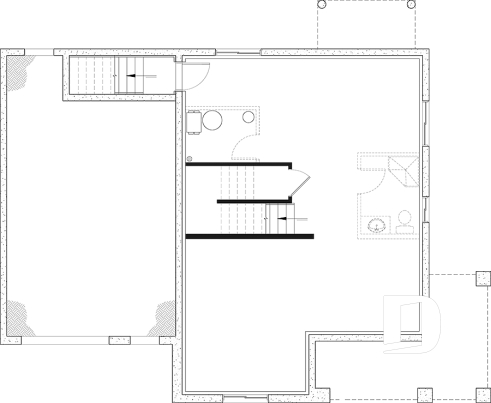

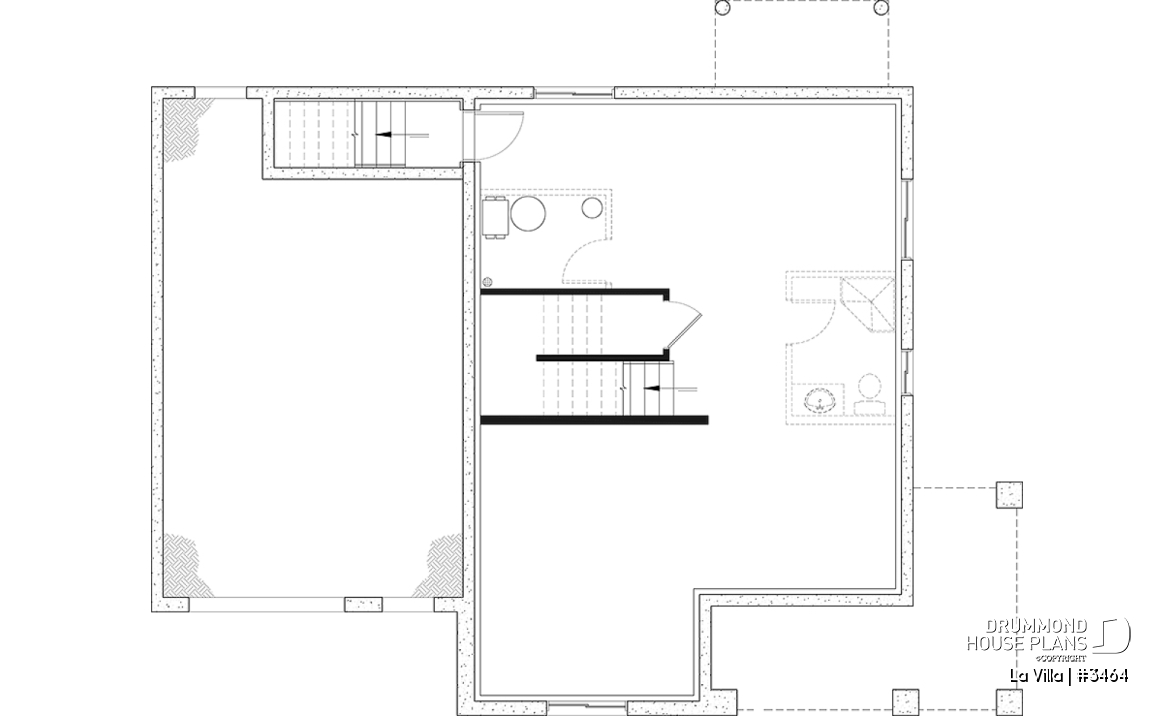

| Basement |
|---|
General specifications
| Total living area | 2297 sq.ft. |
| 1st level | 873 sq.ft. |
| 2nd level | 1424 sq.ft. |
| Basement | 873 sq.ft. |
| Width | 44'0" |
| Depth | 36'4" |
| Ridge height from top of foundation | 30'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | F |
Rooms specifications
Other useful information on this plan

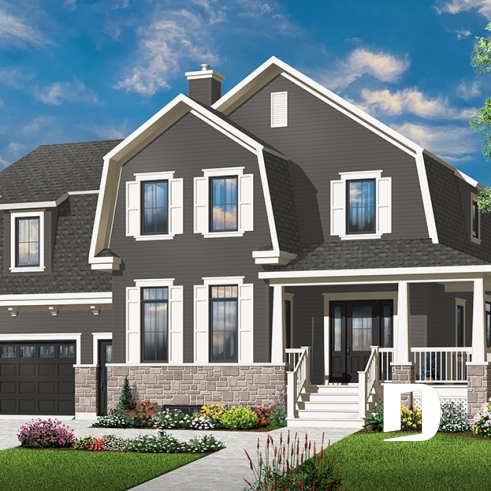

Modern barn-style house plan with five bedrooms and lots of advantages!

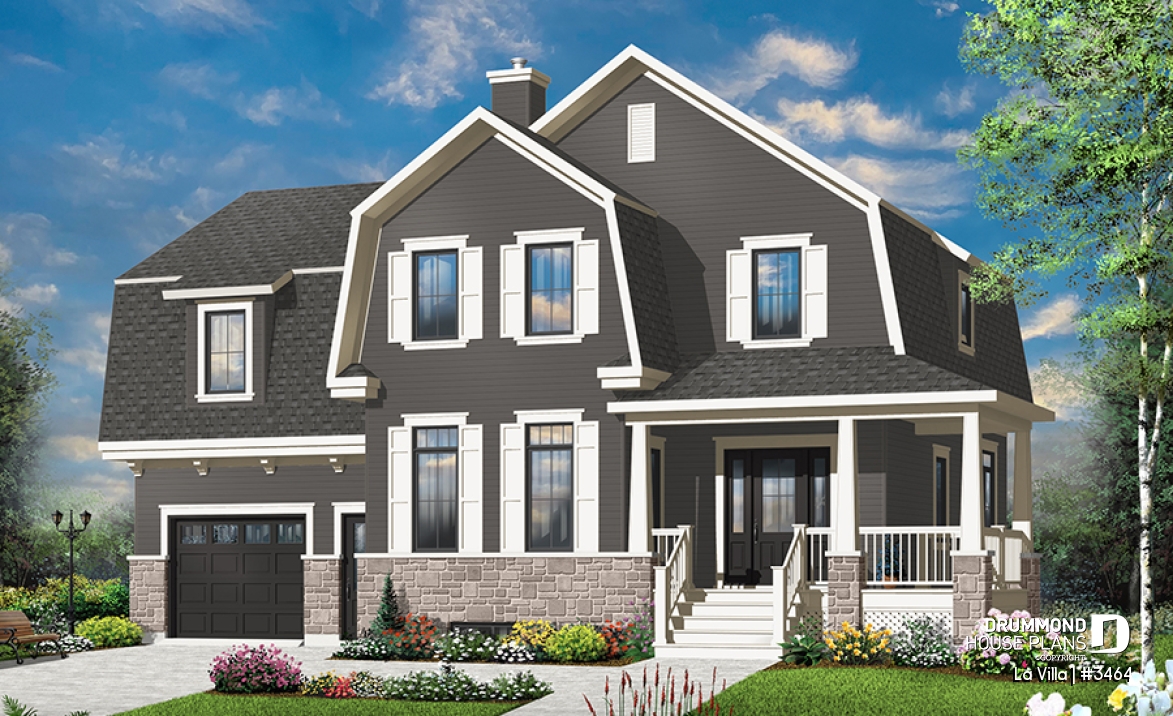

LA VILLA house plan (plan #3464) offers 2,297 sq. ft. on 2 floors, excluding the basement which is unfinished. In order to meet the bedroom needs of certain families, such as blended ones, Drummond House Plans offers this spacious floor plan that also offers a 17'-4'' x 28'-8'' garage wonderfully suited for a large family. Not to mention this covered front porch, on the front elevation which provides a very inviting touch to this home.

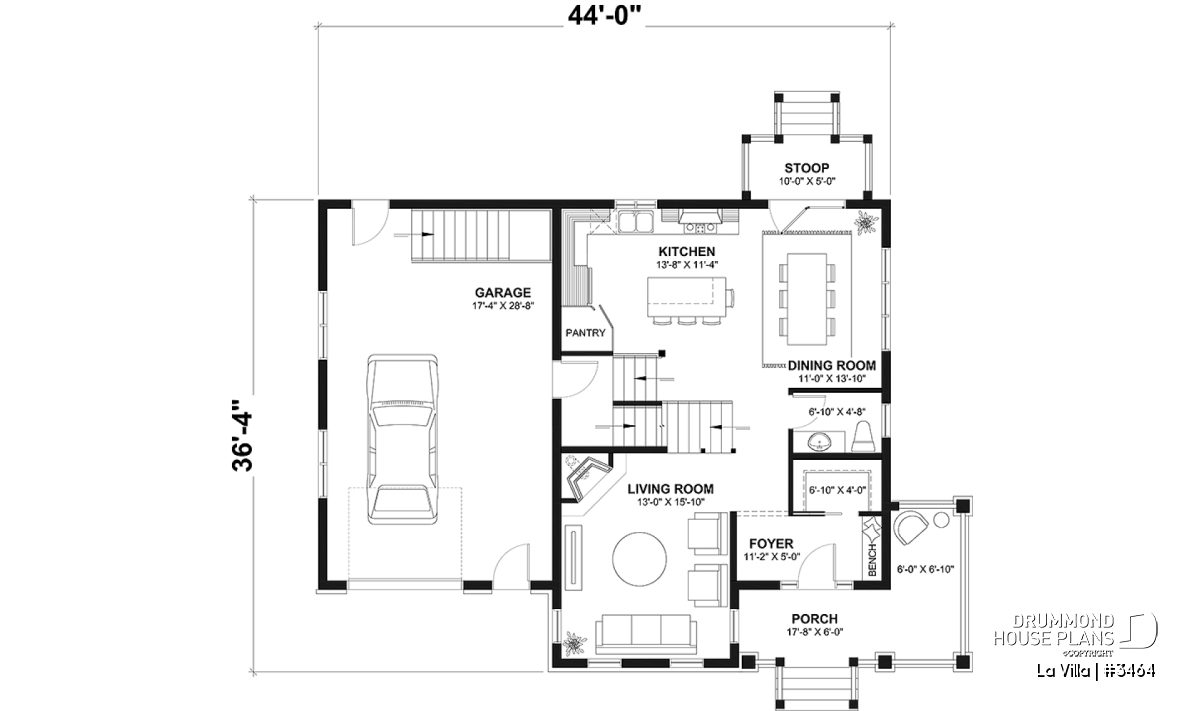

Inside, on the ground floor and at the front, a mudroom with a suitable walk-in coat closet and a nicely-sized living room with a corner fireplace. Then at the back, a kitchen-dining room area with plenty of windows with a table for eight guests, a lunch island and a corner pantry. Note here the presence of a 9' ceiling for the entire ground floor with direct access to the garage and also access to the basement from the garage.

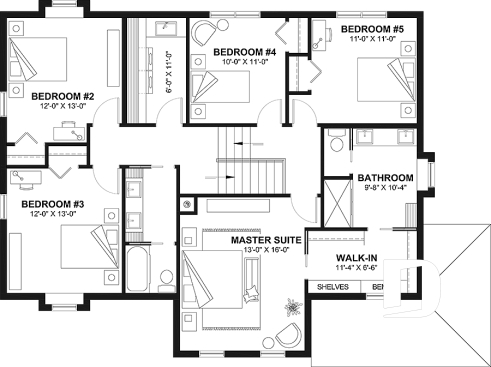

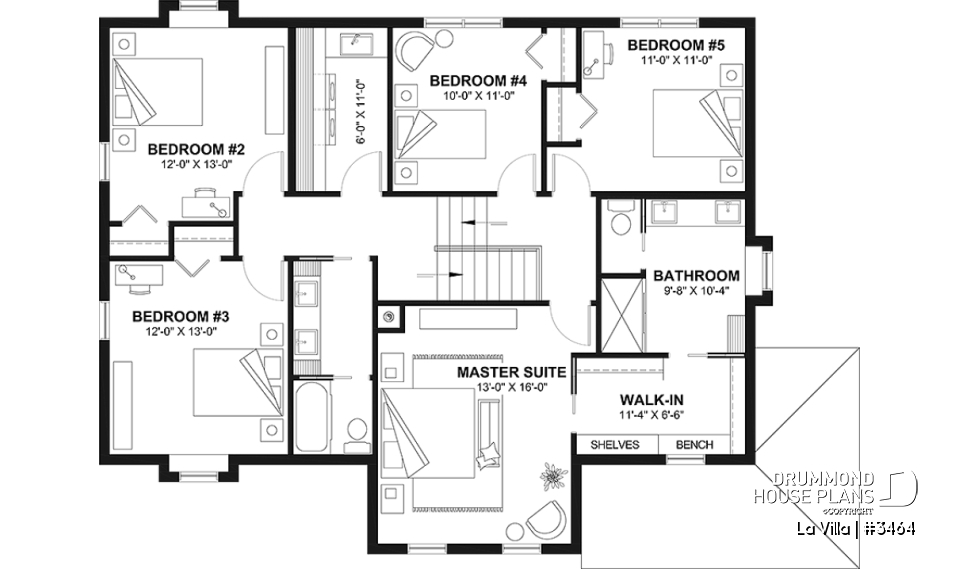

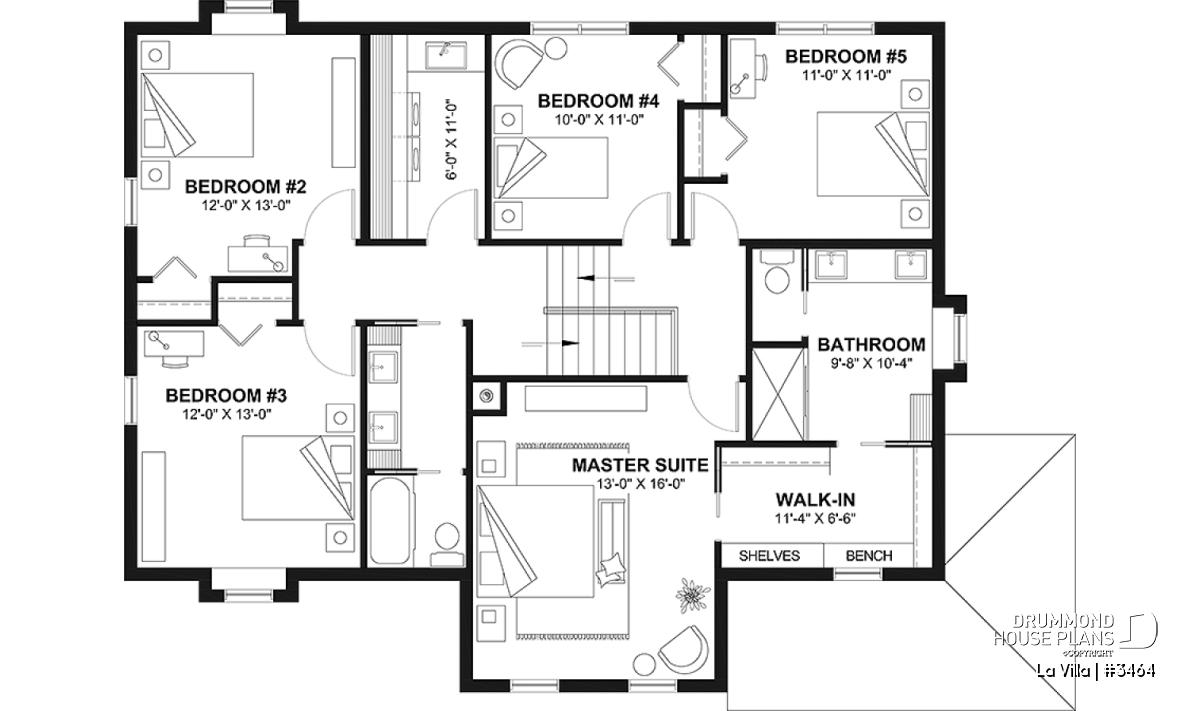

Upstairs above the garage are five bedrooms including a master suite with a private bathroom, large shower and walk-in closet. For the children, we notice a bathroom with a double sink vanity as well as a toilet and bath area for even more functional use. Not to mention the laundry room that will certainly be appreciated on this floor where we find all the bedding and linens.
This house offers the comfort and privacy so sought after by members of large families!
Distinctive elements
Beautiful modern barn style house with garage.
9' ceiling on the ground floor.
Entrance mudroom with large walk-in closet and a bench.
Five bedrooms planned upstairs including a master suite with walk-in closet and private bathroom.
The children's bathroom, upstairs, has double sinks on one side, and toilet and bath on the other.
Kitchen with central lunch island and walk-in pantry.
Living room with corner fireplace.
Practical laundry room, located upstairs.
Garage with access to the basement.
Plan feature(s)
Second floor laundry room, Island, Pantry, Master suite upstairs, Ceiling over 8', Walk-in master bed., Double sinks, Fireplace, Basement access from garage, Bench seat(s), Shelves, Double sinks
Plan architectural style(s)
. Cape Cod, . Farmhouse, . Craftsman / Northwest, . American, . Country, . Vacation and waterfront
