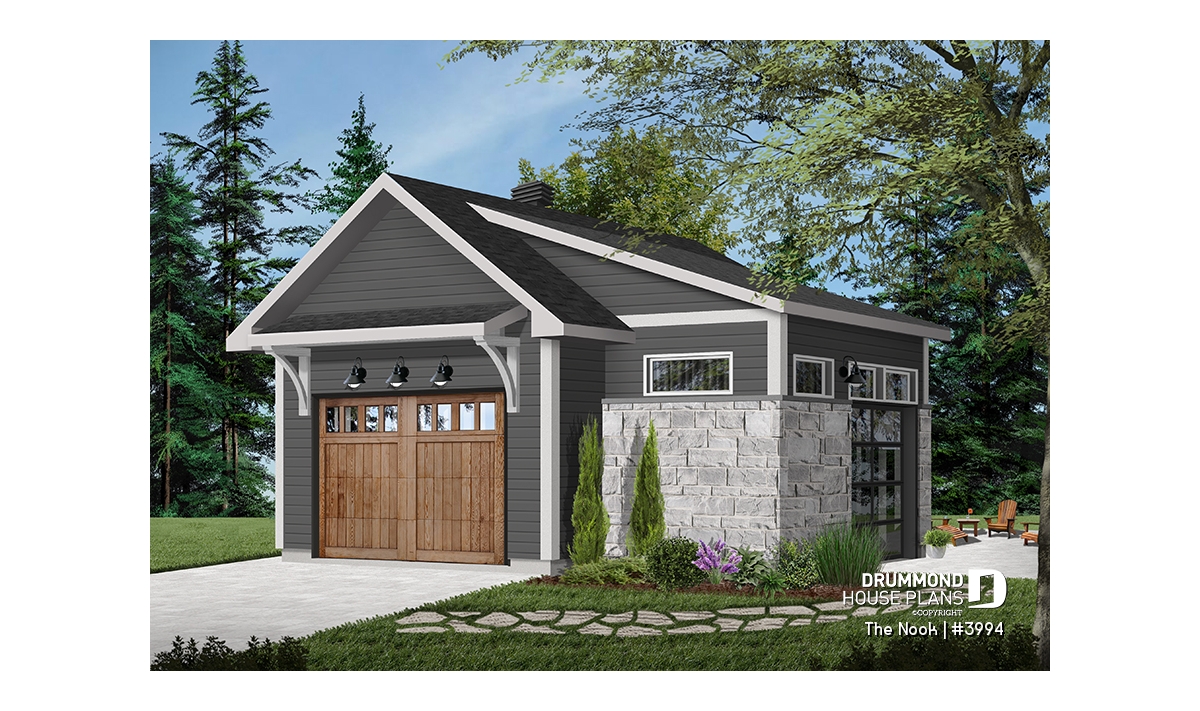

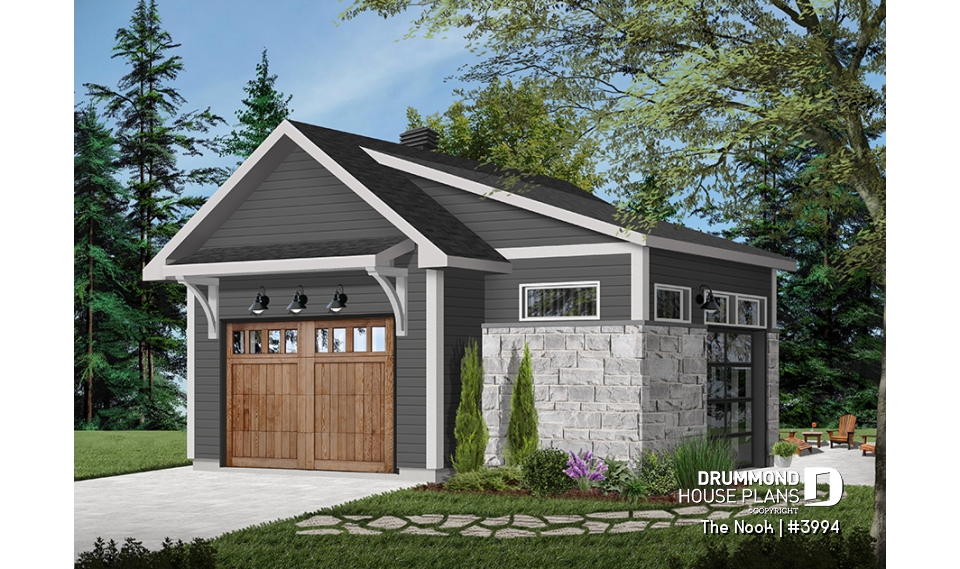

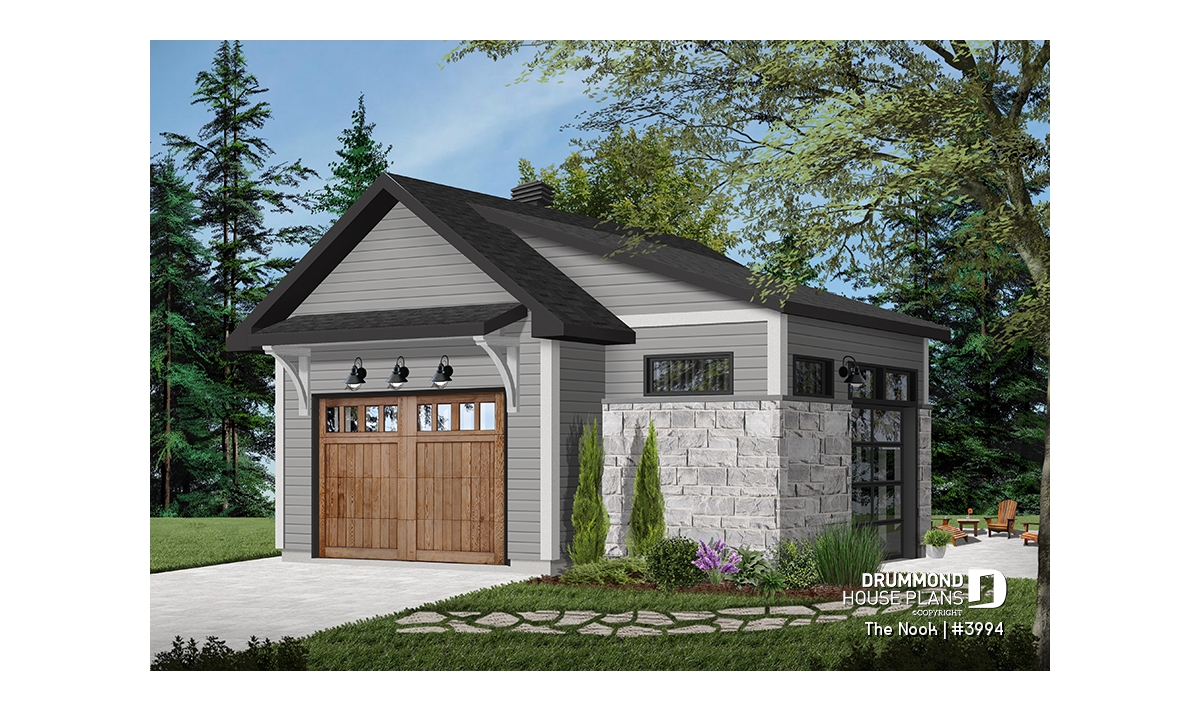

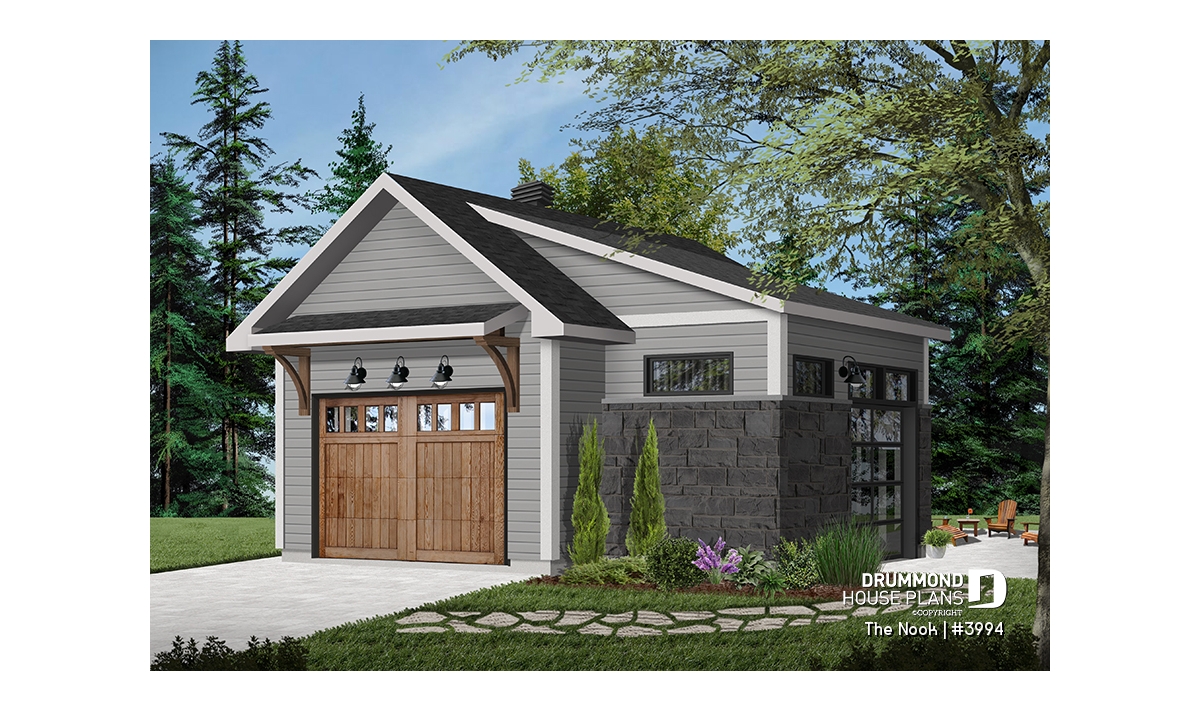

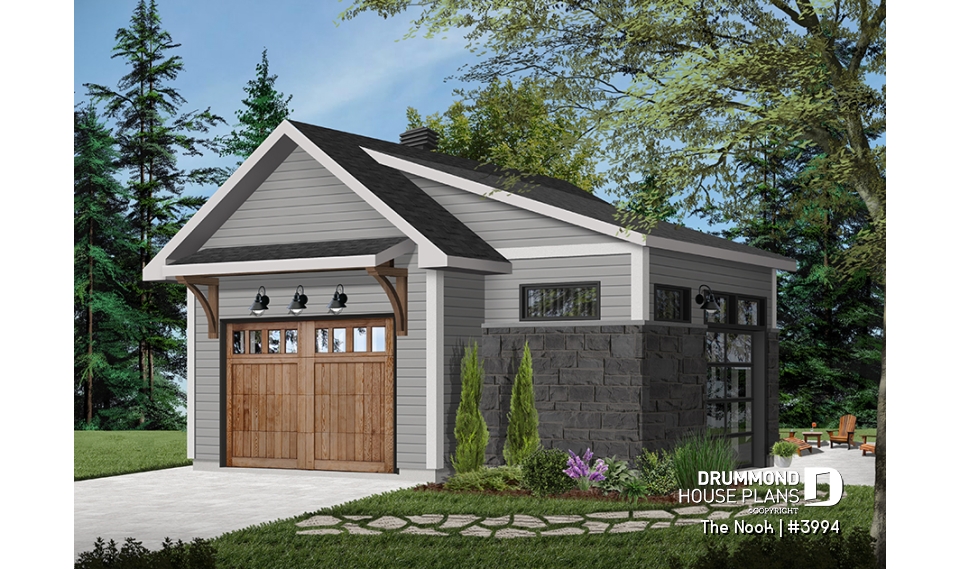

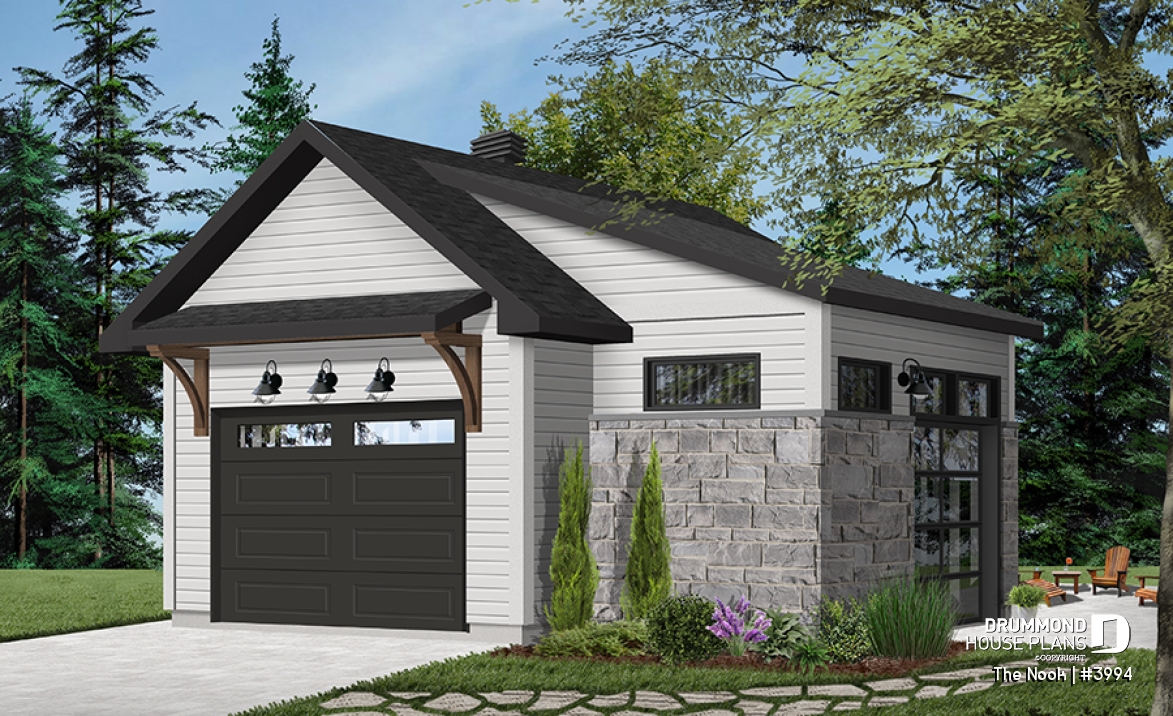

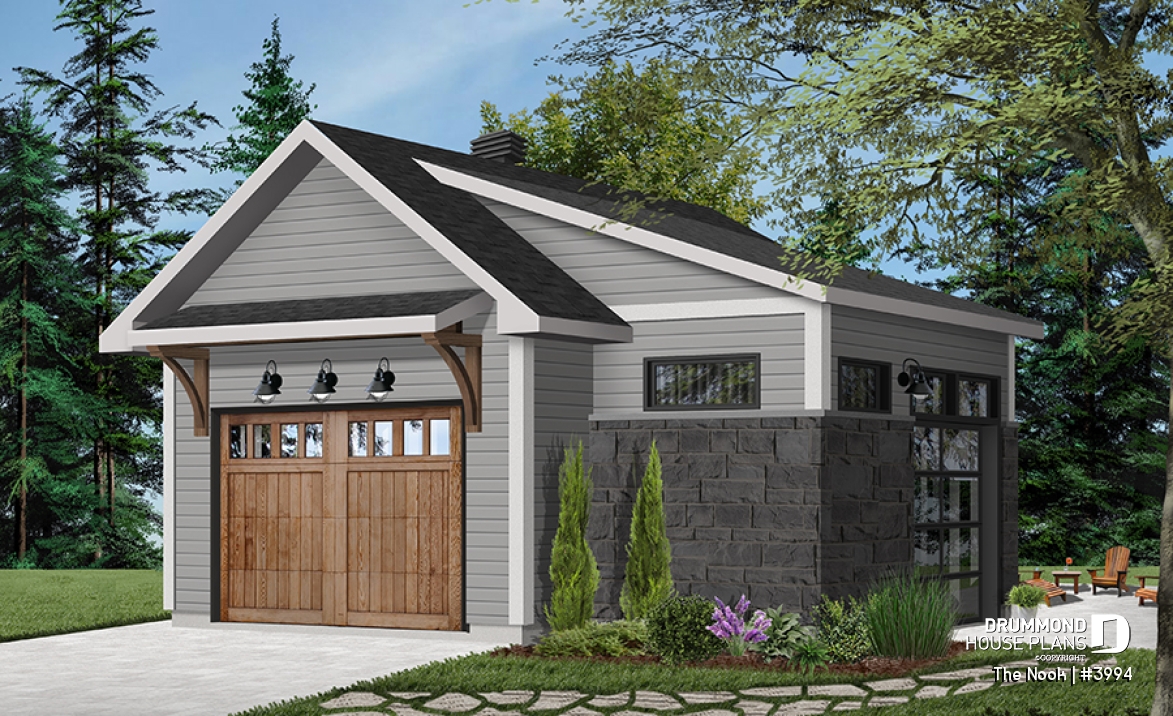

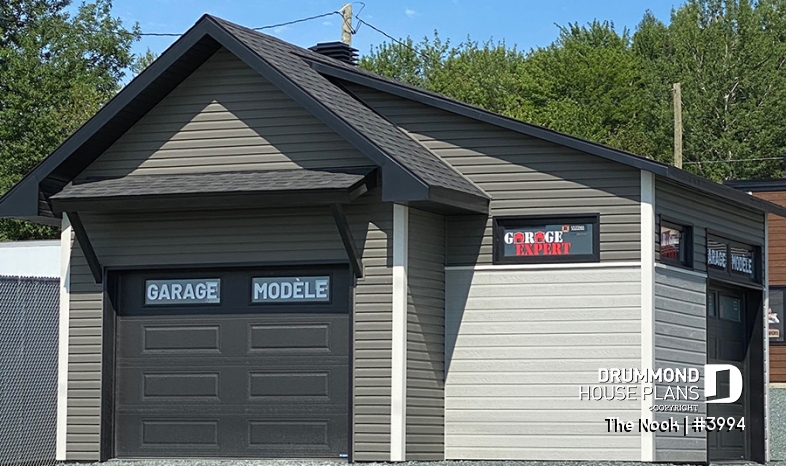

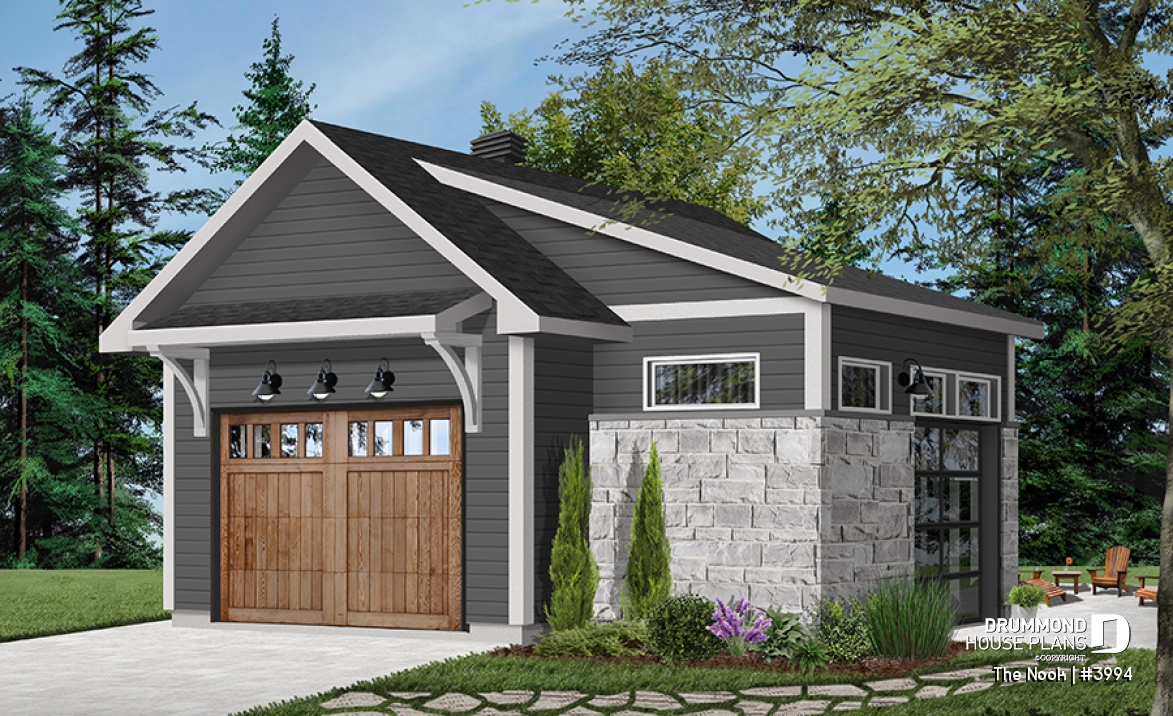

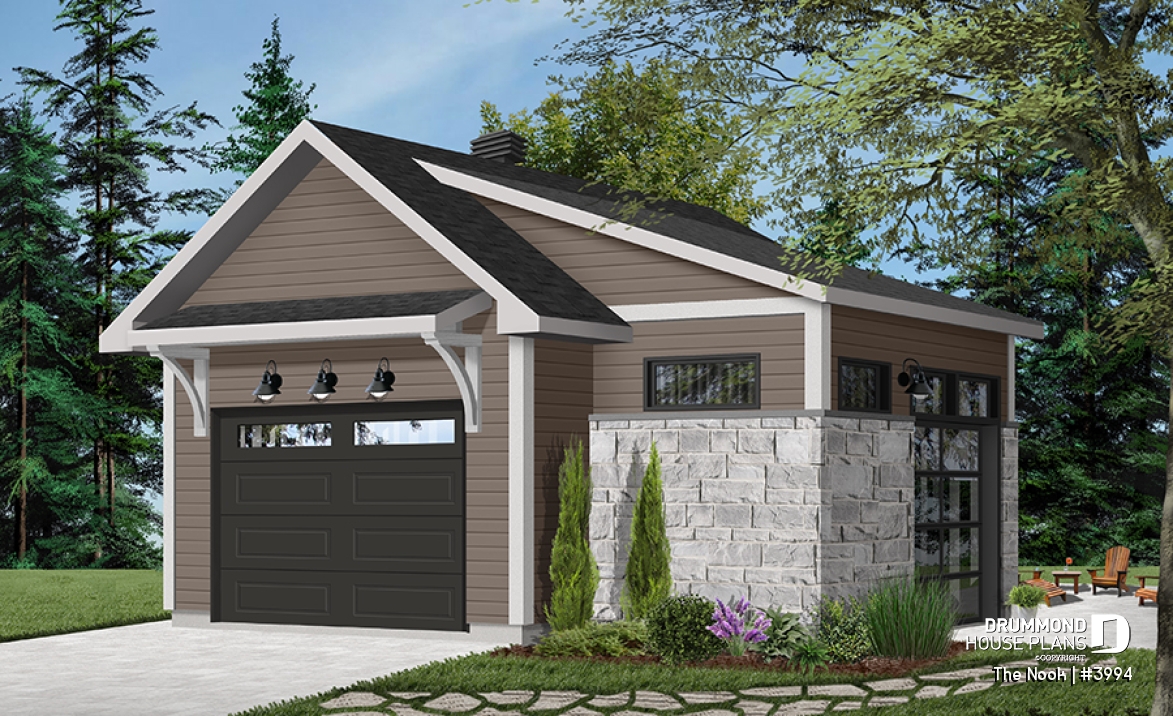

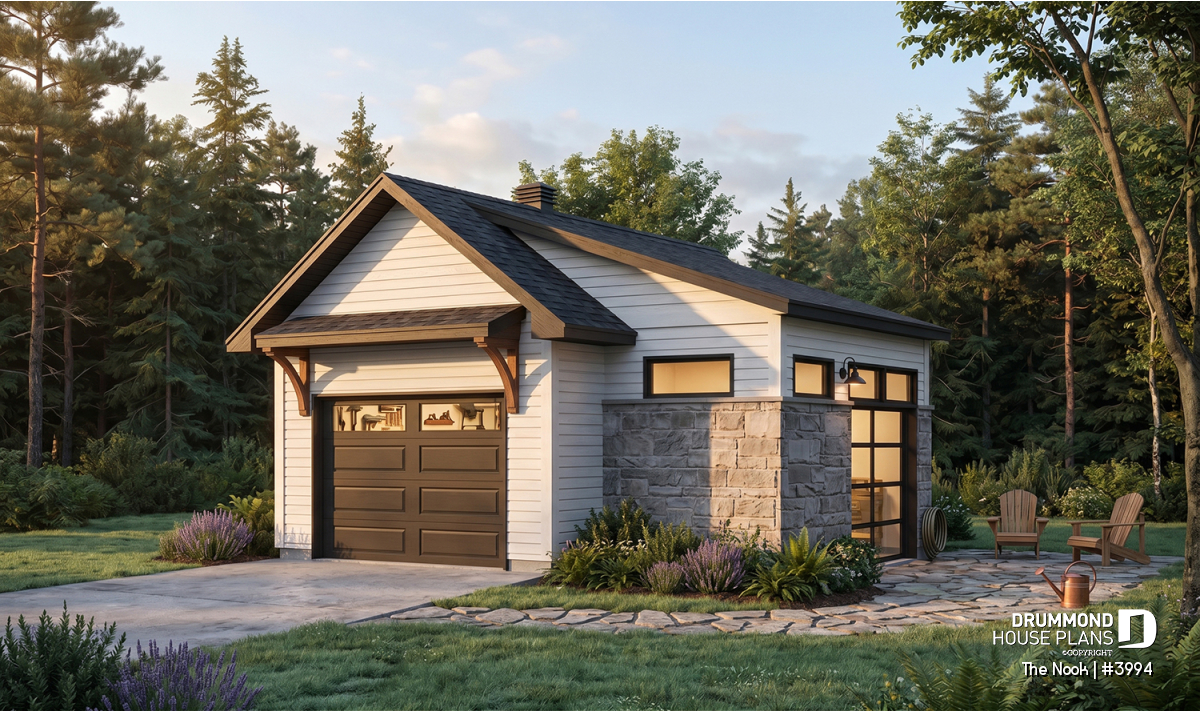

Garage plan The Nook (3994)

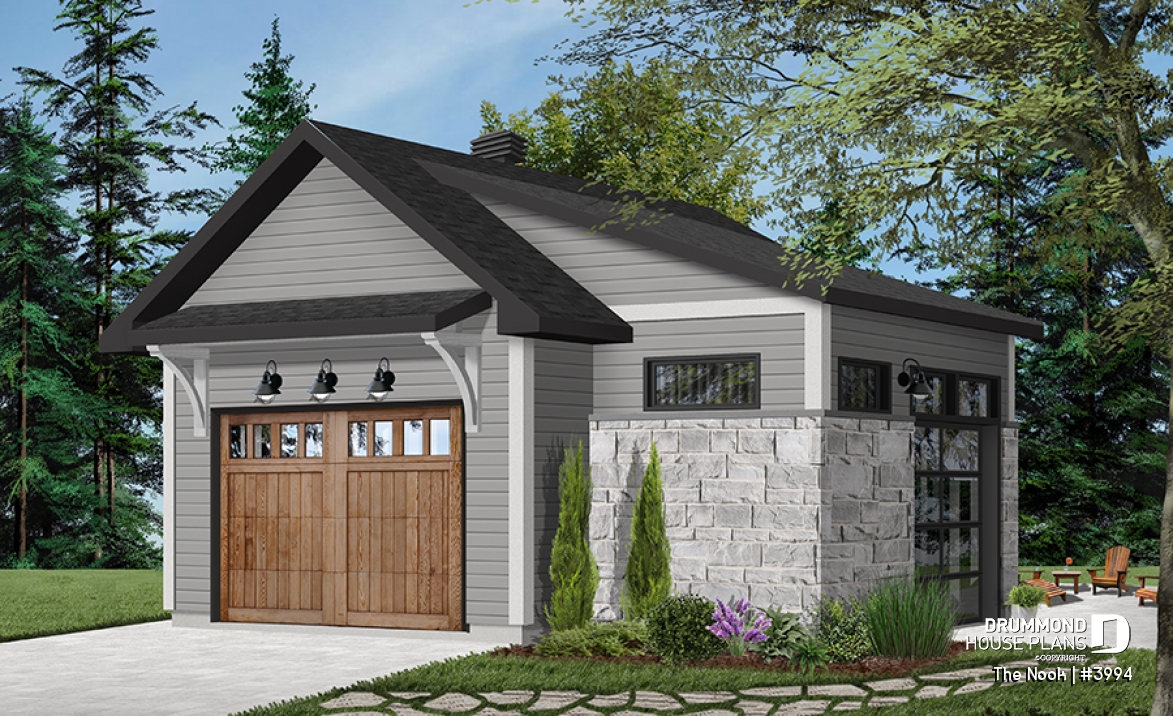

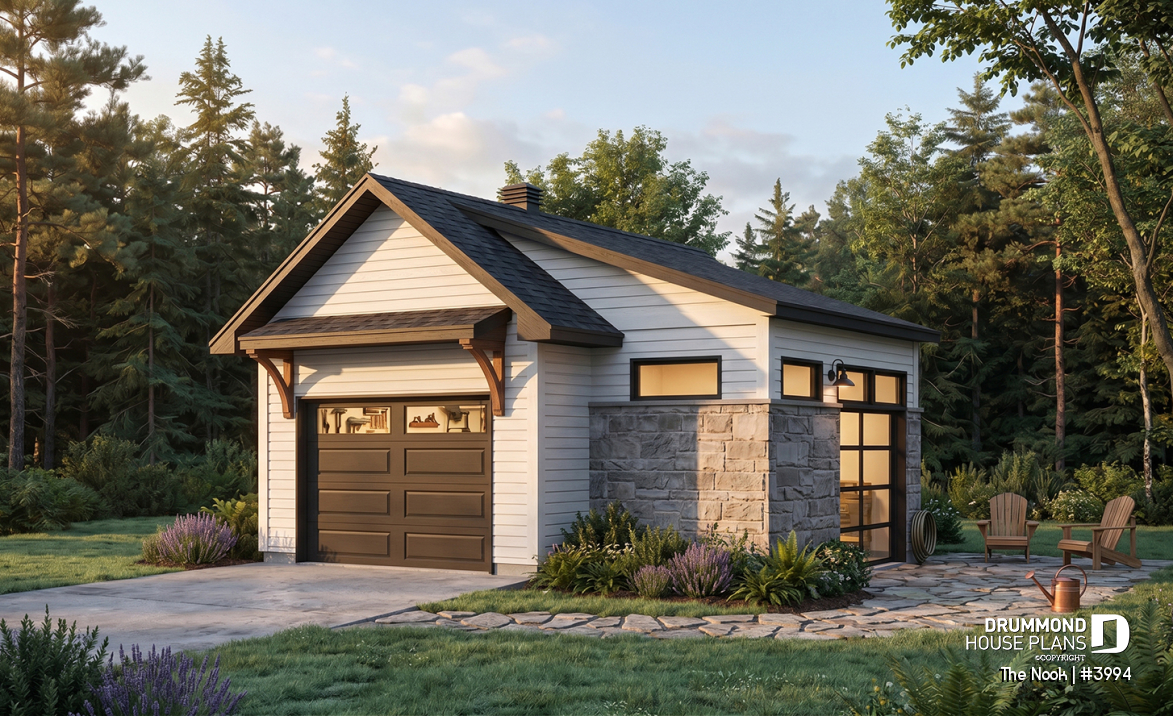

One-car detached garage with entertaining area, front and side garage doors, man cave garage plan

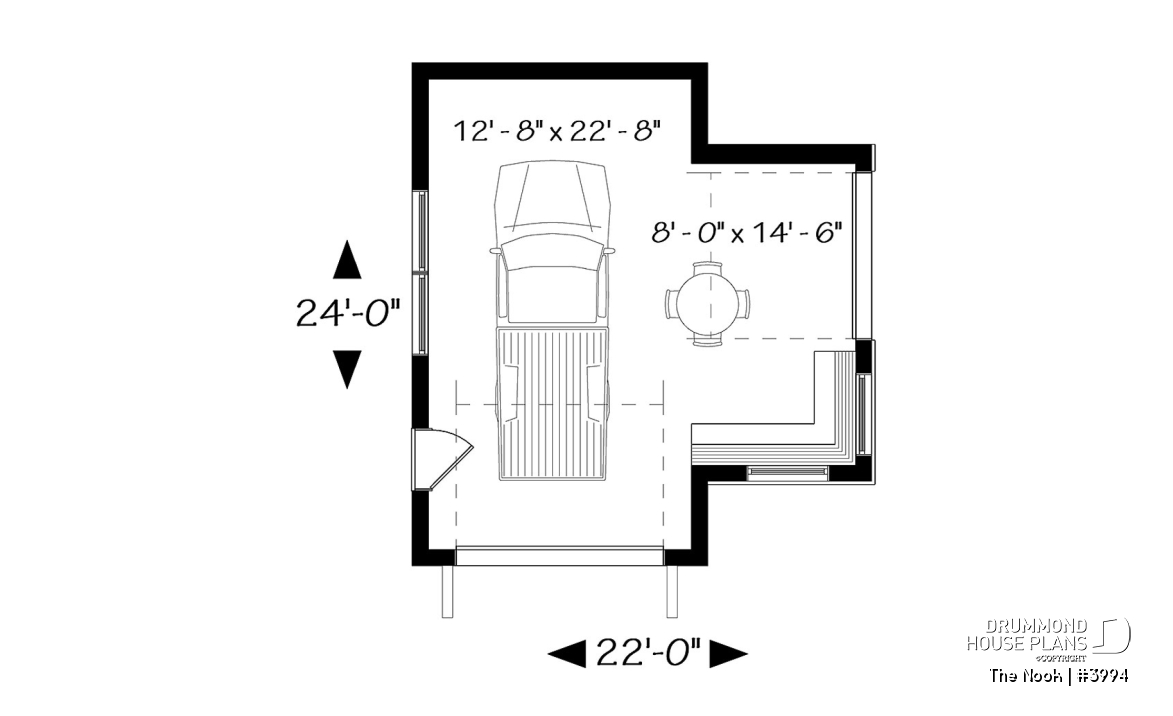

View the size of the rooms and height of the ceilings

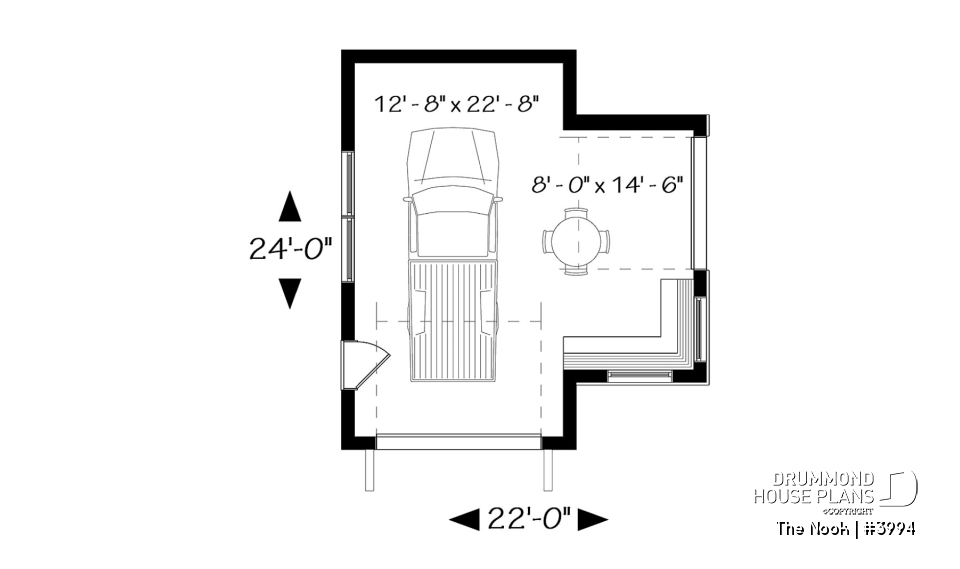

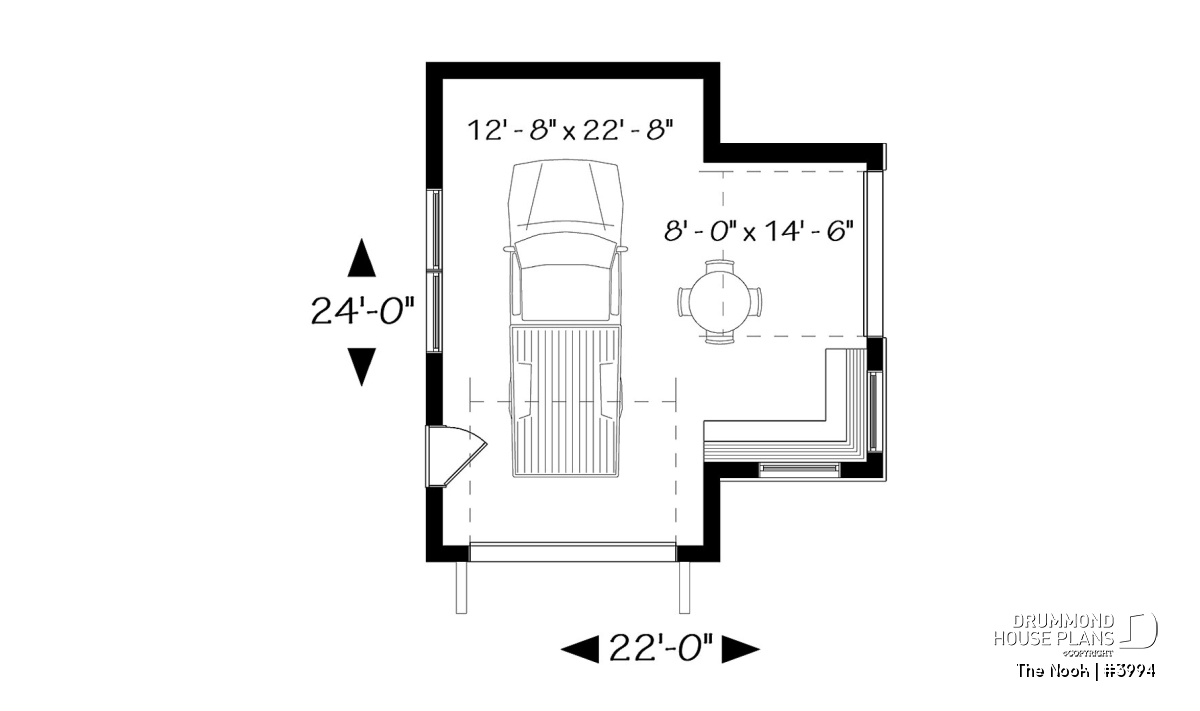

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 12'8" x 22'8" | ~ 8'8" |
| Workshop | 8'0" x 14'8" | ~ 10'0" |
General specifications
| Total living area | 464 sq.ft. |
| 1st level | 464 sq.ft. |
| Width | 22'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 15'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G1C |
Rooms specifications
Other useful information on this plan
Man cave one-car garage plan with entertaining area.
.
Distinctive elements
1-car garage with bonus space.
Entertaining area for a bar or storage (man cave).
Total of 464 sq.ft.
Size: 22' x 24'
Service door on the side.
Windows on the front and both sides.

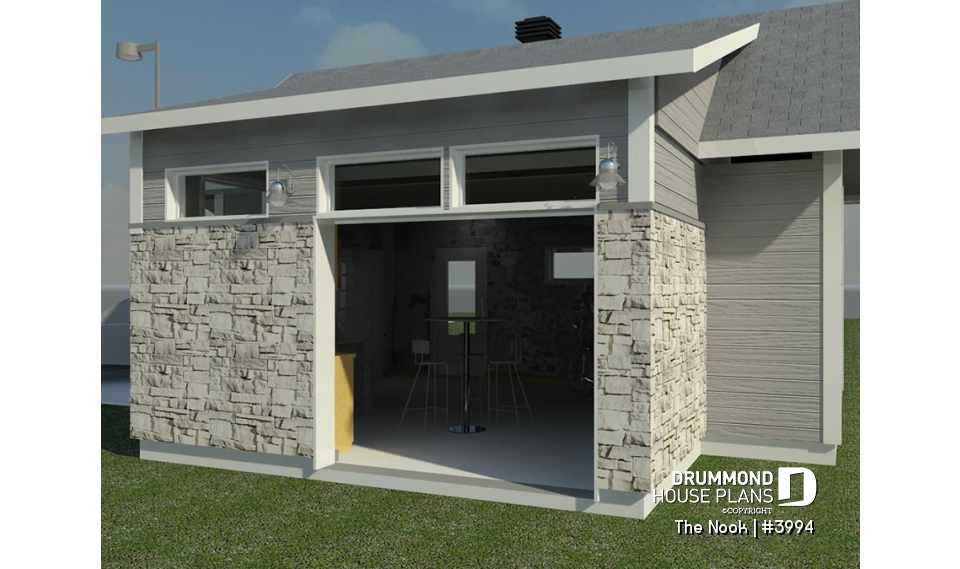

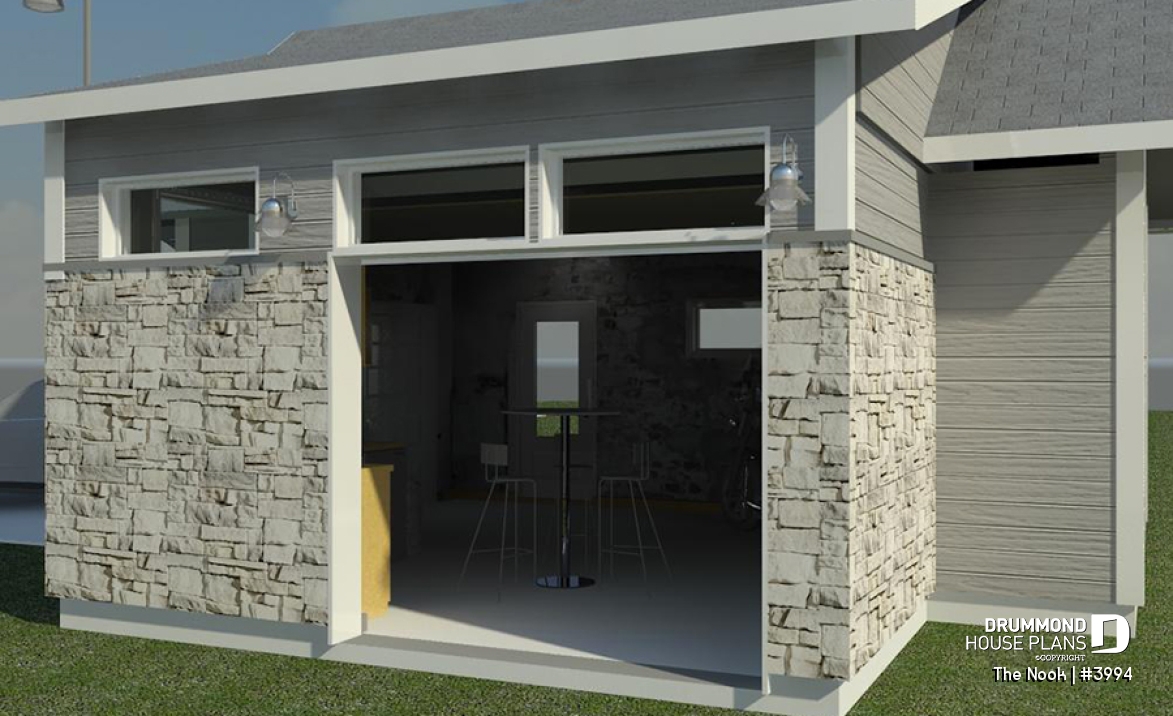

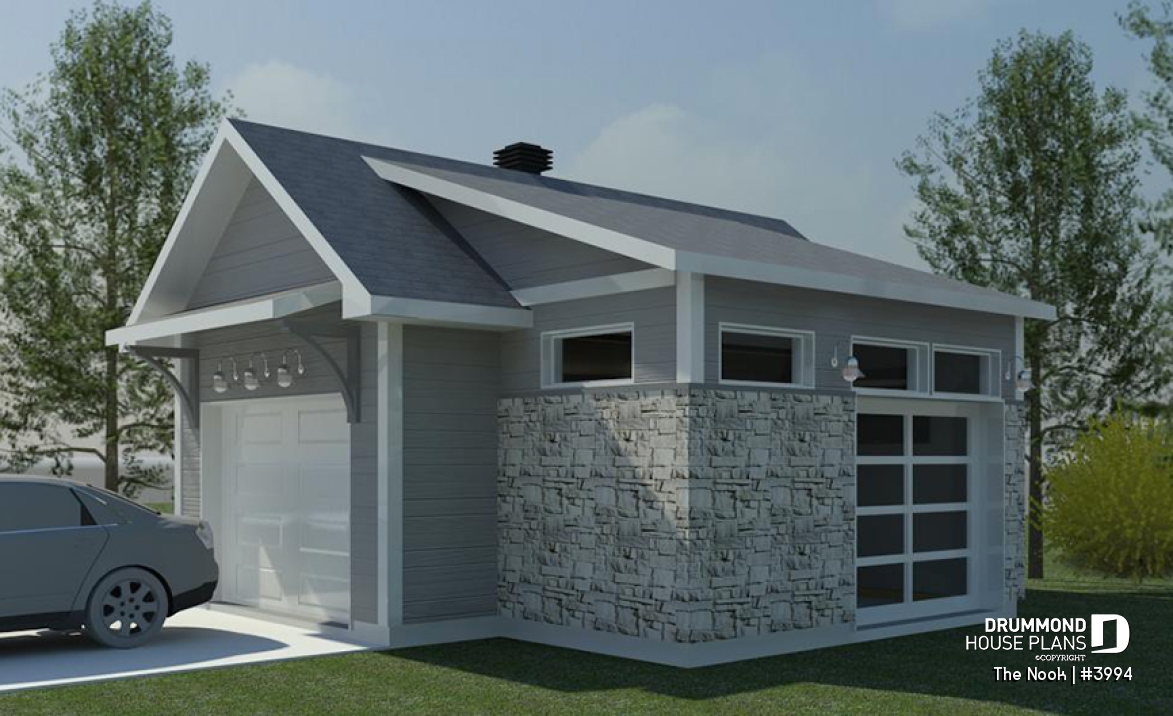

Garage door in the front and another on the side, opening onto the courtyard (or the swimming pool!).
Foundation: floating slab.
Insulated walls.
Plan feature(s)
Oversized garage, Ceiling over 8'
Plan architectural style(s)
. Craftsman / Northwest, . Rustic, . Transitional, . Modern rustic, . Country, Modern Craftsman, . Pool House Plans and Cabanas, Trending
