Garage plan Lawson (2992-24)
2-car garage plan
View the size of the rooms and height of the ceilings

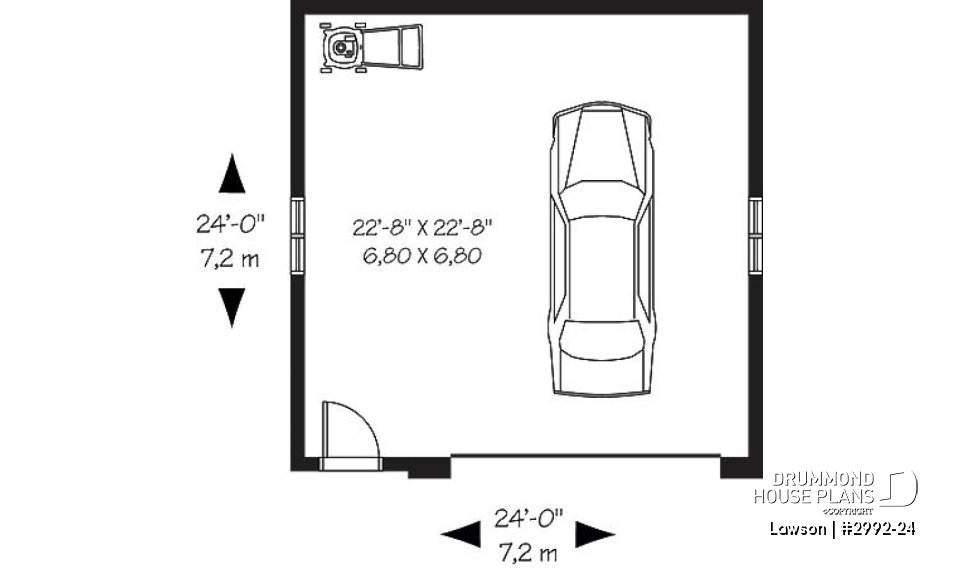

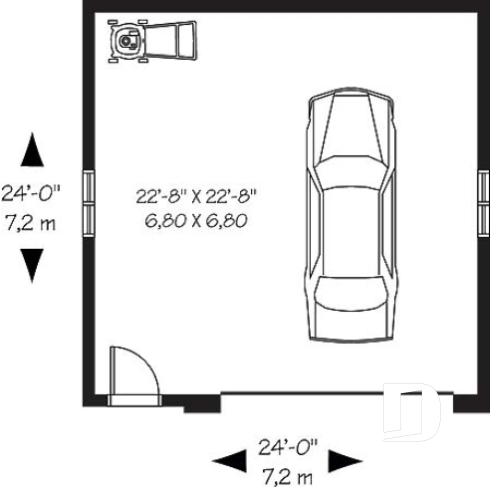

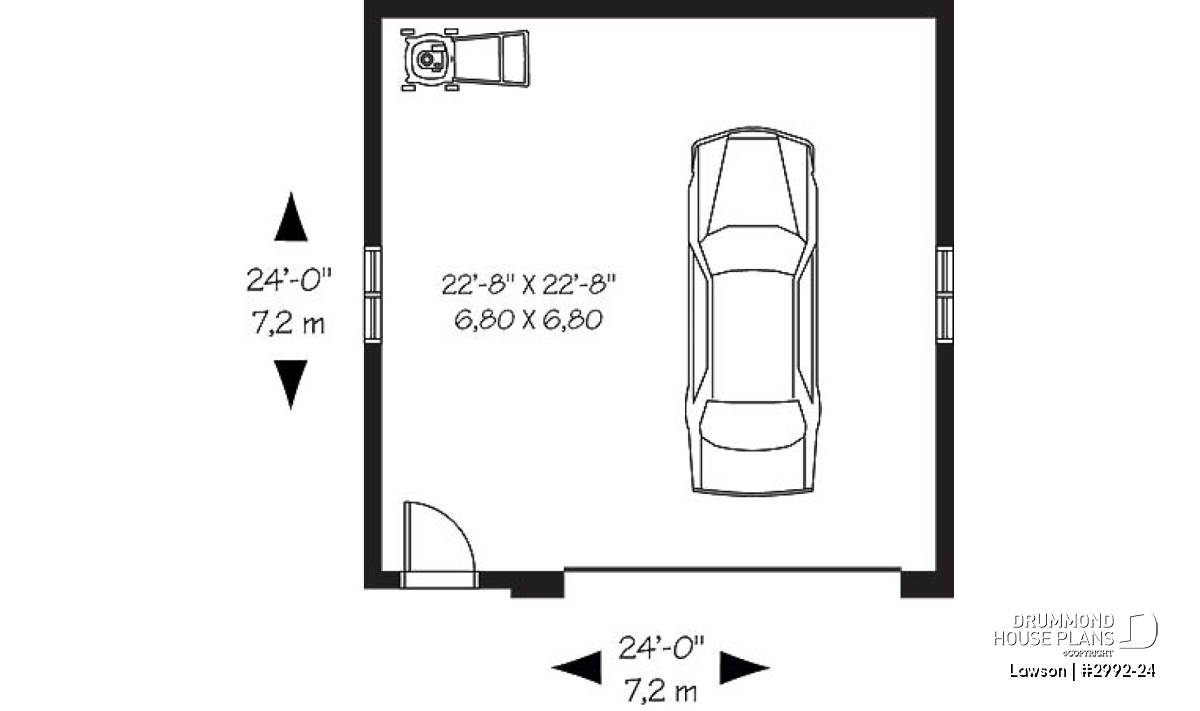

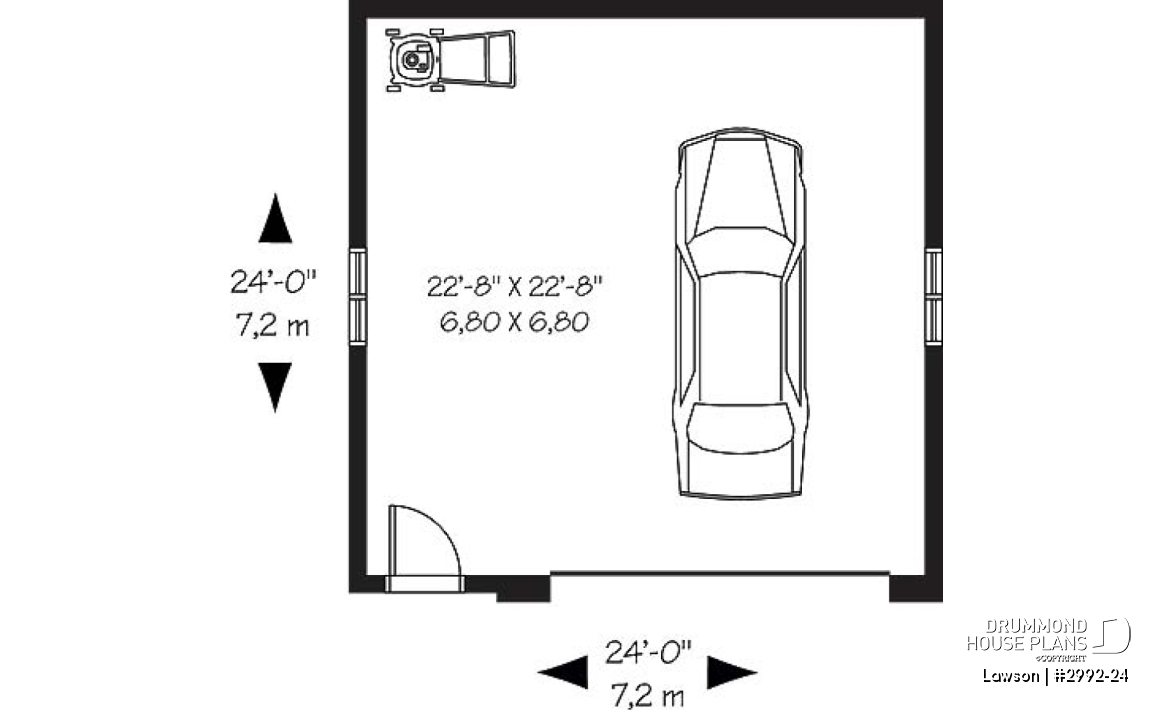

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 22'8" x 22'8" | ~ 8'0" |
General specifications
| Total living area | 576 sq.ft. |
| 1st level | 576 sq.ft. |
| Width | 24'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 17'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G1C |
Rooms specifications
Other useful information on this plan
All in the details
Cascading gables and trim details add visual interest to this two-car garage. The generous 24 foot width and depth allows for roomy parking and perimeter storage and work spaces.
Distinctive elements
Garage plan of 576 sq.ft. in total.
Size of 24' x 24'
A front door and two side windows.
Foundation: floating slab.
Insulated walls.
Plan architectural style(s)
. Traditional, . Country, . Craftsman / Northwest, . American
Similar plans
Previously Viewed Plans
Questions and comments
April 16
Doane Cafferty
Can this plan accommodate an 8' high garage door?
February 24
Don Majerle
What is the size of the overhead door for garage plan W2992-24-Lawson
February 24
Customer service
Good day Mr. Majerle and thank you for taking the time to write.
The garage door for this plan is 14' wide and the standard 7' high.
Please let me know if you have any other questions or comments.
Regards
Deb
November 02
harold kelly
whats the pitch on this roof for this garage package
November 03
Customer service
Dear Mr Kelly,
Thank you for your interest in Drummond House Plans.
The roof pitch for this plan is 8/12.
Please contact me again if you need further information. I will gladly answer any question you may have.
Best Regards,
Doreen, Customer Service Department
