House plan Abbot 3 (2096-V1)
Buy this planFrom 2230$ See prices and options
House plan Abbot 3 (2096-V1)
Economical 2 bedroom Modern style triplex house plan with great open floor plan layout
Buy this plan
Special: Free shipping!
Need help?
Come see us

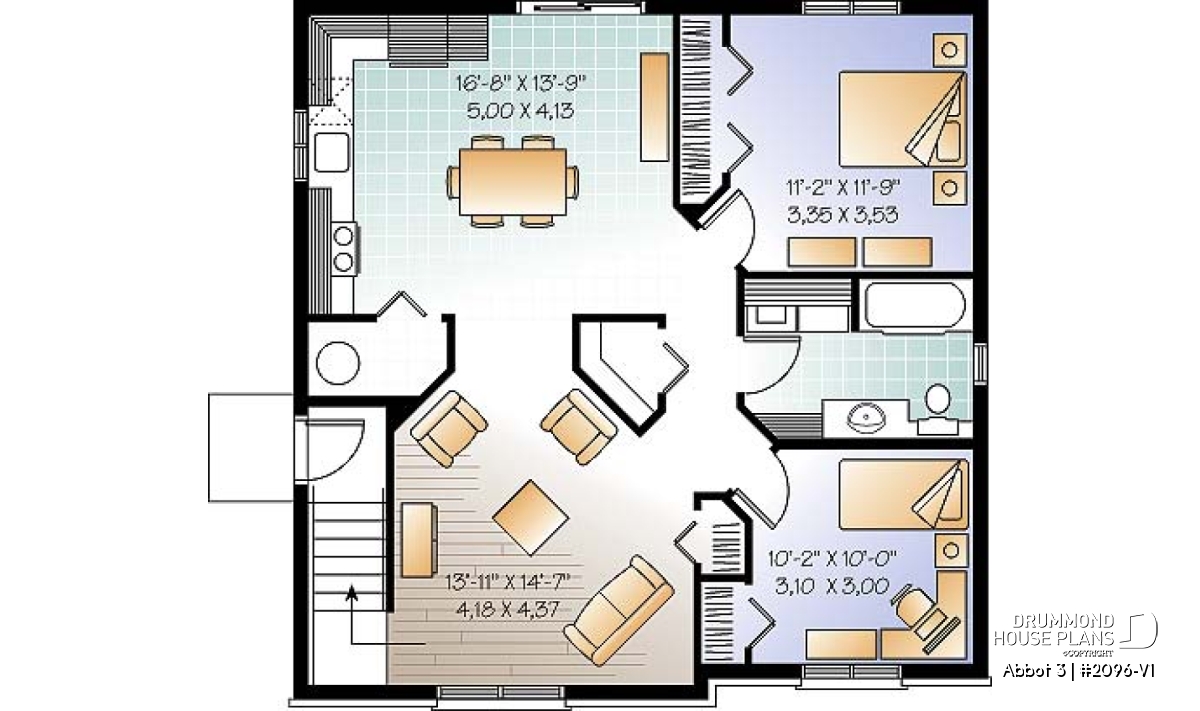

View the size of the rooms and height of the ceilings

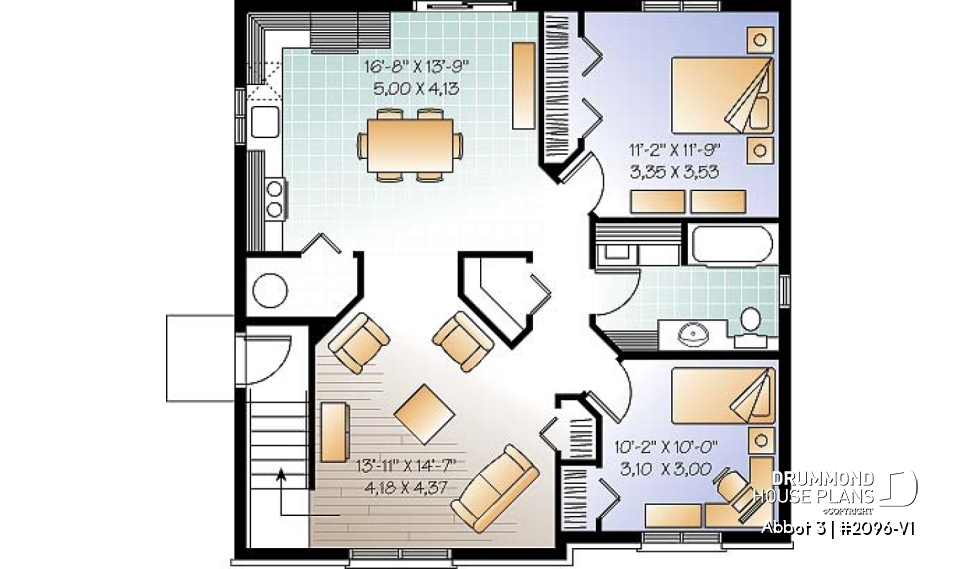

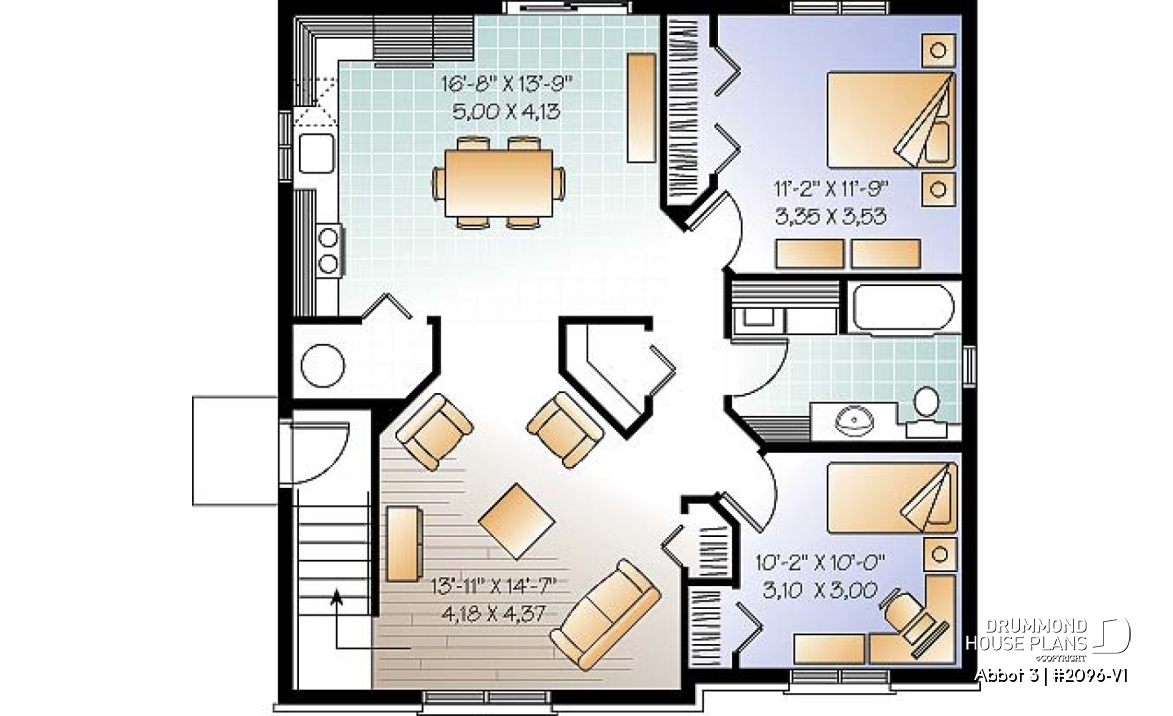

Basement | ||
---|---|---|
Rooms | Sizes | Ceiling |
Kitchen/dining room | 16'8" x 13'9" | ~ 8'0" |
Living room | 13'11" x 14'7" | ~ 8'0" |
Foyer | 3'5" x 4'7" | ~ 8'0" |
Full bathroom | 10'5" x 7'5" | ~ 8'0" |
Bedroom | 11'2" x 11'9" | ~ 8'0" |
Bedroom | 10'2" x 10'0" | ~ 8'0" |
Storage | 6'3" x 3'6" | ~ 8'0" |
Storage | 3'8" x 4'10" | ~ 8'0" |
Terrace | 11'0" x 7'6" | N/A |

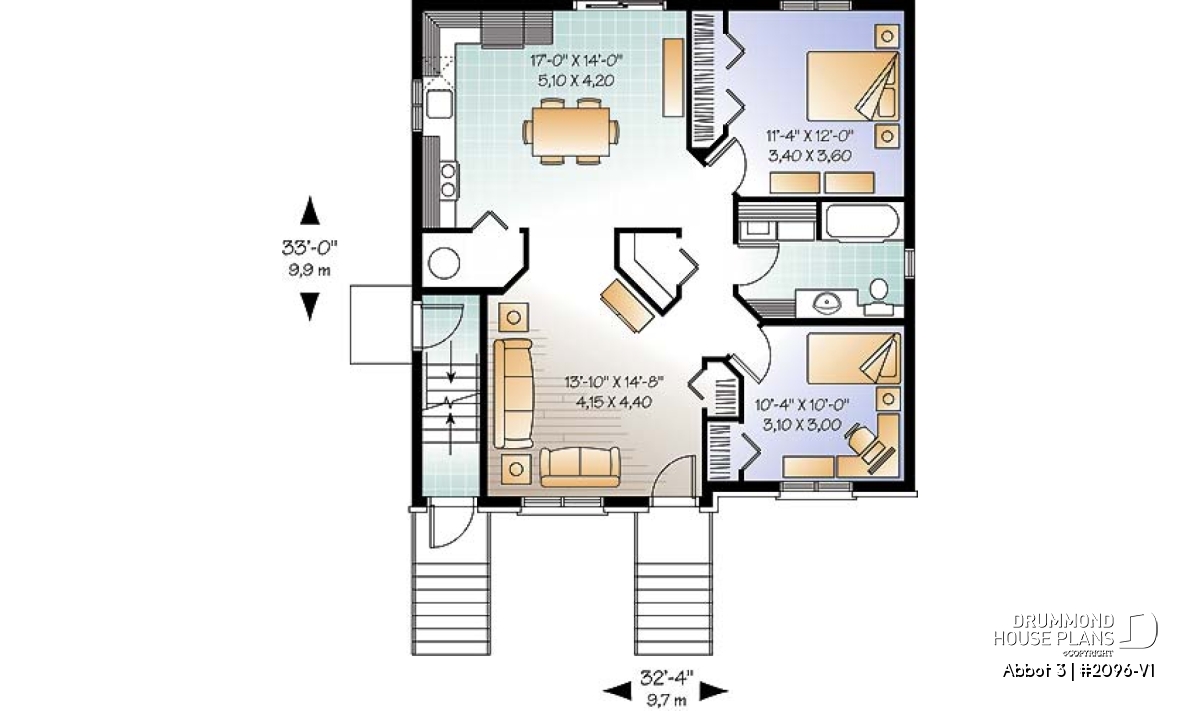

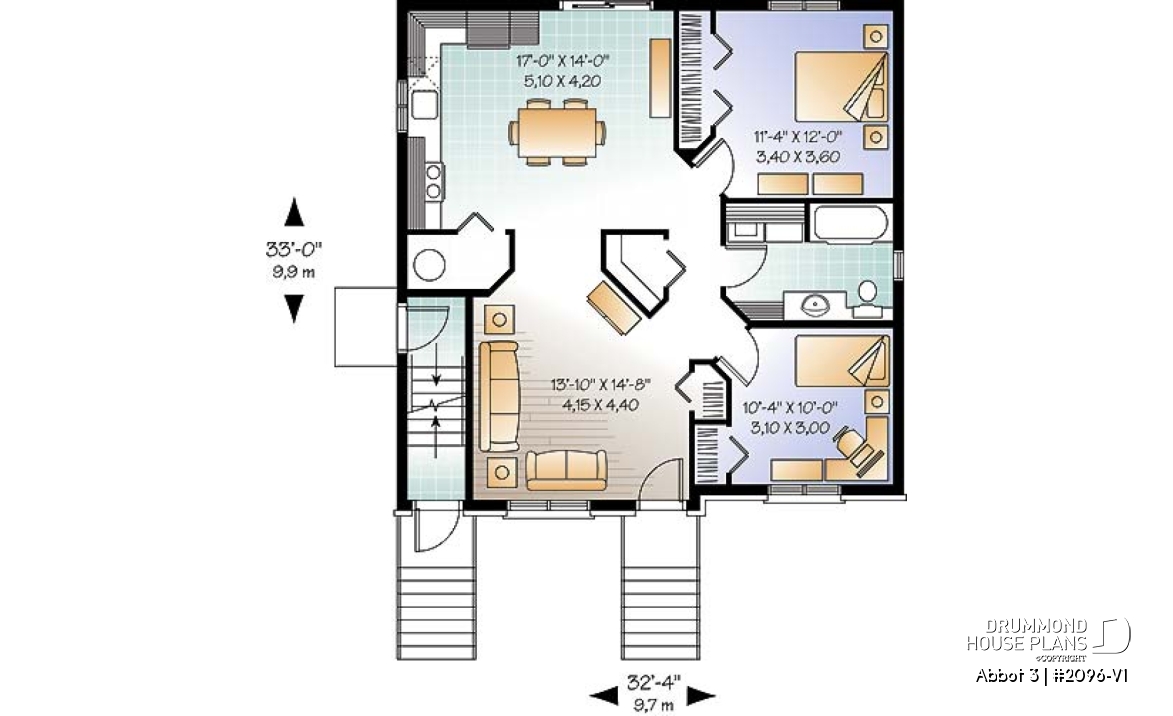

1st level | ||
---|---|---|
Rooms | Sizes | Ceiling |
Porch | 4'0" x 5'0" | N/A |
Kitchen/dining room | 17'0" x 14'0" | ~ 8'0" |
Living room | 13'0" x 14'8" | ~ 8'0" |
Full bathroom | 10'8" x 7'6" | ~ 8'0" |
Bedroom | 11'4" x 12'0" | ~ 8'0" |
Bedroom | 10'4" x 10'0" | ~ 8'0" |
Storage | 6'6" x 3'6" | ~ 8'0" |
Storage | 3'8" x 4'10" | ~ 8'0" |
Porch | 5'0" x 3'4" | N/A |
Covered deck | 12'0" x 8'0" | N/A |
Porch | 5'0" x 3'4" | N/A |

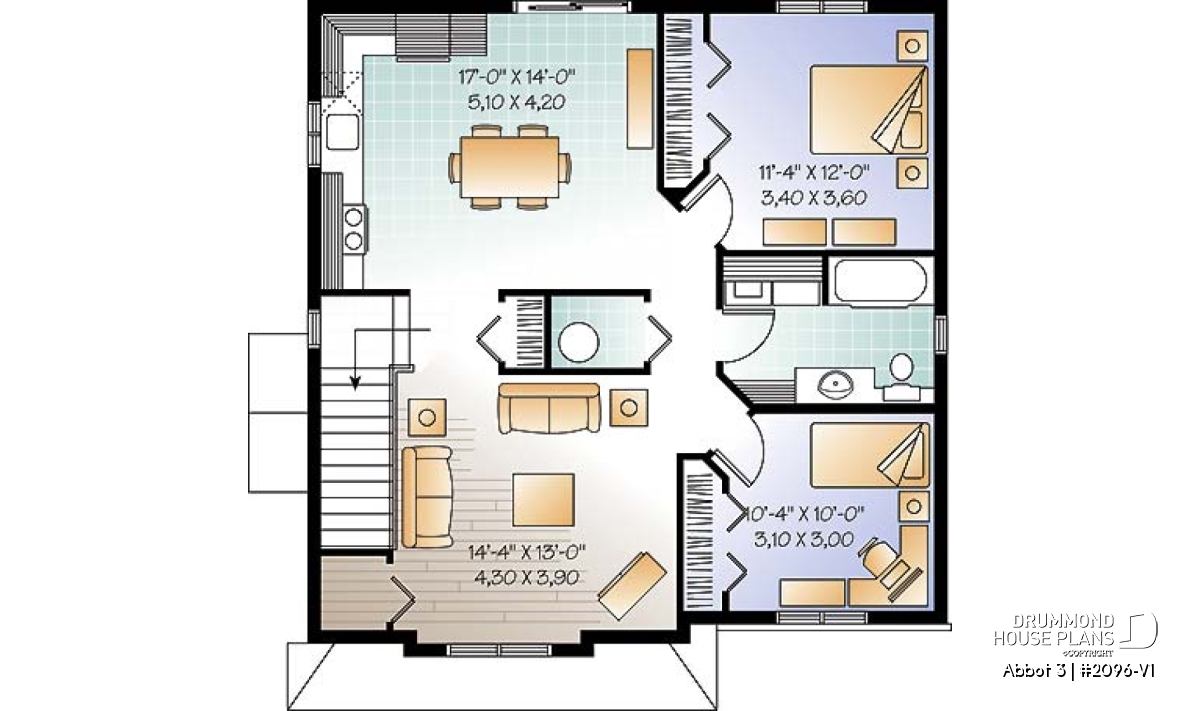

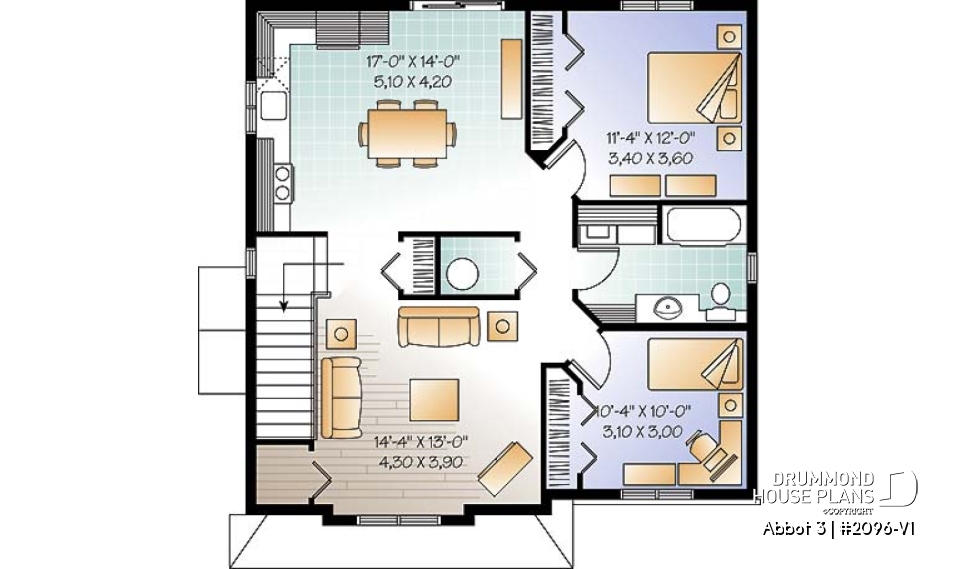

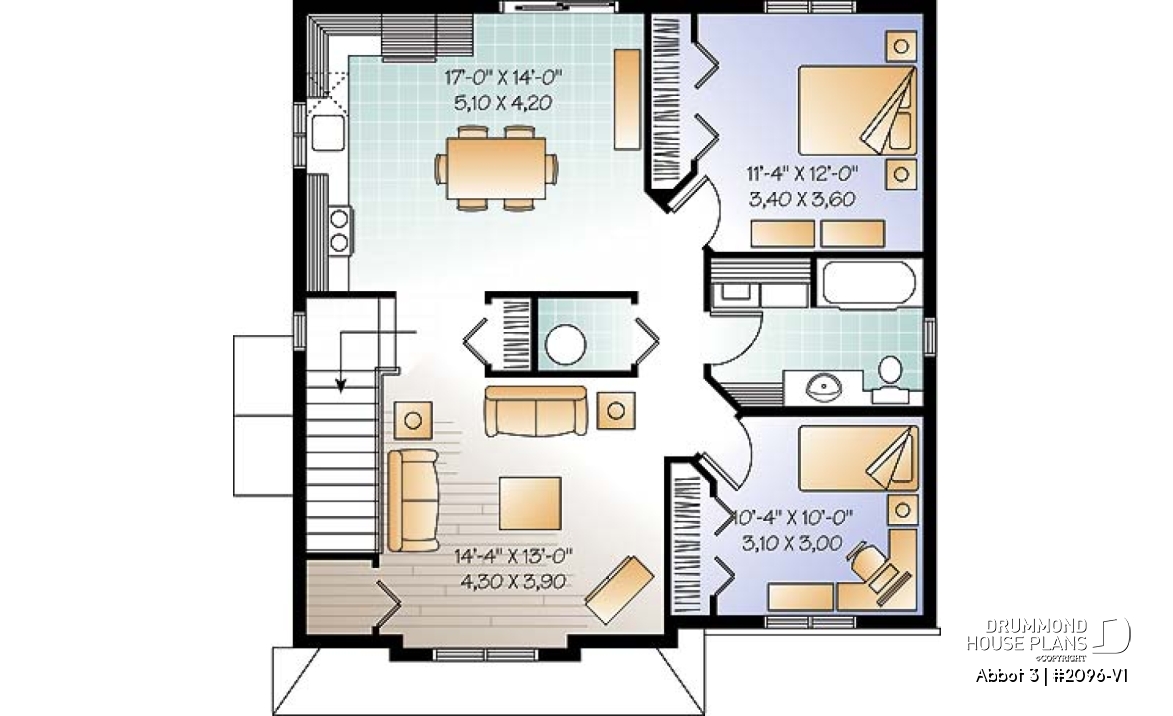

2nd level | ||
---|---|---|
Rooms | Sizes | Ceiling |
Kitchen/dining room | 17'0" x 14'0" | ~ 8'0" |
Living room | 14'4" x 13'0" | ~ 8'0" |
Foyer | 3'6" x 3'8" | ~ 8'0" |
Full bathroom | 10'8" x 7'6" | ~ 8'0" |
Bedroom | 11'4" x 12'0" | ~ 8'0" |
Bedroom | 10'4" x 10'0" | ~ 8'0" |
Storage | 3'4" x 3'10" | ~ 8'0" |
Storage | 4'8" x 3'8" | ~ 8'0" |
Balcony | 12'0" x 8'0" | N/A |
