House plan Compton (3045)
3 unit apartment building plan with 2 beds, pantry, balcony and laundry closet on each unit

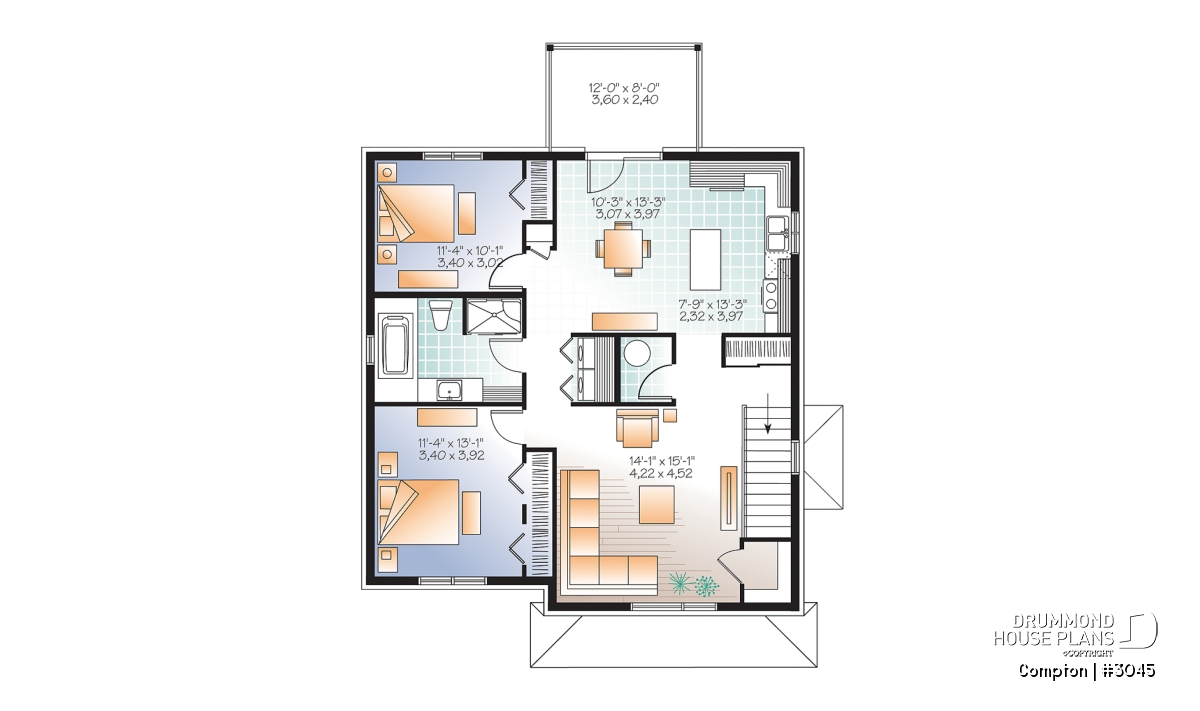

View the size of the rooms and height of the ceilings

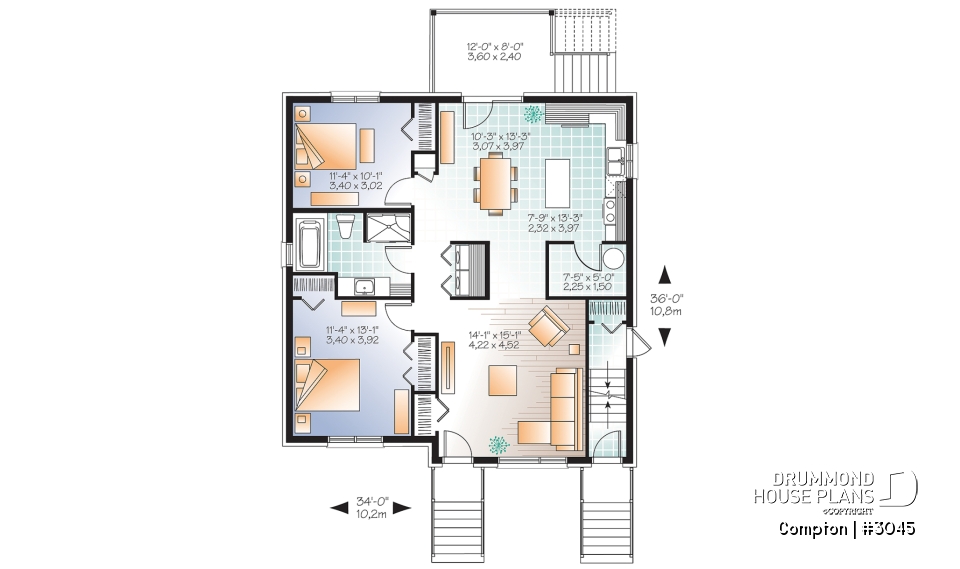

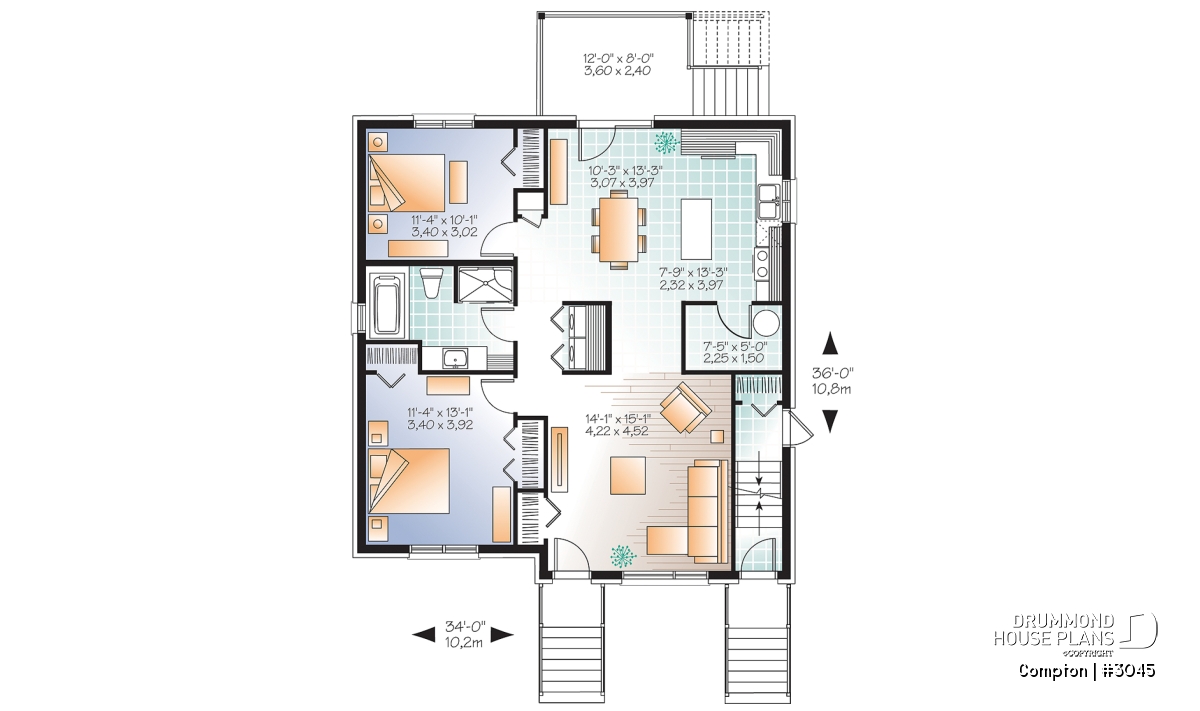

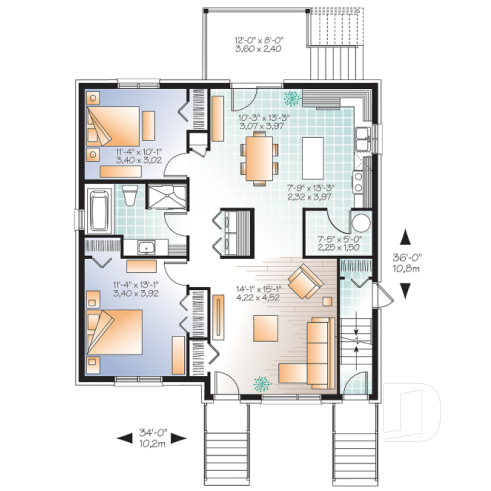

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Laundry room | 3'2" x 5'0" | ~ 8'0" |
| Bedroom | 11'4" x 10'1" | ~ 8'0" |
| Closet | 2'0" x 4'7" | ~ 8'0" |
| Bedroom | 11'4" x 13'1" | ~ 8'0" |
| Closet | 2'0" x 5'3" | ~ 8'0" |
| Closet | 2'0" x 4'0" | ~ 8'0" |
| Kitchen | 7'9" x 13'3" | ~ 8'0" |
| Pantry | 1'6" x 2'0" | N/A |
| Storage | 7'5" x 5'0" | ~ 8'0" |
| Dining room | 10'3" x 13'3" | ~ 8'0" |
| Living room | 14'1" x 15'1" | ~ 8'0" |
| Closet | 2'0" x 4'0" | ~ 8'0" |
| Full bathroom | 11'4" x 8'0" | ~ 8'0" |
| Linen | 2'0" x 1'2" | N/A |

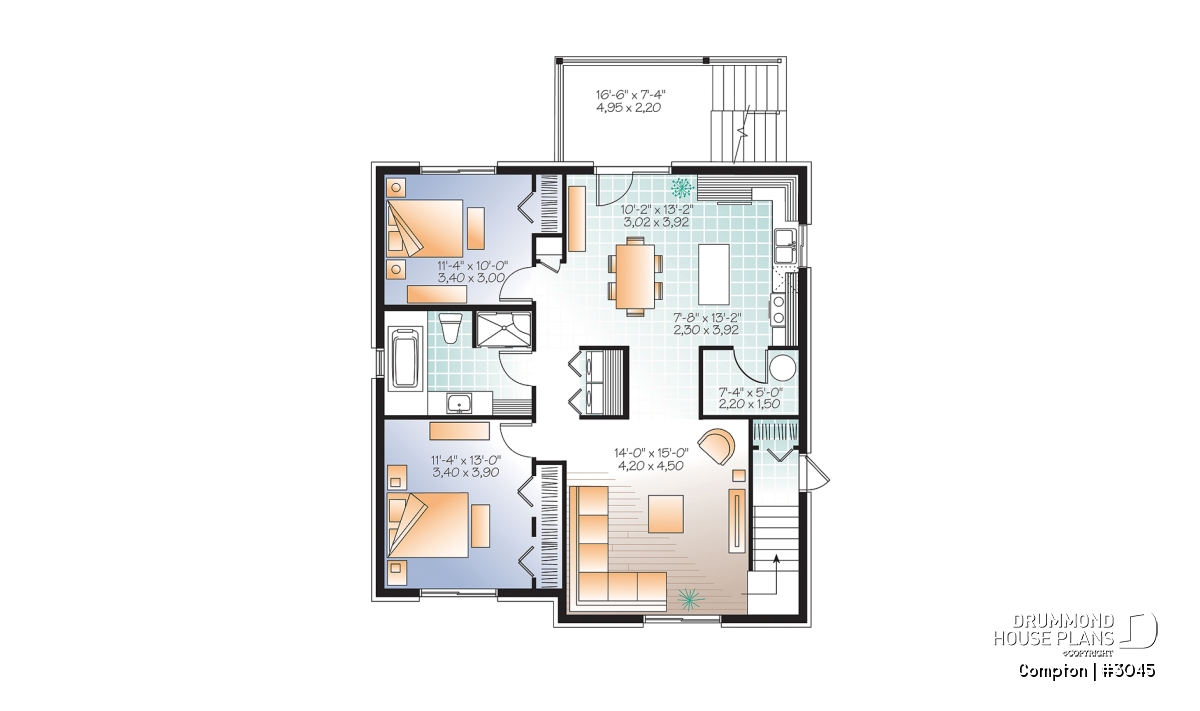

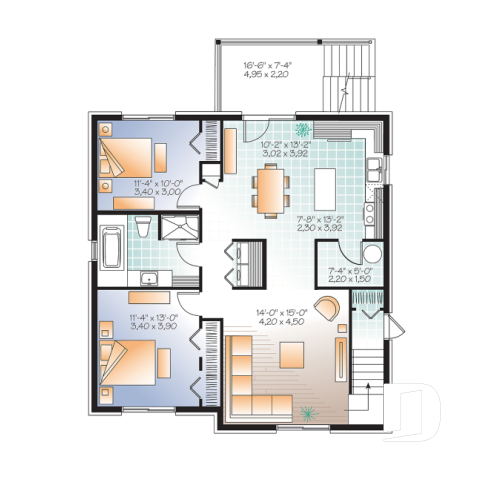

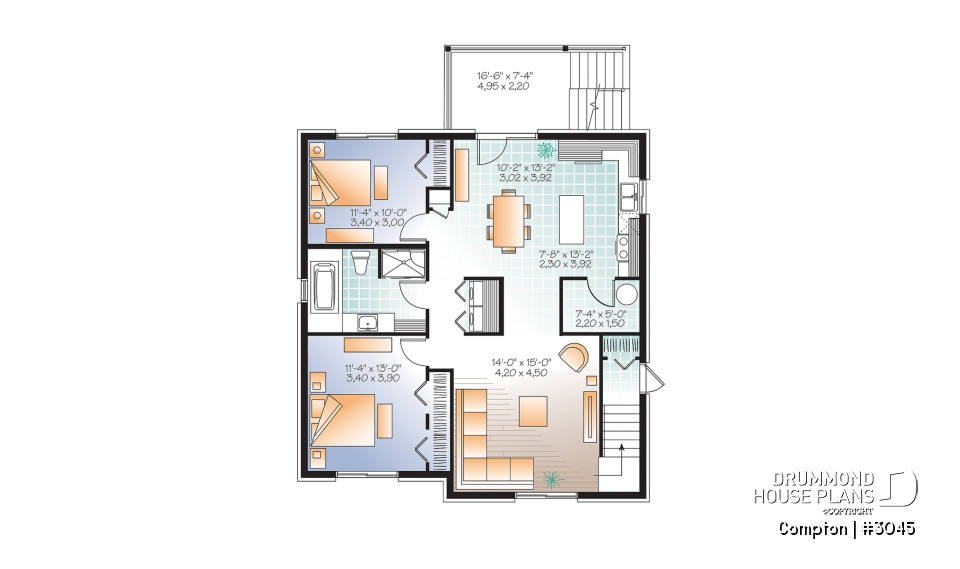

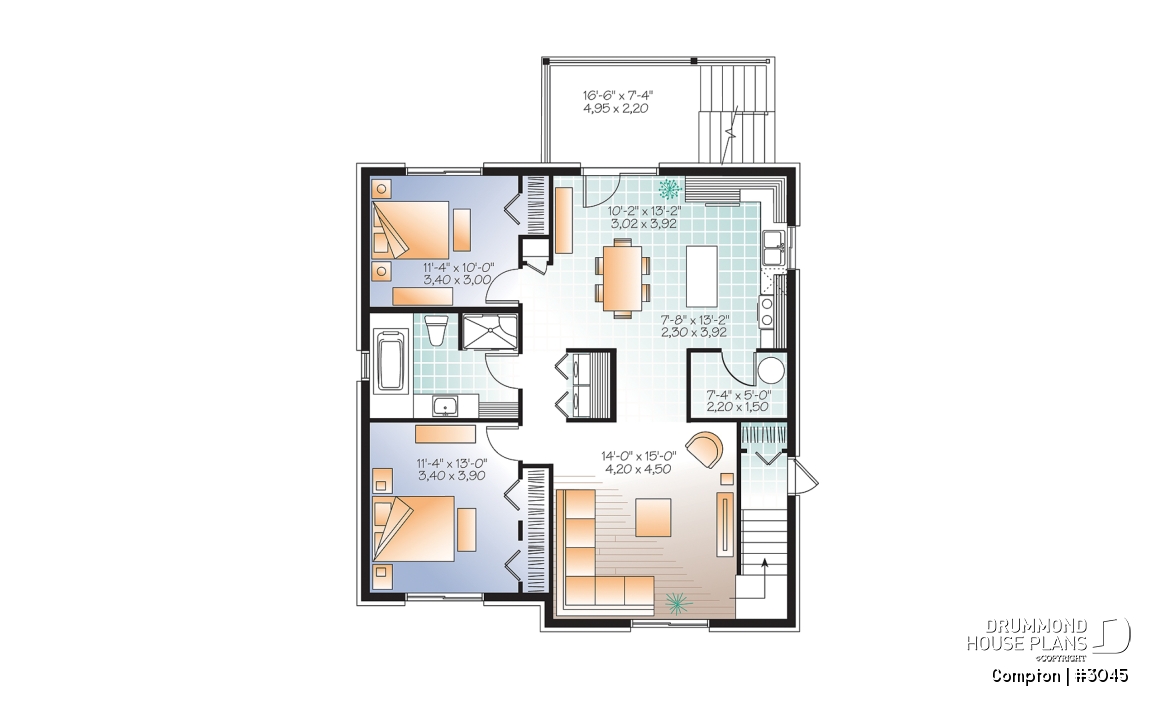

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 3'6" x 4'4" | ~ 12'4" |
| Closet | 3'6" x 2'0" | ~ 12'4" |
| Living room | 14'0" x 15'0" | ~ 8'0" |
| Dining room | 10'2" x 13'2" | ~ 8'0" |
| Kitchen | 7'8" x 13'2" | ~ 8'0" |
| Pantry | 1'6" x 2'0" | N/A |
| Bedroom | 11'4" x 10'0" | ~ 8'0" |
| Closet | 2'0" x 4'6" | ~ 8'0" |
| Bedroom | 11'4" x 13'0" | ~ 8'0" |
| Closet | 2'0" x 9'6" | ~ 8'0" |
| Full bathroom | 11'4" x 8'0" | ~ 8'0" |
| Linen | 3'0" x 1'2" | N/A |
| Laundry room | 3'2" x 5'0" | ~ 8'0" |
| Storage | 7'4" x 5'0" | ~ 8'0" |
| Linen | 2'0" x 1'8" | ~ 8'0" |

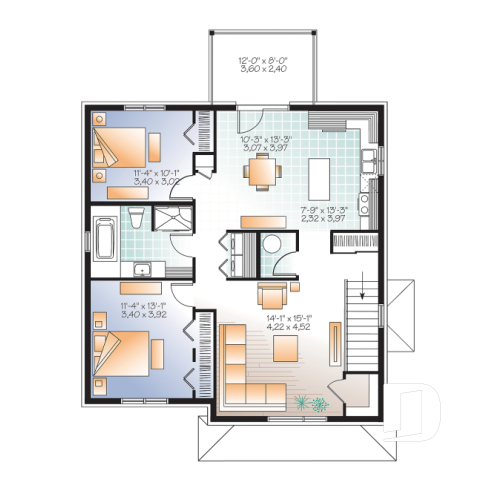

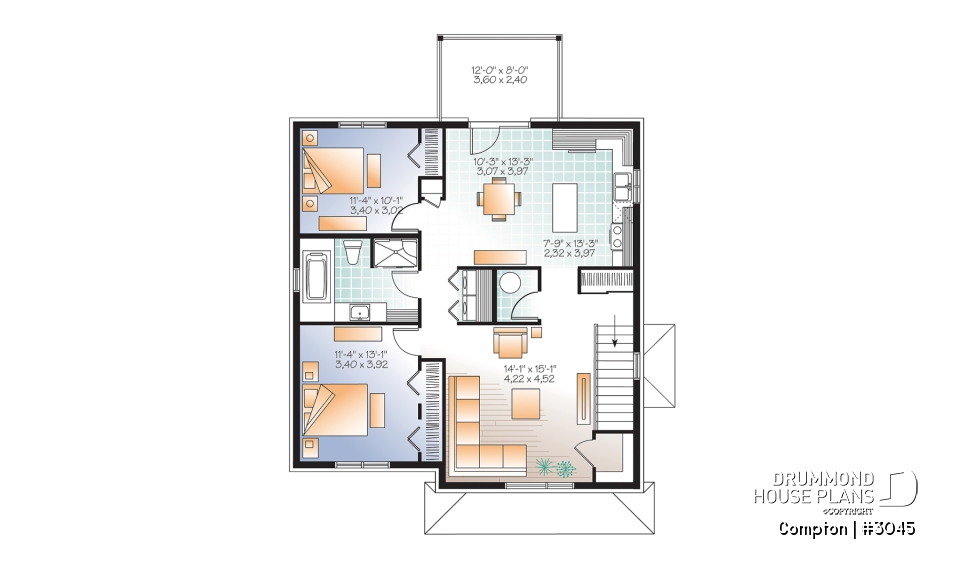

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Laundry room | 3'2" x 5'0" | ~ 8'0" |
| Bedroom | 11'4" x 13'1" | ~ 8'0" |
| Closet | 2'0" x 9'7" | ~ 8'0" |
| Bedroom | 11'4" x 10'1" | ~ 8'0" |
| Closet | 2'0" x 4'7" | ~ 8'0" |
| Kitchen | 7'9" x 13'3" | ~ 8'0" |
| Pantry | 1'6" x 2'0" | N/A |
| Storage | 3'11" x 5'0" | ~ 8'0" |
| Dining room | 10'3" x 13'3" | ~ 8'0" |
| Living room | 14'1" x 15'1" | ~ 8'0" |
| Closet | 5'0" x 2'2" | ~ 8'0" |
| Full bathroom | 11'4" x 8'0" | ~ 8'0" |
| Linen | 3'0" x 1'2" | N/A |
| Storage | 3'7" x 4'8" | ~ 8'0" |
| Foyer | 3'7" x 3'4" | ~ 8'0" |
| Linen | 2'0" x 1'8" | ~ 8'0" |
General specifications
| Total living area | 3588 sq.ft. |
| 1st level | 1196 sq.ft. |
| Basement | 1196 sq.ft. |
| 2nd level | 1196 sq.ft. |
| Width | 34'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 30'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | ME |
Rooms specifications
| Bedroom(s) | 2 |
| Full baths | 1 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | - |
Units specifications
Other useful information on this plan
Modern 3 unit building apartment, 2 bedrooms and covered balcony per unit
Stylish and contemporary, this triplex includes three dwelling units with each occupying a single level. With the trend toward densification, this unit allows three units to occupy a single lot and provides independence and convenience for each unit.
Each unit features kitchen with island, private laundry, two bedrooms and generous bathroom with independent soaker tub and generous shower. Each dwelling is designed to include a 12’x8’ covered deck.
Distinctive elements
Well proportioned rooms. Laundry area and storage provided for each dwelling. 12'x8' covered patio or deck for each dwelling. Separate 51"x34" shower in each bathroom. Each unit kitchen includes an island.
Plan feature(s)
Deck, Island, Pantry, Second floor laundry room, Gound floor laundry room, Separate bath and shower
Plan architectural style(s)
. Modern / Design, . Contemporary, . Modern rustic
