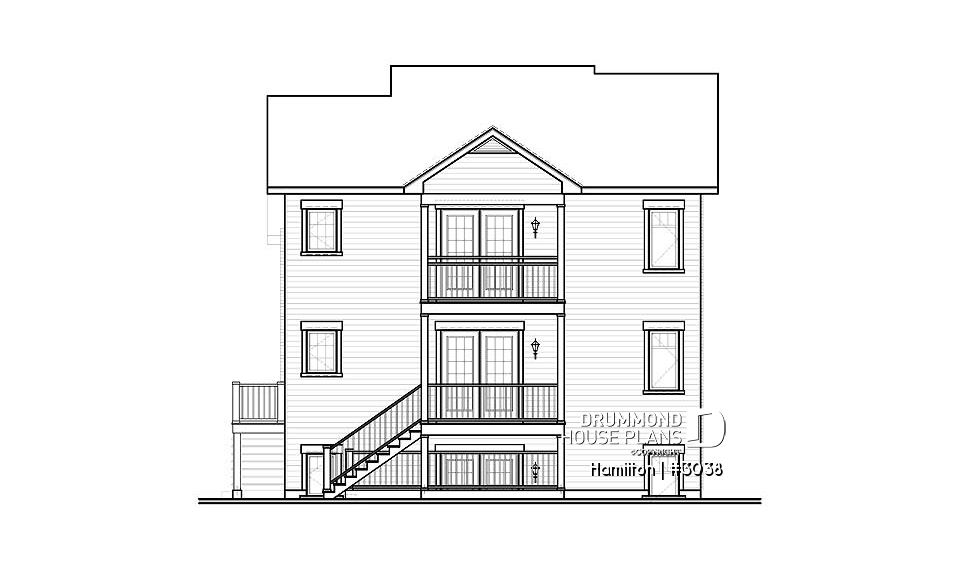

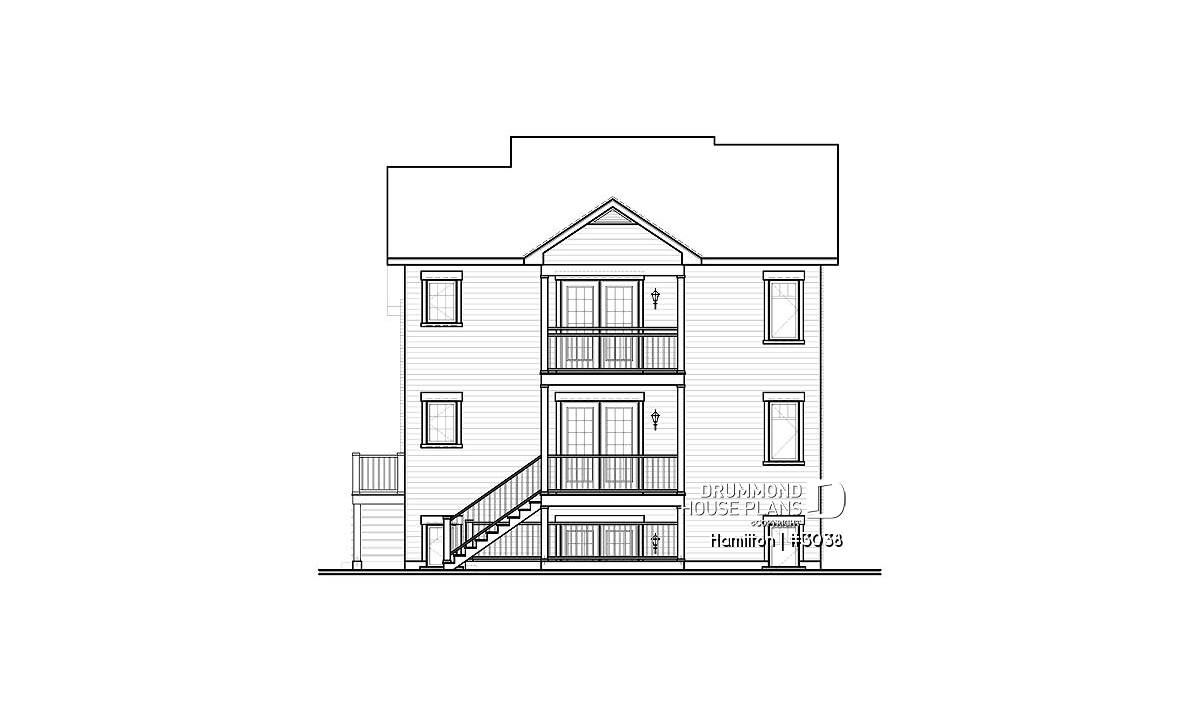

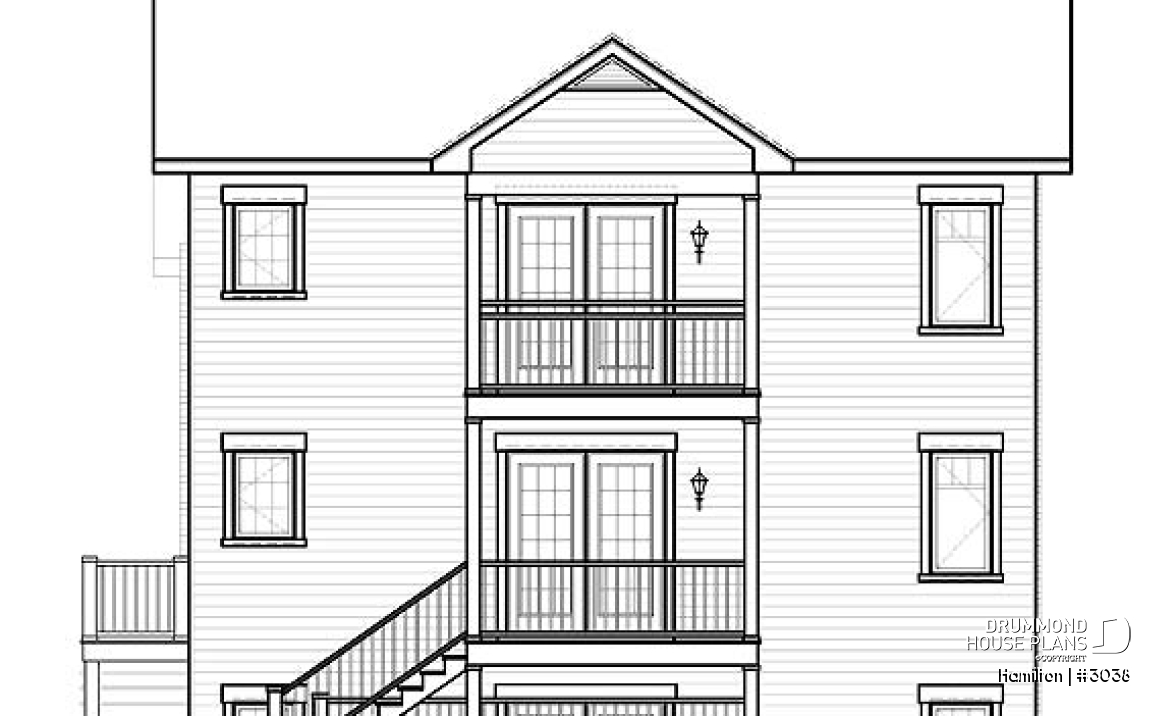

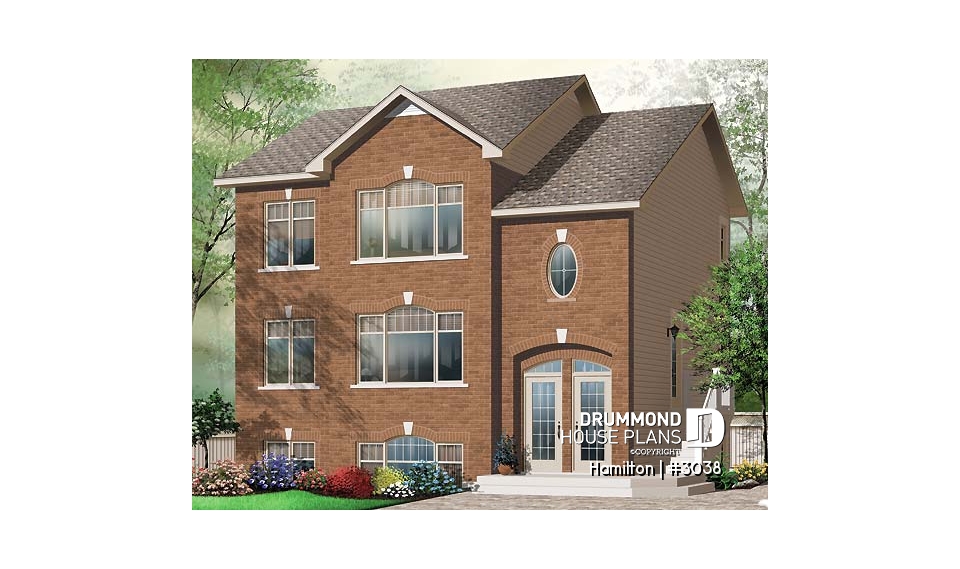

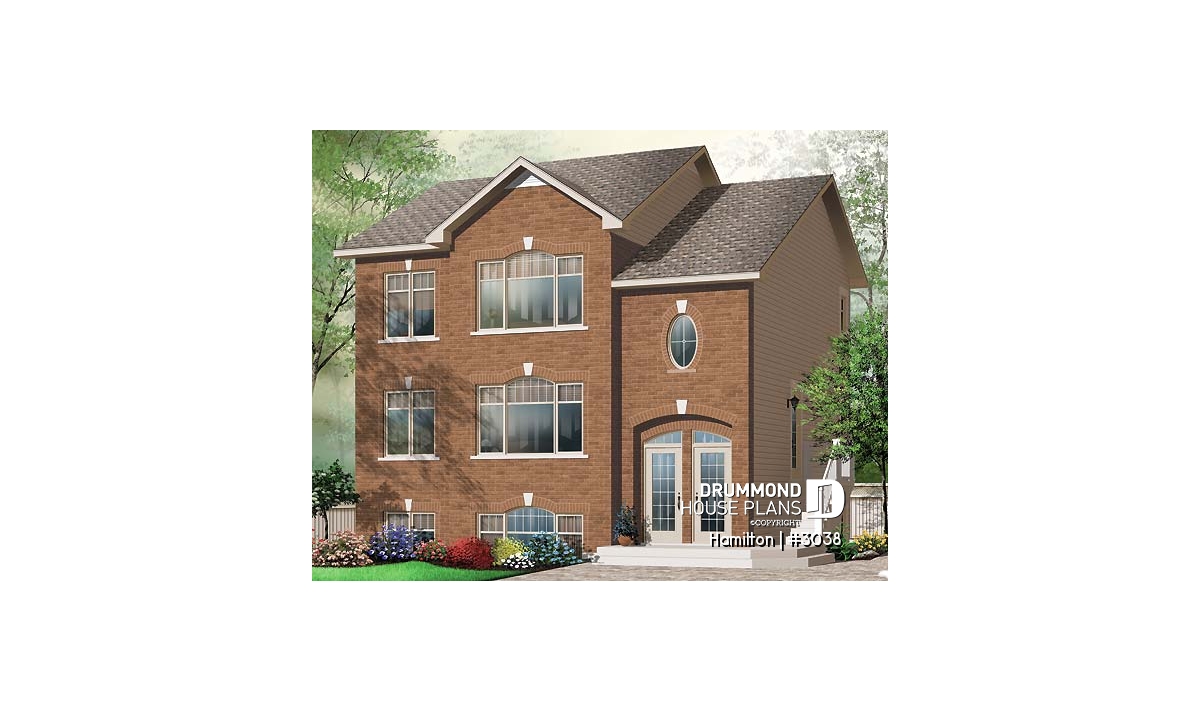

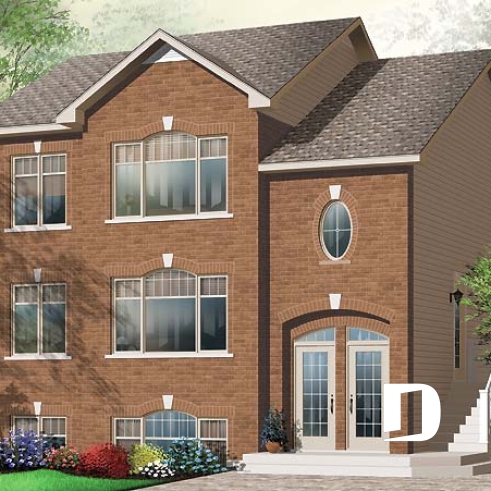

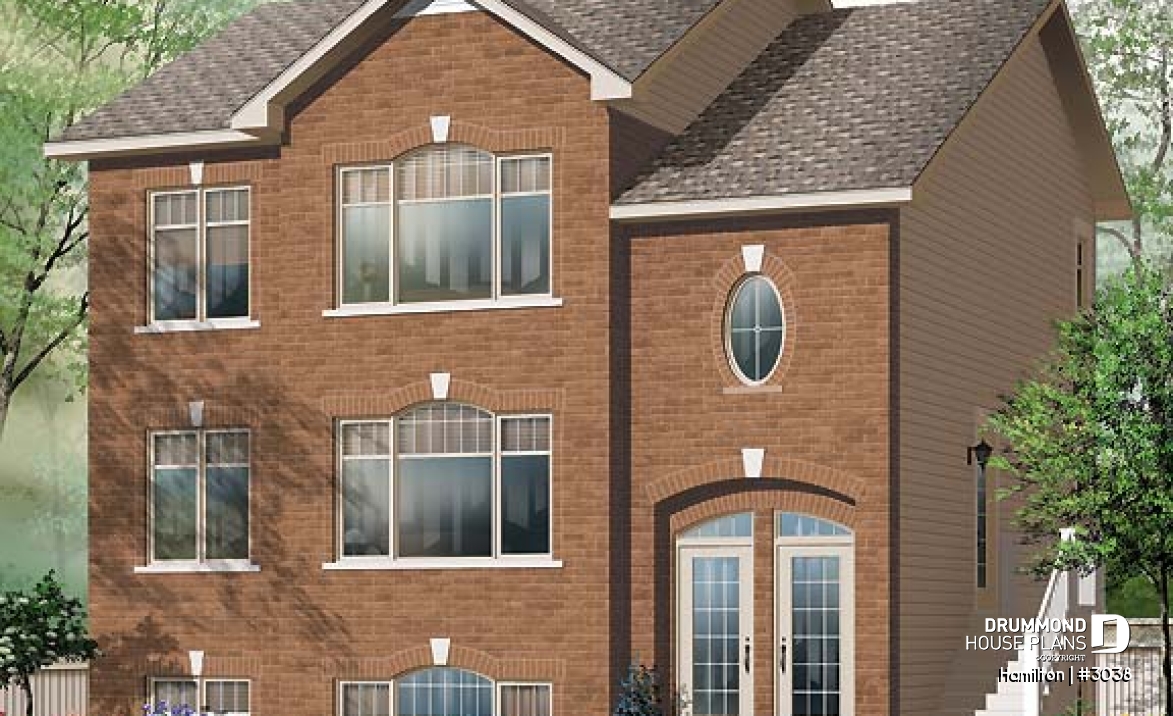

Hamilton (3038)
3 unit apartment building plan (triplex home plan), 2 bedrooms, 1 bathroom, laundry room, kitchen w/island
Buy this plan
Special: Free shipping!
Need help?
Come see us
View the size of the rooms and height of the ceilings

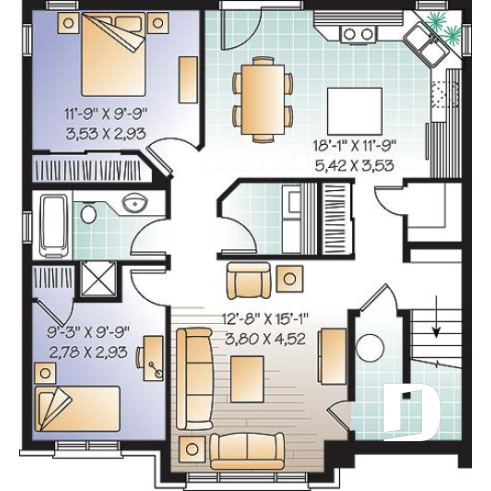

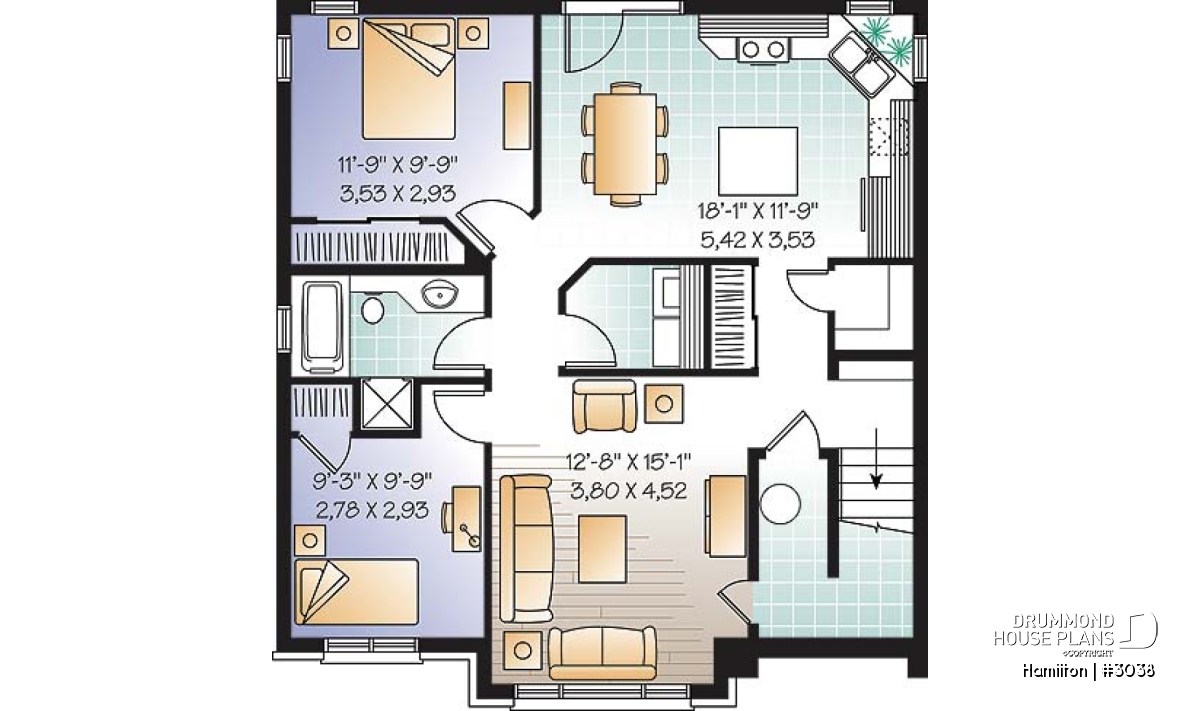

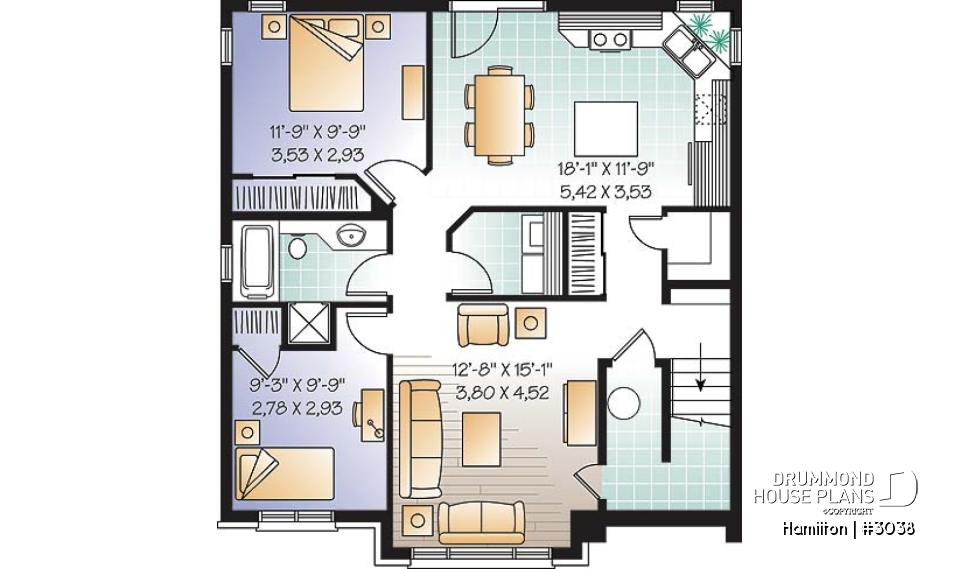

Basement | ||
---|---|---|
Rooms | Sizes | Ceiling |
Kitchen/dining room | 18'1" x 11'9" | ~ 8'0" |
Pantry | 2'0" x 1'4" | N/A |
Bedroom | 11'9" x 9'9" | ~ 8'0" |
Closet | 8'3" x 2'0" | ~ 8'0" |
Linen | 0'0" x 0'0" | N/A |
Full bathroom | 9'7" x 5'2" | ~ 8'0" |
Bedroom | 9'3" x 9'9" | ~ 8'0" |
Closet | 2'10" x 2'4" | ~ 8'0" |
Laundry room | 6'10" x 5'2" | ~ 8'0" |
Storage | 3'8" x 4'2" | ~ 8'0" |
Covered deck | 9'8" x 7'4" | N/A |
Living room | 12'8" x 15'1" | ~ 8'0" |
Foyer | 7'10" x 3'6" | ~ 8'0" |
Closet | 2'0" x 5'2" | ~ 8'0" |

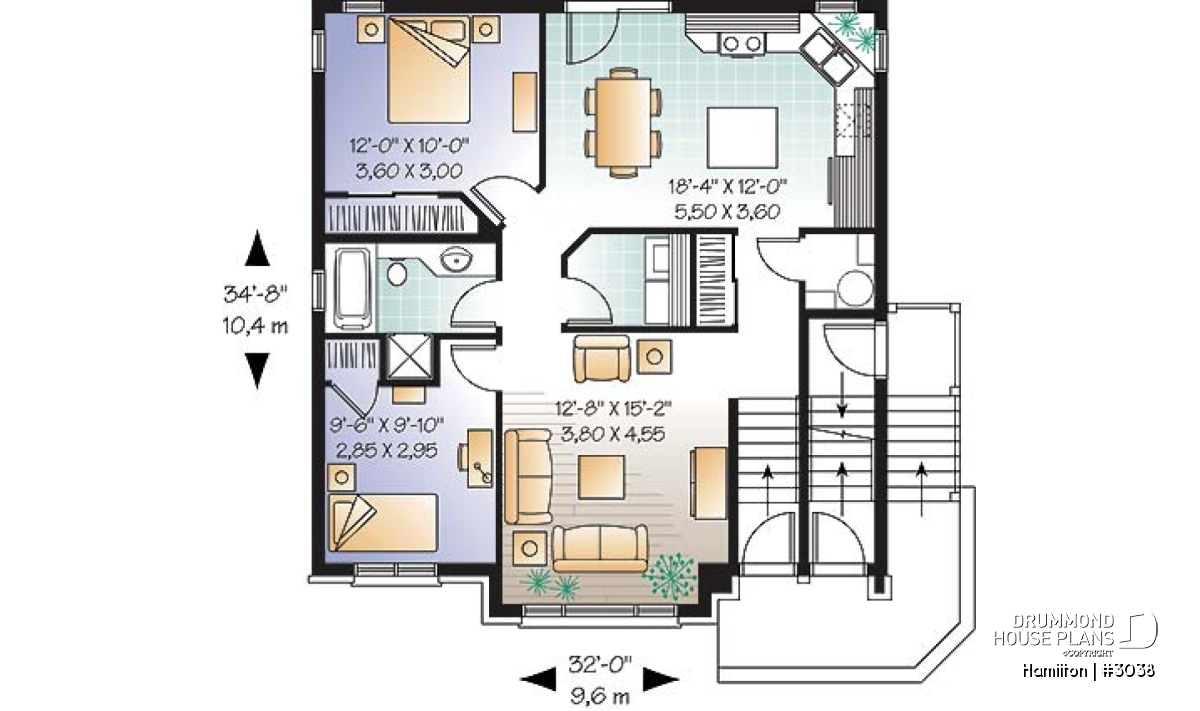

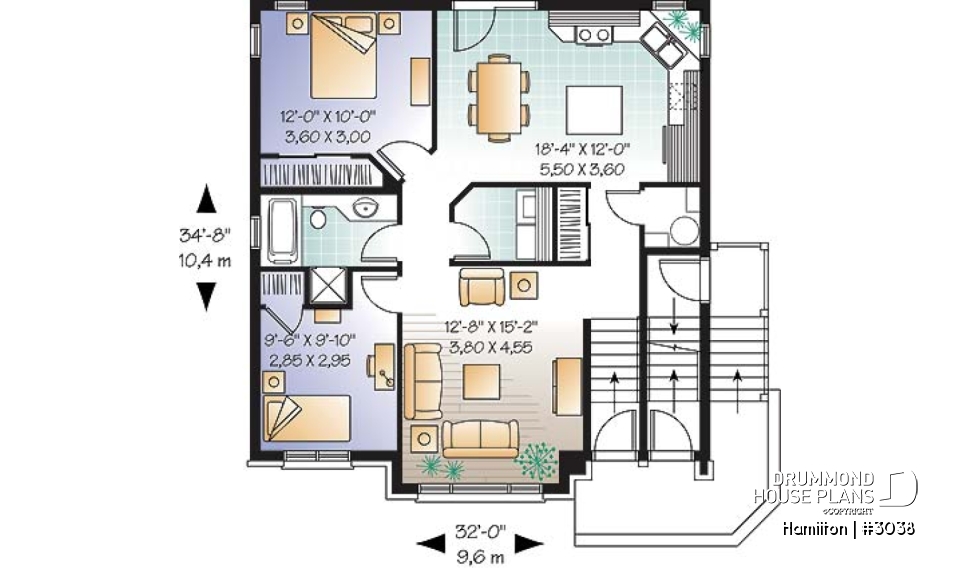

1st level | ||
---|---|---|
Rooms | Sizes | Ceiling |
Kitchen/dining room | 18'4" x 12'0" | ~ 8'0" |
Pantry | 2'0" x 1'4" | N/A |
Bedroom | 12'0" x 10'0" | ~ 8'0" |
Closet | 8'6" x 2'0" | ~ 8'0" |
Bedroom | 9'6" x 9'10" | ~ 8'0" |
Closet | 3'1" x 2'4" | ~ 8'0" |
Full bathroom | 9'6" x 5'0" | ~ 8'0" |
Laundry room | 6'10" x 5'2" | ~ 8'0" |
Living room | 12'8" x 15'2" | ~ 8'0" |
Storage | 3'11" x 4'2" | ~ 8'0" |
Covered deck | 11'0" x 8'0" | N/A |
Foyer | 3'11" x 3'8" | ~ 8'0" |
Closet | 2'0" x 5'2" | ~ 8'0" |
Porch | 13'6" x 4'0" | N/A |

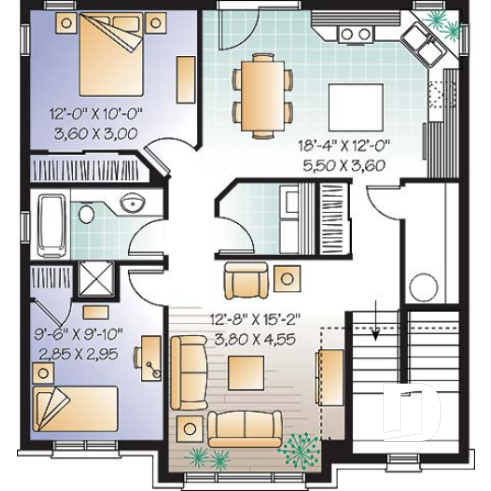

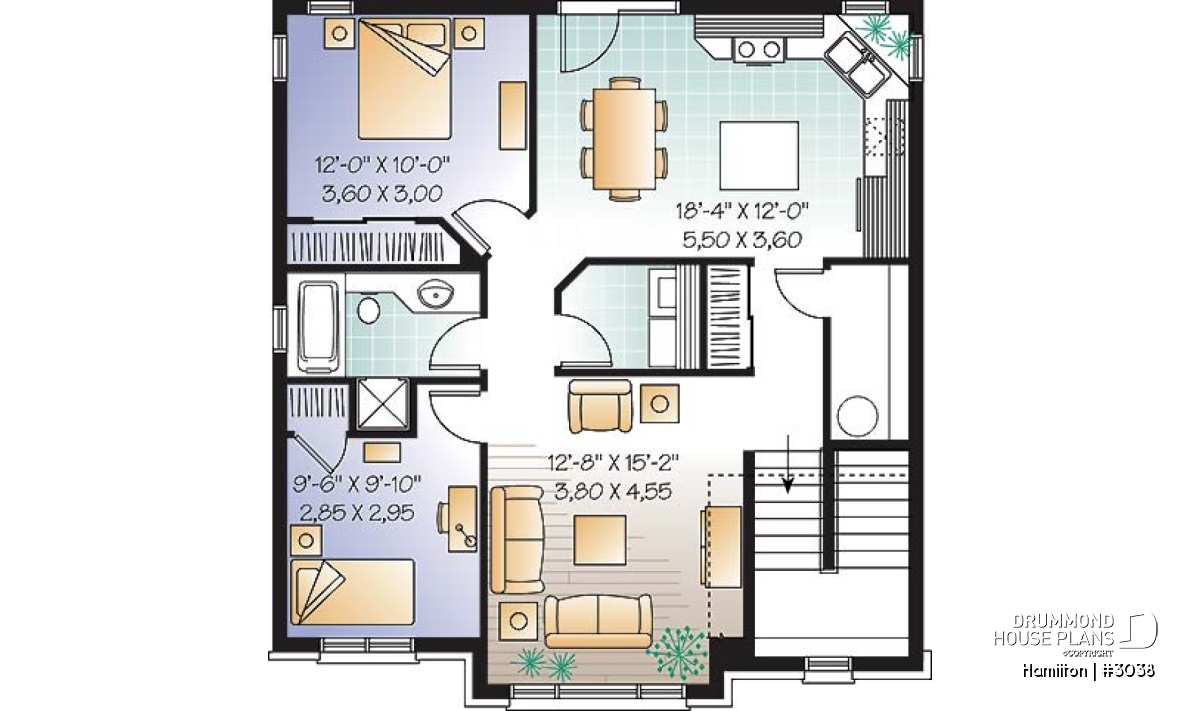

2nd level | ||
---|---|---|
Rooms | Sizes | Ceiling |
Kitchen/dining room | 18'4" x 12'0" | ~ 8'0" |
Pantry | 2'0" x 1'4" | N/A |
Bedroom | 12'0" x 10'0" | ~ 8'0" |
Closet | 8'6" x 2'0" | ~ 8'0" |
Full bathroom | 9'6" x 5'0" | ~ 8'0" |
Bedroom | 9'6" x 9'10" | ~ 8'0" |
Closet | 3'1" x 2'4" | ~ 8'0" |
Laundry room | 6'10" x 5'2" | ~ 8'0" |
Storage | 3'11" x 8'8" | ~ 8'0" |
Covered deck | 11'0" x 8'0" | N/A |
Foyer | 3'11" x 3'8" | ~ 8'0" |
Closet | 2'0" x 5'2" | ~ 8'0" |
General specifications
Total living area | 3136 sq.ft. |
1st level | 996 sq.ft. |
2nd level | 1075 sq.ft. |
Basement | 1065 sq.ft. |
Width | 32'0" |
Depth | 34'8" |
Ridge height from top of foundation | 32'8" |
Exterior wall | 2 X 6 |
Foundation type included in the plan | Finished basement |
Builder price code | MD |
Rooms specifications
Bedroom(s) | 2 |
Full baths | 1 |
Half baths | - |
Garage type | - |
Living bonus space | - |
Bonus storage | - |
Covered porch area | 54 sq.ft. |
UNIT 1 | UNIT 2 | UNIT 3 | |
Total living area | 996 sq.ft. | 1075 sq.ft. | 1065 sq.ft. |
Basement | 1065 sq.ft. | ||
1st level | 996 sq.ft. | ||
2nd level | 1075 sq.ft. | ||
Width | 32' 0" | 32' 0" | 32' 0" |
Depth | 34' 8" | 34' 8" | 34' 8" |
Ridge height from top of foundation | 32' 8" | 32' 8" | 32' 8" |
Exterior wall | 2 X 6 | 2 X 6 | 2 X 6 |
Foundation type | Finished basement | Finished basement | Finished basement |
Bedroom(s) | 2 | 2 | 2 |
Full baths | 1 | 1 | 1 |
Half baths | - | - | - |
Garage type | - | - | - |
Living bonus space | - | - | - |
Bonus storage | - | - | - |
General specifications
Total living area | 3136 sq.ft. |
Basement | 1065 sq.ft. |
1st level | 996 sq.ft. |
2nd level | 1075 sq.ft. |
Width | 32'0" |
Depth | 34'8" |
Ridge height from top of foundation | 32'8" |
Exterior wall | 2 X 6 |
Foundation type included in the plan | Finished basement i |
Builder price code | MD |
Rooms specifications
Bedroom(s) | 2 |
Full baths | 1 |
Half baths | - |
Garage type | - |
Living bonus space | - i |
Bonus storage | - i |
Covered porch area | 54 sq.ft. |
Units specifications
UNIT 1 | UNIT 2 | UNIT 3 | |
Total living area | 996 sq.ft. | 1075 sq.ft. | 1065 sq.ft. |
Basement | 1065 sq.ft. | ||
1st level | 996 sq.ft. | ||
2nd level | 1075 sq.ft. | ||
Width | 32' 0" | 32' 0" | 32' 0" |
Depth | 34' 8" | 34' 8" | 34' 8" |
Ridge height from top of foundation | 32' 8" | 32' 8" | 32' 8" |
Exterior wall | 2 X 6 | 2 X 6 | 2 X 6 |
Foundation type | Finished basement | Finished basement | Finished basement |
Bedroom(s) | 2 | 2 | 2 |
Full baths | 1 | 1 | 1 |
Half baths | - | - | - |
Garage type | - | - | - |
Living bonus space | - | - | - |
Bonus storage | - | - | - |
Other useful information on this plan
Beautiful triplex plan with 2 bedrooms per unit
.
Distinctive elements
Elegant triplex with rear covered deck on each unit. Attractive bathroom with separate shower provided on each unit. Lovely living room and a dream kitchen with fenestration area in the corner brightening that area. Storage space and laundry space provided on each unit.
Plan feature(s)
Island, Panoramic view, Separate bath and shower
Plan architectural style(s)
. English, . European, . Traditional
Similar plans
Previously Viewed Plans
Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.
Error with google reCaptcha! Try again
Buy this plan
There are no shipping fees if you buy one of our 2 plan packages "PDF file format" or "3 sets of blueprints + PDF". Shipping charges may apply if you buy additional sets of blueprints.
Want to modify this plan?
Free plan modification quoteNeed help?
Contact usCome see us
Our 30 regional officesYou may also like
Similar plans
Description

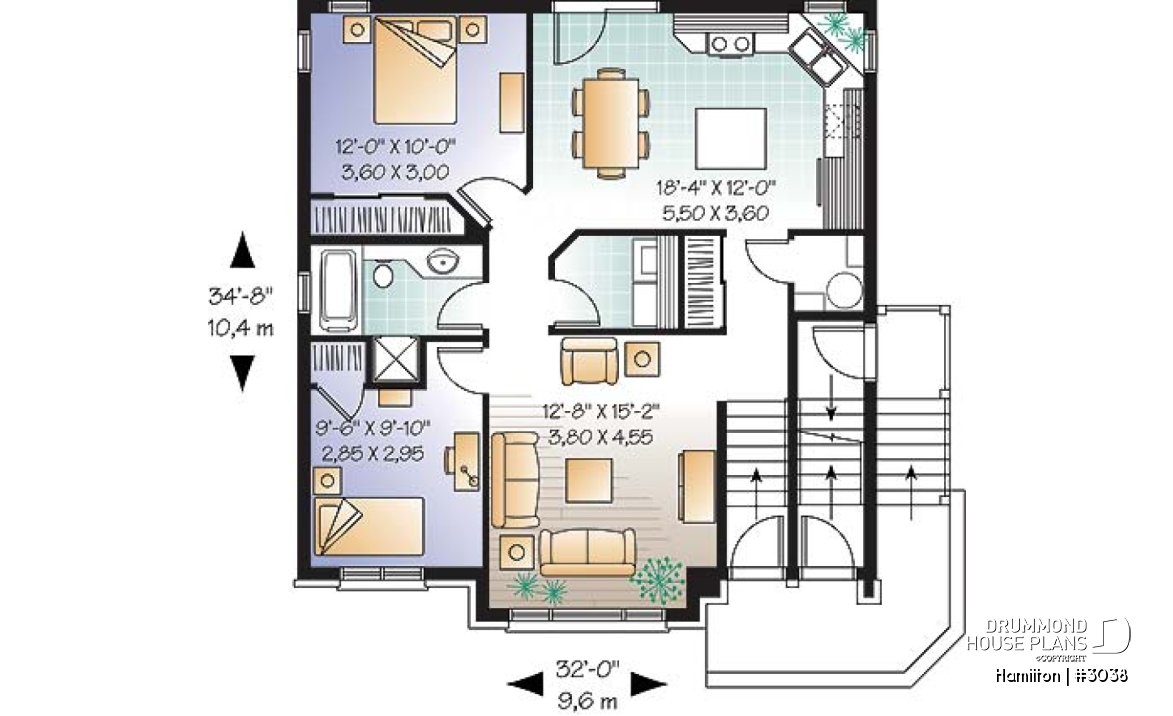

1st level:
Unit 1: Living room, two bedrooms, bathroom, laundry area, kitchen, dining room and storage space.

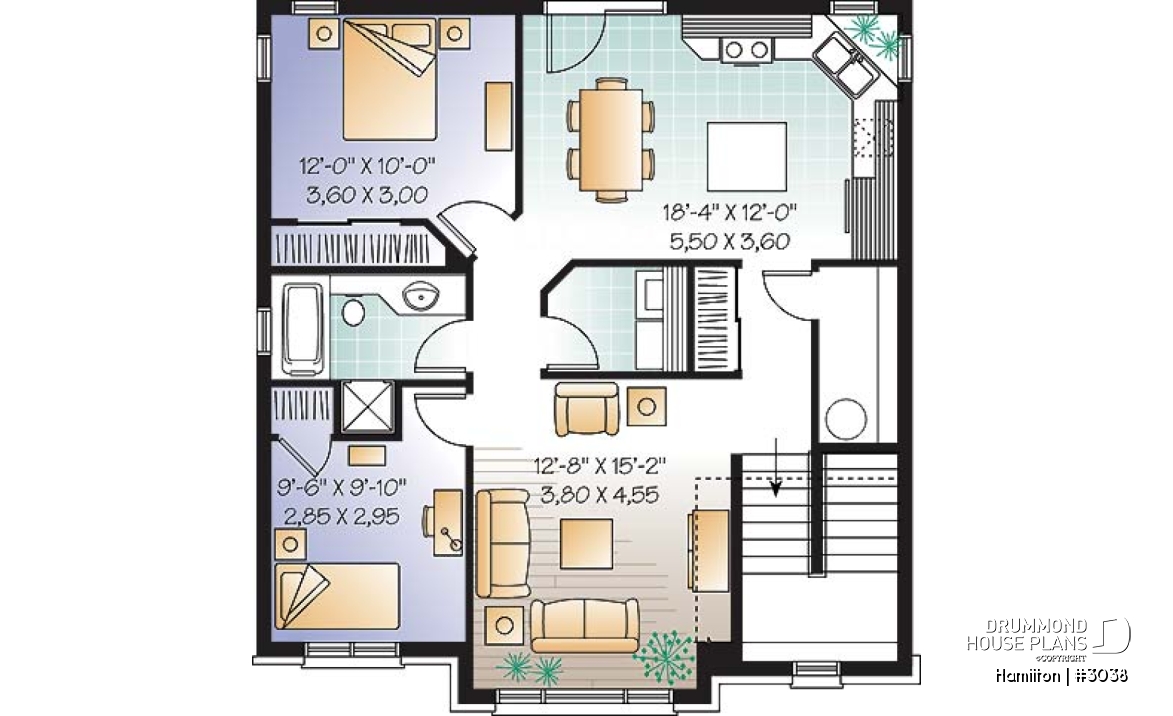

2nd level:
Unit 2: Living room, two bedrooms, bathroom, laundry area, kitchen, dining room and storage space.

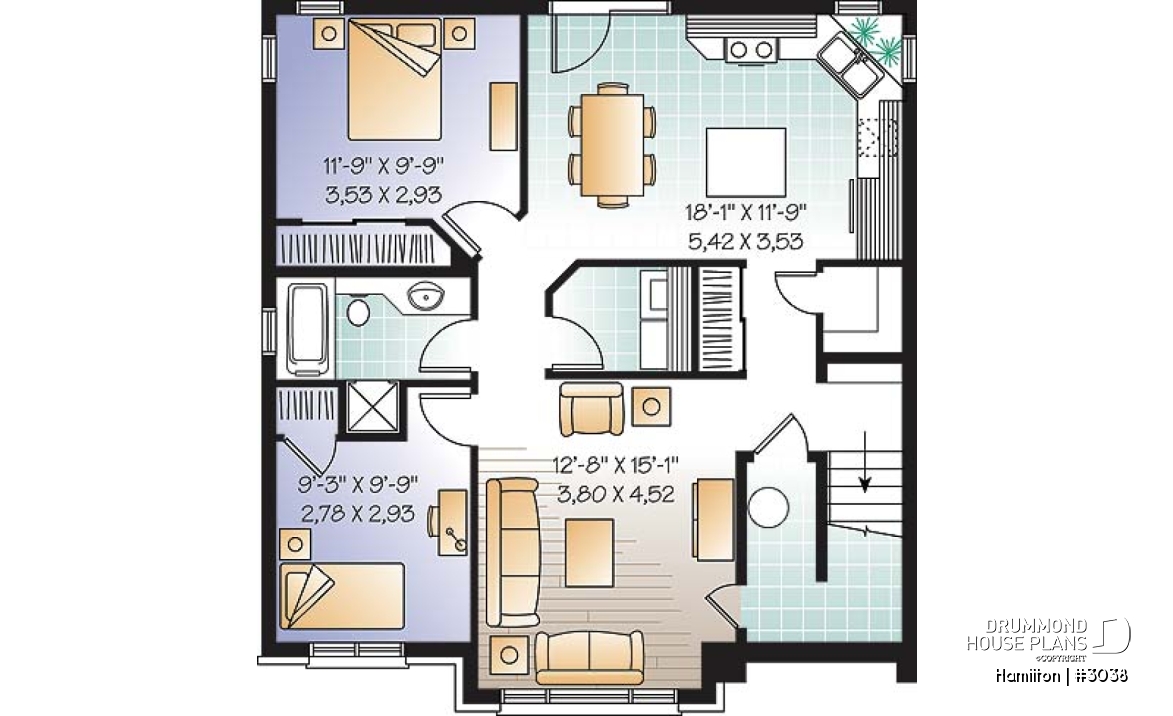

Basement: Unit 3: Living room, two bedrooms, bathroom, laundry area, kitchen, dining room and storage space.
