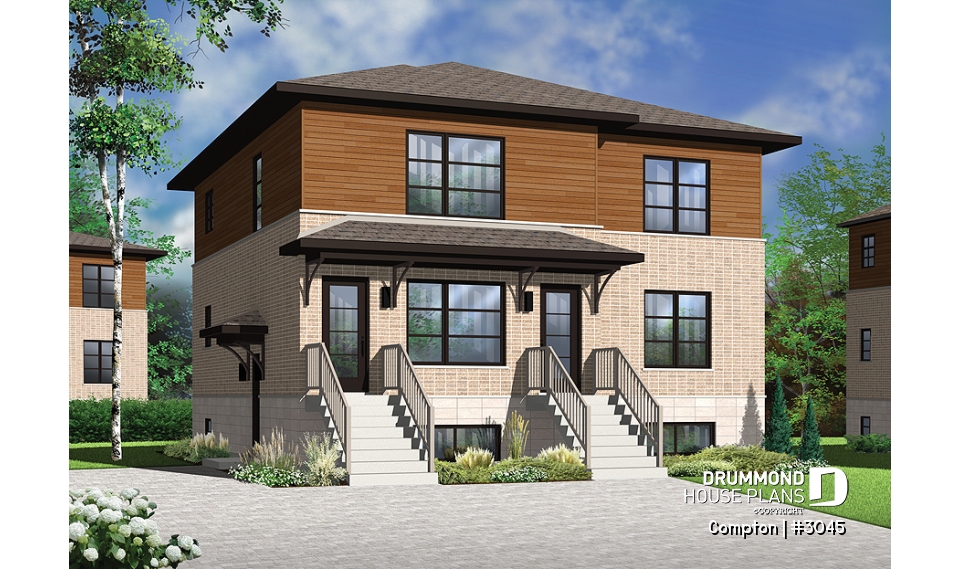

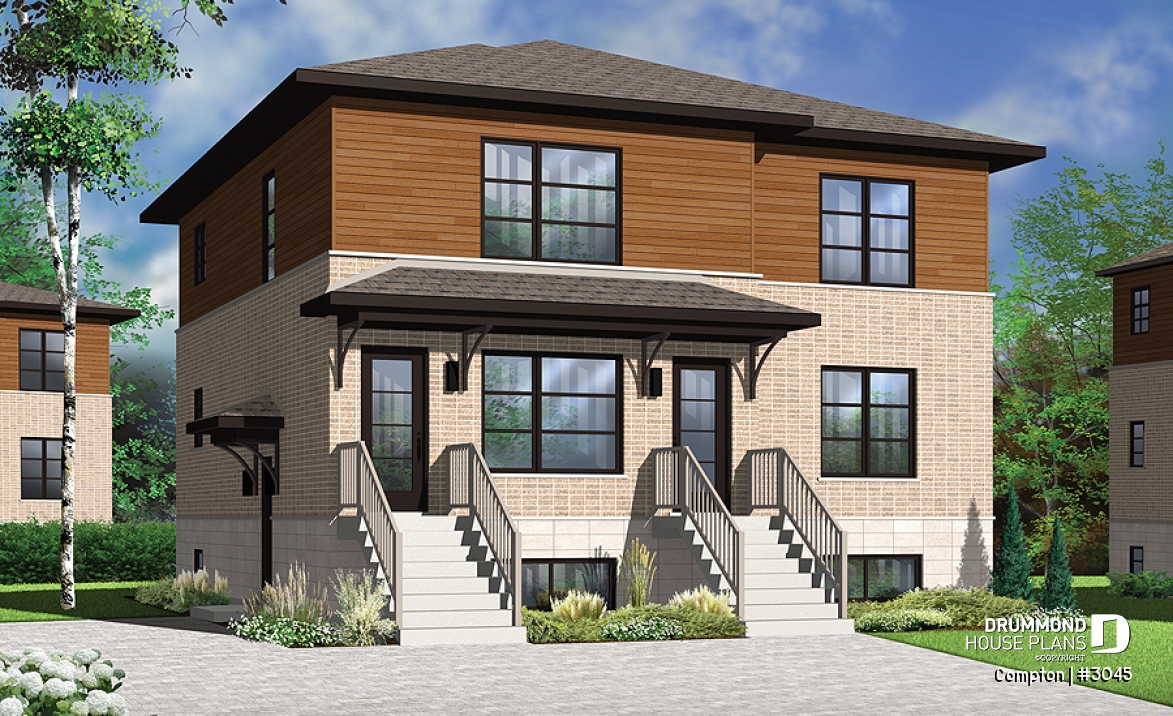

front - BASE MODEL

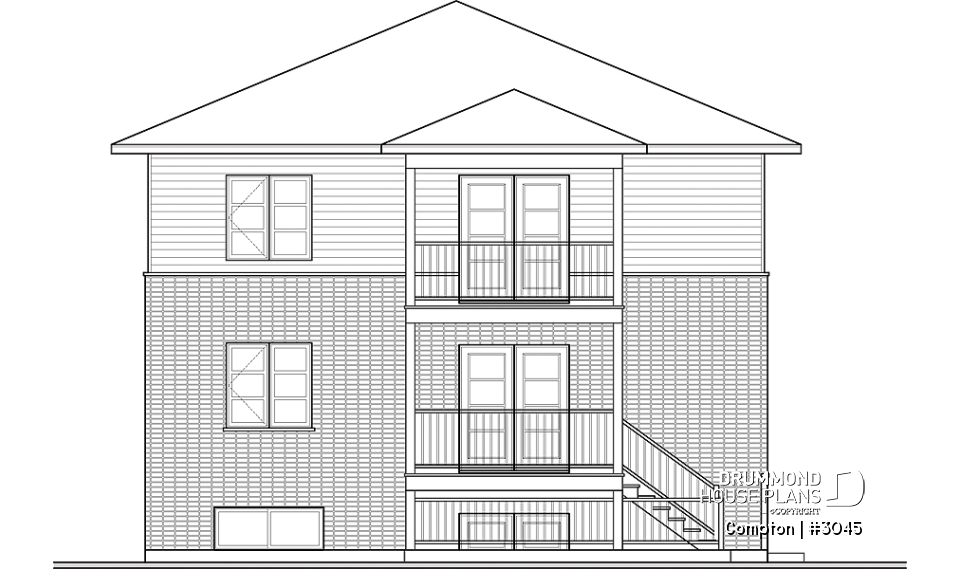

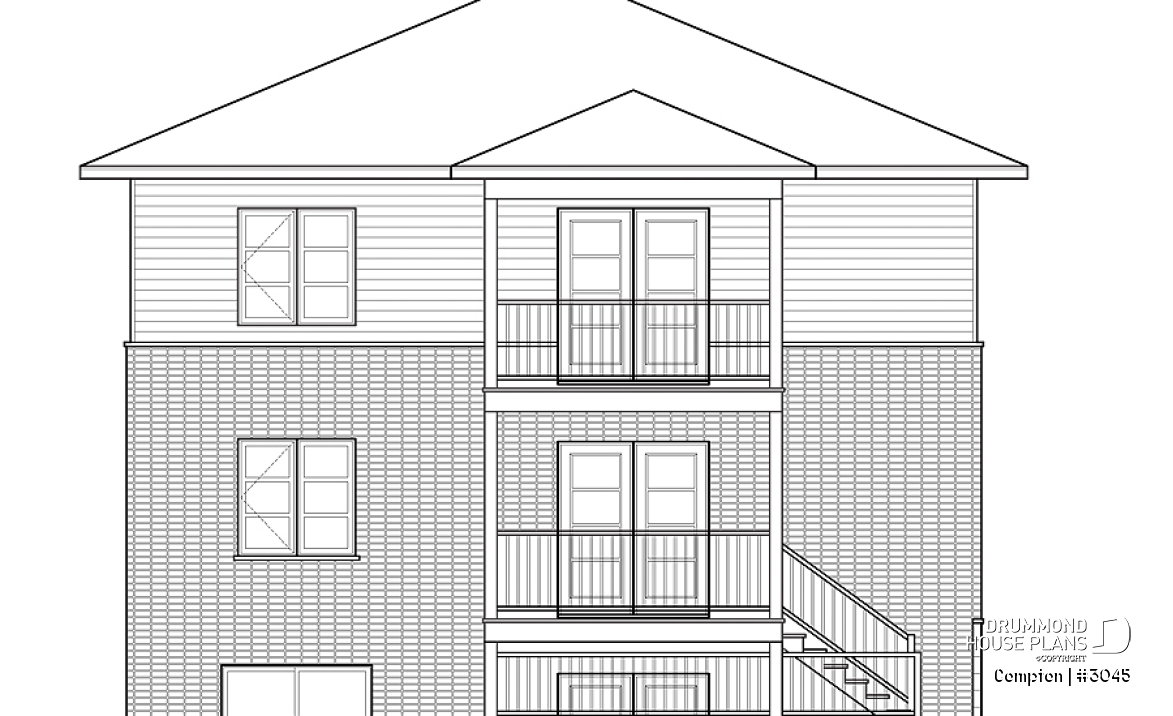

rear elevation

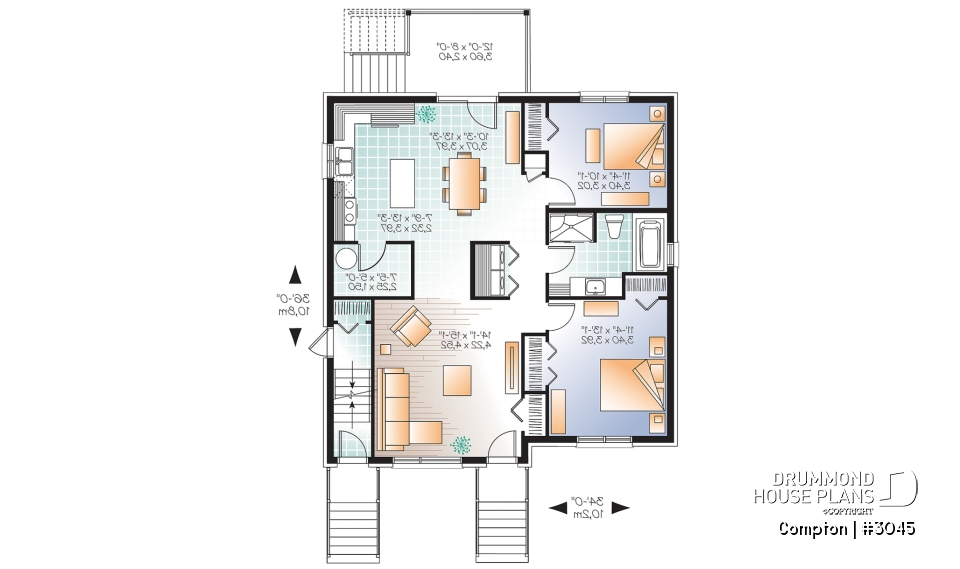

1st level

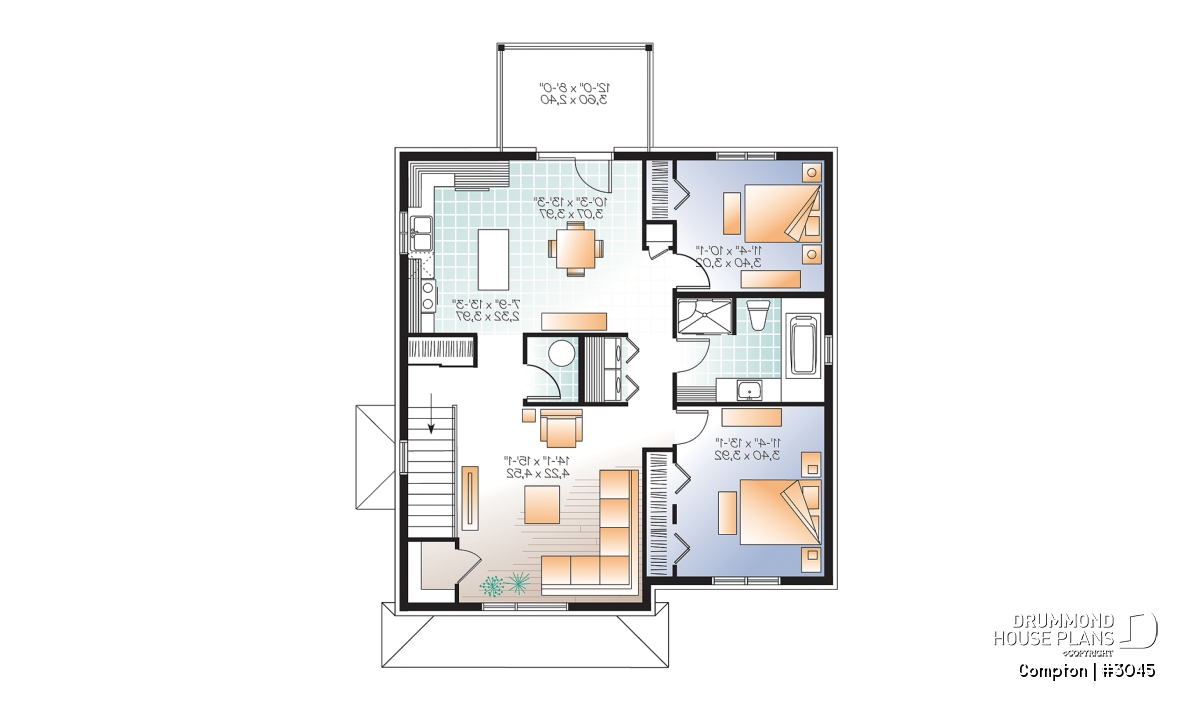

2nd level

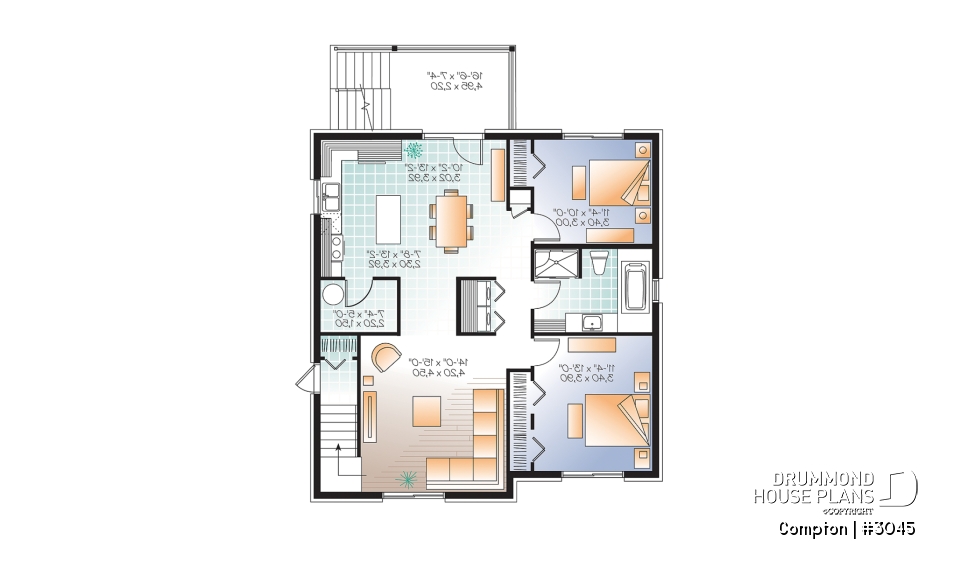

Basement

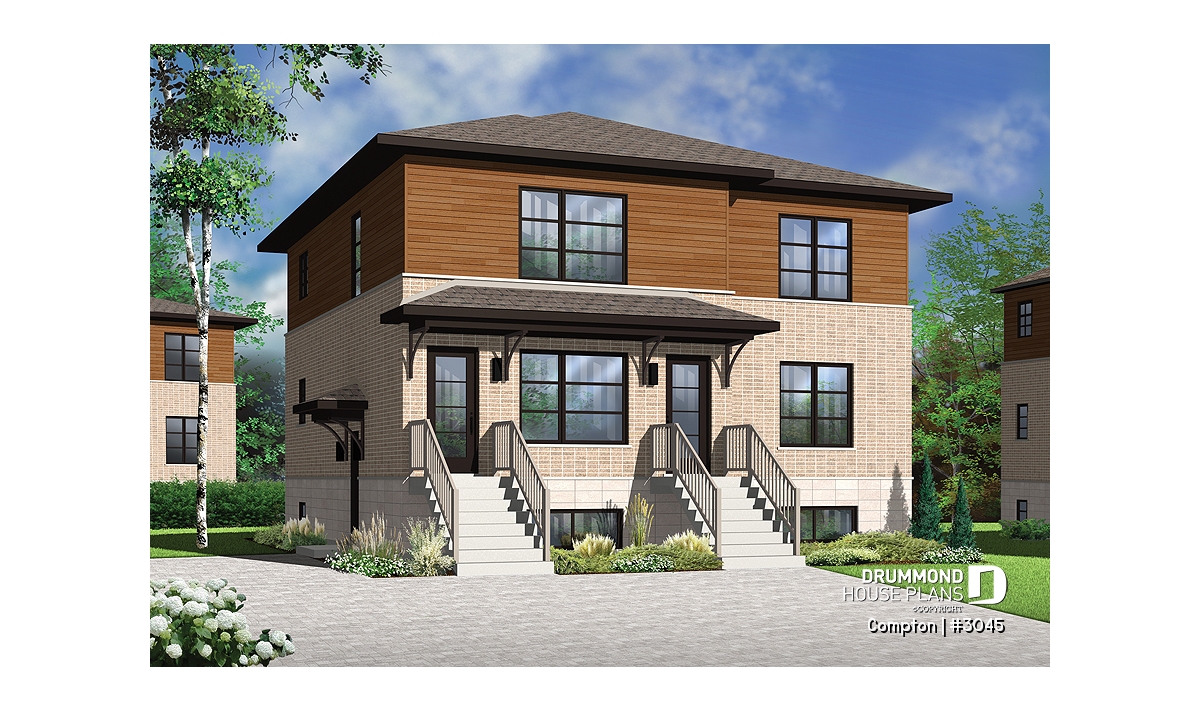

front - BASE MODEL

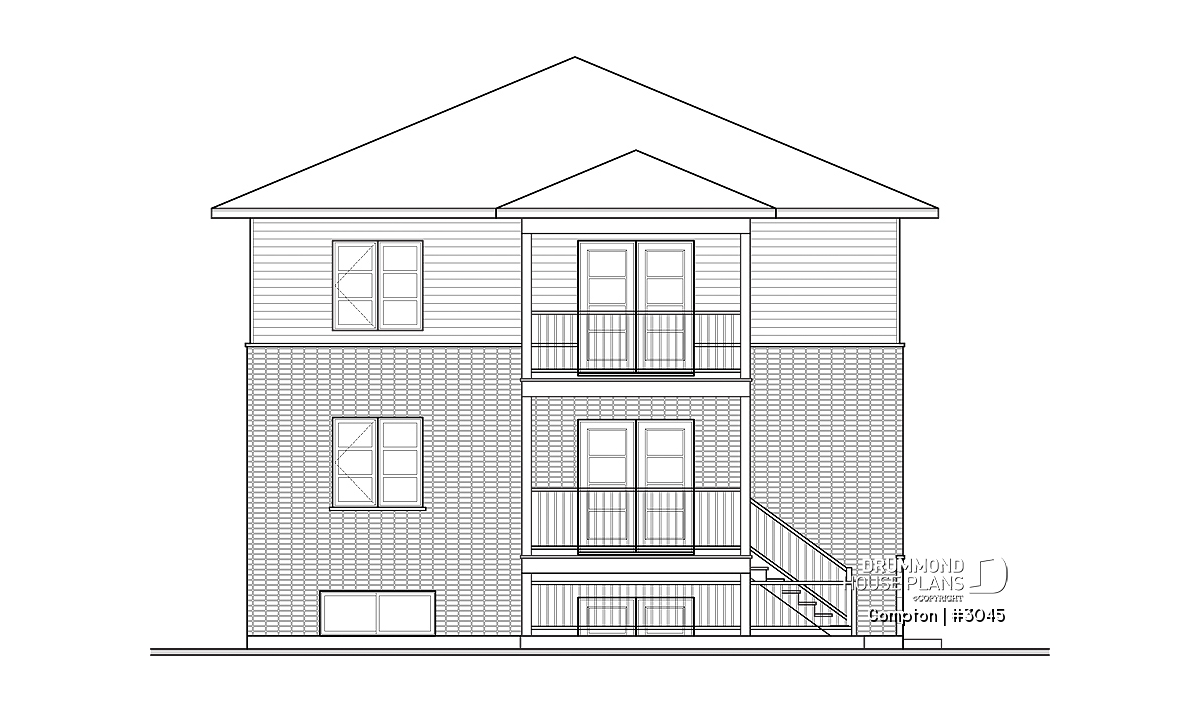

rear elevation

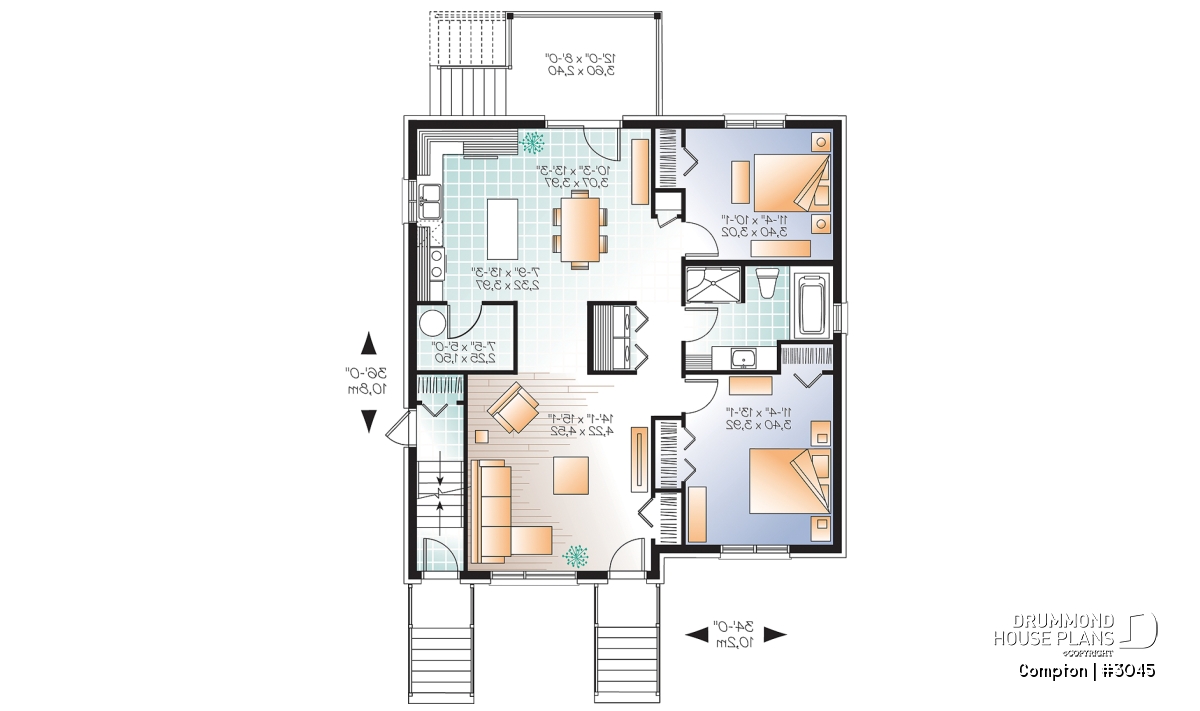

1st level
2nd level
Basement
House plan Compton (# 3045) 3 unit apartment building plan with 2 beds, pantry, balcony and laundry closet on each unit
2
1
3588 sq.ft.
-
Starting from
2615$
Additional details
General specifications
Total living area
3588 sq.ft.
1st level
1196 sq.ft.
2nd level
1196 sq.ft.
Basement
1196 sq.ft.
Width
34'0"
Depth
36'0"
Ridge height from top of foundation
30'0"
Exterior wall
2 X 6
Finished basement with walkout
Builder price code
ME
Rooms specifications
Bedroom(s)
2
Full baths
1
Half baths
-
Garage type
-
Covered porch area
-
Units specifications
Basement unit
Ground floor unit
Second floor unit
Total living area
1196 sq.ft.
1196 sq.ft.
1196 sq.ft.
Basement
1196 sq.ft.
1196 sq.ft.
1st level
1196 sq.ft.
Width
34' 0"
34' 0"
34' 0"
Depth
36' 0"
36' 0"
36' 0"
Ridge height from top of foundation
30' 0"
30' 0"
30' 0"
Exterior wall
2 X 6
2 X 6
2 X 6
Foundation type
Finished basement with walkout
Finished basement with walkout
Finished basement with walkout
Bedroom(s)
2
2
2
Full baths
1
1
1
Half baths
-
-
-
Garage type
-
-
-
Living bonus space
-
-
-
Bonus storage
-
-
-
1st level
Rooms
Sizes
Ceiling
Bedroom
11'4" x 10'1"
~ 8'0"
Closet
2'0" x 4'7"
~ 8'0"
Bedroom
11'4" x 13'1"
~ 8'0"
Closet
2'0" x 5'3"
~ 8'0"
Closet
2'0" x 4'0"
~ 8'0"
Kitchen
7'9" x 13'3"
~ 8'0"
Pantry
1'6" x 2'0"
N/A
Storage
7'5" x 5'0"
~ 8'0"
Full bathroom
11'4" x 8'0"
~ 8'0"
Linen
2'0" x 1'2"
N/A
Laundry room
3'2" x 5'0"
~ 8'0"
Living room
14'1" x 15'1"
~ 8'0"
Closet
2'0" x 4'0"
~ 8'0"
Dining room
10'3" x 13'3"
~ 8'0"

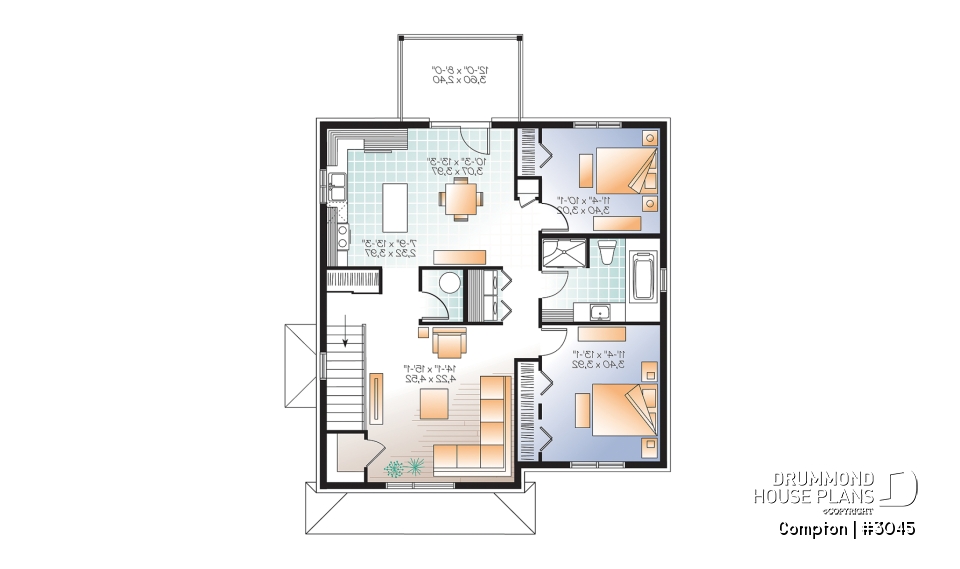

2nd level
Rooms
Sizes
Ceiling
Bedroom
11'4" x 13'1"
~ 8'0"
Closet
2'0" x 9'7"
~ 8'0"
Bedroom
11'4" x 10'1"
~ 8'0"
Closet
2'0" x 4'7"
~ 8'0"
Kitchen
7'9" x 13'3"
~ 8'0"
Pantry
1'6" x 2'0"
N/A
Foyer
3'7" x 3'4"
~ 8'0"
Linen
2'0" x 1'8"
~ 8'0"
Storage
3'11" x 5'0"
~ 8'0"
Storage
3'7" x 4'8"
~ 8'0"
Full bathroom
11'4" x 8'0"
~ 8'0"
Linen
3'0" x 1'2"
N/A
Laundry room
3'2" x 5'0"
~ 8'0"
Living room
14'1" x 15'1"
~ 8'0"
Closet
5'0" x 2'2"
~ 8'0"
Dining room
10'3" x 13'3"
~ 8'0"

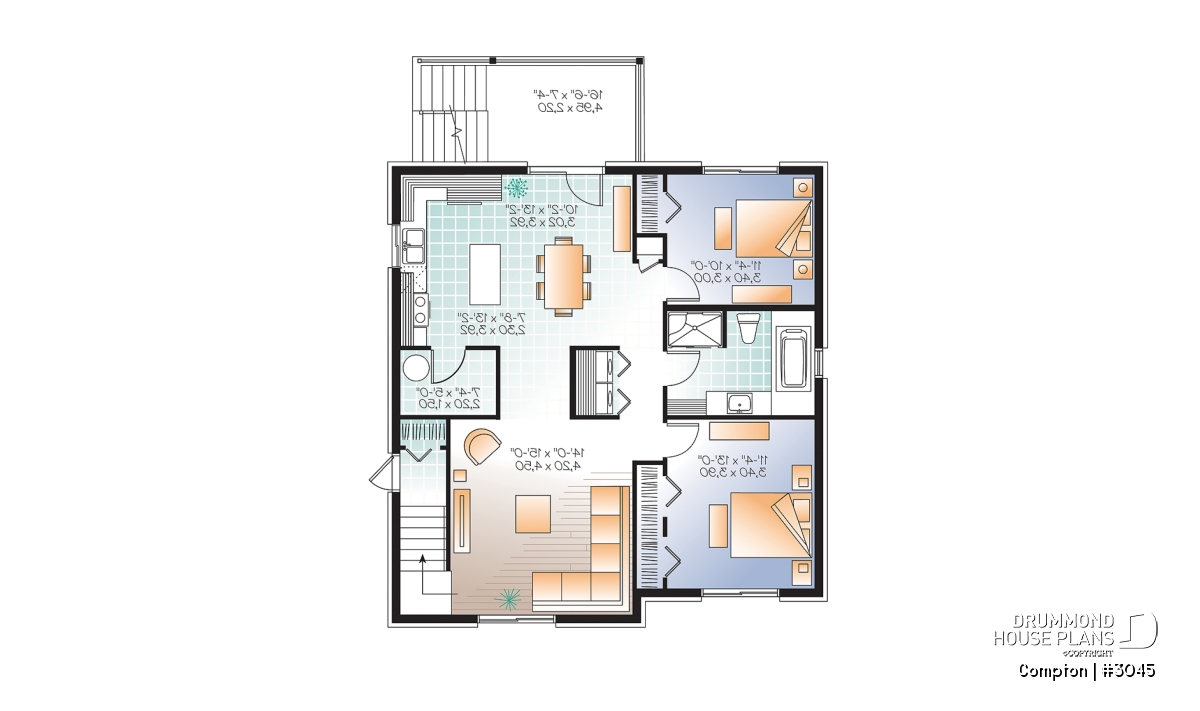

Basement
Rooms
Sizes
Ceiling
Bedroom
11'4" x 10'0"
~ 8'0"
Closet
2'0" x 4'6"
~ 8'0"
Bedroom
11'4" x 13'0"
~ 8'0"
Closet
2'0" x 9'6"
~ 8'0"
Kitchen
7'8" x 13'2"
~ 8'0"
Pantry
1'6" x 2'0"
N/A
Foyer
3'6" x 4'4"
~ 12'4"
Closet
3'6" x 2'0"
~ 12'4"
Linen
2'0" x 1'8"
~ 8'0"
Storage
7'4" x 5'0"
~ 8'0"
Full bathroom
11'4" x 8'0"
~ 8'0"
Linen
3'0" x 1'2"
N/A
Laundry room
3'2" x 5'0"
~ 8'0"
Living room
14'0" x 15'0"
~ 8'0"
Dining room
10'2" x 13'2"
~ 8'0"
Modern 3 unit building apartment, 2 bedrooms and covered balcony per unit
Stylish and contemporary, this triplex includes three dwelling units with each occupying a single level. With the trend toward densification, this unit allows three units to occupy a single lot and provides independence and convenience for each unit.
Each unit features kitchen with island, private laundry, two bedrooms and generous bathroom with independent soaker tub and generous shower. Each dwelling is designed to include a 12’x8’ covered deck.
Each unit features kitchen with island, private laundry, two bedrooms and generous bathroom with independent soaker tub and generous shower. Each dwelling is designed to include a 12’x8’ covered deck.
Distinctive elements
Well proportioned rooms. Laundry area and storage provided for each dwelling. 12'x8' covered patio or deck for each dwelling. Separate 51"x34" shower in each bathroom. Each unit kitchen includes an island.
Plan feature(s)
Separate bath and shower, Pantry, Island, Second floor laundry room, Gound floor laundry room, Covered patios
Plan architectural style(s)
The plan Compton is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
