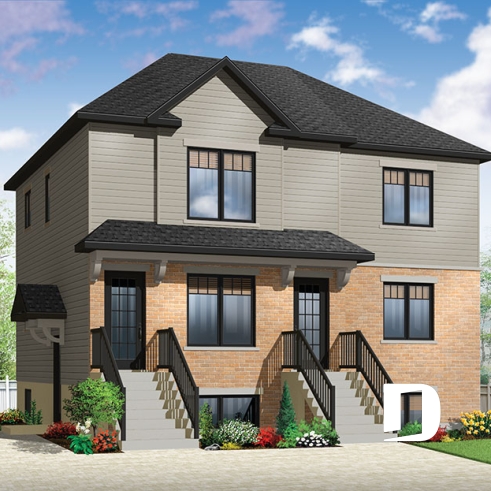

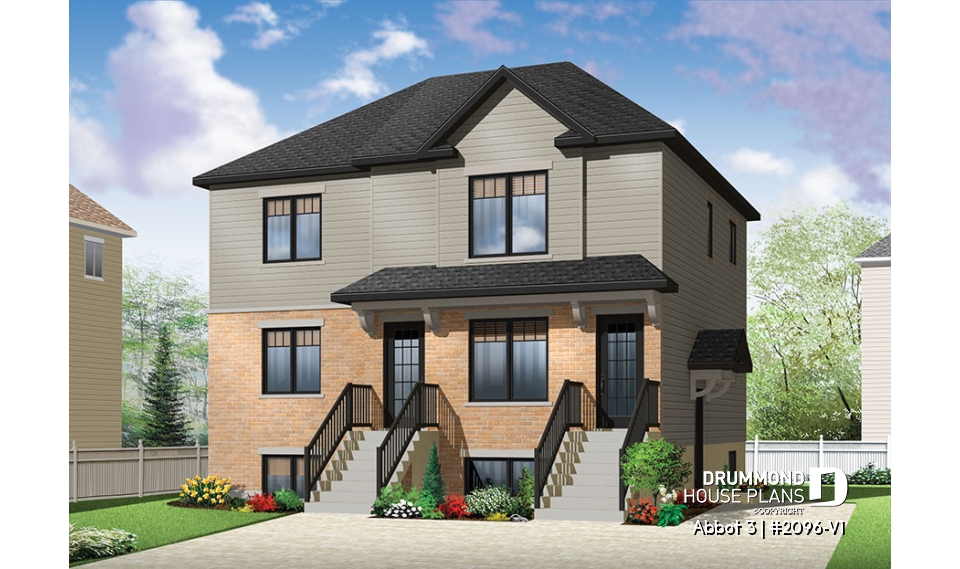

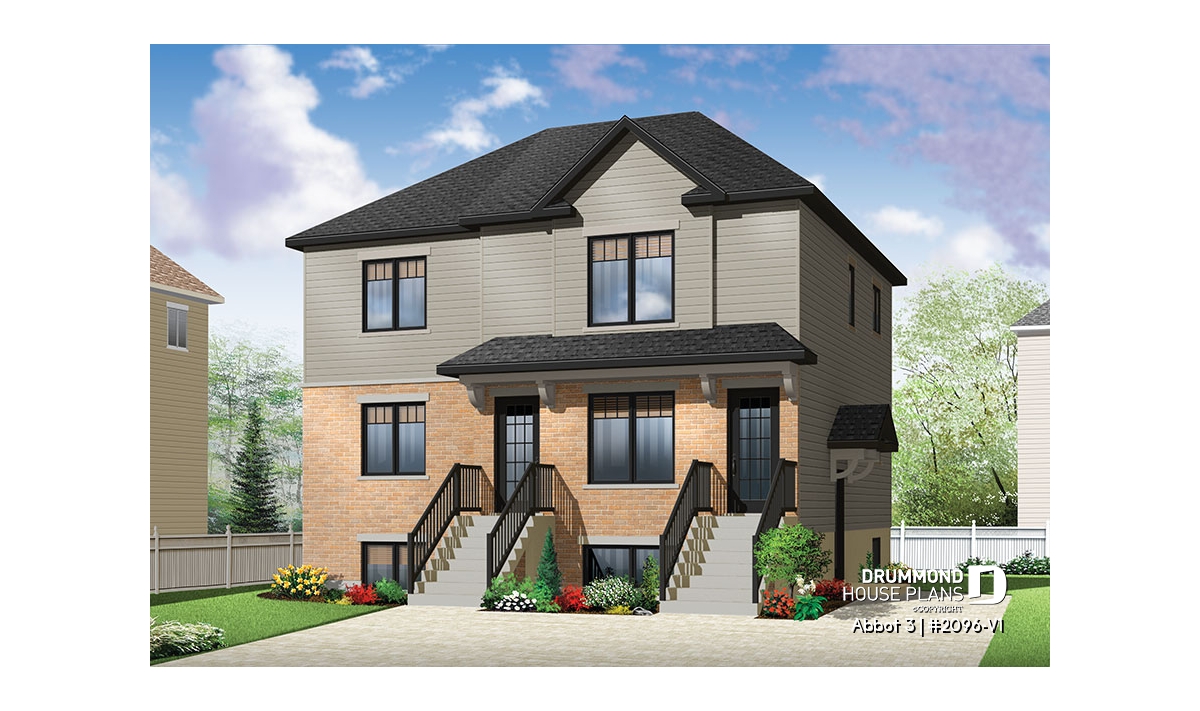

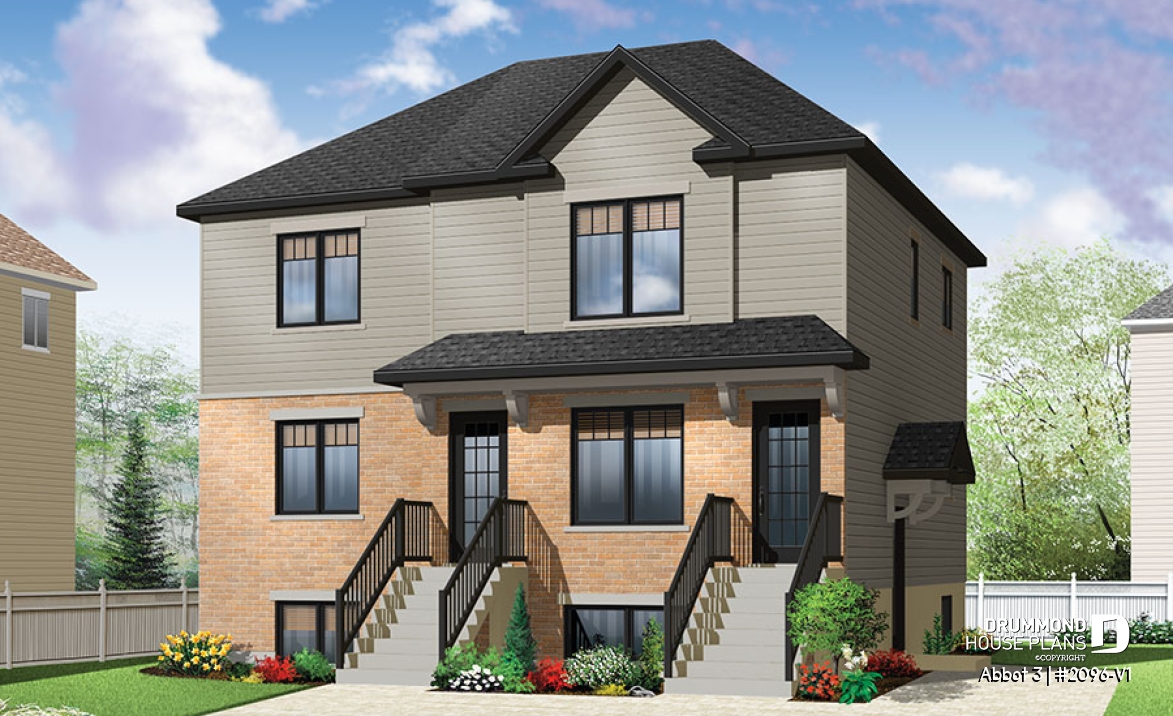

front - BASE MODEL - Economical 2 bedroom Modern style triplex house plan with great open floor plan layout  - Abbot 3

front - BASE MODEL

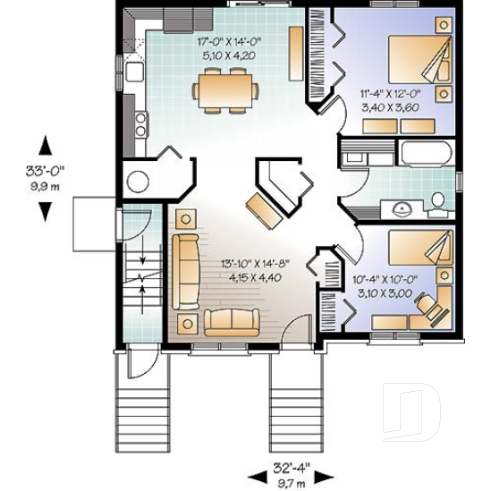

1st level - Economical 2 bedroom Modern style triplex house plan with great open floor plan layout  - Abbot 3

1st level

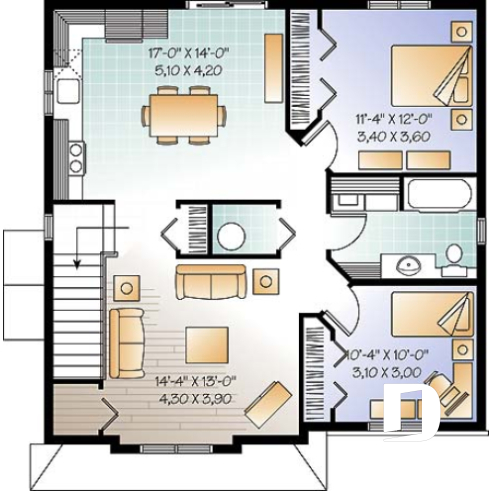

2nd level - Economical 2 bedroom Modern style triplex house plan with great open floor plan layout  - Abbot 3

2nd level

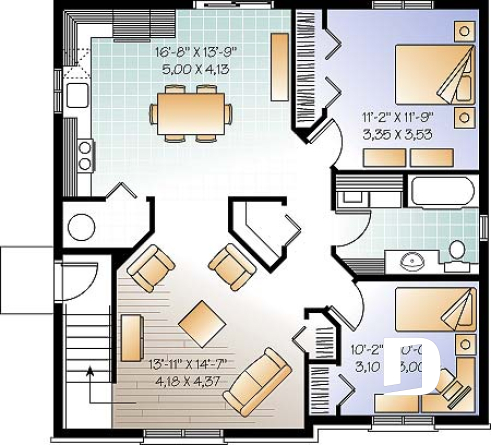

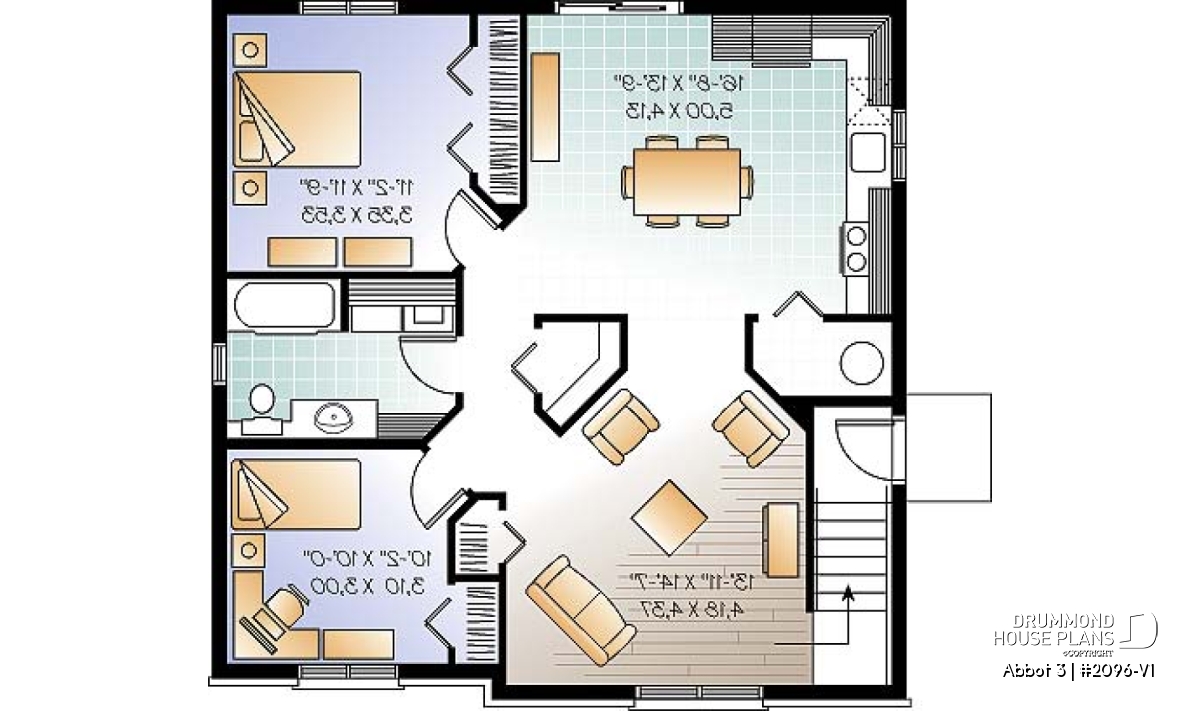

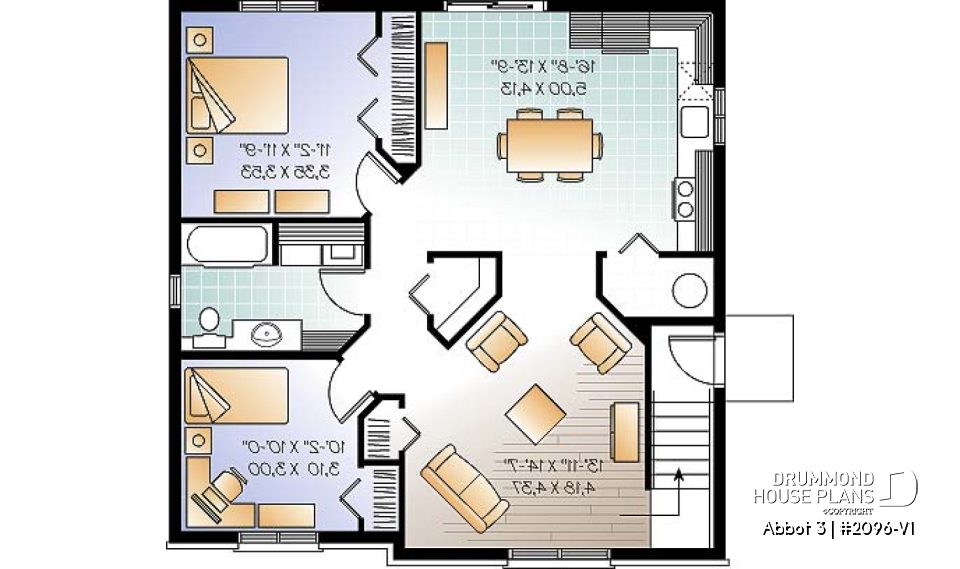

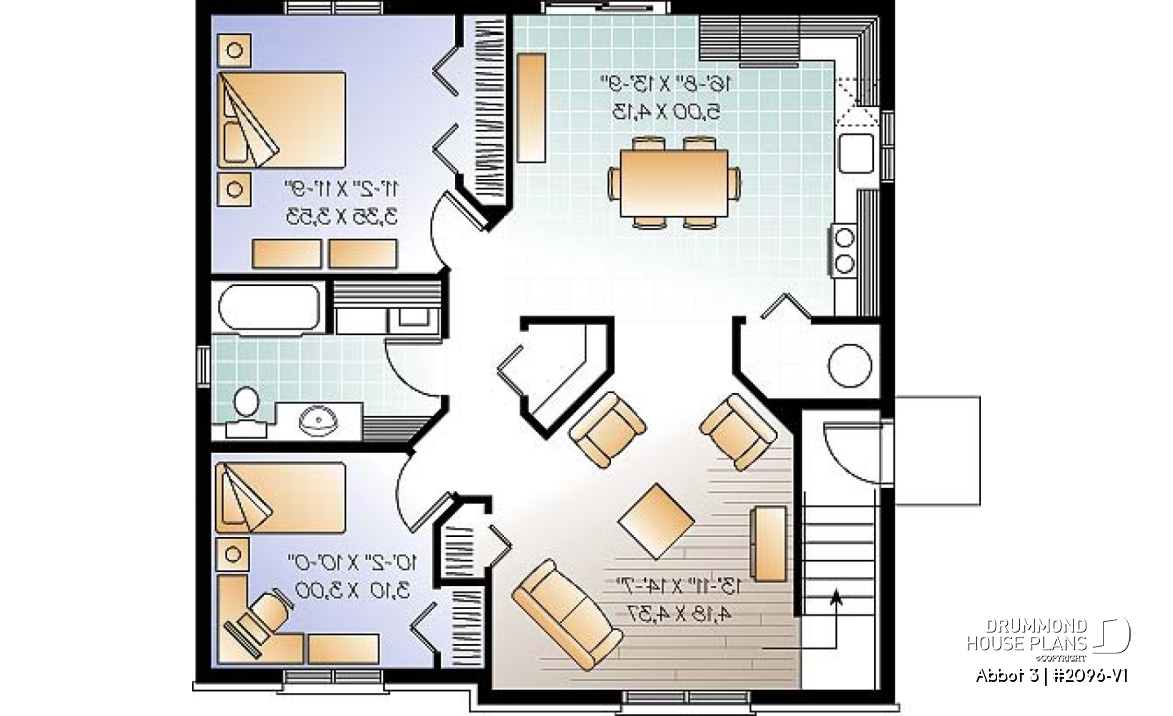

Basement - Economical 2 bedroom Modern style triplex house plan with great open floor plan layout  - Abbot 3

Basement

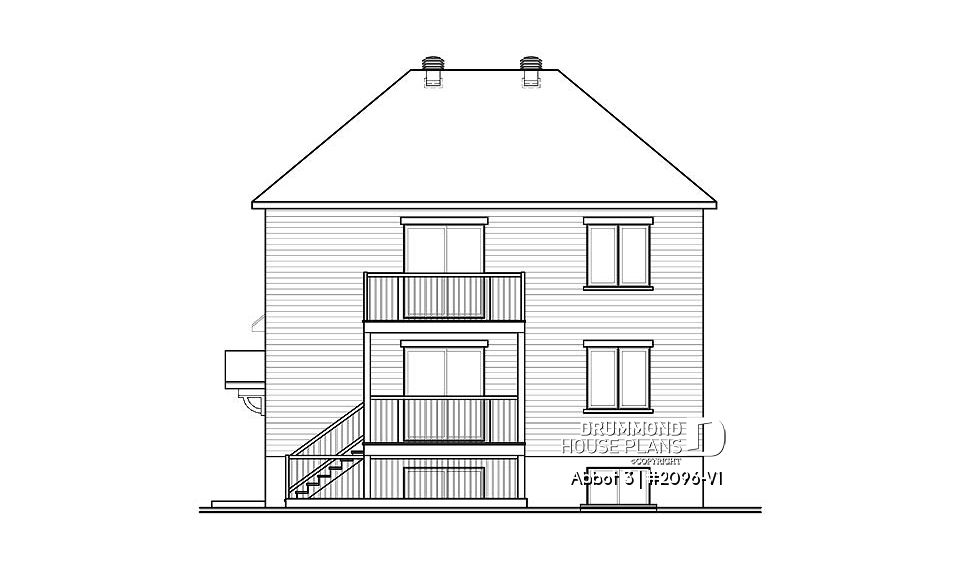

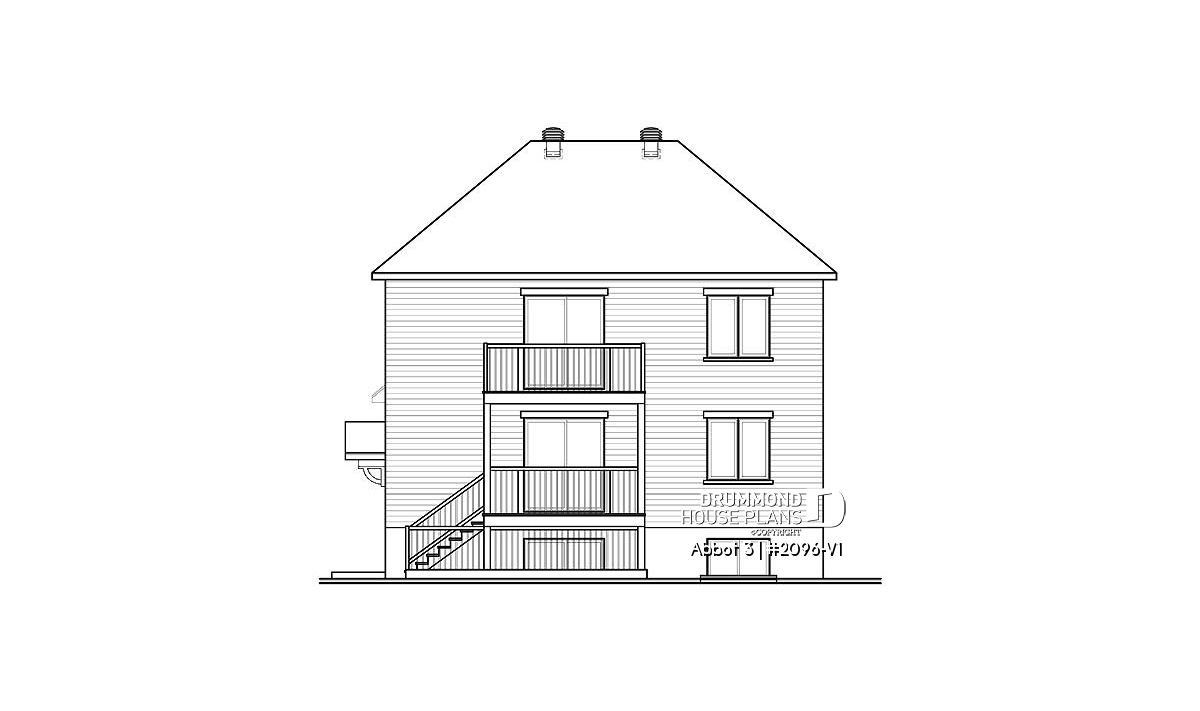

rear elevation - Abbot 3

rear elevation

Abbot 3 House plan 2096-V1

Economical 2 bedroom Modern style triplex house plan with great open floor plan layout

Starting from

2415$

Technical details summary Plan #2096-V1
Total living area 3158 sq.ft. Bedroom 2
Full baths 1 Half baths -
Foundation included Finished basement Garage -
Width 32'4" Depth 33'0"

Need help ?

Our experts are here to guide you to make your dream project come to life.

Contact us

Come see us

Visit one of our 30 regional offices.

Our offices

Personalized support

From plan modifications to fully custom designs, we guide you every step of the way.

Discover our services

Additional details

General specifications

Total living area
3158 sq.ft.
1st level
1054 sq.ft.
2nd level
1050 sq.ft.
Basement
1054 sq.ft.
Width
32'4"
Depth
33'0"
Ridge height from top of foundation
32'1"
Exterior wall
2 X 6
Builder price code
MD

Rooms specifications

Bedroom(s)
2
Full baths
1
Half baths
-
Garage type
-
Covered porch area
50 sq.ft.

Units specifications

UNIT 1
UNIT 2
UNIT 3
Total living area
1054 sq.ft.
1050 sq.ft.
1054 sq.ft.
Basement
1054 sq.ft.
1st level
1054 sq.ft.
2nd level
1050 sq.ft.
Width
32' 4"
32' 4"
32' 4"
Depth
33' 0"
33' 0"
33' 0"
Ridge height from top of foundation
32' 1"
32' 1"
32' 1"
Exterior wall
2 X 6
2 X 6
2 X 6
Foundation type
Finished basement
Finished basement
Finished basement
Bedroom(s)
2
2
2
Full baths
1
1
1
Half baths
-
-
-
Garage type
-
-
-
Living bonus space
-
-
-
Bonus storage
-
-
-

Basement

Rooms
Sizes
Ceiling
Kitchen/dining room
16'8" x 13'9"
~ 8'0"
Living room
13'11" x 14'7"
~ 8'0"
Foyer
3'5" x 4'7"
~ 8'0"
Full bathroom
10'5" x 7'5"
~ 8'0"
Bedroom
11'2" x 11'9"
~ 8'0"
Bedroom
10'2" x 10'0"
~ 8'0"
Storage
6'3" x 3'6"
~ 8'0"
Storage
3'8" x 4'10"
~ 8'0"
Terrace
11'0" x 7'6"
N/D

1st level

Rooms
Sizes
Ceiling
Porch
4'0" x 5'0"
N/D
Kitchen/dining room
17'0" x 14'0"
~ 8'0"
Living room
13'0" x 14'8"
~ 8'0"
Full bathroom
10'8" x 7'6"
~ 8'0"
Bedroom
11'4" x 12'0"
~ 8'0"
Bedroom
10'4" x 10'0"
~ 8'0"
Storage
6'6" x 3'6"
~ 8'0"
Storage
3'8" x 4'10"
~ 8'0"
Porch
5'0" x 3'4"
N/D
Covered deck
12'0" x 8'0"
N/D
Porch
5'0" x 3'4"
N/D

2nd level

Rooms
Sizes
Ceiling
Kitchen/dining room
17'0" x 14'0"
~ 8'0"
Living room
14'4" x 13'0"
~ 8'0"
Foyer
3'6" x 3'8"
~ 8'0"
Full bathroom
10'8" x 7'6"
~ 8'0"
Bedroom
11'4" x 12'0"
~ 8'0"
Bedroom
10'4" x 10'0"
~ 8'0"
Storage
3'4" x 3'10"
~ 8'0"
Storage
4'8" x 3'8"
~ 8'0"
Balcony
12'0" x 8'0"
N/D

If Two is Good, Three is Great!

Ideal as a revenue property or mortgage helper, secondary suites allow you to get on the first step of the property ladder. So why stop at one suite when two is possible?

The floor plan is echoed on each level with slight variations. Each unit offers every comfort including storage, great living areas, two bedrooms and a balcony or patio.

It is not unreasonable to actually have positive cashflow with multiple unites. Crunch the numbers and you may find this is a great way for you to get ahead!

Distinctive elements

Triplex with three similar appartments with large rooms, independant access for each appartment and each has a 12'-0" x 8'-0" terrace.

Plan feature(s)

Gound floor laundry room

Plan architectural style(s)

Contemporary, Traditional, Modern / Design, Modern rustic

Similar plans
Logo Drummond House Plans image drummond house plans
The plan Abbot 3 is protected by the copyright law.

The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.

Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
