split-entry house plan, low budget, cathedral ceiling, central fireplace, kitchen with island
View the size of the rooms and height of the ceilings

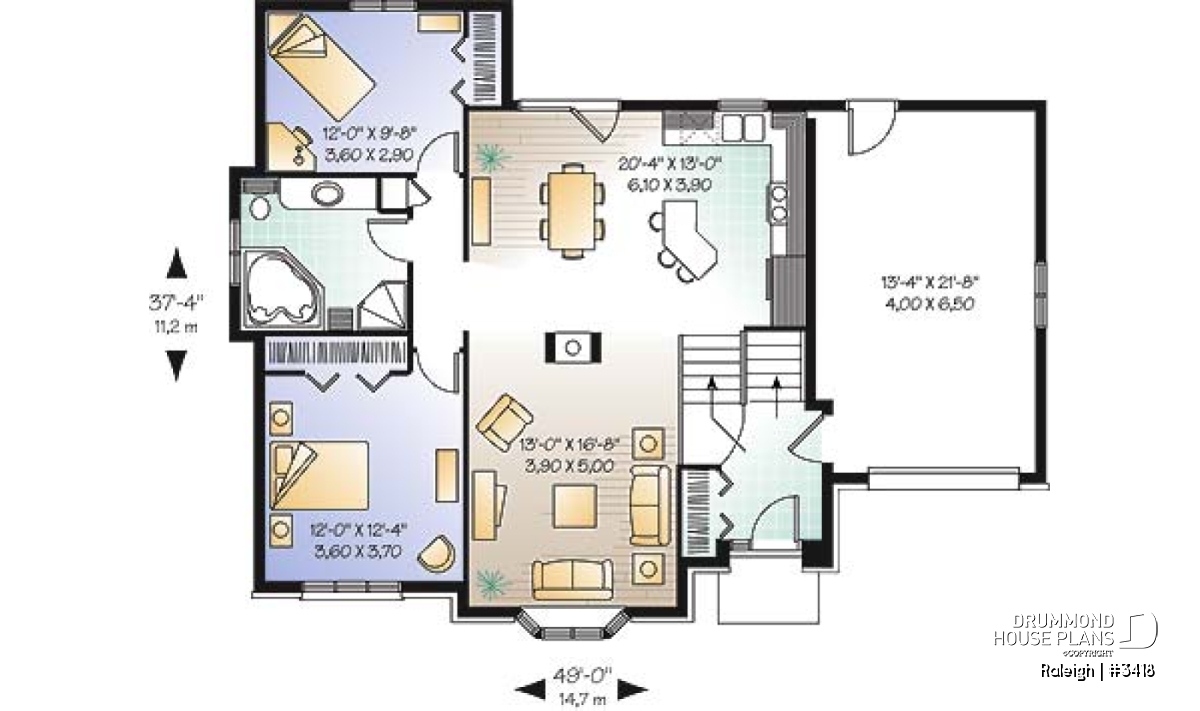

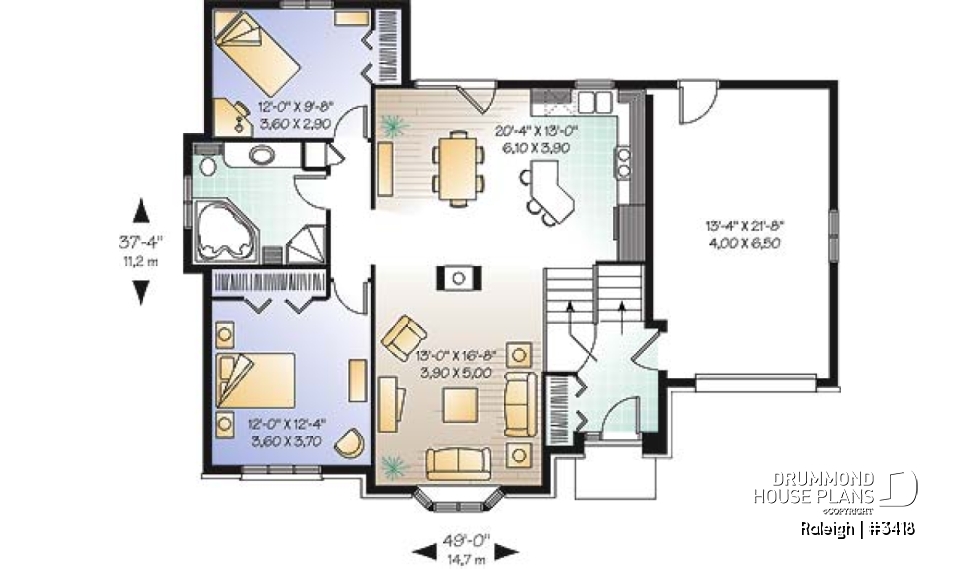

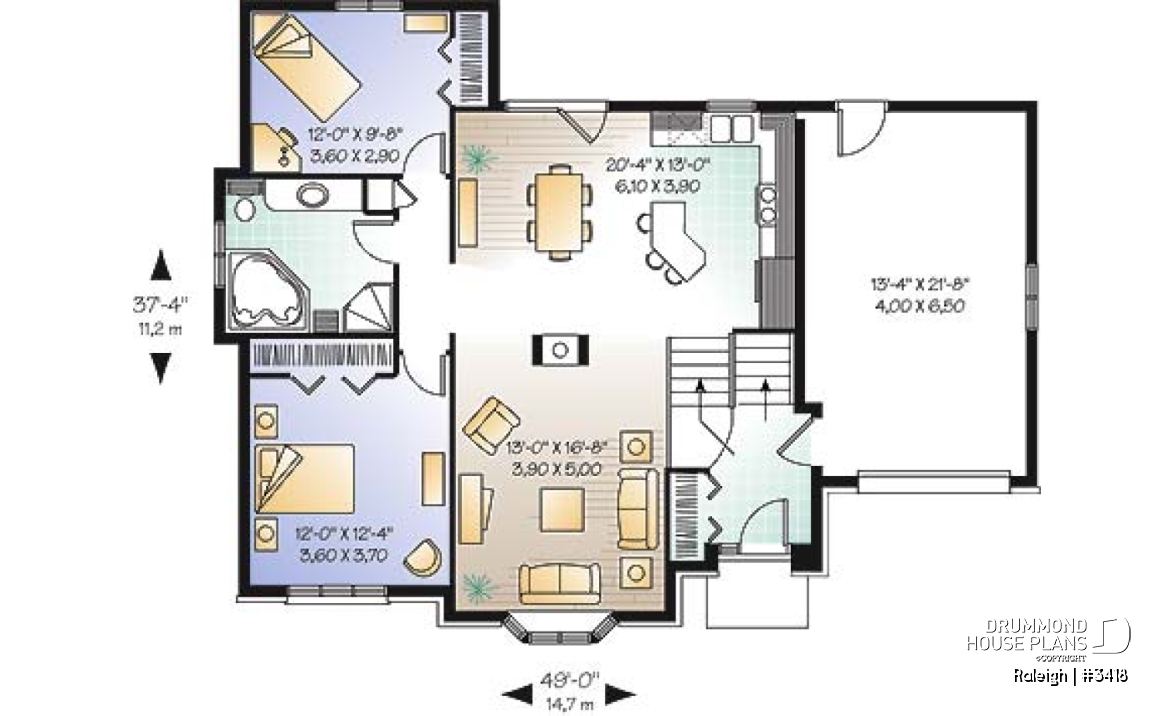

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'0" x 9'2" | ~ 8'0" |
| Kitchen/dining room | 20'2" x 13'0" | ~ 8'0" |
| Living room | 12'6" x 16'6" | ~ 8'0" |
| Bedroom | 11'10" x 12'4" | ~ 8'0" |
| Bedroom | 11'10" x 9'8" | ~ 8'0" |
| Linen | 1'6" x 1'10" | ~ 8'0" |
| Foyer | 6'0" x 8'2" | ~ 12'4" |
| Garage | 13'2" x 21'8" | ~ 9'6" |
| Porch | 6'0" x 4'0" | ~ 8'0" |
| Deck | 8'0" x 6'0" | ~ 8'0" |
General specifications
| Total living area | 1129 sq.ft. |
| 1st level | 1129 sq.ft. |
| Width | 49'0" |
| Depth | 37'4" |
| Ridge height from top of foundation | 29'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | B |
Rooms specifications
front
This color version might have decorative elements that are not available on base plan.

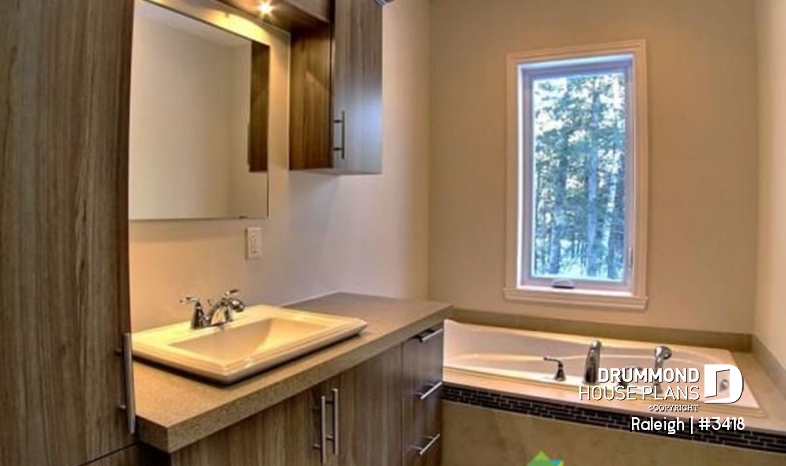

Bathroom
This color version might have decorative elements that are not available on base plan.
Other useful information on this plan
European Elegance
Well-balanced spaces, beautiful fenestration and brick façade - all lend to the European charm of this manor-style home.
Abundant natural light enters through a bay window in the family room, a significant arched window over the main entrance door, patio doors in the dining room and enlarged windows for the rooms in the raised basement, each of which ensures daylight to the lower level.
Additional features include a kitchen with lunch counter, a well appointed bathroom, an entryway with a landing that serves as an entrance hall, and a spacious dining/family room which share a central fireplace, lending grand charm to this fine home.
Double your living space by developing the basement - perfect for a home office, additional bedrooms, media room or... you choose!
Distinctive elements
12' ceiling in main entrance. Two-face fireplace in living room and dining room. Kitchen with central lunch island.
Plan feature(s)
Fireplace, Separate bath and shower, Lunch counter
Plan architectural style(s)
. European, . Traditional
