Bellcast (3447)

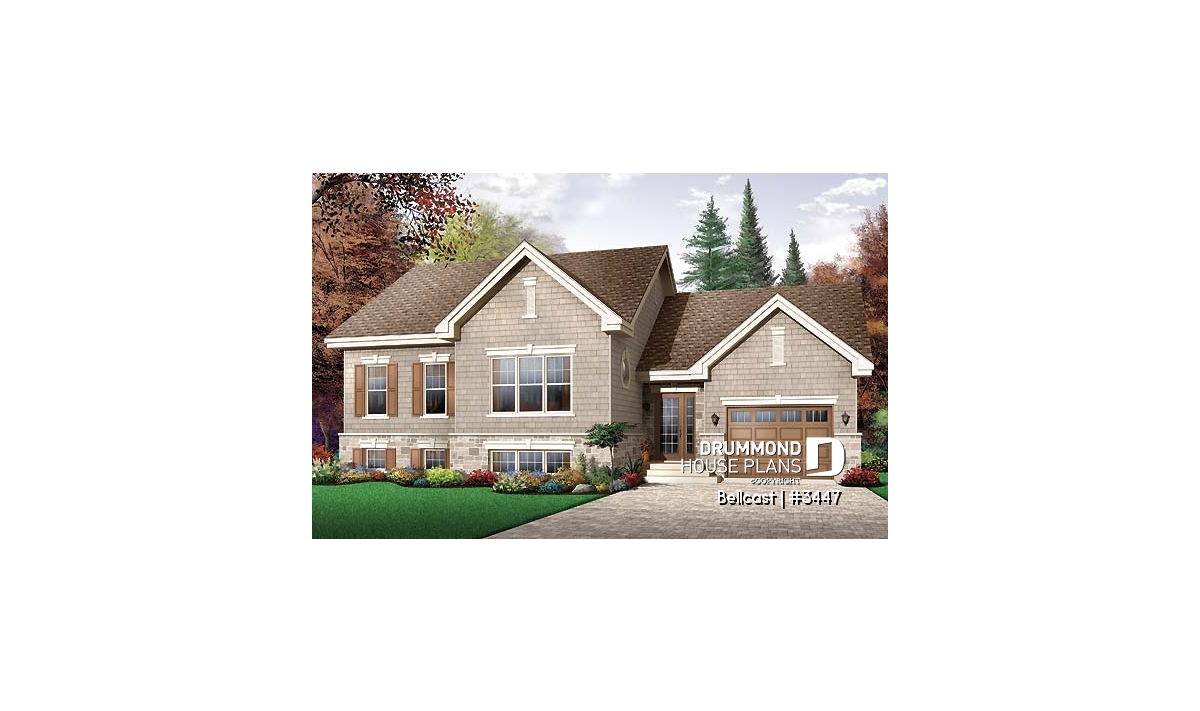

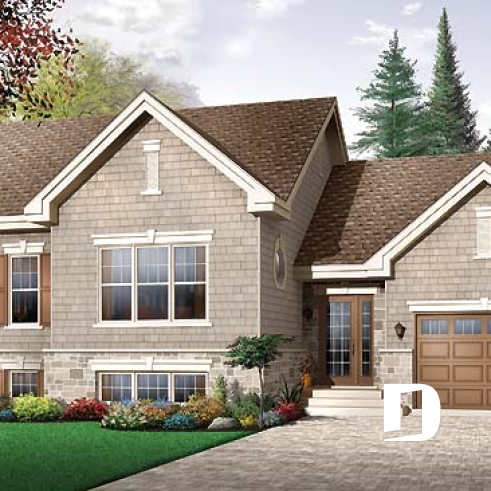

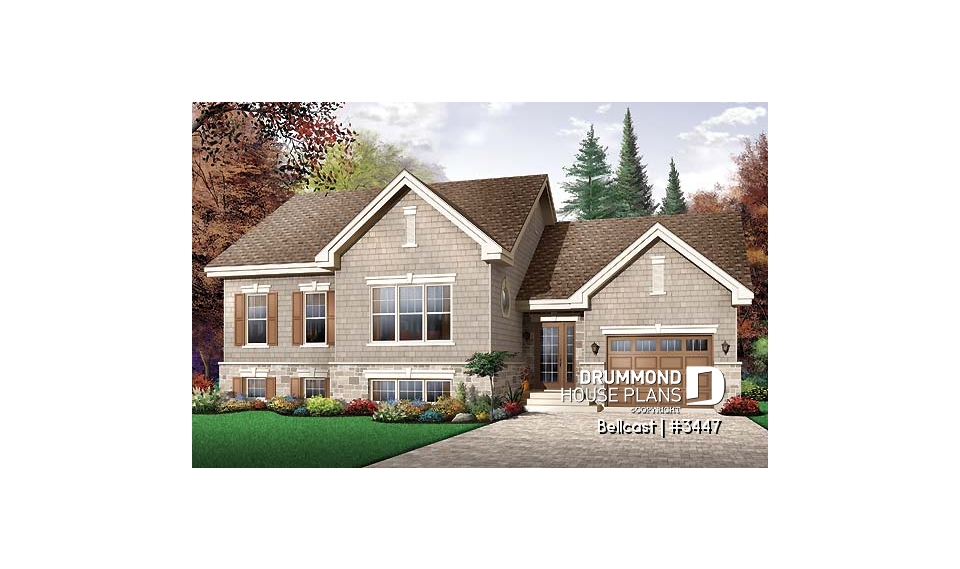

Split level modern rustic home plan, 2 bedrooms, 11' ceiling at the dining room
View the size of the rooms and height of the ceilings

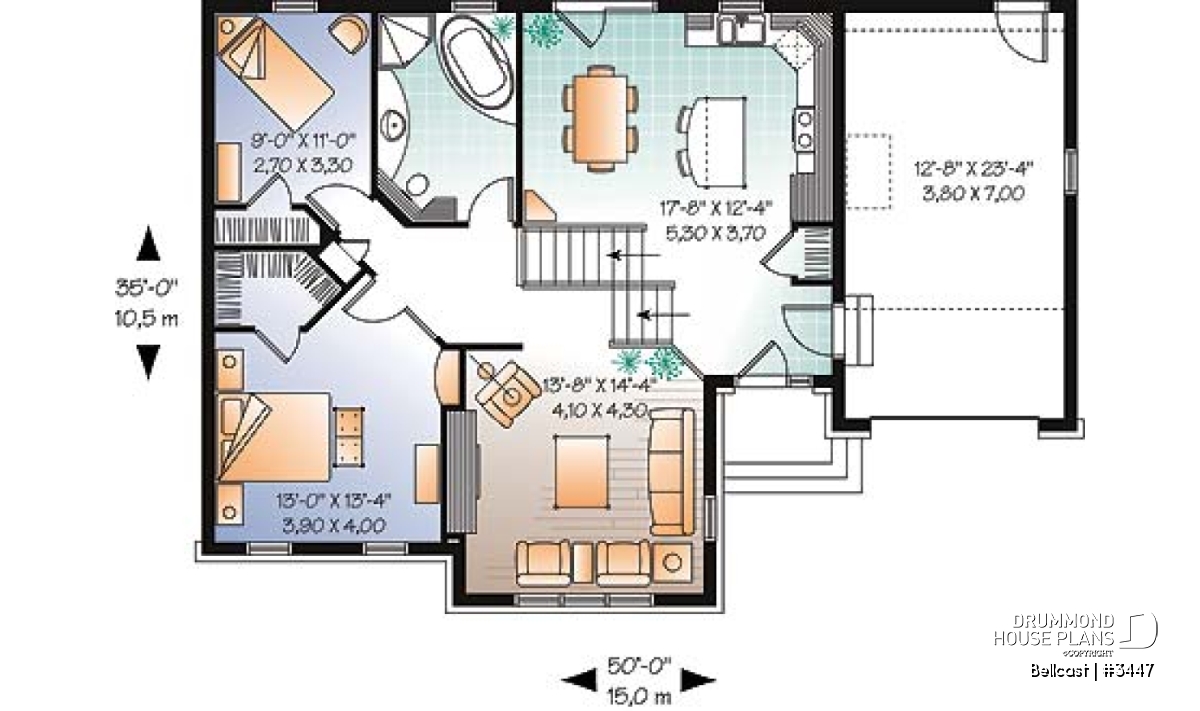

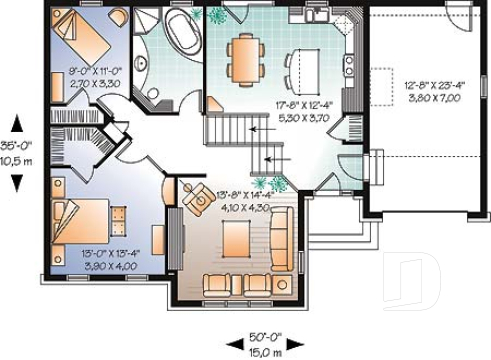

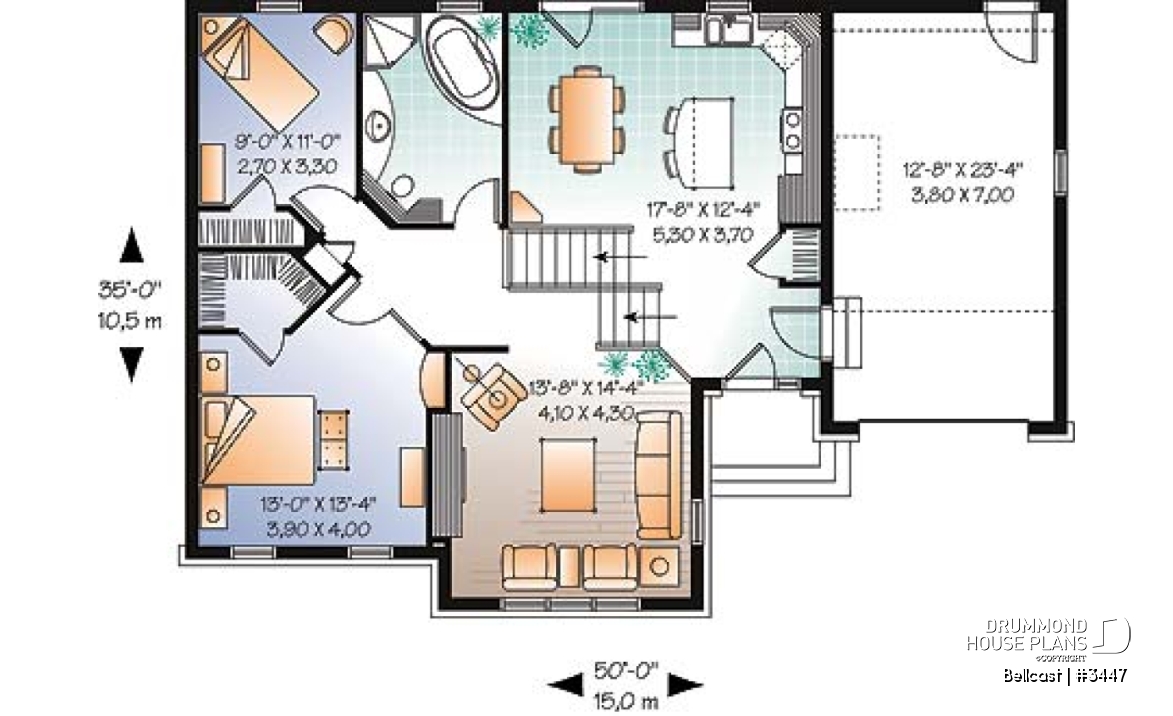

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dining room | 17'8" x 12'4" | ~ 11'0" |
| Living room | 13'8" x 14'4" | ~ 8'0" |
| Foyer | 9'0" x 5'2" | ~ 8'0" |
| Full bathroom | 8'0" x 12'0" | ~ 8'0" |
| Bedroom | 13'0" x 13'4" | ~ 8'0" |
| Bedroom | 9'0" x 11'0" | ~ 8'0" |
| Linen | 1'4" x 2'4" | ~ 8'0" |
| Garage | 12'8" x 23'4" | ~ 9'8" |
| Porch | 6'0" x 4'0" | N/A |
| Terrace | 8'0" x 5'0" | N/A |
| Bonus storage | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bonus storage | 12'8" x 12'0" | ~ 7'0" |
General specifications
| Total living area | 1155 sq.ft. |
| 1st level | 1155 sq.ft. |
| Bonus storage | 0 sq.ft. |
| Width | 50'0" |
| Depth | 35'0" |
| Ridge height from top of foundation | 24'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Cape Cod style 2 bedroom multi-level house plan with garage
.
Distinctive elements
11 Foot ceiling in dining room and kitchen. Built-ins in living room and master bedroom. Bathroom well organized for space. Well illuminated kitchen and dining rooms. Large storage space above garage. Note that the basement is 5 foot under the entrance, kitchen and dining rooms only.
Plan feature(s)
Separate bath and shower, Walk-in master bed., Island, Sloped ceiling
Plan architectural style(s)
. Country, . Craftsman / Northwest, . American, . Cape Cod, . Modern rustic, . Rustic, . Ranch
Previously Viewed Plans
Questions and comments
March 12 2014
Paul
Do you have plans that include how the finished basement would lay out?
March 12 2014
Customer service
Good day and thank you for your interest in this plan.
Since the foundation for this plan is a full, unfinished basement there is no floor plan that shows the divisions for the rooms as these will be done according to your requirements.
If you would like a free estimate for the floor plan that you need, we would be happy to get back to you within two business days after receipt of this on line request.
Please let me know if I can further assist you
Regards
Deb
April 13 2010
Tom Reid
Can I make this garage 26- 30 feet( double) without much difficult or does this create problems for the trusses?
April 15 2010
Customer service
Dear Mr Reid,
All of our plans can easily be modified. The trusses will be adapted to the modified version of your garage. To receive a Free Cost Estimate, you can visit the "Plan modification services" section of our website or contact the Drummond House Plans Agency in your area.
Do not hesitate to contact us again if you need further information.
Best Regards,
Customer Service Department
