Rockland (4051)
Affordable bungalow house plan, 3 bedrooms, front porch, large family room, laundry closet on main

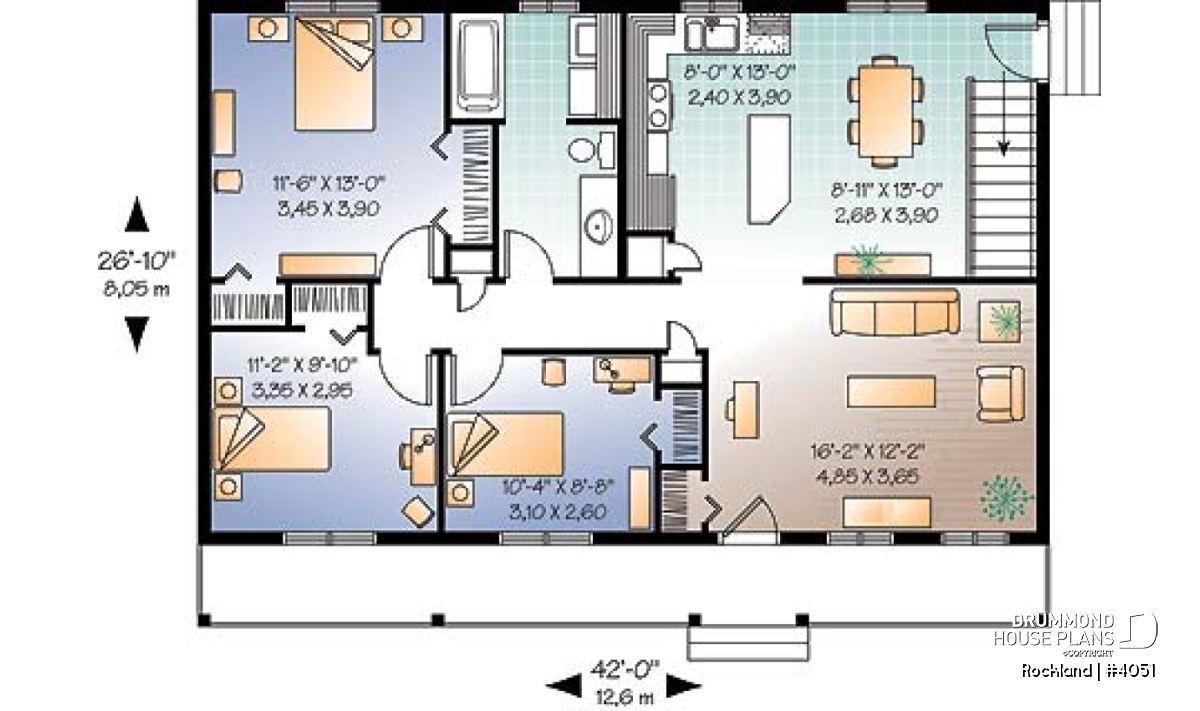

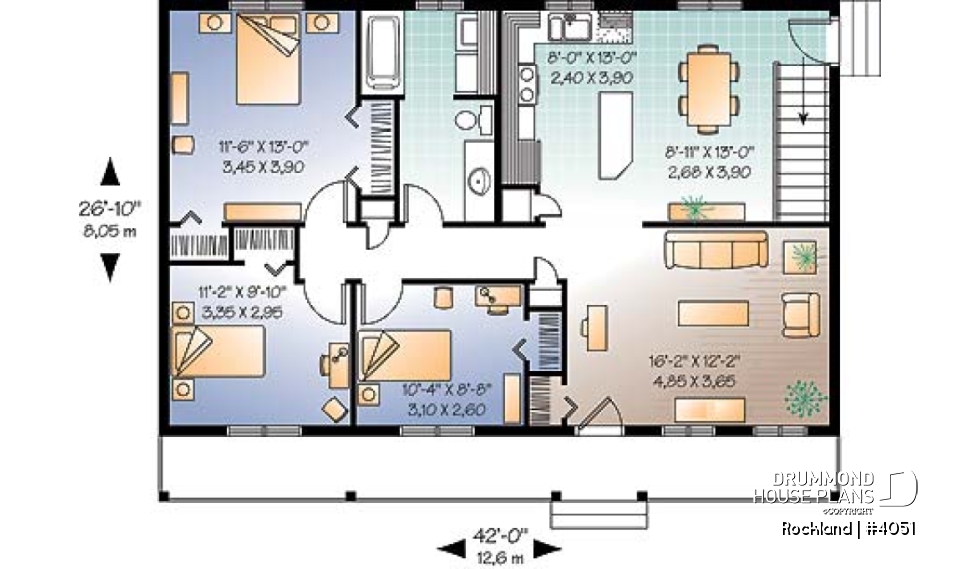

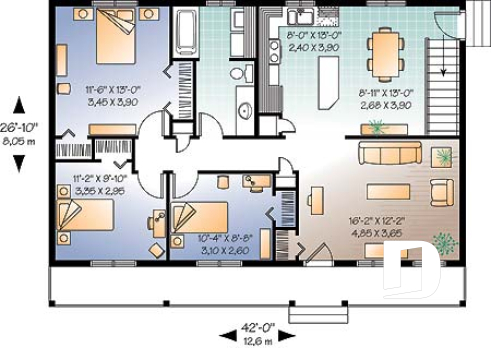

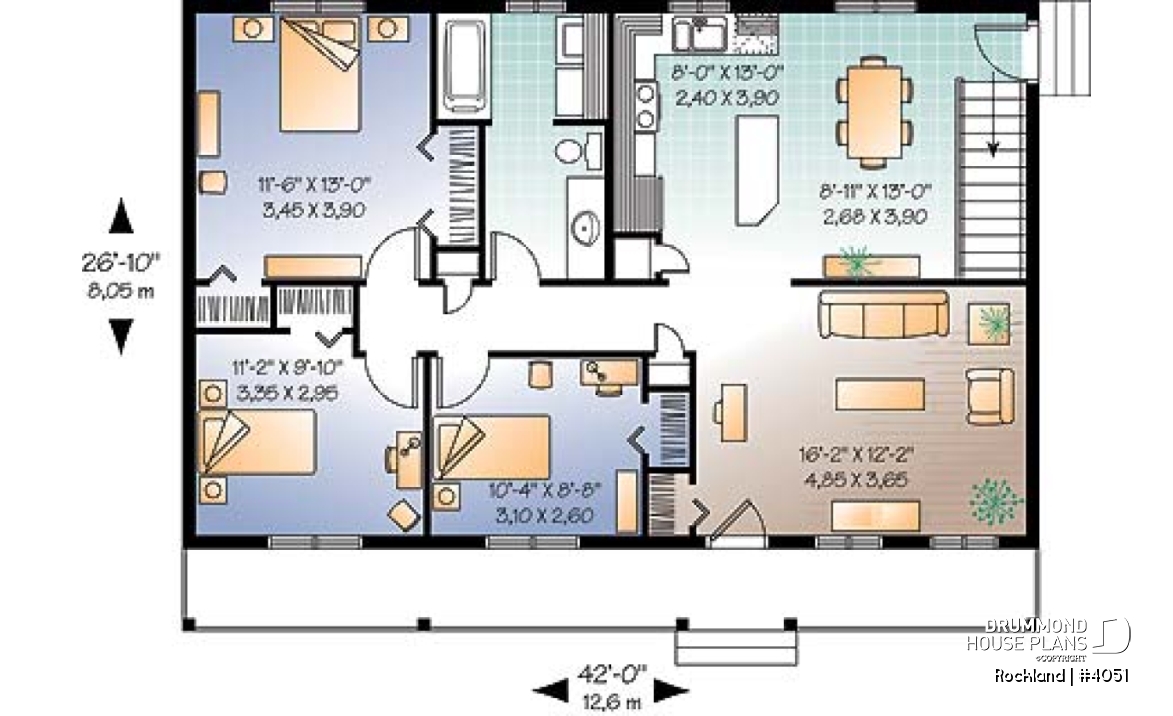

View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 8'0" x 13'0" | ~ 8'0" |
| Dining room | 8'11" x 13'0" | ~ 8'0" |
| Closet | 2'0" x 3'0" | ~ 8'0" |
| Full bathroom | 6'0" x 13'0" | ~ 8'0" |
| Bedroom | 11'6" x 13'0" | ~ 8'0" |
| Bedroom | 11'2" x 9'10" | ~ 8'0" |
| Bedroom | 10'4" x 8'8" | ~ 8'0" |
| Linen | 2'0" x 1'4" | ~ 8'0" |
| Storage | 2'0" x 1'4" | ~ 8'0" |
| Porch | 42'0" x 4'0" | N/A |
| Pantry | 2'0" x 2'0" | ~ 8'0" |
| Living room | 16'2" x 12'2" | ~ 8'0" |
General specifications
| Total living area | 1127 sq.ft. |
| 1st level | 1127 sq.ft. |
| Width | 42'0" |
| Depth | 26'10" |
| Ridge height from top of foundation | 17'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan

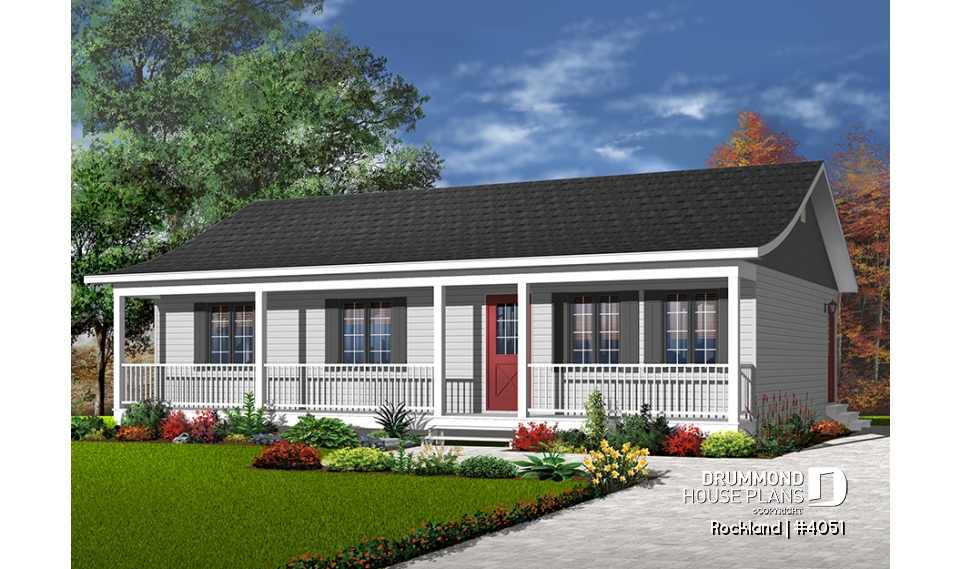

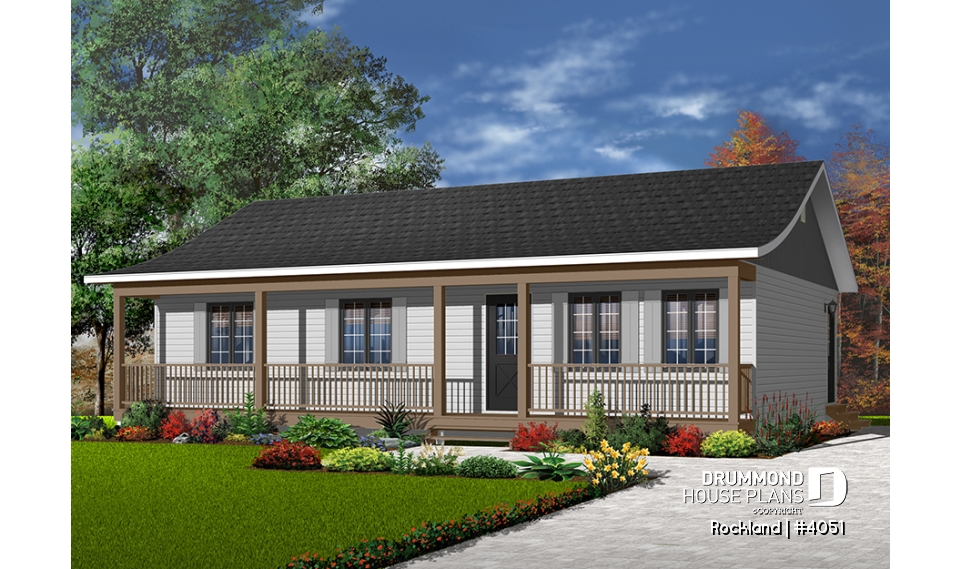

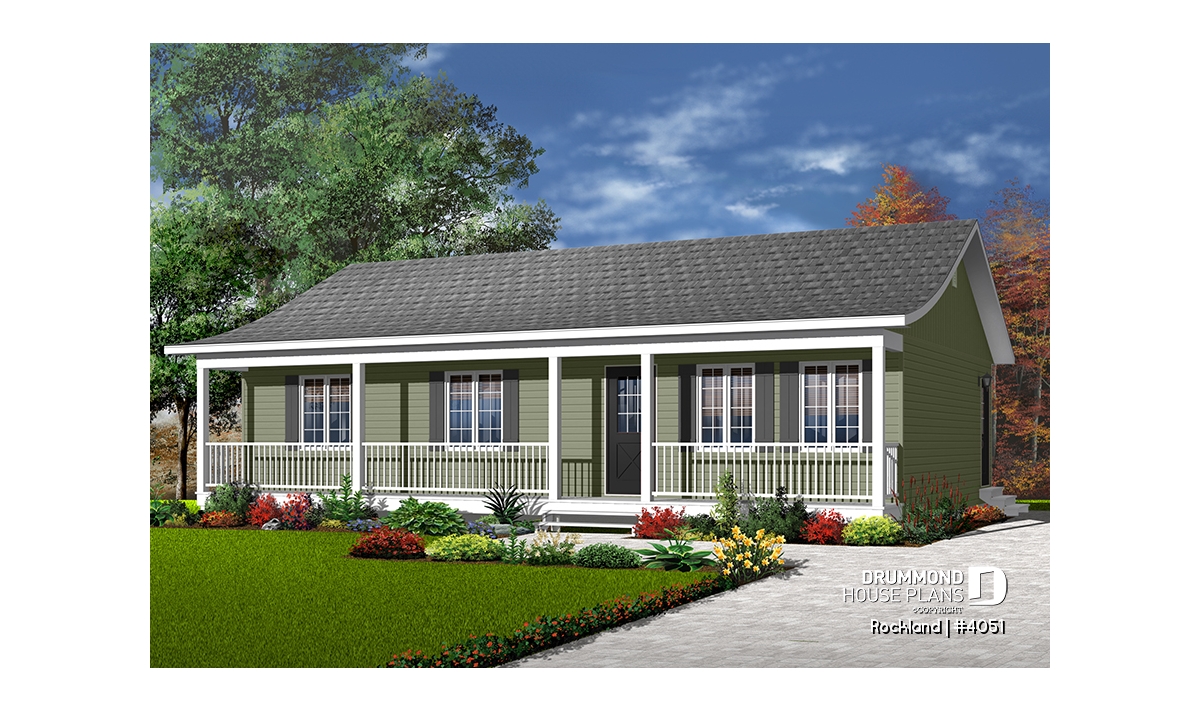

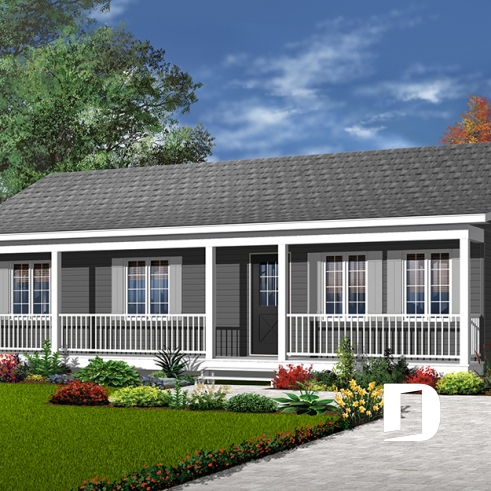

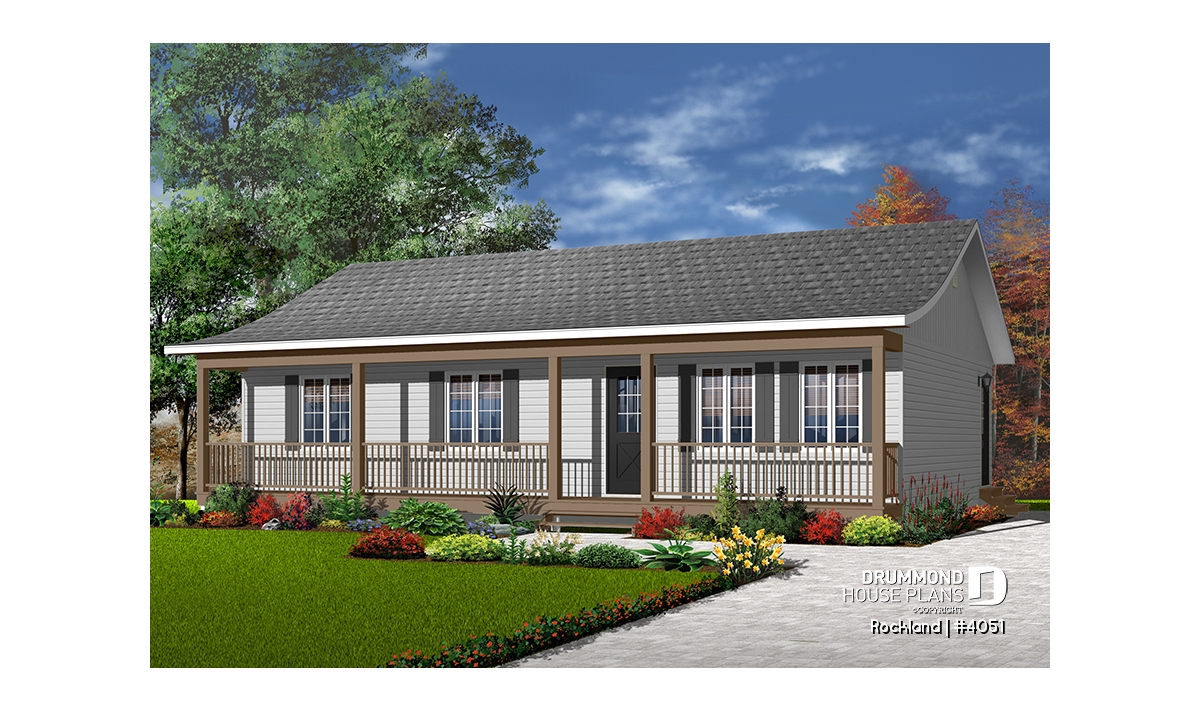

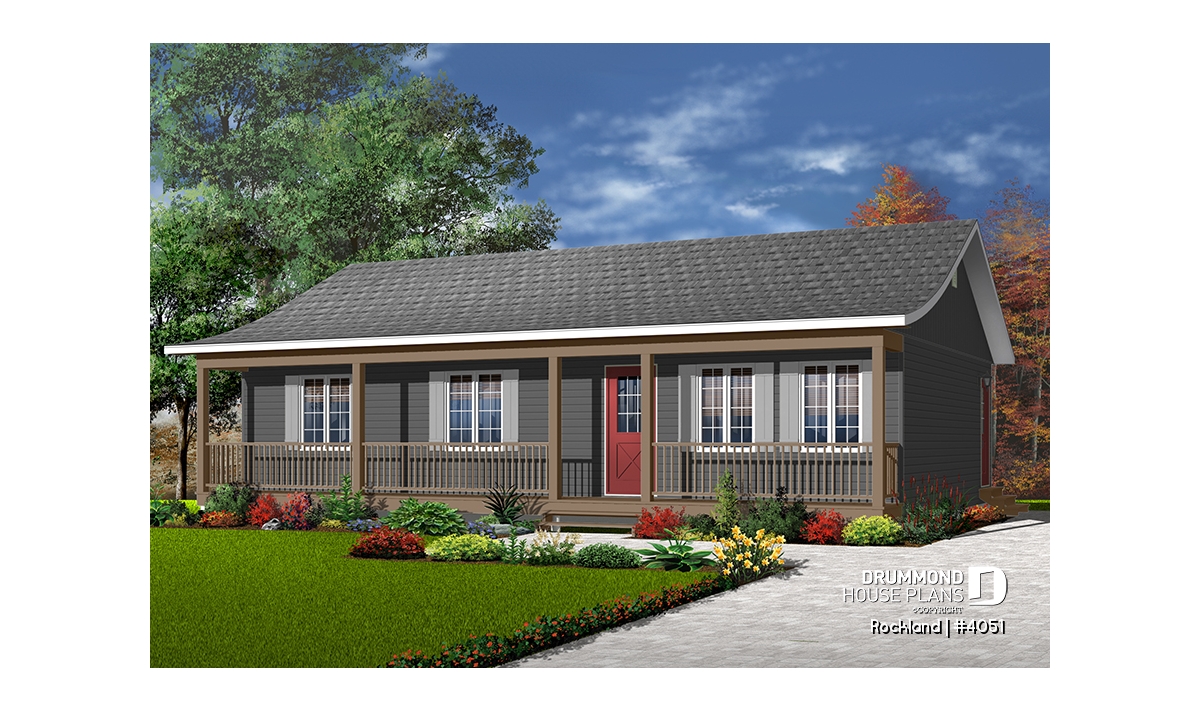

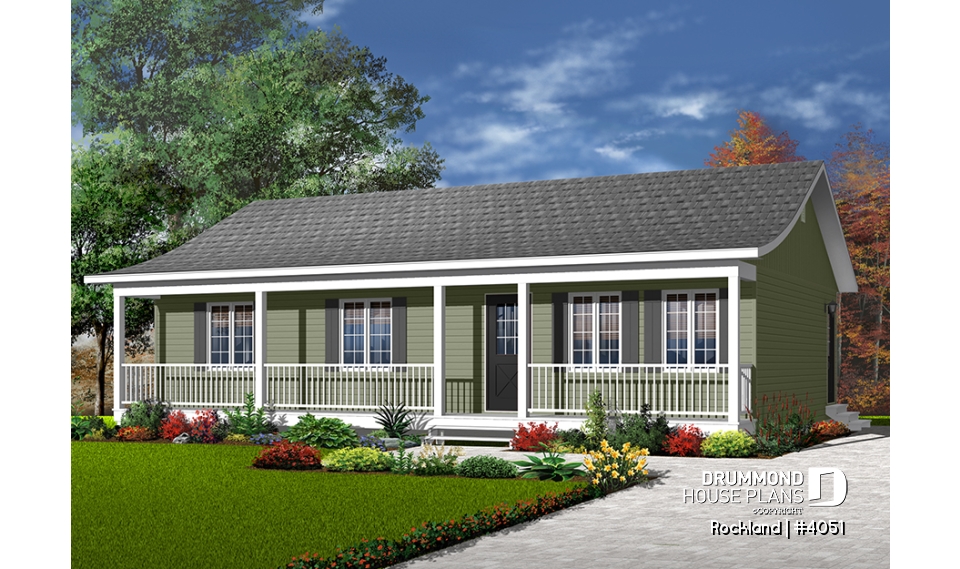

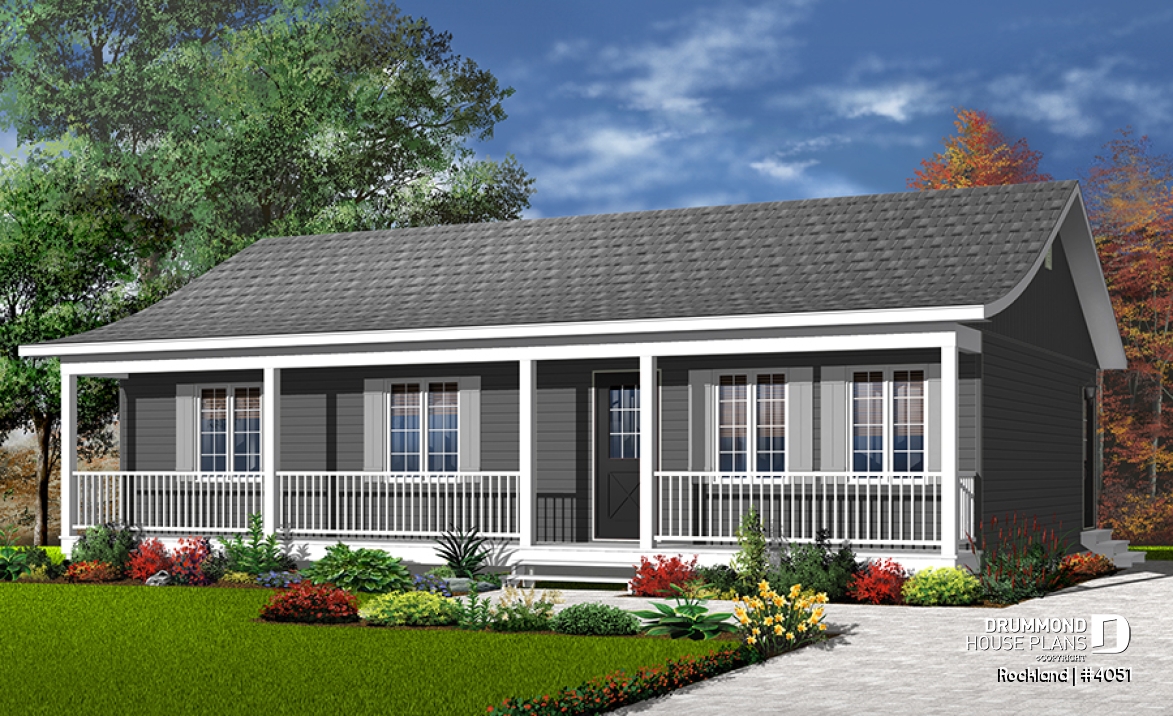

Picture-perfect rancher with 3 bedrooms and low building costs!

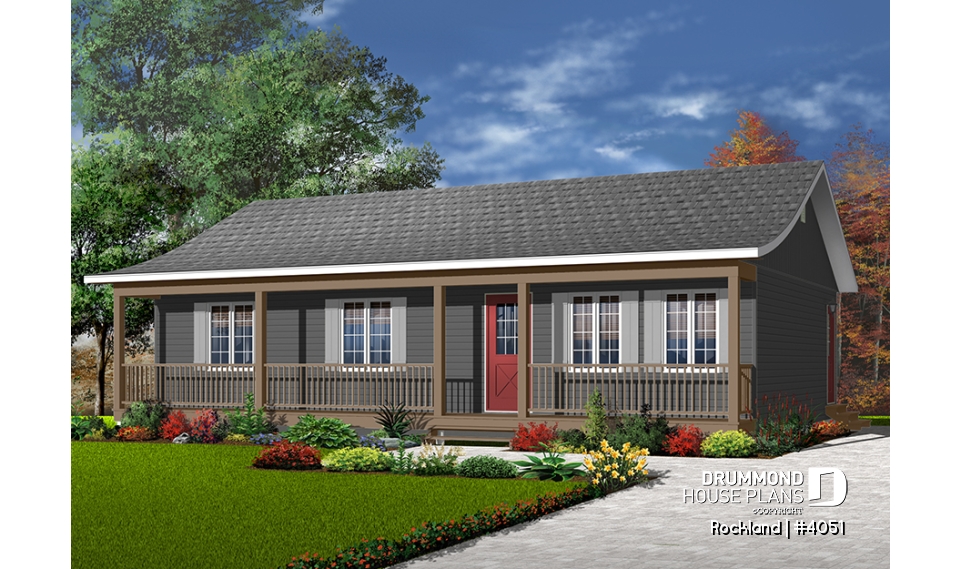

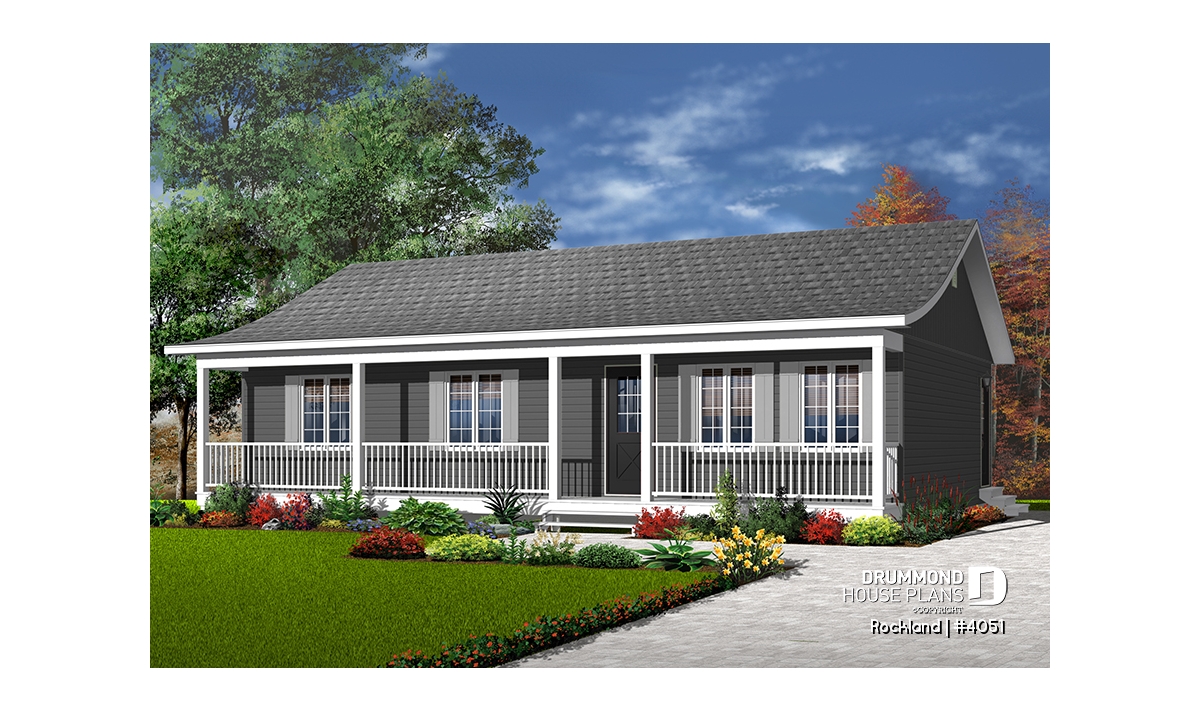

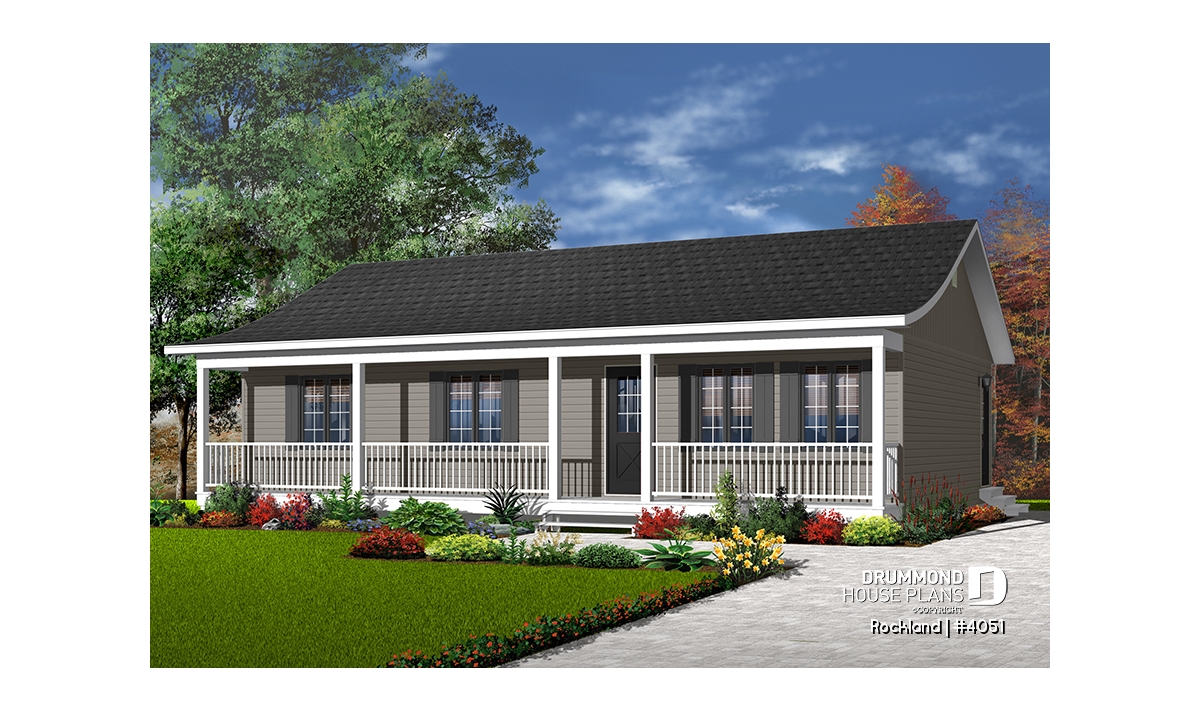

A 4ft deep covered porch adorns the entire length of this rancher. Shuttered windows and picket railing dress up this rancher which, due to simplified construction, is very economical to build.

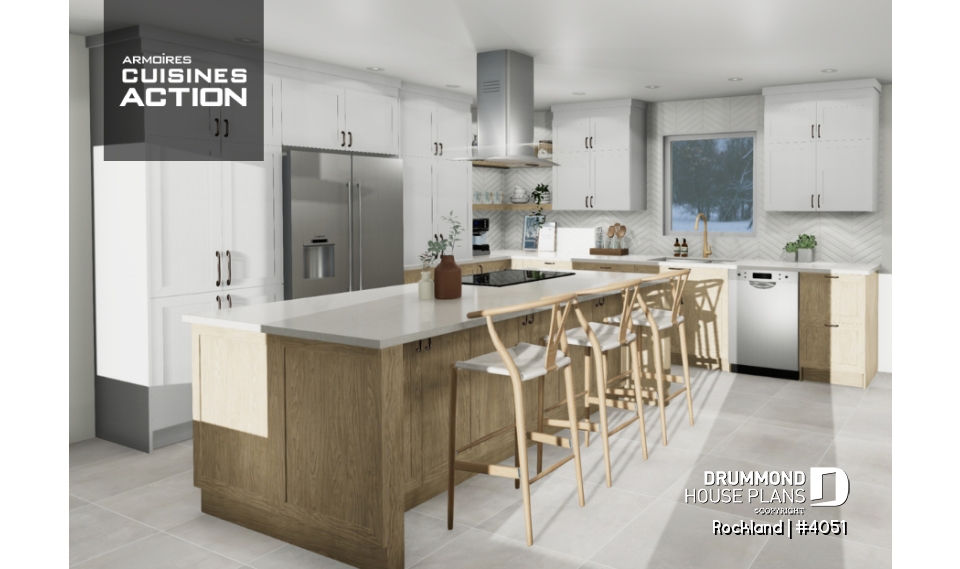

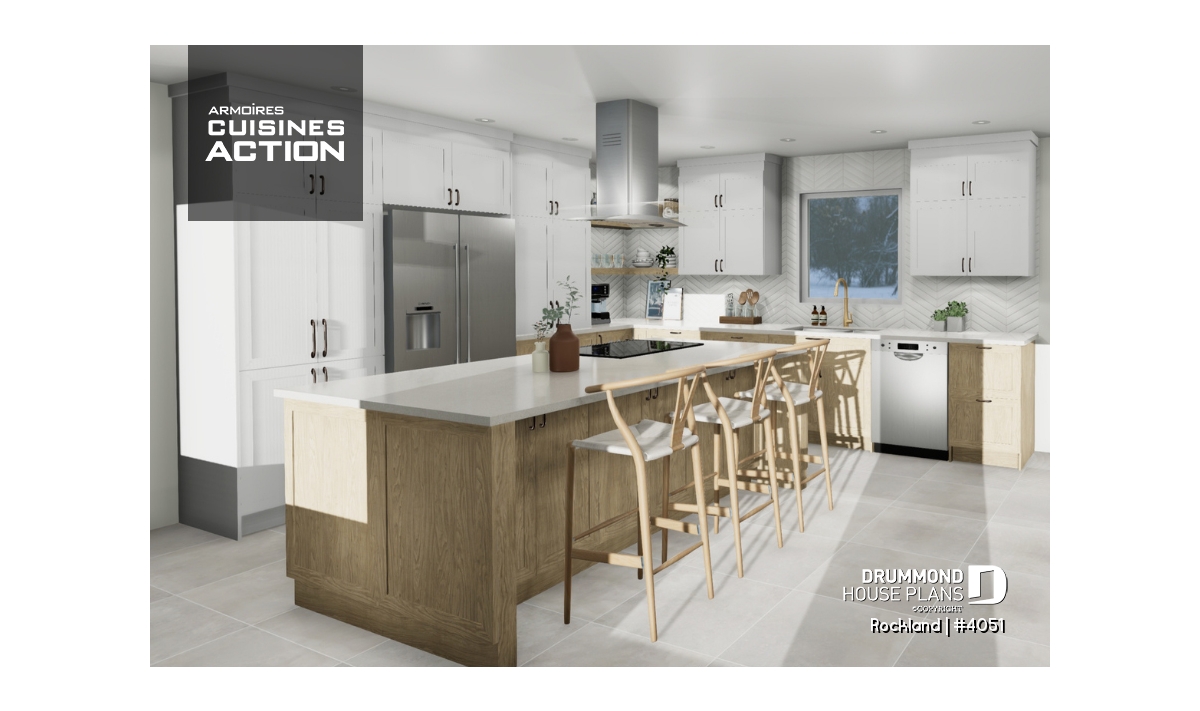

A kitchen with island are adjacent to the dining room and side door. The forward-oriented living room is private from the dining area. Three bedrooms occupy their own wing and share a family bathroom complete with laundry.
If more space is required, you can effectively double your space by developing the unfinished basement.
Distinctive elements
Good sized family room. Master bedroom has plenty of closet space. Front entrance leads to a fully covered porch extending the length of the house. Service door at side near basement stairs.
Plan feature(s)
Island, Gound floor laundry room
Plan architectural style(s)
. Ranch, . Country, . Traditional
Previously Viewed Plans
Questions and comments
February 26 2011
Mike Charlebois
Just wondering if this particular model w4051 can be used on a engineered slab (no basement )Mike
February 28 2011
Customer service
Dear Mr Charlebois,
Thank you for your interest in Drummond House Plans.
This plan can be built on a slab (monolithic or floating). However, please note that we do not provide engineering services. You will need to have a local engineer to approve the slab.
Do not hesitate to contact me if you need further information. I will gladly answer any questions you may have.
Best Regards,
Doreen, Customer Service Department
September 25 2010
Peter Schofield
Hi,
I like this plan # W 4051 but could i get it with only 2 bedrooms and 42x28 and i live in Nova Scotia. So are these plans ready to be used in Nova Scotia or would i have to have them approved.
Peter.
September 27 2010
Customer service
Dear Mr Schofield,
Thank you for your interest in Drummond House Plans.
All of our plans can easily be modified. To receive a Free Cost Estimate, you can visit the "Plan modification services" section of our website or contact our Modification Department at 1-800-567-5267.
Our plans are up to the Canadian Building code. However, since every city/province has their own restrictions when it comes to new construction, you might have to have the plan approved for local codes.
Do not hesitate to contact me again if you need further information.
Best Regards,
Doreen, Customer Service Department
April 28 2010
Anwaar
i am looking for a best house design... n i found this site quite amazing...
April 30 2010
Customer service
Dear Anwaar,
Thank you for your kind comments. Do not hesitate to contact us again if we can be of assistance to you in any way.
Best Regards,
Customer Service Department
