House plan Summerfield (2172)
3 bedroom affordable bungalow with laundry chute, walk-in at master bedroom and open space
View the size of the rooms and height of the ceilings

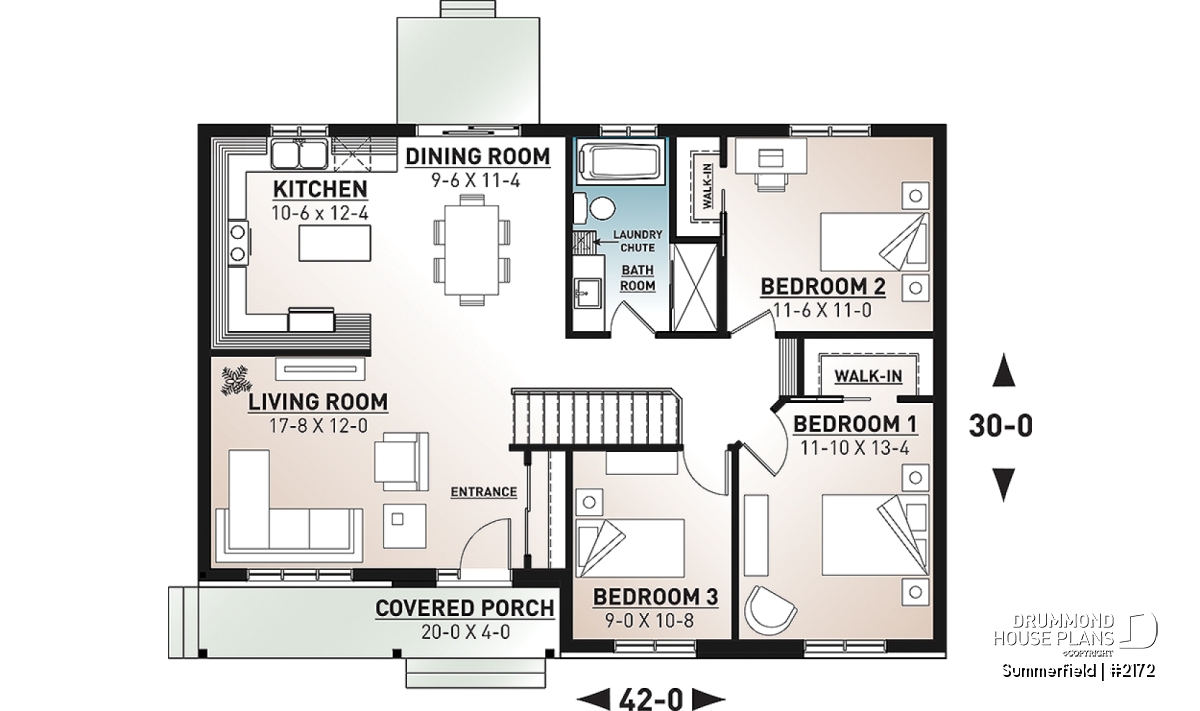

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 5'6" x 11'0" | ~ 8'0" |
| Shower | 0'32" x 0'60" | N/A |
| Kitchen | 10'6" x 12'4" | ~ 8'0" |
| Pantry | 2'0" x 2'0" | N/A |
| Dining room | 9'6" x 11'4" | ~ 8'0" |
| Living room | 17'8" x 12'0" | ~ 8'0" |
| Closet | 2'0" x 3'0" | ~ 8'0" |
| Bedroom | 11'10" x 13'4" | ~ 8'0" |
| Walk-in closet | 7'4" x 3'4" | ~ 8'0" |
| Bedroom | 11'6" x 11'0" | ~ 8'0" |
| Closet | 2'6" x 5'8" | ~ 8'0" |
| Linen | 1'0" x 2'8" | ~ 8'0" |
| Covered porch | 20'0" x 4'0" | N/A |
| Deck | 8'0" x 6'0" | N/A |
| Bedroom | 9'0" x 10'8" | ~ 8'0" |
| Closet | 2'0" x 3'4" | ~ 8'0" |
| Basement |
|---|
General specifications
| Total living area | 1180 sq.ft. |
| 1st level | 1180 sq.ft. |
| Basement | 1180 sq.ft. |
| Width | 42'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 17'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
3 bedroom ranch style house plan with unfinished basement

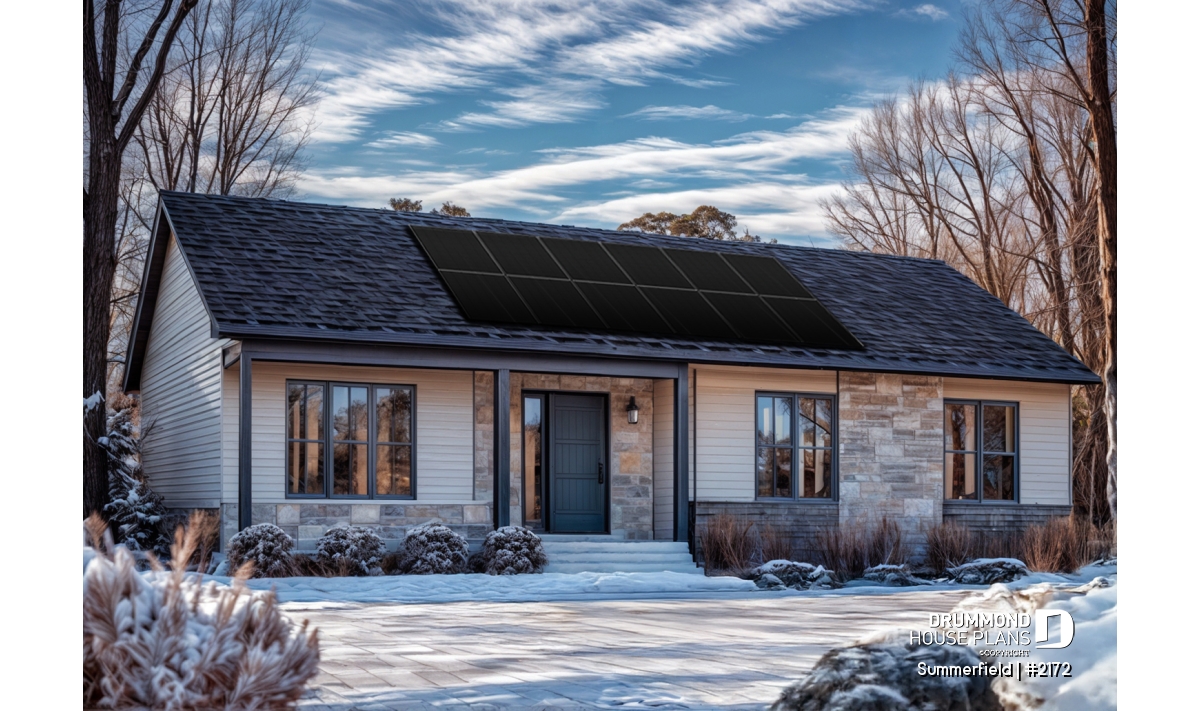

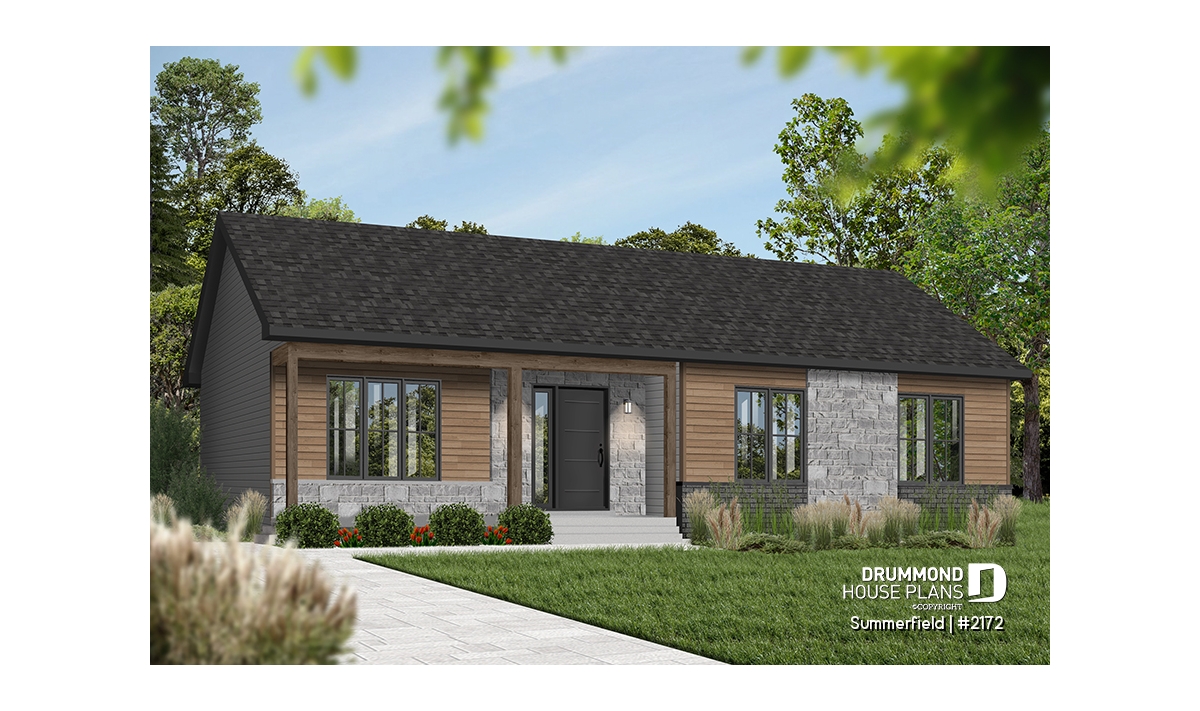

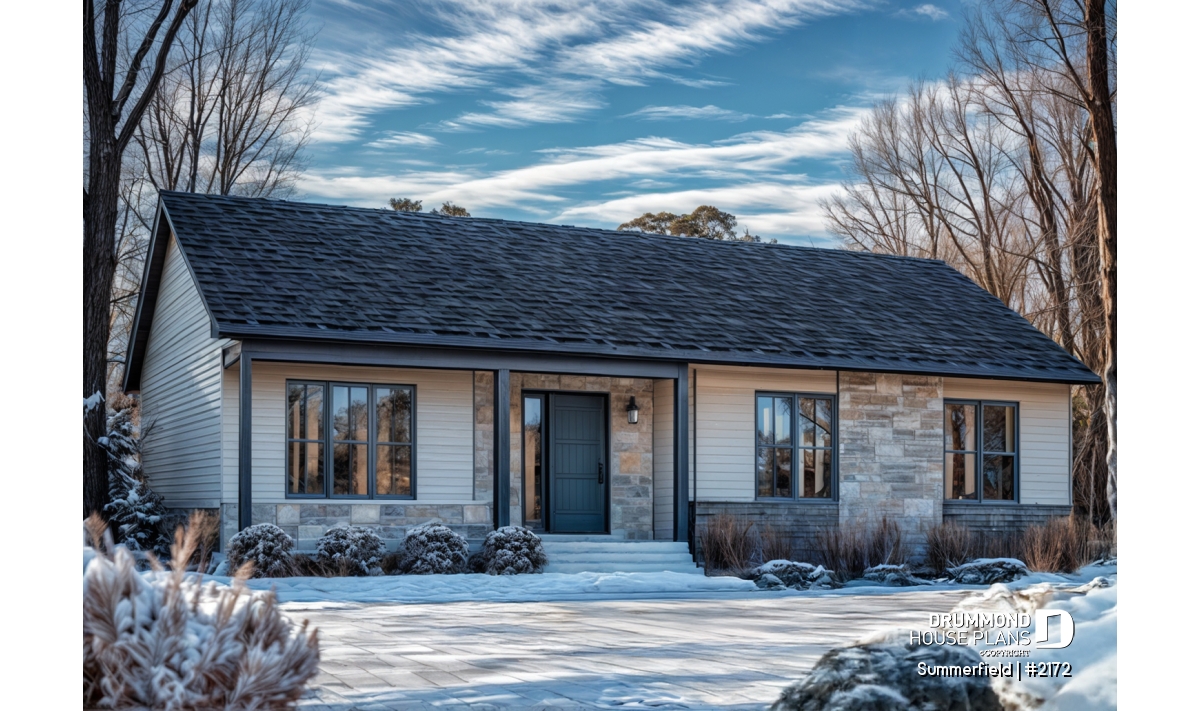

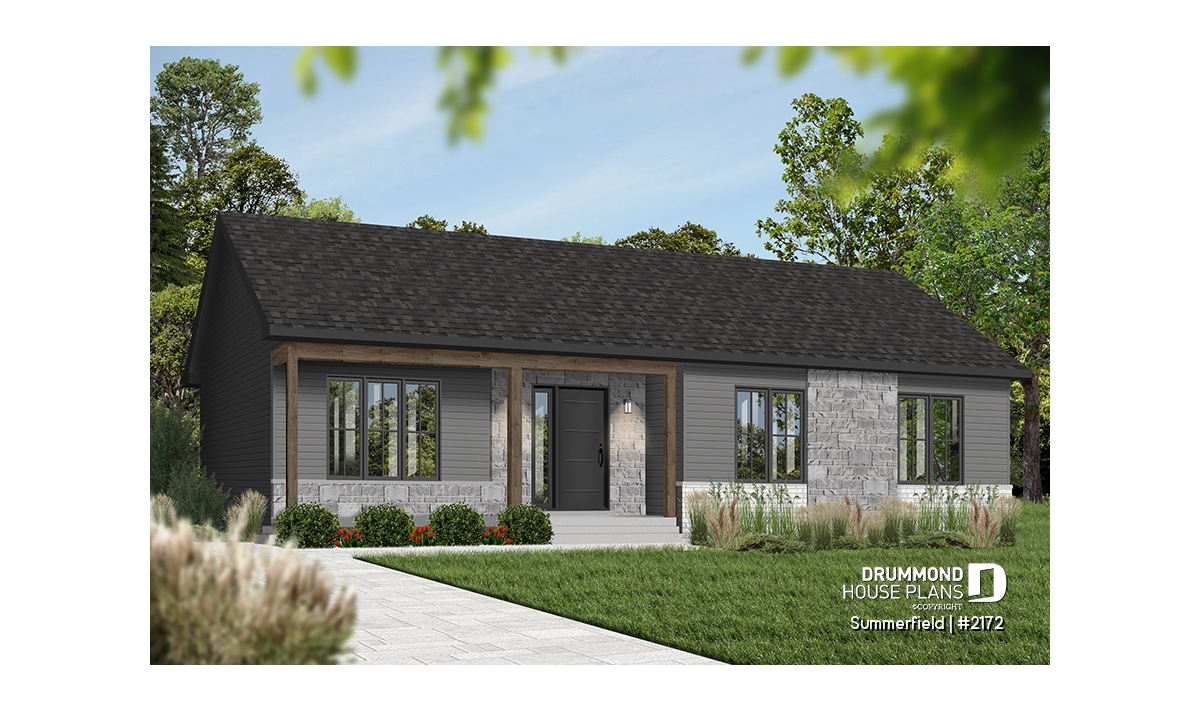

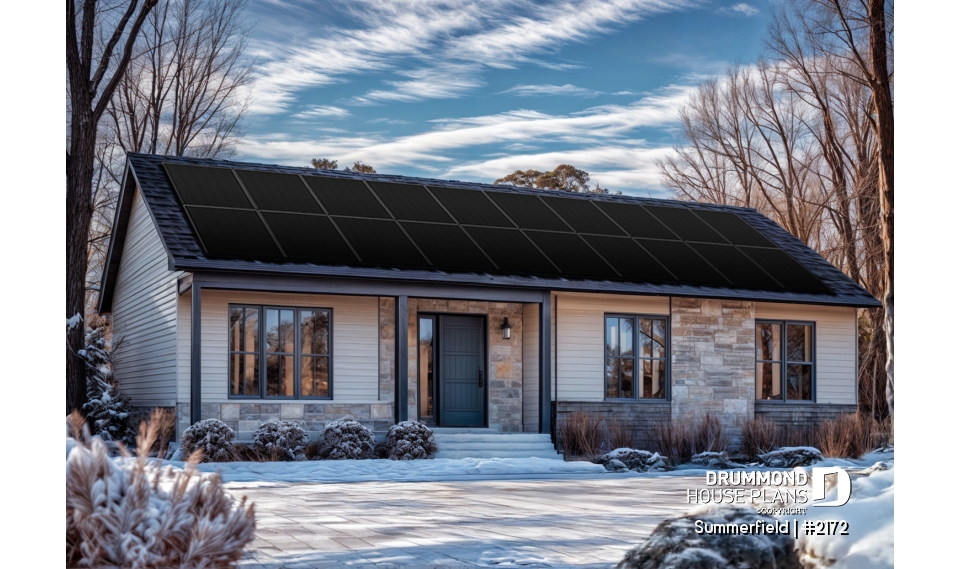

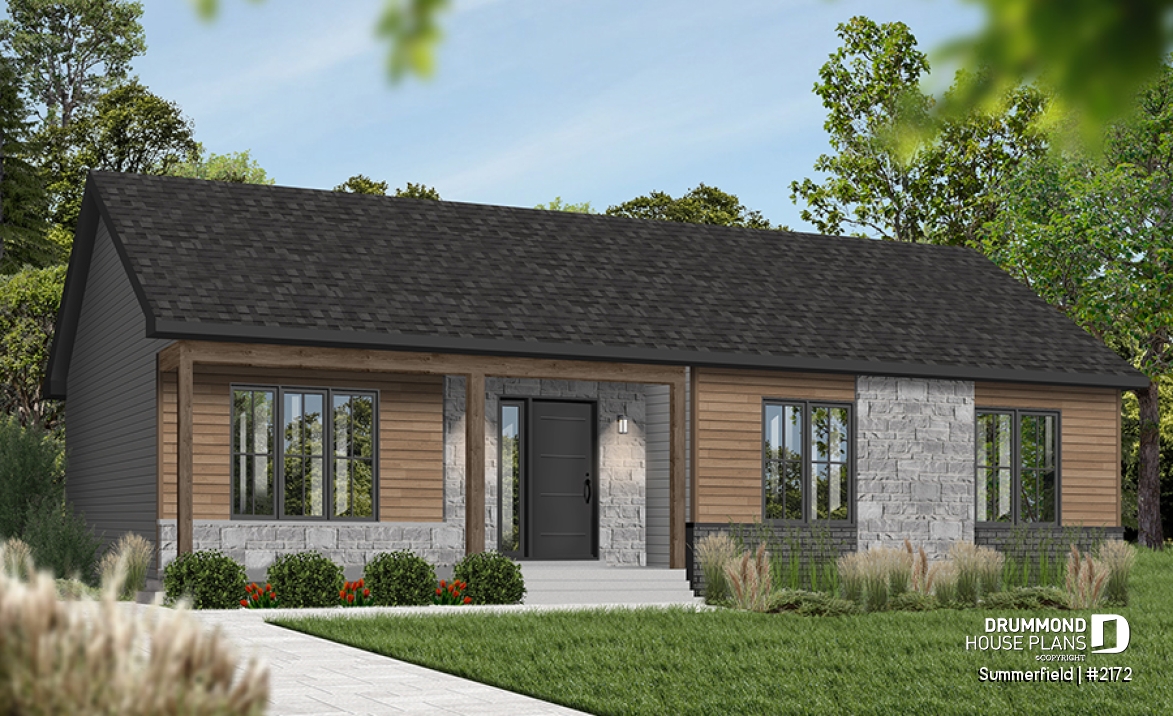

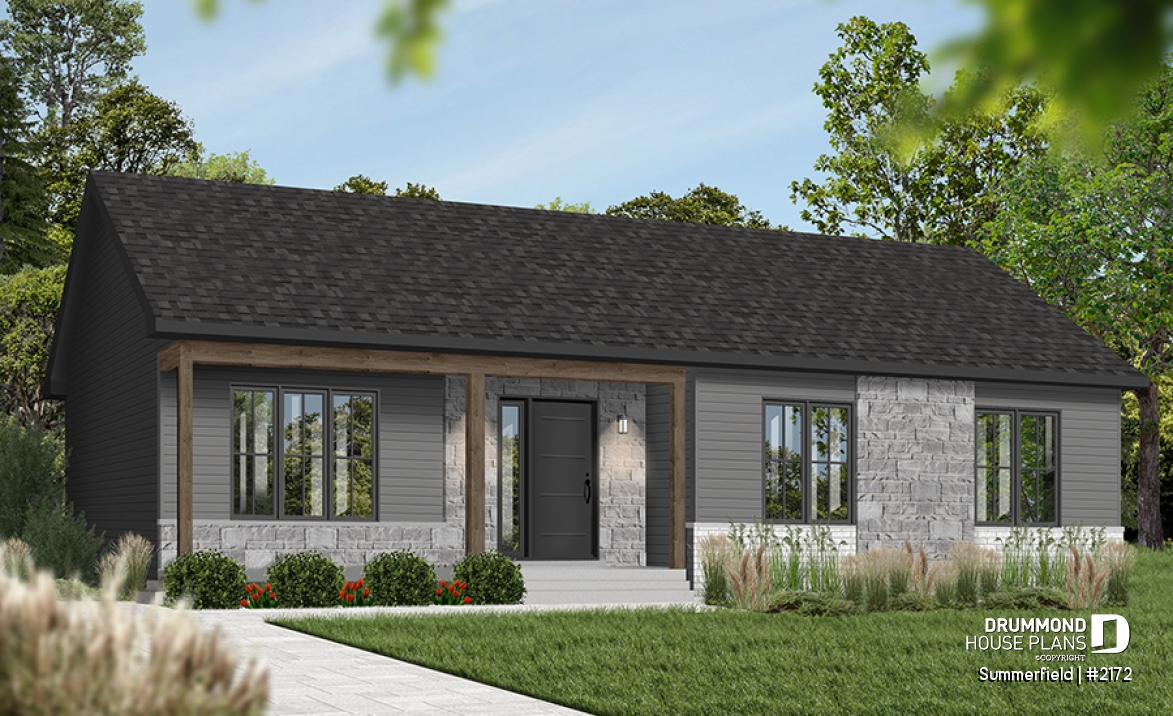

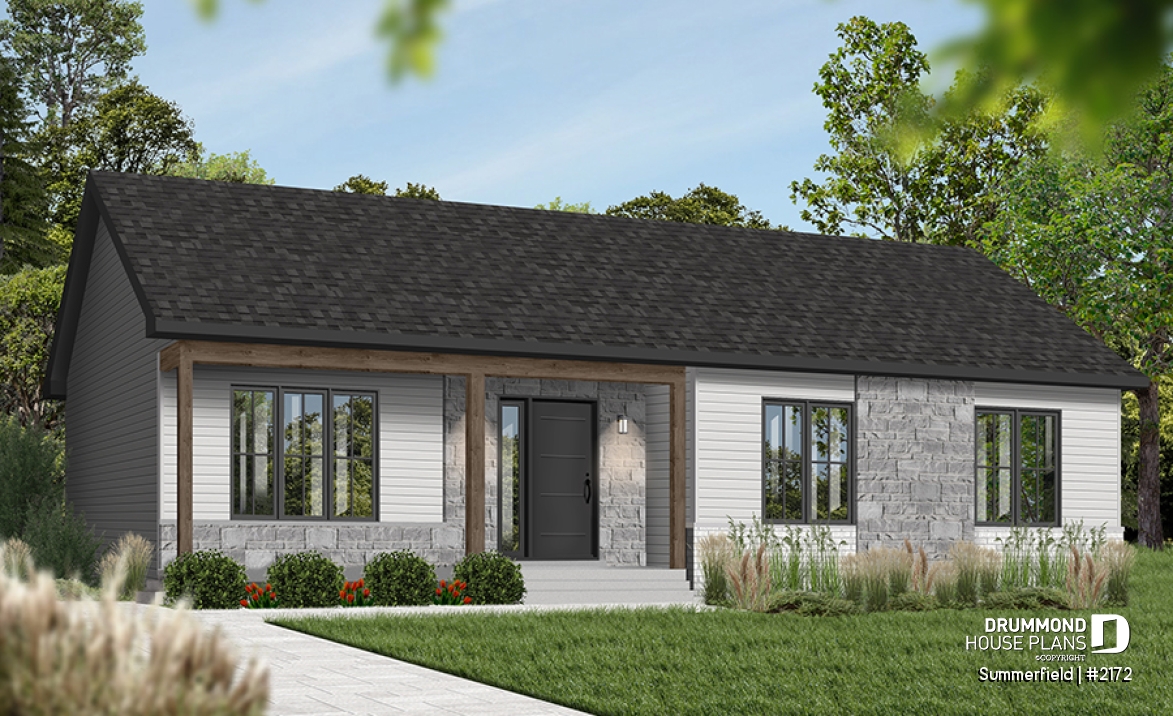

A covered porch graces the front of this 3 bedroom classic rancher. Simple and functional, this three bedroom features bedrooms on one side and a semi-open living area.
A closet by the entry provides handy coat storage. The kitchen is open to the dining area to help the home feel larger. The living room is open to the dining area. The shared bathroom features both a soaker tub and independent shower.

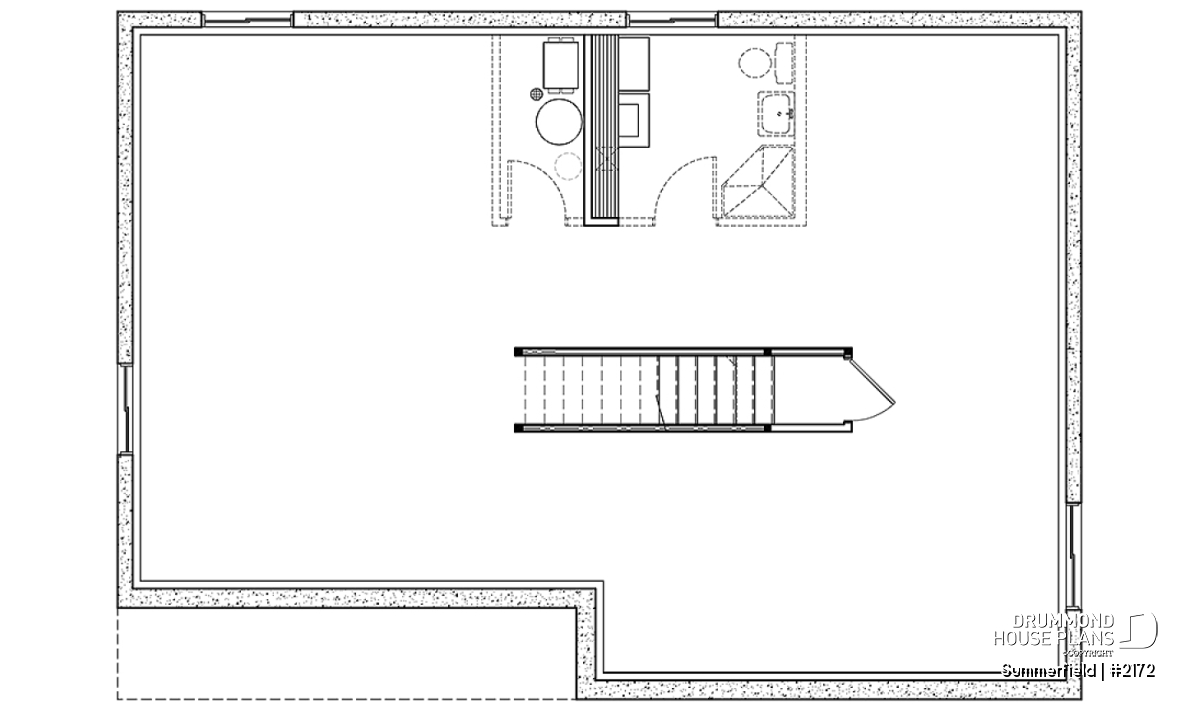

A full basement provides ample room for laundry and other living areas and storage.
Distinctive elements
Covered front porch, open floor plan, abundant fenestration.
Plan feature(s)
Laundry chute, Walk-in master bed., Island, Separate bath and shower, Builder, Self-Build
Plan architectural style(s)
. Modern rustic, . Contemporary, . Craftsman / Northwest, . Ranch, . Transitional, . Country, . American, Modern Craftsman
