Bickley (3123)

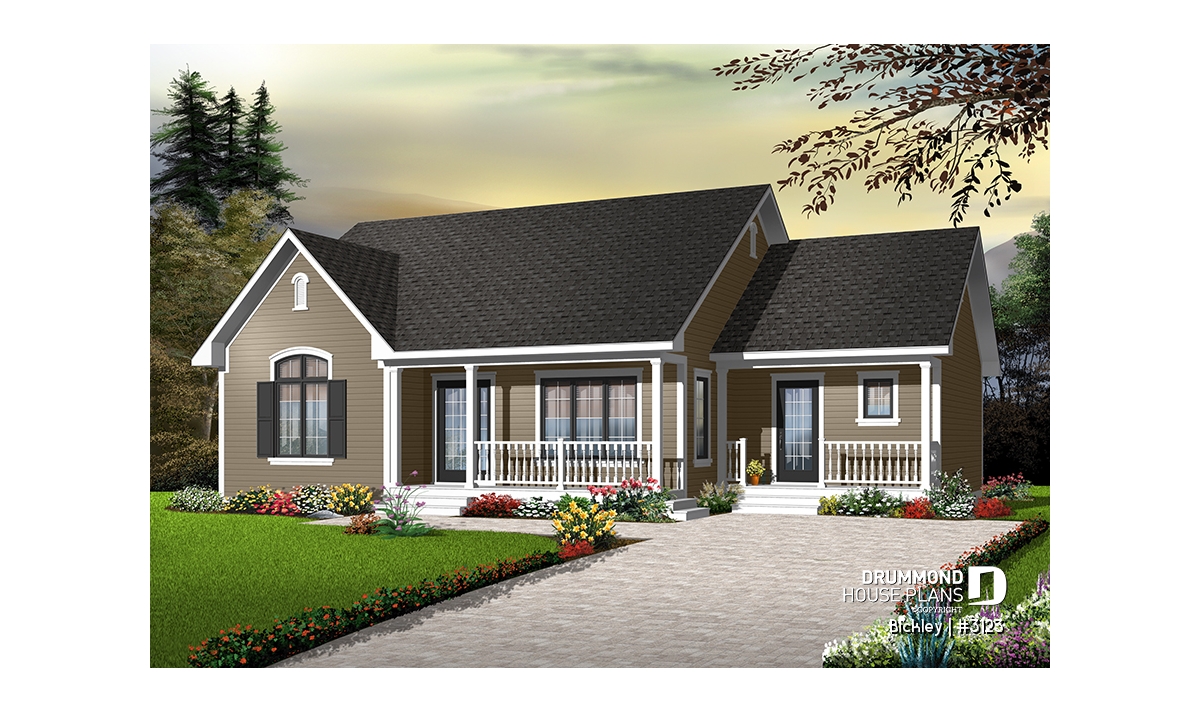

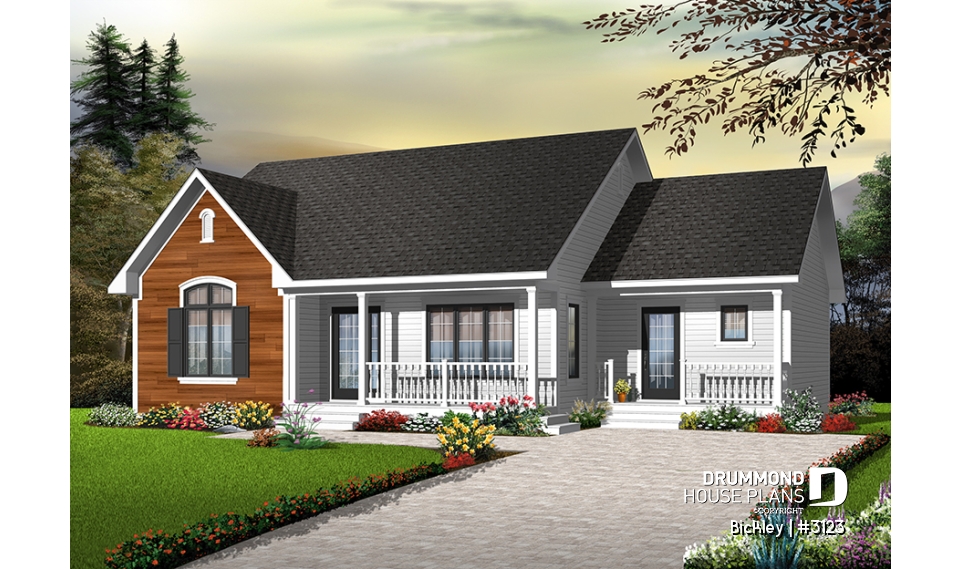

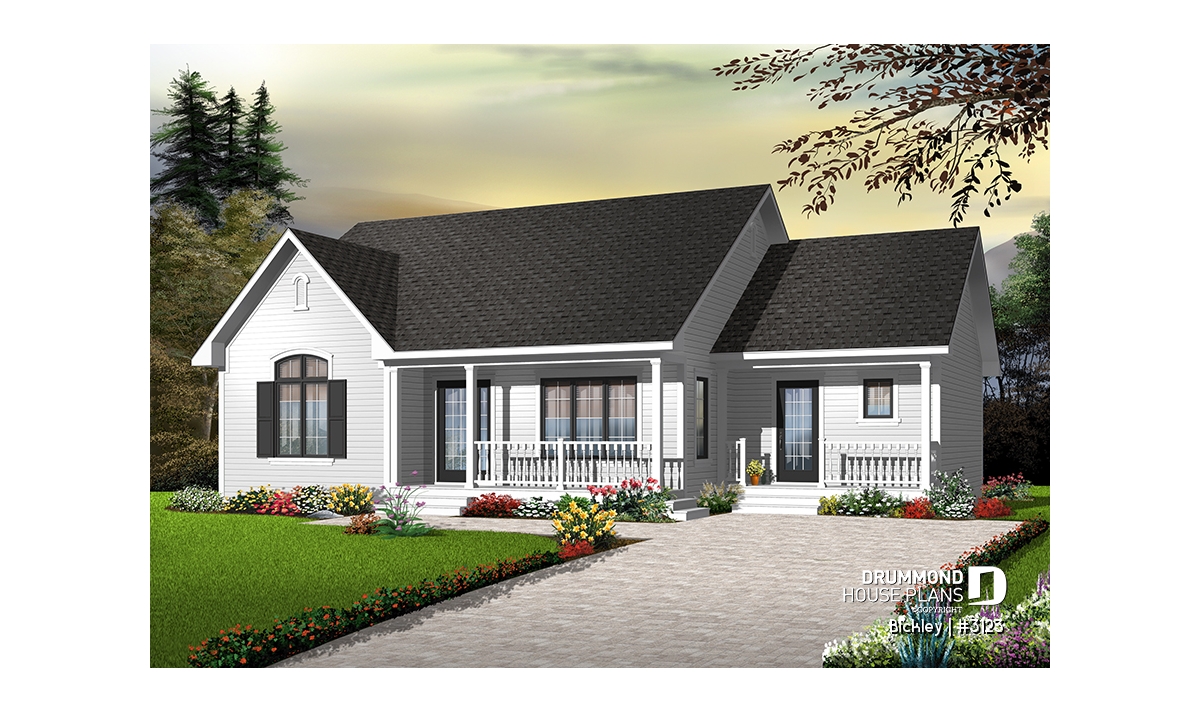

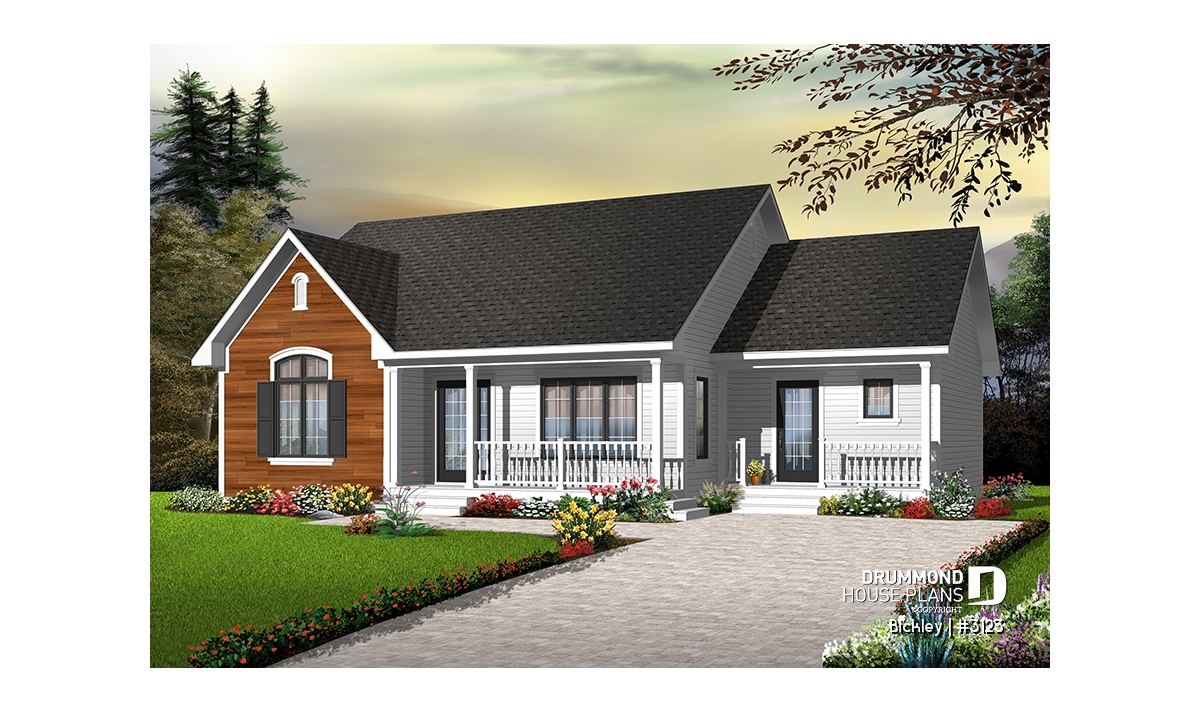

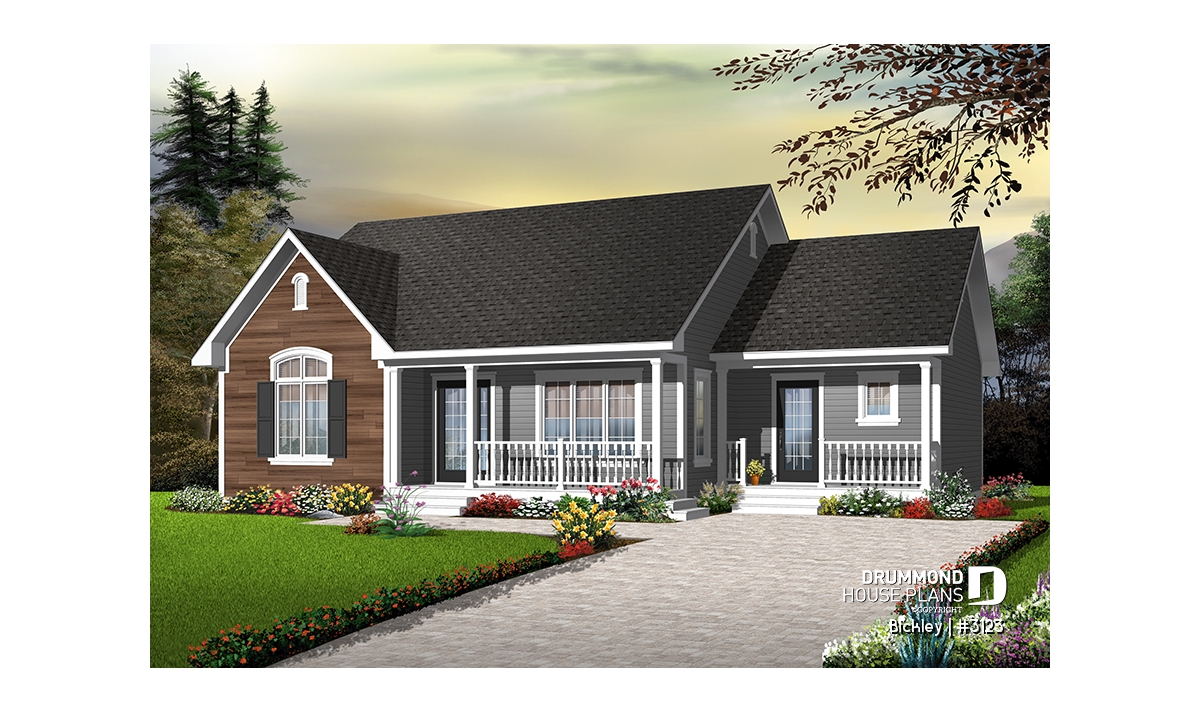

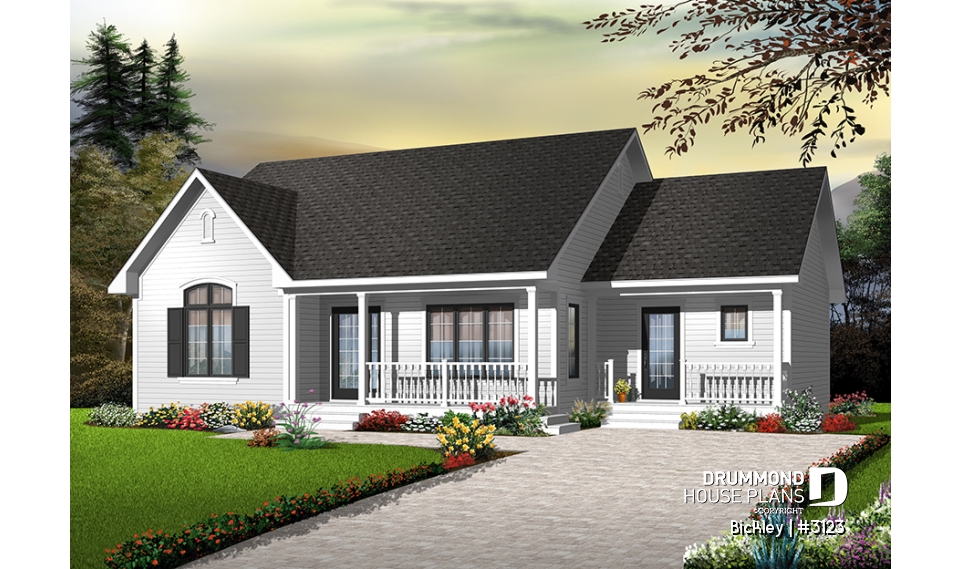

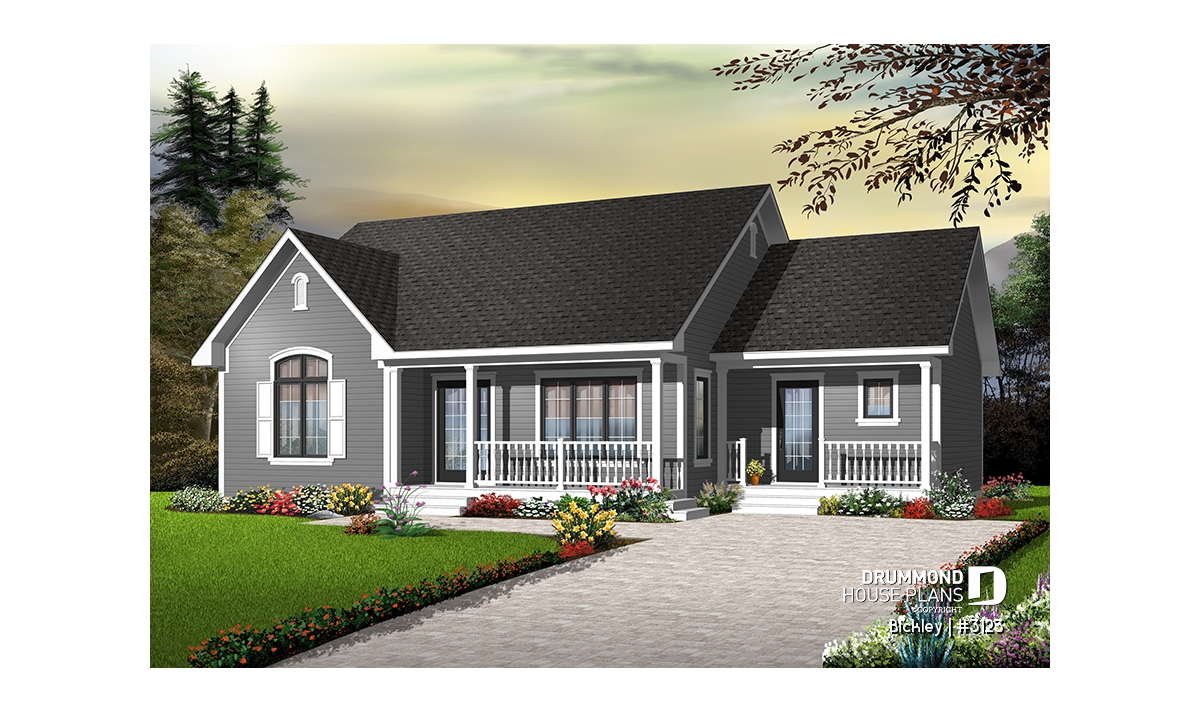

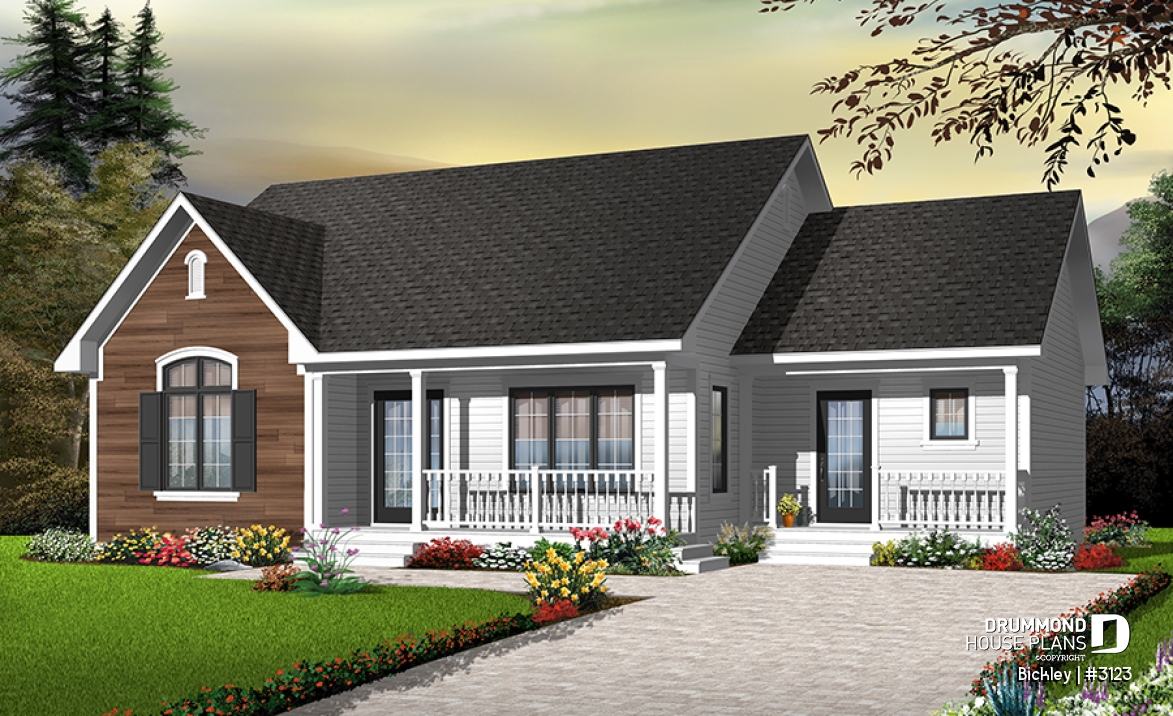

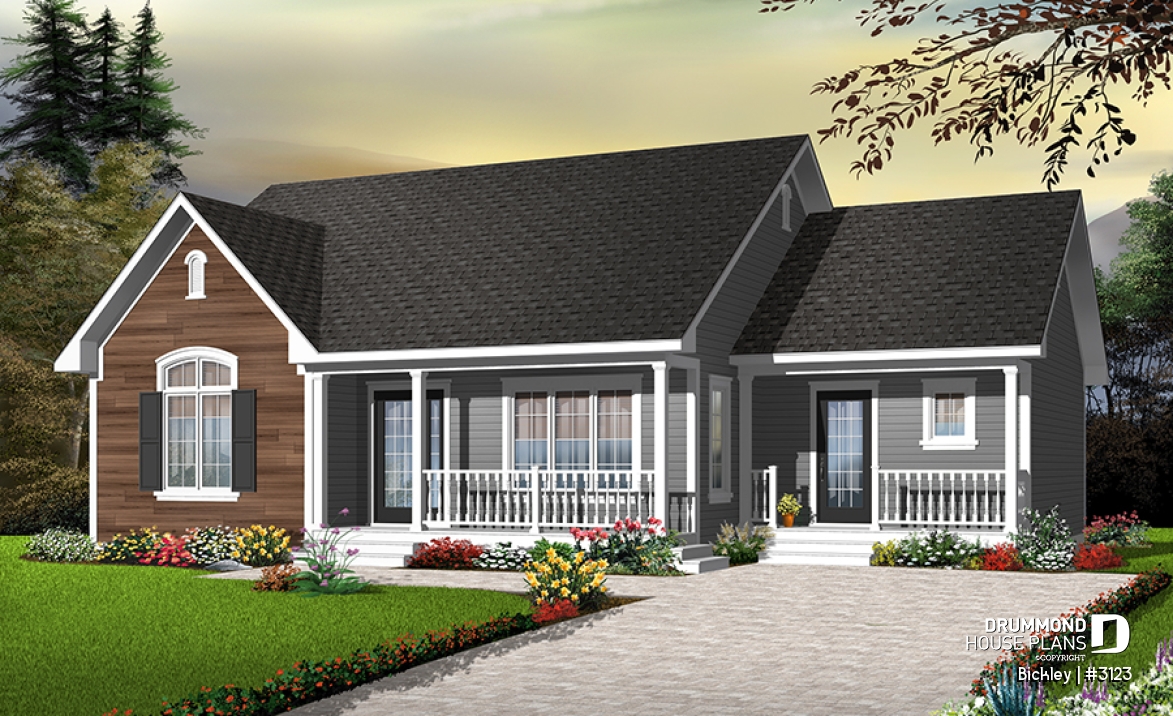

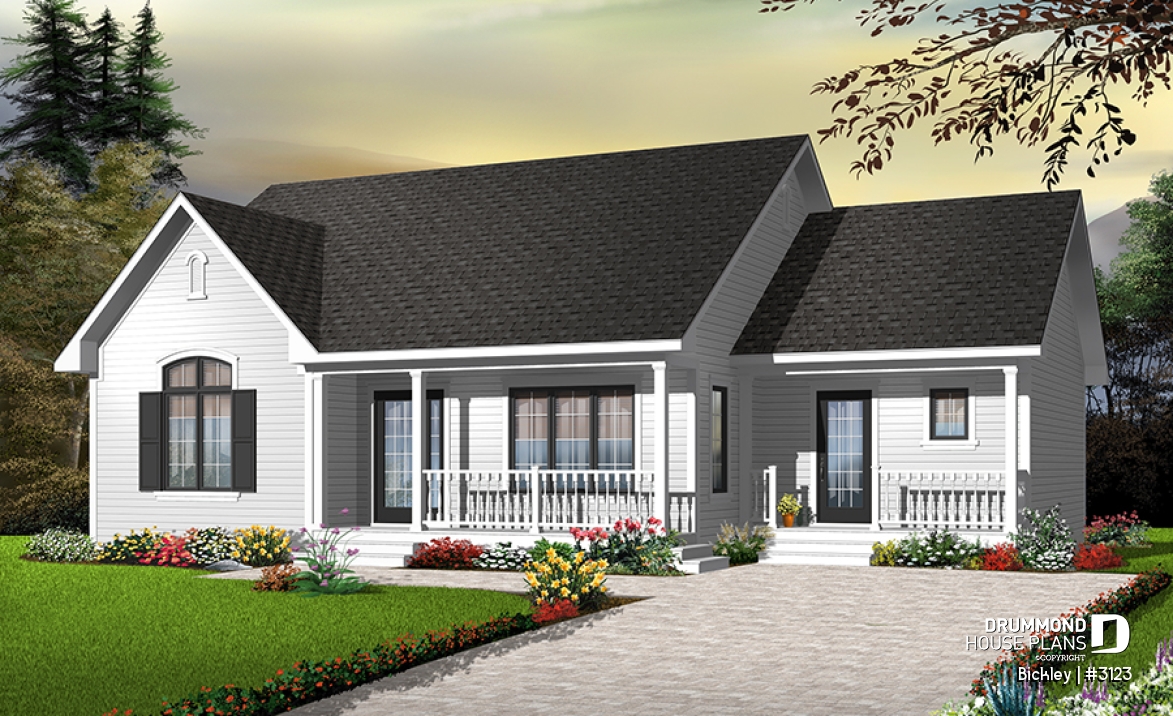

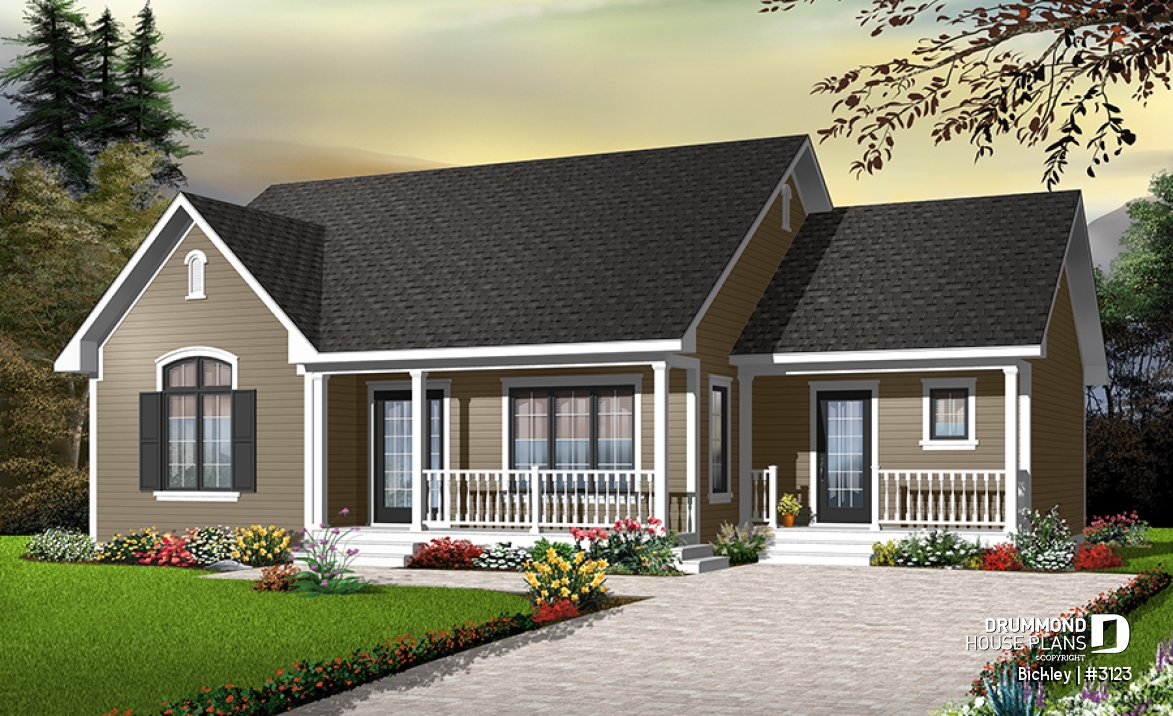

3 bedroom bungalow house plan with 2 front entrances, laundry on main floor, kitchen island, large living room
View the size of the rooms and height of the ceilings

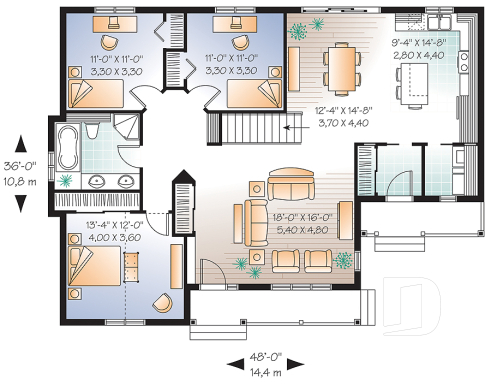

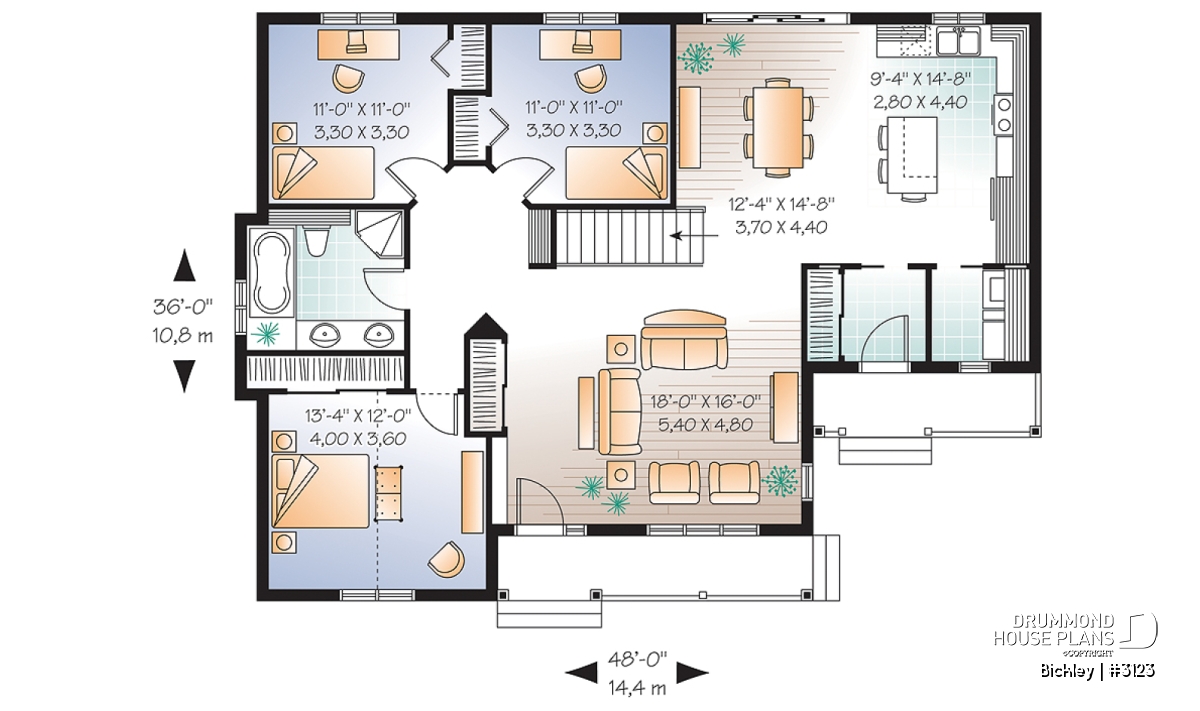

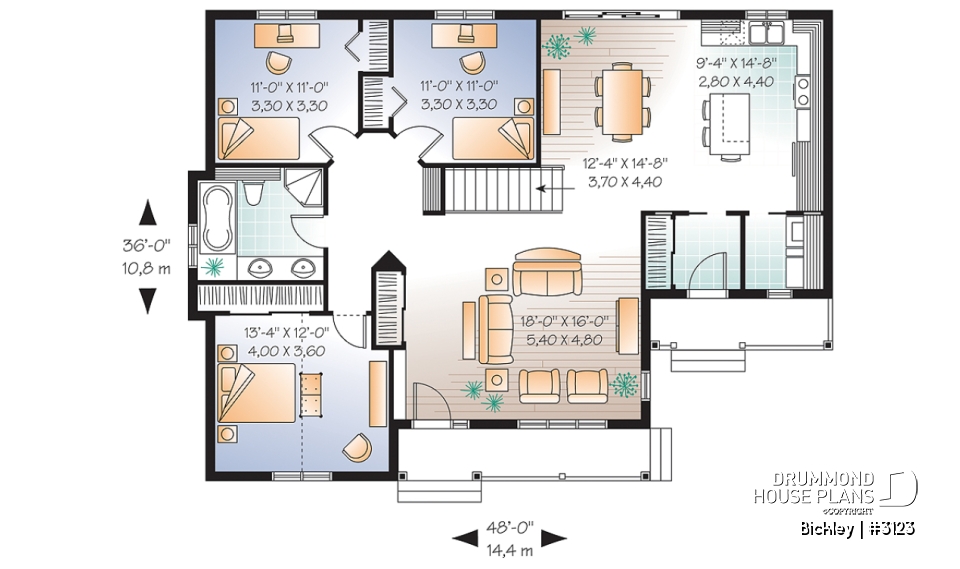

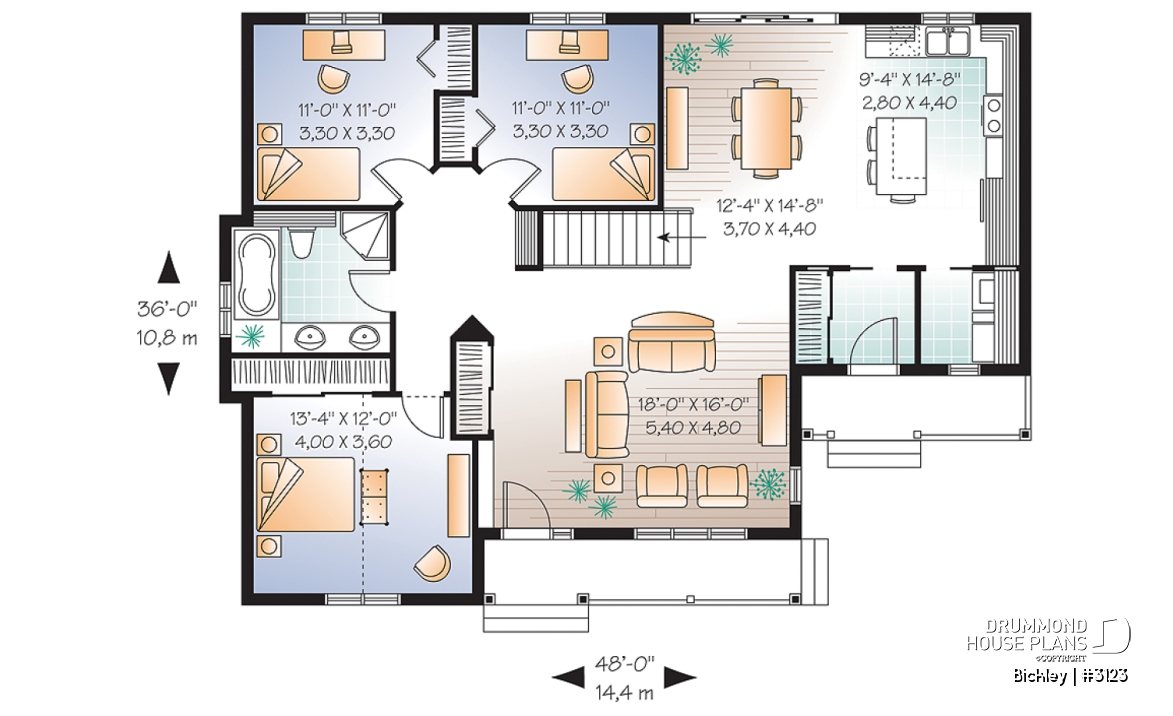

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 9'4" x 14'8" | ~ 8'0" |
| Pantry | 2'0" x 2'8" | N/A |
| Dining room | 12'4" x 14'8" | ~ 8'0" |
| Living room | 18'0" x 16'0" | ~ 8'0" |
| Foyer | 5'0" x 5'8" | ~ 8'0" |
| Full bathroom | 9'8" x 8'6" | ~ 8'0" |
| Bedroom | 13'4" x 12'0" | ~ 10'2" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Closet | 2'0" x 5'8" | ~ 8'0" |
| Laundry room | 6'0" x 5'8" | ~ 8'0" |
| Porch | 19'4" x 4'0" | N/A |
| Porch | 14'0" x 4'0" | N/A |
| Deck | 10'0" x 5'0" | N/A |
General specifications
| Total living area | 1470 sq.ft. |
| 1st level | 1470 sq.ft. |
| Width | 48'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 22'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
One-storey ranch style bungalow, 3 bedrooms, laundry on main floor
.
Distinctive elements
Closed foyer in the right entry and a closet for each entrance. Independent laundry area. Kitchen with central island/lunch counter. Three large bedrooms on one floor. Remarkable large living room.
Plan feature(s)
Gound floor laundry room, Island, Cathedral ceiling, Separate bath and shower, Double sink vanity, Entrance hall
Plan architectural style(s)
. Country, . American, . Ranch, . Farmhouse, . Transitional, . Traditional
Previously Viewed Plans
Questions and comments
August 08 2014
Stephen
What's rough cost to build this house, I can do most construction work myself,but will buy engineered truss's.
August 08 2014
Customer service
Good day and thank you for taking the time to write
Although we do no actual construction, the ballpark estimate to build this home in Quebec (Canada) starts at around $202,000.
This estimate is based on professional grade materials and includes ceramic in the foyer, the kitchen and the bathrooms with hardwood flooring throughout the common areas and carpet in the bedrooms. The kitchen cabinetry is wood grain melamine. This construction estimate to build in Quebec was updated on January 10th 2014 and is for a turn key project.
The cost of the land and its excavation, taxes and hook-ups to municipal or other services is not included in the calculation and it is highly recommended to consult local contractors and materials suppliers to get a better idea of the actual cost to build in your area.
I hope that this provides some helpful information and I invite you to contact me if you have any other questions or comments
Regards
Deb
April 11 2012
Sue
are there/is there a similar plan w two baths on the main level?
April 13 2010
David Harris
I am interested in this plan but roof looks pretty steep. What is the roof pitch? Is the roof over the master the same pitch as the rest of the house.
April 15 2010
Customer service
Dear Mr Harris,
Thank you for your interest in Drummond House Plans.
The roof pitch is 8/12. As for the gable, the roof pitch is 12/12.
Please contact us again if you need further information about this plan or any of our plans.
Best Regards,
Customer Service Department
