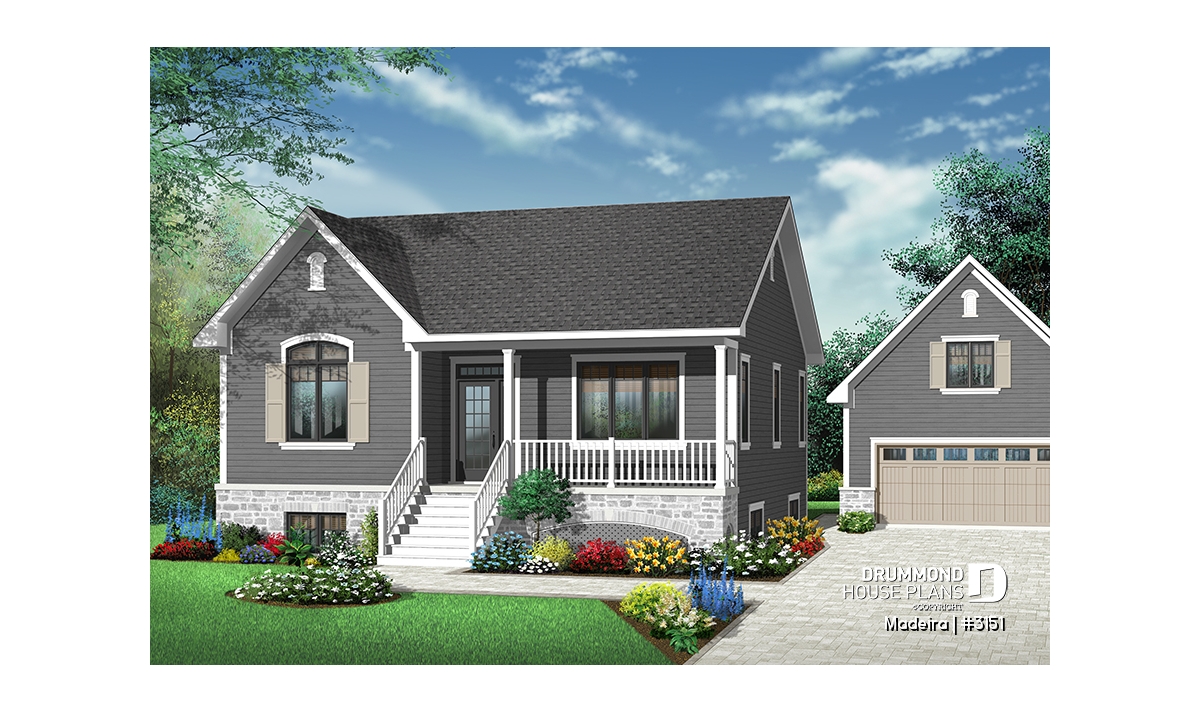

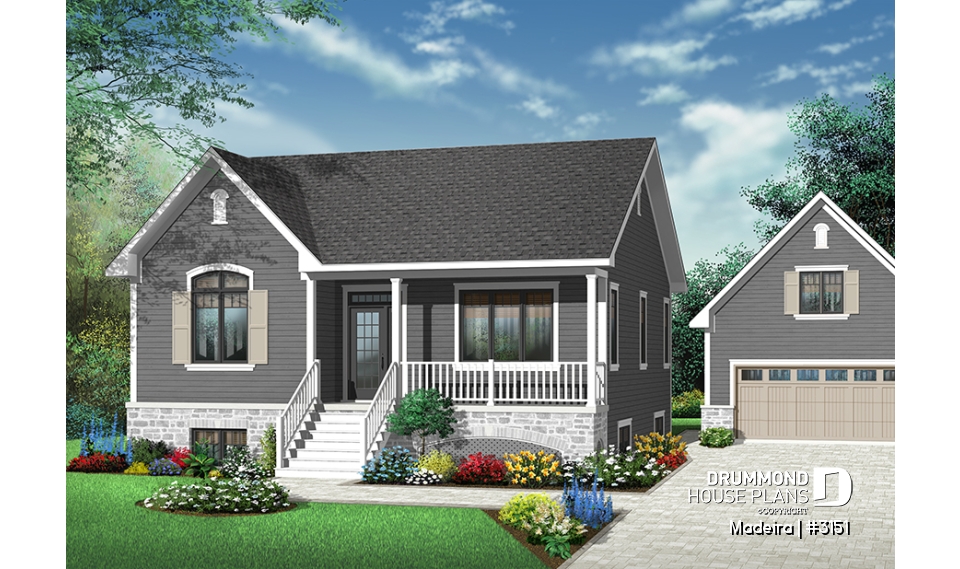

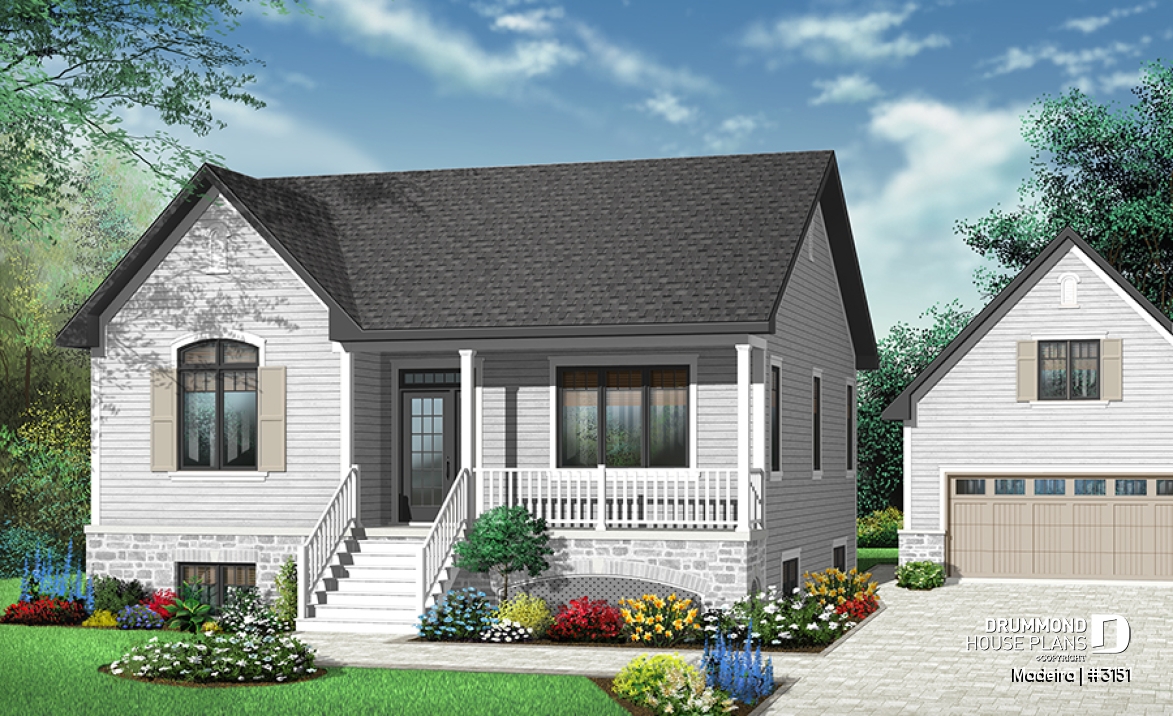

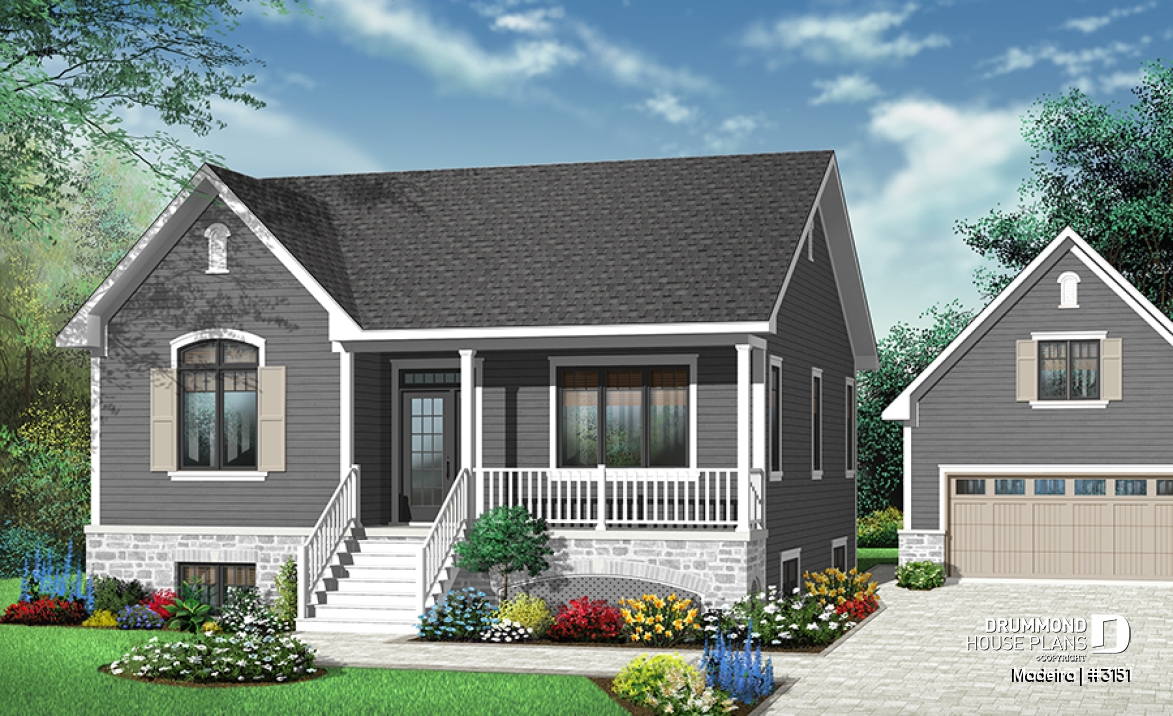

House plan Madeira (3151)
2 to 5 bedrooms possible, beautiful modern ranch style house plan, laundry room, great front covered porch
View the size of the rooms and height of the ceilings

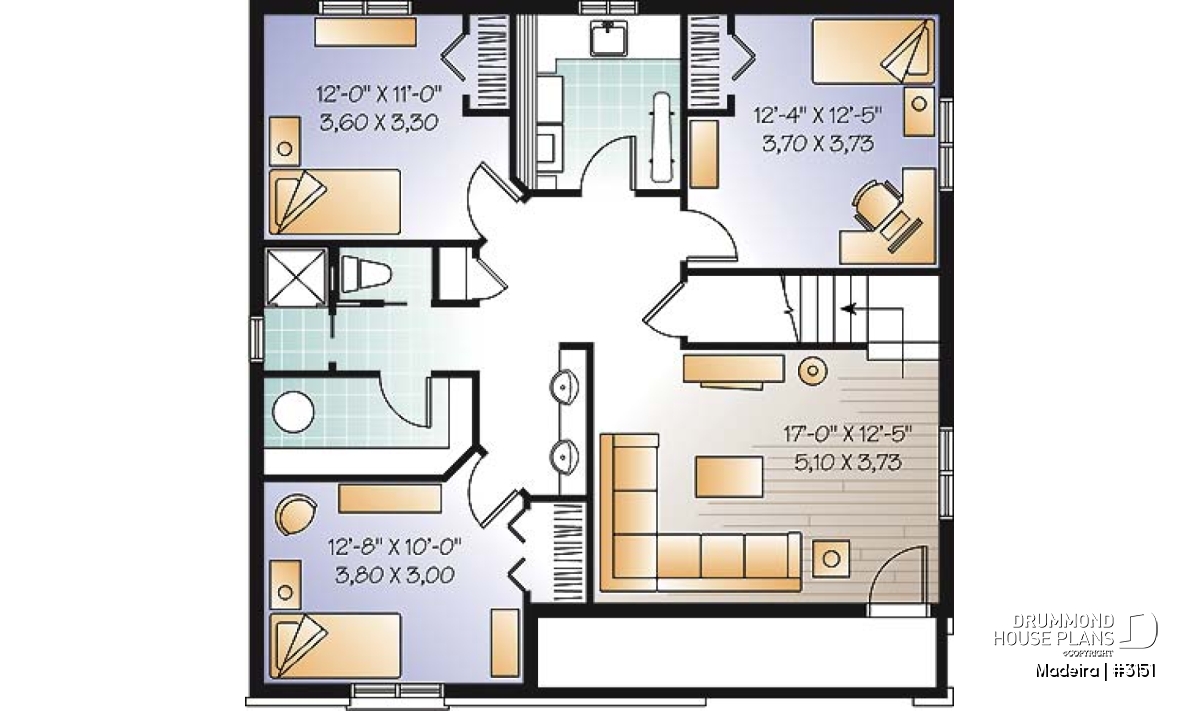

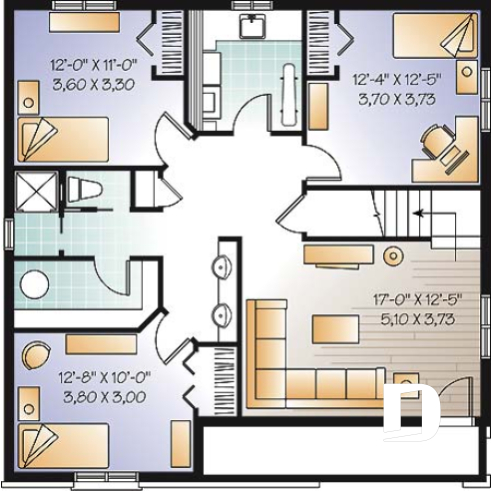

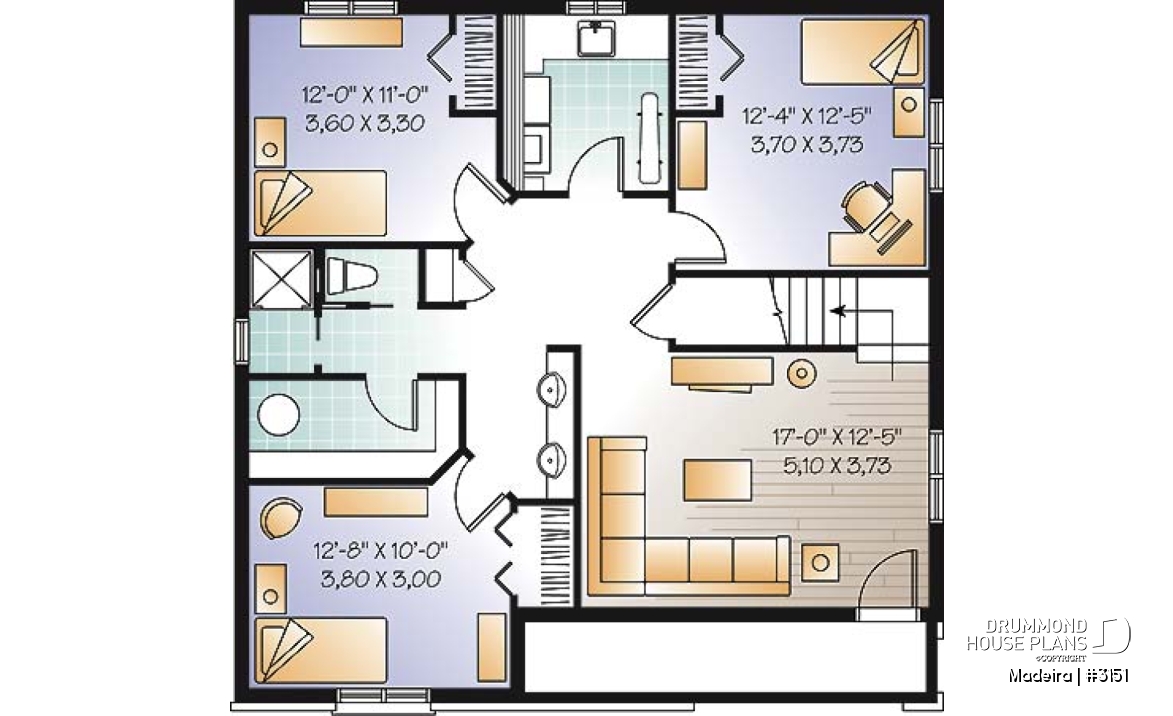

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower room or three quarter bath | 3'0" x 6'2" | ~ 7'10" |
| Half bath or powder room | 4'8" x 2'8" | ~ 7'10" |
| Bedroom | 12'0" x 11'0" | ~ 7'10" |
| Bedroom | 12'4" x 12'5" | ~ 7'10" |
| Laundry room | 8'2" x 8'6" | ~ 7'10" |
| Bedroom | 12'8" x 10'0" | ~ 7'10" |
| Playroom | 17'0" x 12'5" | ~ 7'10" |
| Linen | 1'8" x 2'8" | ~ 7'10" |
| Storage | 10'2" x 4'10" | ~ 7'10" |
| Cold room | 19'2" x 3'2" | ~ 7'10" |

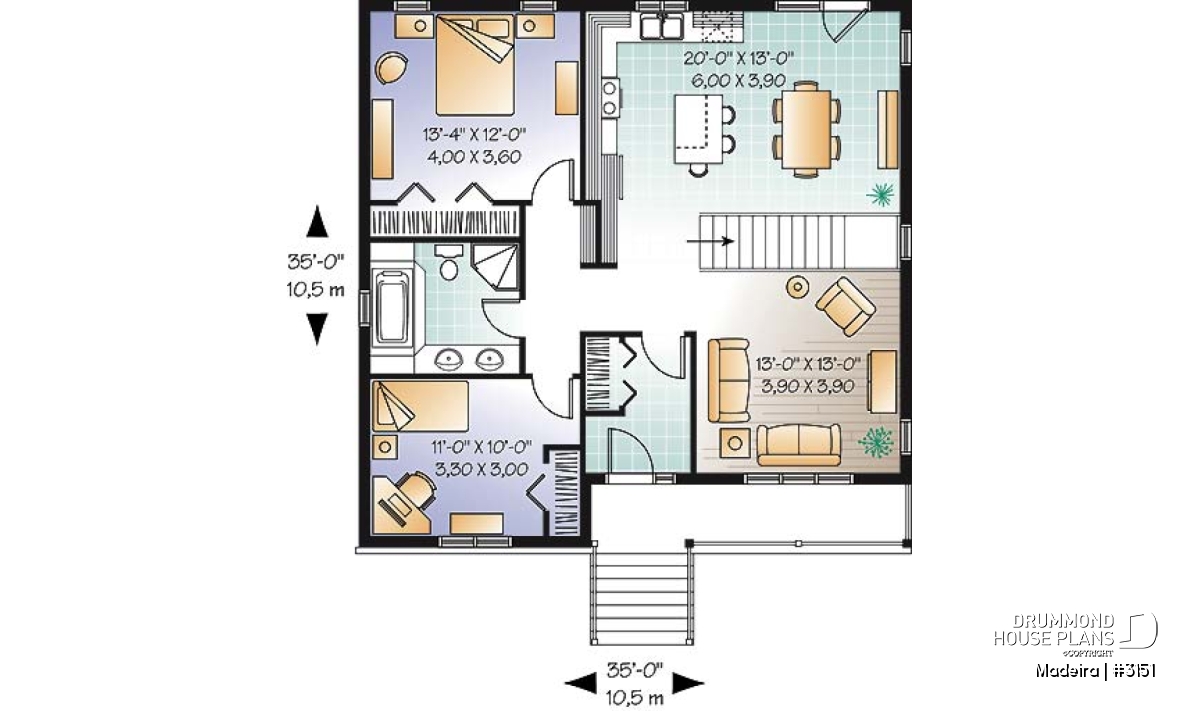

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'0" x 13'0" | ~ 9'0" |
| Dining room | 10'0" x 13'0" | ~ 9'0" |
| Living room | 13'0" x 13'0" | ~ 9'0" |
| Foyer | 6'8" x 8'8" | ~ 9'0" |
| Full bathroom | 9'6" x 8'4" | ~ 9'0" |
| Bedroom | 13'4" x 12'0" | ~ 9'0" |
| Bedroom | 11'0" x 10'0" | ~ 9'0" |
| Linen | 1'0" x 3'8" | ~ 9'0" |
| Porch | 20'4" x 4'4" | N/A |
| Porch | 8'0" x 5'0" | N/A |
General specifications
| Total living area | 2274 sq.ft. |
| Basement | 1137 sq.ft. |
| 1st level | 1137 sq.ft. |
| Width | 35'0" |
| Depth | 35'0" |
| Ridge height from top of foundation | 24'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | F |
Rooms specifications
Other useful information on this plan
The economical five (5) bedroom Traditional Bungalow with finished daylight basement
The ever-changing needs of our society have greatly influenced us at Drummond Designs and have incited us to propose plans which are even more adapted to today’s reality. In order to meet with the expectations of larger and/or reconstructed families, here is a bungalow that is completely equipped on both floors to meet with the needs and expectations of these families. For these reasons, this model of bungalow is first and above all a 5 bedroom home of which 3 are in a semi-basement with fenestration in accordance with established norms as to evacuation in case of a fire; incontrovertible norms that are unfortunately, not often taken into account when planning rooms in the basement. This model also proposes an completely open activity centre on the ground floor, a kitchen with a lunch counter, well distributed fenestration offering sufficient natural lighting and in the basement, a family room, a laundry room, storing space, a very functional shower and closed-in toilet as well as an impressive cold storage room under the front veranda, as is needed for such families.
Garage plan #2988 sold separately.
Distinctive elements
9' ceiling on 1st level in which the activity area is entirely open. Complete plan with 5 bedrooms, three of which are located in half basement with large windows. Large cold room under front porch with a remarquable exterior finish.
Plan feature(s)
Ceiling over 8', Island, Separate bath and shower, Double sinks, Entrance hall
Plan architectural style(s)
. Transitional, . American, . Country, . Ranch, . Traditional, . Modern rustic
