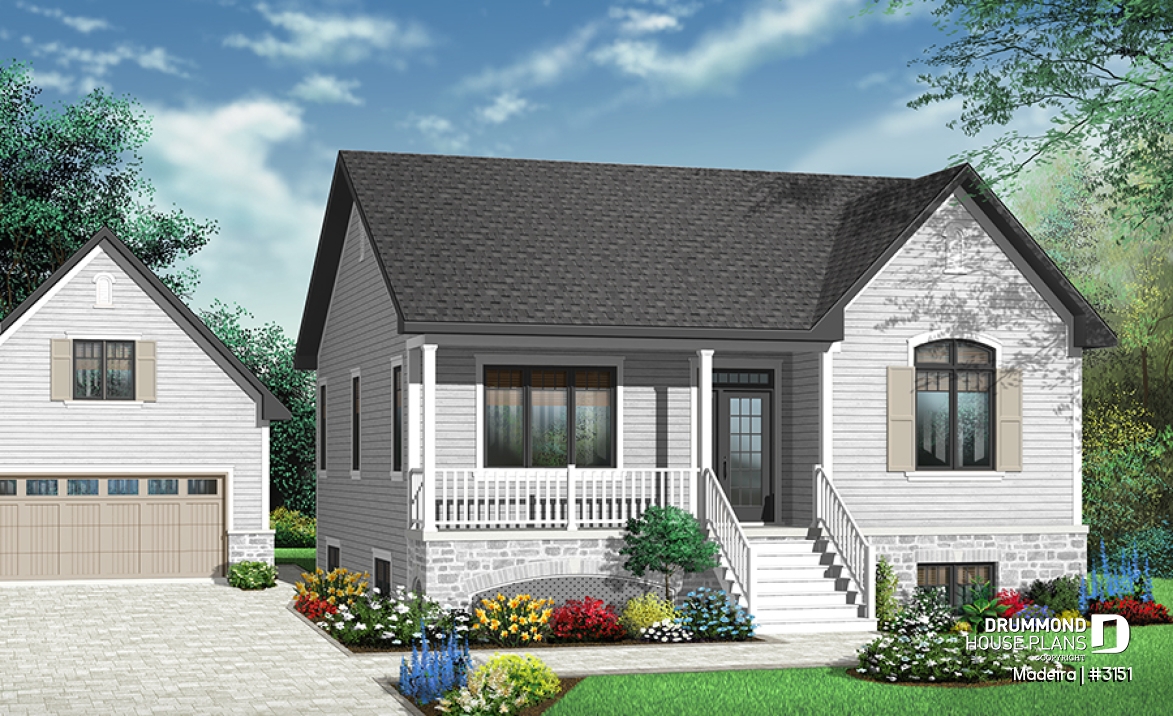

Color version 1 - Front

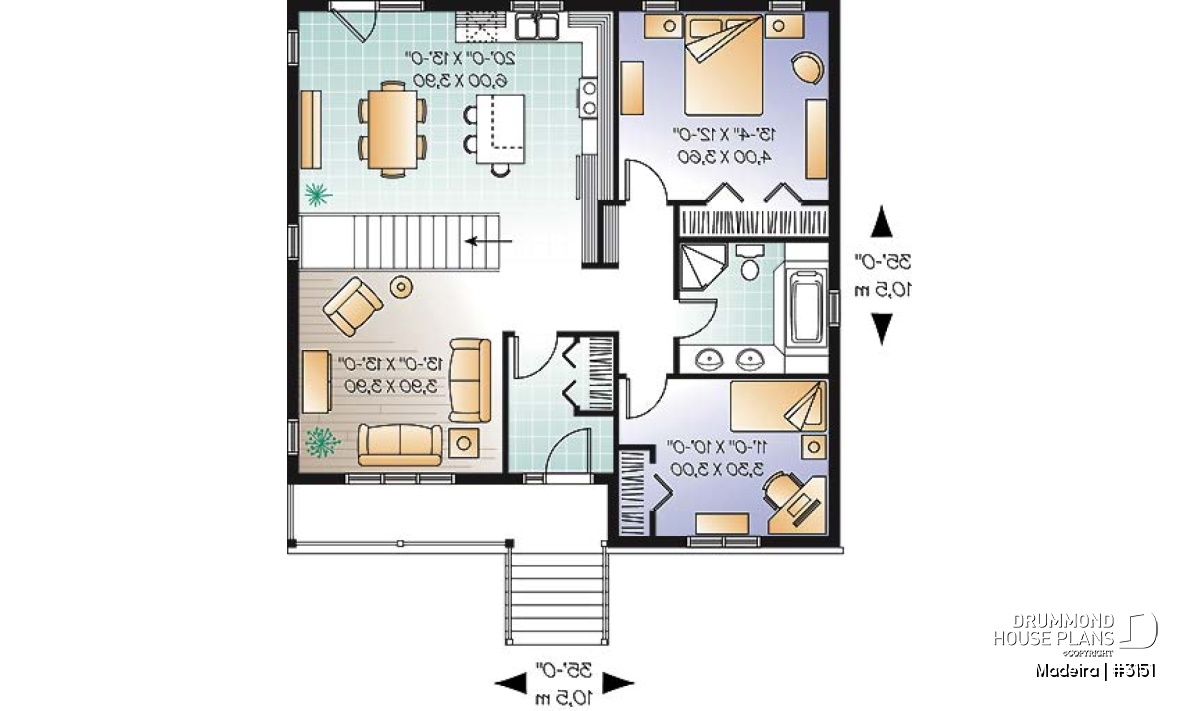

1st level

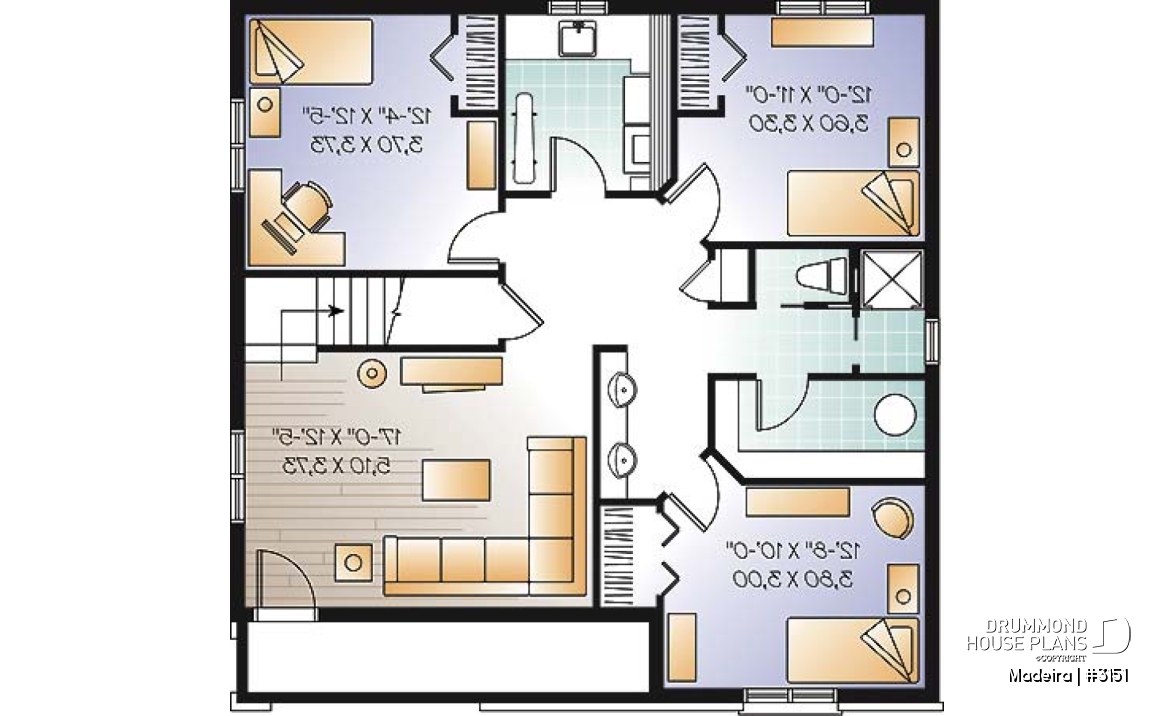

Basement

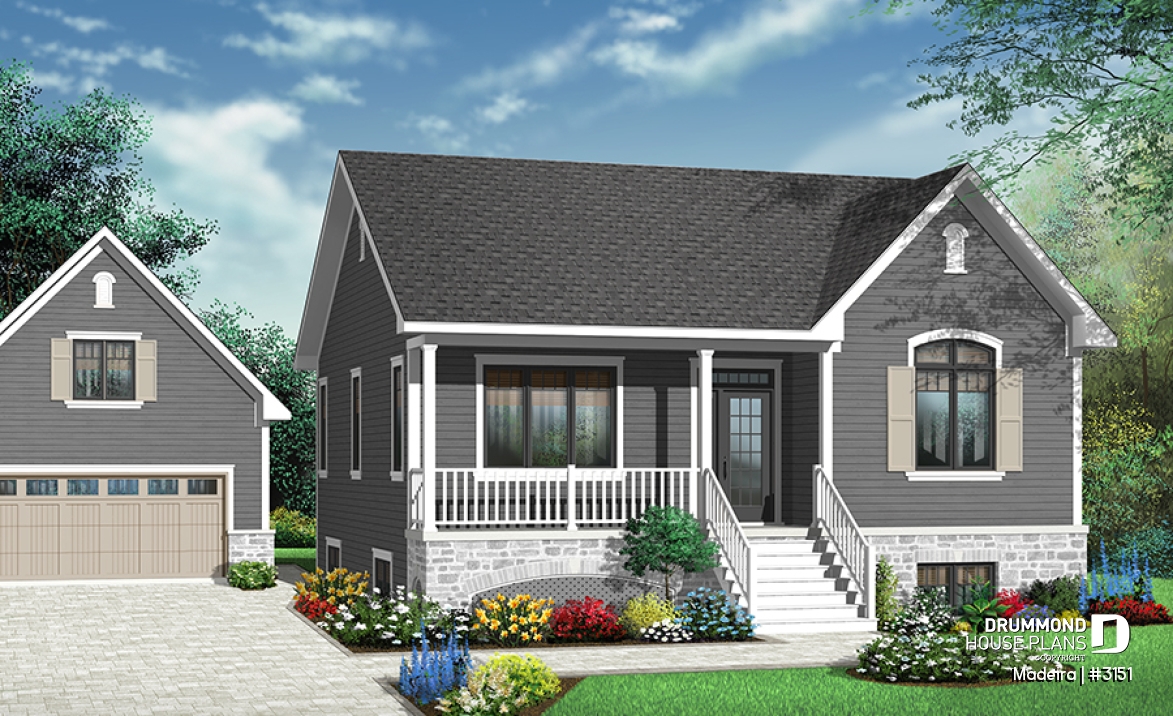

front - BASE MODEL

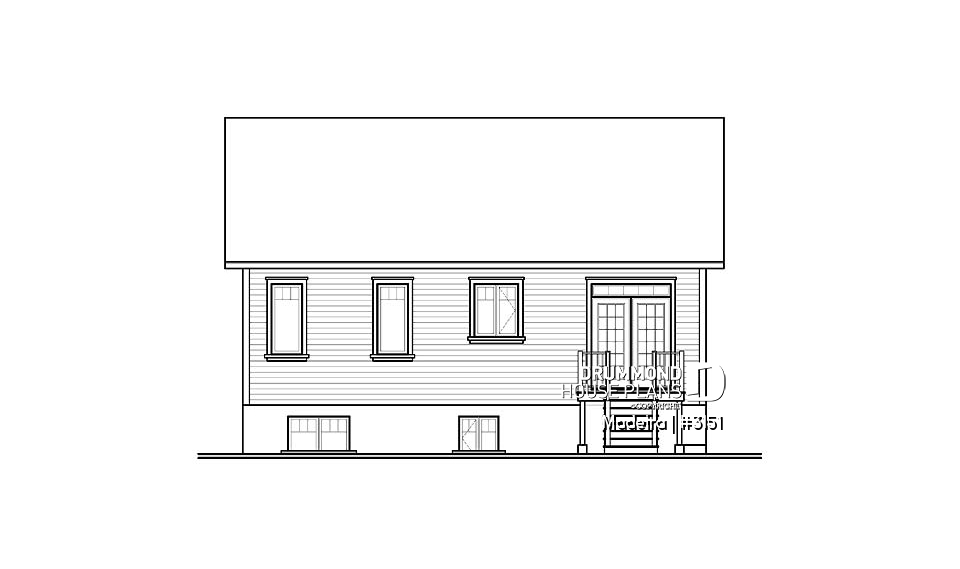

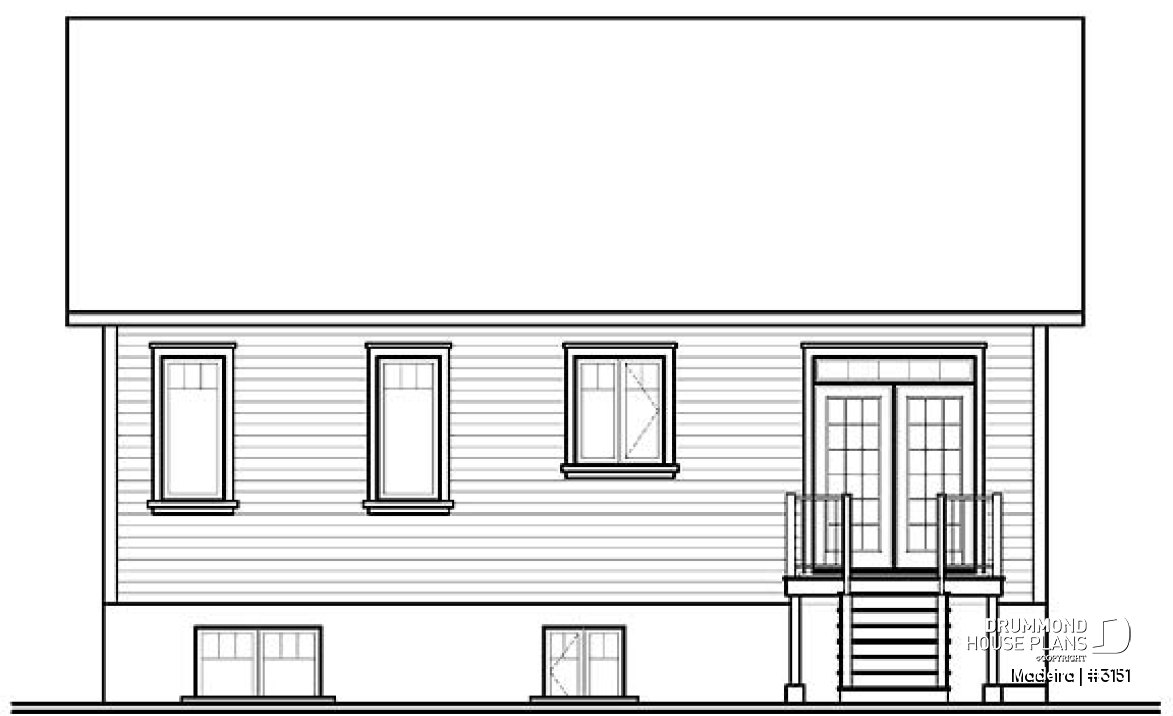

rear elevation

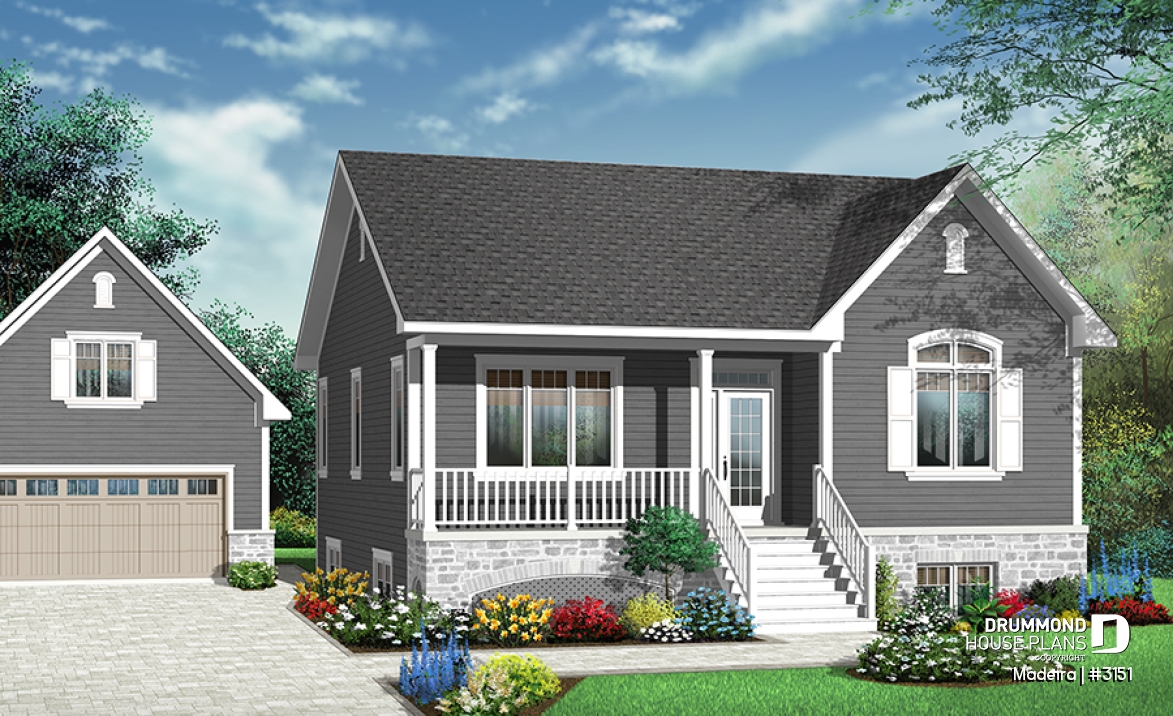

Color version 3 - Front

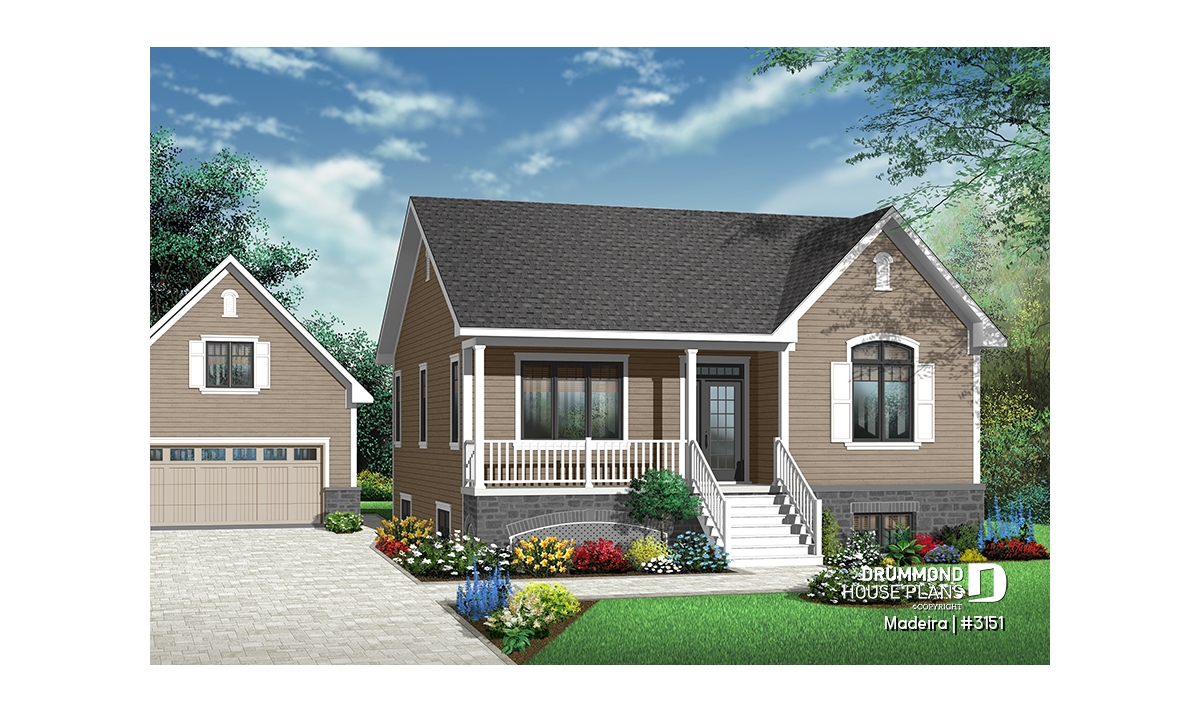

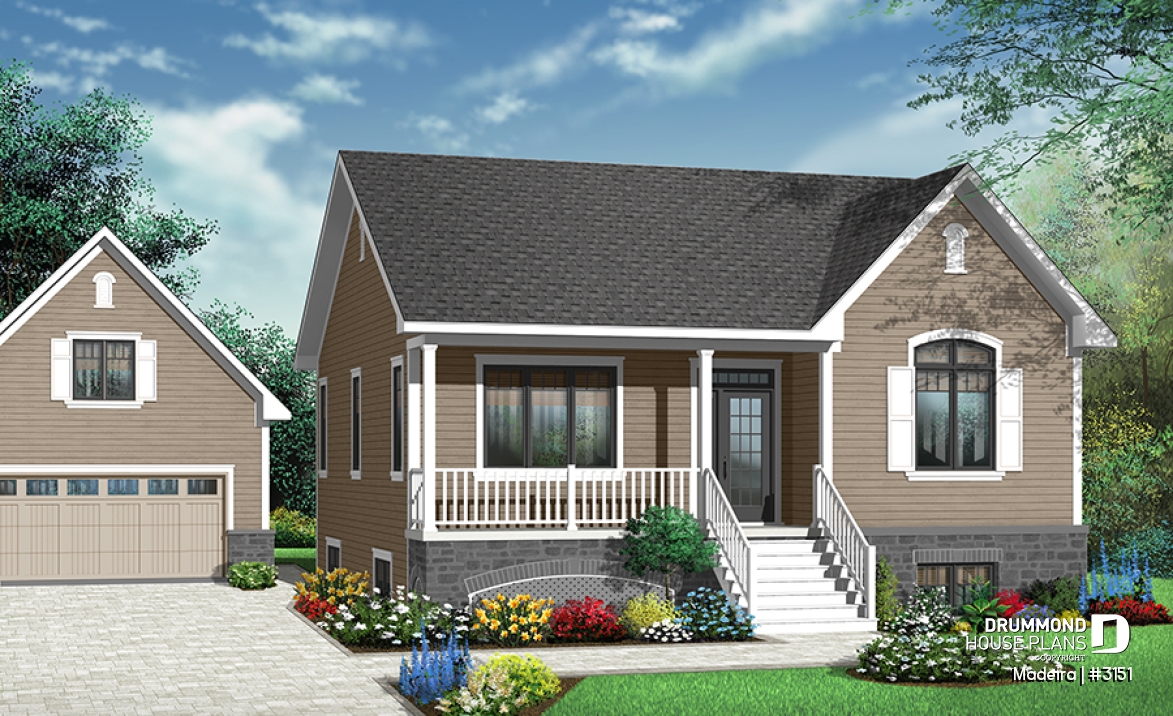

Color version 4 - Front

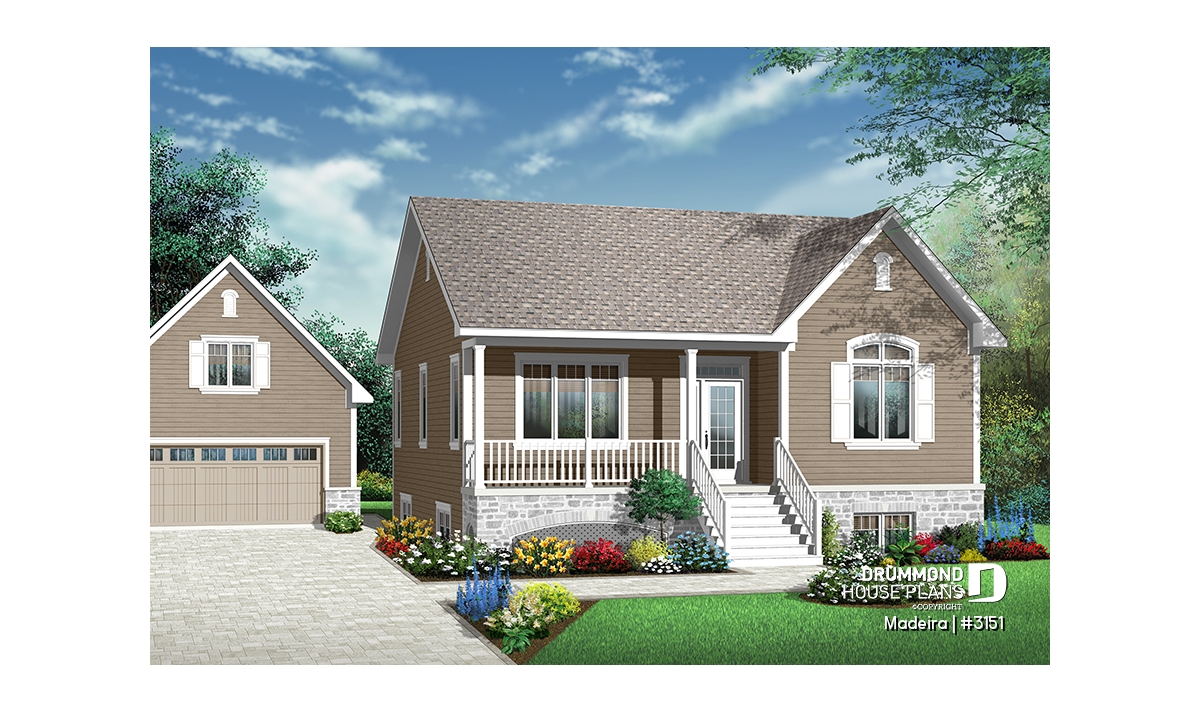

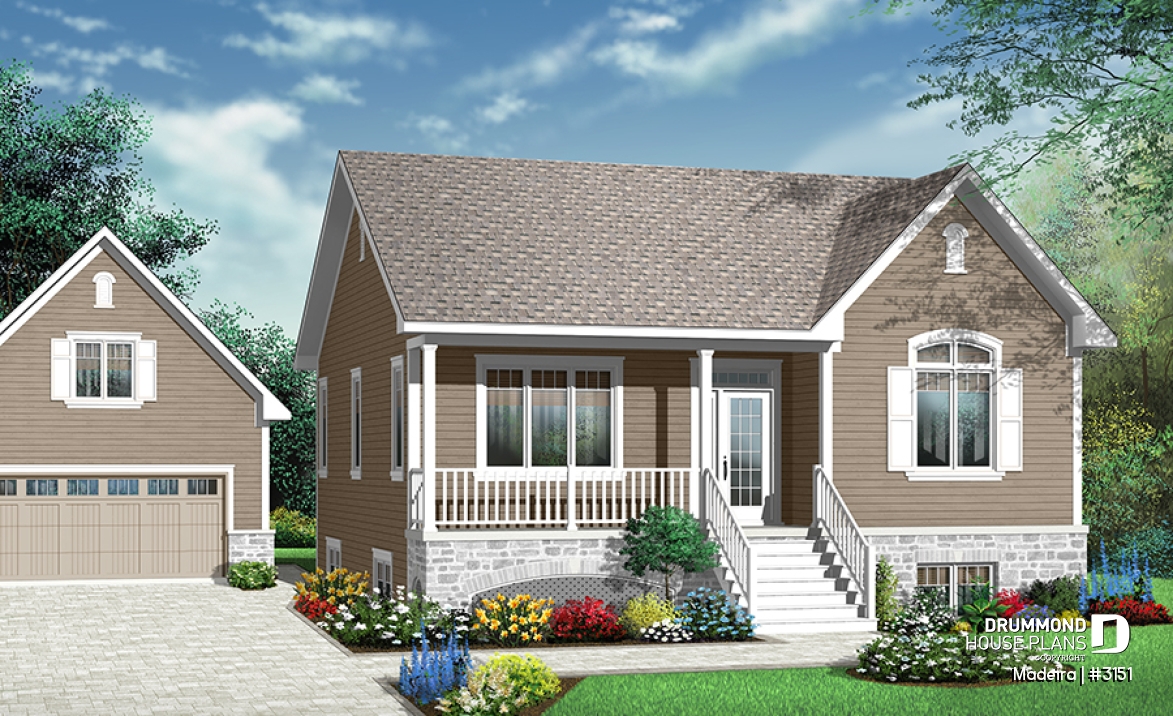

Color version 5 - Front
Madeira House plan 3151
2 to 5 bedrooms possible, beautiful modern ranch style house plan, laundry room, great front covered porch
Starting from
1855$
| Technical details summary | Plan #3151 | ||
|---|---|---|---|
| Total living area | 2274 sq.ft. | Bedroom | 2, 3, 4, 5 |
| Full baths | 2 | Half baths | - |
| Foundation included | Finished basement | Garage | - |
| Width | 35'0" | Depth | 35'0" |
Additional details
General specifications
Total living area
2274 sq.ft.
1st level
1137 sq.ft.
Basement
1137 sq.ft.
Width
35'0"
Depth
35'0"
Ridge height from top of foundation
24'9"
Exterior wall
2 X 6
Finished basement
Builder price code
F
Rooms specifications
Bedroom(s)
2, 3, 4, 5
Full baths
2
Half baths
-
Garage type
-
Covered porch area
122 sq.ft.

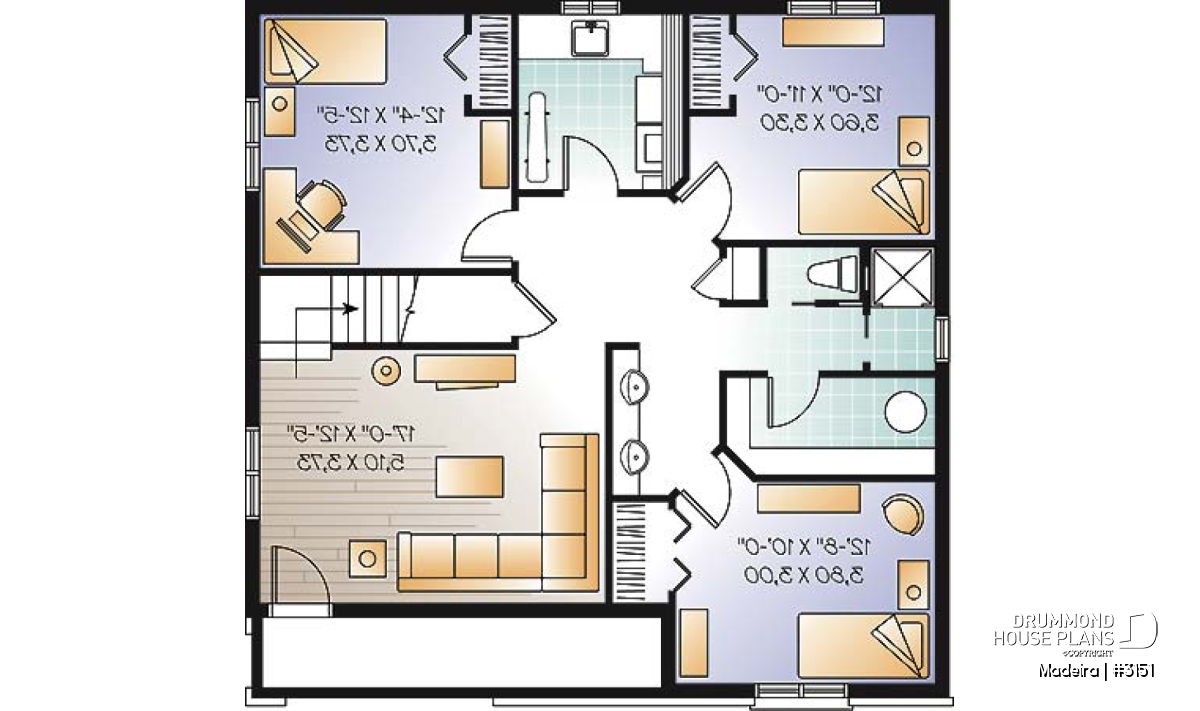

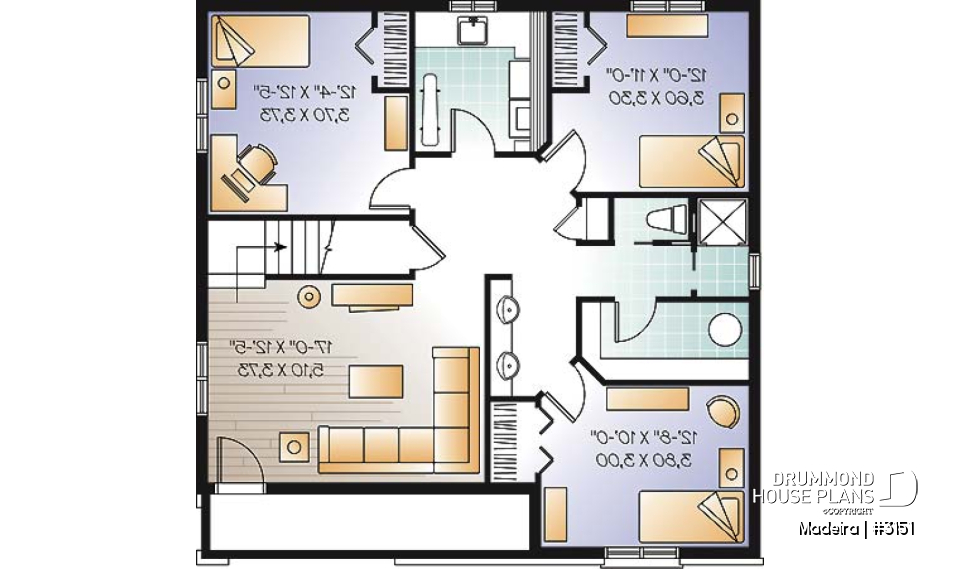

Basement
Rooms
Sizes
Ceiling
Shower room or three quarter bath
3'0" x 6'2"
~ 7'10"
Half bath or powder room
4'8" x 2'8"
~ 7'10"
Bedroom
12'0" x 11'0"
~ 7'10"
Bedroom
12'4" x 12'5"
~ 7'10"
Laundry room
8'2" x 8'6"
~ 7'10"
Bedroom
12'8" x 10'0"
~ 7'10"
Playroom
17'0" x 12'5"
~ 7'10"
Linen
1'8" x 2'8"
~ 7'10"
Storage
10'2" x 4'10"
~ 7'10"
Cold room
19'2" x 3'2"
~ 7'10"
1st level
Rooms
Sizes
Ceiling
Kitchen
10'0" x 13'0"
~ 9'0"
Dining room
10'0" x 13'0"
~ 9'0"
Living room
13'0" x 13'0"
~ 9'0"
Foyer
6'8" x 8'8"
~ 9'0"
Full bathroom
9'6" x 8'4"
~ 9'0"
Bedroom
13'4" x 12'0"
~ 9'0"
Bedroom
11'0" x 10'0"
~ 9'0"
Linen
1'0" x 3'8"
~ 9'0"
Porch
20'4" x 4'4"
N/D
Porch
8'0" x 5'0"
N/D
The economical five (5) bedroom Traditional Bungalow with finished daylight basement
The ever-changing needs of our society have greatly influenced us at Drummond Designs and have incited us to propose plans which are even more adapted to today’s reality. In order to meet with the expectations of larger and/or reconstructed families, here is a bungalow that is completely equipped on both floors to meet with the needs and expectations of these families. For these reasons, this model of bungalow is first and above all a 5 bedroom home of which 3 are in a semi-basement with fenestration in accordance with established norms as to evacuation in case of a fire; incontrovertible norms that are unfortunately, not often taken into account when planning rooms in the basement. This model also proposes an completely open activity centre on the ground floor, a kitchen with a lunch counter, well distributed fenestration offering sufficient natural lighting and in the basement, a family room, a laundry room, storing space, a very functional shower and closed-in toilet as well as an impressive cold storage room under the front veranda, as is needed for such families.
Garage plan #2988 sold separately.
Distinctive elements
9' ceiling on 1st level in which the activity area is entirely open. Complete plan with 5 bedrooms, three of which are located in half basement with large windows. Large cold room under front porch with a remarquable exterior finish.
Plan feature(s)
Ceiling over 8', Island, Separate bath and shower, Double sinks, Entrance hall
Plan architectural style(s)
Transitional, American, Country, Ranch, Traditional, Modern rustic
The plan Madeira is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
