House plan Darnell (3281)
2 bedroom Modern Split level house plan with open floor plan, garage, laundry on main floor, open concept
View the size of the rooms and height of the ceilings

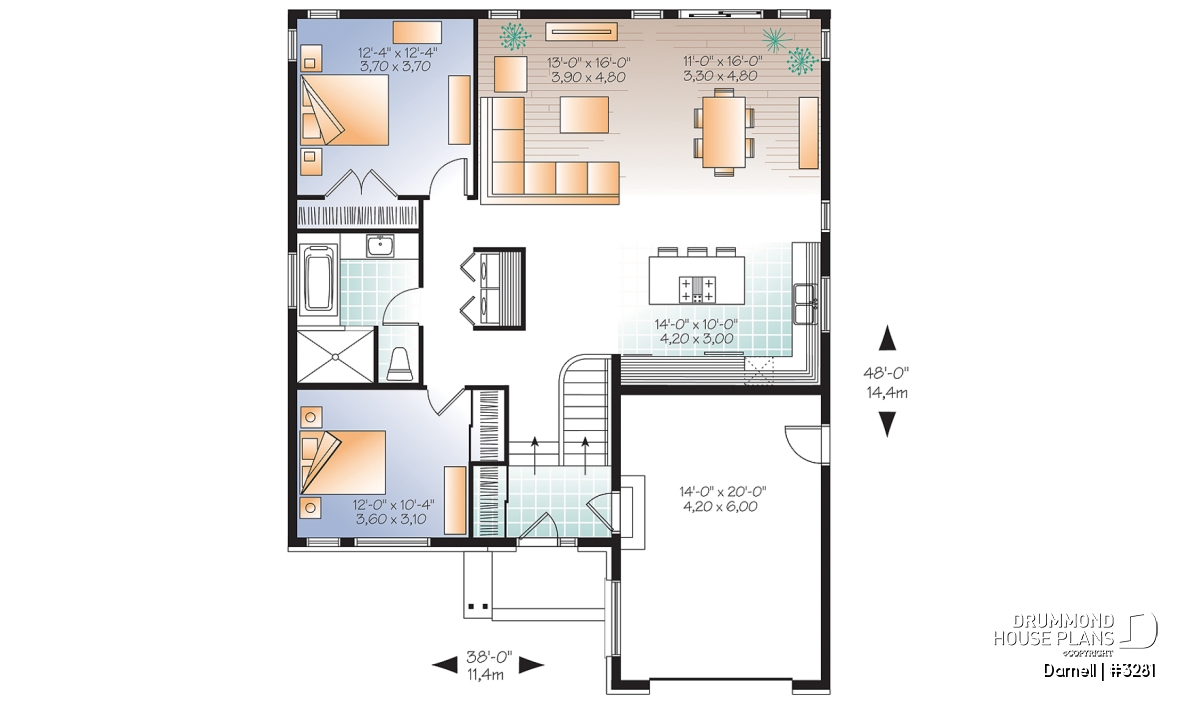

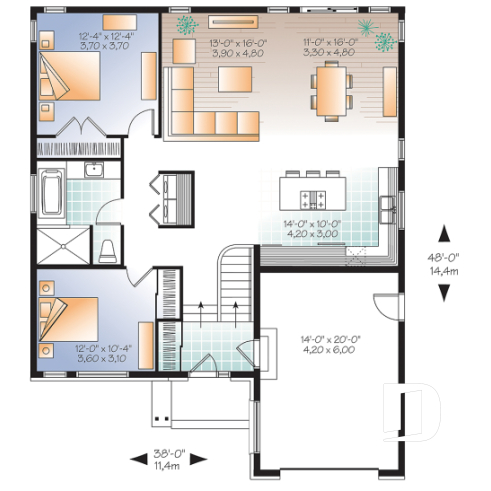

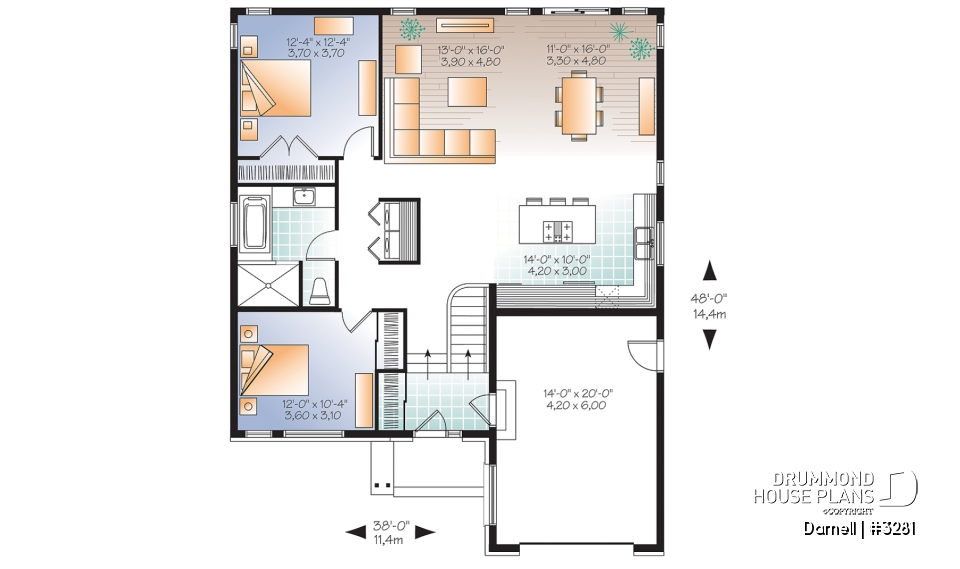

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 7'2" x 5'0" | ~ 10'0" |
| Closet | 2'2" x 5'0" | ~ 10'0" |
| Kitchen/dinette | 14'0" x 10'0" | ~ 8'0" |
| Pantry | 3'0" x 2'0" | N/A |
| Dining room | 11'0" x 16'0" | ~ 8'0" |
| Living room | 13'0" x 16'0" | ~ 8'0" |
| Bedroom | 12'4" x 12'4" | ~ 8'0" |
| Closet | 8'6" x 2'0" | ~ 8'0" |
| Bedroom | 12'0" x 10'4" | ~ 8'0" |
| Closet | 2'2" x 5'0" | ~ 8'0" |
| Full bathroom | 8'6" x 10'6" | ~ 8'0" |
| Laundry space | 3'2" x 5'2" | ~ 8'0" |
| Garage | 14'0" x 20'0" | ~ 9'2" |
General specifications
| Total living area | 1283 sq.ft. |
| 1st level | 1283 sq.ft. |
| Width | 38'0" |
| Depth | 48'0" |
| Ridge height from top of foundation | 19'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications

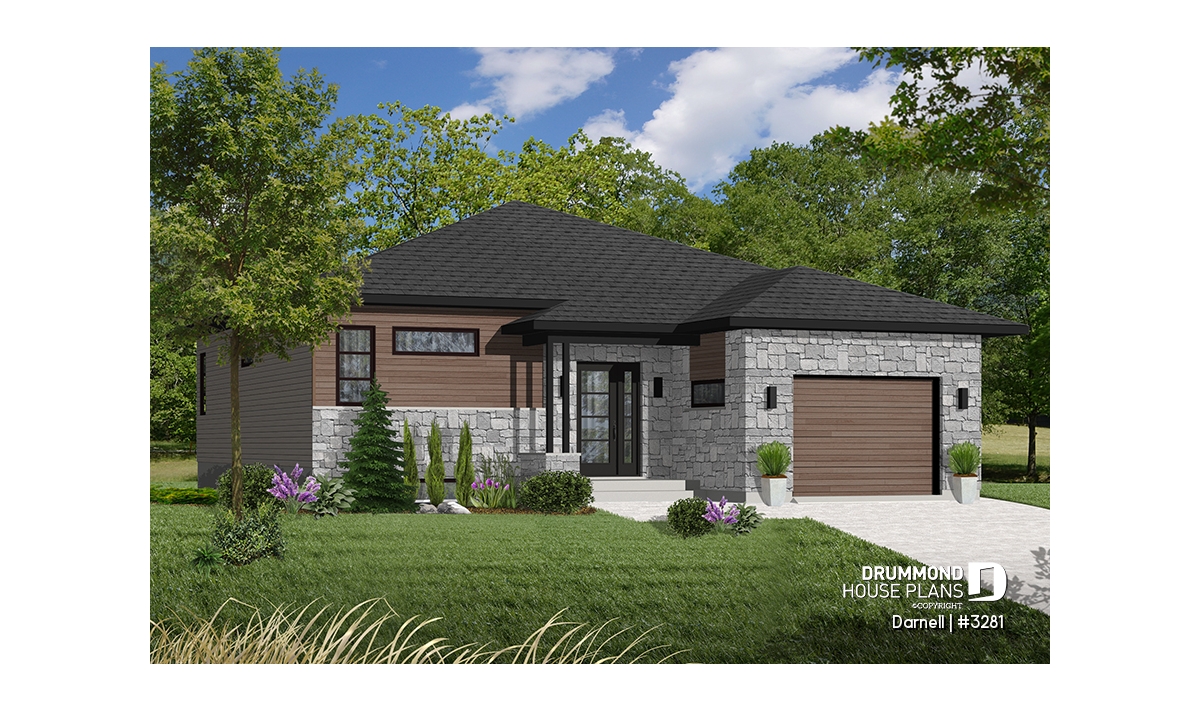

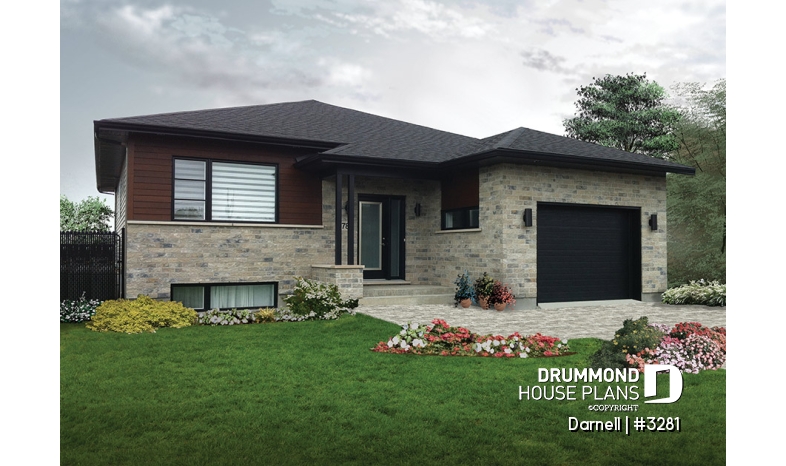

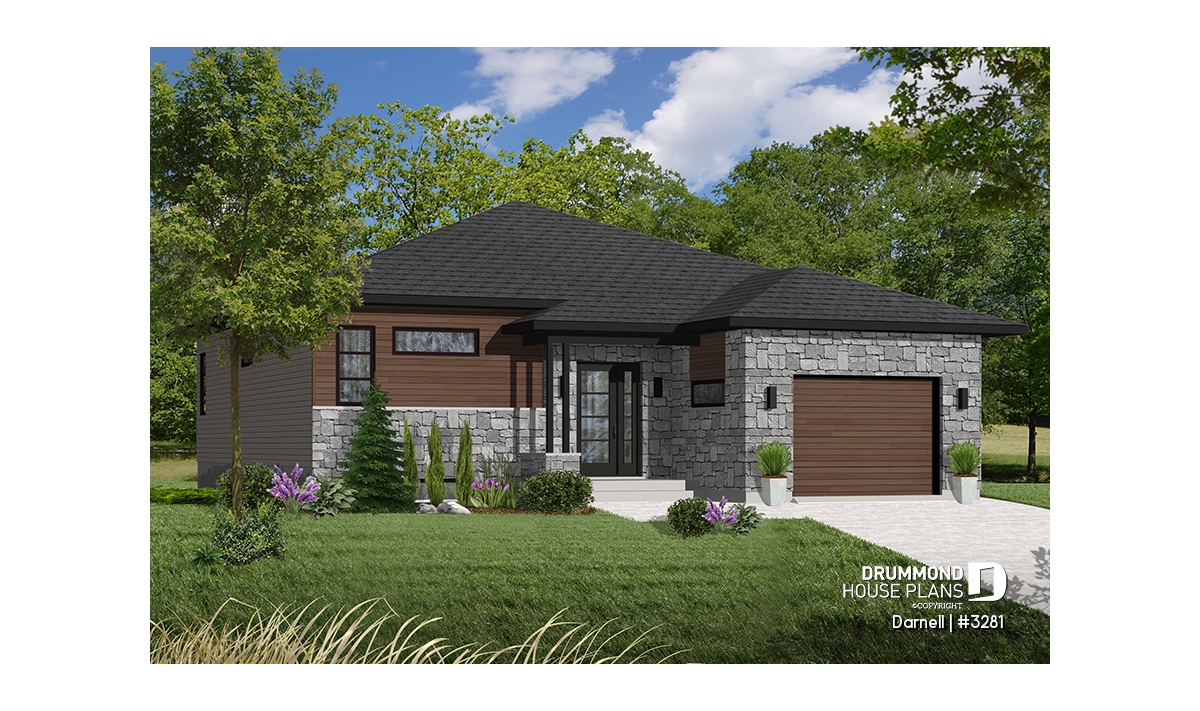

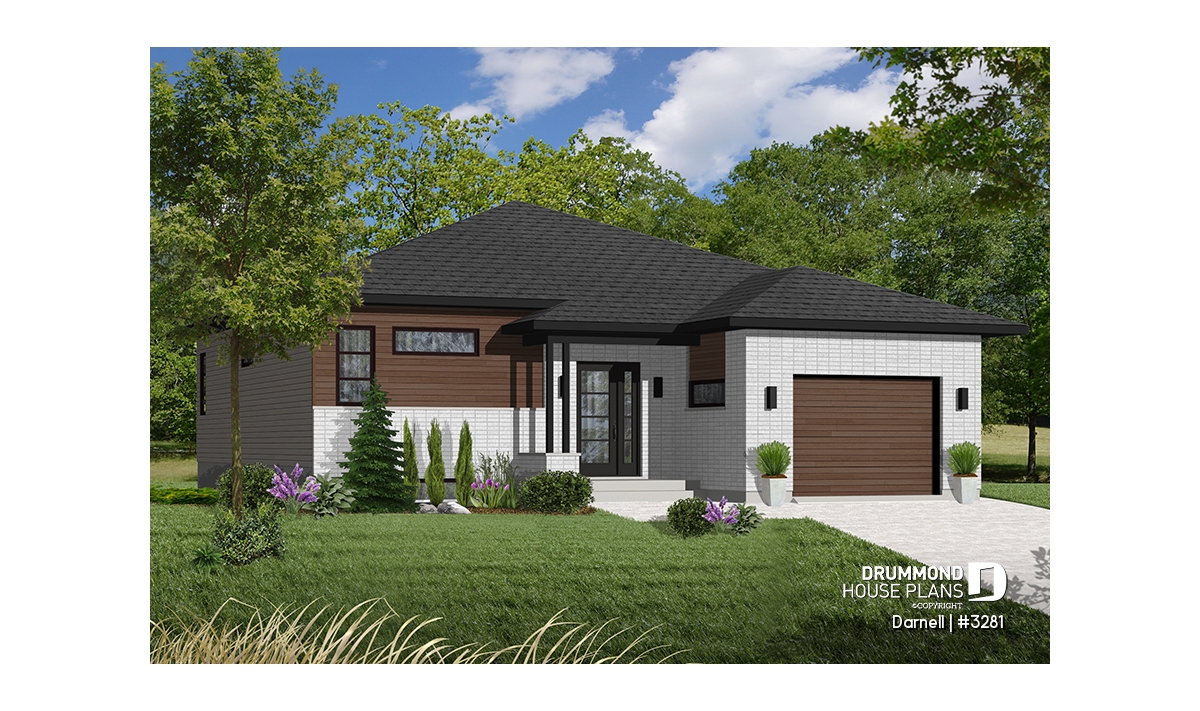

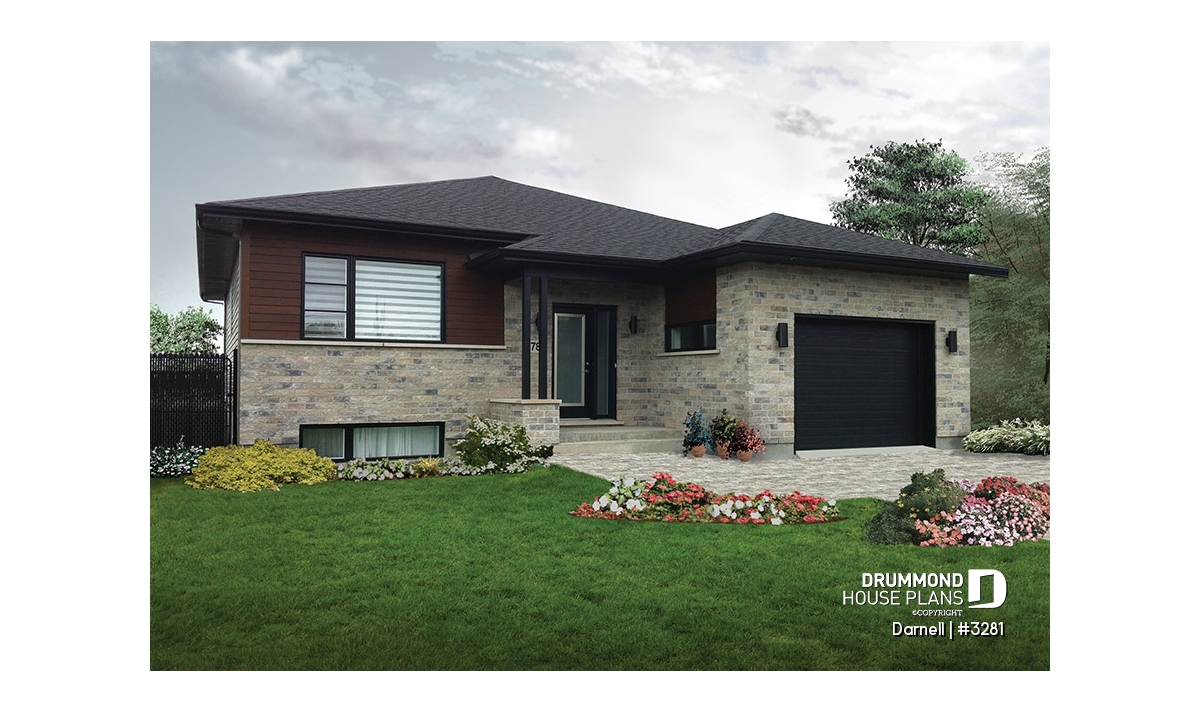

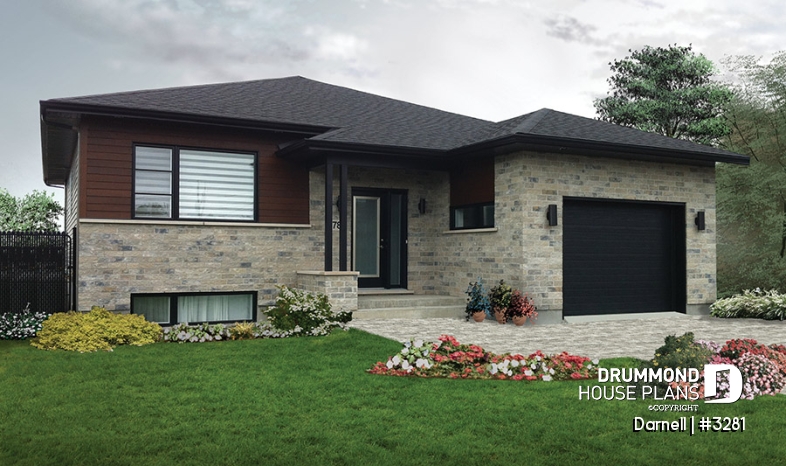

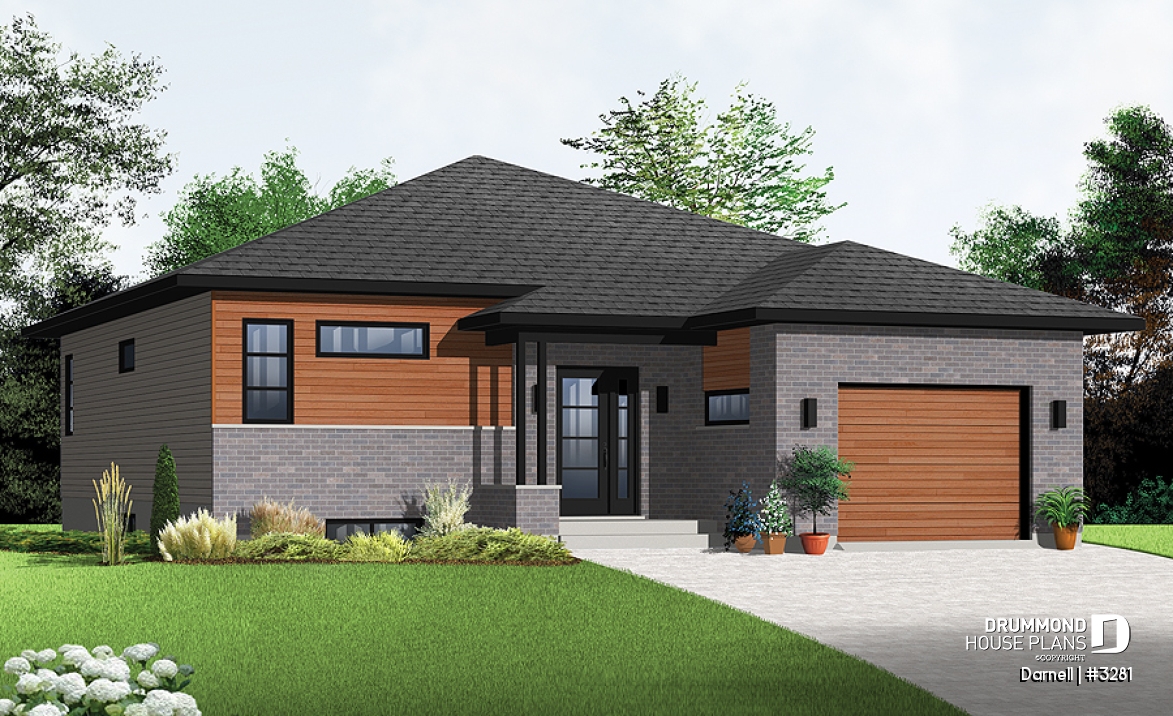

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

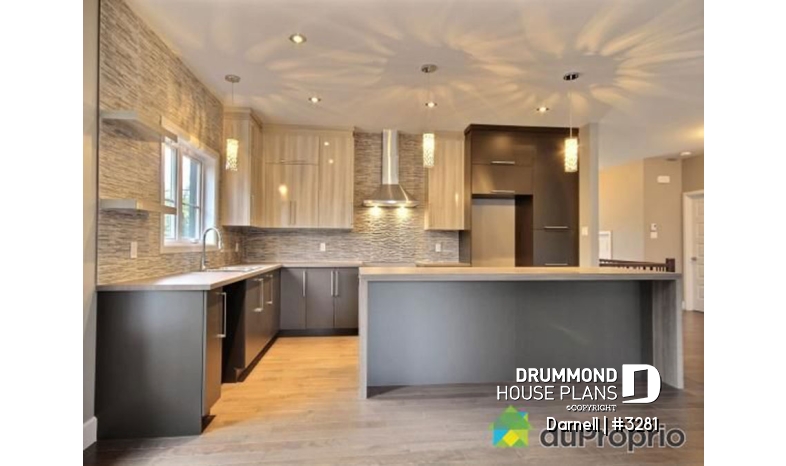

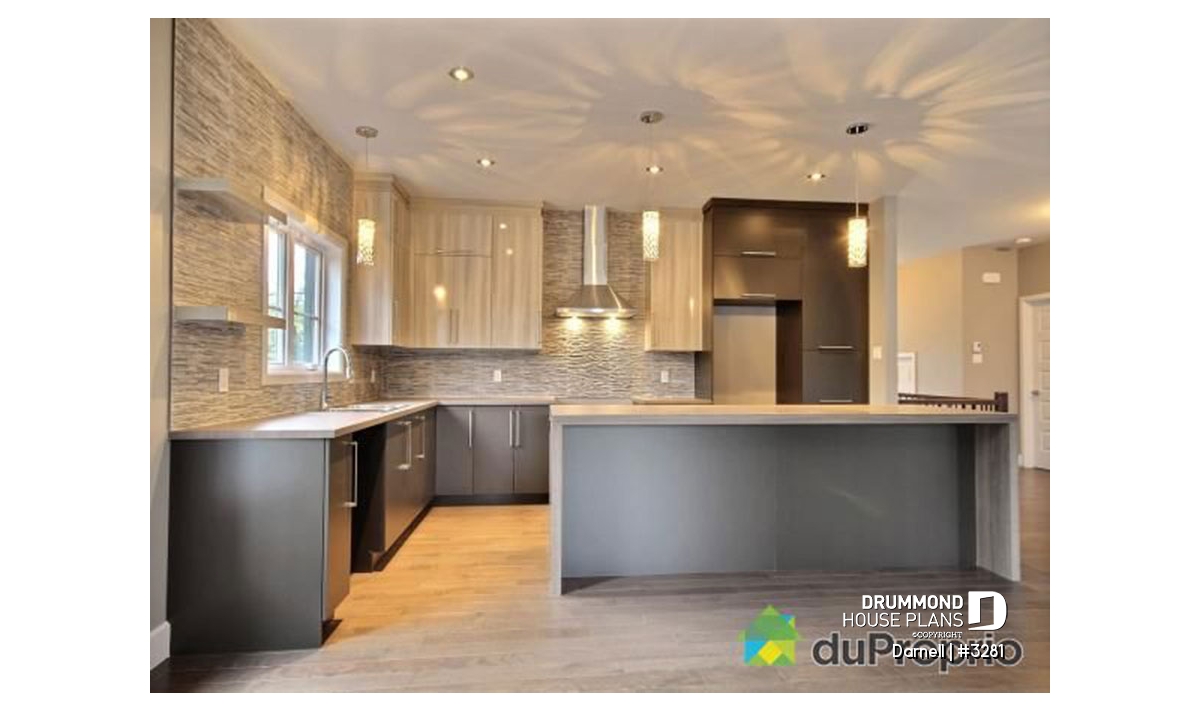

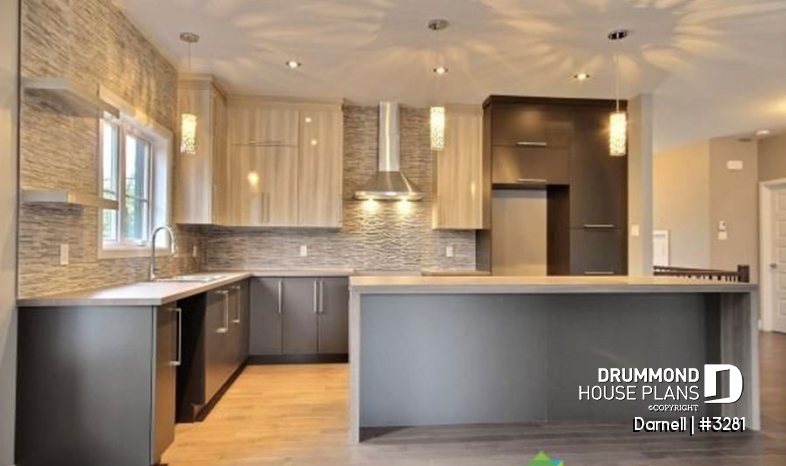

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Modern mid-century 2 bedroom affordable house plan with a garage
In response to a survey of 450 respondents to whom a choice of 3 different interiors was shown, on which visitors to our Internet site were also invited to comment, Drummond House Plans developed two contemporary, one storey plans that offer interiors by popular demand!
Introducing plan 3281 with its 38 foot width and 48 foot depth that boasts a 14’ x 20’ garage and sleek, contemporary roof line.

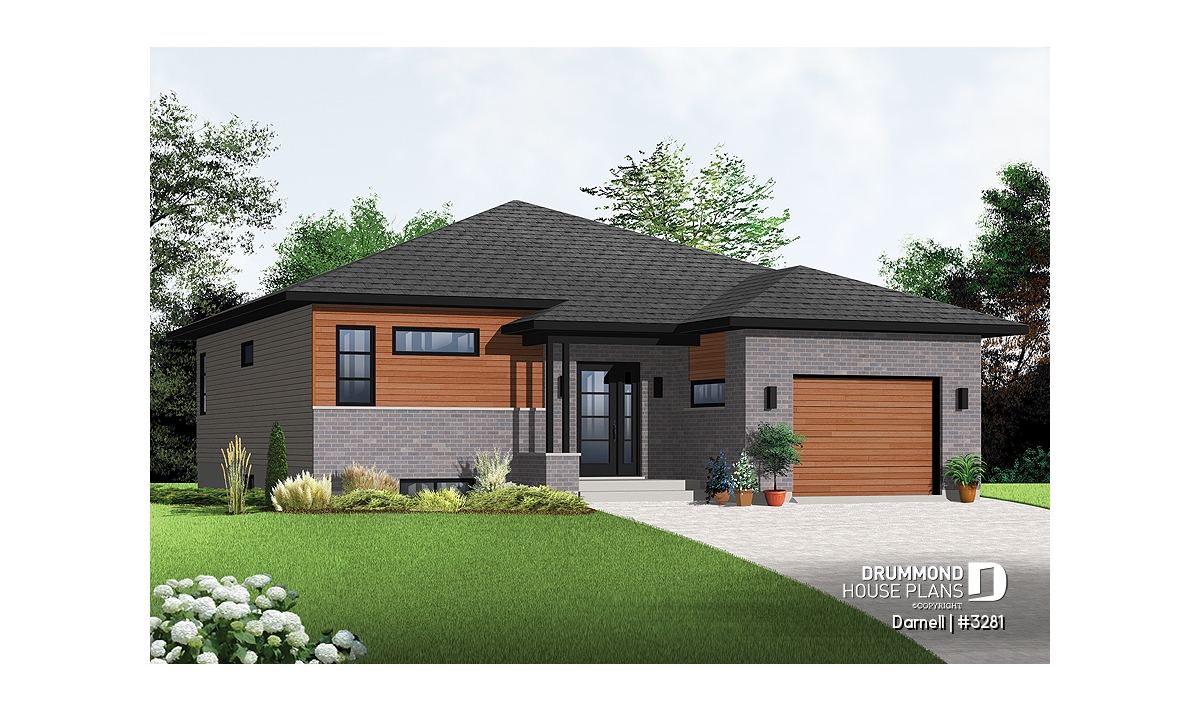

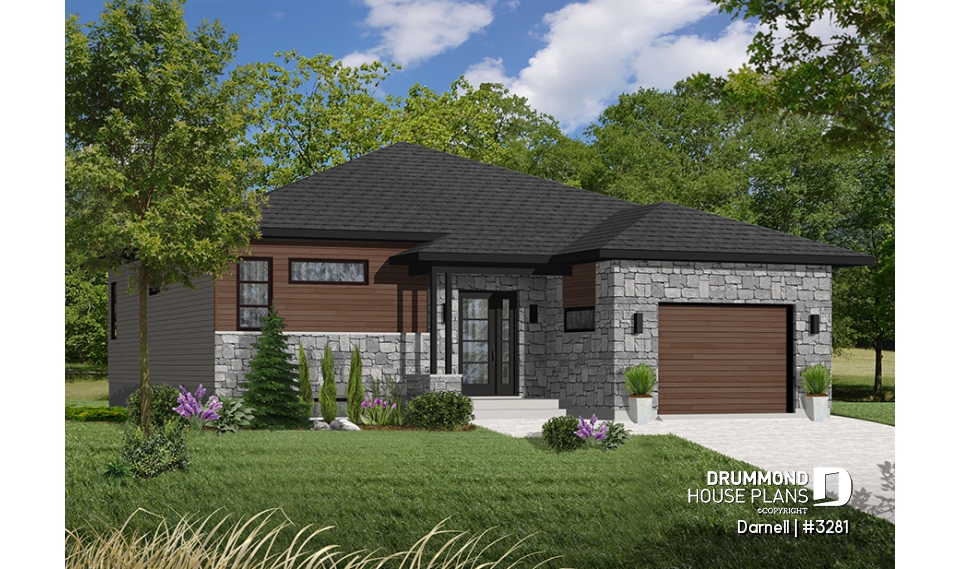

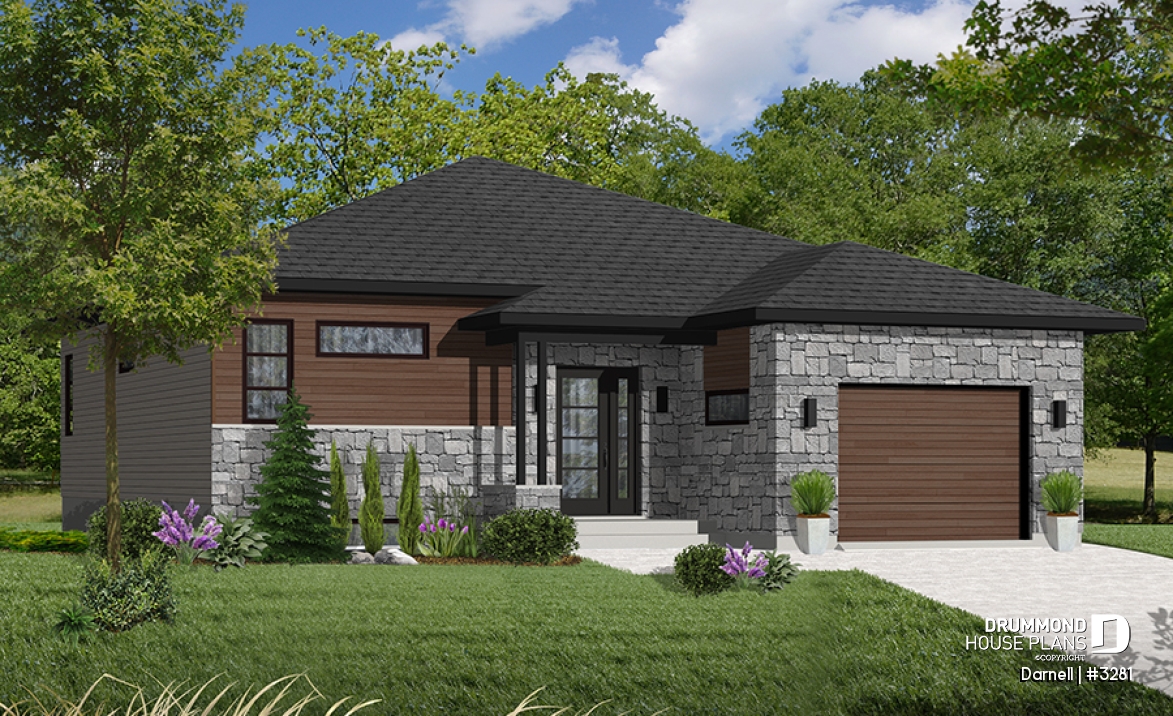

Outside in front, the combination of brick and wood offers striking curb appeal that is timeless. Inside the home, the unencumbered foyer leads into an activities area which opens onto the back yard.
This plan offers many practical features including the front entrance with its 5 foot closet and access to the garage, the kitchen with ample storage space and a large, central island 80” wide x 40” deep. The abundantly fenestrated living/dining room, two comfortable bedrooms, a separate laundry area on the main floor and a well appointed bathroom with a separate 64” x 44” shower are features that are sure to please.
Other single story models with garage include plan 3282 await your discovery!
Distinctive elements
Activities area open to the back. Main entrance with closet. Both bedrooms can accommodate a full size bed. Bathroom with a separate 64" x 44" shower. 14 ft. x 20ft. garage (interior).
Plan feature(s)
Island, Gound floor laundry room, Open floor layout, Separate bath and shower, Builder
Plan architectural style(s)
. Contemporary, . Modern / Design, . Modern rustic, . Transitional, . Mid-century, . Ranch
