House plan Stillwell (3283)
Modern House Plan with open floor plan concept, large kitchen island and a large garage
View the size of the rooms and height of the ceilings

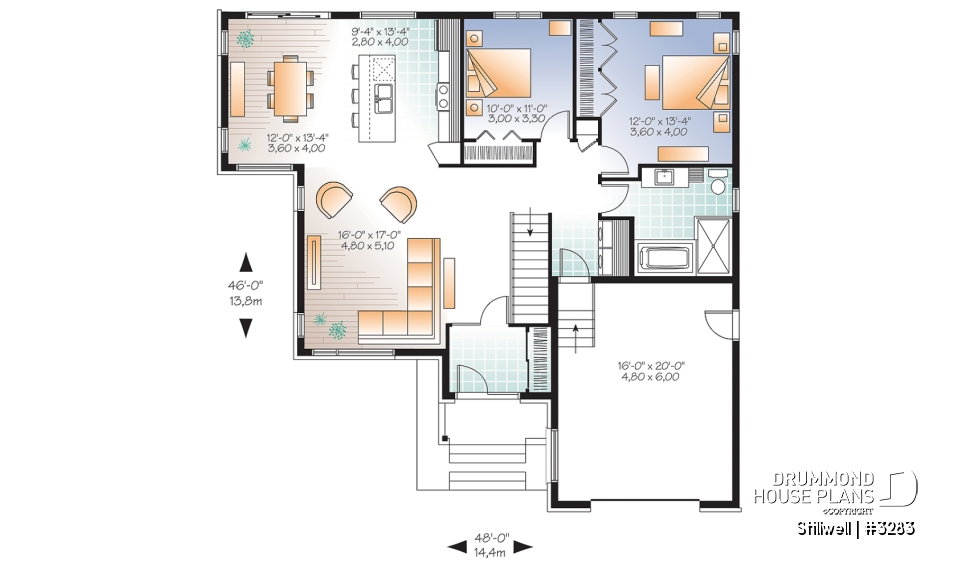

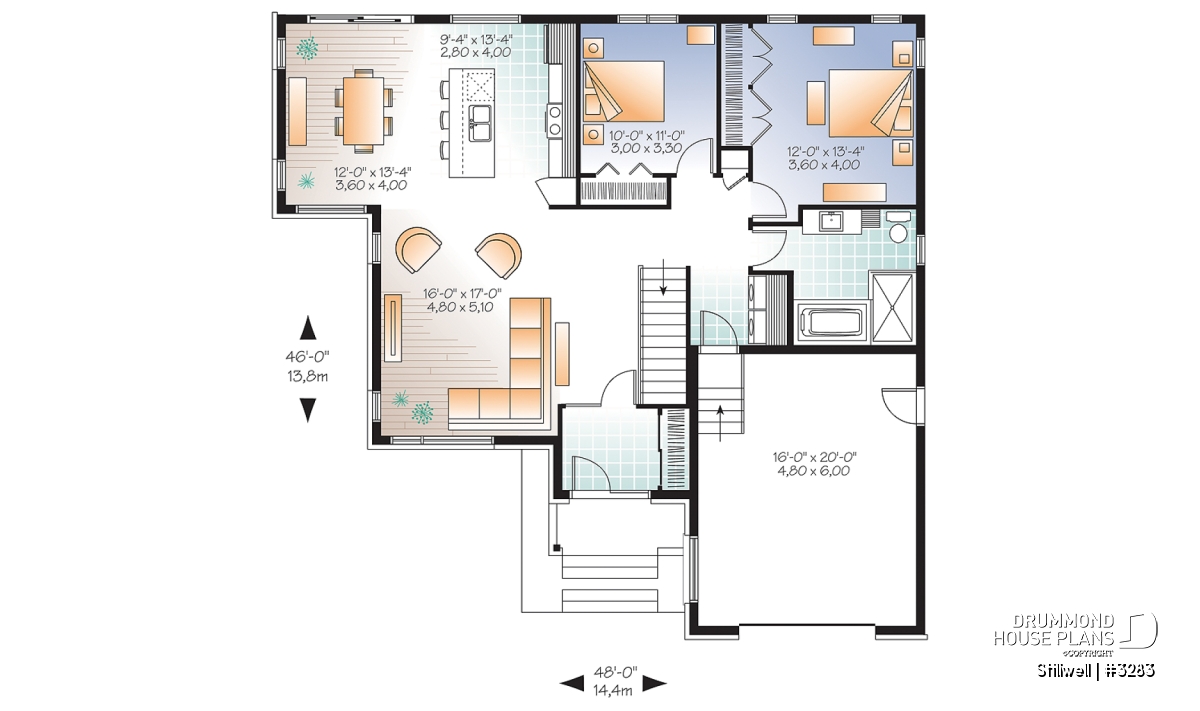

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 7'0" x 6'0" | ~ 8'0" |
| Closet | 2'0" x 6'0" | ~ 8'0" |
| Living room | 16'0" x 17'0" | ~ 8'0" |
| Dining room | 12'0" x 13'4" | ~ 8'0" |
| Kitchen/dinette | 9'4" x 13'4" | ~ 8'0" |
| Pantry | 2'0" x 2'0" | N/A |
| Bedroom | 12'0" x 13'4" | ~ 8'0" |
| Closet | 2'0" x 9'0" | ~ 8'0" |
| Full bathroom | 9'0" x 10'0" | ~ 8'0" |
| Shower | 3'0" x 6'0" | N/A |
| Linen | 1'4" x 1'4" | N/A |
| Bedroom | 10'0" x 11'0" | ~ 8'0" |
| Closet | 6'4" x 2'0" | ~ 8'0" |
| Laundry space | 7'1" x 5'2" | ~ 8'0" |
| Linen | 2'0" x 1'8" | ~ 8'0" |
General specifications
| Total living area | 1342 sq.ft. |
| 1st level | 1342 sq.ft. |
| Width | 48'0" |
| Depth | 46'0" |
| Ridge height from top of foundation | 20'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Calm and Comfortable Contemporary House Plan with garage.
Enjoy one of our most popular floor plans with a fresh new exterior. A pleasing mix of architectural cladding materials creates a style that is both exciting and elegant.
A covered entry transitions to an enclosed vestibule with generous closet. Within, discover an open concept floor plan, with extraordinary daylight thanks to abundant windows. The dining area nestles into its own alcove forming a perfect social triangle with the kitchen forming the pivot point.
The sleeping wing of this comfortable home includes two bedrooms and a shared bathroom with soaker tub and large independent shower. A laundry area completes the private wing amenities.
Additional living space can be achieved by finishing the basement to include additional bedrooms or recreation space.
For a traditional option to this plan, please also look at Model 3260.
Distinctive elements
Garage with 16ft x 20ft interior. Bright and open activities sector. Convenient utility area on the ground floor. Contemporary kitchen with island approx. 3ft x 8ft. Bathroom with 3ft x 6ft independent shower. Comfortable hall with 6ft wide closet.
Plan feature(s)
Gound floor laundry room, Island, Panoramic view, Open floor layout, Separate bath and shower, Entrance hall
Plan architectural style(s)
. Modern / Design, . Ranch, . Mid-century, . Contemporary
