3280 (Sonata)

Affordable Ranch bungalow with home office, open floor plan with large kitchen island & fireplace

Bedrooms

2, 3

Bathroom(s)

1

Living area

1676 sq.ft.

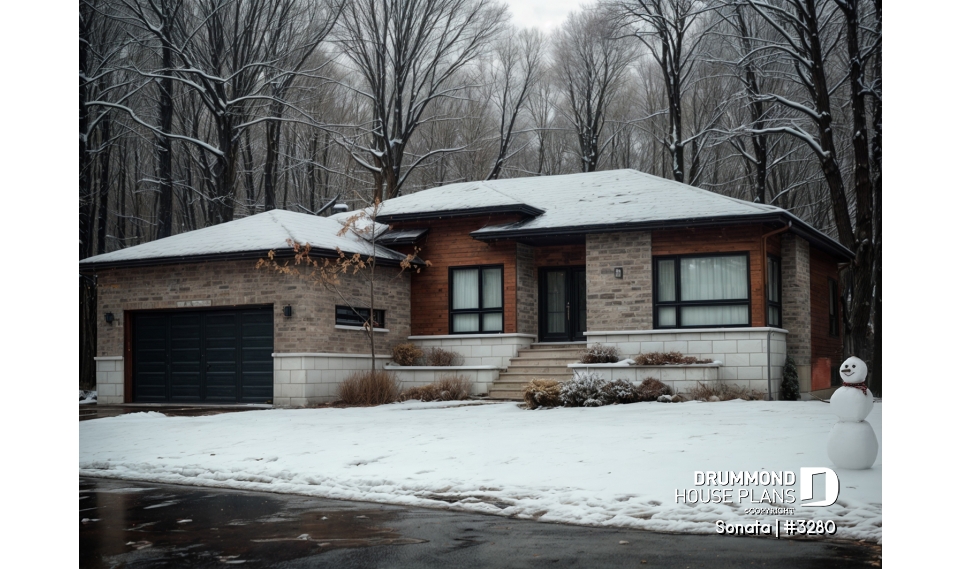

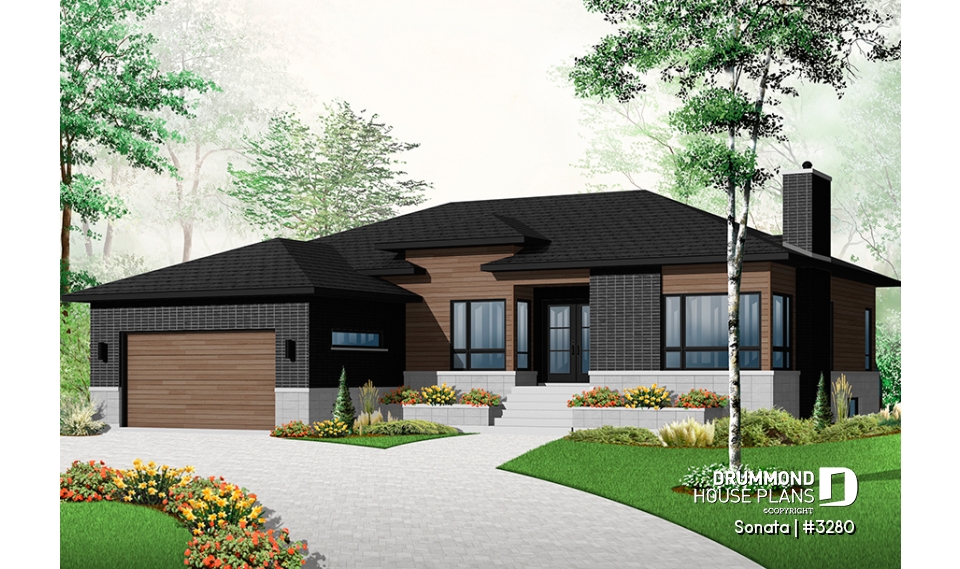

  • front - BASE MODEL - Affordable Ranch bungalow with home office, open floor plan with large kitchen island & fireplace - Sonata

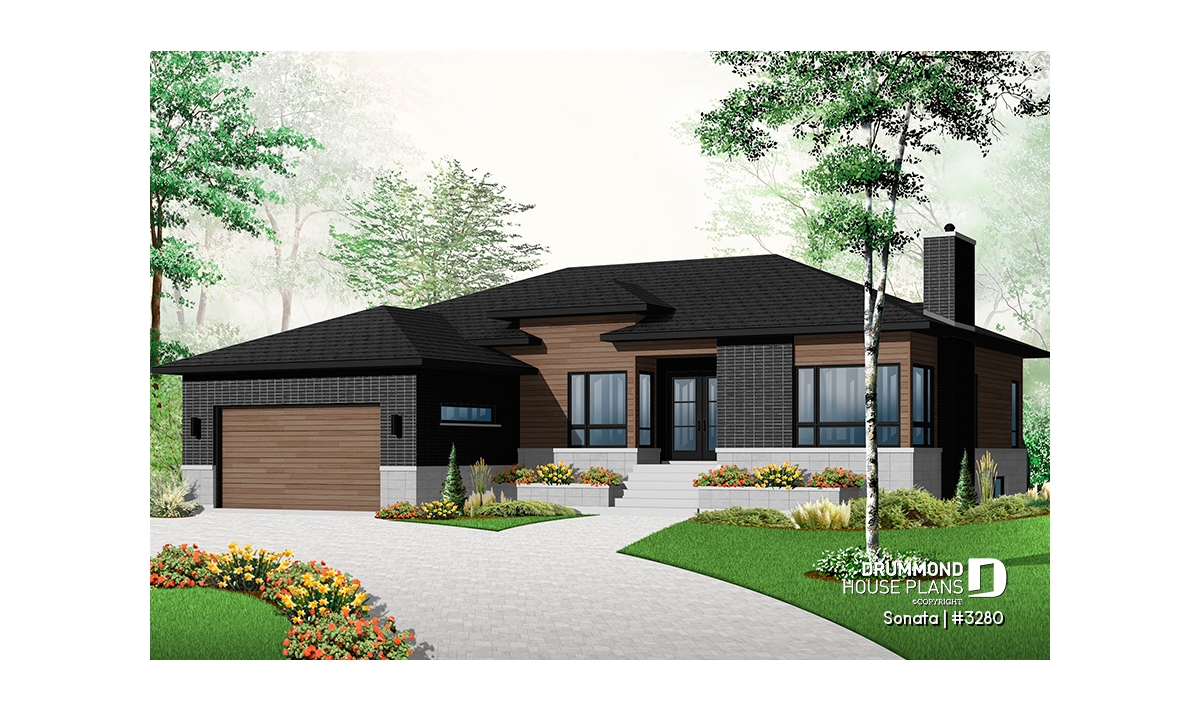

  • front - BASE MODEL - Sonata
  • rear elevation - Sonata
  • Color version 1 - Front - Sonata

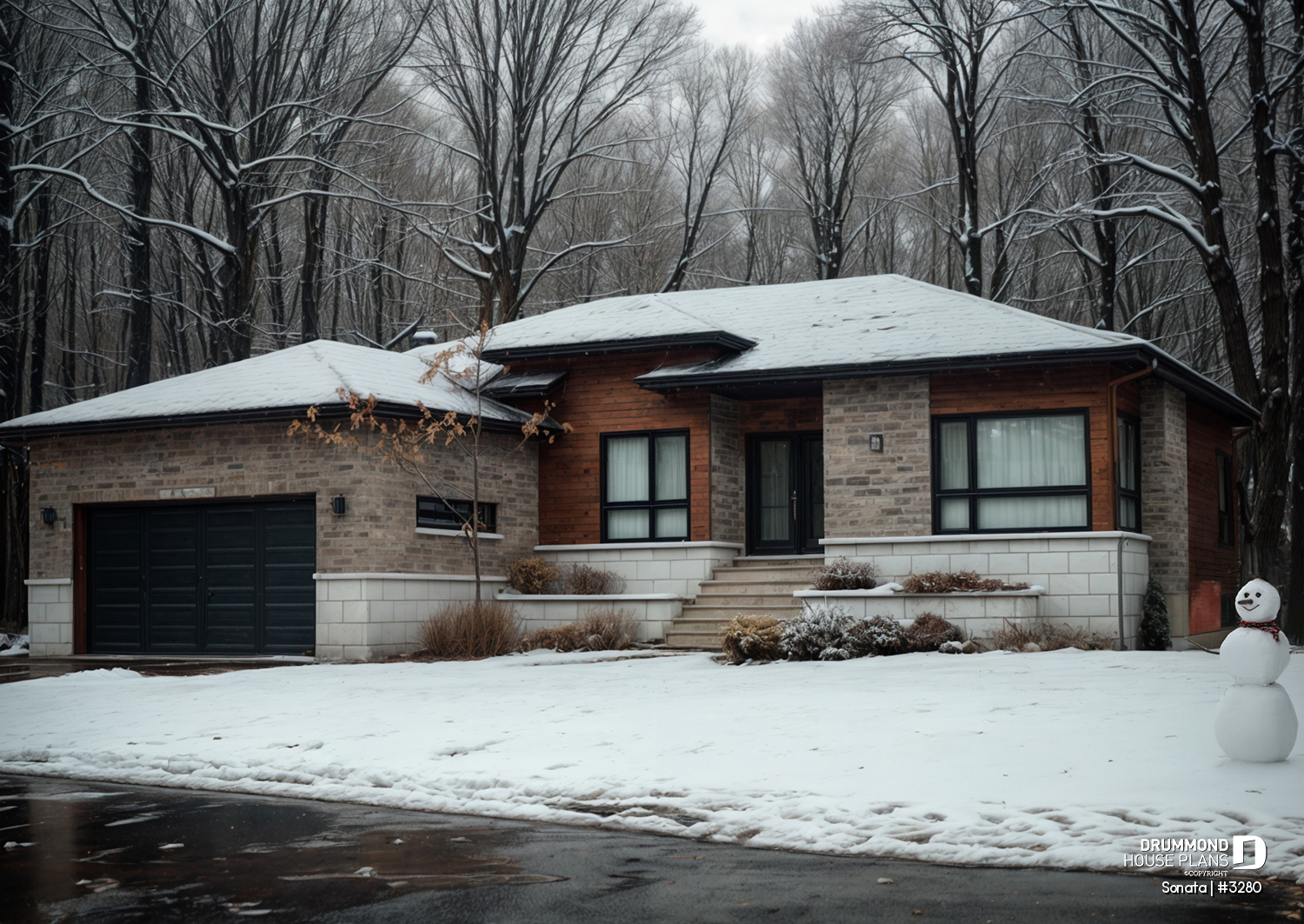

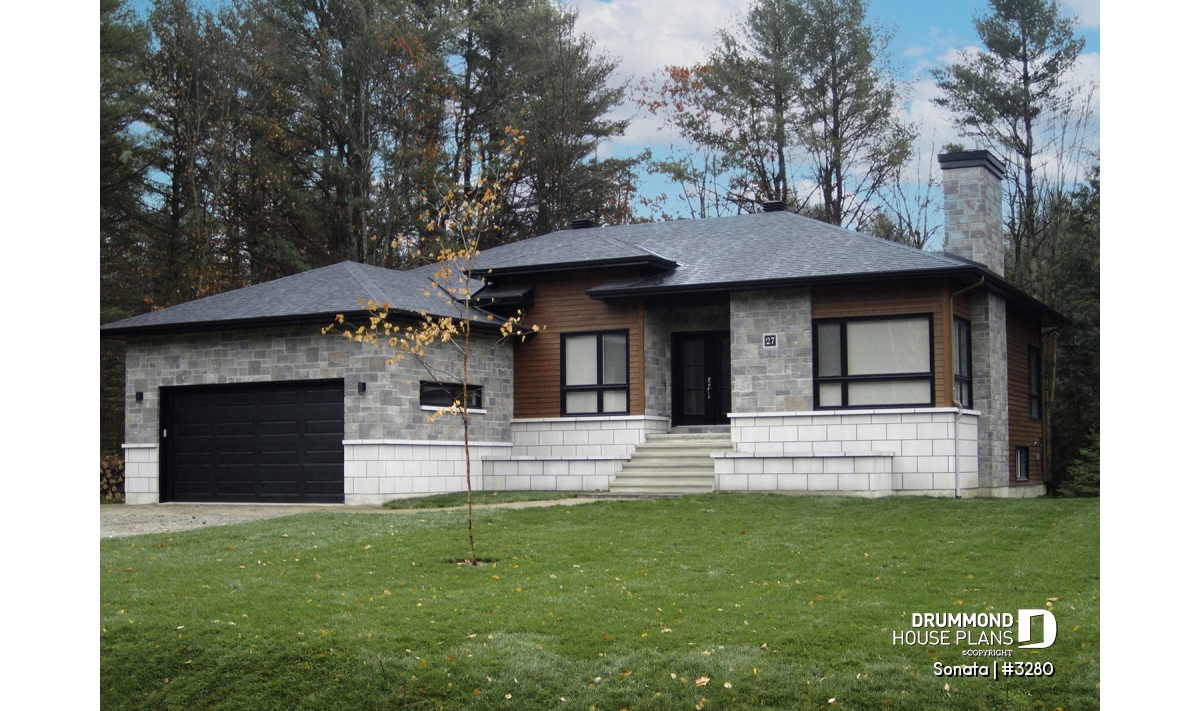

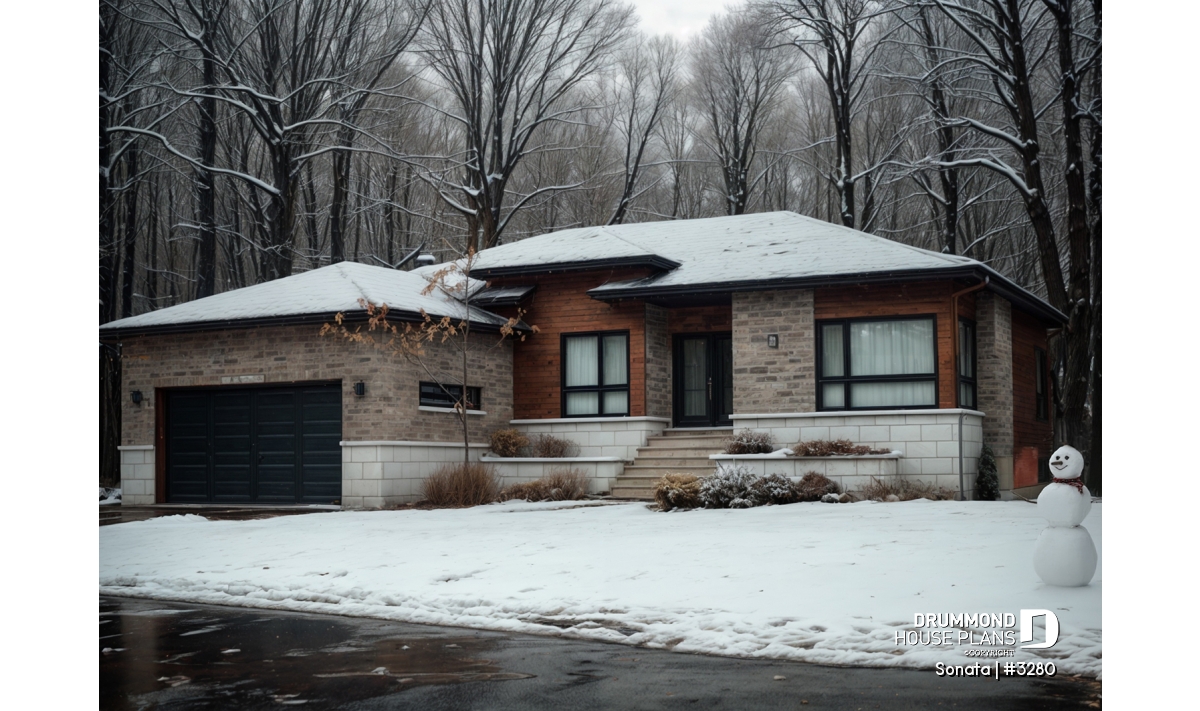

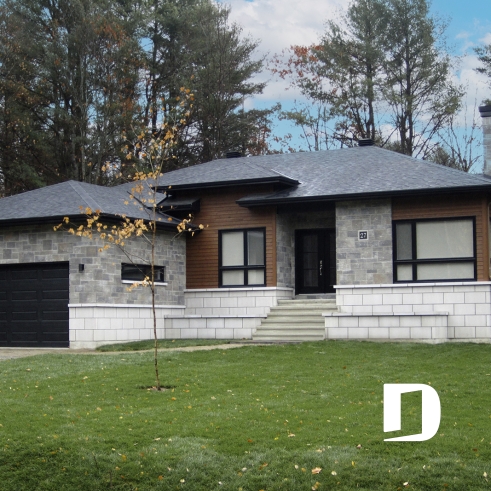

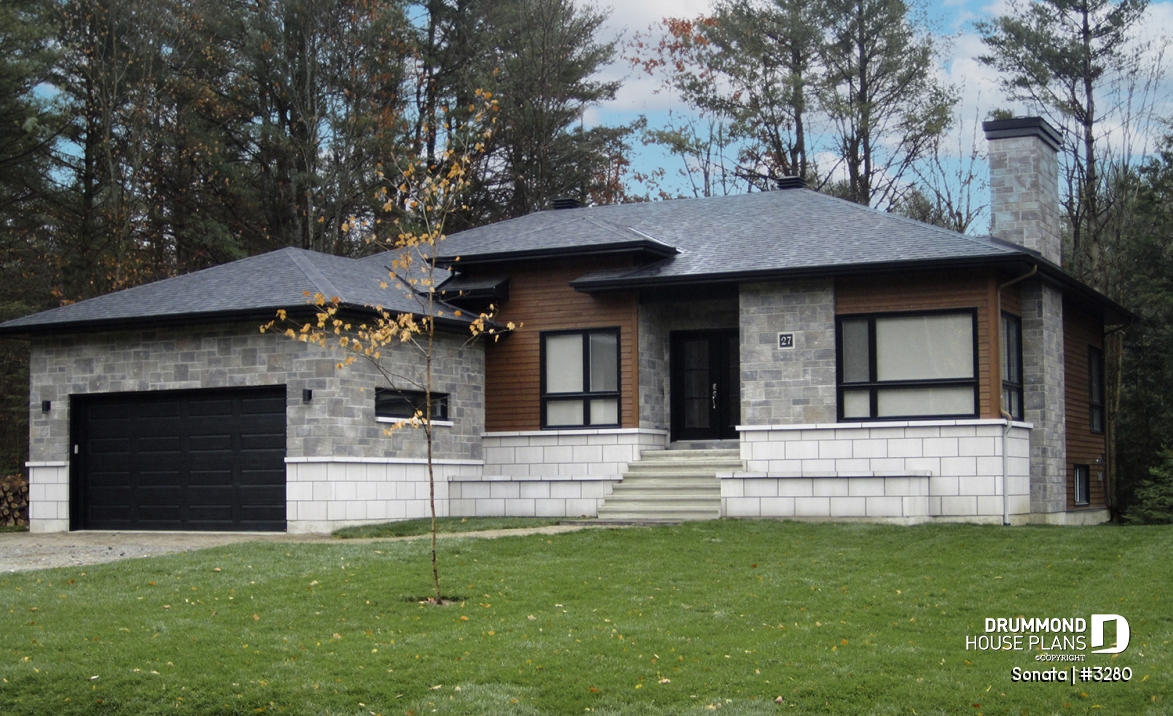

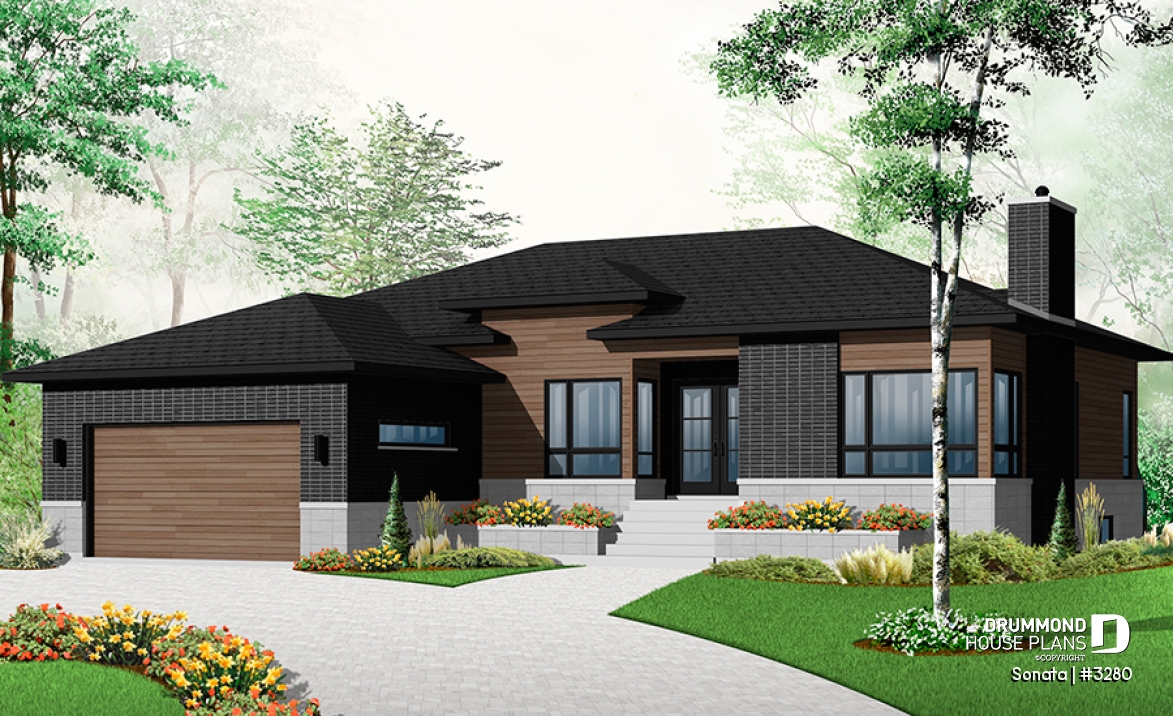

front - BASE MODEL

front - BASE MODEL

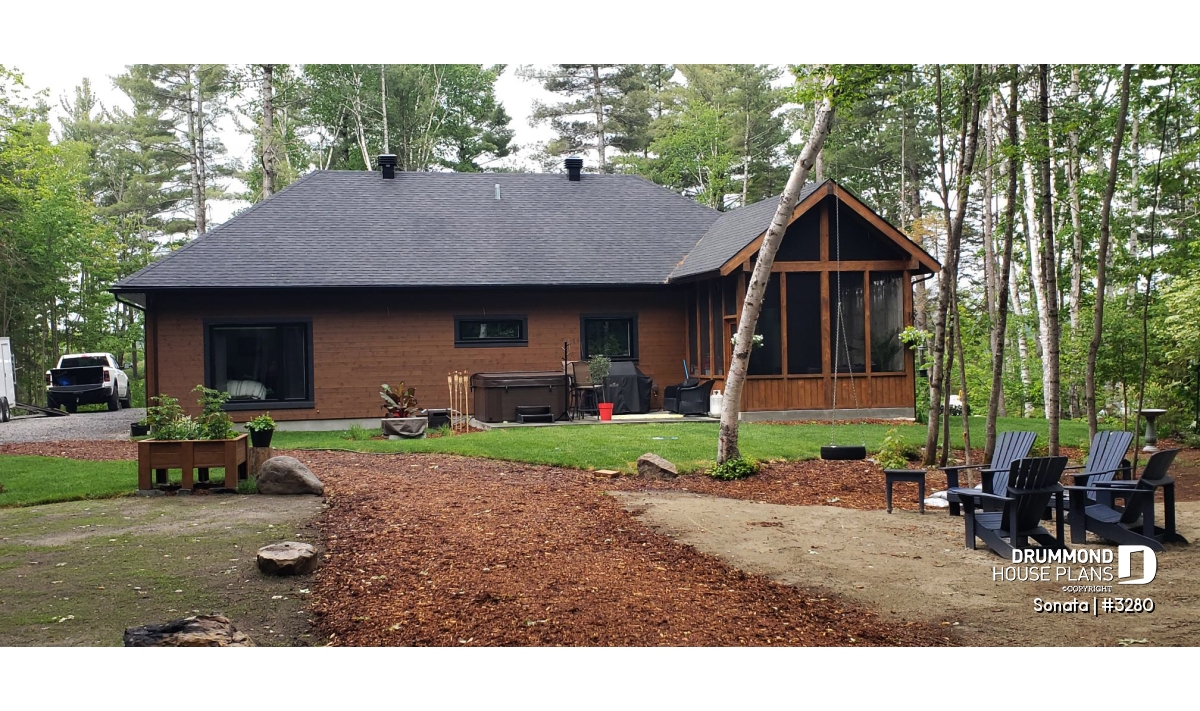

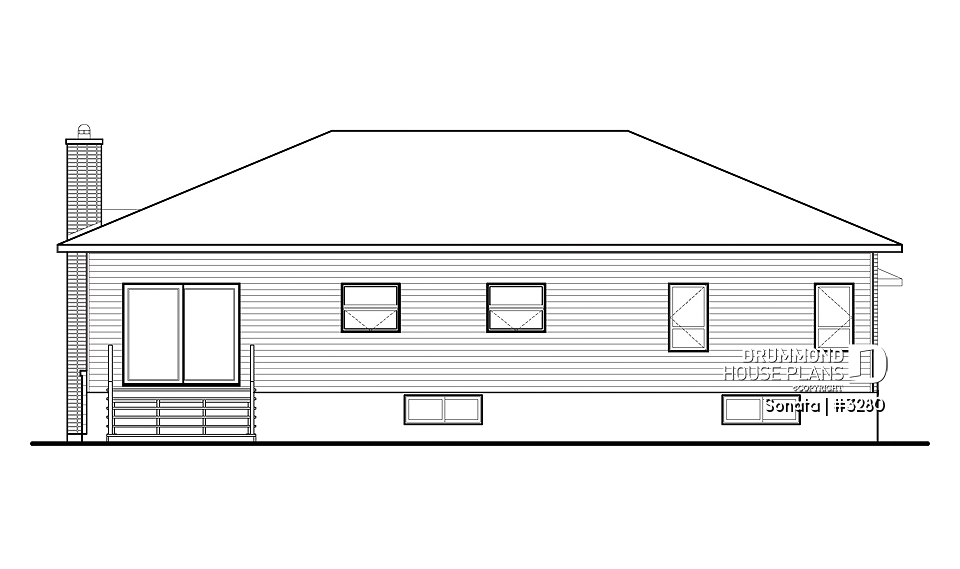

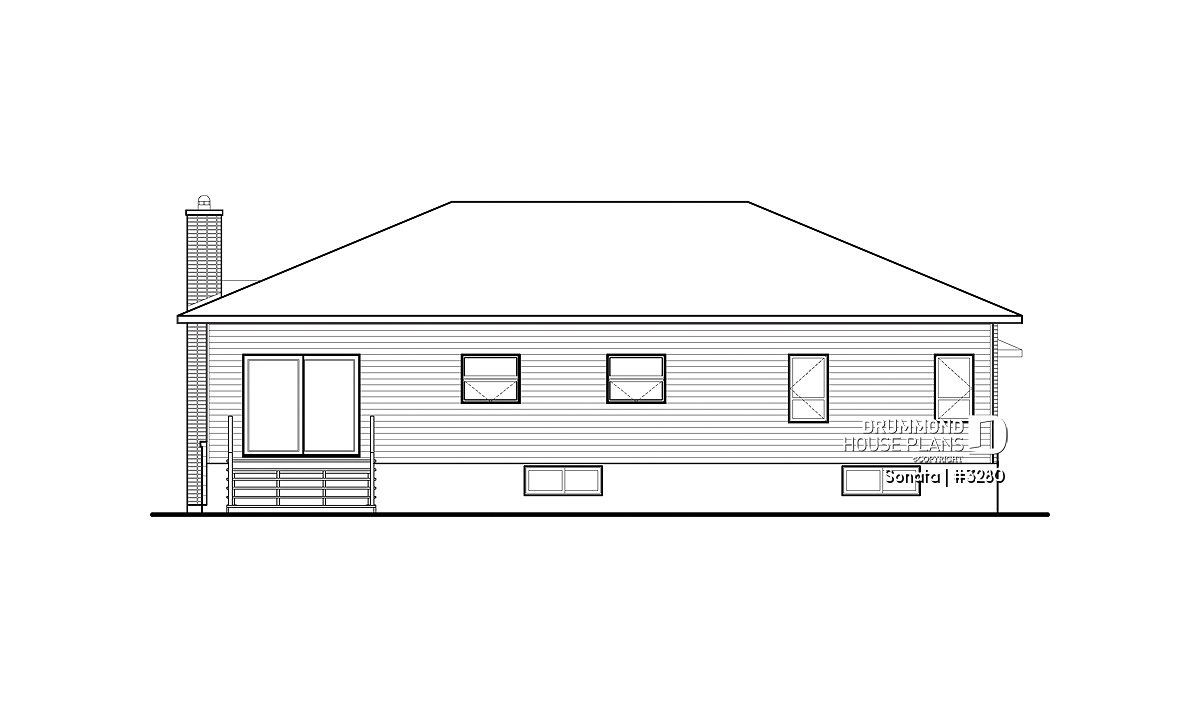

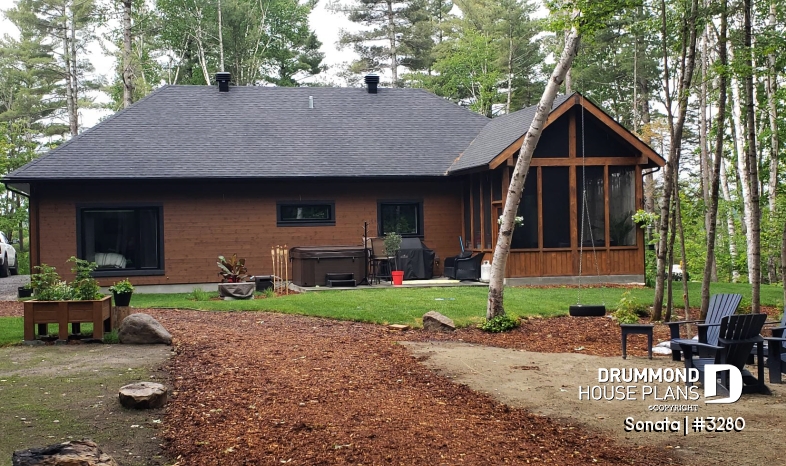

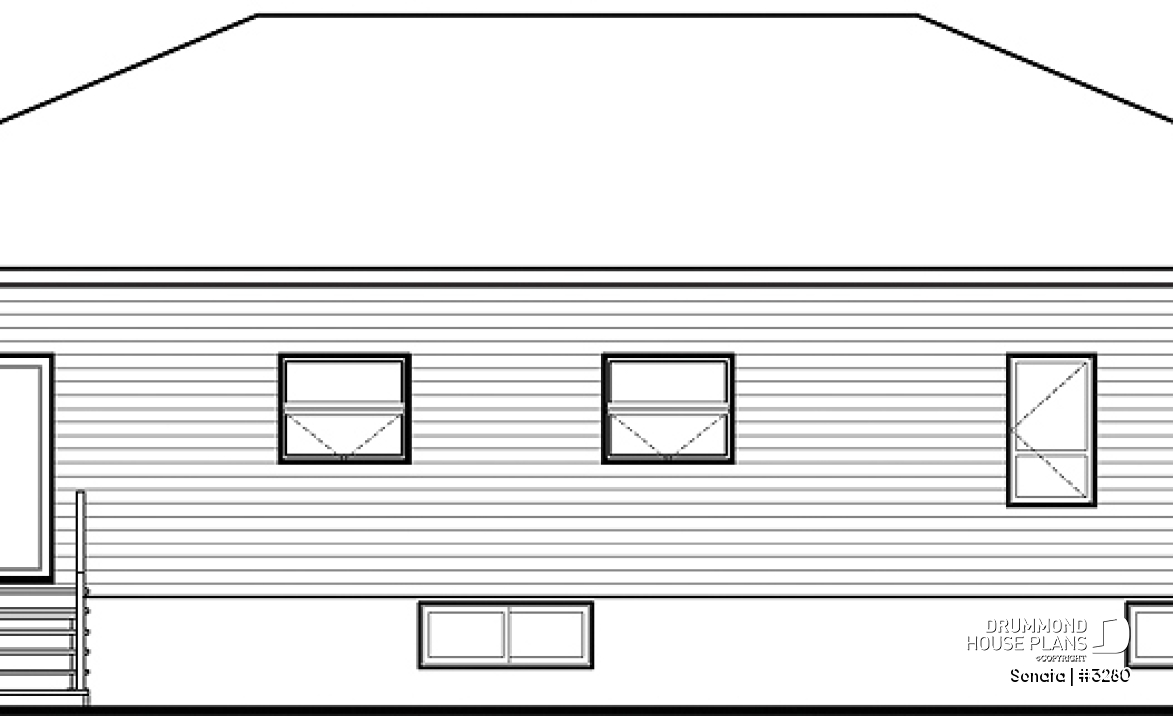

rear elevation

Color version 1 - Front

Vignette front - BASE MODEL - 3280
Vignette front - BASE MODEL - 3280
Vignette rear elevation - 3280
Vignette Color version 1 - Front - 3280

View by floor

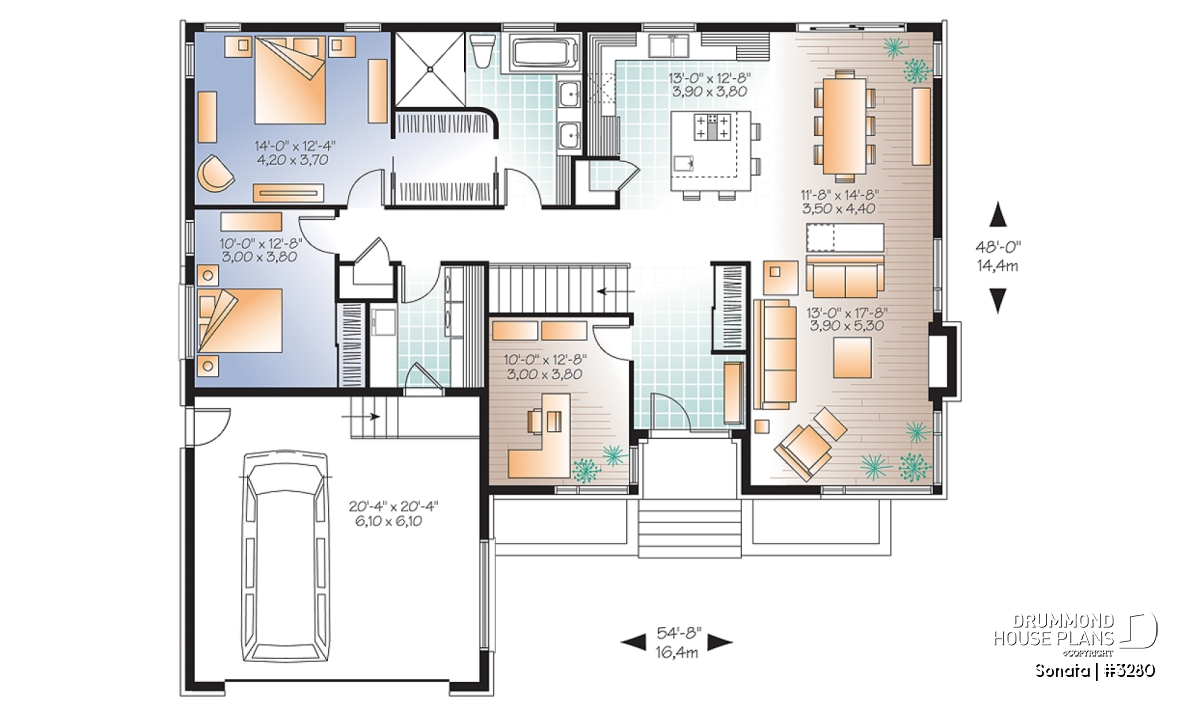

  • 1st level

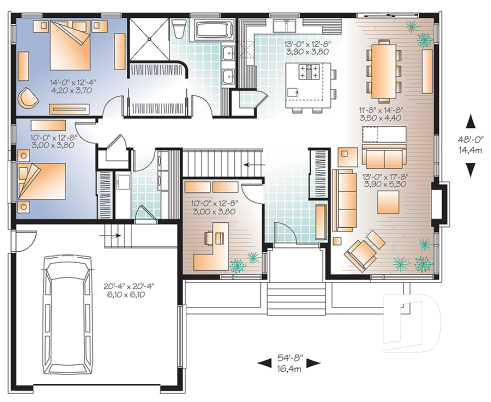

    1st level - Affordable Ranch bungalow with home office, open floor plan with large kitchen island & fireplace - Sonata
Vignette 1st level - 3280

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

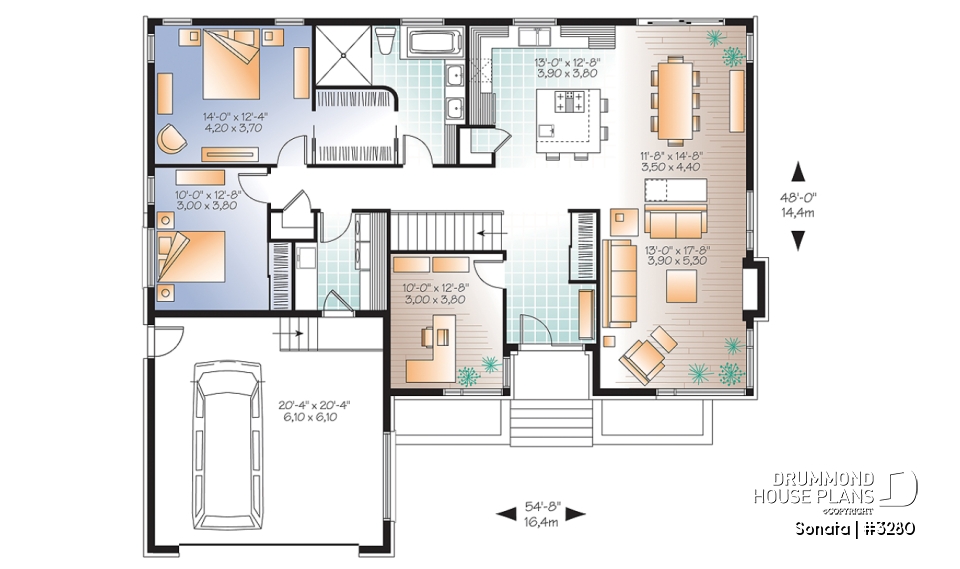

1st level
Rooms Sizes Ceiling
Foyer 8'0" x 11'8" ~ 9'0"
Closet 2'4" x 6'0" ~ 9'0"
Living room 13'0" x 17'8" ~ 9'0"

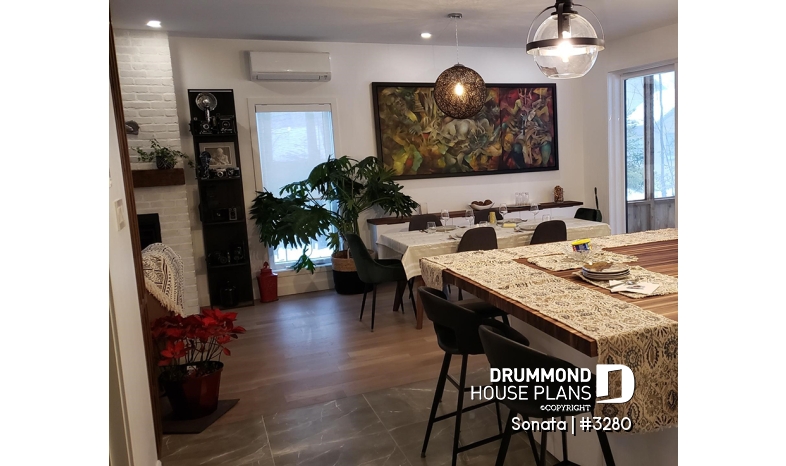

Dining room 11'8" x 14'8" ~ 9'0"
Kitchen/dinette 13'0" x 12'8" ~ 9'0"
Pantry 2'10" x 3'2" ~ 9'0"
Full bathroom 13'4" x 12'4" ~ 9'0"
Linen 1'0" x 3'6" ~ 0'0"
Linen 3'10" x 2'4" ~ 9'0"
Bedroom 14'0" x 12'4" ~ 9'0"
Closet 7'0" x 6'8" ~ 9'0"
Bedroom 10'0" x 12'8" ~ 9'0"
Closet 2'0" x 6'0" ~ 9'0"
Bedroom 10'0" x 12'8" ~ 9'0"
Laundry room 8'2" x 8'8" ~ 9'0"
Porch 6'8" x 4'0" ~ 0'0"
Deck 10'0" x 5'0" ~ 0'0"
Garage 20'4" x 20'4" ~ 10'4"

General specifications

Total living area 1676 sq.ft.
1st level 1676 sq.ft.
Width 54'8"
Depth 48'0"
Ridge height from top of foundation 20'10"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement
Other available foundations ($) Floating Slab, Crawl space, Monolithic Slab
Builder price code D

Rooms specifications

Bedroom(s) 2, 3
Full baths 1
Half baths -
Garage type Two-car garage (469 sq.ft.)
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 1676 sq.ft.
1st level 1676 sq.ft.
Width 54'8"
Depth 48'0"
Ridge height from top of foundation 20'10"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement i
Other available foundations ($) Floating Slab, Crawl space, Monolithic Slab
Builder price code D

Rooms specifications

Bedroom(s) 2, 3
Full baths 1
Half baths -
Garage type Two-car garage (469 sq.ft.)
Living bonus space - i
Bonus storage - i

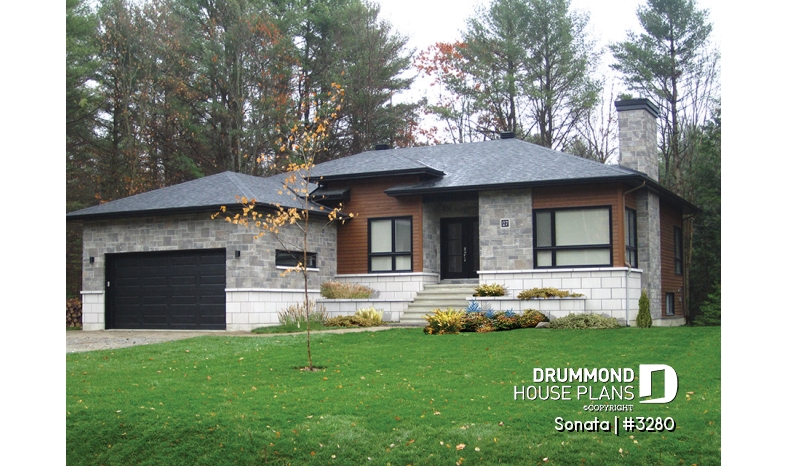

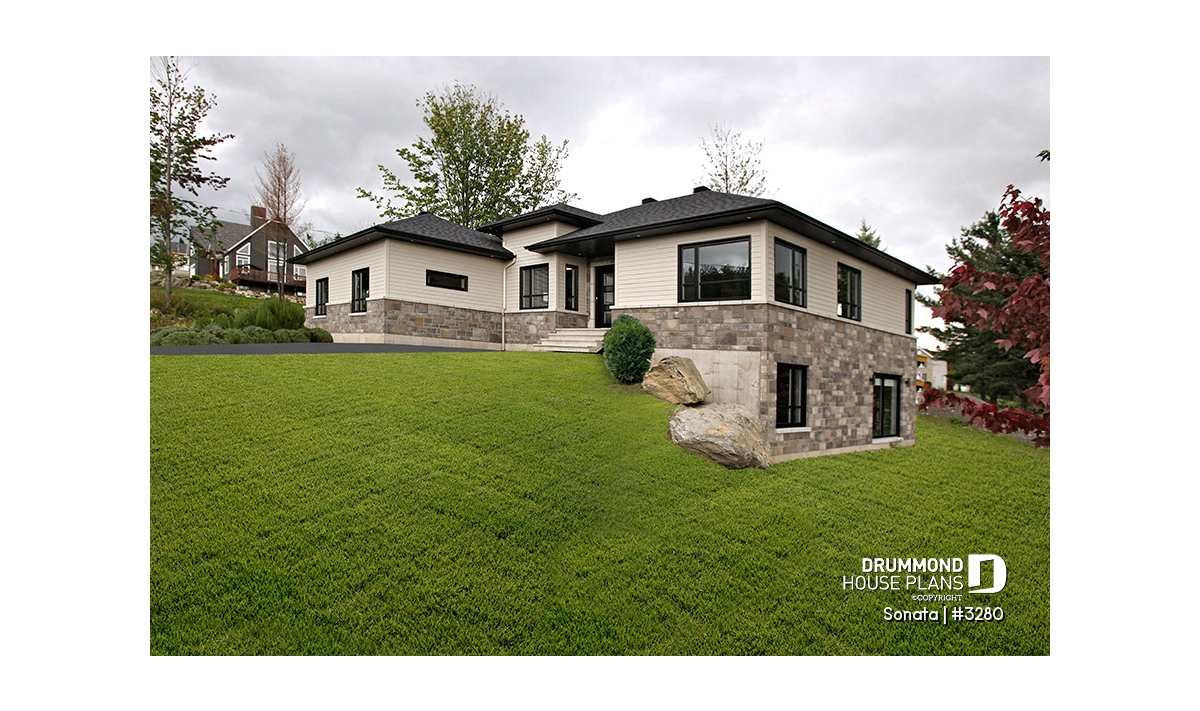

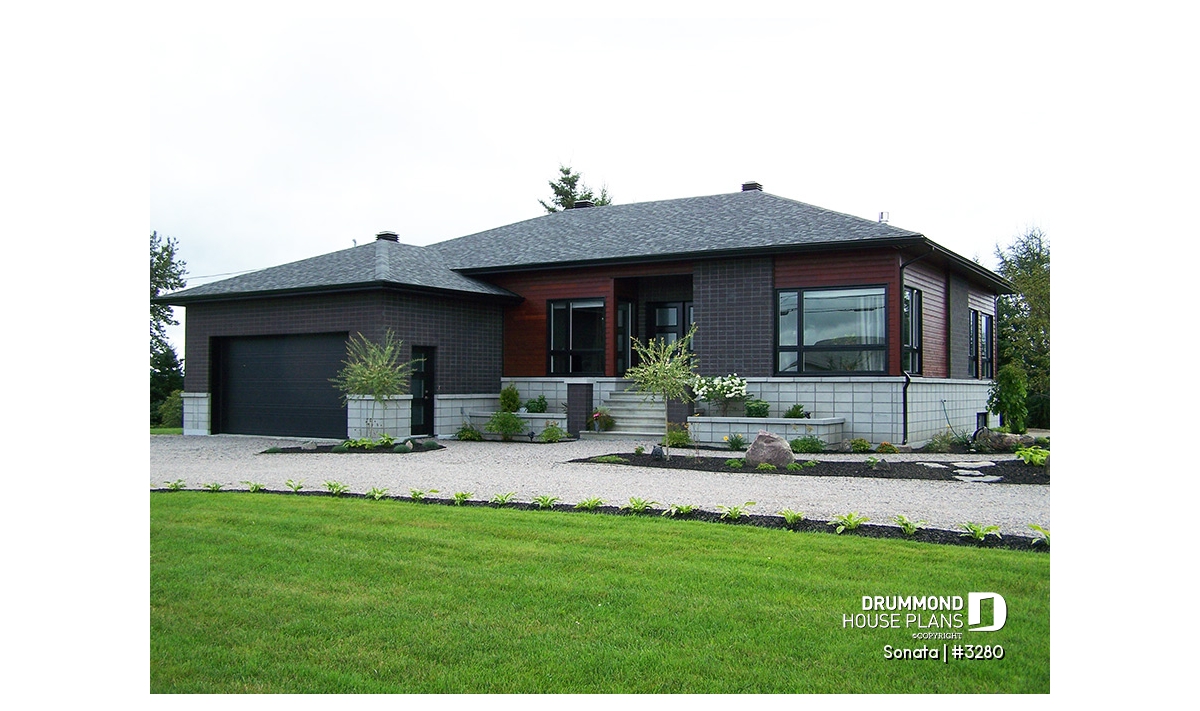

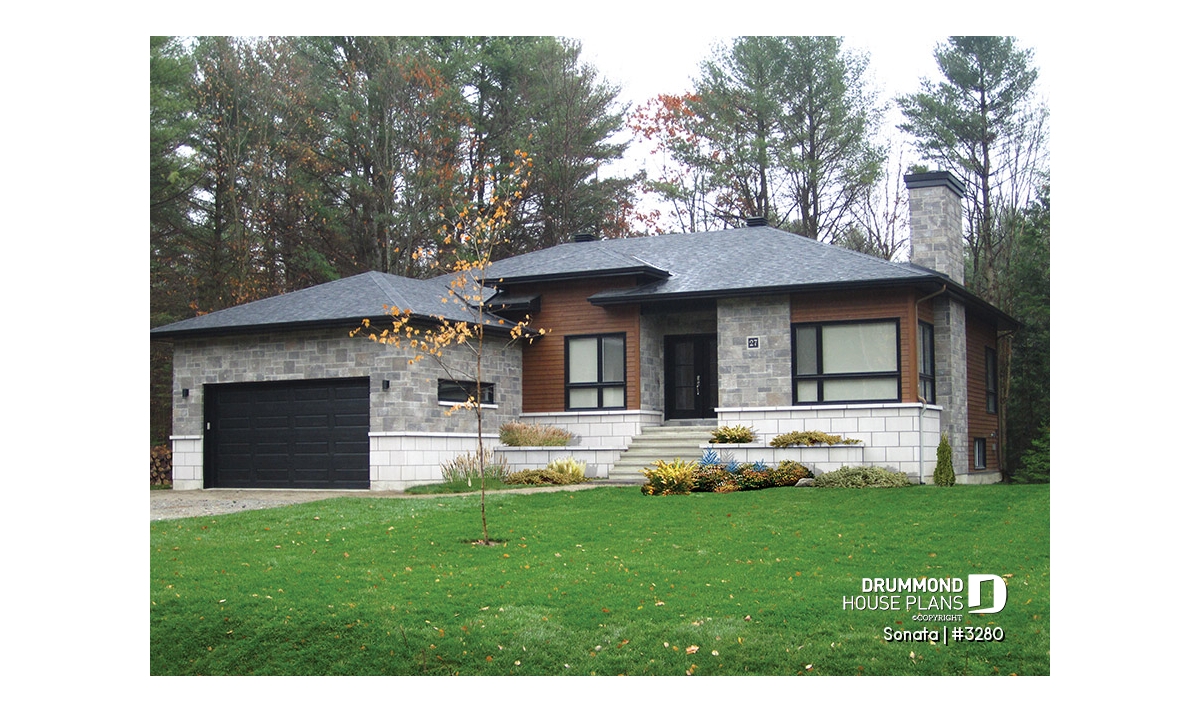

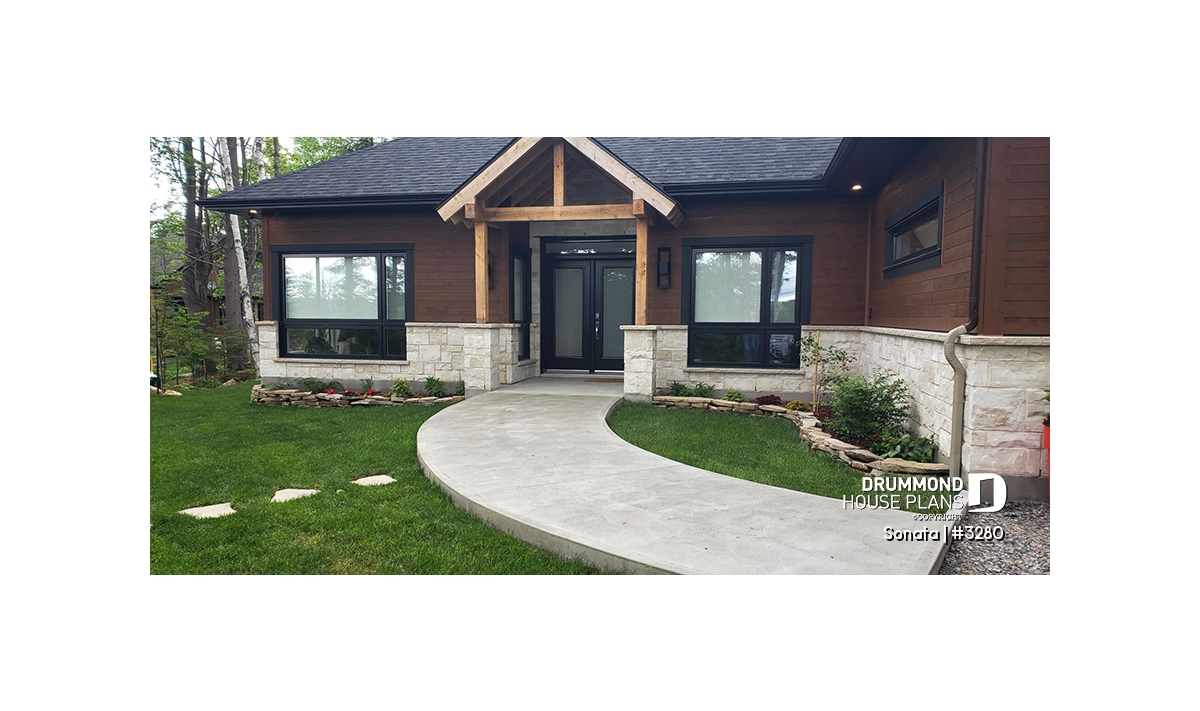

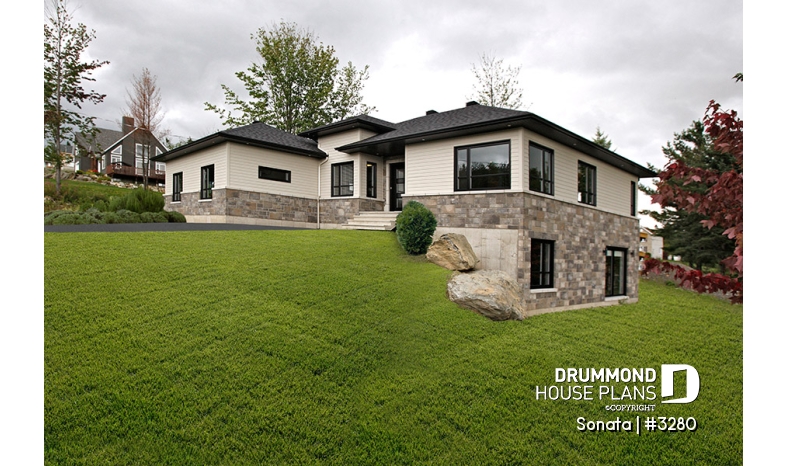

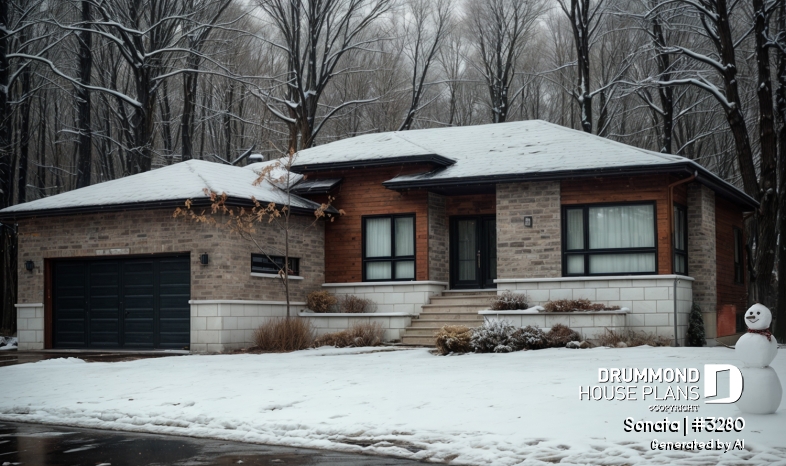

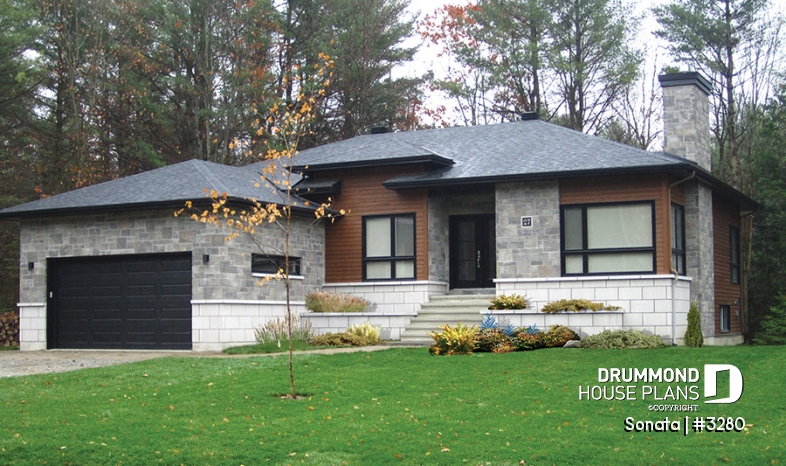

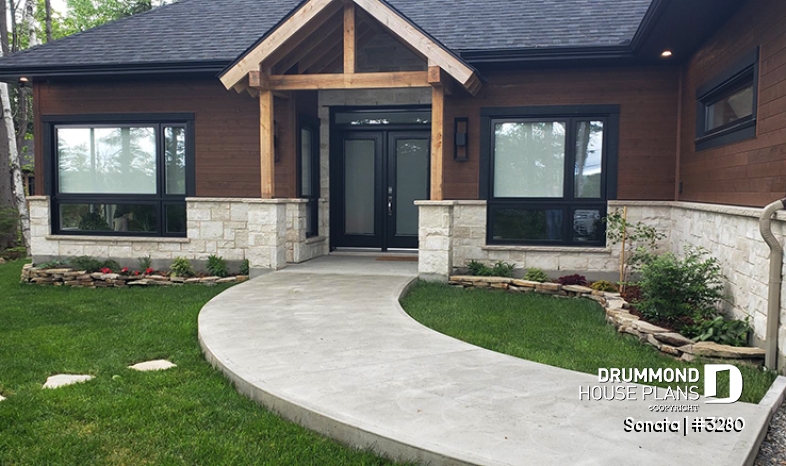

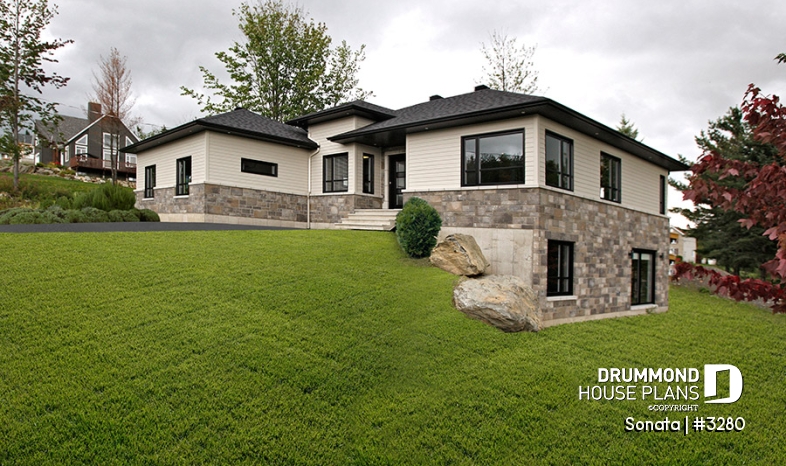

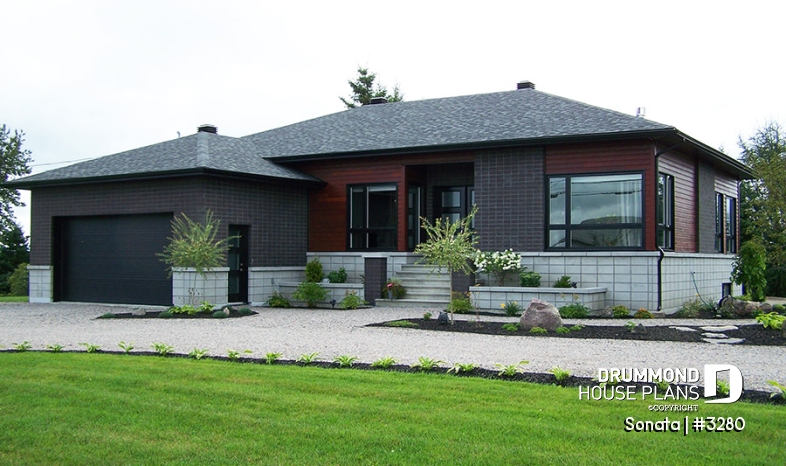

  • Photo front - Sonata

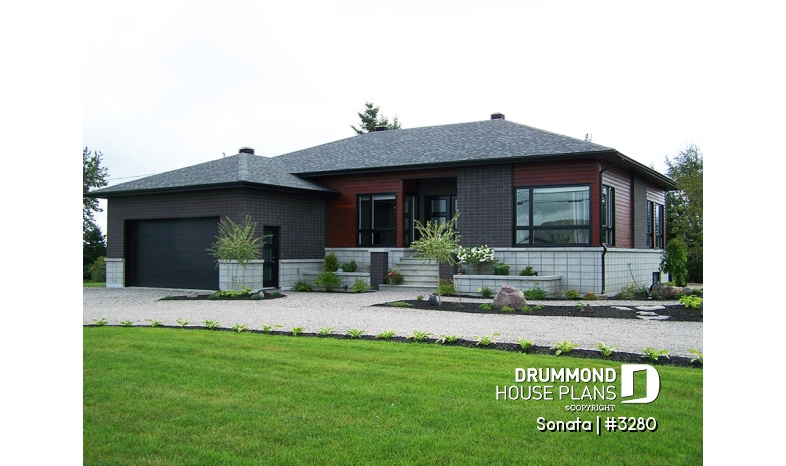

  • Photo front - Sonata

front
This color version might have decorative elements that are not available on base plan.

front
This color version might have decorative elements that are not available on base plan.

Photo thumbnail front - Plan 3280
Photo thumbnail front - Plan 3280

Buy this plan

From : 920$

Modify this plan

Get a quote

Description

1st level: Entry, office or bedroom #3, living room, dining room, kitchen with island, 2 bedrooms, bathroom and laundry.

Other useful information on this plan

Contemporary bungalow house plan, with two-car garage

Crisp, geometric design and 9’ ceilings are part of the appeal of Sonata, this beautiful, urban style single storey plan with a full basement.

This flexible plan is perfect for a growing family as the two bedrooms and home office can easily become a three bedroom home if the need arises. The large, open floor plan offers a double vanity in the well appointed bathroom with a separate bath and generous shower enclosure. It is accessible from the main foyer or through pocket doors on either side of the master bedroom’s walk-in closet.

A separate laundry area with ample counter space and a sink, accessible from the main foyer or the garage, a walk-in linen closet and a walk-in pantry are some of the attractions of this uniquely styled plan with its open living area complete with a fireplace in the living room and a dining room large enough for a table that seats 8.

The clean lines and choice of materials give striking curb appeal to this home, no matter which alternative you choose to finish it with.

Distinctive elements

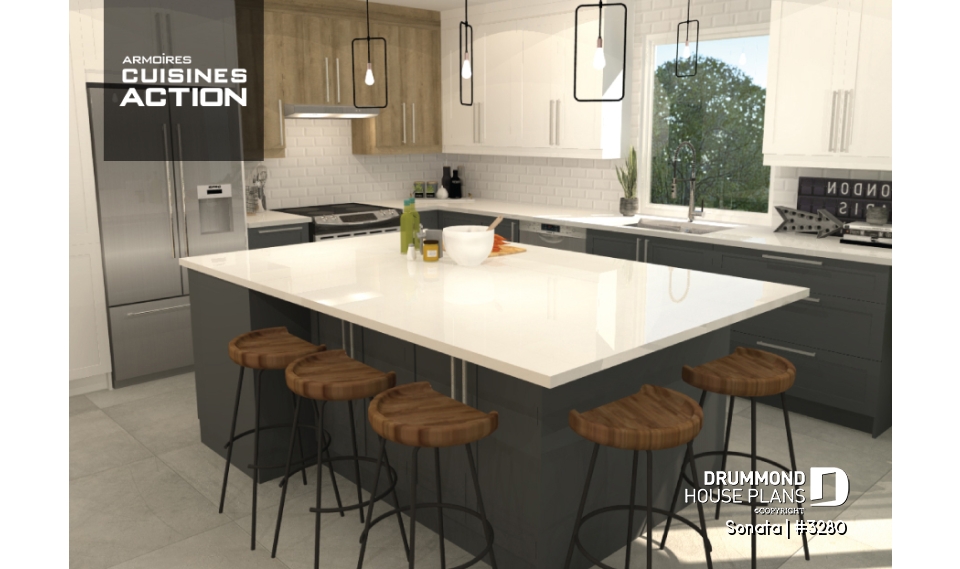

Affordable Ranch bungalow with home office, open floor plan with large kitchen island & fireplace. 9' ceilings throughout the main floor. Entirely open activities area with abundant windows in the living room. Large kitchen with lunch island and walk-in pantry. Master bedroom with walk-in closet and private access to bathroom with soaker tub and separate 5'x5' shower. Bedroom #3 or den/home office. Laundry room with counter, sink and garage access.

Plan architectural style(s)

Contemporary, Ranch, Modern / Design

Other useful information on this plan

Full description

Contemporary bungalow house plan, with two-car garage

Crisp, geometric design and 9’ ceilings are part of the appeal of Sonata, this beautiful, urban style single storey plan with a full basement.

This flexible plan is perfect for a growing family as the two bedrooms and home office can easily become a three bedroom home if the need arises. The large, open floor plan offers a double vanity in the well appointed bathroom with a separate bath and generous shower enclosure. It is accessible from the main foyer or through pocket doors on either side of the master bedroom’s walk-in closet.

A separate laundry area with ample counter space and a sink, accessible from the main foyer or the garage, a walk-in linen closet and a walk-in pantry are some of the attractions of this uniquely styled plan with its open living area complete with a fireplace in the living room and a dining room large enough for a table that seats 8.

The clean lines and choice of materials give striking curb appeal to this home, no matter which alternative you choose to finish it with.

Distinctive elements

Affordable Ranch bungalow with home office, open floor plan with large kitchen island & fireplace. 9' ceilings throughout the main floor. Entirely open activities area with abundant windows in the living room. Large kitchen with lunch island and walk-in pantry. Master bedroom with walk-in closet and private access to bathroom with soaker tub and separate 5'x5' shower. Bedroom #3 or den/home office. Laundry room with counter, sink and garage access.

Plan architectural style(s)

Questions and comments on this plan

March 16 2015

mathieu

salut w3280 je serai intereser par se plan la comment sa va ecrier pu les coup de construction aproximatif comme avant cetait merveilleur comme toute les autre site font merci davance pour la reponse

March 16 2015

Customer service

Good day and thank you for taking the time to write

Although we do no actual construction, the ballpark estimate to build this home in Quebec (Canada) starts at around $291,000.

This estimate is based on professional grade materials and includes ceramic in the foyer, the kitchen and the bathrooms with hardwood flooring throughout the common areas and carpet in the bedrooms.

The kitchen cabinetry is wood grain melamine. This construction estimate to build in Quebec is for a turn key project.

The cost of the land and its excavation, taxes and hook-ups to municipal or other services is not included in the calculation and it is highly recommended to consult local contractors and materials suppliers to get a better idea of the actual cost to build in your area.

I hope that this provides some helpful information and I invite you to contact me if you have any other questions or comments
Regards
Deb

August 25 2014

Patrick

Could this plan be customised to fit 4 bedrooms, 3 bathrooms, 2 family rooms and utility room and a study

August 25 2014

Customer service

Good day and thank you for taking the time to write

We would be happy to provide a free estimate for the changes you need made to this plan within two business days after receipt of this on line form.

Please let me know if I can further assist you
Regards
Deb

August 22 2014

Karri

Would it be possible to make this plan bi level, create an ensuite bathroom (walkin closet not necessary) and an inlaw suite in the basement (not the entire basement with exterior entry)?

August 22 2014

Customer service

Good day and thank you for your interest in this plan

This plan can be customized to fit your exact needs and we would be happy to return a free estimate for the changes that you need within two business days after receipt of this on line request.

Please let me know if you have any other questions or comments.
Regards
Deb

December 17 2012

mike Ju

CAN YOU MAKE A V-2 OF THIS PLAN FOR PEOPLE WITHOUT KIDS....
1. Open up the spaces (open concept with cathedral ceilings)
2. Can this plan have only one bedroom ?
3. Can you switch the stairs closer towards the main entrance?

December 17 2012

Customer service

Good day and thank you for taking the time to write.

We would be happy to provide you with a free estimate for the changes that you require, all you need to do is fill in our on line modification form below.

www.drummondhouseplans.com/plan-modification-services/online-estimate-form/plan/1003071.html

We will return a free estimate within two business days after receipt of your request detailing how much the changes to the plan would cost as well as an estimated lead time for your customized plan.

Please let me know if I can further assist you.

Regards

Deborah

December 17 2012

Jo Ang

Can you have a option to have this exact plan with only one bedroom on this floor (Master bedroom), with less bedrooms enlarge the laundry room, bathroom & Master bedroom / walkin closet. Garage with stairs to the basement & first level. Plus at the main entrance have the stairs at the entrance like in plan W3128-V2 to open up more space in the house (open concept)
