House plan Sonata (3280)
Affordable Ranch bungalow, home office (or bed # 3), 2-car garage, pantry, fireplace, laundry room

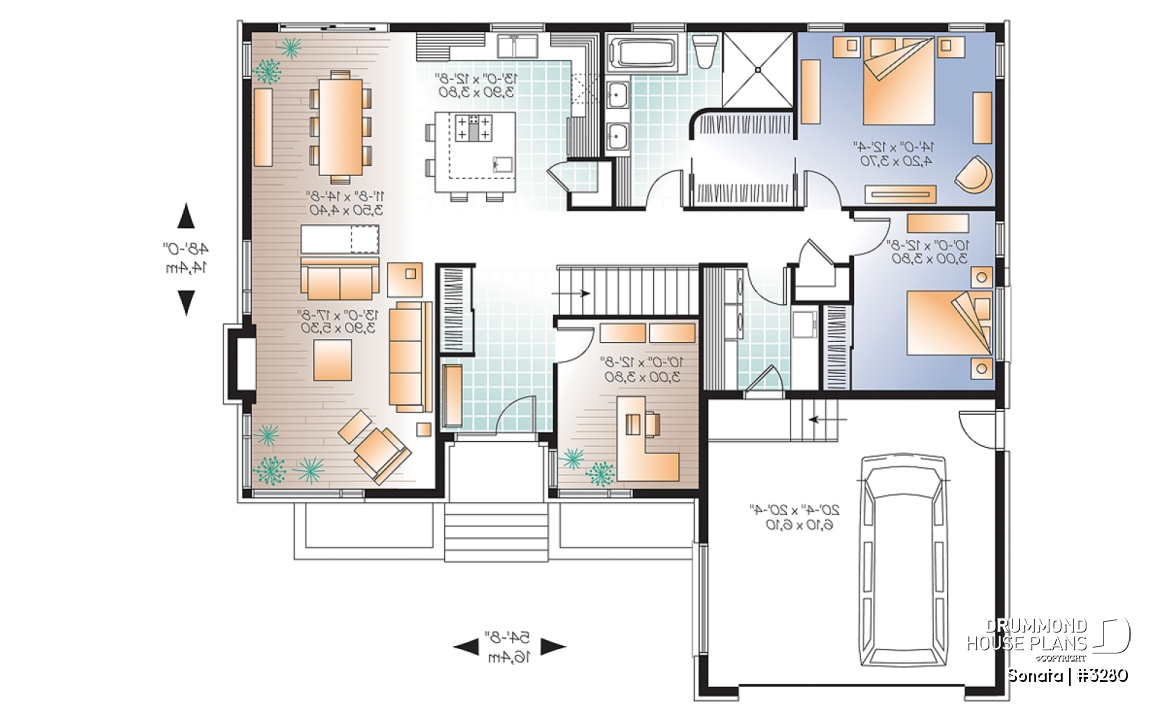

View the size of the rooms and height of the ceilings

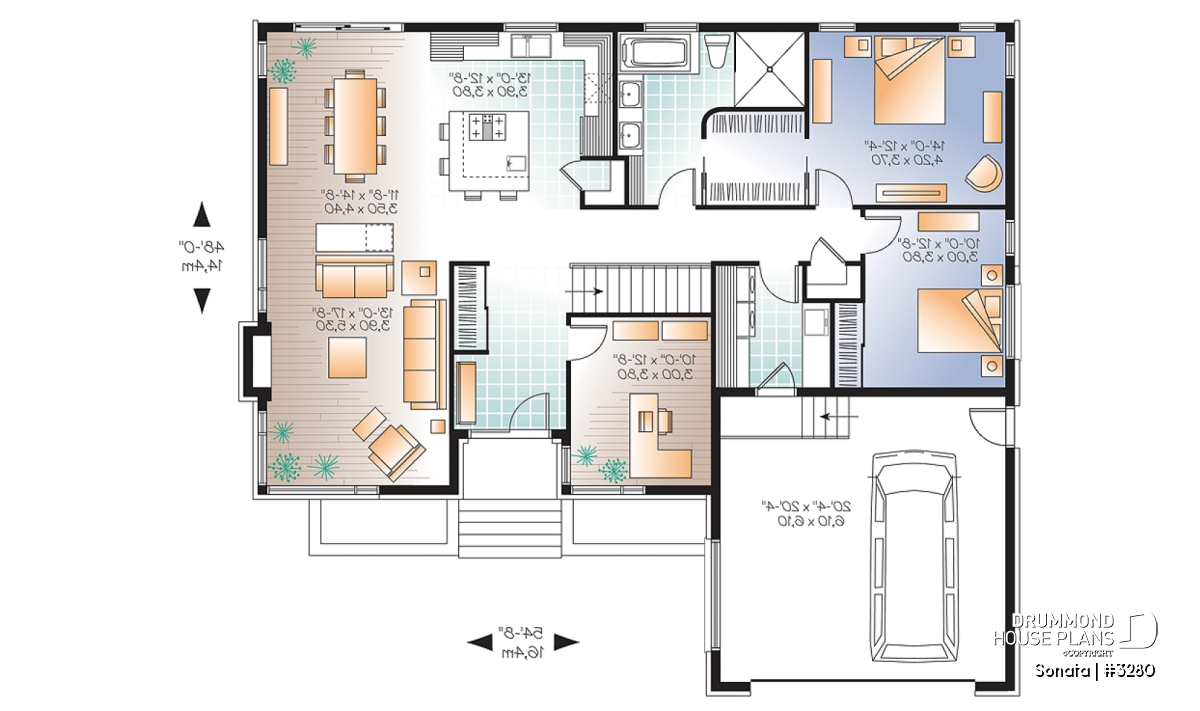

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 8'0" x 11'8" | ~ 9'0" |
| Closet | 2'4" x 6'0" | ~ 9'0" |
| Living room | 13'0" x 17'8" | ~ 9'0" |
| Dining room | 11'8" x 14'8" | ~ 9'0" |
| Kitchen/dinette | 13'0" x 12'8" | ~ 9'0" |
| Pantry | 2'10" x 3'2" | ~ 9'0" |
| Full bathroom | 13'4" x 12'4" | ~ 9'0" |
| Linen | 1'0" x 3'6" | N/A |
| Linen | 3'10" x 2'4" | ~ 9'0" |
| Bedroom | 14'0" x 12'4" | ~ 9'0" |
| Closet | 7'0" x 6'8" | ~ 9'0" |
| Bedroom | 10'0" x 12'8" | ~ 9'0" |
| Closet | 2'0" x 6'0" | ~ 9'0" |
| Bedroom | 10'0" x 12'8" | ~ 9'0" |
| Laundry room | 8'2" x 8'8" | ~ 9'0" |
| Porch | 6'8" x 4'0" | N/A |
| Deck | 10'0" x 5'0" | N/A |
| Garage | 20'4" x 20'4" | ~ 10'4" |
General specifications
| Total living area | 1676 sq.ft. |
| 1st level | 1676 sq.ft. |
| Width | 54'8" |
| Depth | 48'0" |
| Ridge height from top of foundation | 20'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | D |
Rooms specifications

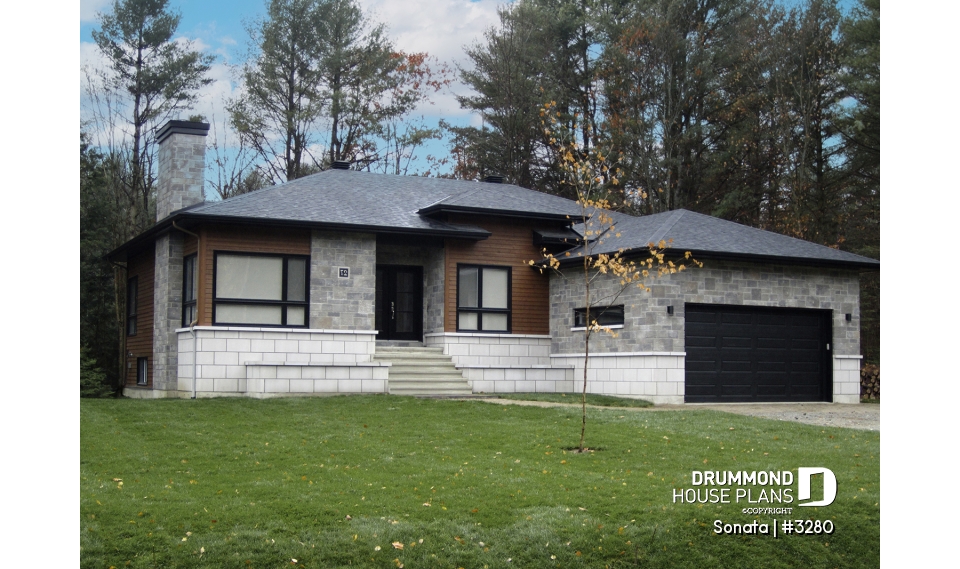

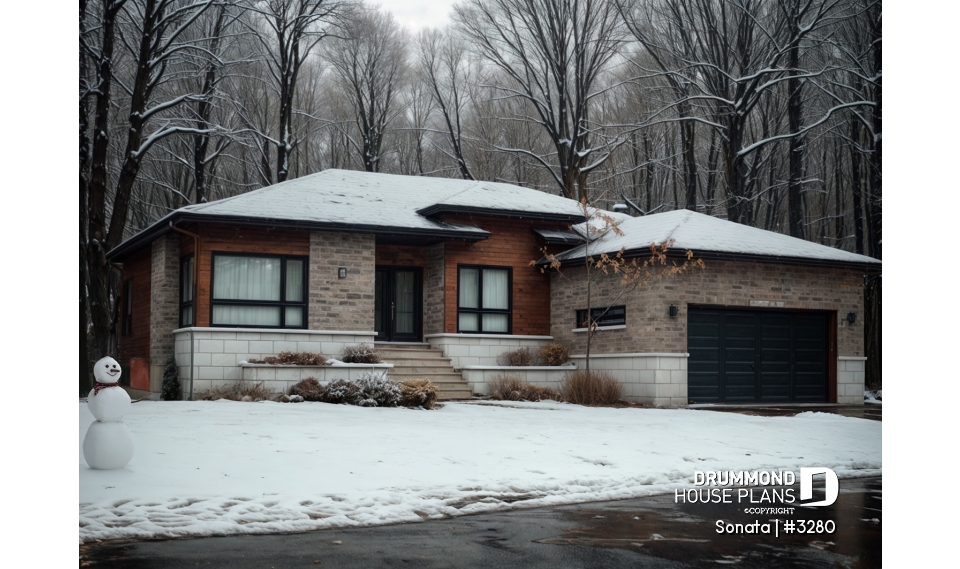

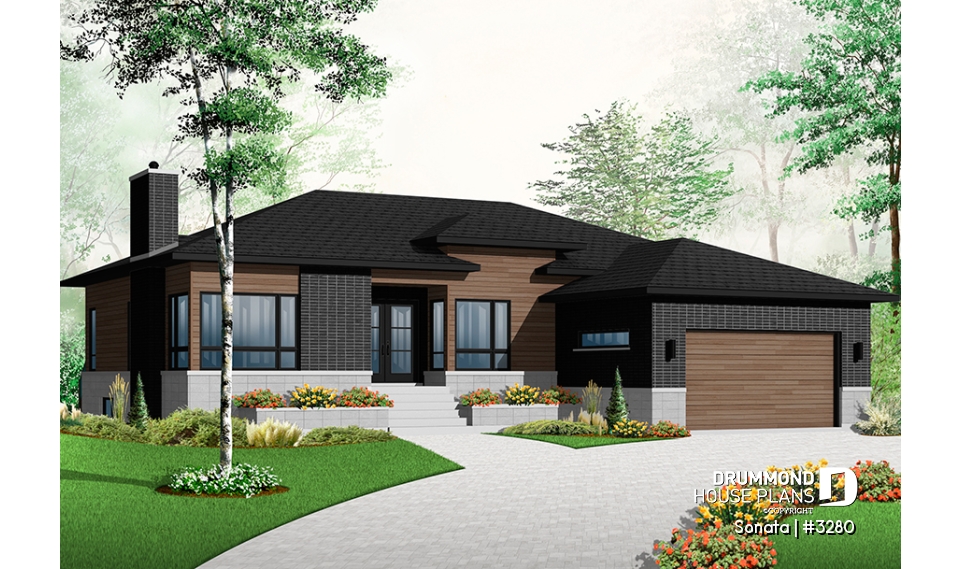

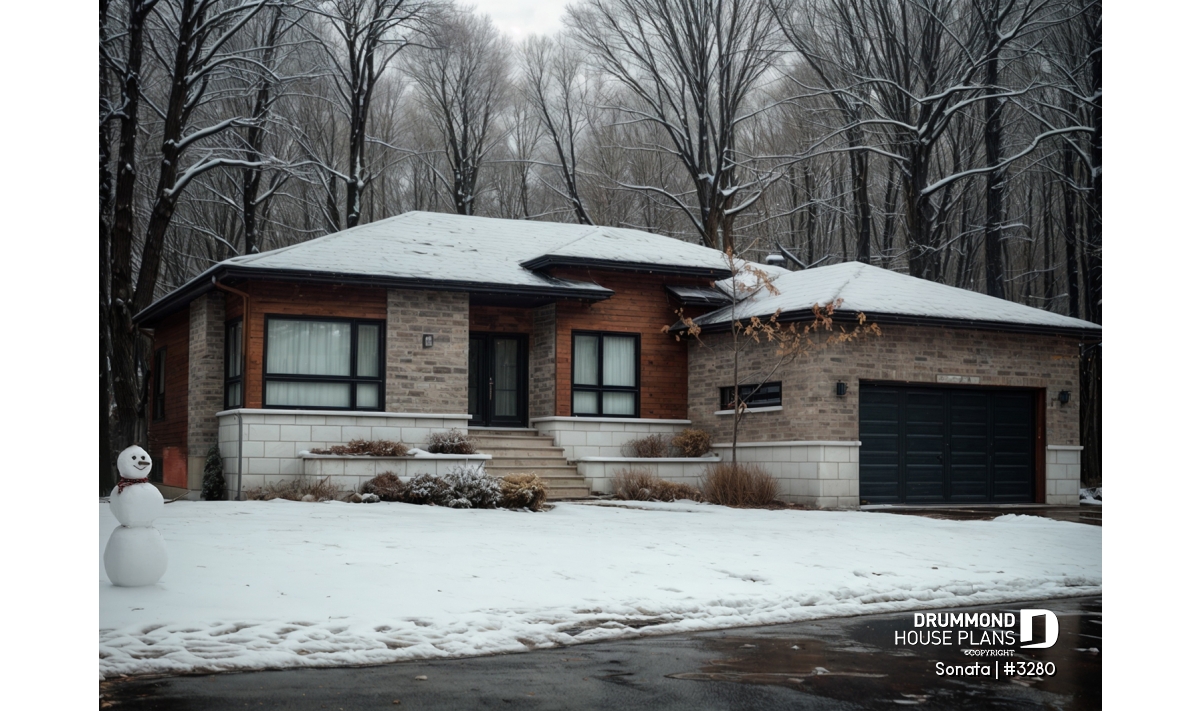

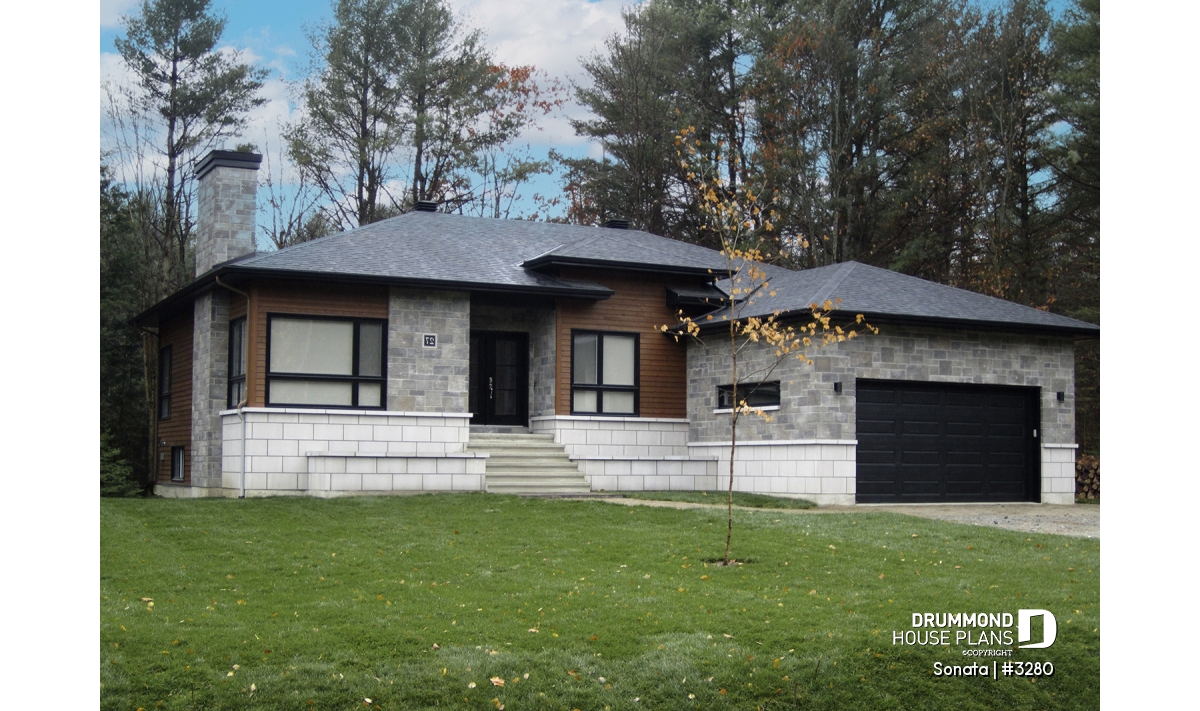

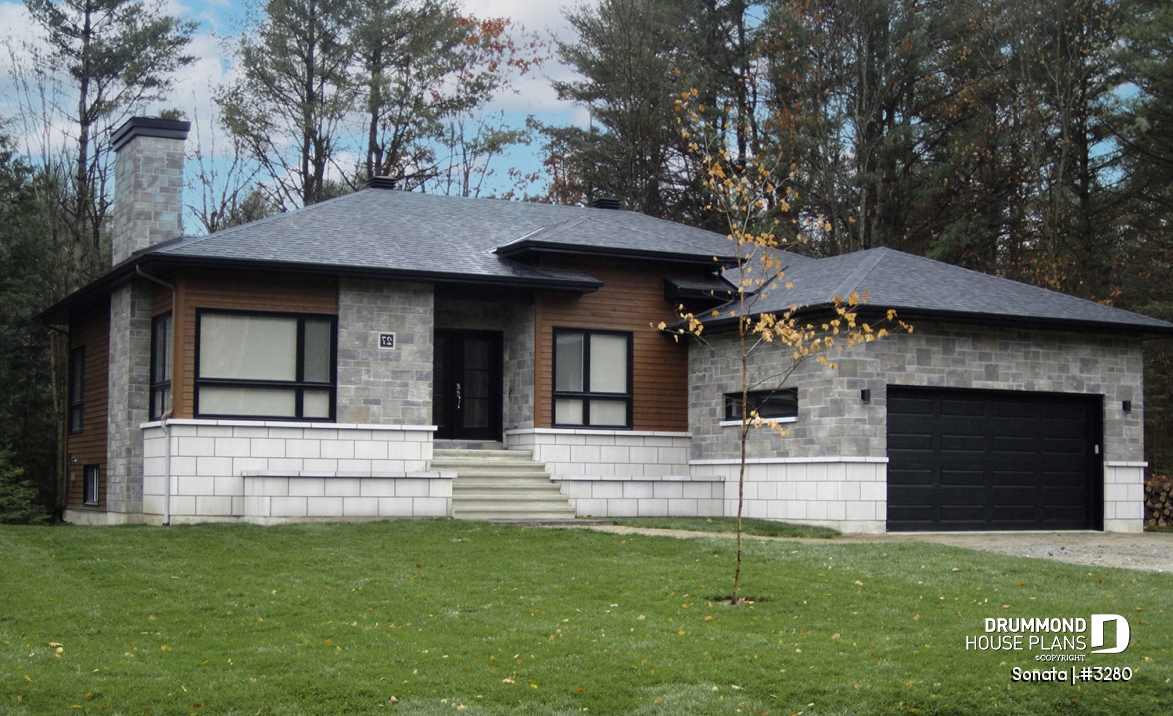

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

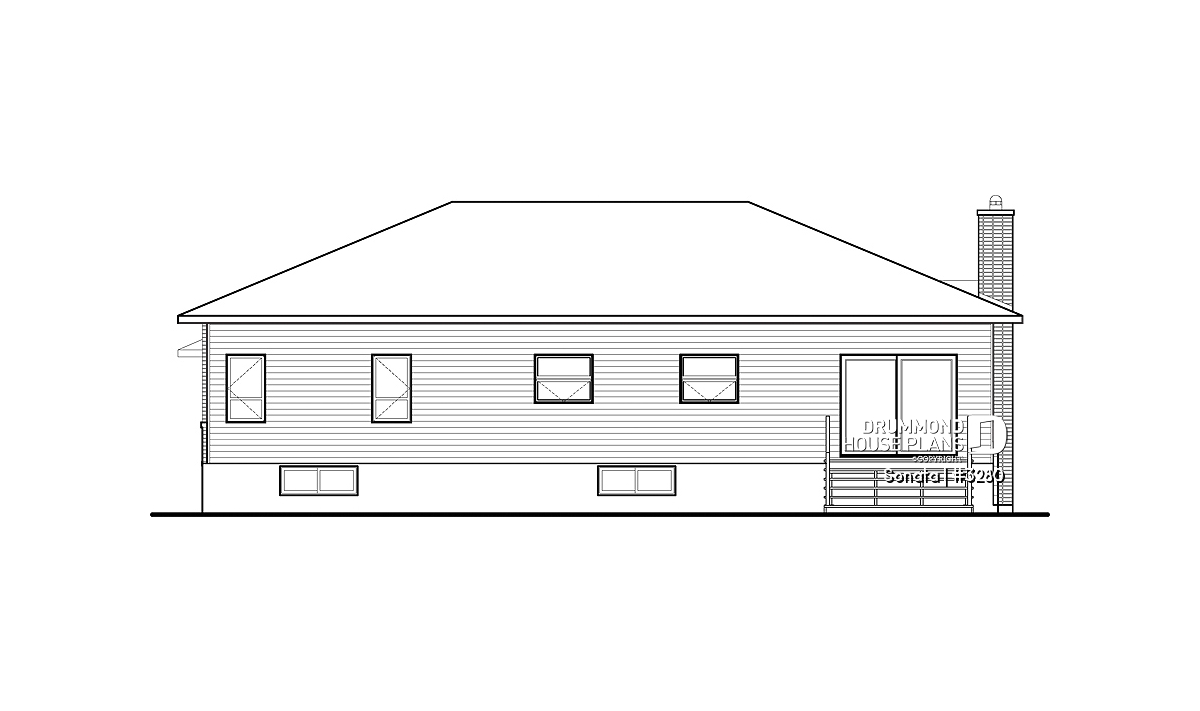

back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Note: The photos of this house differ from the original plan, from which they come.
Other useful information on this plan
Contemporary bungalow house plan, with two-car garage, home office and large laundry room
Crisp, geometric design and 9’ ceilings are part of the appeal of Sonata, this beautiful, urban style single storey plan with a full basement.
This flexible plan is perfect for a growing family as the two bedrooms and home office can easily become a three bedroom home if the need arises. The large, open floor plan offers a double vanity in the well appointed bathroom with a separate bath and generous shower enclosure. It is accessible from the main foyer or through pocket doors on either side of the master bedroom’s walk-in closet.
A separate laundry area with ample counter space and a sink, accessible from the main foyer or the garage, a walk-in linen closet and a walk-in pantry are some of the attractions of this uniquely styled plan with its open living area complete with a fireplace in the living room and a dining room large enough for a table that seats 8.
The clean lines and choice of materials give striking curb appeal to this home, no matter which alternative you choose to finish it with.
Distinctive elements
Affordable Ranch bungalow with home office, open floor plan with large kitchen island & fireplace. 9' ceilings throughout the main floor. Entirely open activities area with abundant windows in the living room. Large kitchen with lunch island and walk-in pantry. Master bedroom with walk-in closet and private access to bathroom with soaker tub and separate 5'x5' shower. Bedroom #3 or den/home office. Laundry room with counter, sink and garage access.
Plan feature(s)
Open floor layout, Fireplace, Panoramic view, Gound floor laundry room, Pantry, Walk-in master bed., Island, Ceiling over 8', Double sinks, Separate bath and shower, Office / Study / Den
Plan architectural style(s)
. Contemporary, . Ranch, . Modern / Design, . Mid-century
Similar plans
Previously Viewed Plans
Questions and comments
March 16
mathieu
salut w3280 je serai intereser par se plan la comment sa va ecrier pu les coup de construction aproximatif comme avant cetait merveilleur comme toute les autre site font merci davance pour la reponse
March 16
Customer service
Good day and thank you for taking the time to write
Although we do no actual construction, the ballpark estimate to build this home in Quebec (Canada) starts at around $291,000.
This estimate is based on professional grade materials and includes ceramic in the foyer, the kitchen and the bathrooms with hardwood flooring throughout the common areas and carpet in the bedrooms.
The kitchen cabinetry is wood grain melamine. This construction estimate to build in Quebec is for a turn key project.
The cost of the land and its excavation, taxes and hook-ups to municipal or other services is not included in the calculation and it is highly recommended to consult local contractors and materials suppliers to get a better idea of the actual cost to build in your area.
I hope that this provides some helpful information and I invite you to contact me if you have any other questions or comments
Regards
Deb
August 25
Patrick
Could this plan be customised to fit 4 bedrooms, 3 bathrooms, 2 family rooms and utility room and a study
August 25
Customer service
Good day and thank you for taking the time to write
We would be happy to provide a free estimate for the changes you need made to this plan within two business days after receipt of this on line form.
Please let me know if I can further assist you
Regards
Deb
August 22
Karri
Would it be possible to make this plan bi level, create an ensuite bathroom (walkin closet not necessary) and an inlaw suite in the basement (not the entire basement with exterior entry)?
August 22
Customer service
Good day and thank you for your interest in this plan
This plan can be customized to fit your exact needs and we would be happy to return a free estimate for the changes that you need within two business days after receipt of this on line request.
Please let me know if you have any other questions or comments.
Regards
Deb
December 17
mike Ju
CAN YOU MAKE A V-2 OF THIS PLAN FOR PEOPLE WITHOUT KIDS....
1. Open up the spaces (open concept with cathedral ceilings)
2. Can this plan have only one bedroom ?
3. Can you switch the stairs closer towards the main entrance?
December 17
Customer service
Good day and thank you for taking the time to write.
We would be happy to provide you with a free estimate for the changes that you require, all you need to do is fill in our on line modification form below.
www.drummondhouseplans.com/plan-modification-services/online-estimate-form/plan/1003071.html
We will return a free estimate within two business days after receipt of your request detailing how much the changes to the plan would cost as well as an estimated lead time for your customized plan.
Please let me know if I can further assist you.
Regards
Deborah
December 17
Jo Ang
Can you have a option to have this exact plan with only one bedroom on this floor (Master bedroom), with less bedrooms enlarge the laundry room, bathroom & Master bedroom / walkin closet. Garage with stairs to the basement & first level. Plus at the main entrance have the stairs at the entrance like in plan W3128-V2 to open up more space in the house (open concept)
