Eleganza (2087)
Economical modern semi-detached house plan, 1 to 3 bedrooms, amazing open layont floor plan
View the size of the rooms and height of the ceilings

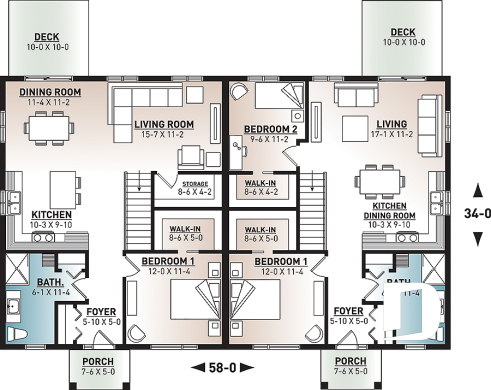

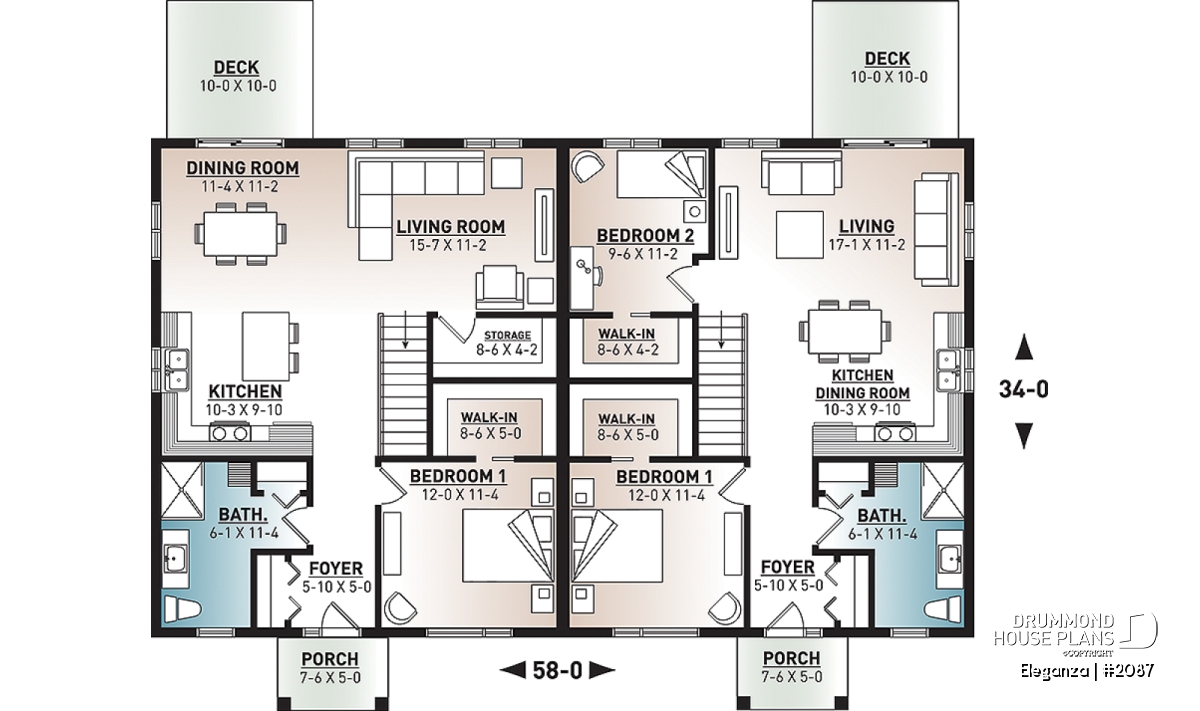

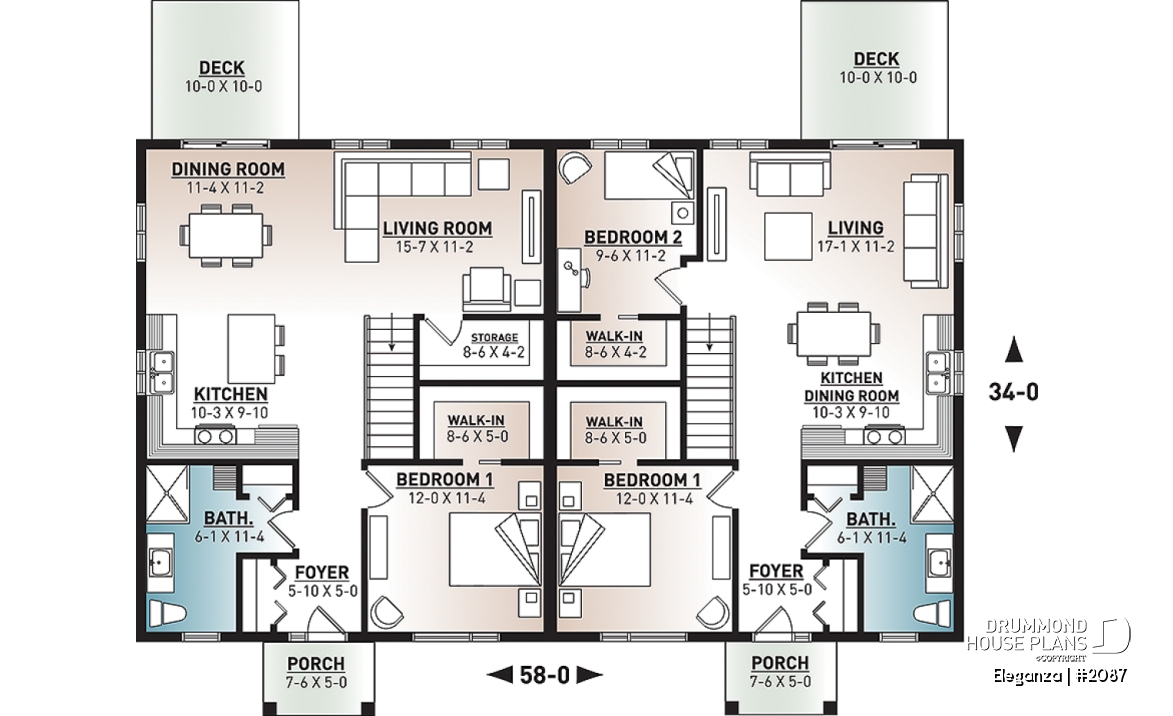

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'0" x 11'4" | ~ 8'0" |
| Walk-in closet | 8'6" x 5'0" | ~ 8'0" |
| Bedroom | 12'0" x 11'4" | ~ 8'0" |
| Walk-in closet | 8'6" x 5'0" | ~ 8'0" |
| Bedroom | 9'6" x 11'2" | ~ 8'0" |
| Walk-in closet | 8'6" x 4'2" | ~ 8'0" |
| Kitchen/dining room | 10'3" x 9'10" | ~ 8'0" |
| Kitchen | 10'3" x 9'10" | ~ 8'0" |
| Bathroom | 6'1" x 11'4" | ~ 8'0" |
| Bathroom | 6'1" x 11'4" | ~ 8'0" |
| Foyer | 5'10" x 5'0" | ~ 8'0" |
| Foyer | 5'10" x 5'0" | ~ 8'0" |
| Terrace | 10'0" x 10'0" | N/A |
| Terrace | 10'0" x 10'0" | N/A |
| Dining room | 11'4" x 11'2" | ~ 8'0" |
| Storage | 8'6" x 4'2" | ~ 8'0" |
| Living room | 17'1" x 11'2" | ~ 8'0" |
| Living room | 15'7" x 11'2" | ~ 8'0" |
| Porch | 7'6" x 5'0" | ~ 8'2" |
| Porch | 7'6" x 5'0" | ~ 8'2" |

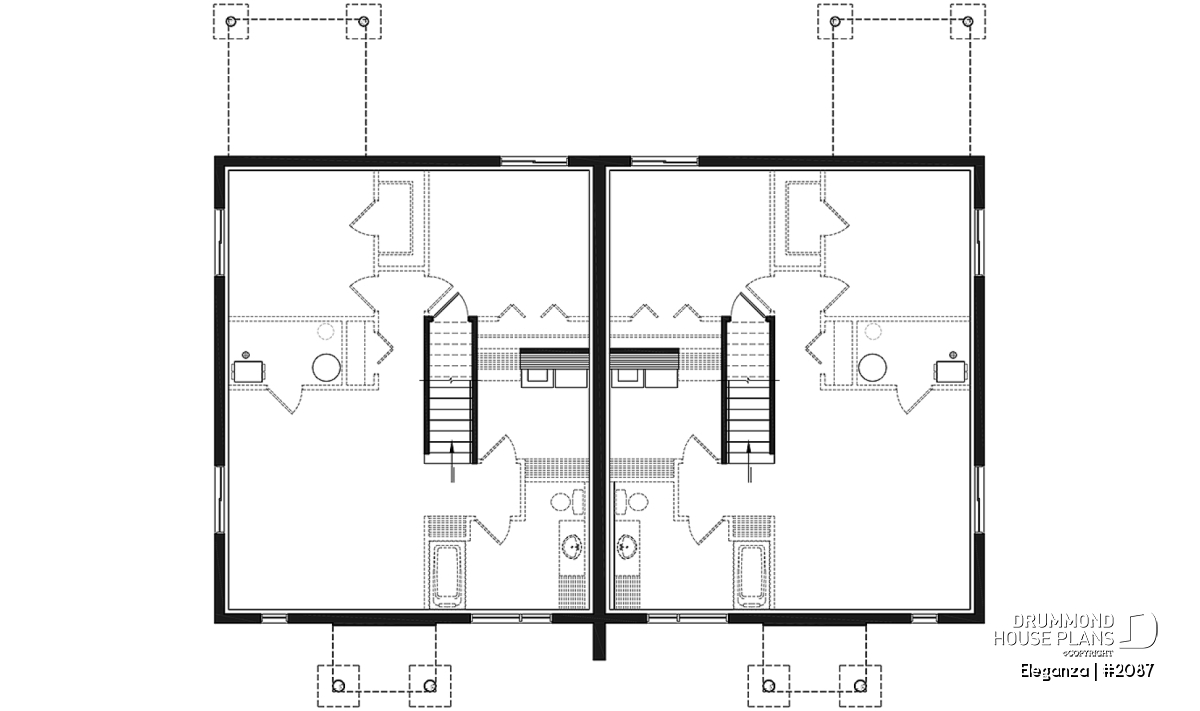

| Basement |
|---|
General specifications
| Total living area | 1904 sq.ft. |
| 1st level | 1904 sq.ft. |
| Basement | 1904 sq.ft. |
| Width | 58'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 17'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab, Finished basement |
| Builder price code | MA |
Rooms specifications
| Bedroom(s) | 1, 2 |
| Full baths | 1 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 76 sq.ft. |
Units specifications
Other useful information on this plan
Duplex plan with 1 to 3 bedrooms and great open kitchen, dining and living room
.
Distinctive elements
Modern duplex plan with 1 or 2 bedroom options included in the plan.
Grand entrance.
Master bedroom with huge walk-in.
Large bathroom.
Main area located at the back.
Lots of storage.
Abundant fenestration.
Plan feature(s)
Island, Walk-in master bed., Walk-in master bed., Open floor layout, Open floor layout
Plan architectural style(s)
. Modern / Design, . Contemporary, . Mid-century
