House plan Ambrose 3 (2085-V2)
Modern mid-century style semi-detached home plan with 2 bedrooms, kitchen island, unfinished basement
View the size of the rooms and height of the ceilings

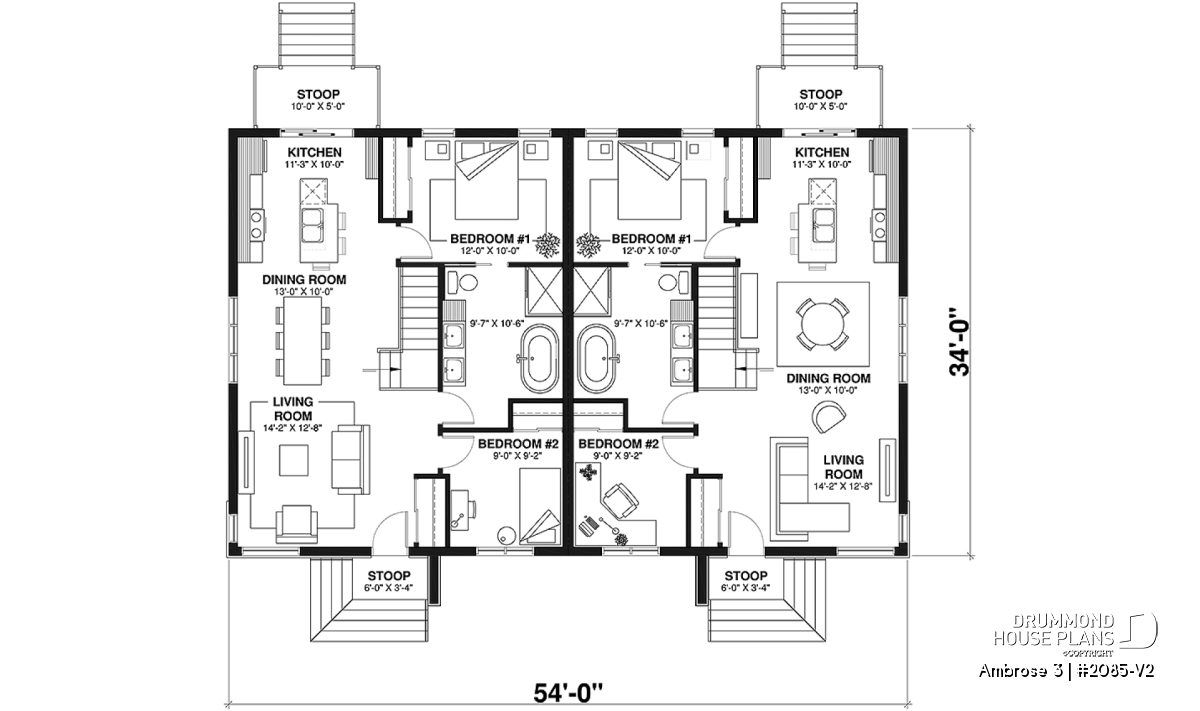

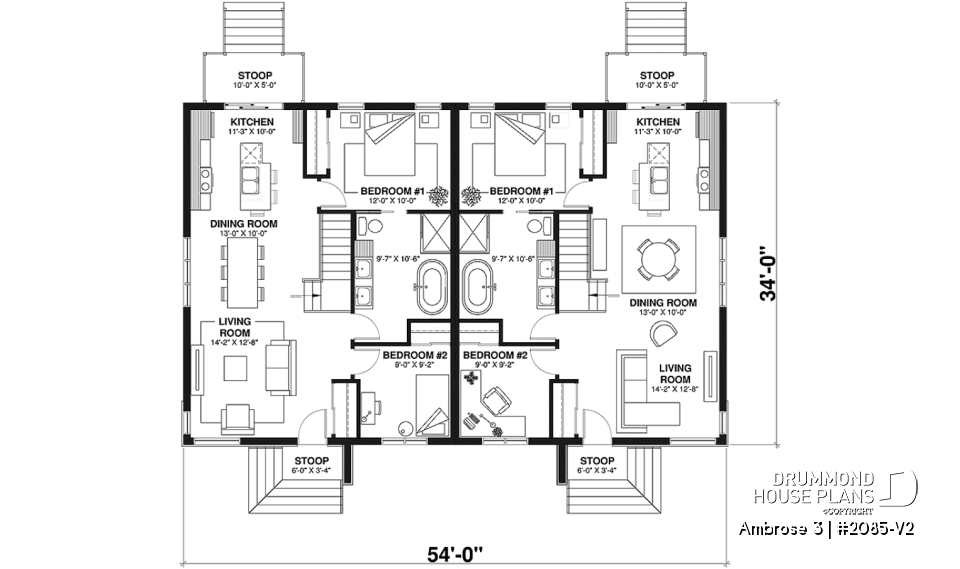

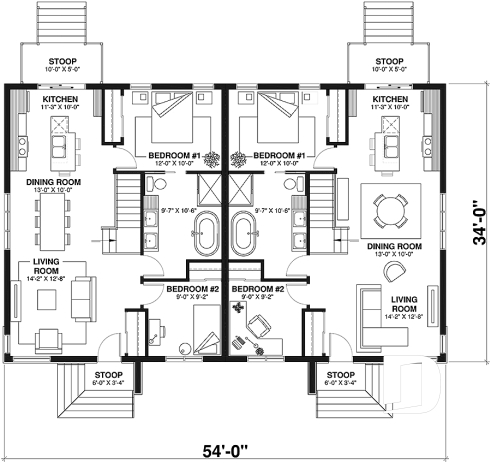

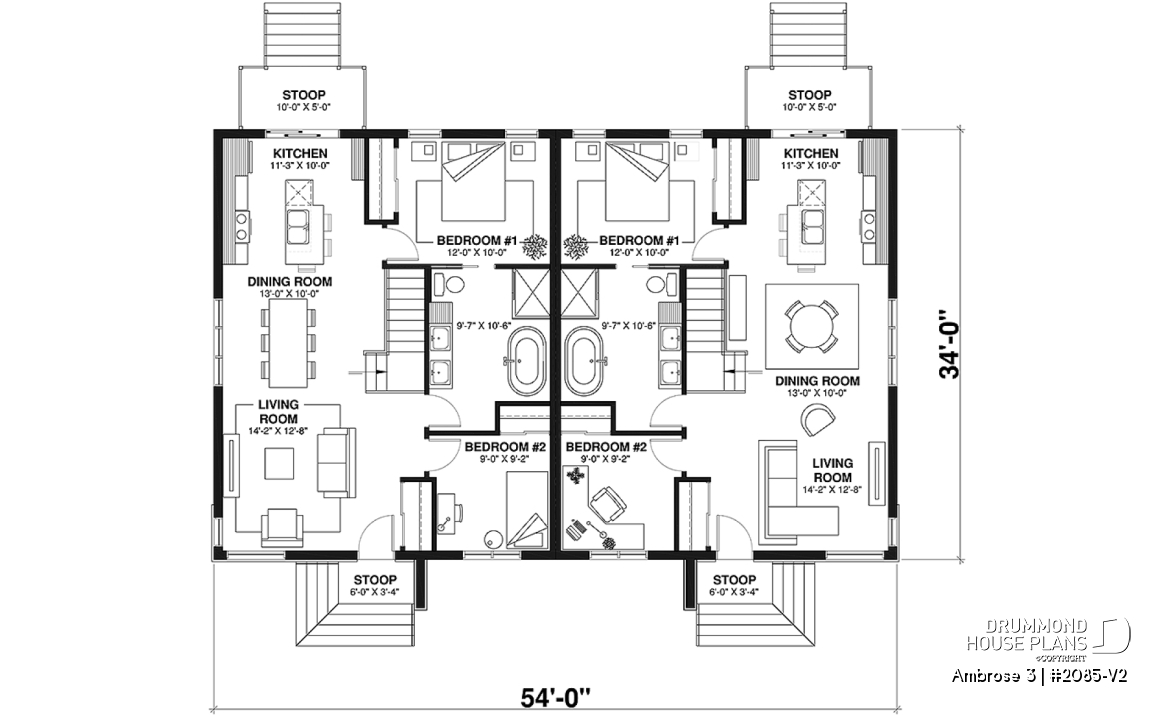

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living room | 14'2" x 12'8" | ~ 8'0" |
| Closet | 2'2" x 5'6" | ~ 8'0" |
| Full bathroom | 9'7" x 10'6" | ~ 8'0" |
| Dining room | 13'0" x 10'0" | ~ 8'0" |
| Bedroom | 9'0" x 9'2" | ~ 8'0" |
| Closet | 4'0" x 2'0" | ~ 8'0" |
| Bedroom | 12'0" x 10'0" | ~ 8'0" |
| Closet | 2'0" x 6'6" | ~ 8'0" |
| Dining room | 13'0" x 10'0" | ~ 8'0" |
| Living room | 14'2" x 12'8" | ~ 8'0" |
| Closet | 2'2" x 5'6" | ~ 8'0" |
| Kitchen/dinette | 11'3" x 10'0" | ~ 8'0" |
| Pantry | 1'0" x 3'4" | N/A |
| Kitchen/dinette | 11'3" x 10'0" | ~ 8'0" |
| Pantry | 1'0" x 3'4" | N/A |
| Bedroom | 9'0" x 9'2" | ~ 8'0" |
| Closet | 4'0" x 2'0" | ~ 8'0" |
| Bedroom | 12'0" x 10'0" | ~ 8'0" |
| Closet | 2'0" x 6'6" | ~ 8'0" |
| Full bathroom | 9'7" x 10'6" | ~ 8'0" |
| Porch | 6'0" x 3'4" | N/A |
| Deck | 10'0" x 5'0" | N/A |
| Porch | 6'0" x 3'4" | N/A |
| Deck | 10'0" x 5'0" | N/A |

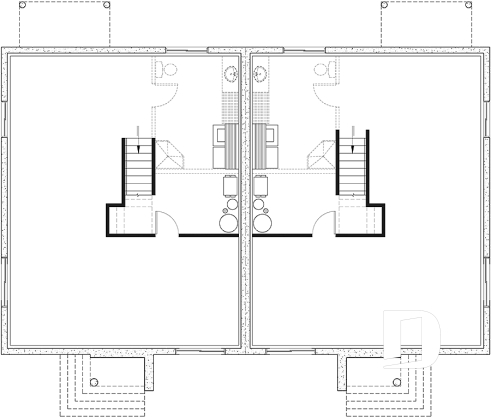

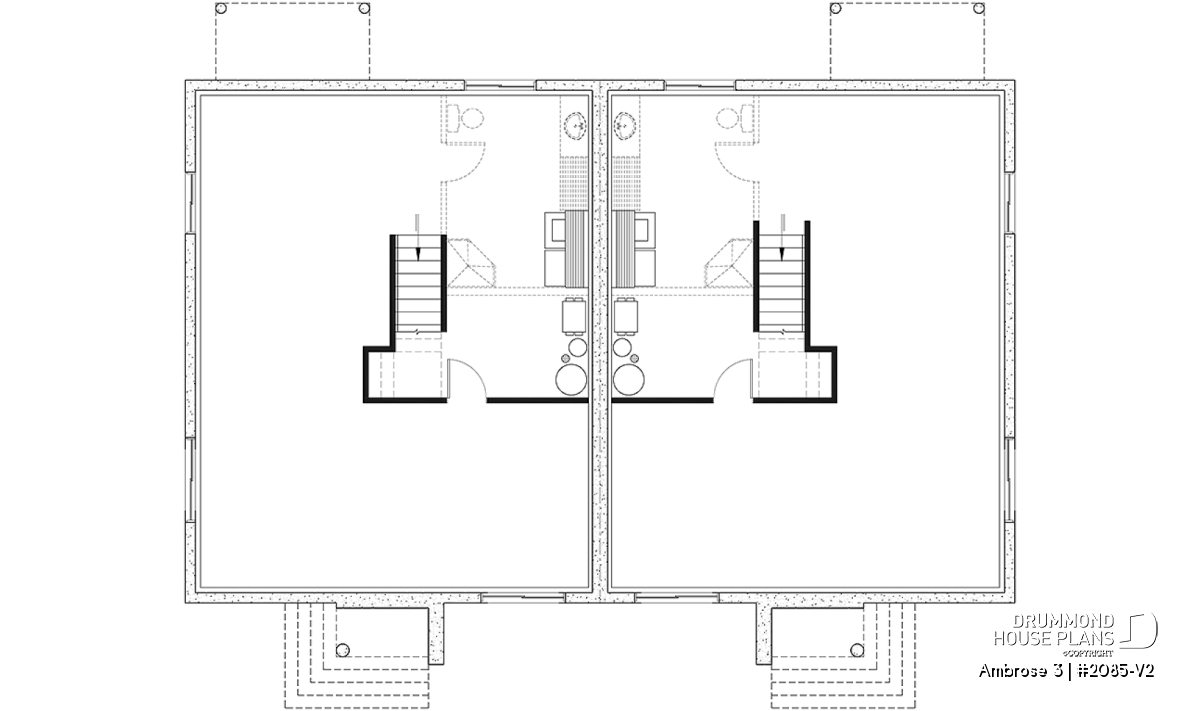

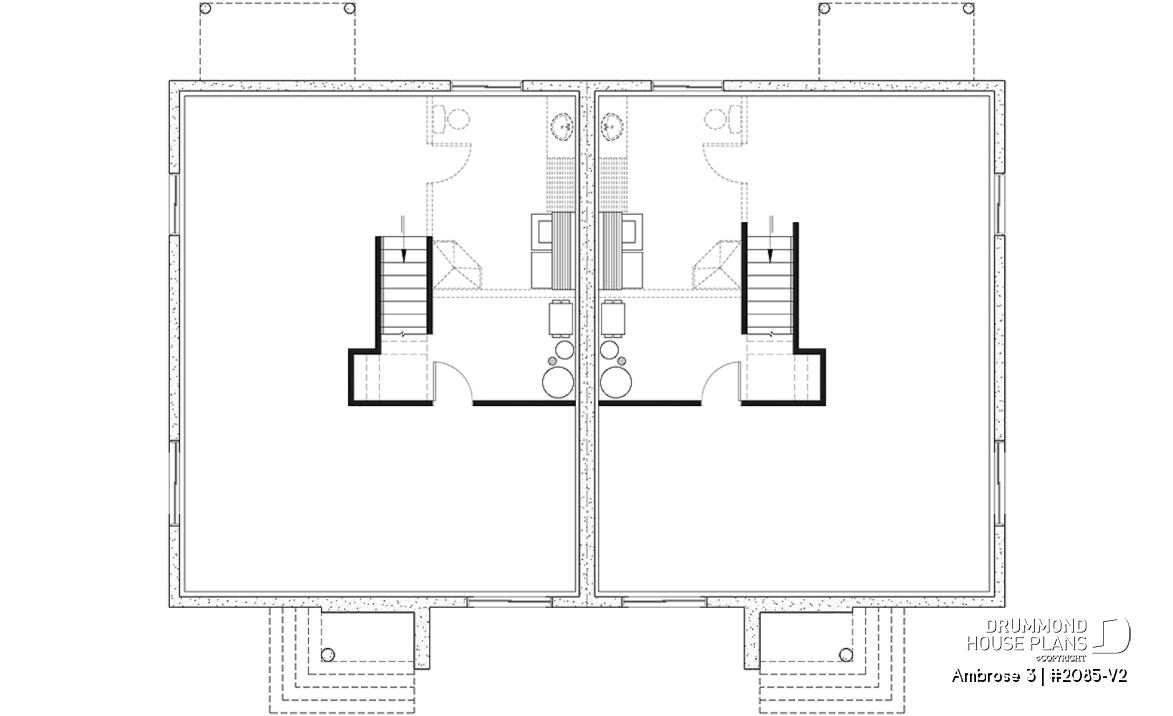

| Basement |
|---|
General specifications
| Total living area | 1836 sq.ft. |
| 1st level | 1836 sq.ft. |
| Basement | 1836 sq.ft. |
| Width | 54'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 19'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | MA |
Rooms specifications
| Bedroom(s) | 2 |
| Full baths | 1 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 36 sq.ft. |
Units specifications

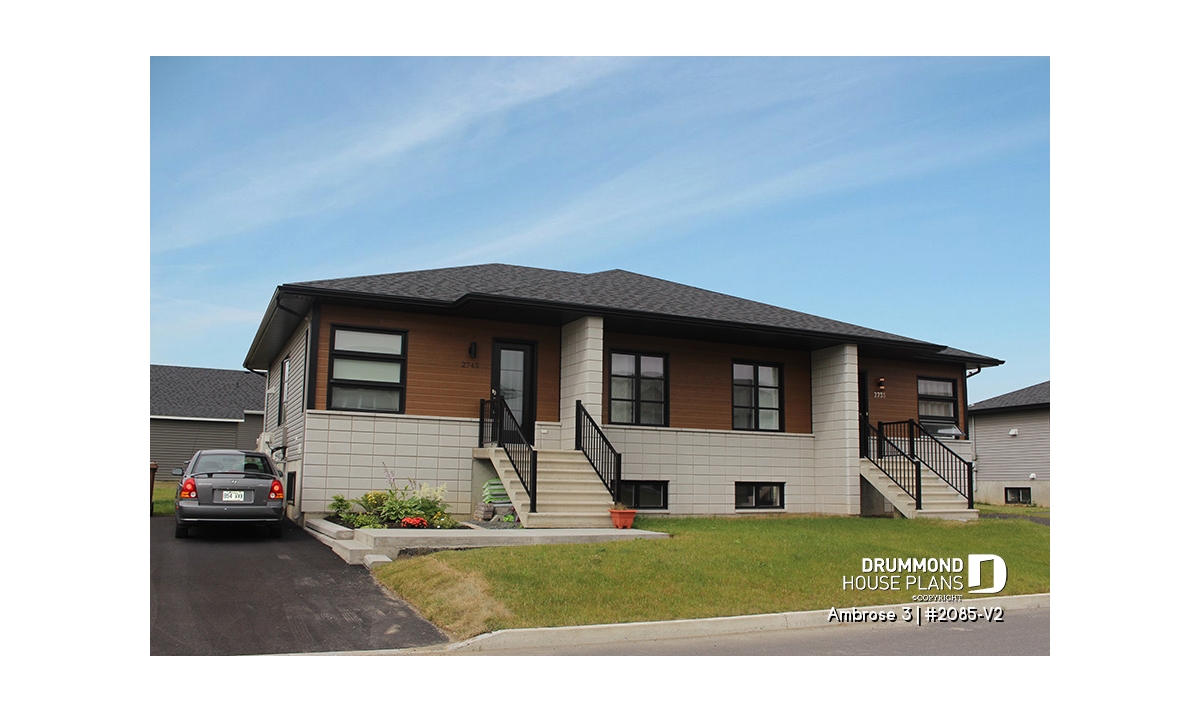

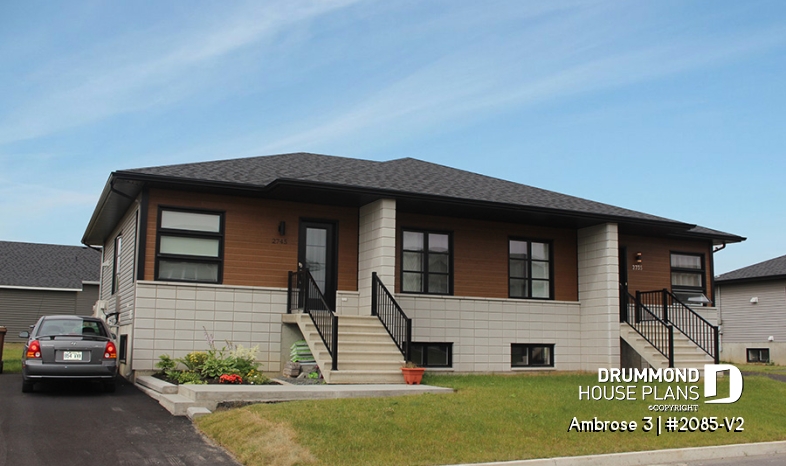

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

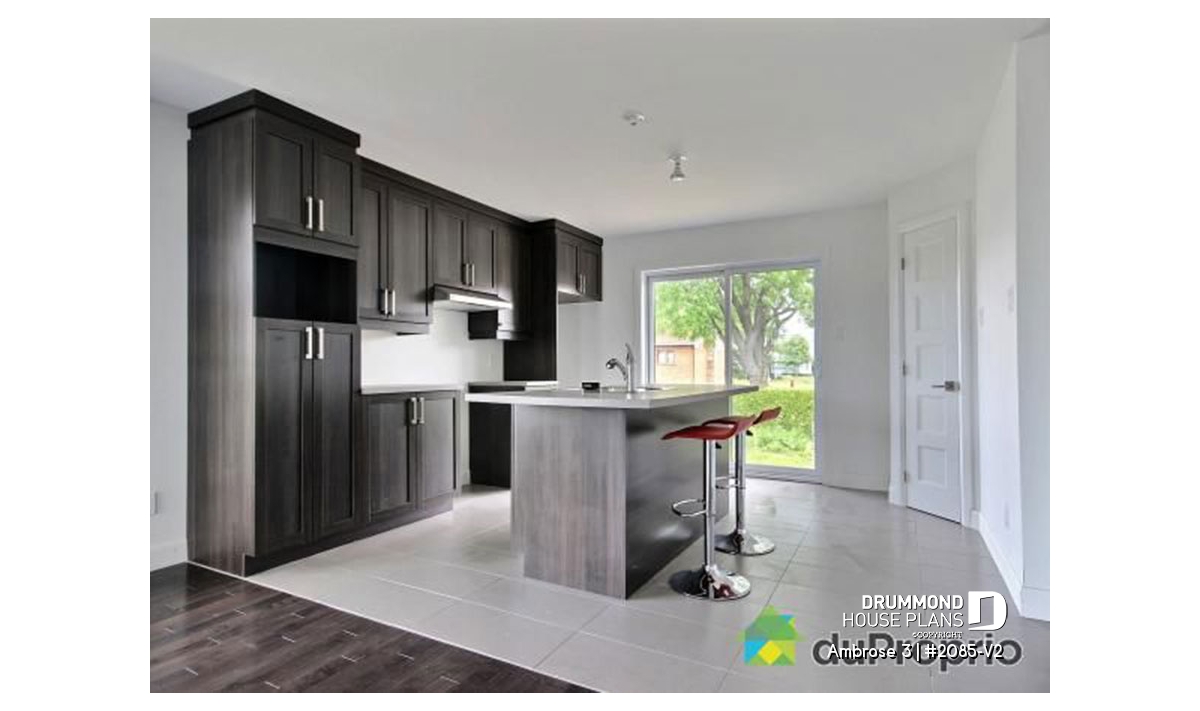

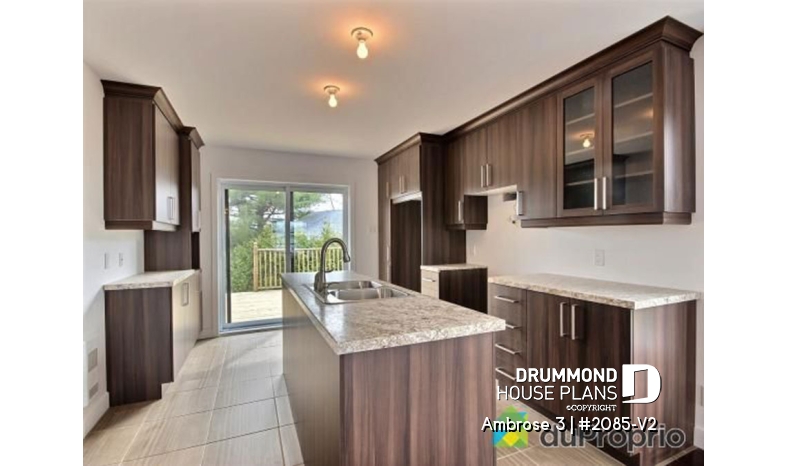

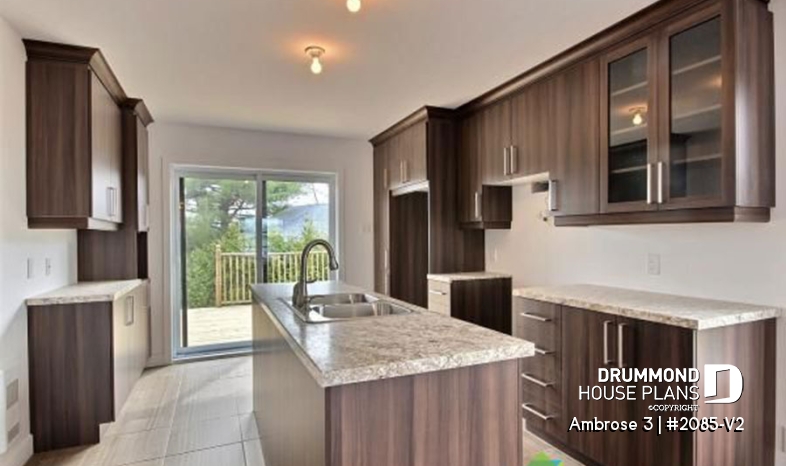

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

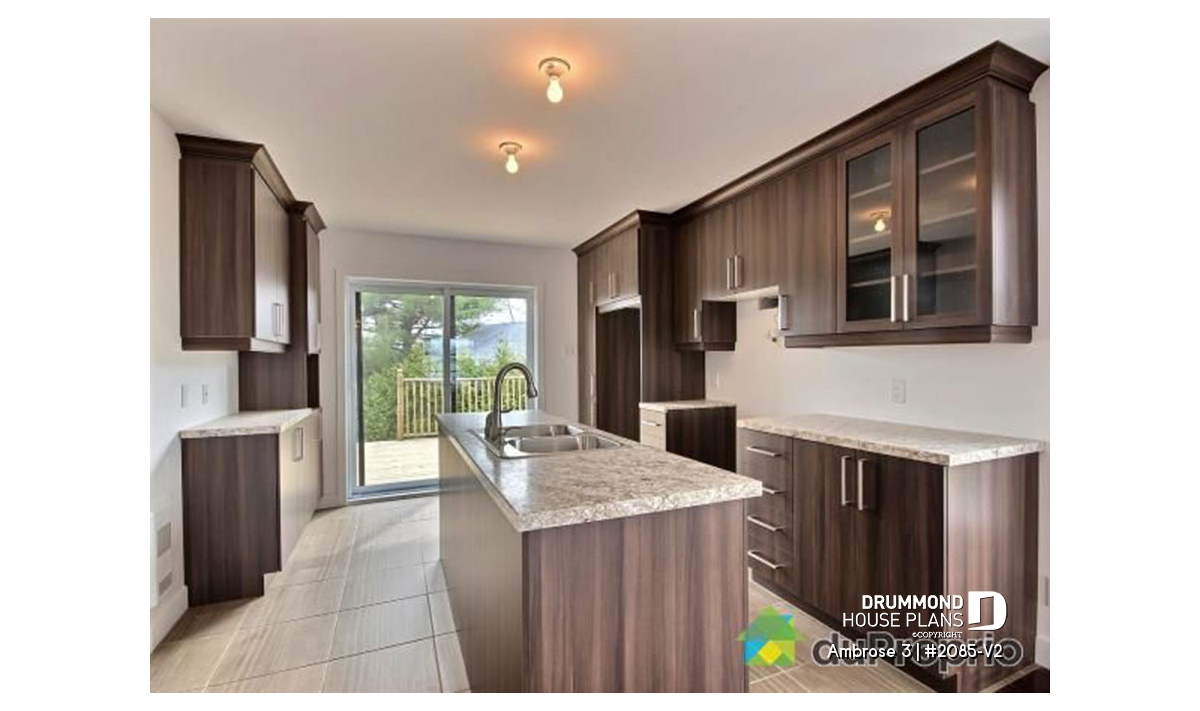

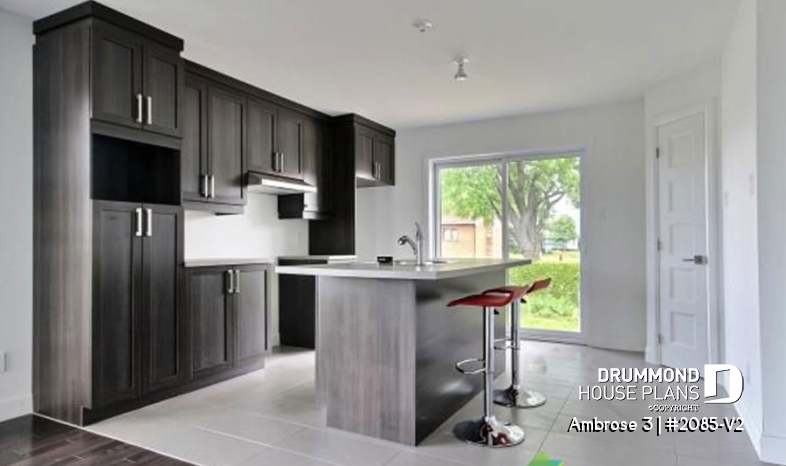

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Sleek semi-detached with amazing modern floor plan
Designed from the very popular plan 2085, this version includes a modified “modern contemporary” style exterior. The low-slung roofline and geometric lines of the windows and cladding all create a very gentle Zen-like statement.
Inside, an open, flowing interior creates a spacious feeling in the activities areas. The right unit includes a laundry area in the bathroom (thus sacrificing a bit of bedroom space) while the second unit allows for a more spa-like atmosphere with spa tub. The master bedrooms enjoy private bathroom access and separation from the secondary bedroom thanks to the placement of the bathroom.
Well-separated patio placement allows a more intimate outdoor space for each unit. Additional recreation or living space can be added by developing the basement.
An alternate version, 2085-V1 is a more traditional exterior and includes an alternate interior.
Distinctive elements
Slight differences in floor plan due to one unit including main level laundry and a smaller second bedroom.
Plan feature(s)
Island, Open floor layout
Plan architectural style(s)
. Contemporary, . Modern / Design, . Mid-century
