Lockhart (3442)
Craftsman 3 bedroom with double garage, fireplace & triple patio doors
View the size of the rooms and height of the ceilings

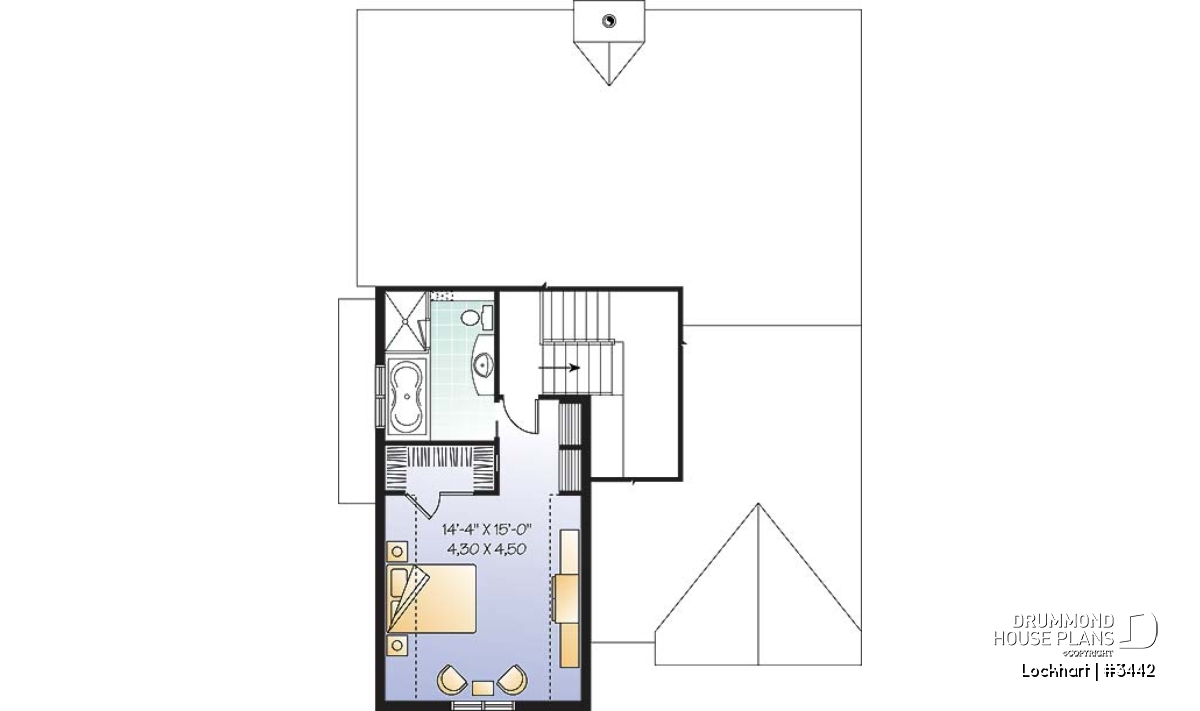

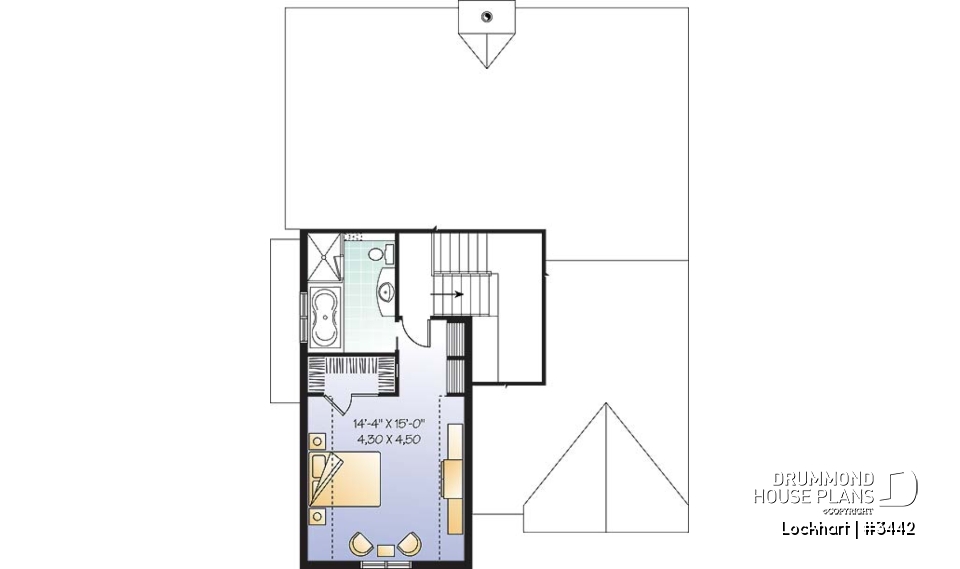

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

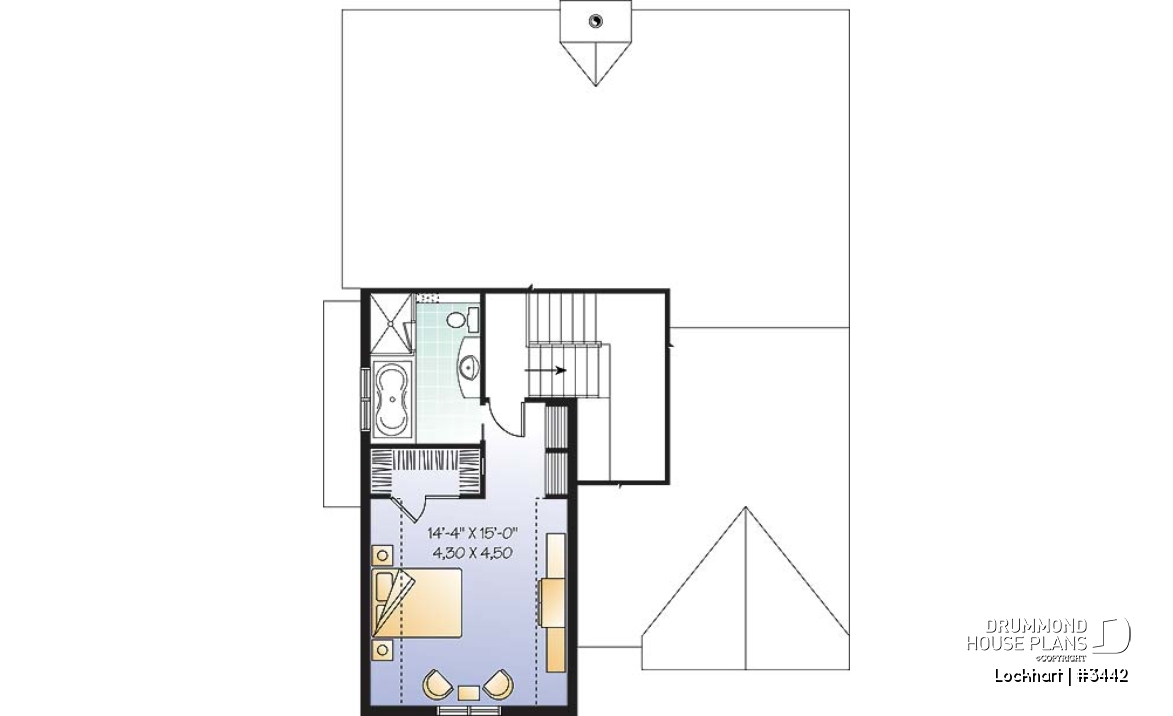

| Master suite | 14'4" x 15'0" | ~ 8'0" |

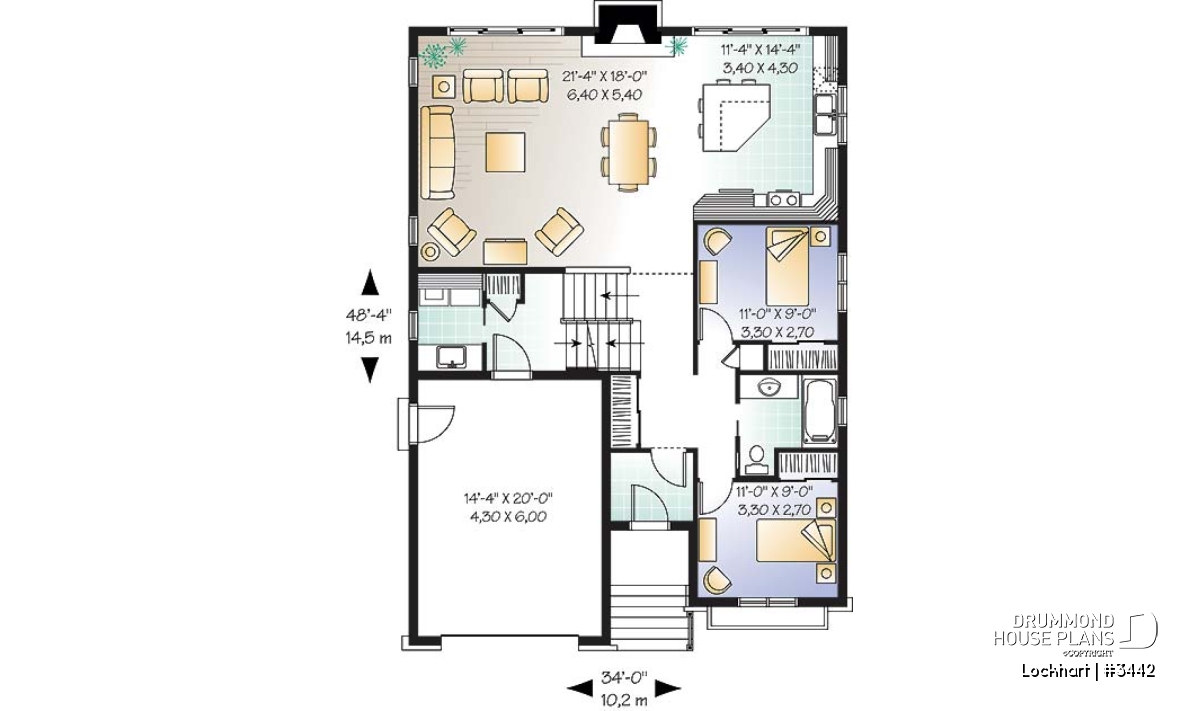

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'4" x 14'4" | ~ 8'0" |
| Dining room | 21'4" x 18'0" | ~ 8'0" |
| Foyer | 6'4" x 5'4" | ~ 8'0" |
| Full bathroom | 7'8" x 5'8" | ~ 8'0" |
| Bedroom | 11'0" x 9'0" | ~ 8'0" |
| Bedroom | 11'0" x 9'0" | ~ 8'0" |
| Garage | 14'4" x 20'0" | ~ 8'6" |
| Utility room | 5'0" x 7'6" | ~ 8'0" |
| Storage | 1'10" x 2'0" | ~ 8'0" |
| Porch | 6'0" x 4'4" | N/A |
| Porch | 31'4" x 8'0" | N/A |
General specifications
| Total living area | 1708 sq.ft. |
| 2nd level | 478 sq.ft. |
| 1st level | 1230 sq.ft. |
| Width | 34'0" |
| Depth | 48'4" |
| Ridge height from top of foundation | 28'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Craftsman style house plan with great second floor master suite!
.
Distinctive elements

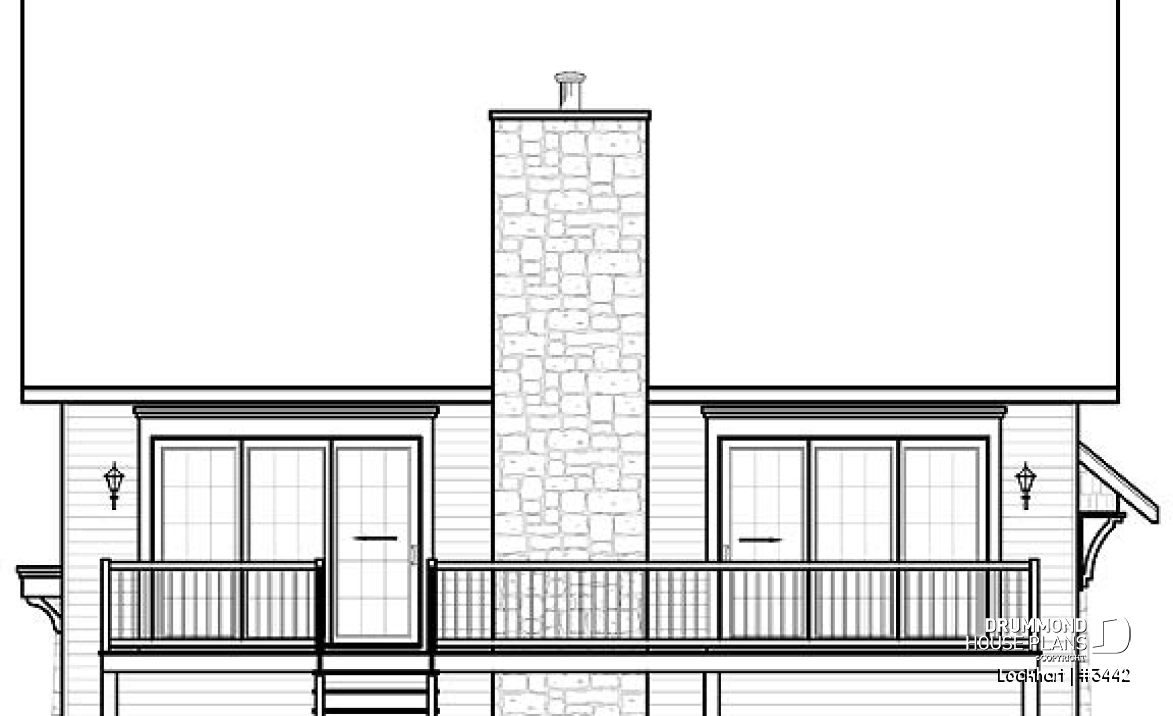

Well-centered fireplace at rear and triple patio doors on each side. Kitchen with well-dimensioned lunch counter work island. Nice master suite above garage with a sloped ceiling and integrated storage as well as a large walk-in closet.
Plan feature(s)
Fireplace, Island, Gound floor laundry room, Loft, Master suite upstairs, Open floor layout, Entrance hall, Walk-in master bed., Sloped ceiling
Plan architectural style(s)
. Country, . Craftsman / Northwest, . American, . Modern rustic, . Rustic, . Traditional, . European
