House plan Melville (3467)
3 bedroom home plan with double garage and home office, fabulous master suite!
View the size of the rooms and height of the ceilings

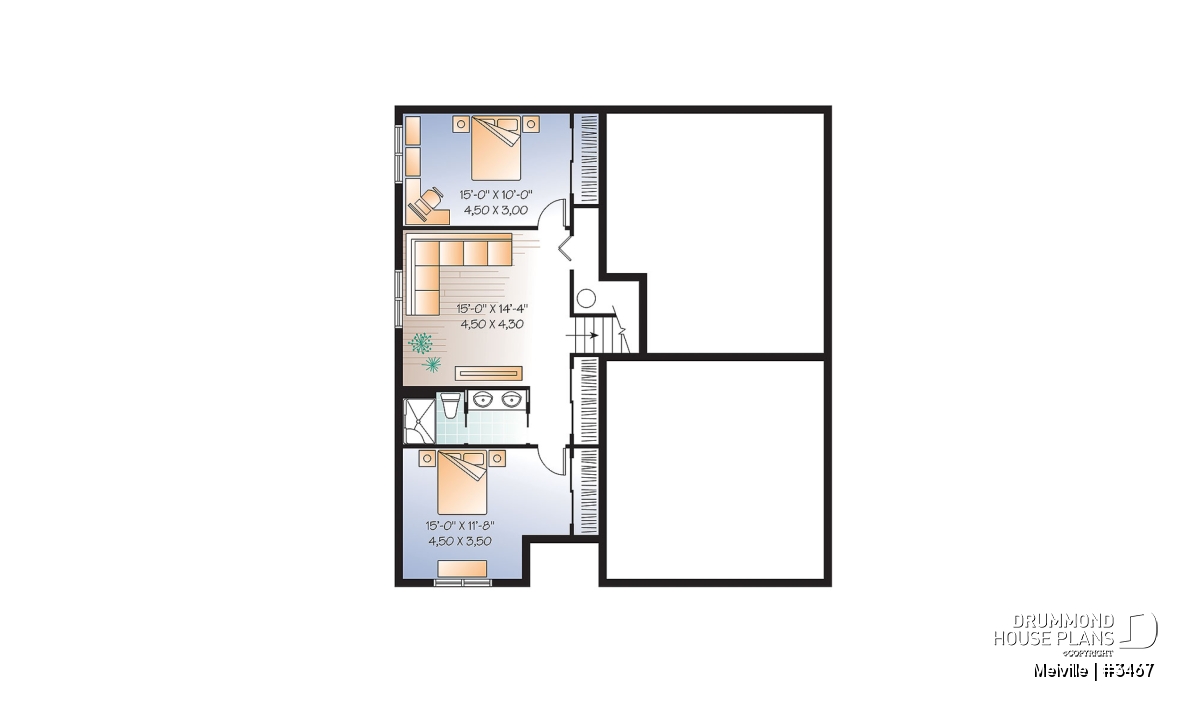

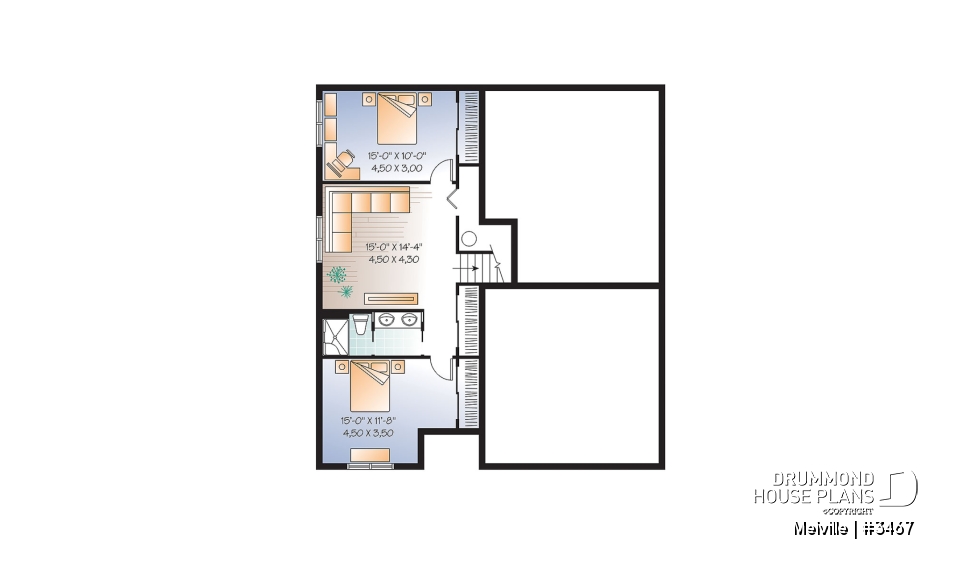

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living room | 15'0" x 14'4" | ~ 8'0" |
| Full bathroom | 11'0" x 5'0" | ~ 8'0" |
| Bedroom | 15'0" x 10'0" | ~ 8'0" |
| Bedroom | 15'0" x 11'8" | ~ 8'0" |
| Storage | 2'4" x 8'0" | ~ 8'0" |
| Storage | 2'4" x 9'8" | ~ 8'0" |

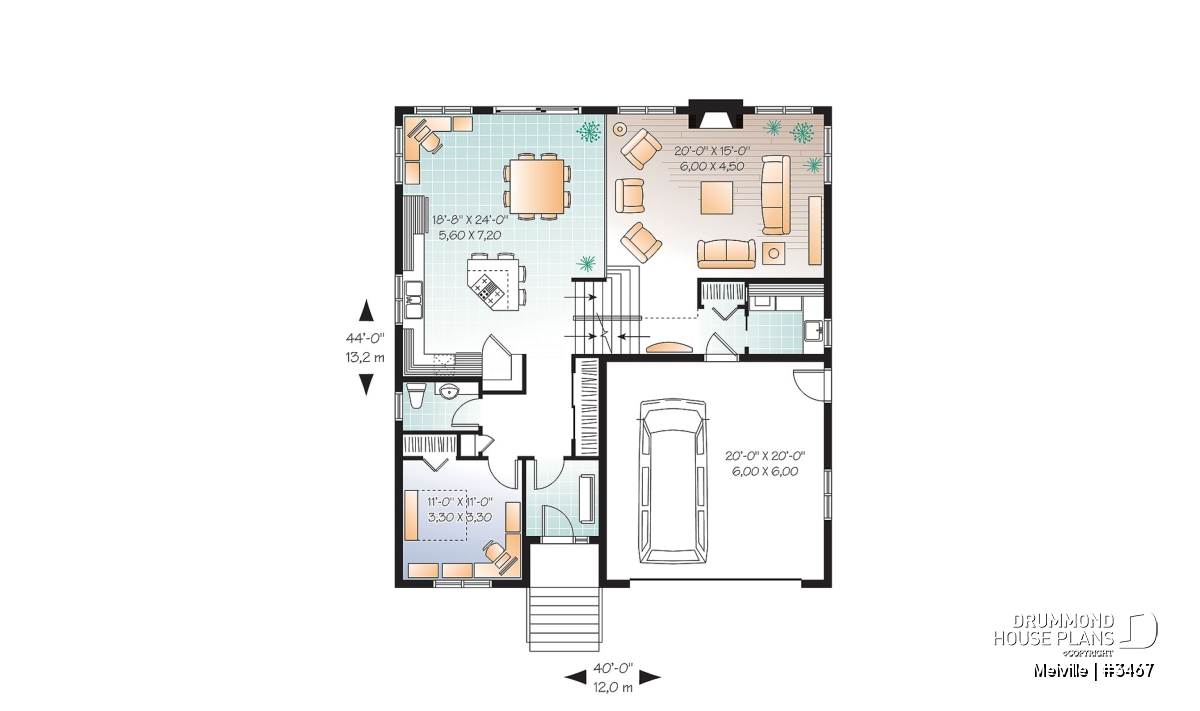

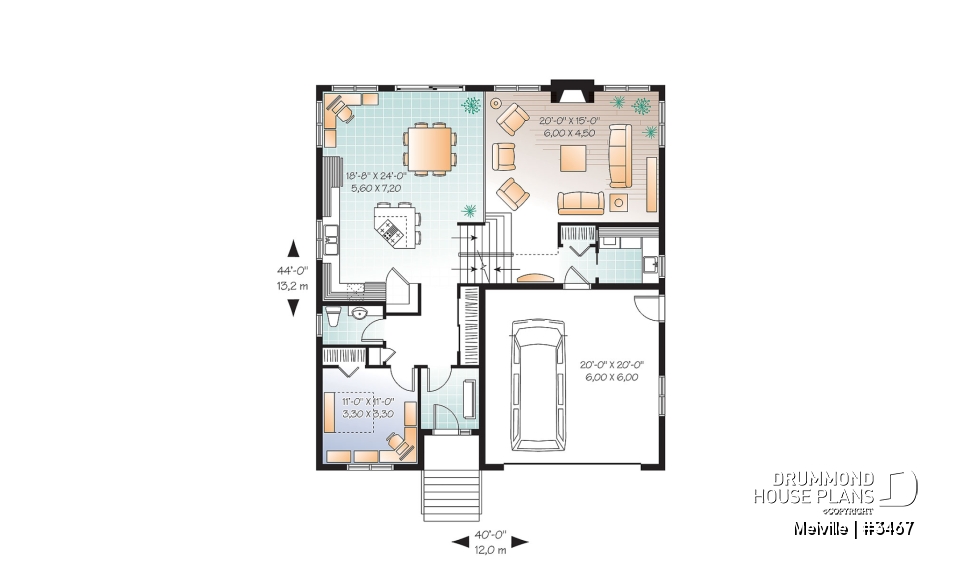

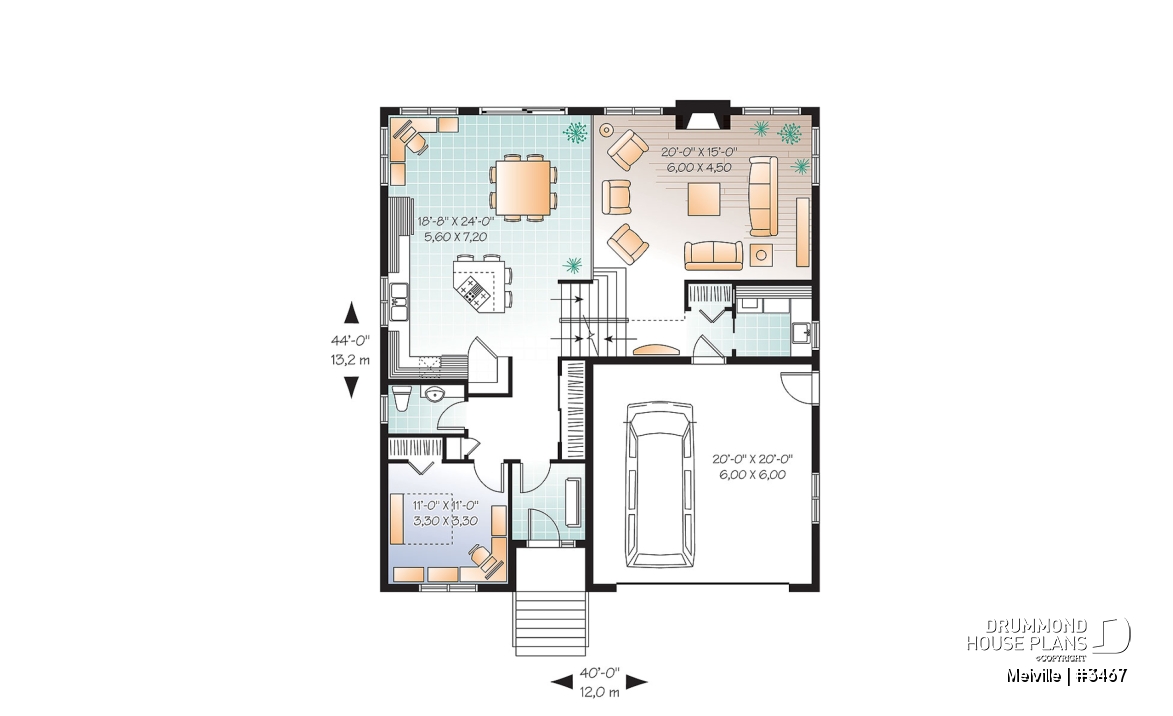

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 18'8" x 24'0" | ~ 9'0" |
| Great room or Family room | 20'0" x 15'0" | ~ 13'8" |
| Foyer | 6'8" x 7'0" | ~ 9'0" |
| Half bath or powder room | 7'0" x 4'6" | ~ 9'0" |
| Bedroom | 11'0" x 11'0" | ~ 9'0" |
| Laundry room | 7'0" x 6'6" | ~ 8'4" |
| Storage | 4'0" x 2'2" | ~ 8'4" |
| Linen | 1'8" x 2'0" | ~ 9'0" |
| Garage | 20'0" x 20'0" | ~ 8'2" |
| Porch | 6'4" x 4'0" | N/A |
| Porch | 19'4" x 6'0" | N/A |

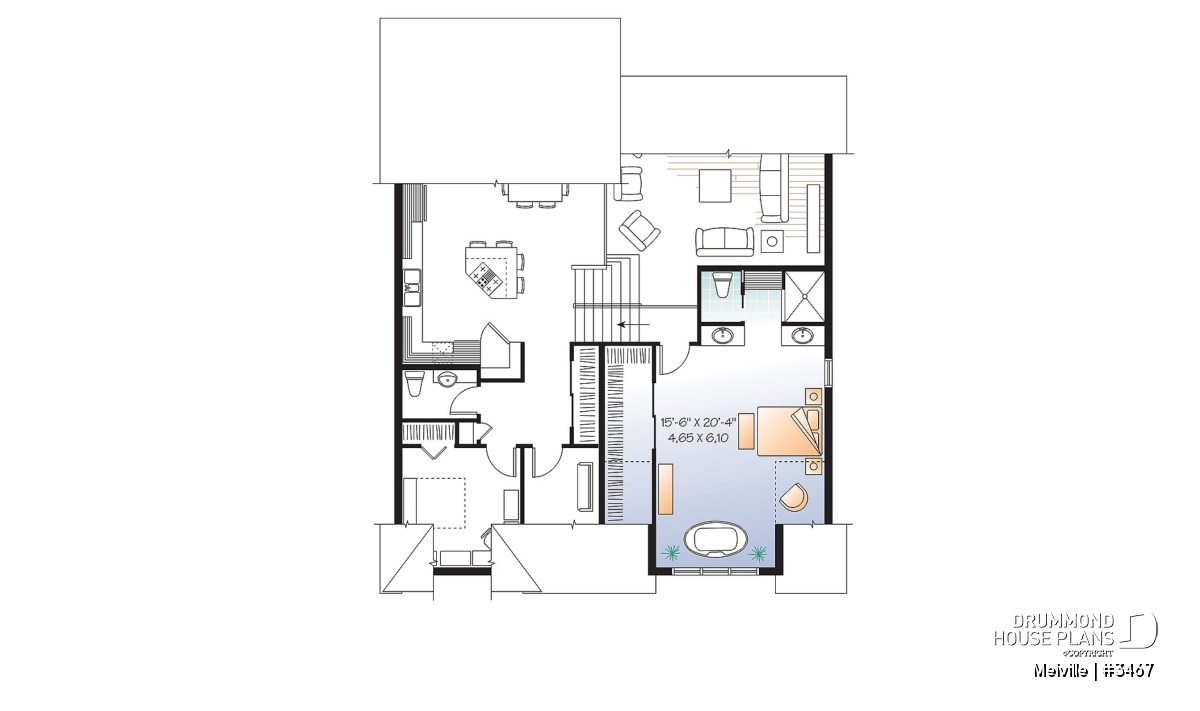

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 15'6" x 20'4" | ~ 9'0" |
| Shower room or three quarter bath | 6'10" x 11'4" | ~ 9'0" |
General specifications
| Total living area | 2679 sq.ft. |
| Basement | 853 sq.ft. |
| 1st level | 1305 sq.ft. |
| 2nd level | 521 sq.ft. |
| Width | 40'0" |
| Depth | 44'0" |
| Ridge height from top of foundation | 27'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | G |
Rooms specifications
Other useful information on this plan
Split level house offering 3 bedrooms, an office and a double garage!
.
Distinctive elements
9' ceiling for the master suite on 2nd level and for the 1st level, except the family room which has a central fireplace and ceiling height of almost 14 feet.
Open activity area in the dining room and a mezzanine add to the remarkable cachet of this home.
Kitchen with a central lunch island and much storage space including a walk-in pantry.

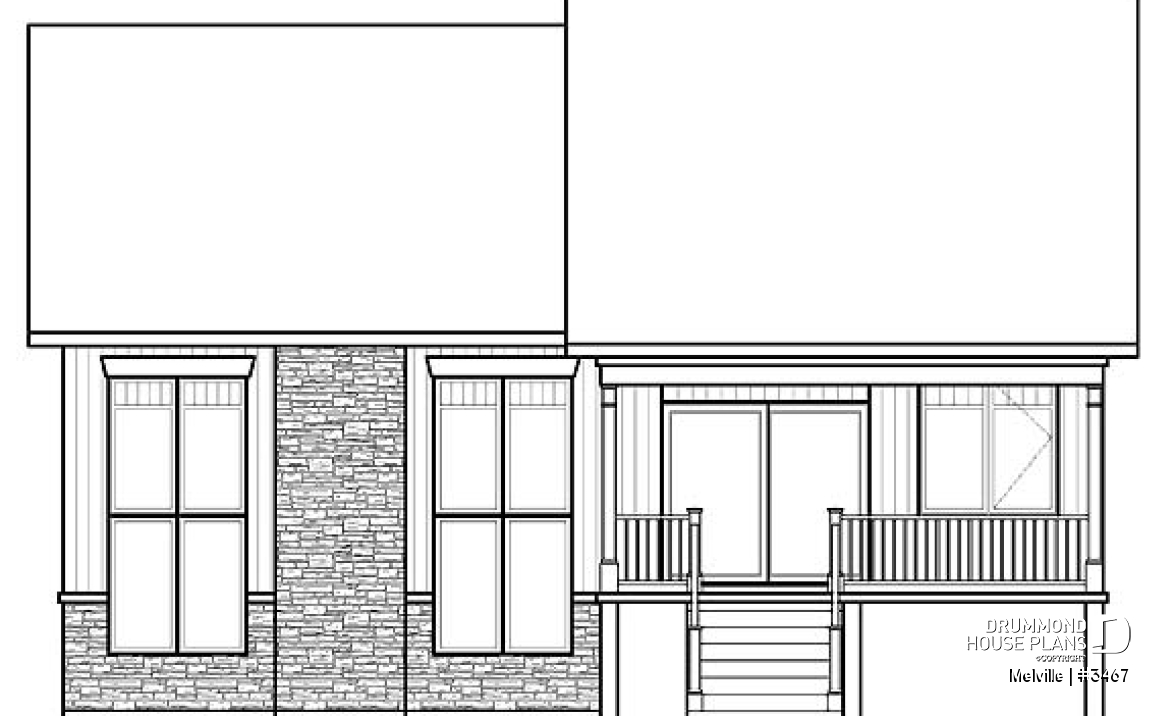

8' patio door in the dining room which accesses a covered back porch.
Home office that can also be a bedroom, according to the owner's needs, and a powder room on 1st level.
Secondary bedrooms on the basement level with a shower room and a second living room.
Plan feature(s)
Entrance hall, Office / Study / Den, Island, Fireplace, Ceiling over 8', Game room, Double sinks, Gound floor laundry room, Pantry
Plan architectural style(s)
. Country, . Craftsman / Northwest, . Traditional, . American, . Ranch
