House plan Avram 3 (2185-V2)
Affordable one-storey ranch house plan, 3 bedrooms, open layout, 10' ceiling in living, low construction costs
View the size of the rooms and height of the ceilings

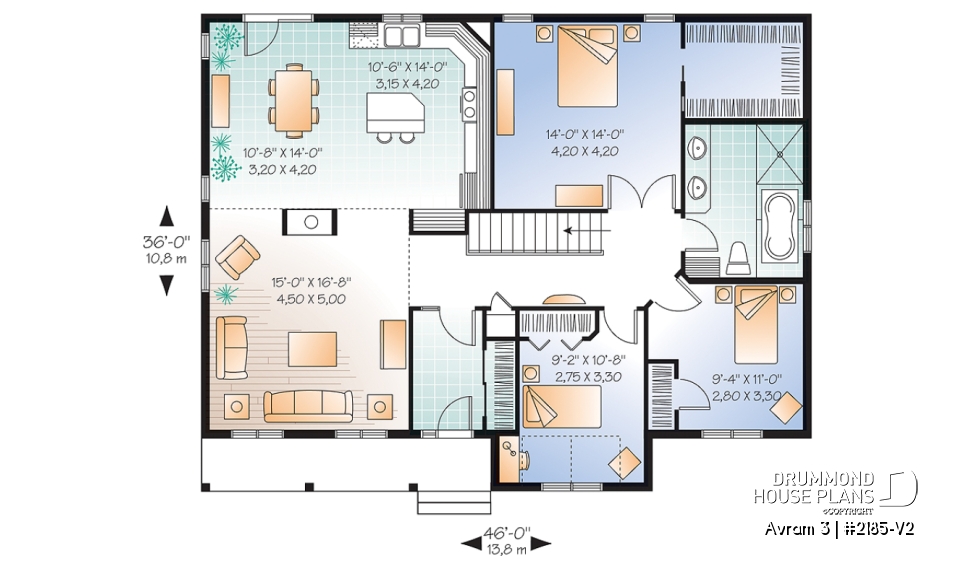

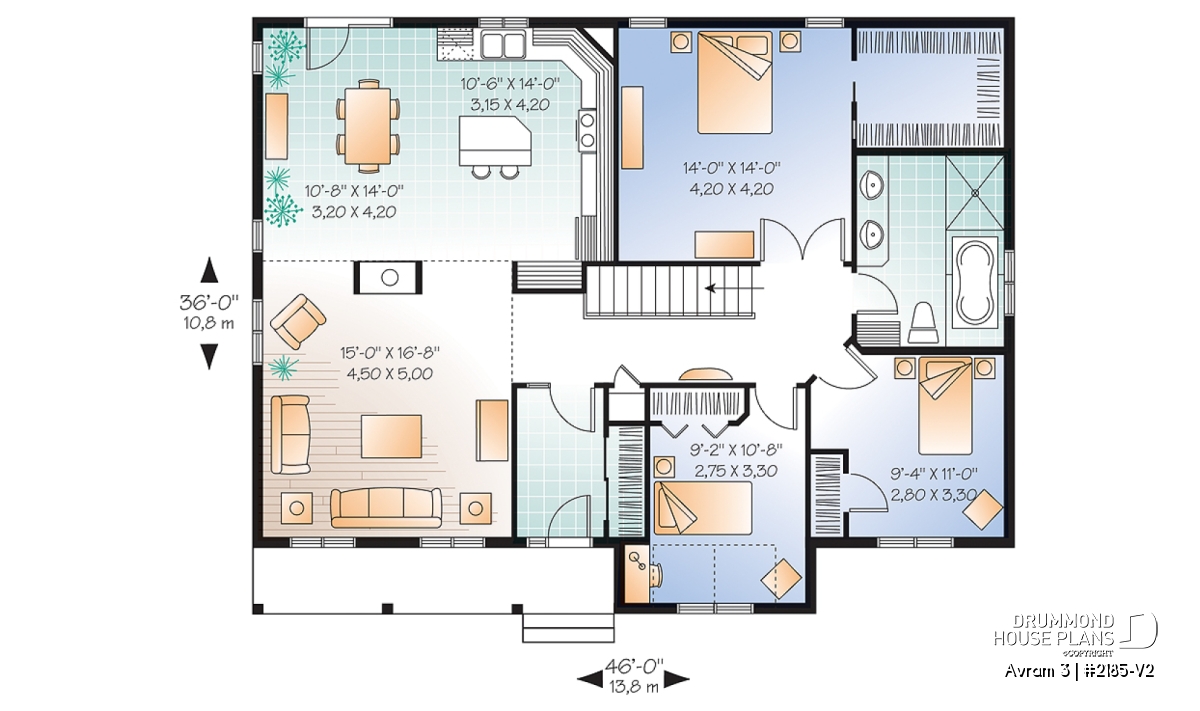

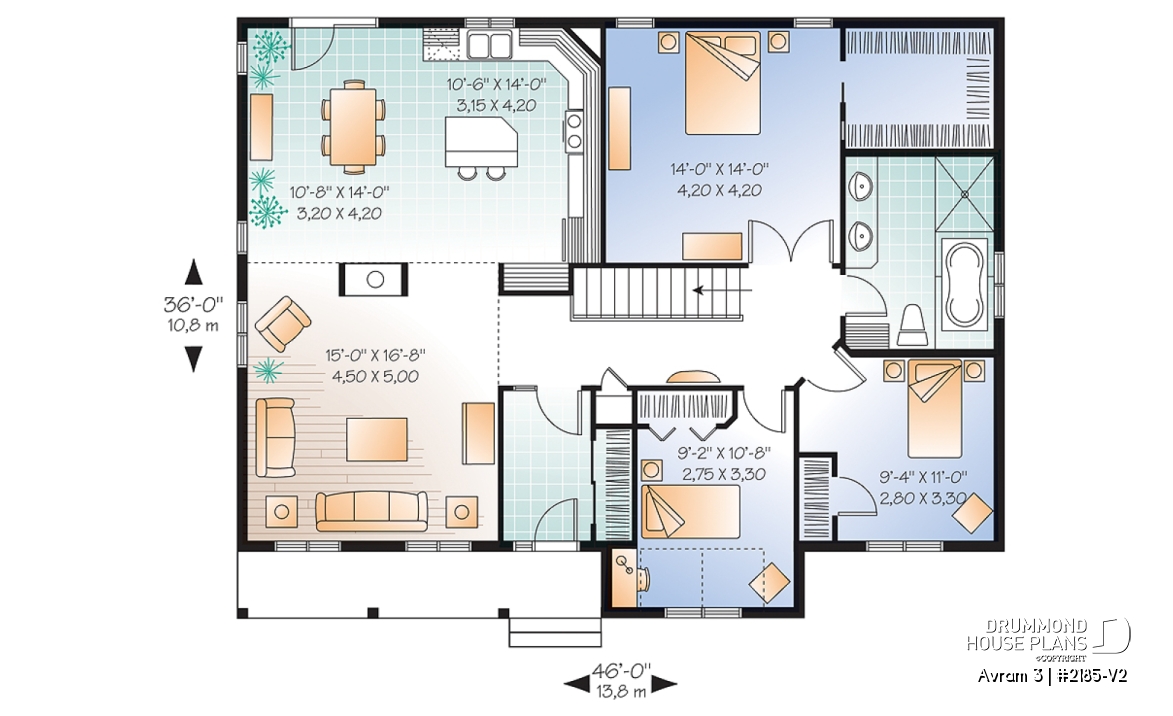

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'6" x 14'0" | ~ 8'0" |
| Pantry | 3'10" x 1'8" | ~ 8'0" |
| Dining room | 10'8" x 14'0" | ~ 8'0" |
| Living room | 15'0" x 16'8" | ~ 10'0" |
| Foyer | 5'2" x 9'0" | ~ 8'0" |
| Closet | 2'2" x 6'8" | ~ 8'0" |
| Full bathroom | 8'10" x 11'6" | ~ 8'0" |
| Bedroom | 14'0" x 14'0" | ~ 8'0" |
| Walk-in closet | 8'10" x 7'2" | ~ 8'0" |
| Bedroom | 9'2" x 10'8" | ~ 8'0" |
| Closet | 5'8" x 2'0" | ~ 8'0" |
| Bedroom | 9'4" x 11'0" | ~ 8'0" |
| Walk-in closet | 2'4" x 5'0" | ~ 8'0" |
| Closet | 2'4" x 5'0" | ~ 8'0" |
| Linen | 2'2" x 2'0" | ~ 8'0" |
| Covered porch | 21'10" x 4'0" | N/A |
| Deck | 8'0" x 5'0" | N/A |
General specifications
| Total living area | 1521 sq.ft. |
| 1st level | 1521 sq.ft. |
| Width | 46'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 22'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Traditional Colonial style, 3 bedroom single story home, low costs
Originating from the very popular 2185 model, 2185-V2 is enhanced with two extra feet of depth and three feet added to the living room to bring it into perfect alignment with the left side which allows a certain cost reduction for this amount of windowed space.
Inside, the enlargement has created enough space for a 15’ x almost 17’ kitchen/living/dining area which is 14’ deep instead of the original 12’ depth. The master bedroom too enjoys an increase in size from 12’ x 14’ to 14’ x 14’ with an enlarged, walk-in closet and the size of the shower in the adjoining bathroom has been increased to 42” x 54”. The two secondary bedrooms are also slightly larger.
Plan 2185-V1 is another version with larger secondary bedrooms due to an increase in depth of 6’ from the original plan 2185.
The choice is yours!
Distinctive elements
10' ceiling in the living room and a fireplace shared with the dining room. Master bedroom has a large walk-in closet. Well organized bathroom with a 42" x 54" independant shower.
Plan feature(s)
Fireplace, Walk-in master bed., Island, Entrance hall, Cathedral ceiling, Separate bath and shower, Double sinks, Ceiling over 8'
Plan architectural style(s)
. Country, . American, . Ranch, . Traditional
Similar plans
Previously Viewed Plans
Questions and comments
November 23
Will
I wanted to know if the fireplace could be easily removed without making any structural changes to the house. ei, is that area load bearing.
November 23
Customer service
Thank you for taking the time to write to us.
The fireplace is not on a load bearing wall and, as such, removal will not require any structural changez to the house.
Please let me know if you have any other questions or comments.
Have a wonderful day
Deborah
