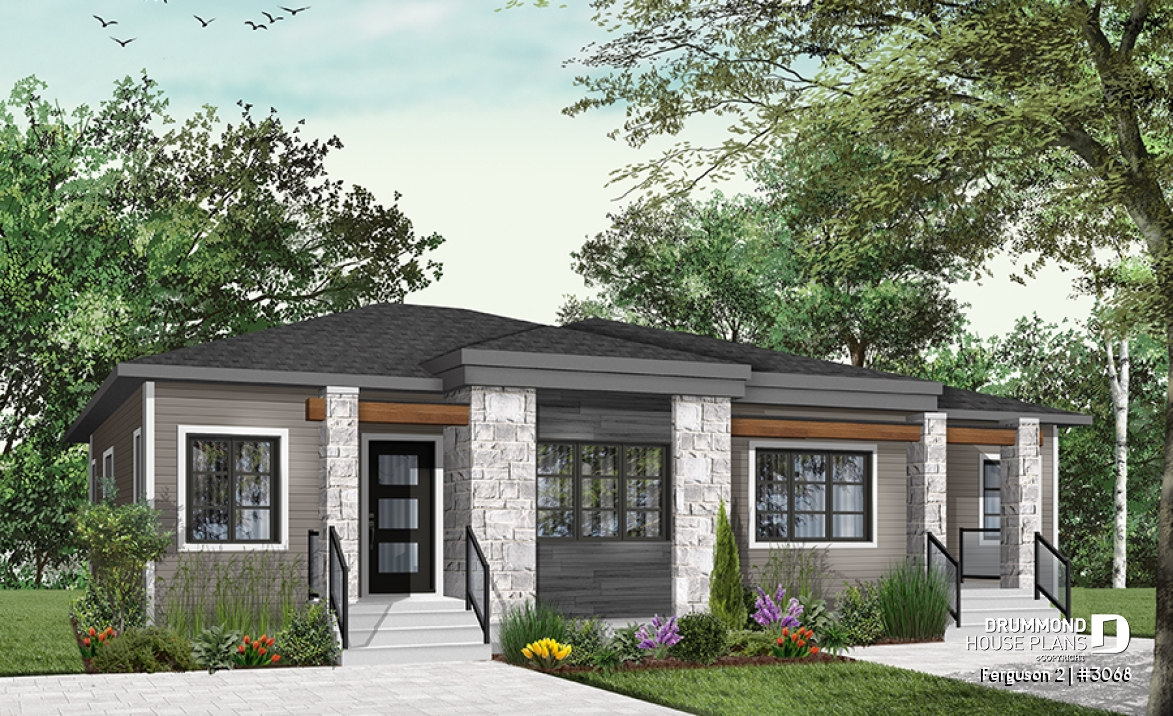

House plan Ferguson 2 (3068)
Modern duplex house plan with 2 bedrooms per unit, large family bathroom, unfinished basement, kitchen island
View the size of the rooms and height of the ceilings

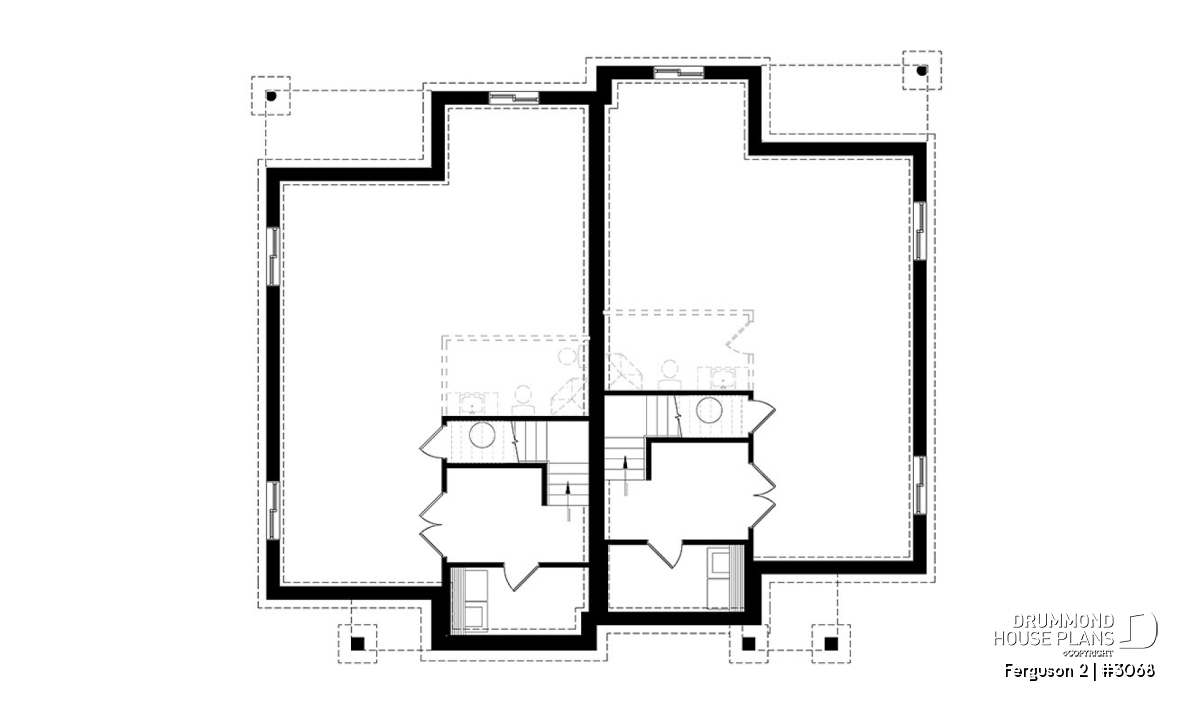

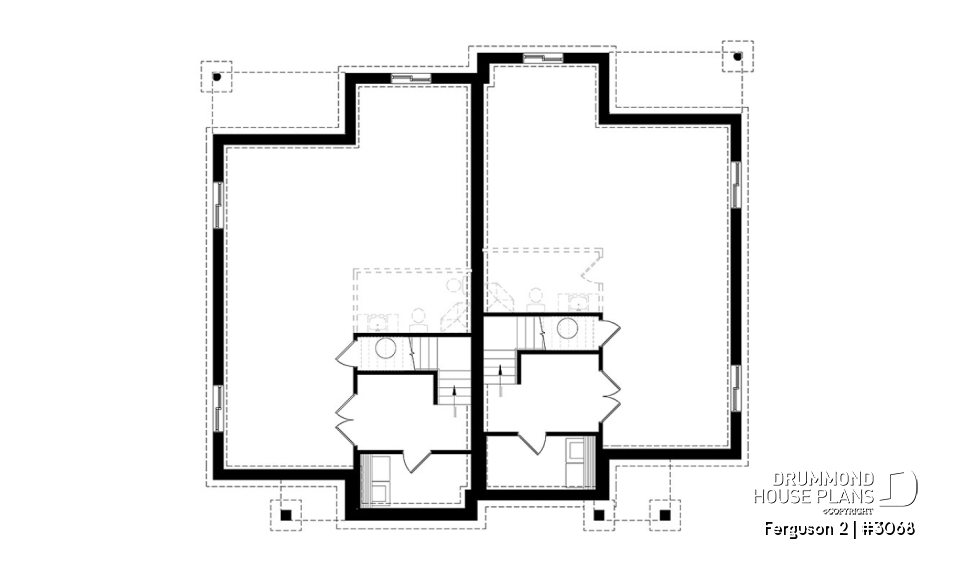

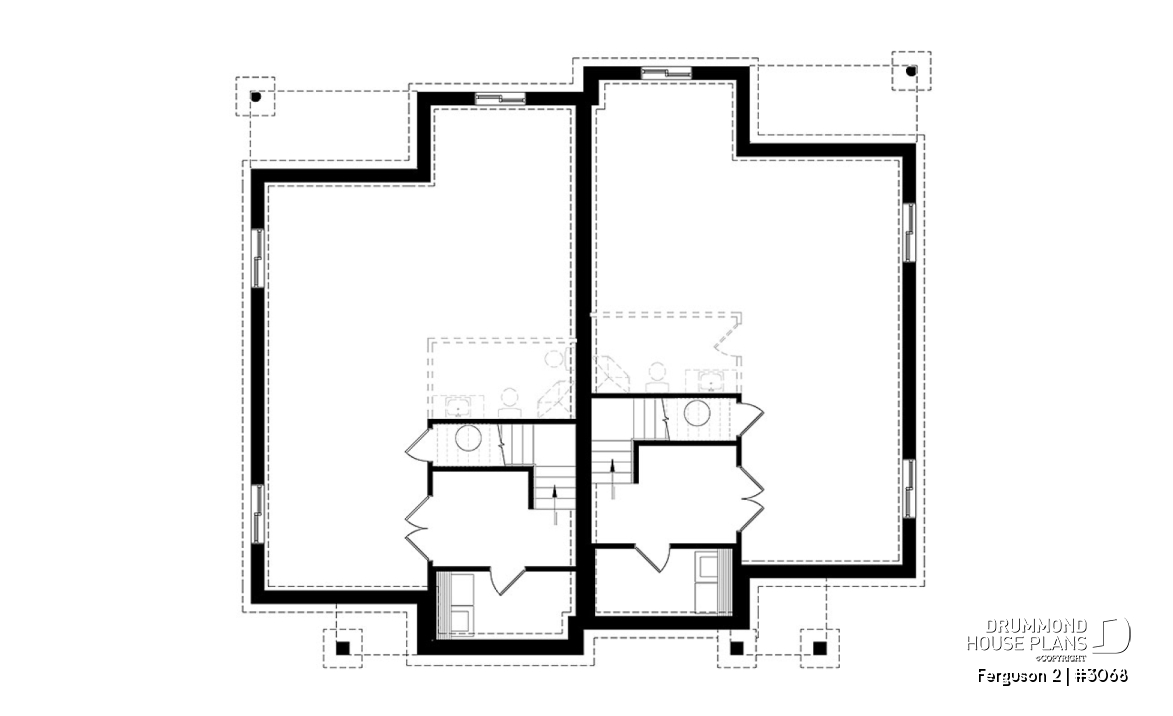

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Laundry room | 10'11" x 5'4" | ~ 8'0" |
| Laundry room | 10'9" x 5'4" | ~ 8'0" |
| Foyer | 11'3" x 7'6" | ~ 8'0" |
| Foyer | 11'5" x 7'8" | ~ 8'0" |

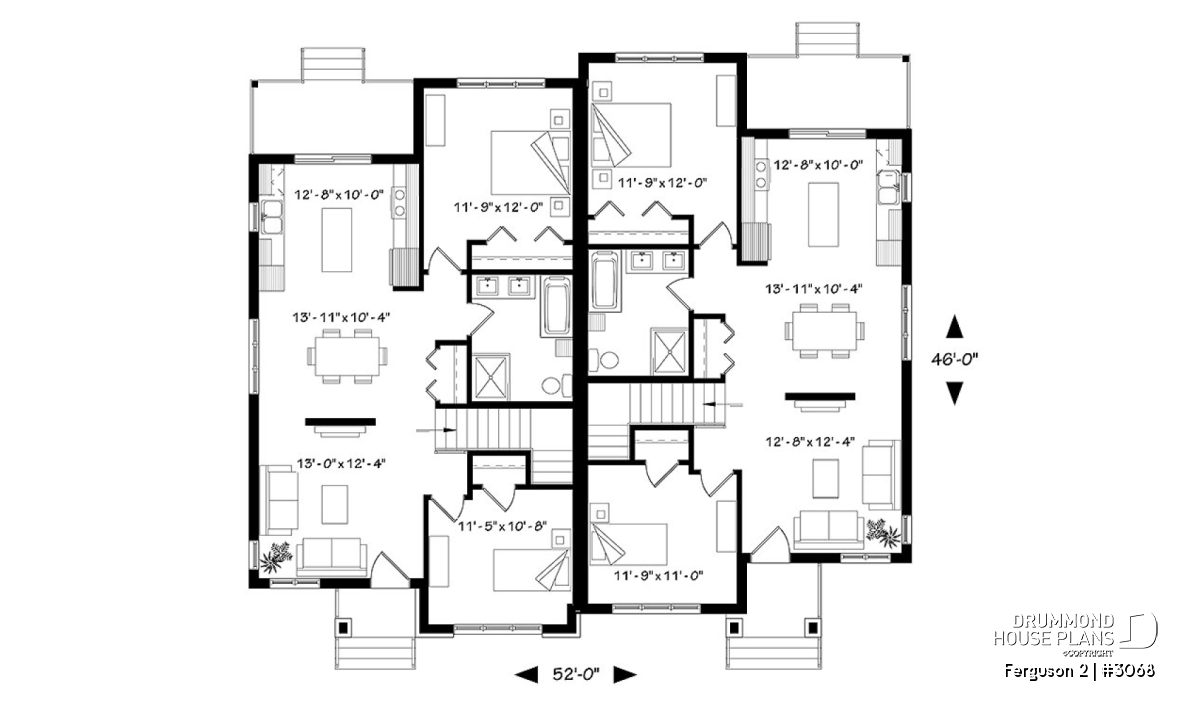

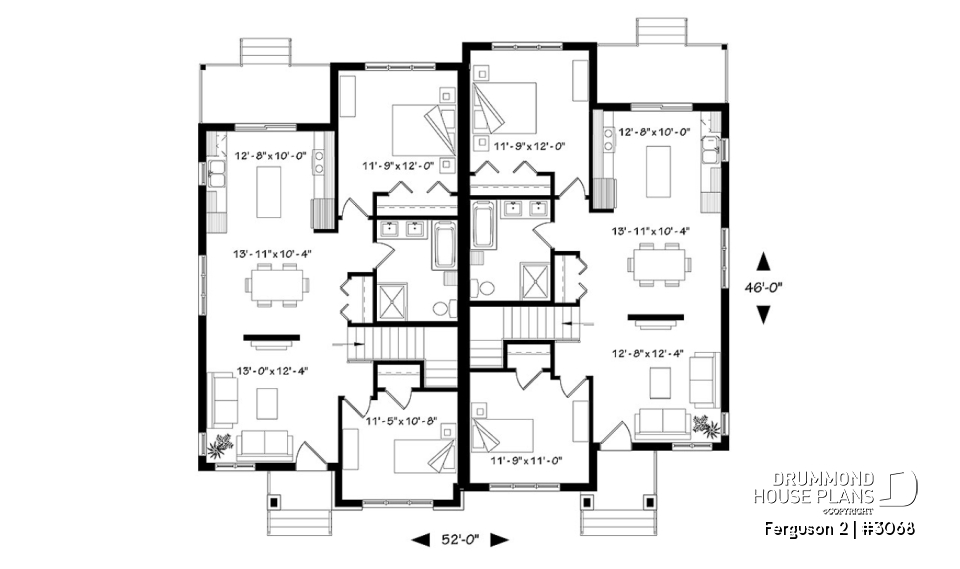

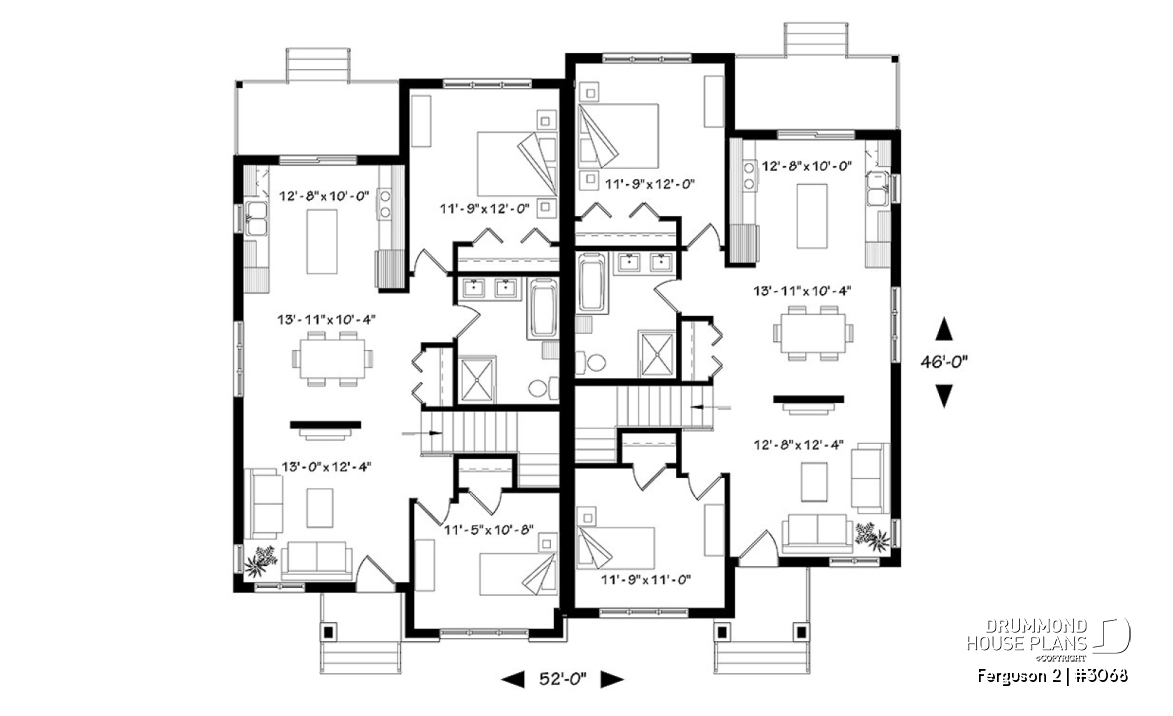

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'8" x 10'0" | ~ 9'0" |
| Kitchen | 12'8" x 10'0" | ~ 9'0" |
| Dining room | 13'11" x 10'4" | ~ 9'0" |
| Dining room | 13'11" x 10'4" | ~ 9'0" |
| Living room | 13'0" x 12'4" | ~ 9'0" |
| Living room | 12'8" x 12'4" | ~ 9'0" |
| Full bathroom | 8'0" x 10'0" | ~ 9'0" |
| Linen | 0'0" x 0'0" | N/A |
| Full bathroom | 8'0" x 10'0" | ~ 9'0" |
| Closet | 2'2" x 4'8" | ~ 9'0" |
| Closet | 2'2" x 4'8" | ~ 9'0" |
| Bedroom | 11'9" x 12'0" | ~ 9'0" |
| Closet | 8'0" x 2'0" | ~ 9'0" |
| Bedroom | 11'9" x 12'0" | ~ 9'0" |
| Closet | 8'0" x 2'0" | ~ 9'0" |
| Bedroom | 11'5" x 10'8" | ~ 9'0" |
| Shower | 4'3" x 2'4" | ~ 9'0" |
| Closet | 4'3" x 2'4" | ~ 9'0" |
| Bedroom | 11'9" x 11'0" | ~ 9'0" |
| Closet | 4'3" x 2'4" | ~ 9'0" |
| Covered porch | 6'4" x 4'0" | N/A |
| Covered porch | 6'0" x 6'0" | N/A |
| Covered porch | 13'0" x 6'0" | N/A |
| Covered porch | 13'0" x 6'0" | N/A |
General specifications
| Total living area | 2028 sq.ft. |
| Basement | 2028 sq.ft. |
| 1st level | 2028 sq.ft. |
| Width | 52'0" |
| Depth | 46'0" |
| Ridge height from top of foundation | 18'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | MB |
Rooms specifications
| Bedroom(s) | 2 |
| Full baths | 1 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 217 sq.ft. |
Units specifications
Other useful information on this plan

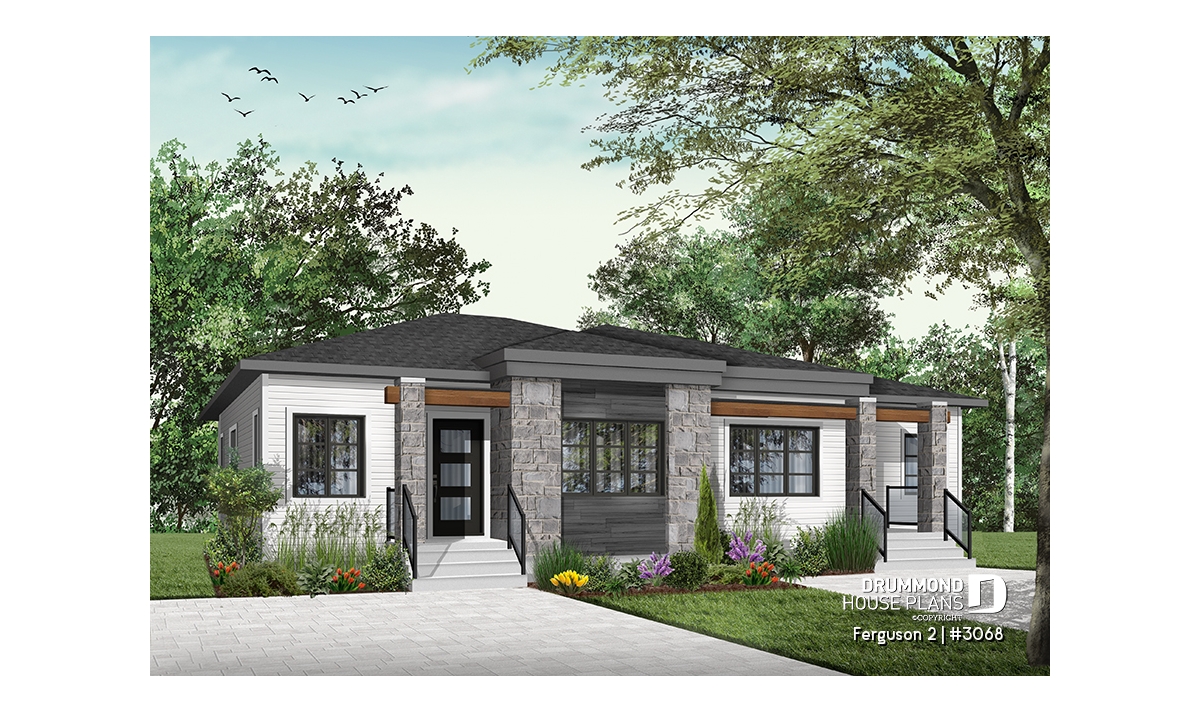

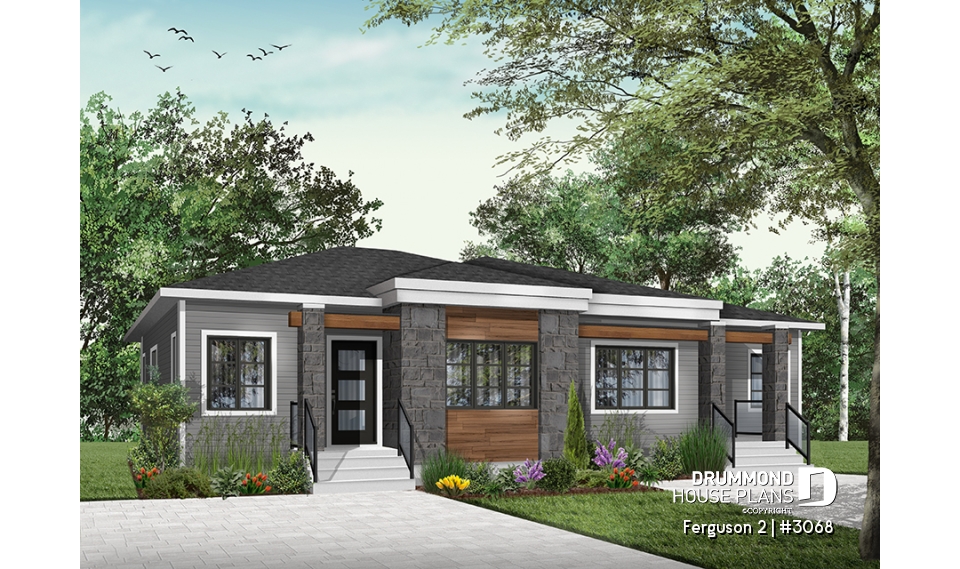

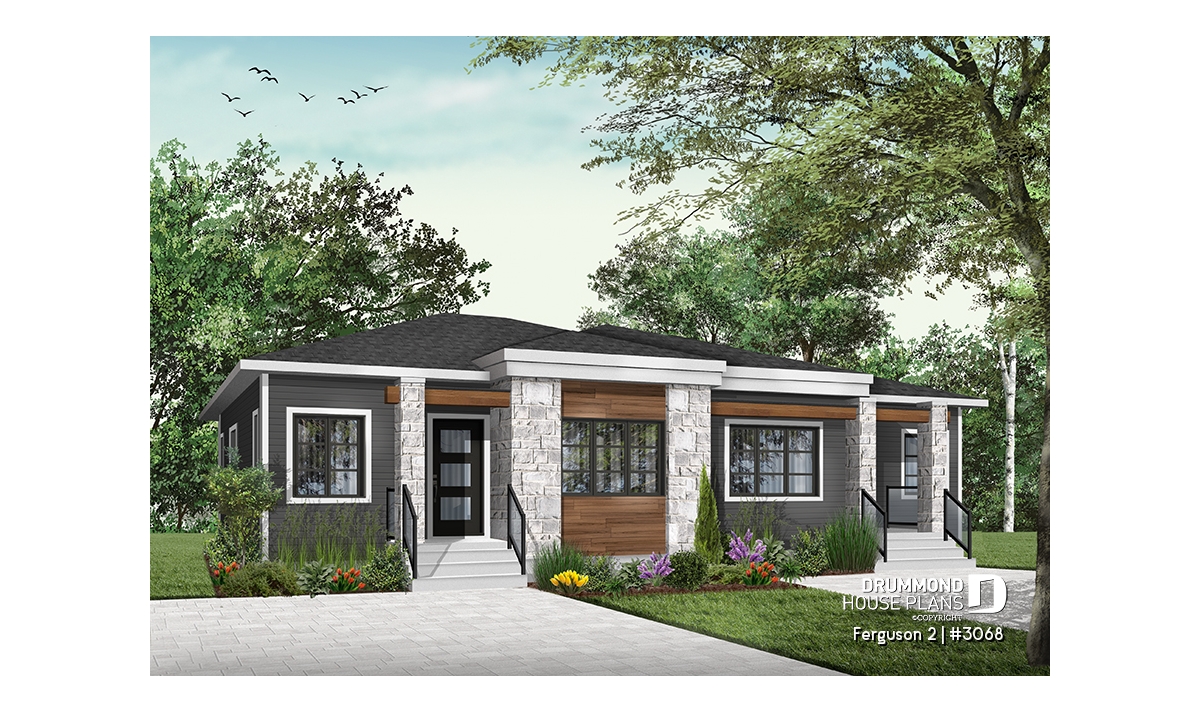

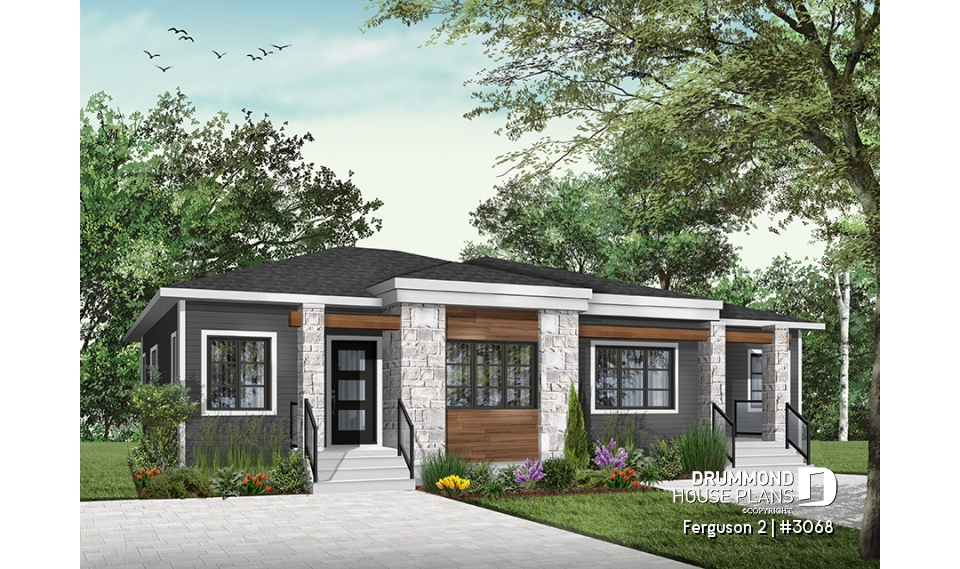

Contemporary style duplex plan with large kitchen and 2 bedrooms per unit!
Here is our new contemporary style duplex house plan, the new Plan # 3068 from Drummond House Plans, offering you beautiful spaces and potential in the basement for the future! The Ferguson 2 duplex model, which is a derivative of plan # 3067, offers an unfinished daylight basement to finished as you desire, and a single large family bathroom on the ground floor instead of two as its basic model. This version # 3068 of the basic model was designed for couples or families wishing to use the basement space to add bedrooms or a family room, a low costs. It should be noted that the ceiling of the ground floor is 9 feet everywhere, which gives significant amplitude to the rooms.

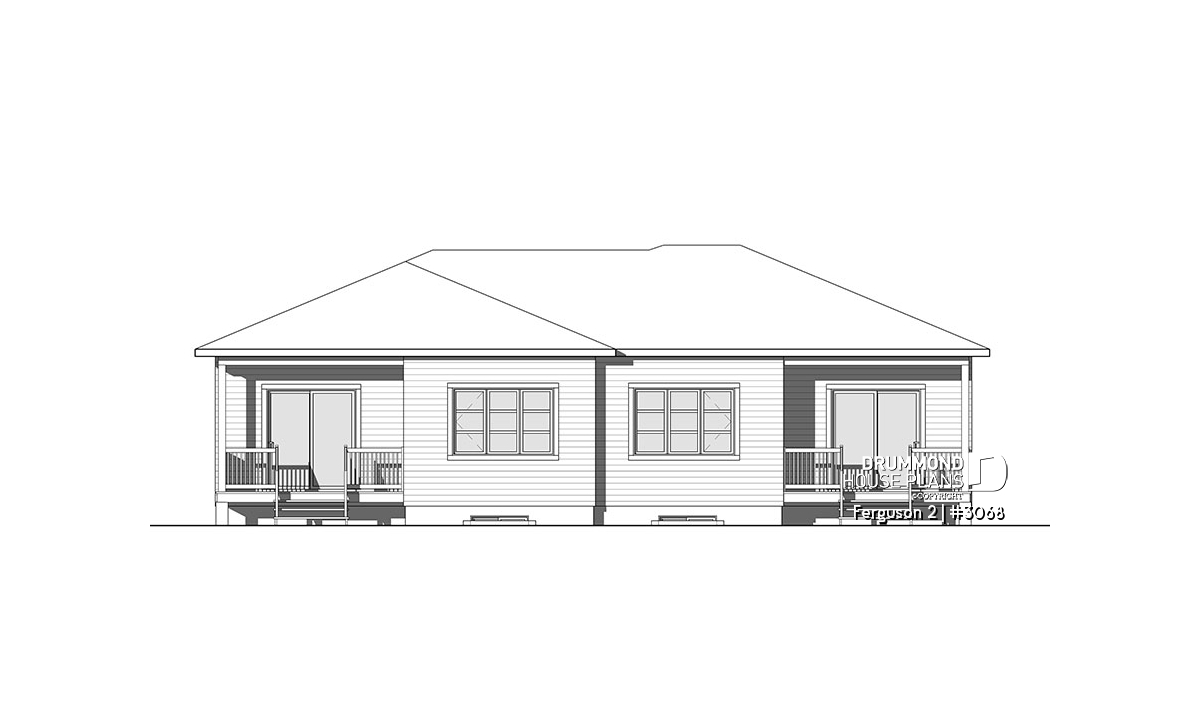

The kitchen is of good size and has a central island, convenient for meal preparation. In addition, a covered balcony is accessible from the kitchen making it easy to access a BBQ, for example. The dining area and living room (TV room) are separated by a partial wall, allowing for more tranquility. Convenient!
The master bedroom receives natural light from a large window overlooking the backyard. A large bathroom with separate bath and shower and a double vanity as well as a linen closet complete this area of the house. A secondary bedroom is located on the front of the house allowing it to be easily converted into a home office or gym, for example. A laundry area is provided in the basement. The latter, which is unfinished, could easily be converted into additional living space in the future and according to the needs of the occupants. Additional rooms, family room, office, you choose!
Please contact our plan modification department if you wish to make changes to this model [email protected] or 1-800-567-5267
Distinctive elements
Modern Contemporary Duplex house plan.
9' ceiling throughout main floor.

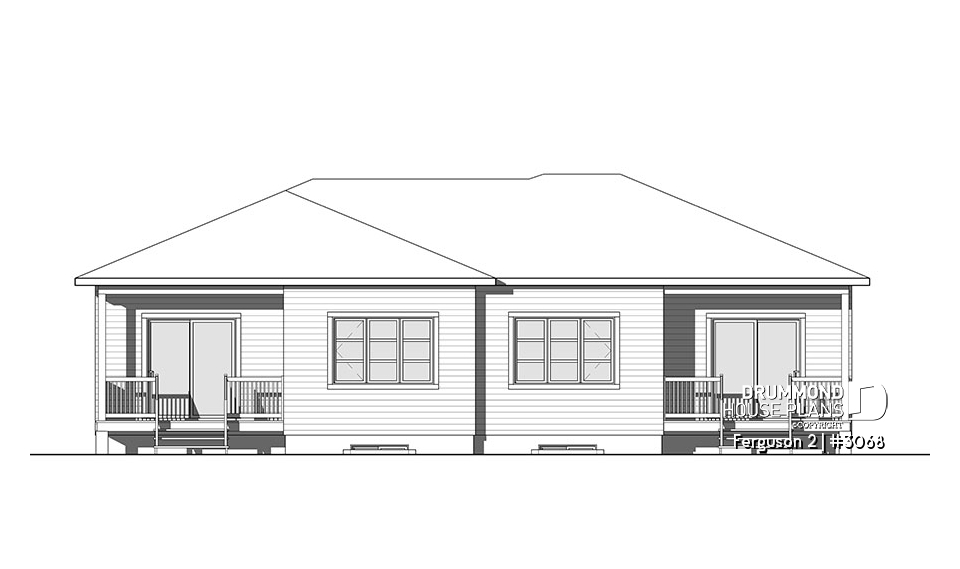

Covered rear balcony, very usefull for BBQ.
Large kitchen with island and patio doors.
Dining and living room separated by partial wall.
Master bedroom with lots of natural light.
Secondary bedroom that can easily be used as a home office.
A full bathroom bathroom for guests with double vanity.
Washer/dryer located in unfinished daylight basement.
Storage closet.
Plan feature(s)
Island, Ceiling over 8', Deck, Separate bath and shower, Double sinks
Plan architectural style(s)
. Contemporary, . Modern / Design, . Modern rustic, . Transitional, Modern Craftsman
