3065 (Seattle)

4 unit multi plex plan, 3 to 4 bedroom, cathedral ceiling, two-sided fireplace, various kitchen design options

Bedrooms

3, 4, 12

Bathroom(s)

6

Living area

5446 sq.ft.

  • front - BASE MODEL - 4 unit multi plex plan, 3 to 4 bedroom, cathedral ceiling, two-sided fireplace, various kitchen design options - Seattle

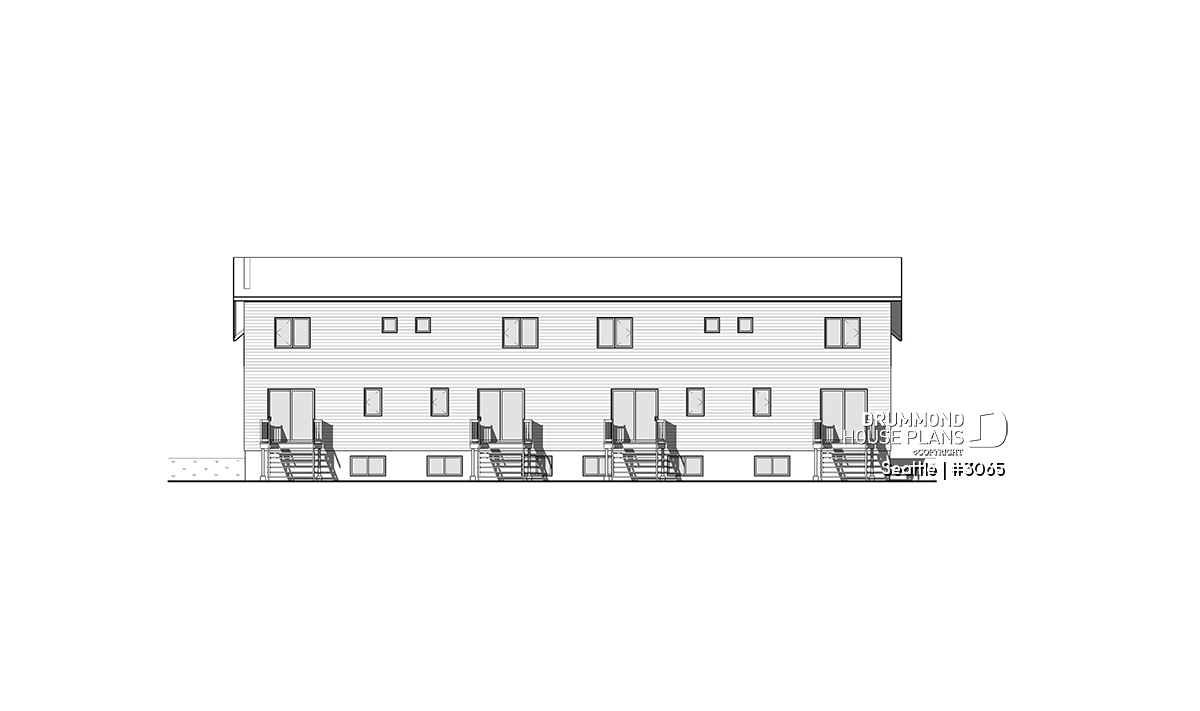

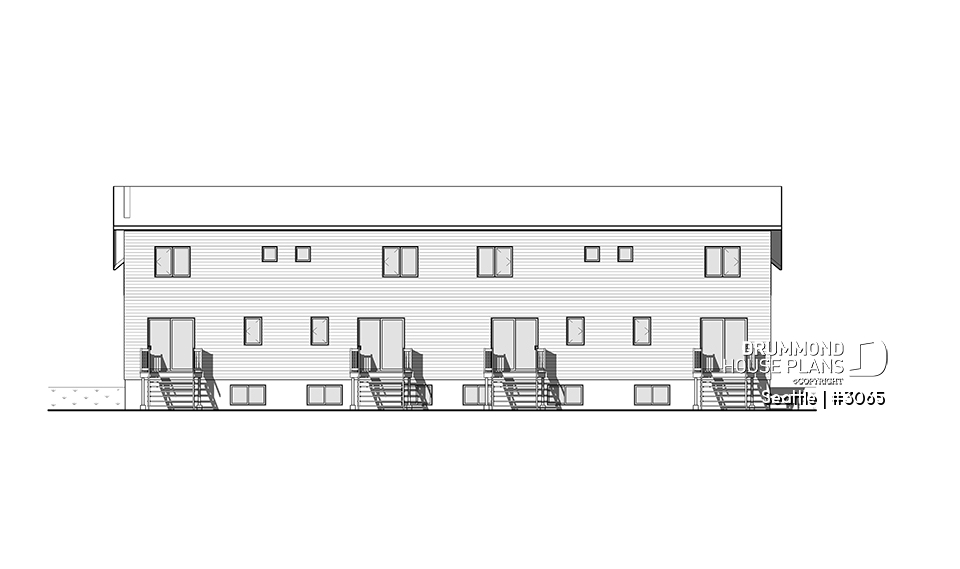

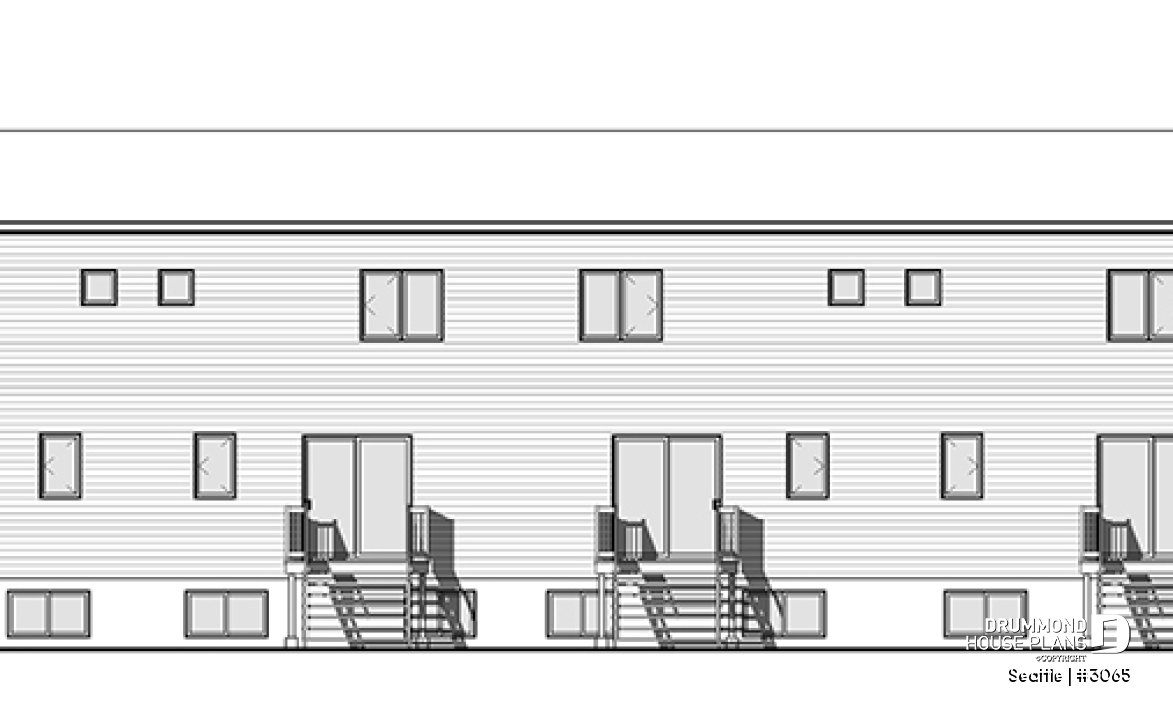

  • rear elevation - Seattle
  • Color version 1 - Front - Seattle
  • Color version 2 - Front - Seattle
  • Color version 3 - Front - Seattle
  • Color version 4 - Front - Seattle
  • Color version 5 - Front - Seattle
  • Color version 6 - Front - Seattle
  • Color version 7 - Front - Seattle
  • Color version 8 - Front - Seattle

front - BASE MODEL

rear elevation

Color version 1 - Front

Color version 2 - Front

Color version 3 - Front

Color version 4 - Front

Color version 5 - Front

Color version 6 - Front

Color version 7 - Front

Color version 8 - Front

Vignette front - BASE MODEL - 3065
Vignette rear elevation - 3065
Vignette Color version 1 - Front - 3065
Vignette Color version 2 - Front - 3065
Vignette Color version 3 - Front - 3065
Vignette Color version 4 - Front - 3065
Vignette Color version 5 - Front - 3065
Vignette Color version 6 - Front - 3065
Vignette Color version 7 - Front - 3065
Vignette Color version 8 - Front - 3065

View by floor

  • 1st level

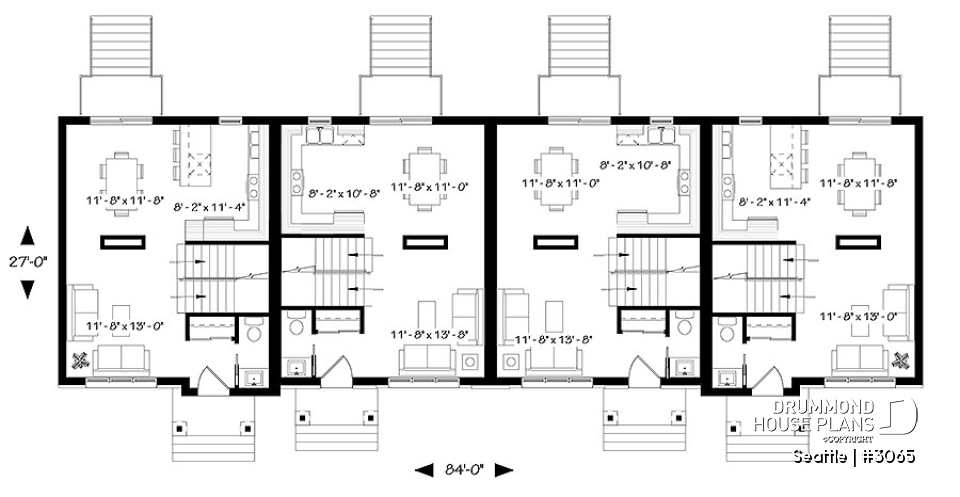

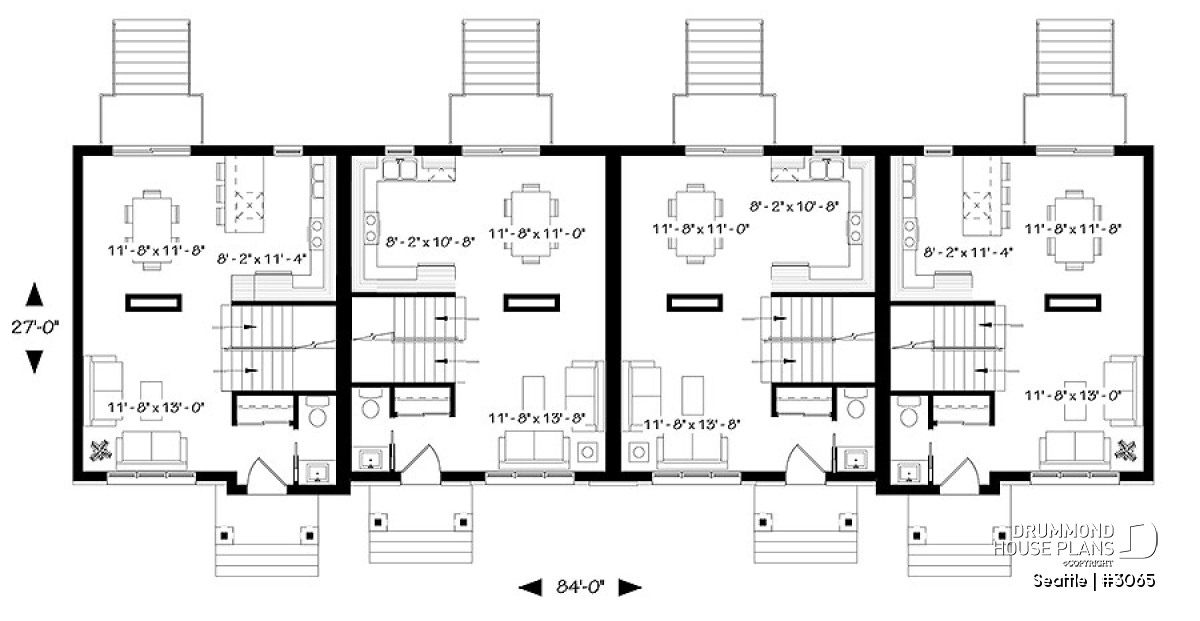

    1st level - 4 unit multi plex plan, 3 to 4 bedroom, cathedral ceiling, two-sided fireplace, various kitchen design options - Seattle
  • 2nd level

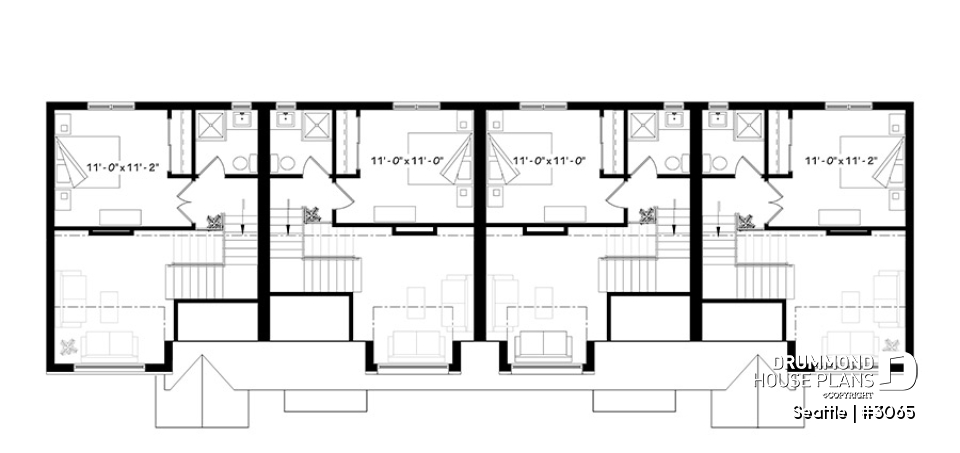

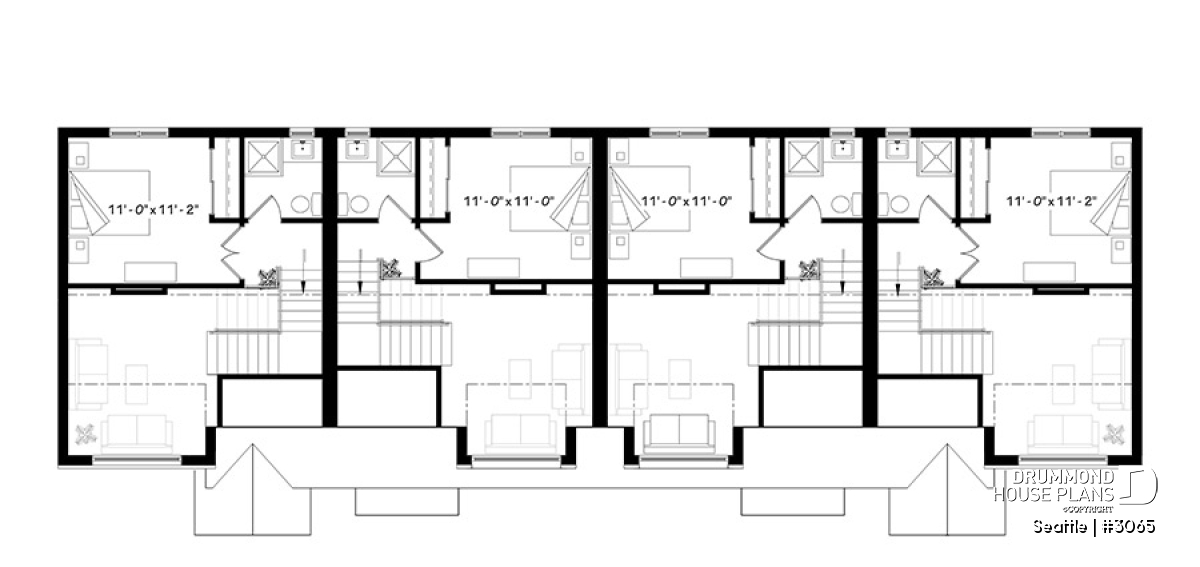

    2nd level - 4 unit multi plex plan, 3 to 4 bedroom, cathedral ceiling, two-sided fireplace, various kitchen design options - Seattle
  • Basement

    Basement - 4 unit multi plex plan, 3 to 4 bedroom, cathedral ceiling, two-sided fireplace, various kitchen design options - Seattle
Vignette 1st level - 3065
Vignette 2nd level - 3065
Vignette Basement - 3065

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Kitchen 8'2" x 11'4" ~ 8'0"
Dining room 11'8" x 11'8" ~ 8'0"
Living room 11'8" x 13'0" ~ 8'0"
Powder room 3'0" x 7'0" ~ 8'0"
Carport 4'10" x 4'8" ~ 8'0"
Foyer 4'10" x 4'8" ~ 8'0"
Covered porch 8'0" x 4'0" ~ 0'0"
Closet 4'6" x 2'0" ~ 8'0"
Kitchen 8'2" x 10'8" ~ 8'0"
Dining room 11'8" x 11'0" ~ 8'0"
Living room 11'8" x 13'8" ~ 8'0"
Closet 4'4" x 2'0" ~ 8'0"
Foyer 4'8" x 4'3" ~ 8'0"
Powder room 3'0" x 6'7" ~ 8'0"
Powder room 3'0" x 7'0" ~ 8'0"
Kitchen 8'2" x 11'4" ~ 8'0"
Foyer 4'10" x 4'8" ~ 8'0"
Closet 4'6" x 2'0" ~ 8'0"
Covered porch 8'0" x 4'0" ~ 0'0"
Living room 11'8" x 13'0" ~ 8'0"
Covered porch 8'0" x 4'0" ~ 0'0"
Porch 8'0" x 4'0" ~ 0'0"
Porch 8'0" x 4'0" ~ 0'0"
Powder room 3'0" x 6'7" ~ 8'0"
Kitchen 8'2" x 10'8" ~ 8'0"
Foyer 4'8" x 4'3" ~ 8'0"
Closet 4'4" x 2'0" ~ 8'0"
Covered porch 8'0" x 4'0" ~ 0'0"
Dining room 11'8" x 11'0" ~ 8'0"
Living room 11'8" x 13'8" ~ 8'0"
Porch 8'0" x 4'0" ~ 0'0"
Porch 8'0" x 4'0" ~ 0'0"
Basement
Rooms Sizes Ceiling
Powder room 3'0" x 7'0" ~ 8'0"
Kitchen 8'2" x 11'4" ~ 8'0"
Foyer 4'10" x 4'8" ~ 8'0"
Closet 4'6" x 2'0" ~ 8'0"
Covered porch 8'0" x 4'0" ~ 0'0"
Dining room 11'8" x 11'8" ~ 8'0"
Living room 11'8" x 13'0" ~ 8'0"
Powder room 3'0" x 7'0" ~ 8'0"
Kitchen 8'2" x 11'4" ~ 8'0"
Foyer 4'10" x 4'8" ~ 8'0"
Closet 4'6" x 2'0" ~ 8'0"
Covered porch 8'0" x 4'0" ~ 0'0"
Dining room 11'8" x 11'8" ~ 8'0"
Living room 11'8" x 13'0" ~ 8'0"
Bedroom 10'0" x 11'0" ~ 8'0"
Closet 4'6" x 2'0" ~ 8'0"
Bedroom 9'0" x 10'0" ~ 8'0"
Closet 5'4" x 2'0" ~ 8'0"
Laundry room 5'4" x 3'0" ~ 8'0"
Bathroom 8'8" x 6'7" ~ 8'0"
Office 10'4" x 7'10" ~ 8'0"
Laundry room 5'4" x 3'0" ~ 8'0"
Bedroom 10'0" x 11'0" ~ 8'0"
Closet 5'6" x 2'0" ~ 8'0"
Bedroom 9'0" x 10'0" ~ 8'0"
Closet 4'6" x 2'0" ~ 8'0"
Office 10'4" x 7'10" ~ 8'0"
Bathroom 8'8" x 6'7" ~ 8'0"
Laundry room 5'3" x 3'0" ~ 8'0"
Bedroom 10'6" x 10'4" ~ 8'0"
Closet 5'4" x 2'0" ~ 8'0"
Bedroom 9'0" x 10'4" ~ 8'0"
Closet 4'6" x 2'0" ~ 8'0"
Office 10'8" x 7'6" ~ 8'0"
Bathroom 8'10" x 6'7" ~ 8'0"
Laundry room 5'3" x 3'0" ~ 8'0"
Bedroom 10'6" x 10'4" ~ 8'0"
Closet 5'4" x 2'0" ~ 8'0"
Bedroom 9'0" x 10'4" ~ 8'0"
Closet 4'6" x 2'0" ~ 8'0"
Office 10'8" x 7'6" ~ 8'0"
Bathroom 8'10" x 6'7" ~ 8'0"
2nd level
Rooms Sizes Ceiling
Bedroom 11'0" x 11'4" ~ 8'0"
Closet 2'0" x 6'3" ~ 8'0"
Shower room or three quarter bath 6'0" x 6'3" ~ 8'0"
Bedroom 11'0" x 11'4" ~ 8'0"
Shower room or three quarter bath 6'0" x 6'3" ~ 8'0"
Bedroom 11'0" x 11'0" ~ 8'0"
Bedroom 11'0" x 11'0" ~ 8'0"
Shower room or three quarter bath 6'0" x 6'3" ~ 8'0"
Shower room or three quarter bath 6'0" x 6'3" ~ 8'0"

General specifications

Total living area 5446 sq.ft.
1st level 2224 sq.ft.
2nd level 998 sq.ft.
Basement 2224 sq.ft.
Width 84'0"
Depth 27'0"
Ridge height from top of foundation 25'2"
Exterior wall 2 X 6
Foundation type included in the plan Finished basement
Builder price code MH

Rooms specifications

Bedroom(s) 3, 4, 12
Full baths 6
Half baths 3
Garage type -
Living bonus space -
Bonus storage -

Units specifications

Unit A Unit B Unit C Unit D
Total living area 5446 sq.ft. 5446 sq.ft. 5446 sq.ft. 5446 sq.ft.
Basement 559 sq.ft. 553 sq.ft. 553 sq.ft. 559 sq.ft.
1st level 559 sq.ft. 553 sq.ft. 553 sq.ft. 559 sq.ft.
2nd level 257 sq.ft. 248 sq.ft. 248 sq.ft. 257 sq.ft.
Width 21' 0" 21' 0" 21' 0" 21' 0"
Depth 27' 0" 26' 4" 26' 4" 27' 0"
Ridge height from top of foundation 25' 2" 25' 2" 25' 2" 25' 2"
Exterior wall 2 X 6 2 X 6 2 X 6 2 X 6
Foundation type Finished basement Finished basement Finished basement Finished basement
Bedroom(s) 3 3 3 -
Full baths 2 2 2 2
Half baths 1 1 1 1
Garage type - - - -
Living bonus space - - - -
Bonus storage - - - -
Find a builder

General specifications

Total living area 5446 sq.ft.
1st level 2224 sq.ft.
Basement 2224 sq.ft.
2nd level 998 sq.ft.
Width 84'0"
Depth 27'0"
Ridge height from top of foundation 25'2"
Exterior wall 2 X 6
Foundation type included in the plan Finished basement i
Builder price code MH

Rooms specifications

Bedroom(s) 3, 4, 12
Full baths 6
Half baths 3
Garage type -
Living bonus space - i
Bonus storage - i

Units specifications

Unit A Unit B Unit C Unit D
Total living area 5446 sq.ft. 5446 sq.ft. 5446 sq.ft. 5446 sq.ft.
Basement 559 sq.ft. 553 sq.ft. 553 sq.ft. 559 sq.ft.
1st level 559 sq.ft. 553 sq.ft. 553 sq.ft. 559 sq.ft.
2nd level 257 sq.ft. 248 sq.ft. 248 sq.ft. 257 sq.ft.
Width 21' 0" 21' 0" 21' 0" 21' 0"
Depth 27' 0" 26' 4" 26' 4" 27' 0"
Ridge height from top of foundation 25' 2" 25' 2" 25' 2" 25' 2"
Exterior wall 2 X 6 2 X 6 2 X 6 2 X 6
Foundation type Finished basement Finished basement Finished basement Finished basement
Bedroom(s) 3 3 3 -
Full baths 2 2 2 2
Half baths 1 1 1 1
Garage type - - - -
Living bonus space - - - -
Bonus storage - - - -

Buy this plan

From : 1769$

Modify this plan

Get a quote

Description

Finished basement: 2 secondary bedrooms, full bathroom, laundry area, storage, study. Main floor: Entry hall, half bath, living room, dining room and kitchen. Second floor: Master bedroom, shower room, mezzanine overlooking the living room.

Other useful information on this plan

A very efficient 4 unit multi-family house plan (or quad plex plans)!

Drummond Designs suggest here a 4 unit multi-family house plan, of a modern rustic style, with a combination of stone and siding. The floor layout is designed to maximize each floor and offer affordable building costs (basement being fully utilized) while maintaining a beautiful interior brightness due to the large windows and cathedral ceilings attributed to the living area, at the front of the house.

Note that there is a rear terrace (patio) for each of the four units.

Inside, each unit suggests a well windowed activities area with large windows in the living room and double patio doors in the dining room to access the terrace. Added to this, a double-sided fireplace in each unit, a kitchen island or not, depending on the choice of kitchen layout you make, and a half-bath on the ground floor, handy for the guests. Not to mention, three good size bedrooms, two of them in the basement with full bathroom and the master bedroom which is located upstairs with its private shower room. Finally a computer corner, a storage closet and a laundry area are located in the finished basement.
