House plan Lucinda 3 (3049-V2)
Very stylish modern duplex plan with 3 bedrooms, 2 baths, living room, family room and affordable construction
View the size of the rooms and height of the ceilings

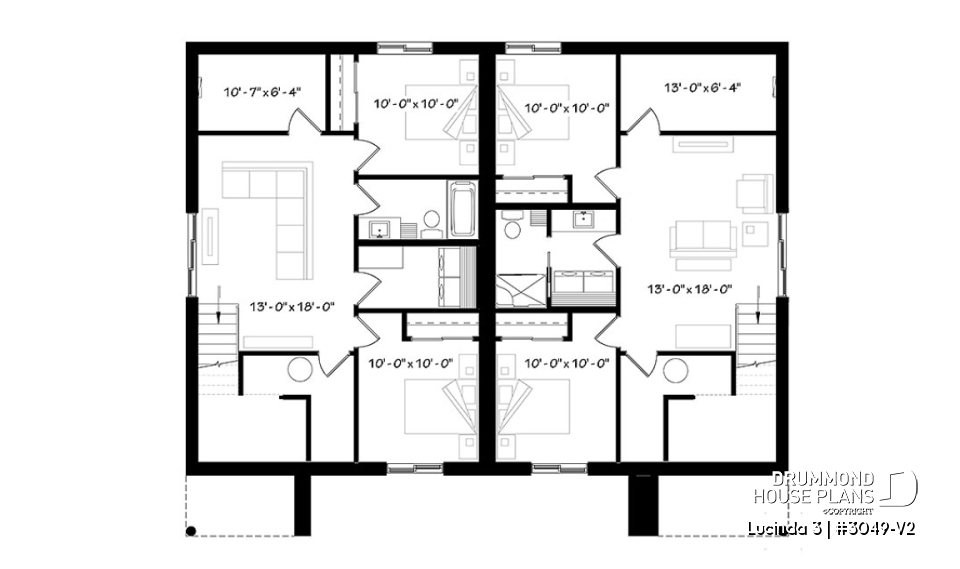

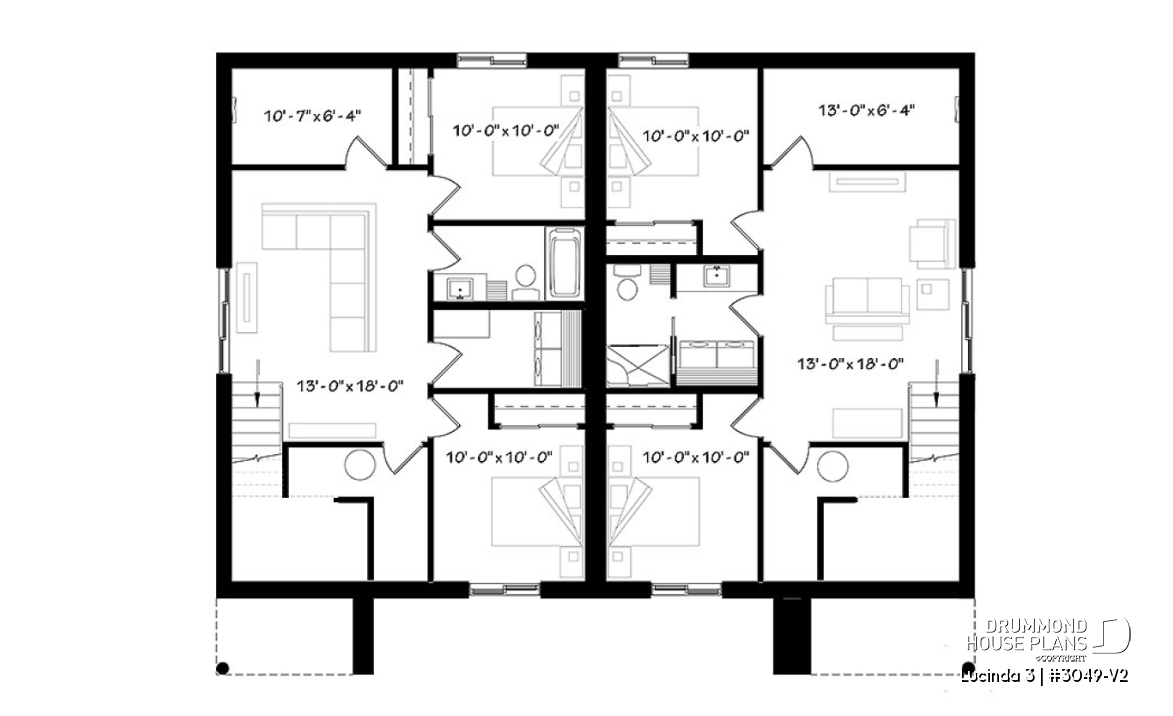

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Workshop | 13'7" x 0'4" | ~ 8'0" |
| Workshop | 10'7" x 6'4" | ~ 8'0" |
| Laundry room | 9'9" x 5'2" | ~ 8'0" |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Closet | 5'10" x 2'0" | ~ 8'0" |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Closet | 5'10" x 2'0" | ~ 8'0" |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Closet | 5'10" x 2'0" | ~ 8'0" |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Shower | 6'4" x 2'0" | ~ 8'0" |
| Closet | 6'4" x 2'0" | ~ 8'0" |
| Storage | 12'9" x 8'6" | ~ 8'0" |
| Storage | 12'9" x 8'6" | ~ 8'0" |
| Bathroom/laundry room | 10'0" x 8'2" | ~ 8'0" |
| Linen | 0'0" x 0'0" | N/A |
| Playroom | 12'9" x 17'11" | ~ 8'0" |
| Playroom | 12'9" x 17'11" | ~ 8'0" |
| Bathroom | 10'0" x 5'0" | N/A |

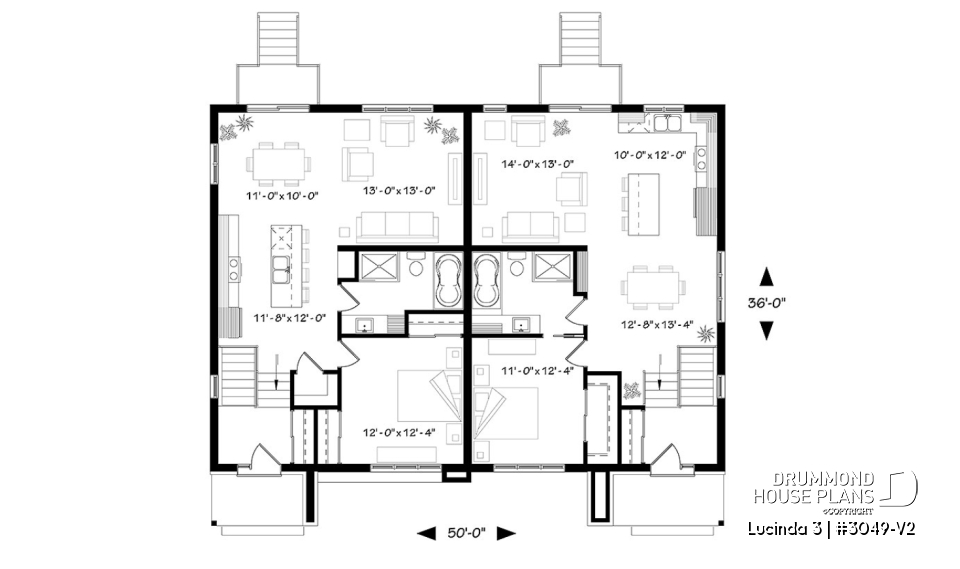

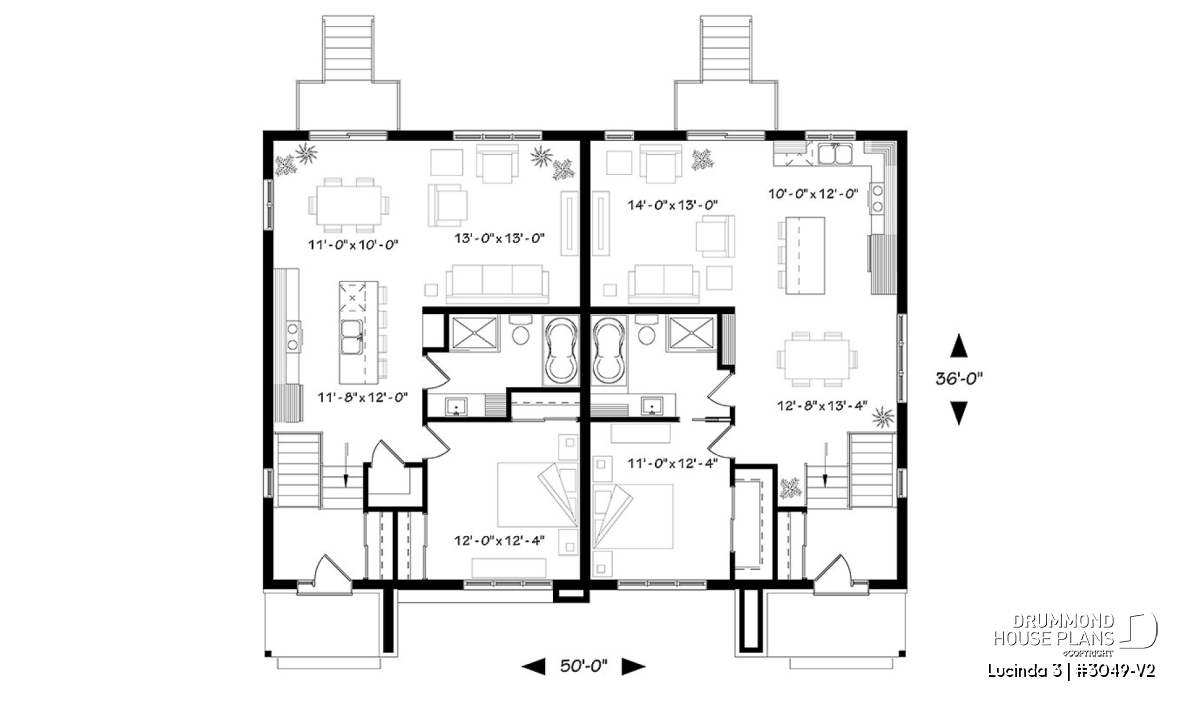

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'9" x 12'4" | ~ 9'0" |
| Closet | 2'0" x 5'4" | ~ 8'0" |
| Closet | 5'4" x 2'0" | ~ 8'0" |
| Kitchen/dinette | 11'8" x 12'0" | ~ 9'0" |
| Bedroom | 10'9" x 12'4" | ~ 9'0" |
| Walk-in closet | 3'0" x 8'8" | ~ 8'0" |
| Kitchen/dinette | 10'0" x 12'0" | ~ 9'0" |
| Foyer | 7'0" x 5'8" | ~ 12'4" |
| Closet | 2'0" x 5'5" | ~ 11'5" |
| Foyer | 7'0" x 5'8" | ~ 12'4" |
| Shower | 2'0" x 5'5" | ~ 11'5" |
| Closet | 2'0" x 5'5" | ~ 11'5" |
| Pantry | 4'4" x 3'0" | ~ 9'0" |
| Dining room | 11'0" x 10'0" | ~ 9'0" |
| Dining room | 12'8" x 13'4" | ~ 9'0" |
| Full bathroom | 11'9" x 8'1" | ~ 9'0" |
| Full bathroom | 10'9" x 8'1" | ~ 9'0" |
| Living room | 12'9" x 13'0" | ~ 9'0" |
| Living room | 13'9" x 13'0" | ~ 9'0" |
| Terrace | 8'0" x 4'0" | N/A |
| Terrace | 8'0" x 4'0" | N/A |
| Covered porch | 9'0" x 5'0" | N/A |
| Covered porch | 10'9" x 5'0" | N/A |
General specifications
| Total living area | 3580 sq.ft. |
| Basement | 1790 sq.ft. |
| 1st level | 1790 sq.ft. |
| Width | 50'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 21'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | ME |
Rooms specifications
| Bedroom(s) | 2, 3 |
| Full baths | 2 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 99 sq.ft. |
Units specifications
Other useful information on this plan
Contemporary duplex house plan with different floor plan layouts
This contemporary style duplex with the master bedroom on the first floor will be sure to impress you!
This innovative design offers two different first floor layouts and the roomy entrance with a 6' closet will be sure to please many.
The kitchen offers a comfortable island that can sit 3 to 4 guests with a wonderfully walk-in pantry in the left unit
The master bedroom being on the main floor, 2 good sized secondary bedrooms are found in the daylight basement with a leasure room and lots of storage space.
You will also note that in the left unit, an independent laundry room is suggested and is strategically located. This floor plan can easily be interchangeable to your taste and needs.
Distinctive elements
Modern style duplex plan.
Two different floor plan layouts (for each unit).
Open floor plan layouts and large kitchen island for both units.
3 bedrooms per unit and master bedroom located on main floor.
2 full bathroom on each unit.
Extra storage in finished basement.
Plan feature(s)
Pantry, Island, Panoramic view, Ceiling over 8', Walk-in master bed.
Plan architectural style(s)
. Contemporary, . Modern / Design, . Mid-century
