Lucinda (3049)
Duplex house plan with 3 bedrooms per unit, split entry, master bedroom on main floor, 2 bathrooms
View the size of the rooms and height of the ceilings

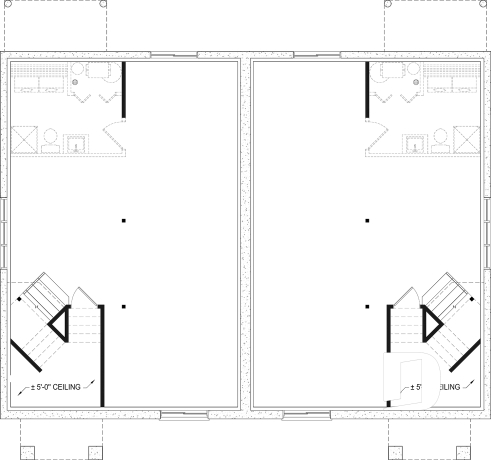

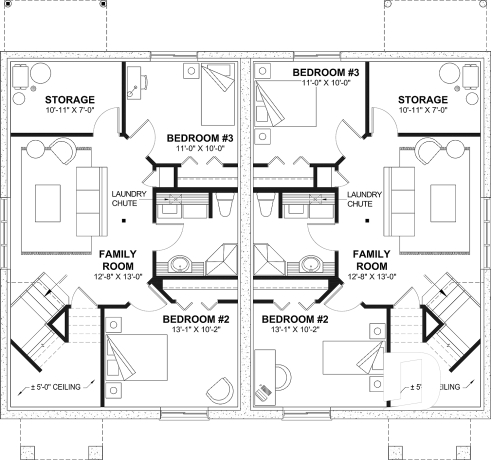

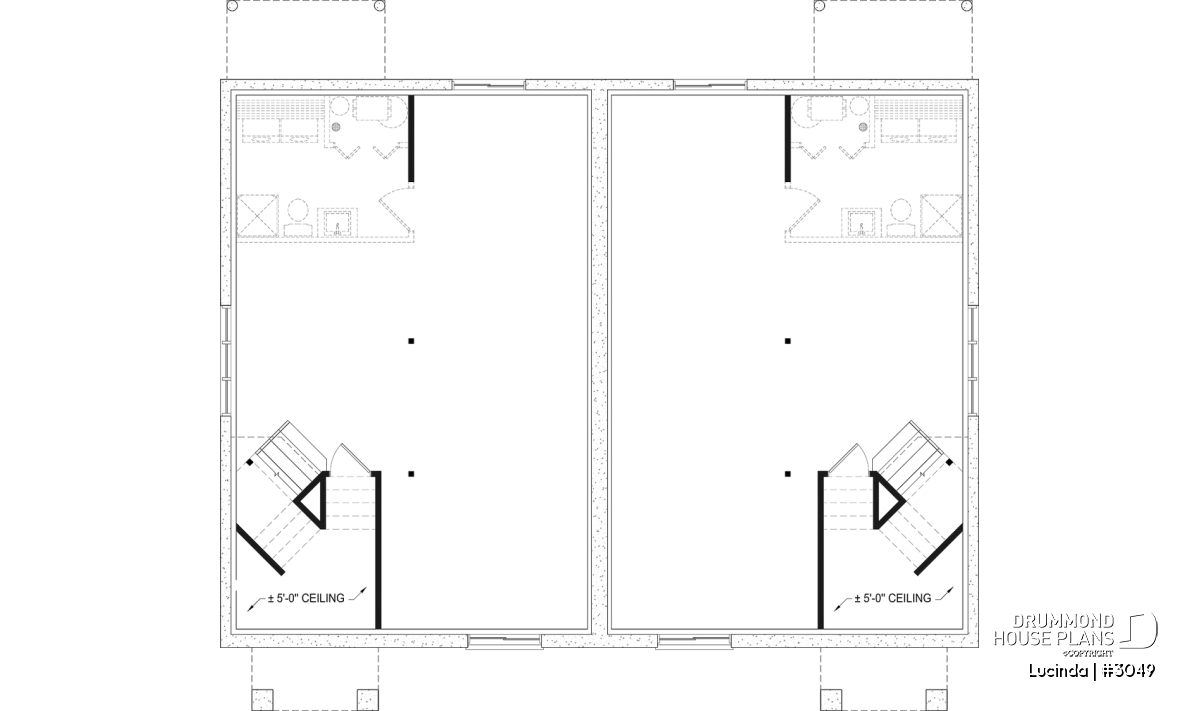

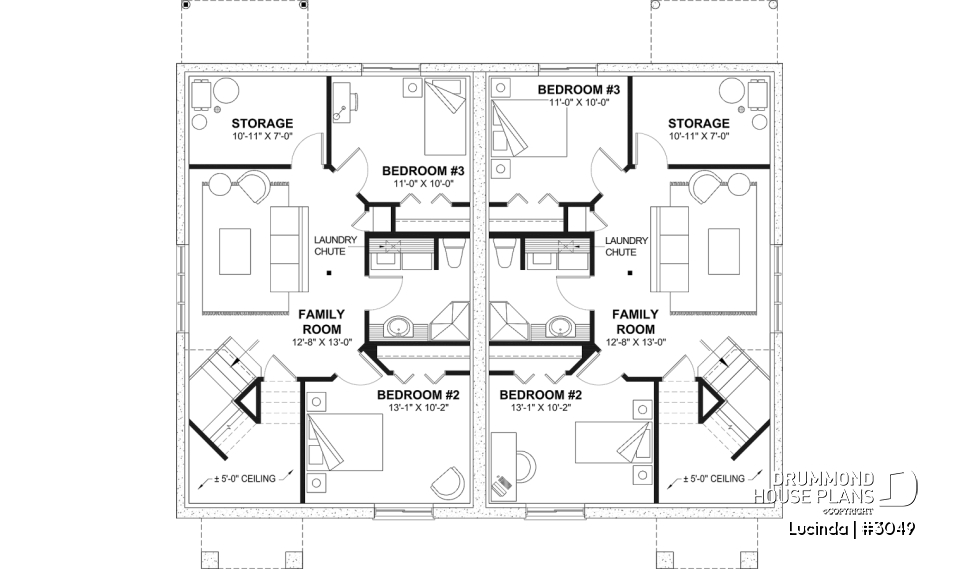

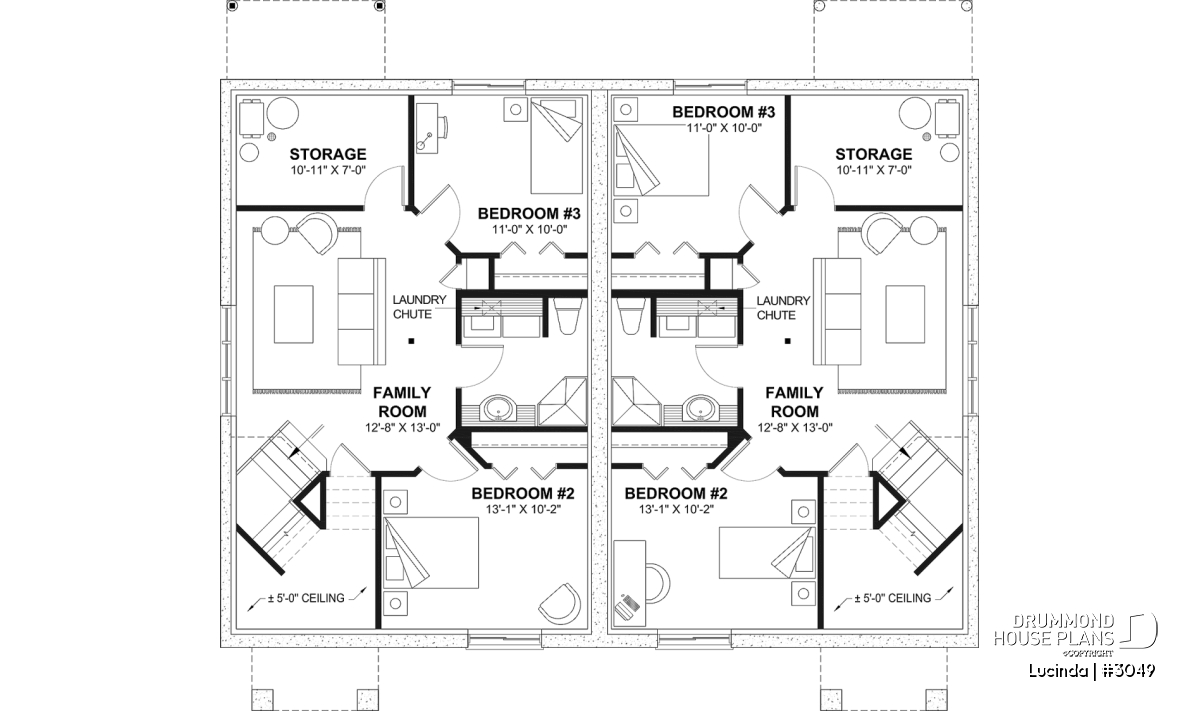

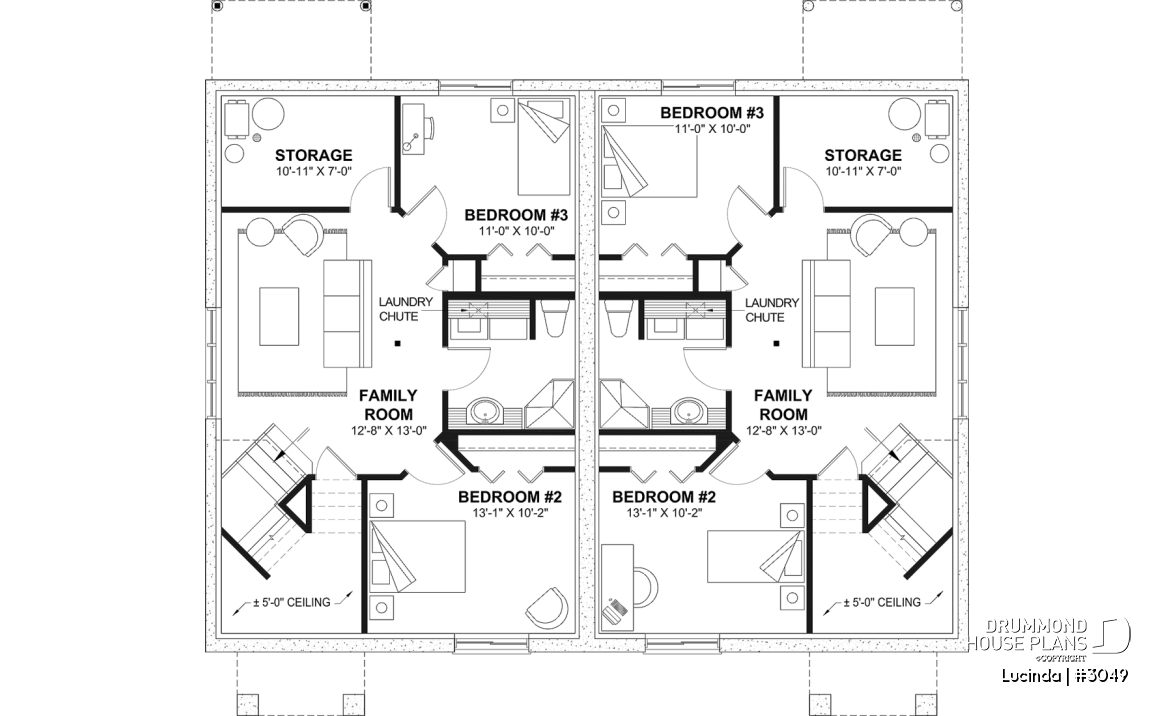

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Great room or Family room | 14'0" x 16'6" | ~ 8'0" |
| Full bathroom | 8'0" x 8'2" | ~ 8'0" |
| Bedroom | 13'2" x 10'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'0" | ~ 8'0" |
| Storage | 10'11" x 7'0" | ~ 8'0" |
| Linen | 1'8" x 2'0" | ~ 8'0" |
| Storage | 8'10" x 9'6" | N/A |
| Bedroom | 13'2" x 10'0" | ~ 8'0" |
| Closet | 7'6" x 2'0" | ~ 8'0" |
| Linen | 1'8" x 2'0" | ~ 8'0" |
| Storage | 10'11" x 7'0" | ~ 8'0" |
| Storage | 8'10" x 9'6" | N/A |
| Full bathroom | 8'0" x 8'2" | ~ 8'0" |
| Great room or Family room | 14'0" x 16'6" | ~ 8'0" |
| Bedroom | 11'0" x 10'0" | ~ 8'0" |
| Closet | 6'0" x 2'0" | ~ 8'0" |

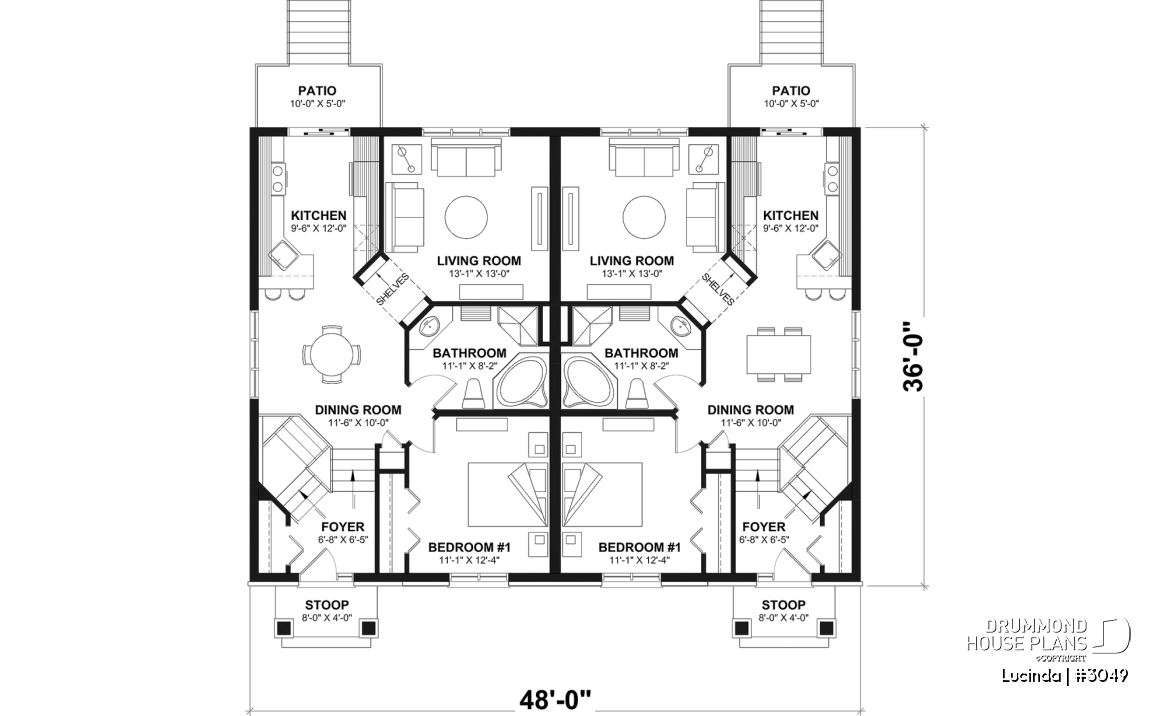

| 1st level | ||
|---|---|---|

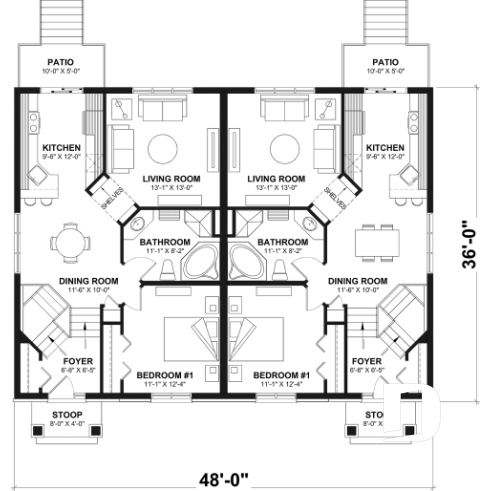

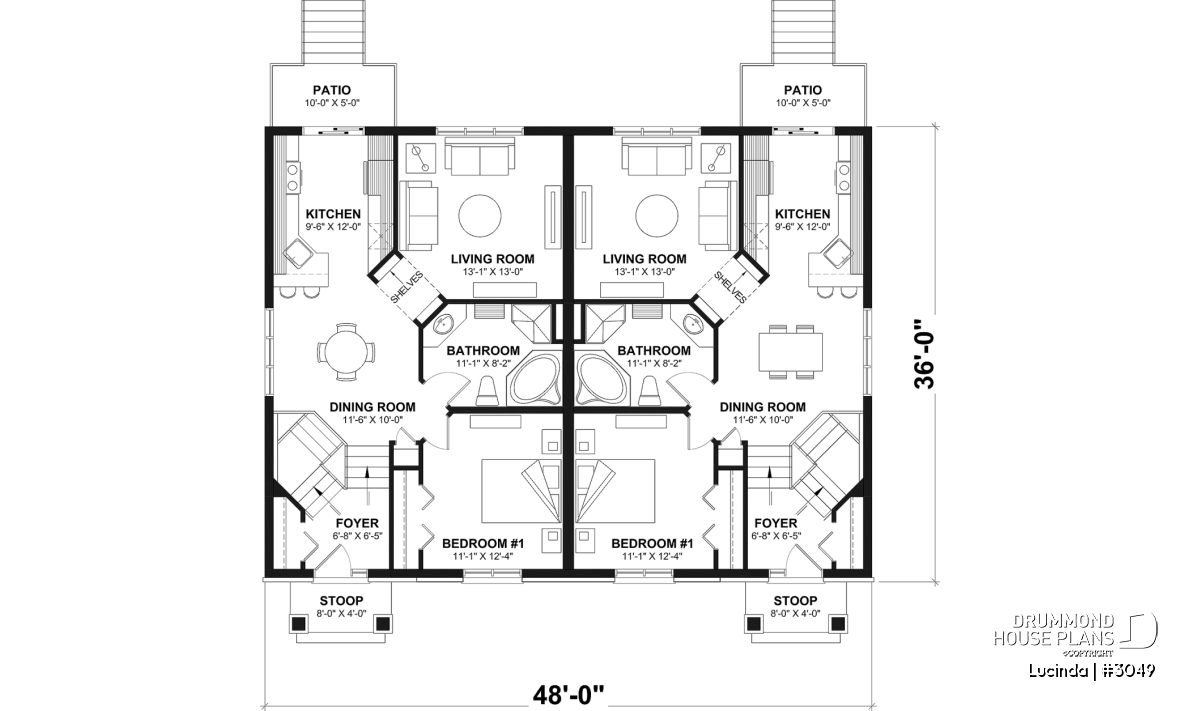

| Rooms | Sizes | Ceiling |
| Bedroom | 11'0" x 12'4" | ~ 8'0" |
| Full bathroom | 11'0" x 8'2" | ~ 8'0" |
| Living room | 13'0" x 13'0" | ~ 8'0" |
| Dining room | 11'6" x 10'10" | ~ 8'0" |
| Kitchen | 9'6" x 11'0" | ~ 8'0" |
| Foyer | 6'8" x 6'6" | ~ 11'5" |
| Linen | 1'8" x 2'0" | ~ 8'0" |
| Porch | 7'10" x 4'0" | N/A |
| Deck | 10'0" x 5'0" | N/A |
| Bedroom | 11'0" x 12'4" | ~ 8'0" |
| Closet | 2'0" x 7'10" | ~ 8'0" |
| Kitchen | 9'6" x 11'0" | ~ 8'0" |
| Pantry | 2'0" x 2'0" | ~ 8'0" |
| Foyer | 6'8" x 6'6" | ~ 11'5" |
| Closet | 2'2" x 5'8" | ~ 11'5" |
| Linen | 1'8" x 2'0" | ~ 8'0" |
| Porch | 7'10" x 4'0" | N/A |
| Dining room | 11'6" x 10'10" | ~ 8'0" |
| Full bathroom | 11'0" x 8'2" | ~ 8'0" |
| Living room | 13'0" x 13'0" | ~ 8'0" |
| Deck | 10'0" x 5'0" | N/A |
General specifications
| Total living area | 3456 sq.ft. |
| Basement | 1728 sq.ft. |
| 1st level | 1728 sq.ft. |
| Width | 48'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 20'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | MD |
Rooms specifications
Units specifications
Other useful information on this plan
Duplex house plan with 3 beds per unit, split entry and 2 family rooms on each unit
.
Distinctive elements
Original entry with dining room on a mezzanine and closet on same level. Good dimensions for every room. Laundry chute in complete bathroom on 1st level. Nice family room on lower level. Strategic angle walls like the one separating the living room from the dining room, organized with shelves for additional storage.
Plan feature(s)
Lunch counter, Panoramic view, Game room
Plan architectural style(s)
. Transitional, . Country, . European, . Traditional, . American
