Eastman (3062)
Buy this planFrom 1595$ See prices and options
Eastman (3062)
Country style multi-family home, 2 to 3 bedroom option, small and affordable
Buy this plan
Need help?
Come see us
View the size of the rooms and height of the ceilings

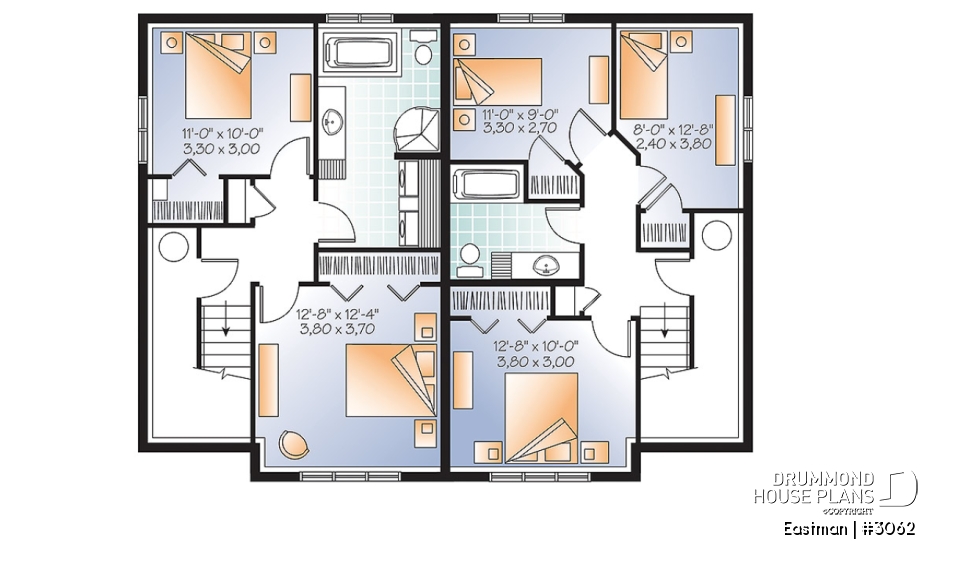

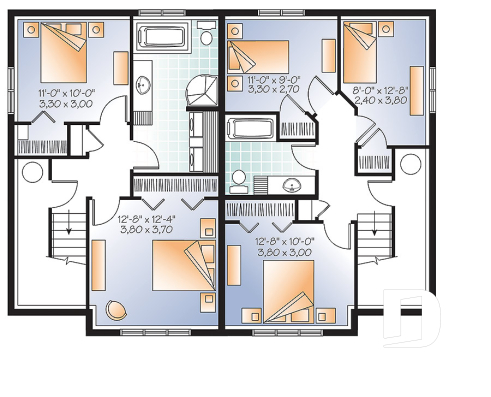

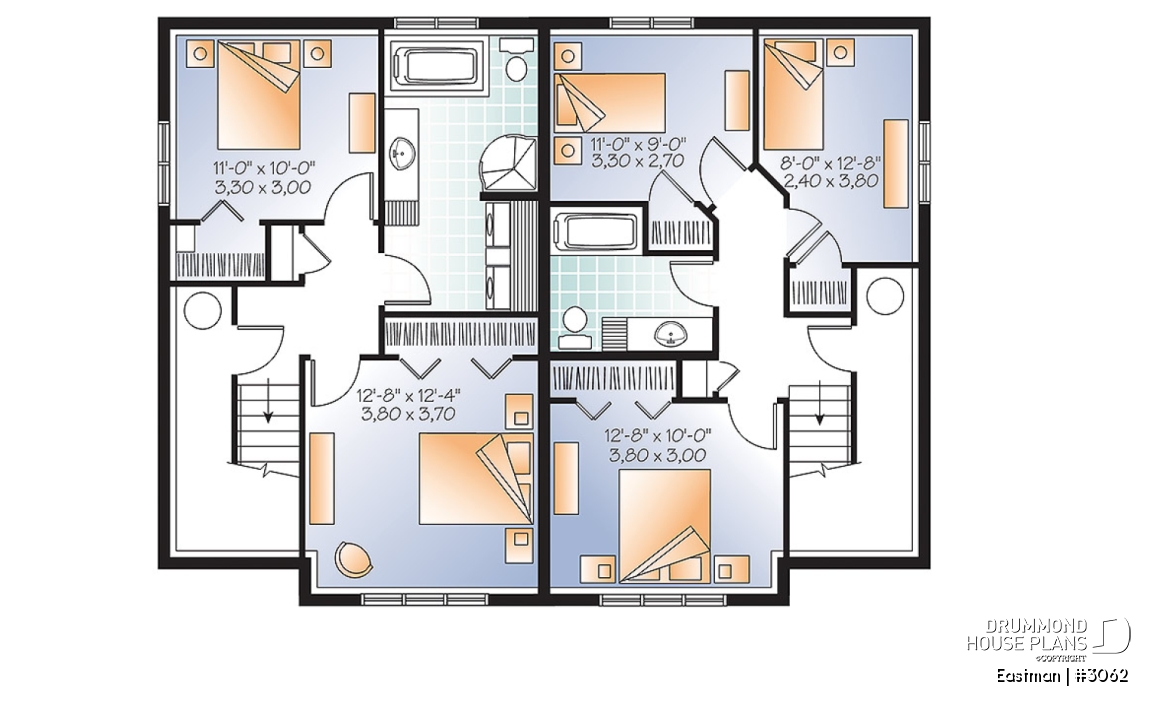

Basement | ||
---|---|---|
Rooms | Sizes | Ceiling |
Bedroom | 12'4" x 12'4" | ~ 7'10" |
Closet | 8'4" x 2'0" | ~ 7'10" |
Bedroom | 11'0" x 10'0" | ~ 7'10" |
Walk-in closet | 4'10" x 3'0" | ~ 7'10" |
Bathroom/laundry room | 8'4" x 15'0" | ~ 7'10" |
Linen | 1'4" x 1'10" | N/A |
Storage | 3'0" x 6'4" | ~ 7'10" |
Linen | 1'6" x 3'0" | ~ 7'10" |
Bedroom | 12'4" x 10'0" | ~ 7'10" |
Closet | 6'10" x 2'0" | ~ 7'10" |
Bedroom | 10'10" x 9'0" | ~ 7'10" |
Closet | 3'6" x 2'4" | ~ 7'10" |
Bedroom | 8'0" x 12'4" | ~ 7'10" |
Closet | 3'4" x 2'4" | ~ 7'10" |
Bathroom | 8'10" x 7'10" | ~ 7'10" |
Linen | 1'4" x 1'10" | N/A |
Linen | 1'8" x 2'0" | ~ 7'10" |
Storage | 3'0" x 6'4" | ~ 7'10" |

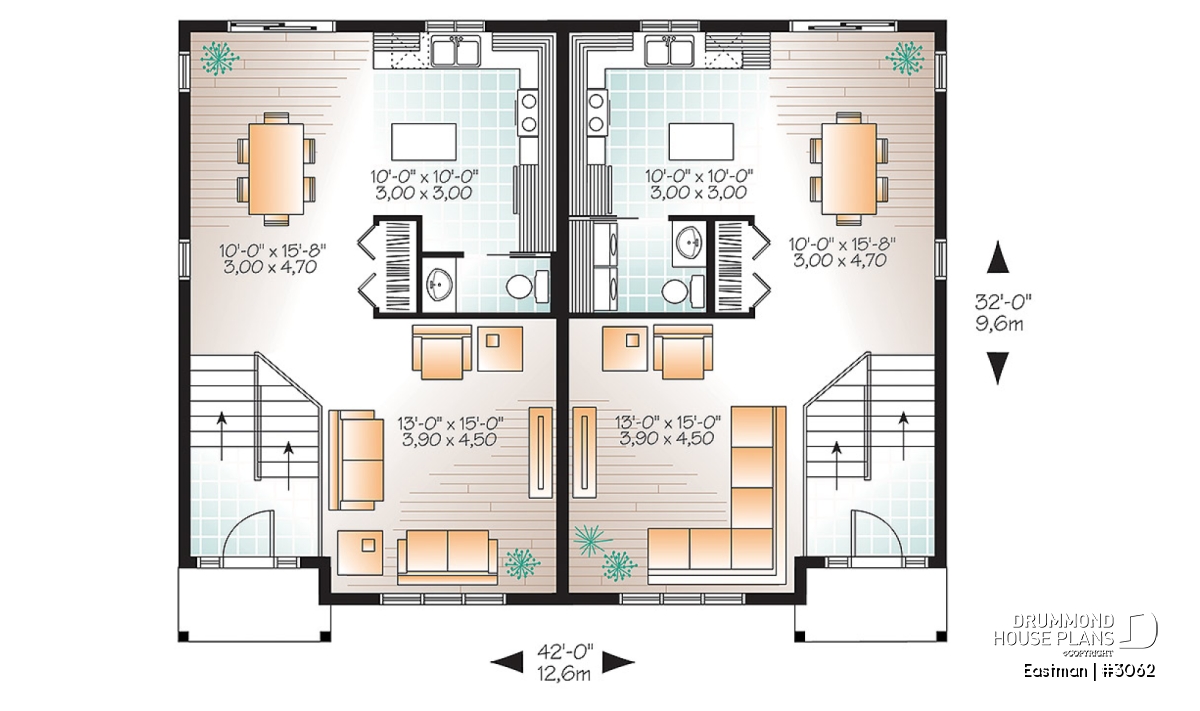

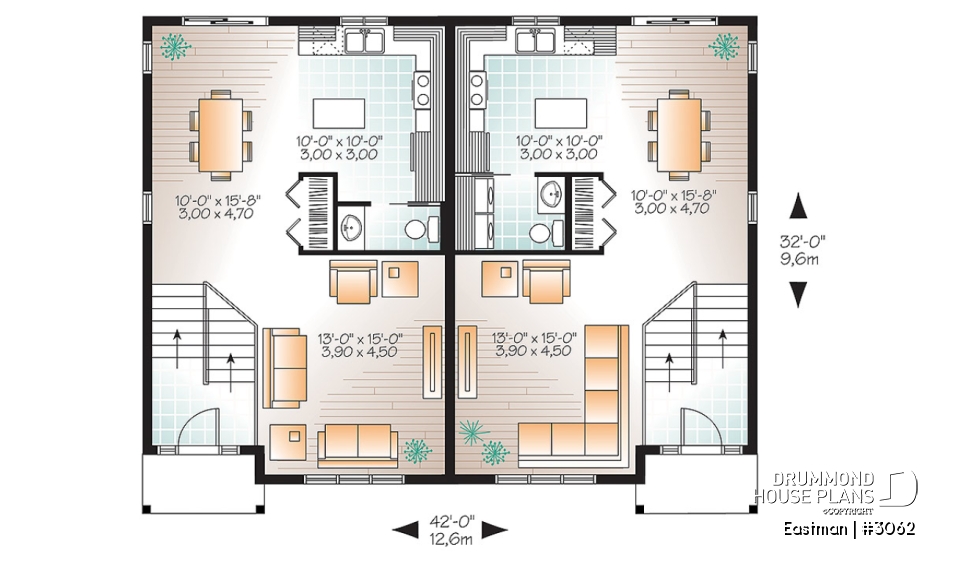

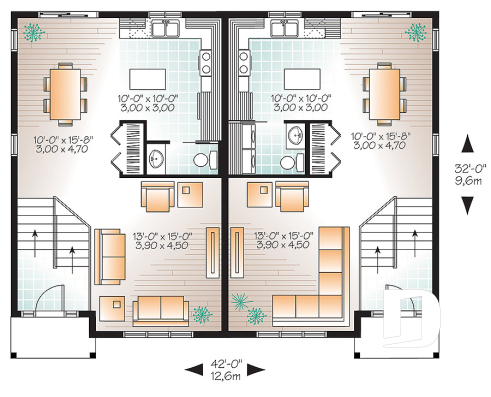

1st level | ||
---|---|---|
Rooms | Sizes | Ceiling |
Foyer | 7'0" x 6'0" | ~ 12'8" |
Foyer | 7'0" x 6'0" | ~ 12'8" |
Living room | 12'6" x 15'0" | ~ 8'0" |
Living room | 12'6" x 15'0" | ~ 8'0" |
Dining room | 9'10" x 15'8" | ~ 8'0" |
Closet | 2'0" x 5'0" | ~ 8'0" |
Dining room | 8'10" x 15'8" | ~ 8'0" |
Closet | 1'10" x 5'0" | ~ 8'0" |
Kitchen | 9'11" x 10'0" | ~ 8'0" |
Pantry | 2'0" x 2'0" | N/A |
Kitchen | 10'11" x 10'0" | ~ 8'0" |
Pantry | 1'6" x 2'0" | N/A |
Powder room | 7'0" x 3'0" | ~ 8'0" |
Powder/laundry room | 7'8" x 5'0" | ~ 8'0" |
General specifications
Total living area | 2488 sq.ft. |
1st level | 1313 sq.ft. |
Basement | 1175 sq.ft. |
Width | 42'0" |
Depth | 32'0" |
Ridge height from top of foundation | 20'3" |
Exterior wall | 2 X 6 |
Foundation type included in the plan | Finished basement |
Builder price code | MB |
Rooms specifications
Bedroom(s) | 2, 3 |
Full baths | 2 |
Half baths | 2 |
Garage type | - |
Living bonus space | - |
Bonus storage | - |
Left | Right | |
Total living area | 0 sq.ft. | 0 sq.ft. |
Width | 21' 0" | 21' 0" |
Depth | 32' 0" | 32' 0" |
Ridge height from top of foundation | 20' 3" | 20' 3" |
Exterior wall | 2 X 6 | 2 X 6 |
Foundation type | Finished basement | Finished basement |
Bedroom(s) | 2 | 3 |
Full baths | 1 | 1 |
Half baths | 1 | 1 |
Garage type | - | - |
Living bonus space | - | - |
Bonus storage | - | - |
General specifications
Total living area | 2488 sq.ft. |
Basement | 1175 sq.ft. |
1st level | 1313 sq.ft. |
Width | 42'0" |
Depth | 32'0" |
Ridge height from top of foundation | 20'3" |
Exterior wall | 2 X 6 |
Foundation type included in the plan | Finished basement i |
Builder price code | MB |
Rooms specifications
Units specifications
Left | Right | |
Total living area | 0 sq.ft. | 0 sq.ft. |
Width | 21' 0" | 21' 0" |
Depth | 32' 0" | 32' 0" |
Ridge height from top of foundation | 20' 3" | 20' 3" |
Exterior wall | 2 X 6 | 2 X 6 |
Foundation type | Finished basement | Finished basement |
Bedroom(s) | 2 | 3 |
Full baths | 1 | 1 |
Half baths | 1 | 1 |
Garage type | - | - |
Living bonus space | - | - |
Bonus storage | - | - |
Other useful information on this plan
Bright, affordable semi-detached home
If you are looking for a semi-detached plan that offers abundant natural light at an attractive price, look no further than this versatile model.
On the first floor ample fenestration in front, back and on the side bathes both units in brightness. Equally impressive is the generous activities area that groups a comfortable living room and dining room with a kitchen that features a center island. This versatile design also offers a laundry area in the first floor bathroom if required.
The well fenestrated basement offers either two or three bedroom units with a laundry area in the bathroom if this configuration is better suited to the owner’s needs. Since both floor plans are available in this one design, you can choose the layout that best fits.
This semi-detached model offers a choice and either the two or the three bedroom floor plan and have identical exterior doors and windows, a definite cost advantage.
Distinctive elements
Semi-detached with two proposed intereriors, one with 2 bedrooms and laundry room in the basement and the other with three bedrooms in the basement and laundry area on the ground floor.
Plan feature(s)
Gound floor laundry room, Separate bath and shower, Island, Island
Plan architectural style(s)
. Country, . American, . Craftsman / Northwest, . Rustic, . Traditional
Questions and comments on this plan
April 28 2014
Customer service
Good day Mr. Bienz and thank you for your purchase
The construction estimates that appear on our French site are ballpark figures to build in the province of Quebec (Canada) and are between $219,000. for a self managed project in which the owner does all of the planning, scheduling and signature of contracts with the various specialized contractors as well as taking care of the physical installation of the vapor barrier, the insulation, the gyproc and the paint. and $259,000 for a turn key project.
The cost can vary from 10% to 30% and it does not include the cost of the land and its excavation, taxes or hook-ups to municipal services. Although these estimates are updated on a yearly basis, the most reliable sources for the actual cost to complete your own project are local contractors and materials suppliers as this is highly location sensitive.
The estimates are based on professional grade materials and include ceramic in the hallway, the kitchen and the bathrooms and hardwood flooring throughout the common areas and the bedrooms with wood grain melamine cabinetry.
Please let me know if you have any other questions or comments.
Regards
Deb
Questions and comments
April 28 2014
Jack Bienz
I would like to have information about construction costs for this unit? I am in the monteregie region. Thank you.
April 28 2014
Customer service
Good day Mr. Bienz and thank you for your purchase
The construction estimates that appear on our French site are ballpark figures to build in the province of Quebec (Canada) and are between $219,000. for a self managed project in which the owner does all of the planning, scheduling and signature of contracts with the various specialized contractors as well as taking care of the physical installation of the vapor barrier, the insulation, the gyproc and the paint. and $259,000 for a turn key project.
The cost can vary from 10% to 30% and it does not include the cost of the land and its excavation, taxes or hook-ups to municipal services. Although these estimates are updated on a yearly basis, the most reliable sources for the actual cost to complete your own project are local contractors and materials suppliers as this is highly location sensitive.
The estimates are based on professional grade materials and include ceramic in the hallway, the kitchen and the bathrooms and hardwood flooring throughout the common areas and the bedrooms with wood grain melamine cabinetry.
Please let me know if you have any other questions or comments.
Regards
Deb
Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.
Error with google reCaptcha! Try again
You may also like
Similar plans
Description
1st level (each unit): Engry, living room, dining room, kitchen, bathroom in one unit and laundry in other.
Basement: Unit 1: Two bedrooms with bathroom with laundry.
Unit 2: Three bedrooms and bathroom.
