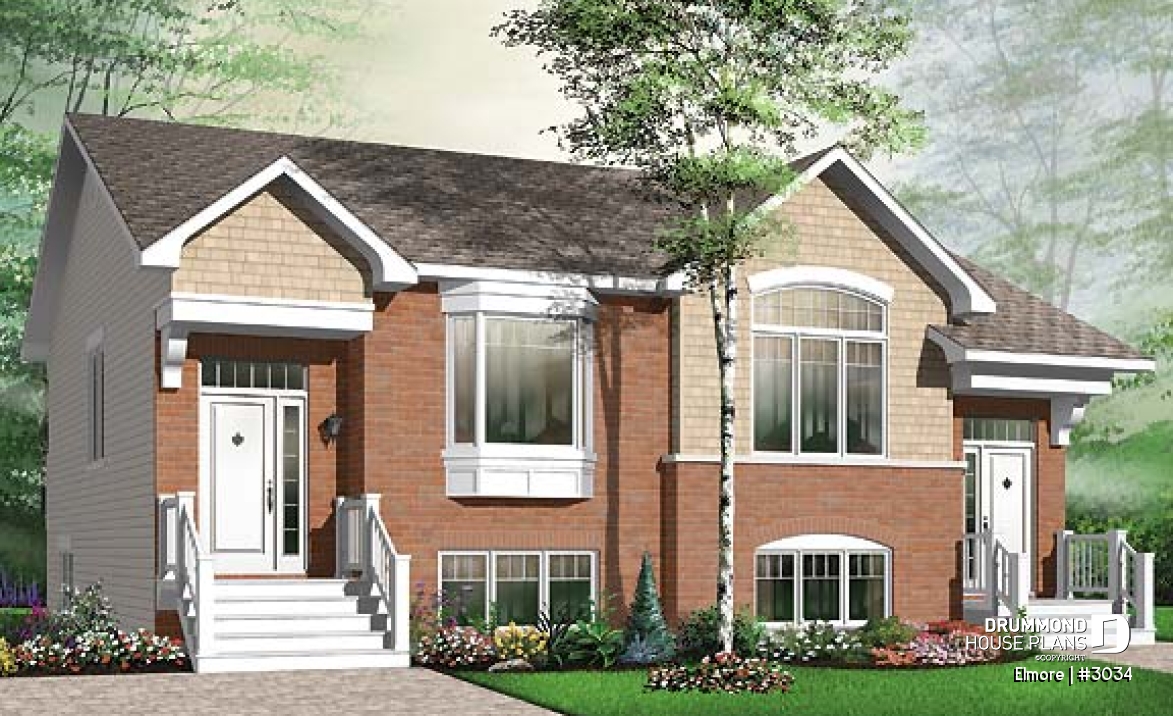

House plan Elmore (3034)
3 bedroom semi-detached house plan, 1.5 baths, laundry room on main floor, kitchen island
View the size of the rooms and height of the ceilings

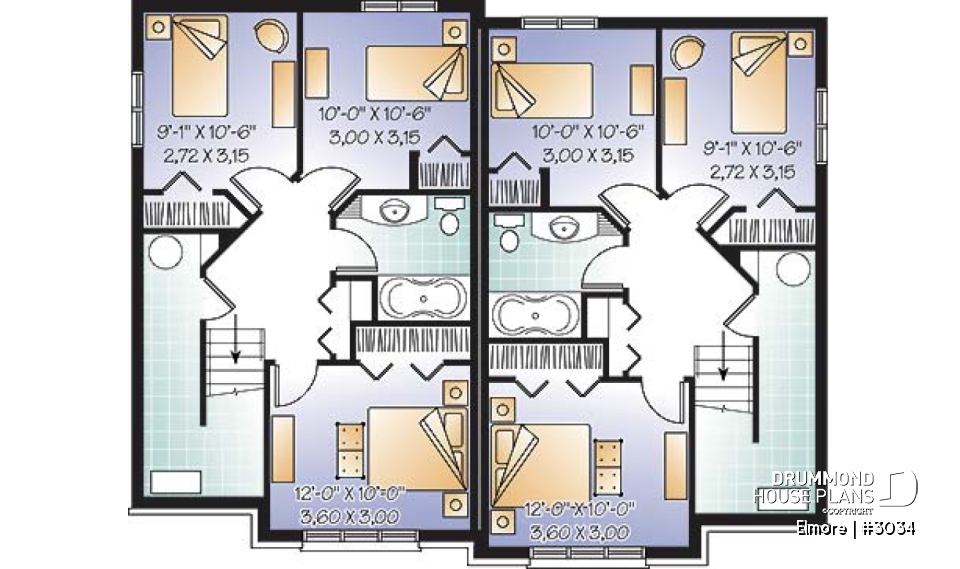

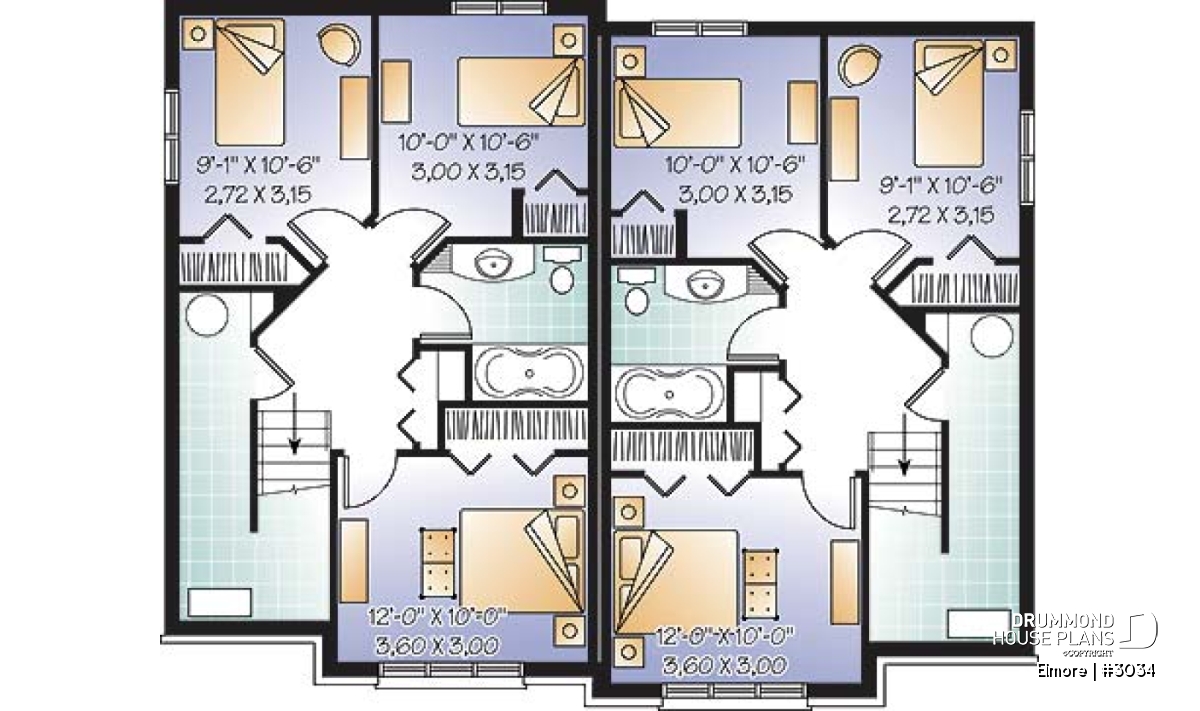

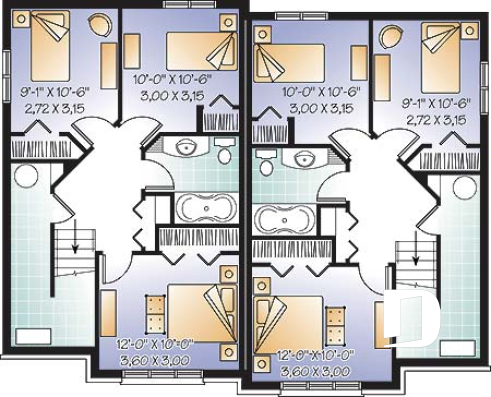

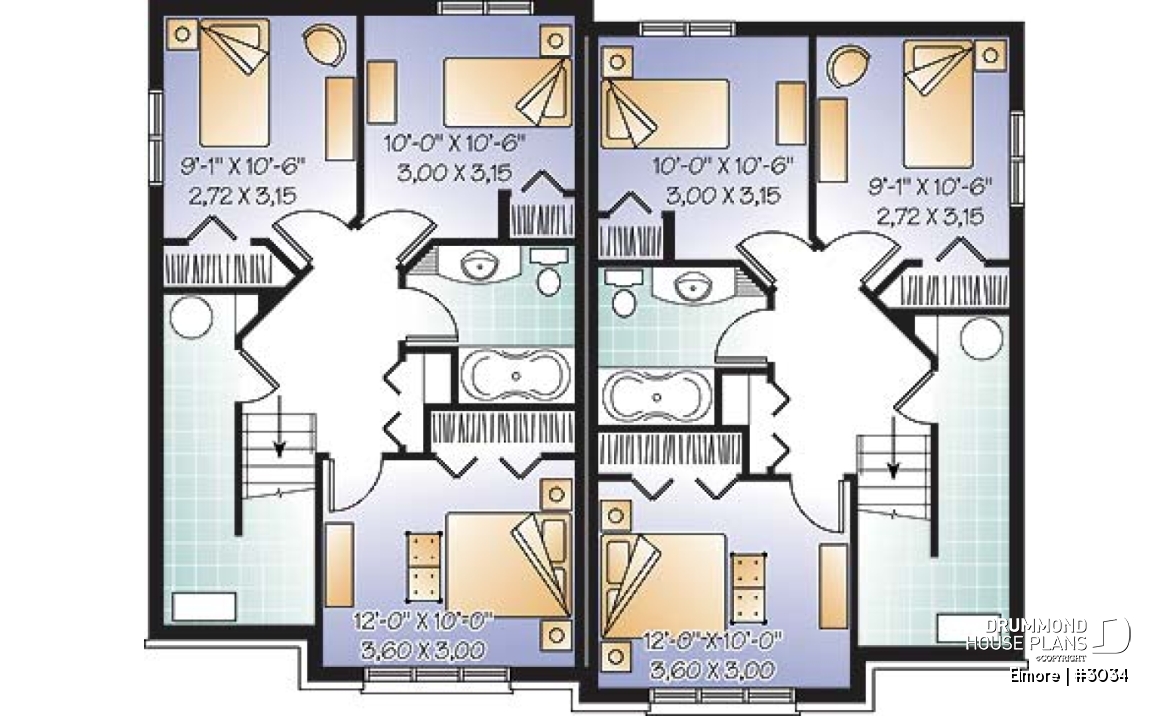

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 5'6" x 7'7" | ~ 8'0" |
| Bedroom | 12'0" x 10'0" | ~ 8'0" |
| Bedroom | 9'1" x 10'6" | ~ 8'0" |
| Closet | 2'0" x 4'9" | ~ 8'0" |
| Bedroom | 10'0" x 10'6" | ~ 8'0" |
| Bedroom | 9'1" x 10'6" | ~ 8'0" |
| Closet | 5'7" x 2'0" | ~ 8'0" |
| Bedroom | 10'0" x 10'6" | ~ 8'0" |
| Closet | 3'1" x 2'0" | ~ 8'0" |
| Bedroom | 12'0" x 10'0" | ~ 8'0" |
| Closet | 6'10" x 2'0" | ~ 8'0" |
| Closet | 2'0" x 4'9" | ~ 8'0" |
| Full bathroom | 5'6" x 7'7" | ~ 8'0" |

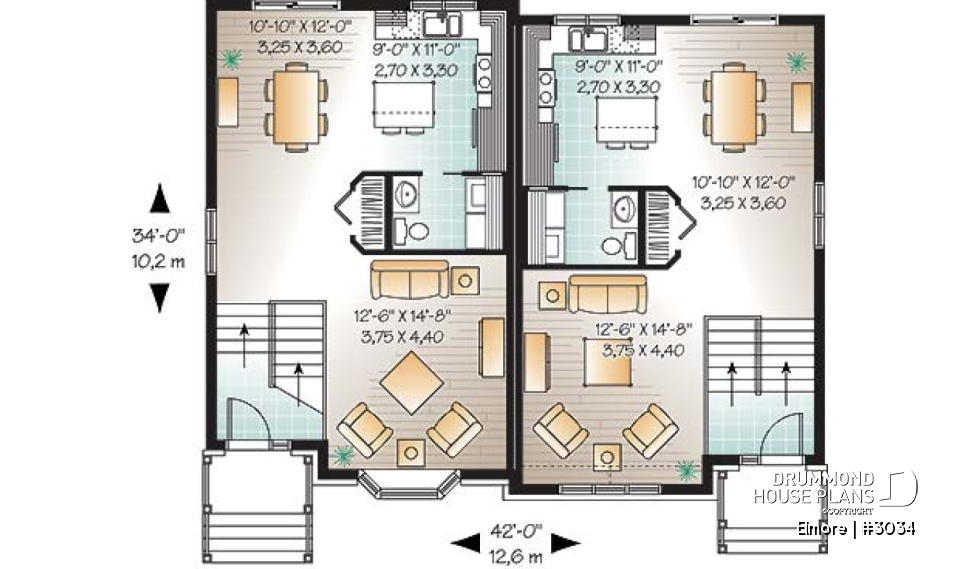

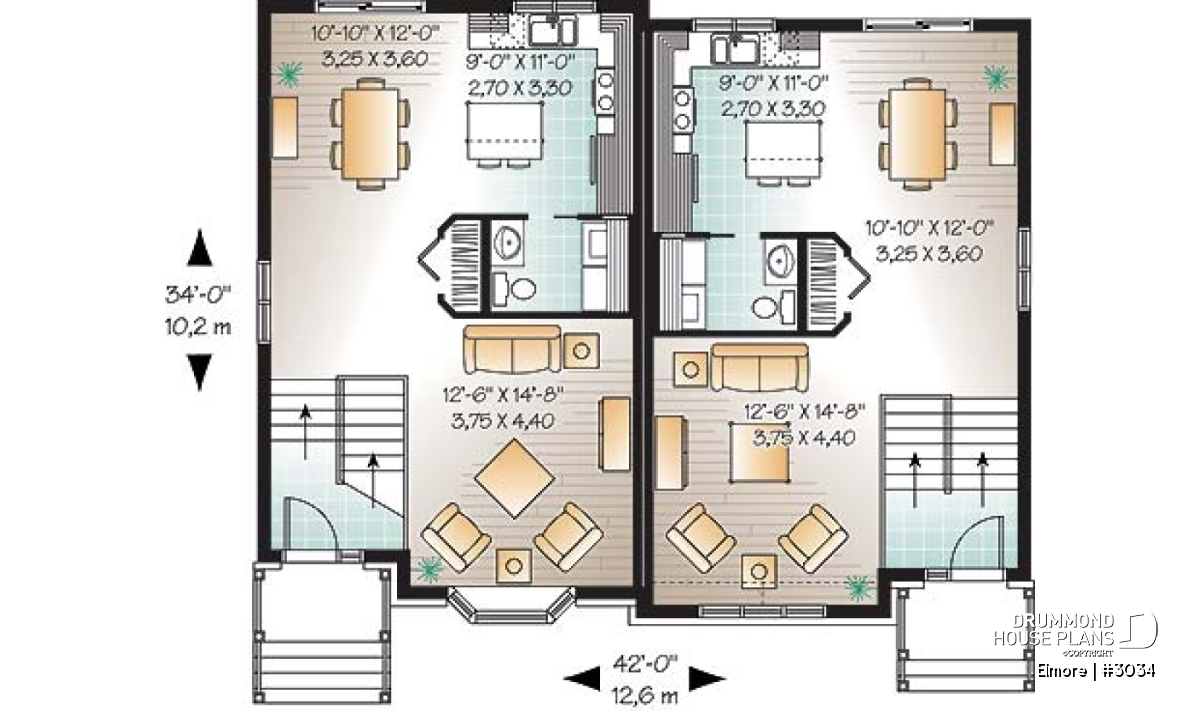

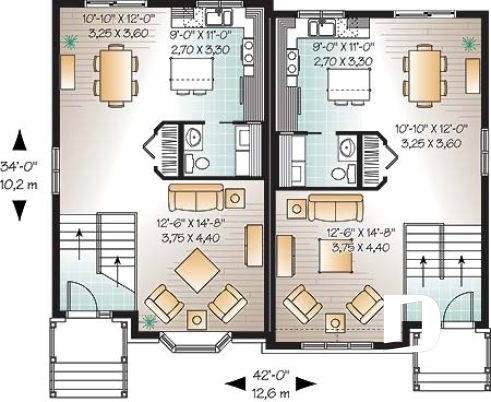

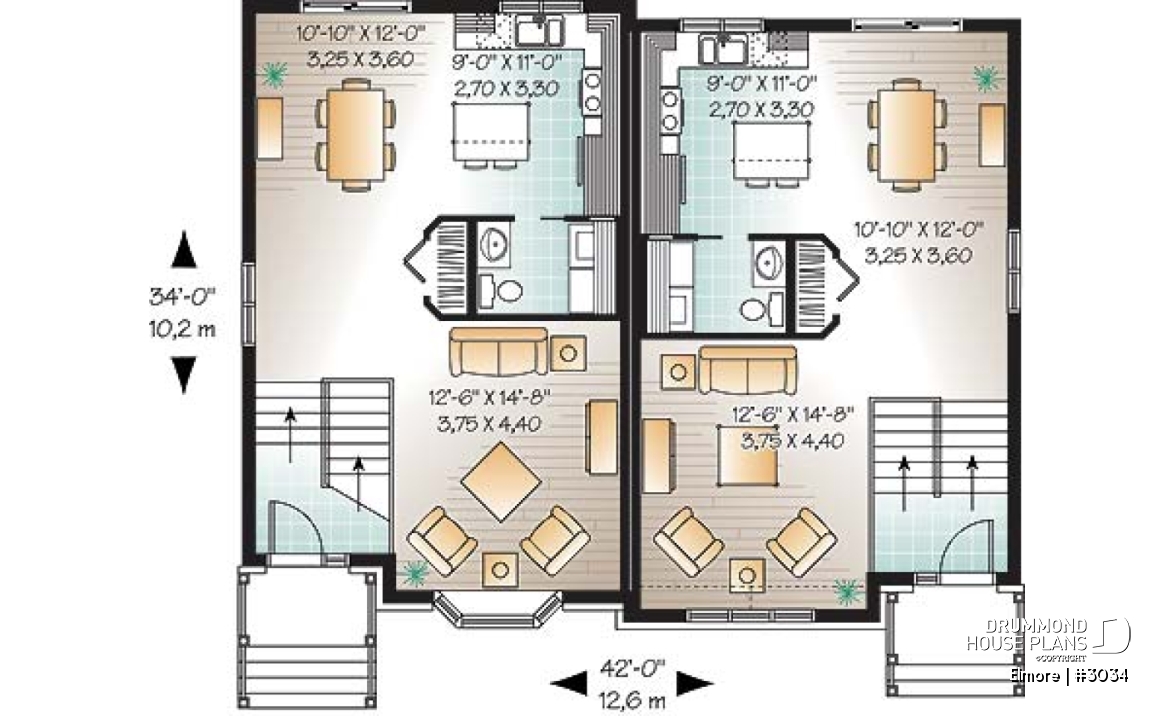

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 8'10" x 11'0" | ~ 8'0" |
| Pantry | 2'0" x 1'4" | N/A |
| Dining room | 10'10" x 12'0" | ~ 8'0" |
| Living room | 12'4" x 14'8" | ~ 8'0" |
| Foyer | 7'4" x 3'6" | ~ 11'4" |
| Foyer | 7'4" x 4'4" | ~ 9'2" |
| Mud room | 2'0" x 5'0" | ~ 8'0" |
| Powder/laundry room | 7'4" x 5'0" | ~ 8'0" |
| Covered porch | 7'6" x 4'0" | N/A |
| Deck | 10'0" x 9'0" | N/A |
| Powder/laundry room | 7'4" x 5'0" | ~ 8'0" |
| Kitchen | 8'10" x 11'0" | ~ 8'0" |
| Pantry | 2'0" x 1'4" | N/A |
| Covered porch | 7'6" x 4'0" | N/A |
| Dining room | 10'10" x 12'0" | ~ 8'0" |
| Living room | 12'4" x 14'8" | ~ 8'0" |
| Deck | 10'0" x 9'0" | N/A |
| Mud room | 2'0" x 5'0" | ~ 8'0" |
General specifications
| Total living area | 2716 sq.ft. |
| Basement | 1358 sq.ft. |
| 1st level | 1358 sq.ft. |
| Width | 42'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 23'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | MC |
Rooms specifications
| Bedroom(s) | 3 |
| Full baths | 1 |
| Half baths | 1 |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 60 sq.ft. |
Units specifications
Other useful information on this plan
Affordable 3 beds 1.5 baths semi-detached house plan
.
Distinctive elements
Opposite front entry as in the rear terraces for more intimacy. Interesting interior spaces for a townhouse. Island lunch counter in the kitchen. Partly storage space under the stairway.
Plan feature(s)
Island, Gound floor laundry room, Panoramic view, Cathedral ceiling
Plan architectural style(s)
. Country, . European, . Transitional
