House plan Albert (3074)
Semi-detached house plan offering two different ground floor layouts and a total of 3 bedrooms
View the size of the rooms and height of the ceilings

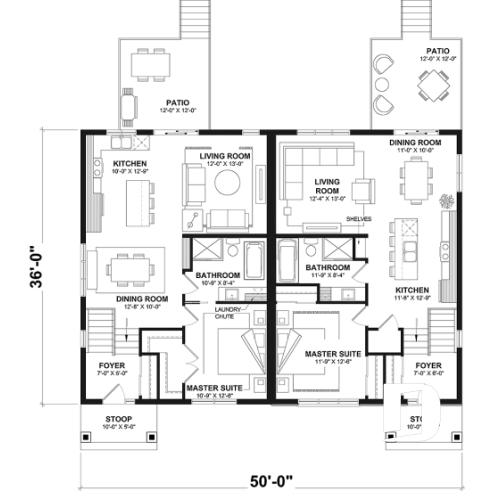

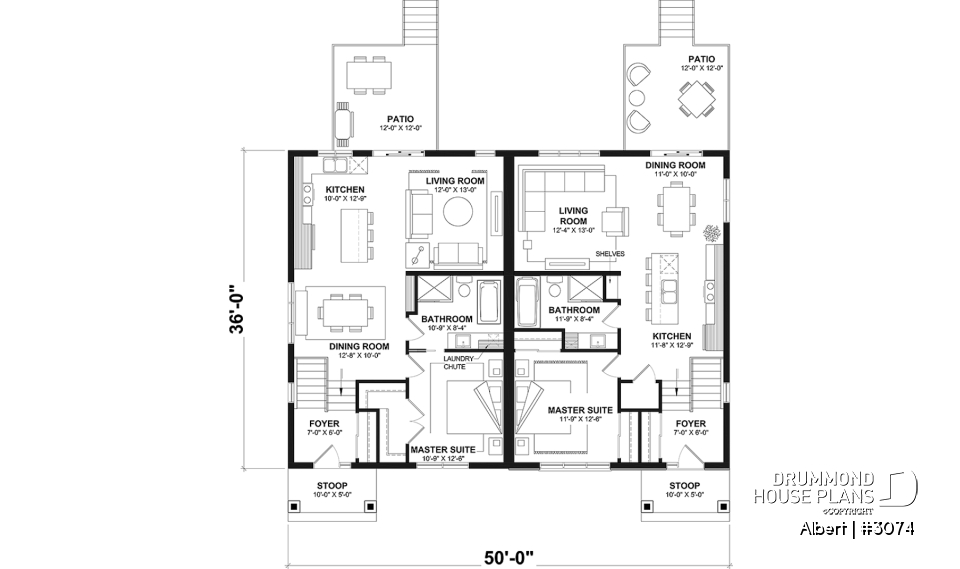

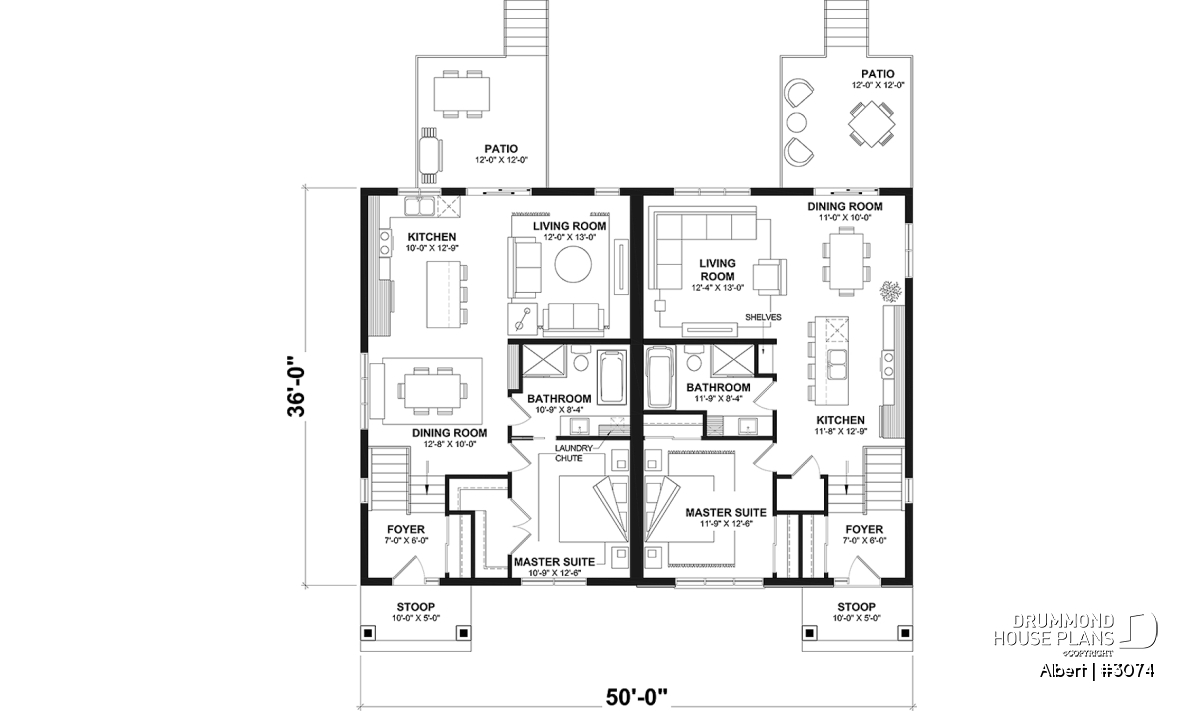

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Covered porch | 10'0" x 5'0" | ~ 9'0" |
| Covered porch | 10'0" x 5'0" | ~ 9'0" |
| Foyer | 7'0" x 6'0" | ~ 12'4" |
| Closet | 5'9" x 2'0" | ~ 12'4" |
| Foyer | 7'0" x 6'0" | ~ 12'4" |
| Closet | 5'9" x 2'0" | ~ 12'4" |
| Pantry | 4'4" x 3'0" | ~ 9'0" |
| Master suite | 10'9" x 12'6" | ~ 9'0" |
| Walk-in closet | 9'0" x 5'4" | ~ 9'0" |
| Bedroom | 11'9" x 12'6" | ~ 9'0" |
| Closet | 5'9" x 2'0" | ~ 9'0" |
| Closet | 5'5" x 2'0" | ~ 9'0" |
| Dining room | 12'8" x 10'0" | ~ 9'0" |
| Dining room | 11'0" x 10'0" | ~ 9'0" |
| Kitchen | 10'0" x 12'9" | ~ 9'0" |
| Kitchen island | 6'0" x 3'0" | N/A |
| Kitchen | 11'8" x 12'9" | ~ 9'0" |
| Kitchen island | 8'0" x 3'0" | N/A |
| Full bathroom | 11'9" x 8'4" | ~ 9'0" |
| Shower | 4'0" x 3'0" | N/A |
| Linen | 1'6" x 1'10" | N/A |
| Full bathroom | 10'9" x 8'4" | ~ 9'0" |
| Linen | 2'10" x 1'0" | N/A |
| Shower | 4'0" x 3'0" | N/A |
| Living room | 12'0" x 13'0" | ~ 9'0" |
| Living room | 12'4" x 13'0" | ~ 9'0" |
| Terrace | 12'0" x 12'0" | N/A |
| Terrace | 12'0" x 12'0" | N/A |

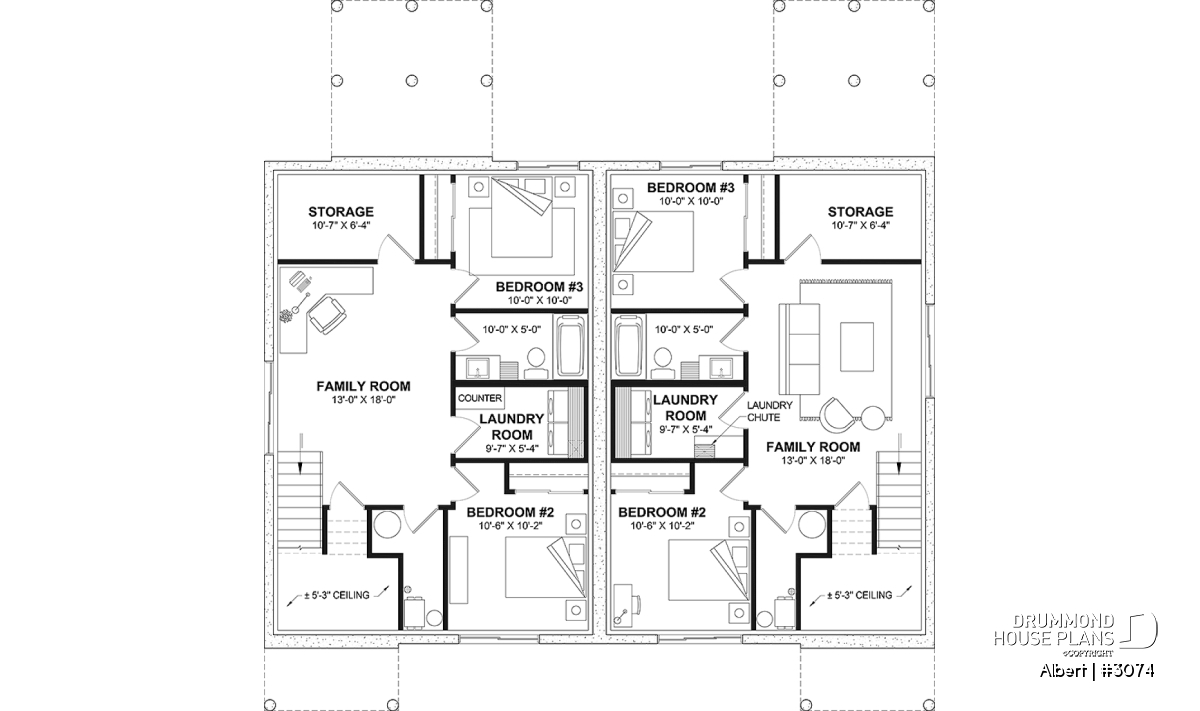

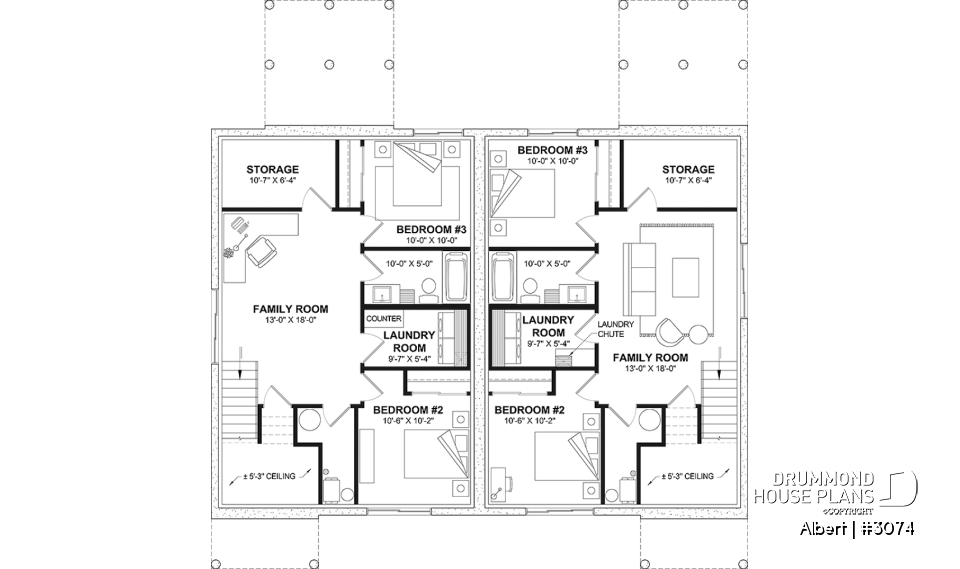

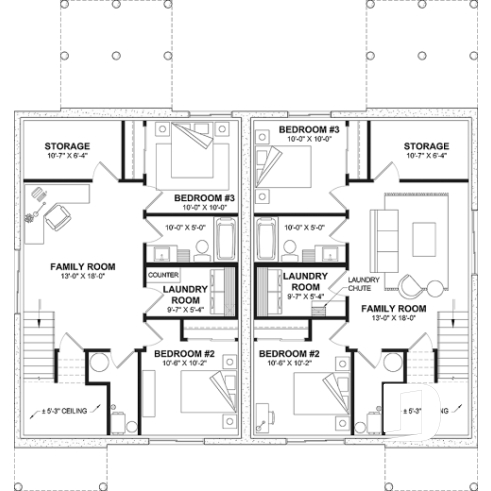

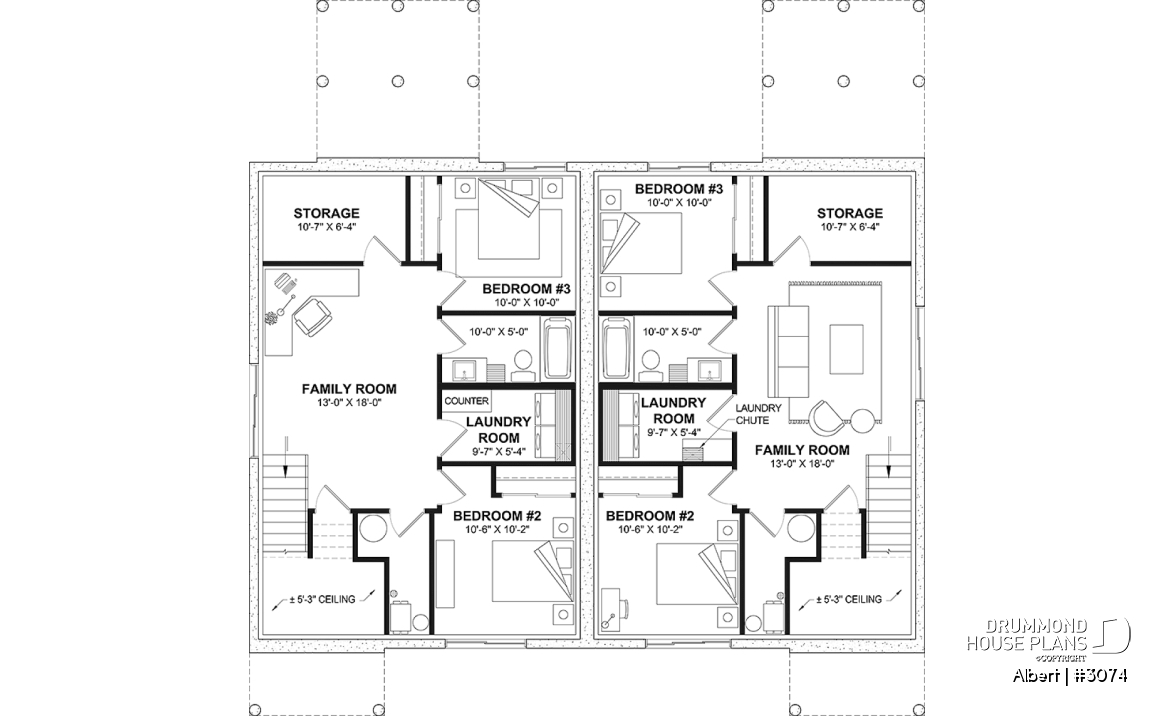

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 10'6" x 10'2" | ~ 8'0" |
| Closet | 6'0" x 2'0" | ~ 8'0" |
| Bedroom | 10'6" x 10'2" | ~ 8'0" |
| Closet | 6'0" x 2'0" | ~ 8'0" |
| Laundry room | 9'7" x 5'4" | ~ 8'0" |
| Laundry room | 9'7" x 5'4" | ~ 8'0" |
| Bathroom | 10'0" x 5'0" | ~ 8'0" |
| Linen | 1'4" x 1'4" | N/A |
| Bathroom | 10'0" x 5'0" | ~ 8'0" |
| Linen | 1'4" x 1'4" | N/A |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Closet | 6'4" x 2'0" | ~ 8'0" |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Closet | 6'4" x 2'0" | ~ 8'0" |
| Storage | 10'7" x 6'4" | ~ 8'0" |
| Storage | 10'7" x 6'4" | ~ 8'0" |
| Great room or Family room | 13'0" x 18'0" | ~ 8'0" |
| Great room or Family room | 13'0" x 18'0" | ~ 8'0" |
| Mechanical room | 5'4" x 9'0" | ~ 8'0" |
| Mechanical room | 5'4" x 9'0" | ~ 8'0" |
| Storage | 9'0" x 5'5" | ~ 5'3" |
| Storage | 9'0" x 5'5" | ~ 5'3" |
General specifications
| Total living area | 3600 sq.ft. |
| 1st level | 1800 sq.ft. |
| Basement | 1800 sq.ft. |
| Width | 50'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 25'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Other available foundations (a fee may apply) | Full Basement |
| Builder price code | ME |
Rooms specifications
| Bedroom(s) | 3, 6 |
| Full baths | 4 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 100 sq.ft. |
Units specifications

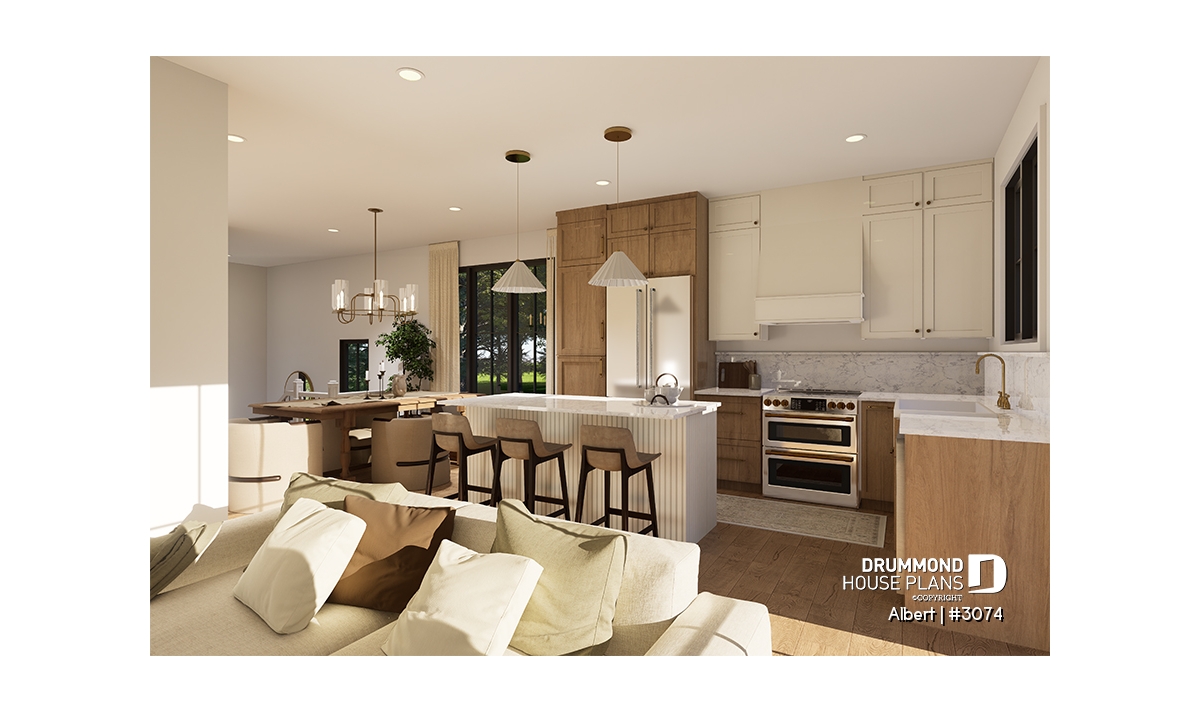

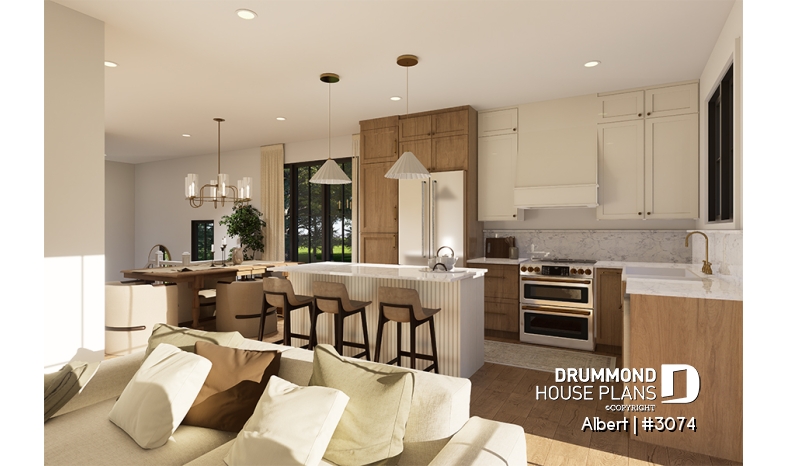

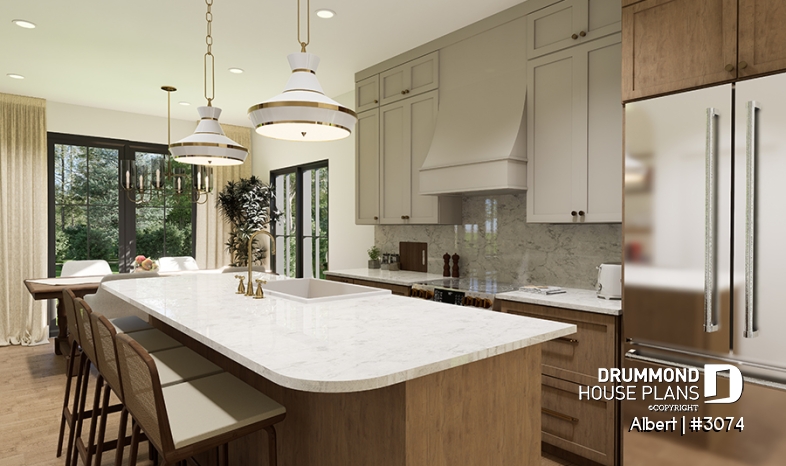

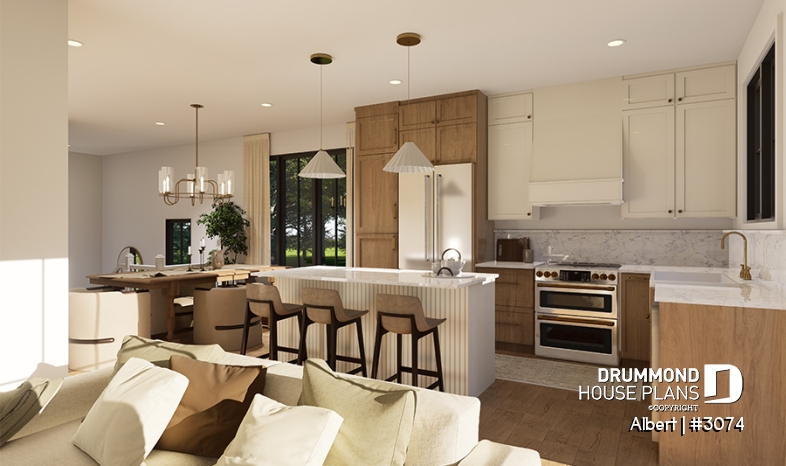

Kitchen
This color version might have decorative elements that are not available on base plan.

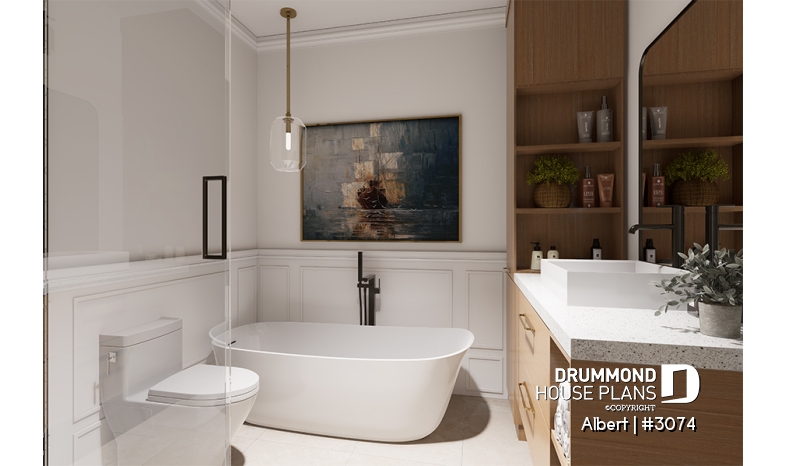

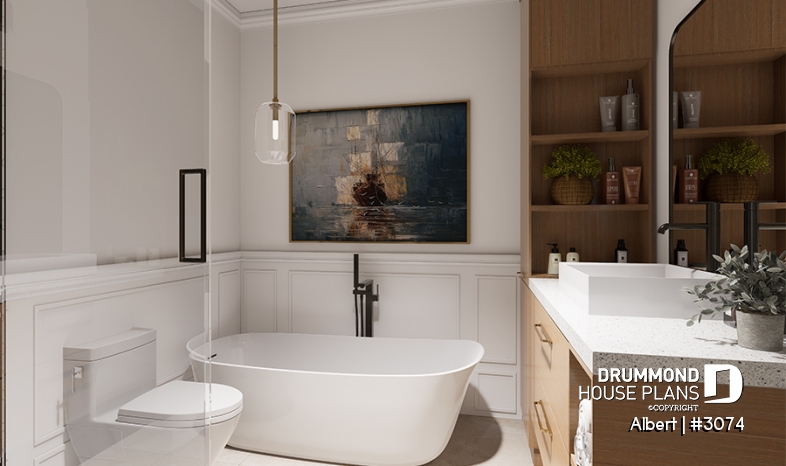

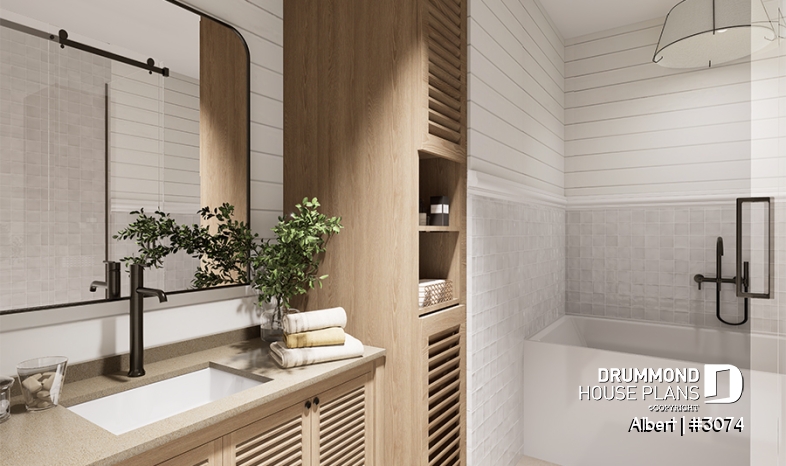

Bathroom
This color version might have decorative elements that are not available on base plan.
Bathroom
This color version might have decorative elements that are not available on base plan.

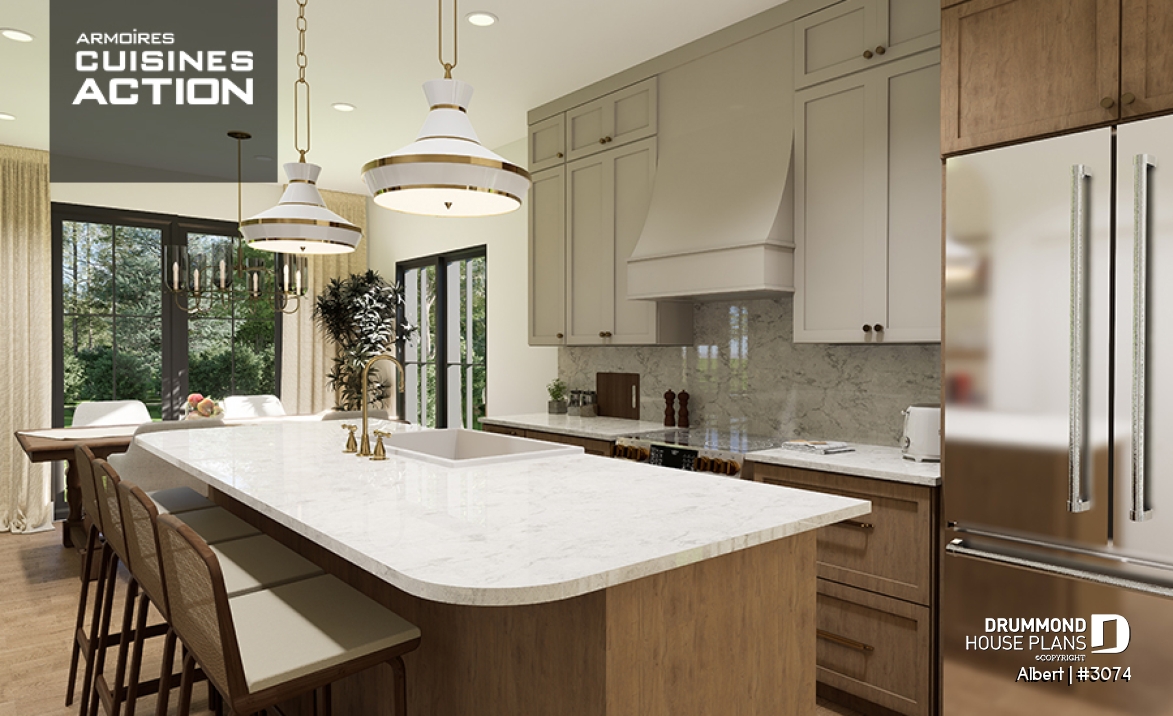

Kitchen
This color version might have decorative elements that are not available on base plan.

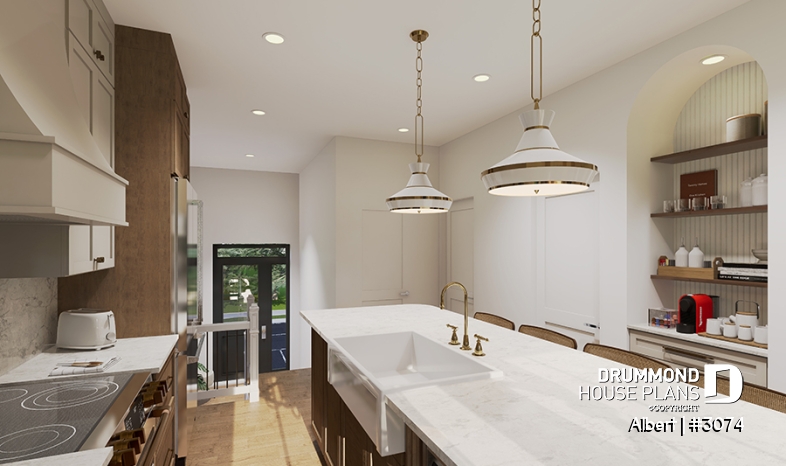

Kitchen
This color version might have decorative elements that are not available on base plan.

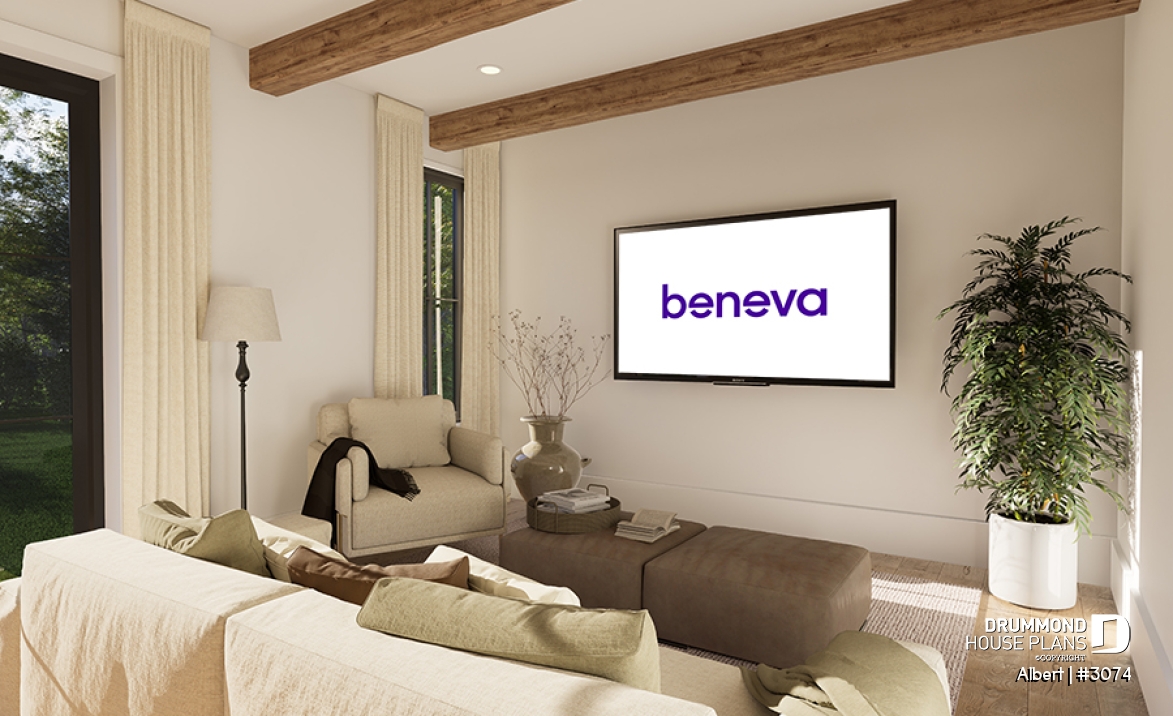

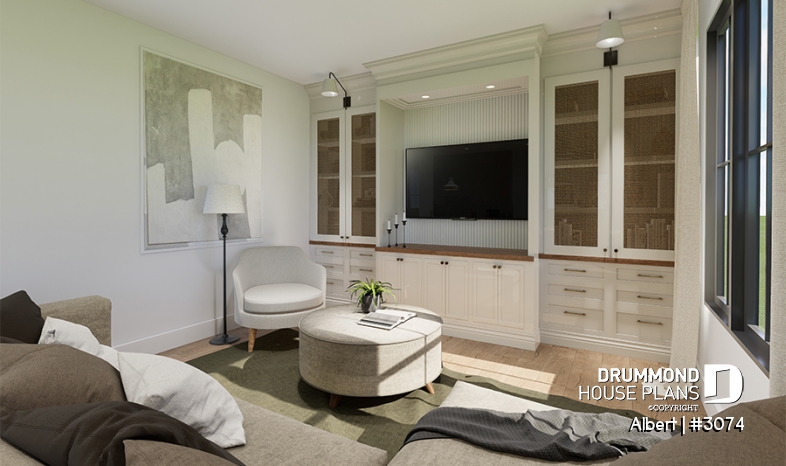

Living room
This color version might have decorative elements that are not available on base plan.

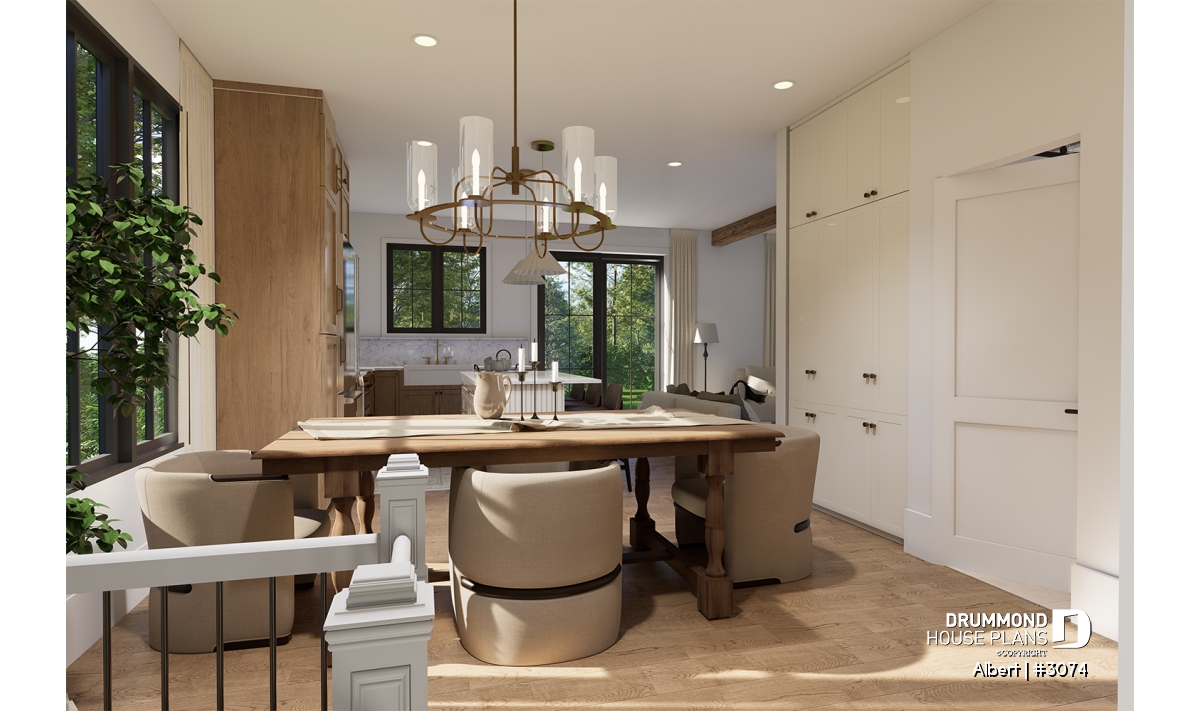

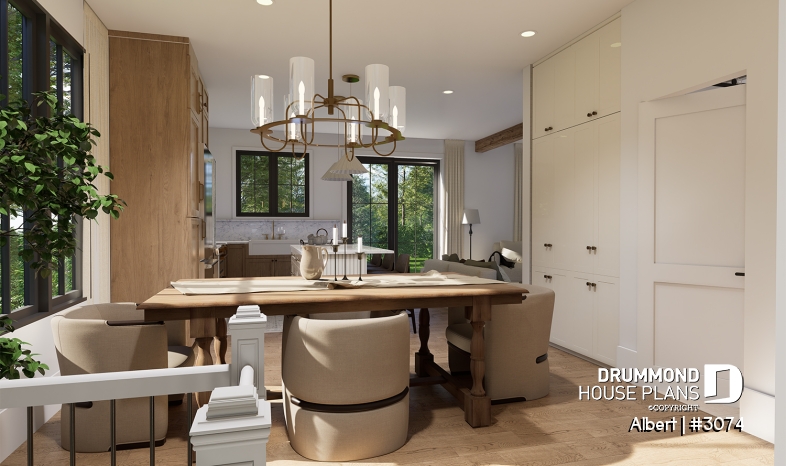

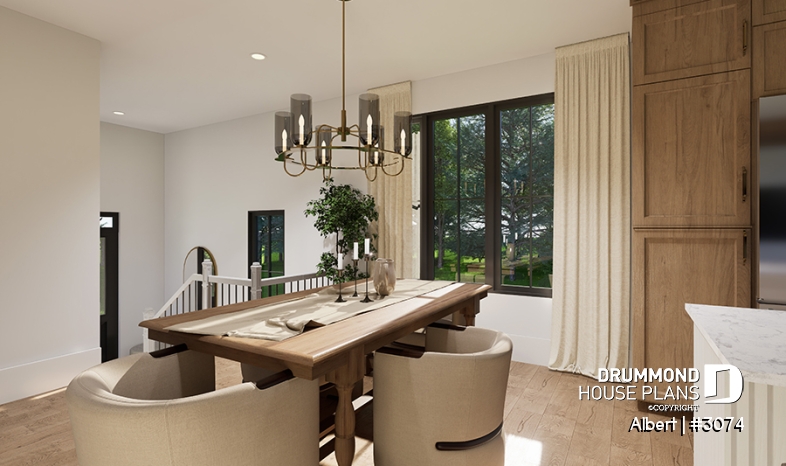

Dining room
This color version might have decorative elements that are not available on base plan.

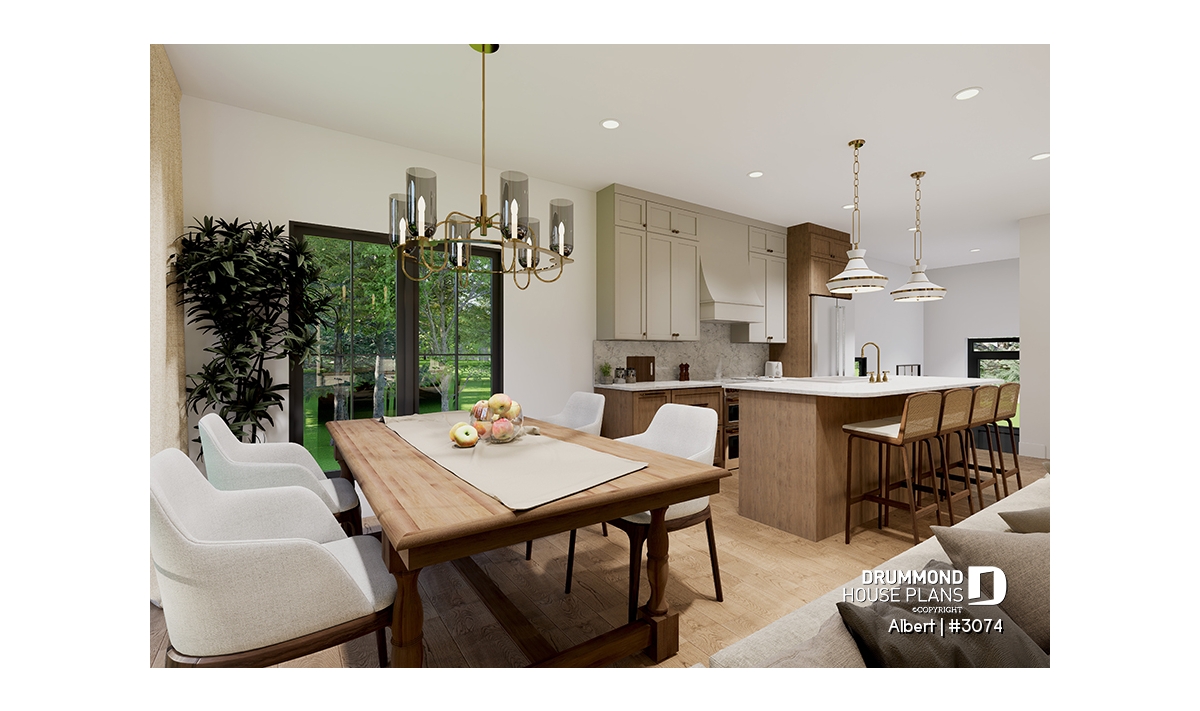

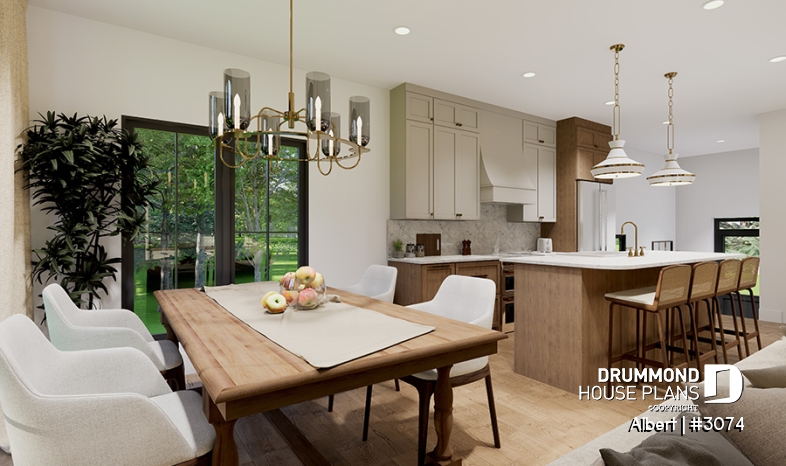

Dining room
This color version might have decorative elements that are not available on base plan.

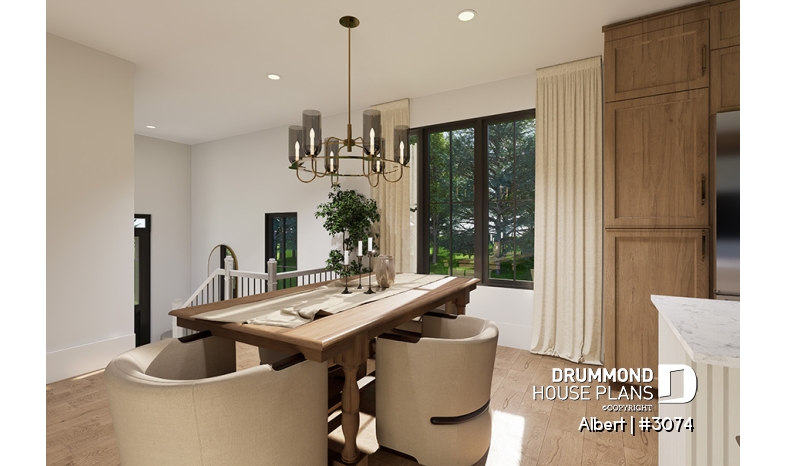

Dining room
This color version might have decorative elements that are not available on base plan.
Other useful information on this plan

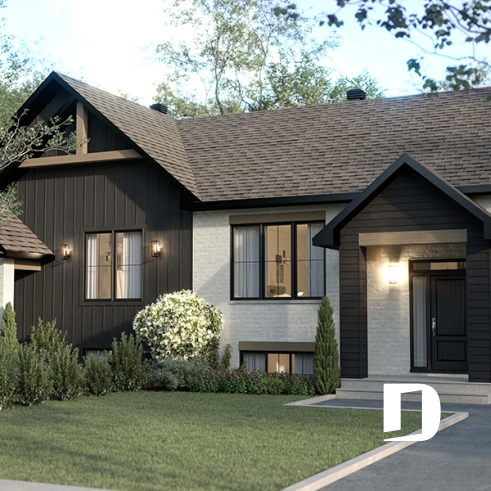

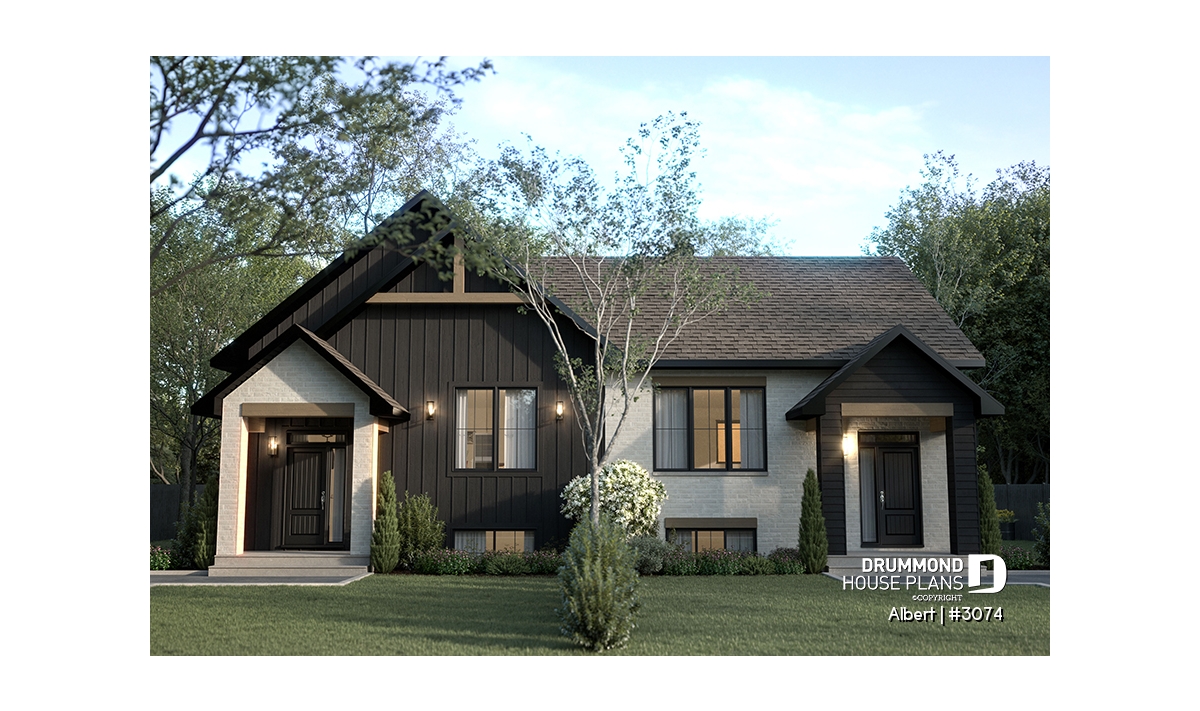

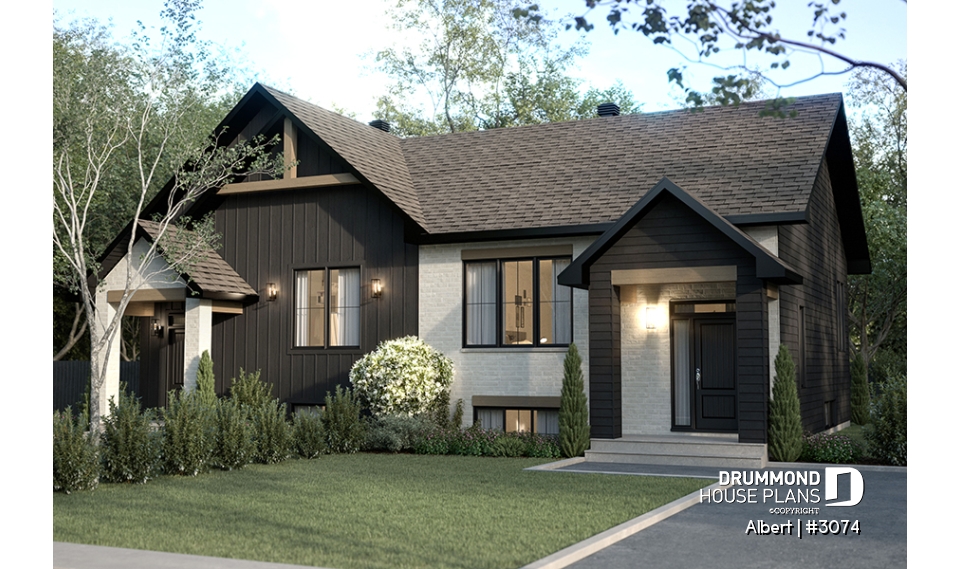

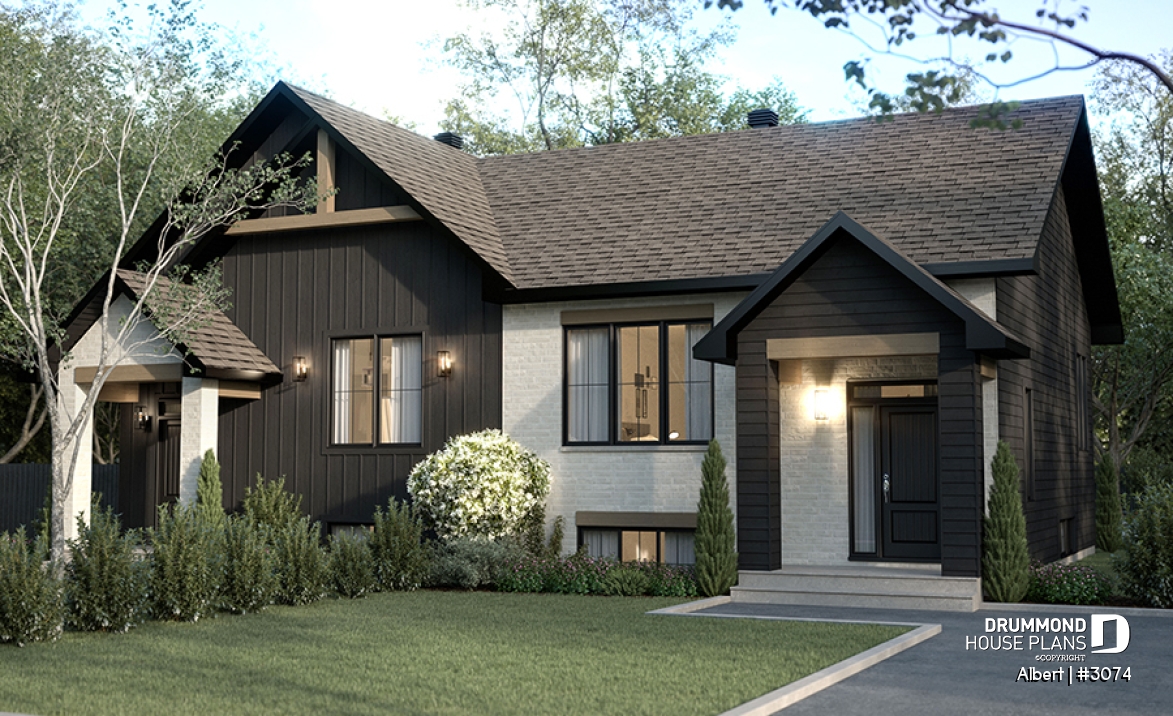

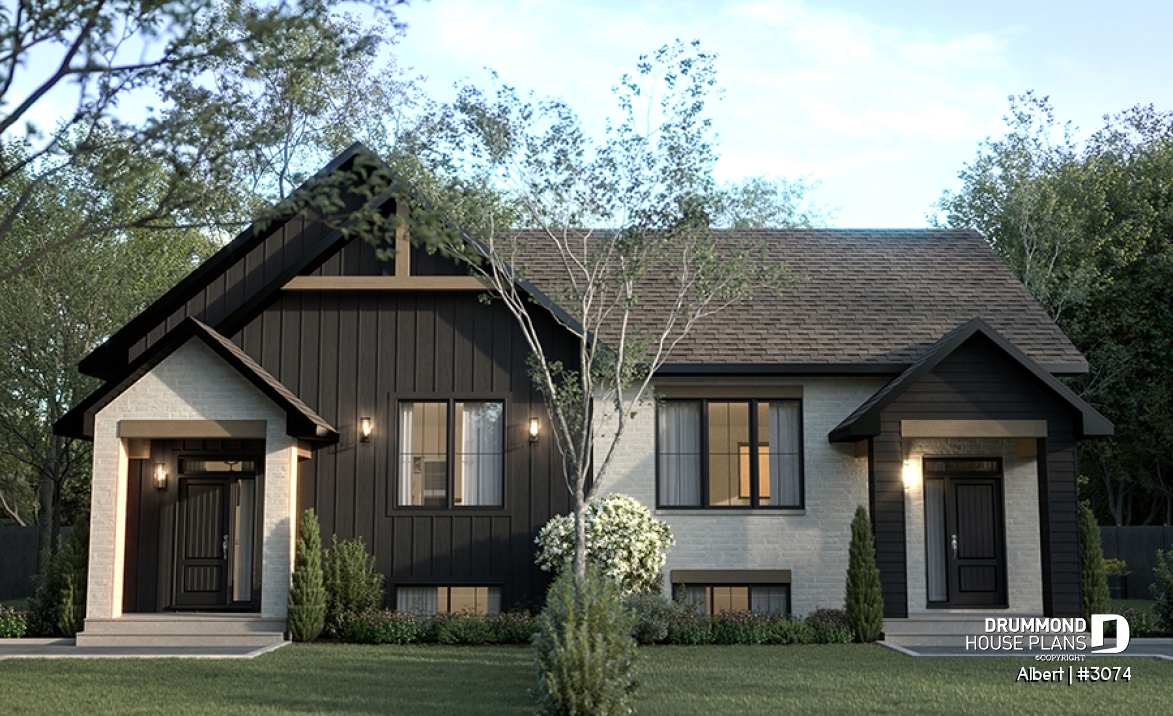

Very trendy Modern Craftsman look for this semi-detached house offering 3 bedrooms and 2 bathrooms per accommodation!
The ALBERT house plan (semi-detached plan #3074) offers a total of 3,600 sq. ft. on the ground floor and fully finished basement. Each of the dwellings therefore has a total of 1,800 sq. ft. on the ground floor and finished basement. The modern yet rustic style will attract the eye as much in the countryside as in new residential areas! Also note that both dwellings offer 9' high ceilings on the main floor.
For both dwellings, the ground floor opens onto a split-type entrance, allowing the basement rooms to receive beautiful natural light through the windows. The master bedroom is located on the ground floor and has access to the large full bathroom which is also on this level. The latter offers a bath and a separate shower.
The kitchen with island is open to the living room and these two spaces are at the back of the house, for the dwelling on the left (1). The dining room is central for apartment 1, and at the back of the house for apartment 2. The latter offers a different layout for the ground floor which allowed us to add a pantry (still in apartment 2).
The finished daylight basements are identical and each include 2 secondary bedrooms, a bathroom, the laundry room and a storage area. If necessary, we can modify the floors to accommodate the specific needs of your family.
Let yourself be charmed by the beauty of this warm exterior design and the comfort of the interior layout designed to please all types of families!
Distinctive elements
Modern Craftsman style semi-detached house plan.
Highly sought-after warm rustic style look
Finished daylight basement, for a total of 3 bedrooms and 2 bathrooms per dwelling.
Two (2) different layouts for the ground floor.
Master bedroom with access to the bathroom (dwelling 1).
Pantry provided for dwelling 2.
Open area to the kitchen, dining room and living room, for both dwellings.
Beautiful natural light coming from the rear area of the house.
Plan feature(s)
Split bedrooms, Island, Open floor layout, Entrance hall, Ceiling over 8', Separate bath and shower, Pantry, Shelves, Walk-in master bed.
Plan architectural style(s)
. Transitional, Modern Craftsman, . Rustic, . Scandinavian, . Cottage, chalet, cabin, . Country, . Modern rustic, . Contemporary, . Mountain
