Sullivan (3059)
Modern duplex house plan with garage,up to 3 bedrooms per unit, large shower, great kitchen island
View the size of the rooms and height of the ceilings

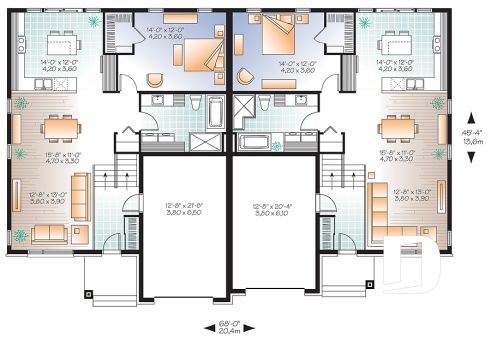

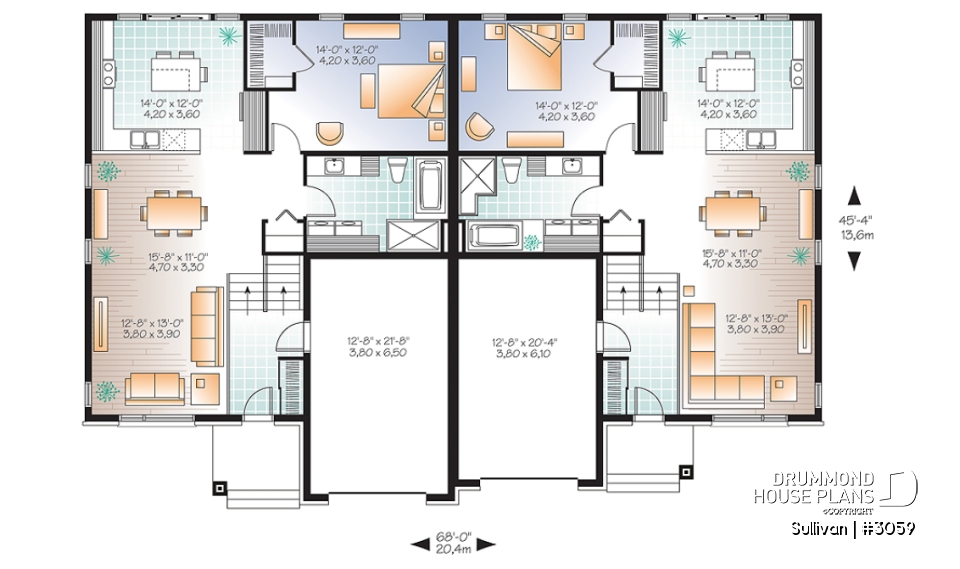

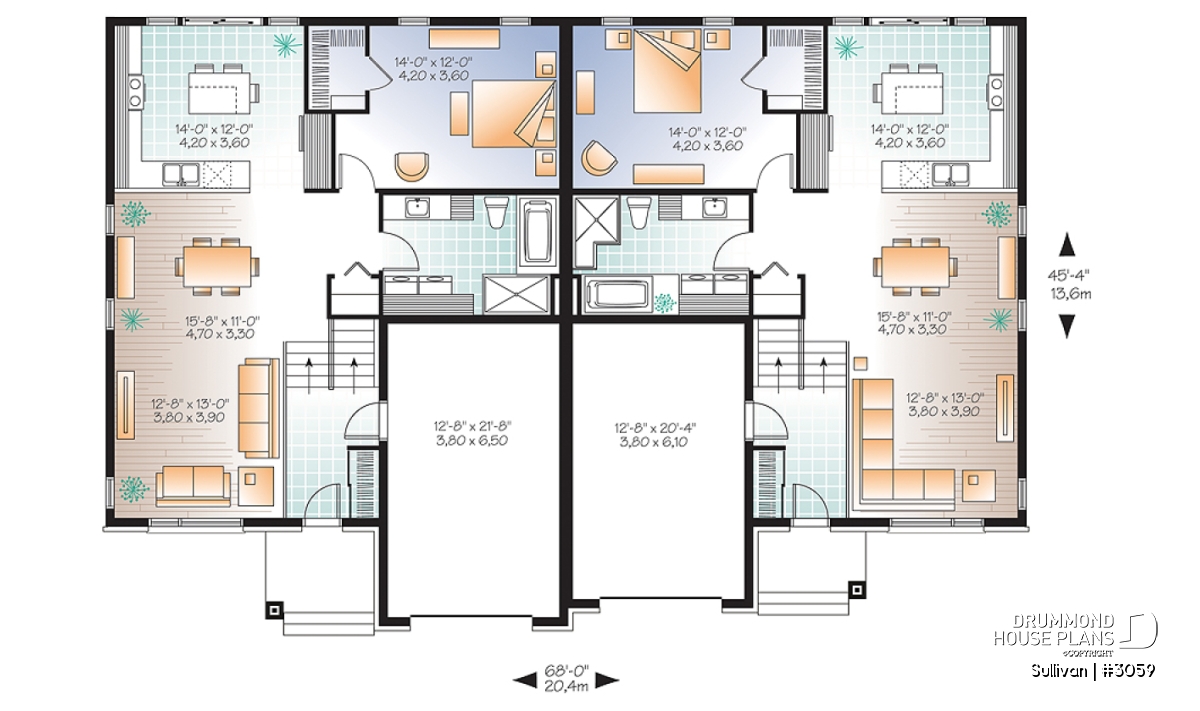

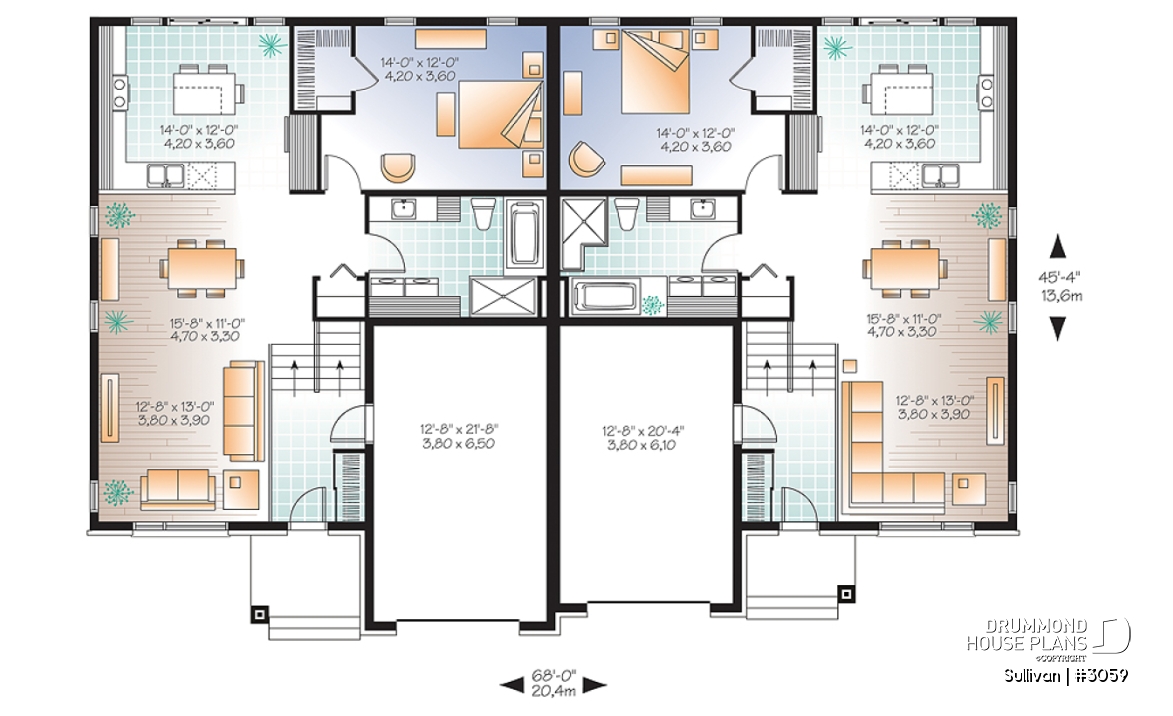

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 6'10" x 9'8" | ~ 11'2" |
| Closet | 2'0" x 5'0" | ~ 8'0" |
| Living room | 12'8" x 13'0" | ~ 8'0" |
| Dining room | 15'8" x 11'0" | ~ 8'0" |
| Kitchen/dinette | 14'0" x 12'0" | ~ 8'0" |
| Pantry | 2'6" x 2'0" | N/A |
| Bedroom | 14'0" x 12'0" | ~ 8'0" |
| Walk-in closet | 4'2" x 6'2" | ~ 8'0" |
| Bathroom/laundry room | 13'0" x 8'10" | ~ 8'0" |
| Linen | 1'8" x 1'10" | N/A |
| Linen | 6'8" x 1'6" | N/A |
| Storage | 3'6" x 2'8" | ~ 8'0" |
| Bedroom | 14'0" x 12'0" | ~ 8'0" |
| Walk-in closet | 4'2" x 6'2" | ~ 8'0" |
| Kitchen/dinette | 14'0" x 12'0" | ~ 8'0" |
| Pantry | 2'6" x 2'0" | N/A |
| Foyer | 6'10" x 9'8" | ~ 11'2" |
| Closet | 2'0" x 5'0" | ~ 8'0" |
| Storage | 3'6" x 2'8" | ~ 8'0" |
| Dining room | 15'8" x 11'0" | ~ 8'0" |
| Bathroom/laundry room | 13'0" x 8'10" | ~ 8'0" |
| Linen | 1'8" x 1'10" | N/A |
| Linen | 5'2" x 1'6" | N/A |
| Living room | 12'8" x 13'0" | ~ 8'0" |

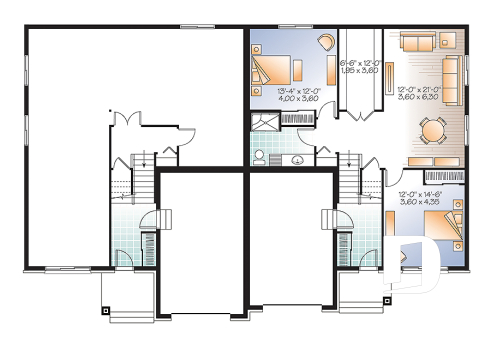

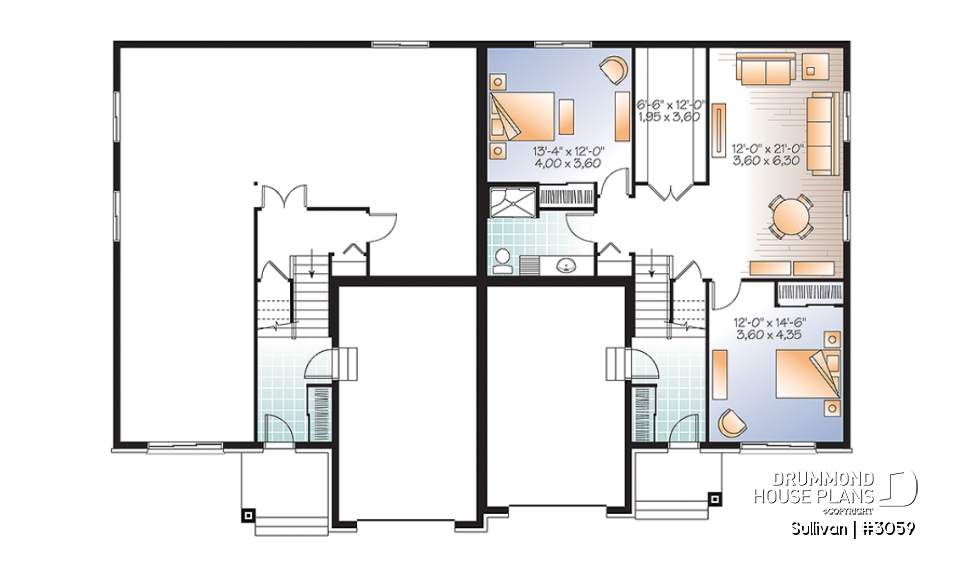

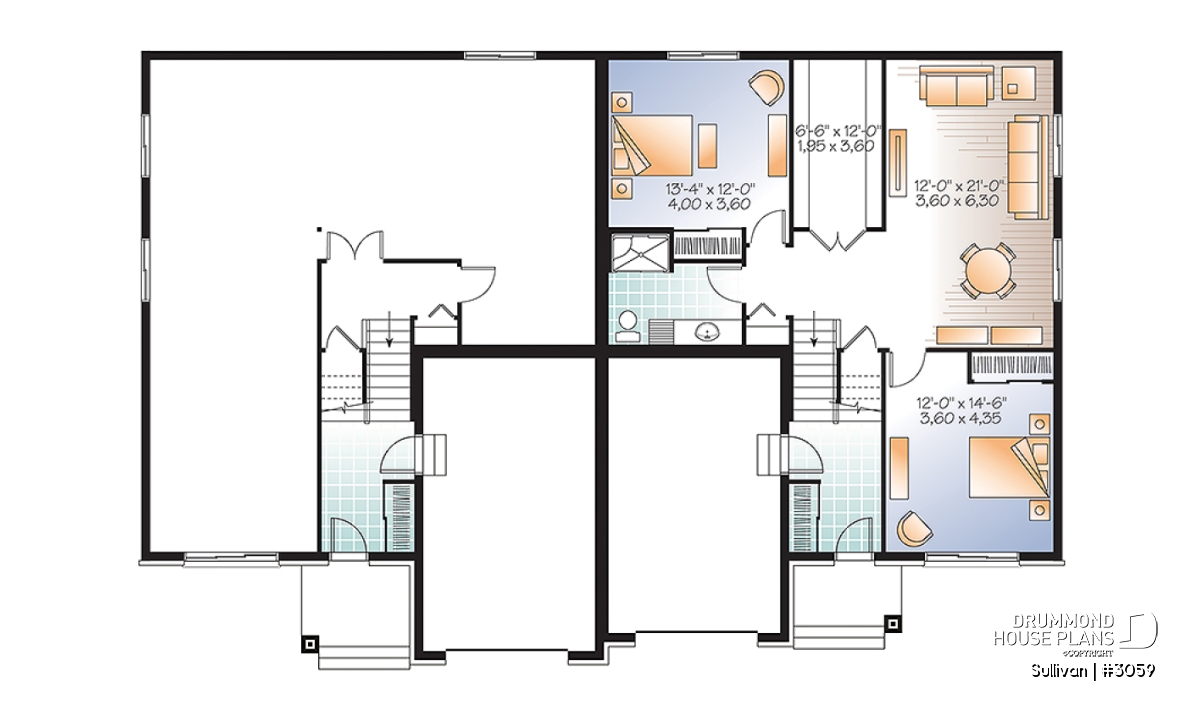

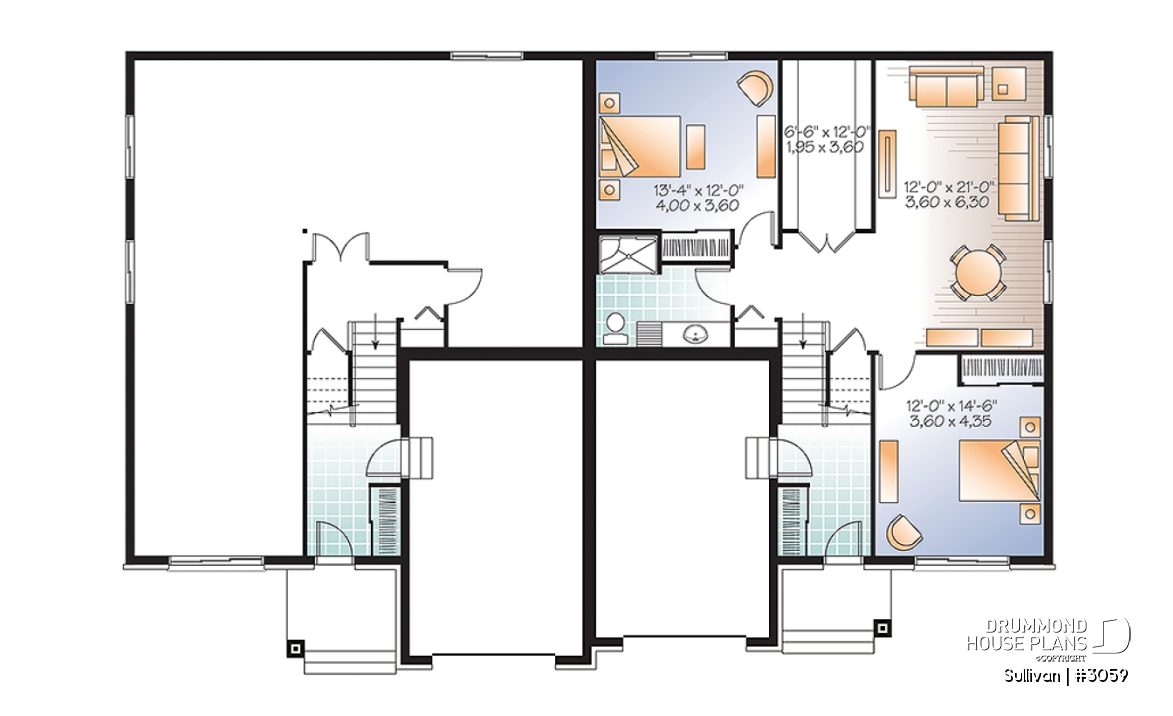

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'4" x 12'0" | ~ 8'0" |
| Closet | 5'0" x 2'0" | ~ 8'0" |
| Bedroom | 12'0" x 14'6" | ~ 8'0" |
| Closet | 5'8" x 2'0" | ~ 8'0" |
| Great room or Family room | 12'0" x 21'0" | ~ 8'0" |
| Storage | 6'6" x 12'0" | ~ 8'0" |
| Shower room or three quarter bath | 9'10" x 6'0" | ~ 8'0" |
| Linen | 1'10" x 1'10" | N/A |
| Linen | 3'2" x 1'10" | ~ 8'0" |
General specifications
| Total living area | 4200 sq.ft. |
| 1st level | 2180 sq.ft. |
| Basement | 2020 sq.ft. |
| Width | 68'0" |
| Depth | 45'4" |
| Ridge height from top of foundation | 19'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | MF |
Rooms specifications
| Bedroom(s) | 1, 2, 3 |
| Full baths | 2 |
| Half baths | - |
| Garage type | One-car garage (593 sq.ft.) |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | - |
Units specifications
Other useful information on this plan
Start climbing the property ladder!
Looking for a house plan that gets you started investing without breaking the bank? This may be the elegant solution you are looking for!
This semi-detached includes a fully developed, 3-bedroom unit on the right and an owner unit with unfinished basement on the left which can be completed to suit as your budget allows or used creatively for a business or workshop space.
The main floor of each unit boasts a very pleasing open activities area and master bedroom. A generous kitchen includes an indispensable prep island/eating bar easy access to the backyard and grill. The master bedroom enjoys a walk-in closet and easy access to a well-appointed bathroom with independent shower and tub and laundry.
The owner’s unit basement can be finished as circumstances allow. The other unit features two bedrooms, family room, a shower room and a storage of over 6ft x 12ft.
A perfect way to get in on the ground floor or home-ownership!
Distinctive elements
Stunning Modern duplex plan.
Open floor plan layout.
Kitchen with central lunch island.
Master bedroom on main floor and with walk-in closet.
Bathroom with separate shower and washer/dryer area.
Basement unit on left available to develop as an expansion to the unit above as required.
Plan feature(s)
Gound floor laundry room, Island, Walk-in master bed., Open floor layout, Game room, Panoramic view
Plan architectural style(s)
. Contemporary, . Mid-century, . Modern / Design
