House plan 3054
Duplex house plan with open floor plan concept, 3 bedrooms and garage for each unit
View the size of the rooms and height of the ceilings

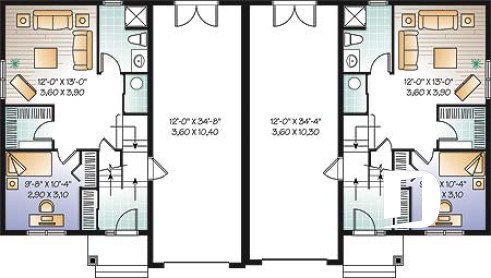

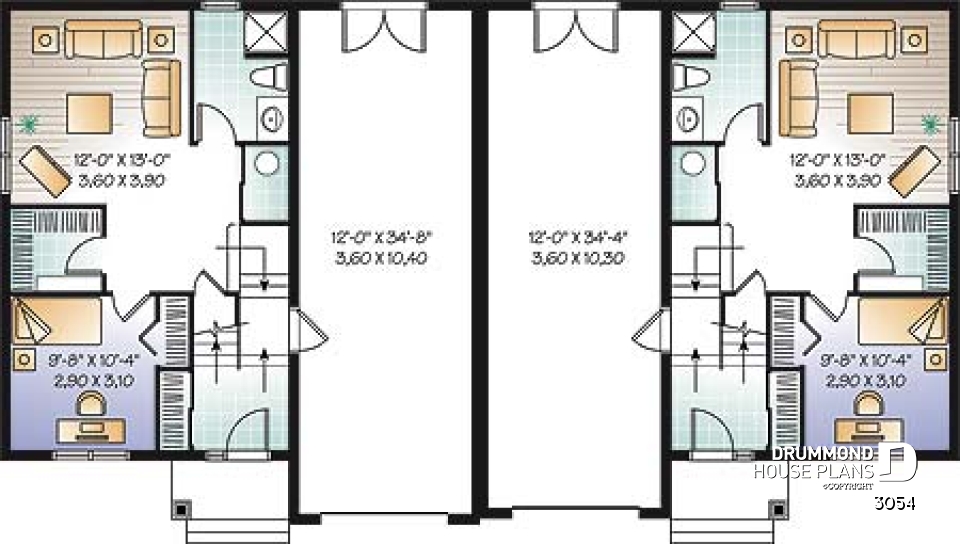

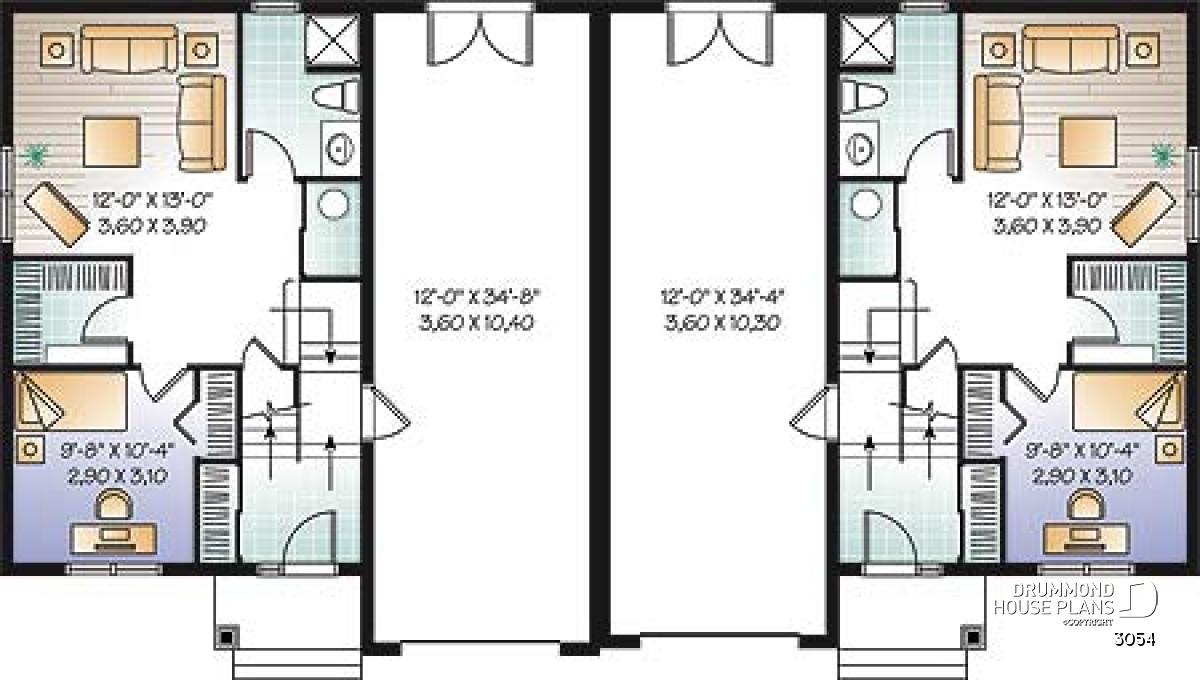

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 9'8" x 10'4" | ~ 8'0" |
| Playroom | 12'0" x 13'0" | ~ 8'0" |
| Storage | 6'0" x 5'8" | ~ 8'0" |
| Storage | 2'8" x 5'2" | ~ 8'0" |
| Garage | 12'0" x 34'8" | ~ 9'0" |
| Shower room or three quarter bath | 6'2" x 8'8" | ~ 8'0" |
| Bedroom | 9'8" x 10'4" | ~ 8'0" |
| Closet | 2'0" x 4'10" | ~ 8'0" |
| Garage | 12'0" x 34'8" | ~ 9'0" |
| Storage | 6'0" x 5'8" | ~ 8'0" |
| Storage | 2'8" x 5'2" | ~ 8'0" |
| Shower room or three quarter bath | 6'2" x 8'8" | ~ 8'0" |
| Playroom | 12'0" x 13'0" | ~ 8'0" |

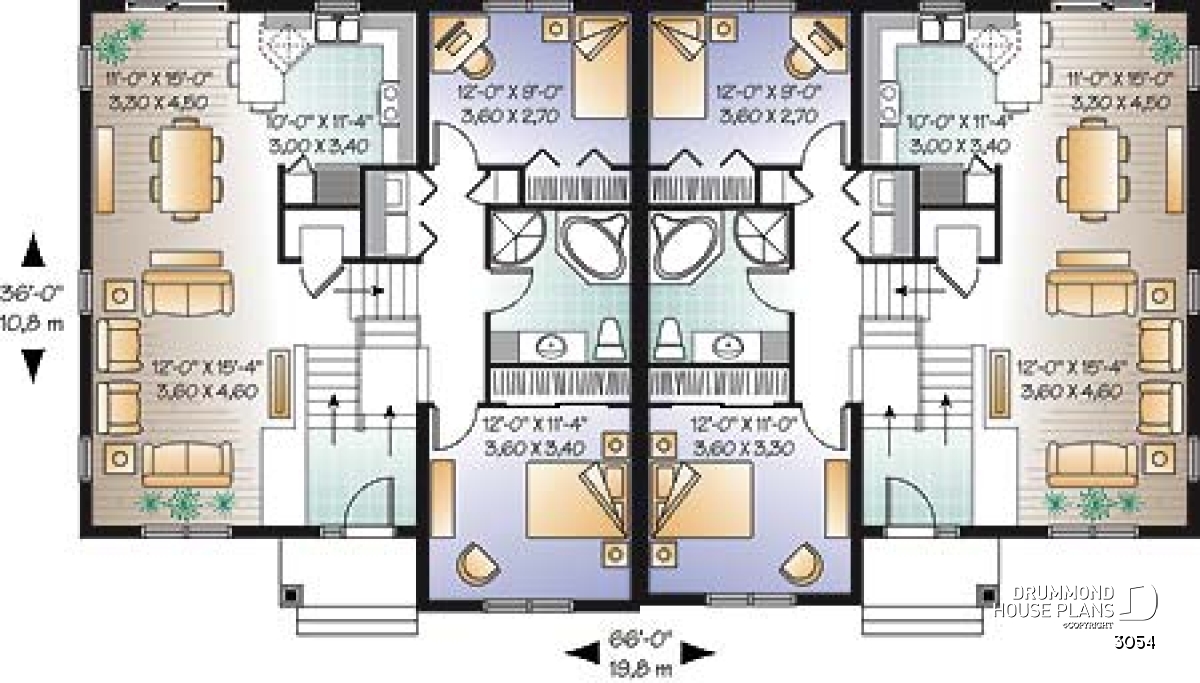

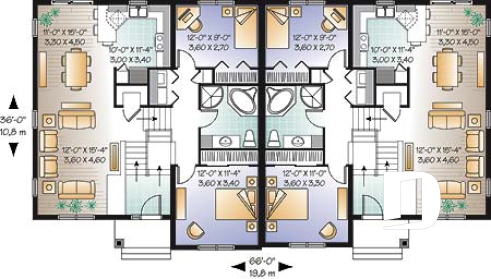

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 9'2" x 11'4" | ~ 8'8" |
| Dining room | 11'0" x 14'10" | ~ 8'8" |
| Living room | 12'0" x 15'6" | ~ 8'8" |
| Foyer | 6'6" x 5'10" | ~ 13'2" |
| Full bathroom | 8'4" x 9'0" | ~ 8'0" |
| Bedroom | 12'0" x 11'4" | ~ 8'0" |
| Bedroom | 12'0" x 9'0" | ~ 8'0" |
| Laundry room | 3'0" x 5'2" | ~ 8'0" |
| Storage | 4'6" x 2'10" | ~ 8'8" |
| Linen | 1'8" x 2'0" | ~ 8'0" |
| Covered porch | 8'0" x 4'0" | N/A |
| Deck | 10'0" x 5'0" | N/A |
| Laundry room | 3'0" x 5'2" | ~ 8'0" |
| Bedroom | 12'0" x 11'4" | ~ 8'0" |
| Closet | 8'4" x 2'0" | ~ 8'0" |
| Bedroom | 12'0" x 9'0" | ~ 8'0" |
| Closet | 6'4" x 2'0" | ~ 8'0" |
| Kitchen | 9'2" x 11'4" | ~ 8'8" |
| Pantry | 1'10" x 2'0" | N/A |
| Foyer | 6'6" x 5'10" | ~ 13'2" |
| Closet | 2'0" x 5'6" | ~ 13'2" |
| Linen | 1'8" x 2'0" | ~ 8'0" |
| Covered porch | 8'0" x 4'0" | N/A |
| Storage | 4'6" x 2'10" | ~ 8'8" |
| Dining room | 11'0" x 14'10" | ~ 8'8" |
| Full bathroom | 8'4" x 9'0" | ~ 8'0" |
| Living room | 12'0" x 15'6" | ~ 8'8" |
| Deck | 10'0" x 5'0" | N/A |
General specifications
| Total living area | 3498 sq.ft. |
| Basement | 1298 sq.ft. |
| 1st level | 2200 sq.ft. |
| Width | 66'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 30'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | MD |
Rooms specifications
| Bedroom(s) | 3, 6 |
| Full baths | 4 |
| Half baths | - |
| Garage type | Two-car garage (901 sq.ft.) |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 64 sq.ft. |
Units specifications
Other useful information on this plan
Distinctive elements
8'-8" ceiling height for activity area, including living room, dining room and kitchen-dinette. A large enough landing to the entry. Bedroom with adequate storage and comfortable bathroom with bath and corner shower. Garage with good depth with double garden doors giving access to the back. Well suited finished basement with large windows. Laundry facility close to the bedrooms.
Plan architectural style(s)
. American, . Country, . Traditional
