Withman (3001)
Buy this planFrom 2230$ See prices and options
Withman (3001)
Duplex house design with lots of natural lights, open floor plan, pantry, laundry room, 3 large bedrooms
Buy this plan
Special: Free shipping!
Need help?
Come see us
View the size of the rooms and height of the ceilings

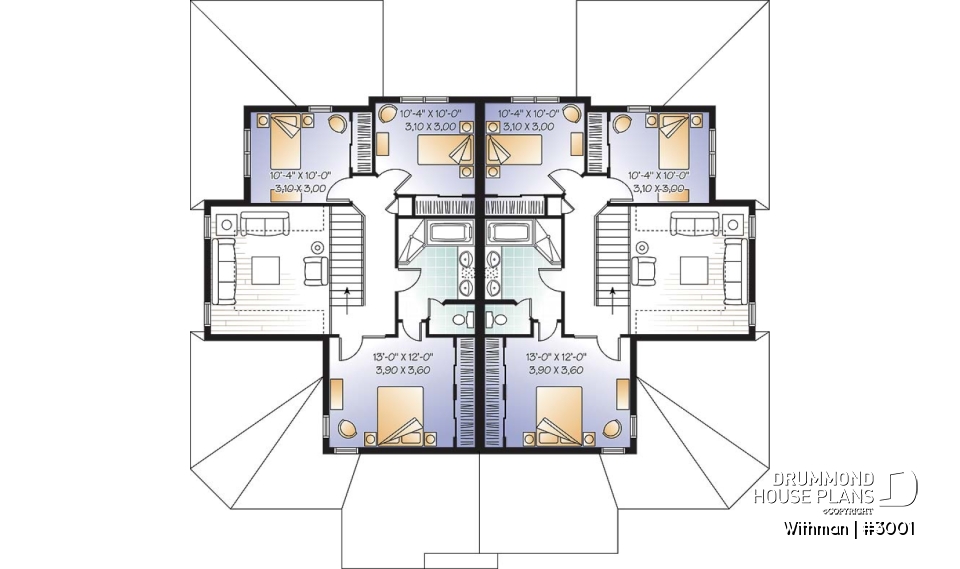

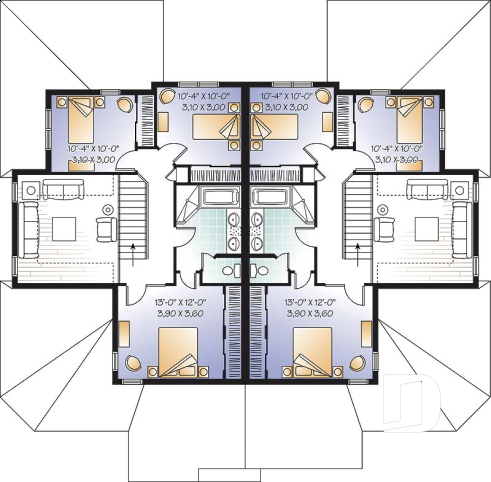

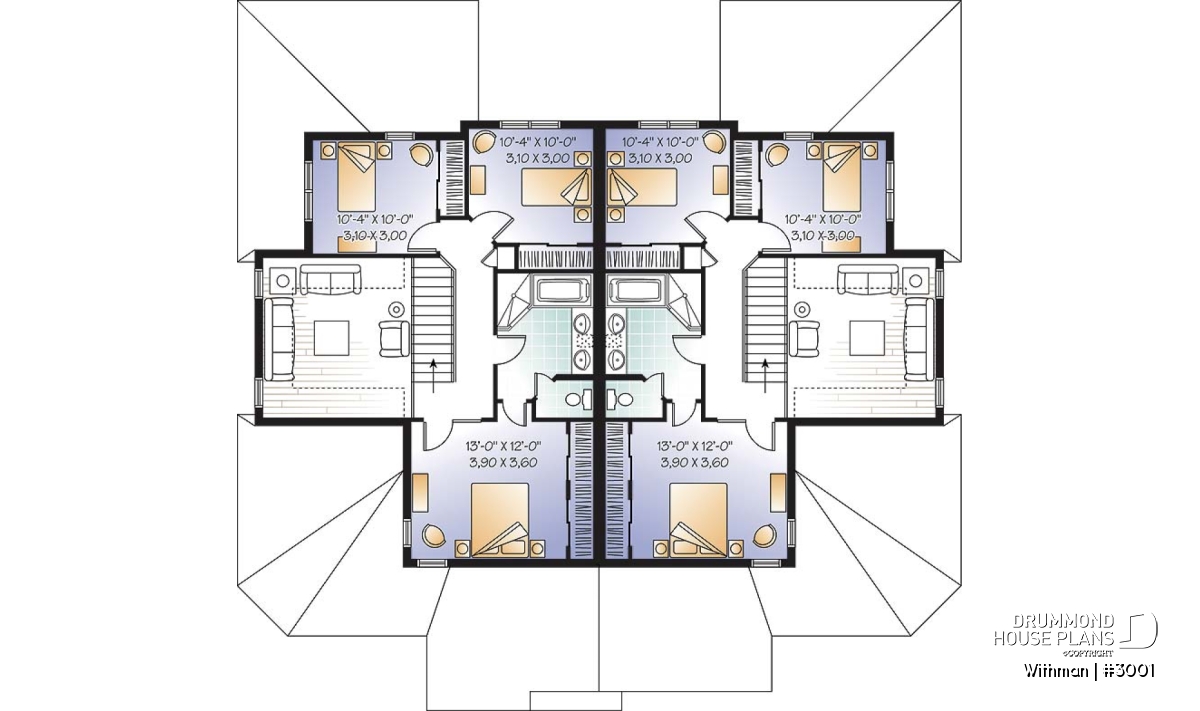

2nd level | ||
---|---|---|
Rooms | Sizes | Ceiling |
Full bathroom | 8'2" x 12'4" | ~ 8'0" |
Bedroom | 13'0" x 12'0" | ~ 8'0" |
Bedroom | 10'4" x 10'0" | ~ 8'0" |
Bedroom | 10'4" x 10'0" | ~ 8'0" |
Linen | 1'4" x 2'0" | ~ 8'0" |
Bedroom | 13'0" x 12'0" | ~ 8'0" |
Closet | 2'0" x 12'0" | ~ 8'0" |
Bedroom | 10'4" x 10'0" | ~ 8'0" |
Closet | 6'6" x 2'0" | ~ 8'0" |
Bedroom | 10'4" x 10'0" | ~ 8'0" |
Closet | 2'2" x 6'8" | ~ 8'0" |
Linen | 1'4" x 2'0" | ~ 8'0" |
Full bathroom | 8'2" x 12'4" | ~ 8'0" |

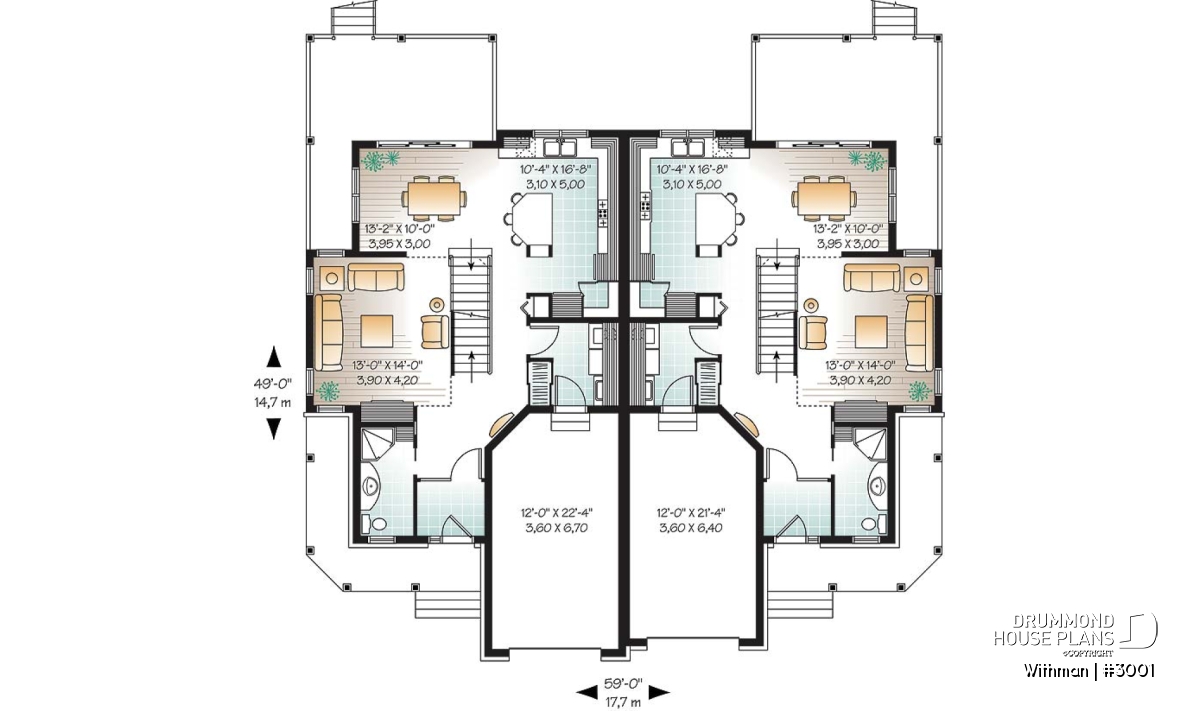

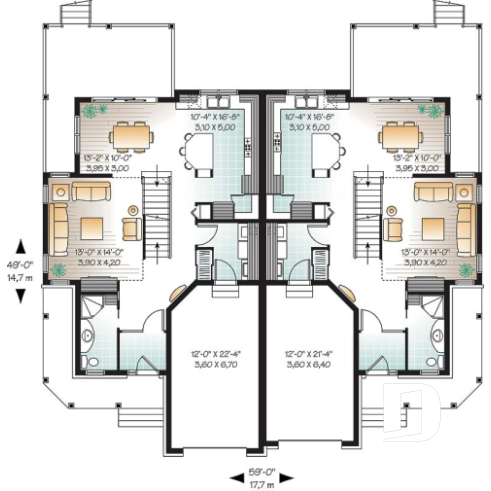

1st level | ||
---|---|---|
Rooms | Sizes | Ceiling |
Kitchen | 10'4" x 16'8" | ~ 8'0" |
Dining room | 13'2" x 9'8" | ~ 8'0" |
Living room | 13'0" x 14'0" | ~ 17'4" |
Foyer | 5'10" x 5'0" | ~ 8'0" |
Full bathroom | 4'6" x 10'4" | ~ 8'0" |
Garage | 12'0" x 22'4" | ~ 9'8" |
Garage | 12'0" x 21'4" | ~ 9'8" |
Covered porch | 16'0" x 4'8" | N/A |
Covered deck | 18'0" x 10'0" | N/A |
Mud room | 5'8" x 7'10" | ~ 8'0" |
Storage | 1'8" x 2'0" | ~ 8'0" |
Kitchen | 10'4" x 16'8" | ~ 8'0" |
Pantry | 3'4" x 3'4" | N/A |
Foyer | 5'10" x 5'0" | ~ 8'0" |
Closet | 2'0" x 4'2" | ~ 8'0" |
Covered porch | 16'0" x 4'8" | N/A |
Storage | 1'8" x 2'0" | ~ 8'0" |
Dining room | 13'2" x 9'8" | ~ 8'0" |
Full bathroom | 4'6" x 10'4" | ~ 8'0" |
Living room | 13'0" x 14'0" | ~ 17'4" |
Covered deck | 18'0" x 10'0" | N/A |
Mud room | 5'8" x 7'10" | ~ 8'0" |
General specifications
Total living area | 3192 sq.ft. |
1st level | 1760 sq.ft. |
2nd level | 1432 sq.ft. |
Width | 59'0" |
Depth | 49'0" |
Ridge height from top of foundation | 33'2" |
Exterior wall | 2 X 6 |
Foundation type included in the plan | Full Basement |
Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
Builder price code | MD |
Rooms specifications
Bedroom(s) | 3 |
Full baths | 1 |
Half baths | 1 |
Garage type | One-car garage (290 sq.ft.) |
Living bonus space | - |
Bonus storage | - |
Covered porch area | 130 sq.ft. |
UNIT 1 | UNIT 2 | |
Total living area | 3192 sq.ft. | 3192 sq.ft. |
1st level | 1760 sq.ft. | 1760 sq.ft. |
2nd level | 1432 sq.ft. | 1432 sq.ft. |
Width | 29' 6" | 29' 6" |
Depth | 49' 8" | 49' 8" |
Ridge height from top of foundation | 33' 2" | 33' 2" |
Exterior wall | 2 X 6 | 2 X 6 |
Foundation type | Full Basement | Full Basement |
Bedroom(s) | 3 | 3 |
Full baths | 1 | 1 |
Half baths | 1 | 1 |
Garage type | One-car garage (297 sq.ft.) | One-car garage (283 sq.ft.) |
Living bonus space | - | - |
Bonus storage | - | - |
General specifications
Total living area | 3192 sq.ft. |
2nd level | 1432 sq.ft. |
1st level | 1760 sq.ft. |
Width | 59'0" |
Depth | 49'0" |
Ridge height from top of foundation | 33'2" |
Exterior wall | 2 X 6 |
Foundation type included in the plan | Full Basement i |
Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
Builder price code | MD |
Rooms specifications
Bedroom(s) | 3 |
Full baths | 1 |
Half baths | 1 |
Garage type | One-car garage (290 sq.ft.) |
Living bonus space | - i |
Bonus storage | - i |
Covered porch area | 130 sq.ft. |
Units specifications
UNIT 1 | UNIT 2 | |
Total living area | 3192 sq.ft. | 3192 sq.ft. |
1st level | 1760 sq.ft. | 1760 sq.ft. |
2nd level | 1432 sq.ft. | 1432 sq.ft. |
Width | 29' 6" | 29' 6" |
Depth | 49' 8" | 49' 8" |
Ridge height from top of foundation | 33' 2" | 33' 2" |
Exterior wall | 2 X 6 | 2 X 6 |
Foundation type | Full Basement | Full Basement |
Bedroom(s) | 3 | 3 |
Full baths | 1 | 1 |
Half baths | 1 | 1 |
Garage type | One-car garage (297 sq.ft.) | One-car garage (283 sq.ft.) |
Living bonus space | - | - |
Bonus storage | - | - |
Other useful information on this plan
Beautiful duplex plan with 3 bedrooms and large sheltered veranda
.
Distinctive elements
Covered front and rear balconies.
Superb family room with two-story ceiling and original but adequate windowing.
Lunch counter island and pantry in kitchen.
Abundant windowing and triple patio door for plenty of light in dining room.
Built-in laundry chute.
Three lovely bedrooms on second level with excellent storage and bathroom with closed-in toilet and good-sized shower.
One-car garage.
Unfinished basement for extra space.
Plan feature(s)
Cathedral ceiling, Island, Gound floor laundry room, Separate bath and shower, Double sinks, Deck, Pantry, Open floor layout
Similar plans
Previously Viewed Plans
Questions and comments on this plan
August 13 2012
Customer service
Good day Mr. Deagazio and thank you for taking the time to write.
The total square footage is indeed 3,192 for a total of 1,596 per unit that is divided into 880 s.f. of living spacce for the first floor and 716 s.f. for the second.
Please let me know if I can further assist you.
Regards
Deborah
Questions and comments
August 13 2012
Emilio Deagazio
Re: Plan no.W3001
Please confirm that total living area for both units is 3192 sq.ft. whereby each unit is 1596 sq.ft. each. What would be the minimum lots size to accomodate this plan. Thanks
August 13 2012
Customer service
Good day Mr. Deagazio and thank you for taking the time to write.
The total square footage is indeed 3,192 for a total of 1,596 per unit that is divided into 880 s.f. of living spacce for the first floor and 716 s.f. for the second.
Please let me know if I can further assist you.
Regards
Deborah
Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.
Error with google reCaptcha! Try again
Buy this plan
There are no shipping fees if you buy one of our 2 plan packages "PDF file format" or "3 sets of blueprints + PDF". Shipping charges may apply if you buy additional sets of blueprints.
Want to modify this plan?
Free plan modification quoteNeed help?
Contact usCome see us
Our 30 regional officesYou may also like
Similar plans
Description
1st level: Closed foyer, kitchen with island / lunch counter, dining room, family room, half-bath with shower, laundry / mudroom.
2nd level: Master bedroom with access to full bathroom, two secondary bedrooms, mezzanine overlooking family room.
Unfinished basement for extra space.
