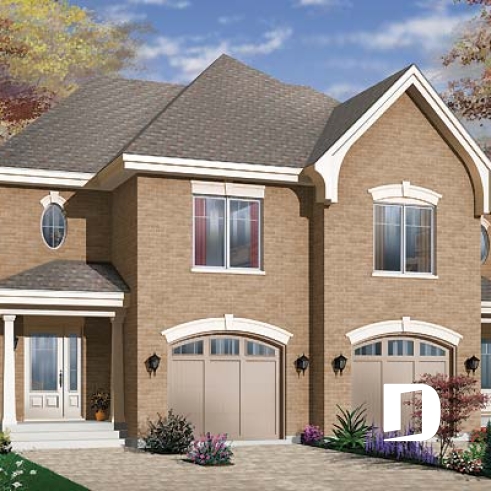

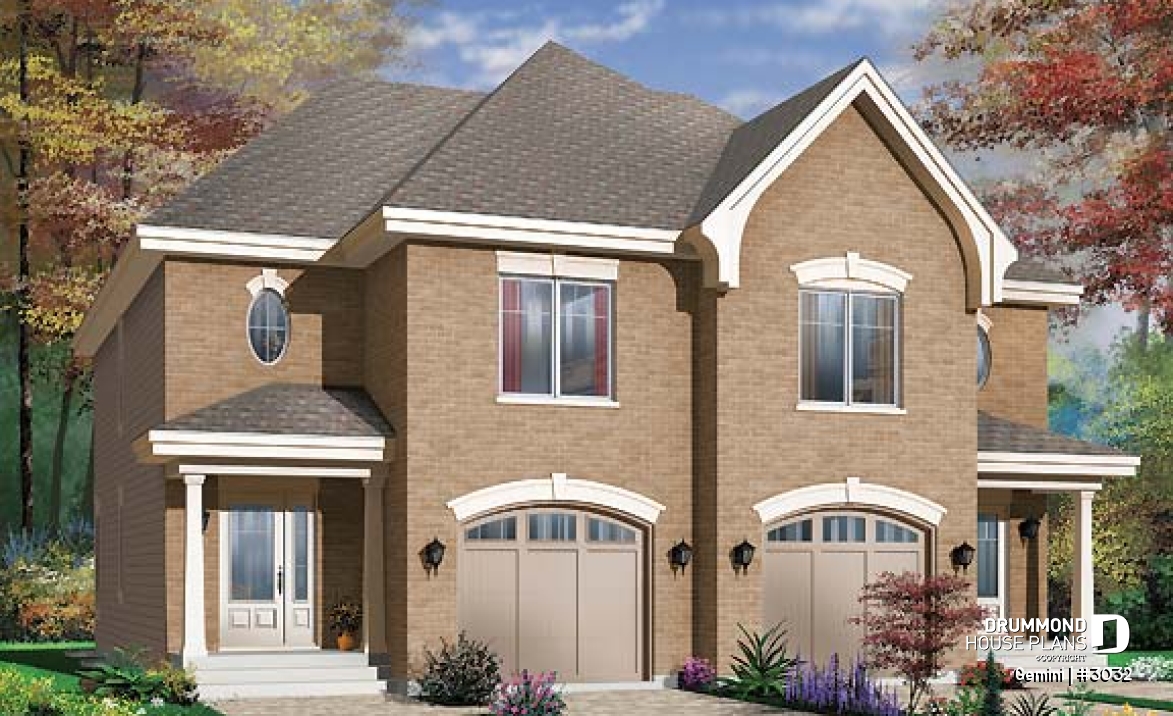

House plan Gemini (3032)
Duplex house plan with 3 bedrooms and garage, on each unit.
View the size of the rooms and height of the ceilings

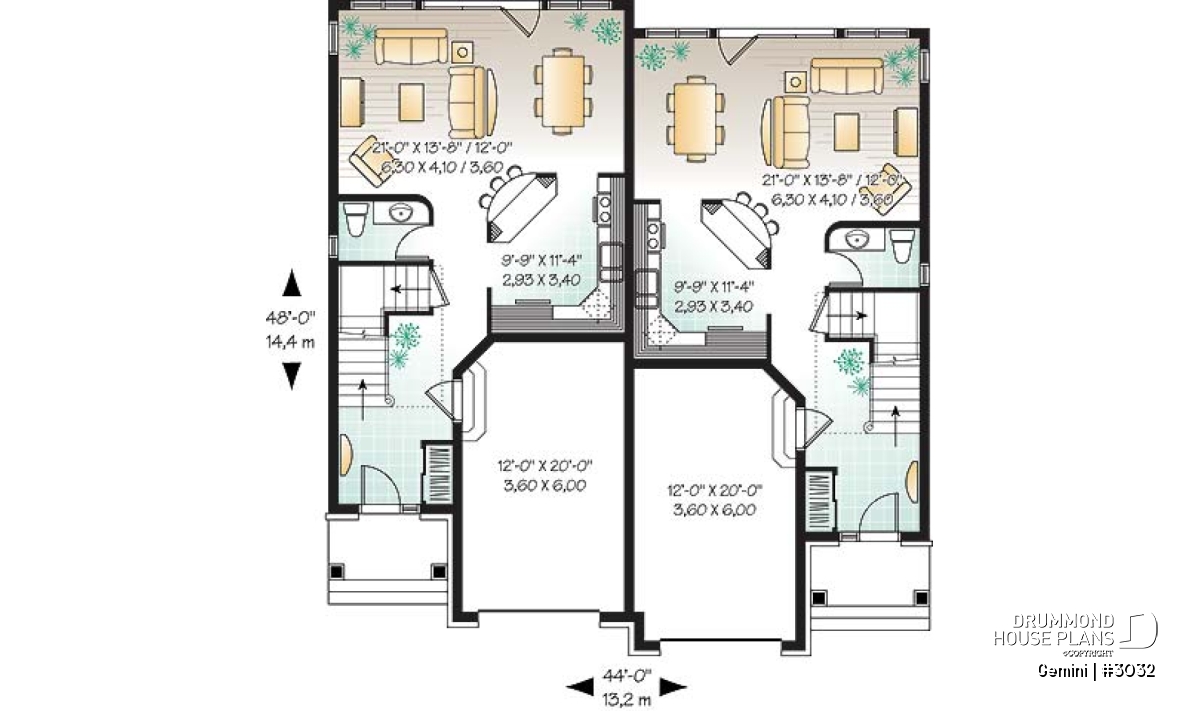

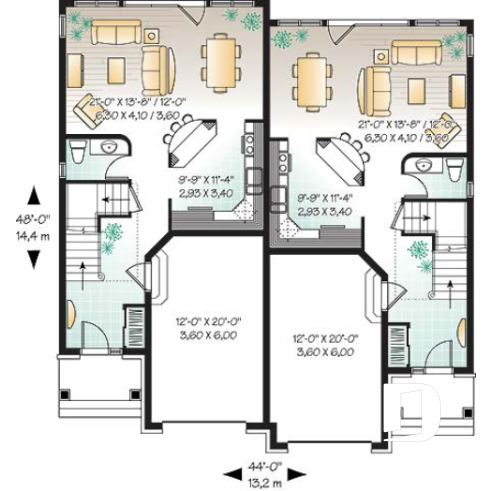

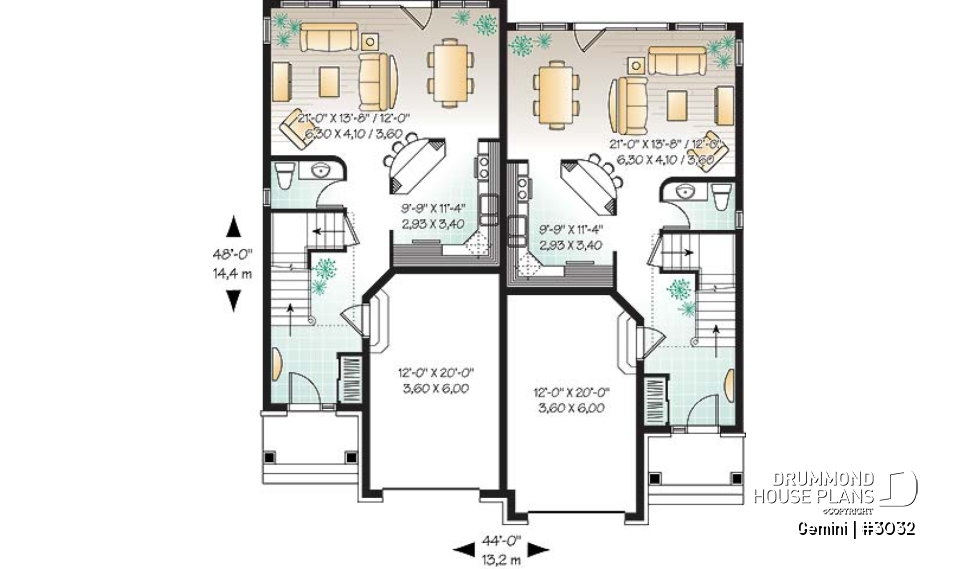

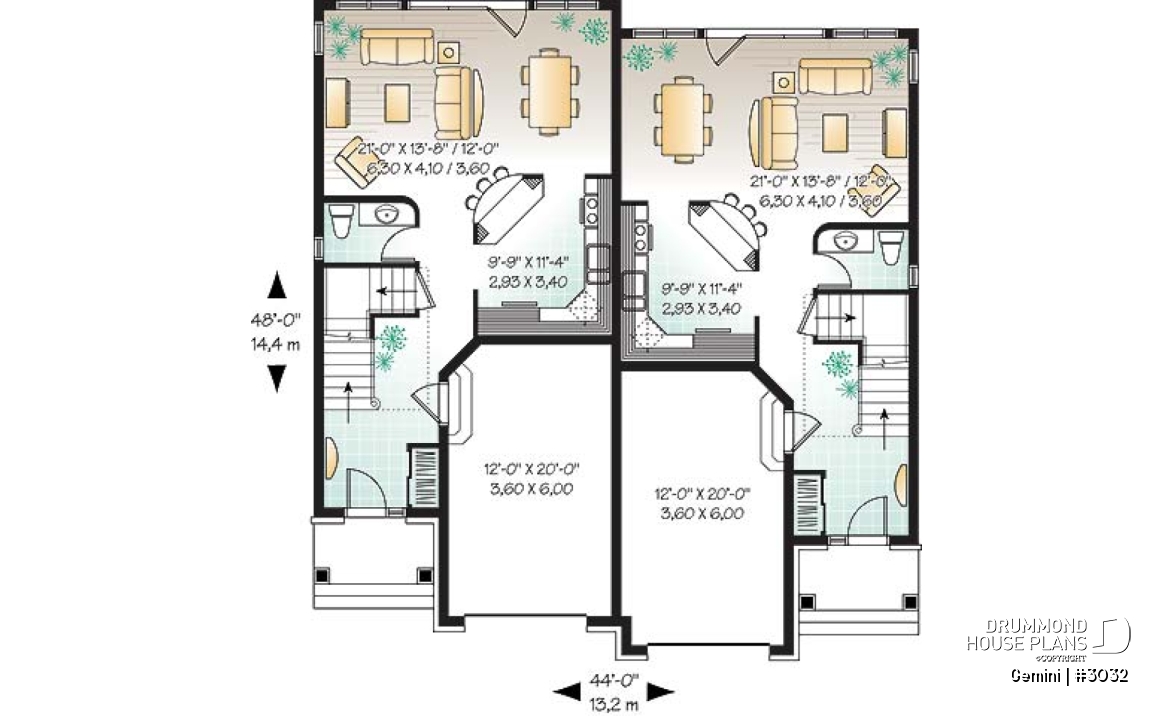

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'1" x 11'8" | ~ 8'0" |
| Pantry | 1'10" x 2'0" | N/A |
| Living room/dining room | 20'11" x 12'0" | ~ 8'0" |
| Foyer | 6'0" x 7'1" | ~ 8'0" |
| Closet | 2'0" x 4'4" | ~ 8'0" |
| Half bath or powder room | 6'4" x 4'2" | ~ 8'0" |
| Garage | 11'1" x 20'0" | ~ 9'8" |
| Covered porch | 8'8" x 4'6" | N/A |
| Deck | 16'0" x 8'0" | N/A |
| Kitchen | 10'1" x 11'8" | ~ 8'0" |
| Pantry | 1'10" x 2'0" | N/A |
| Half bath or powder room | 6'4" x 4'2" | ~ 8'0" |
| Foyer | 6'0" x 7'1" | ~ 8'0" |
| Closet | 2'0" x 4'4" | ~ 8'0" |
| Garage | 11'1" x 20'0" | ~ 9'8" |
| Covered porch | 8'8" x 4'6" | N/A |
| Living room/dining room | 20'11" x 12'0" | ~ 8'0" |
| Deck | 16'0" x 8'0" | N/A |

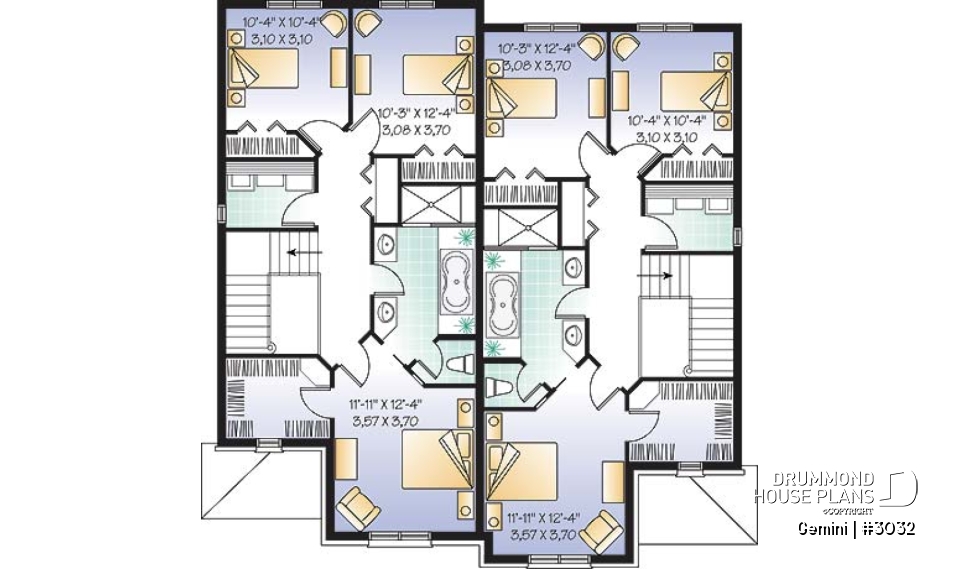

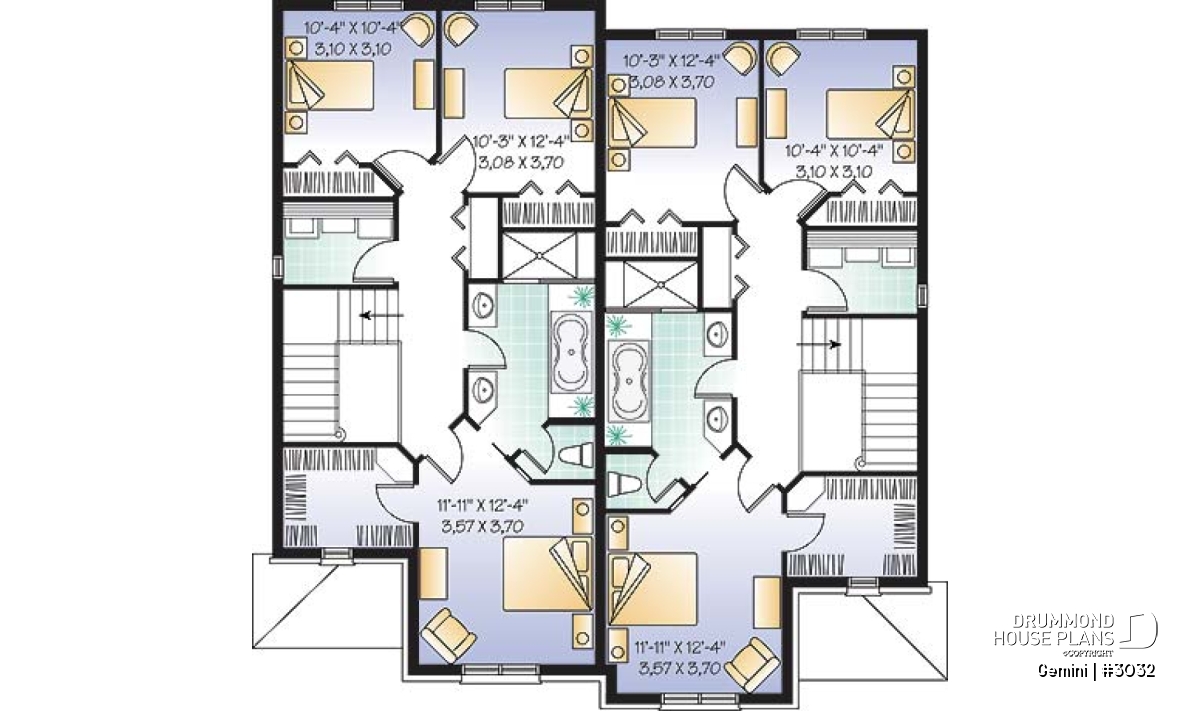

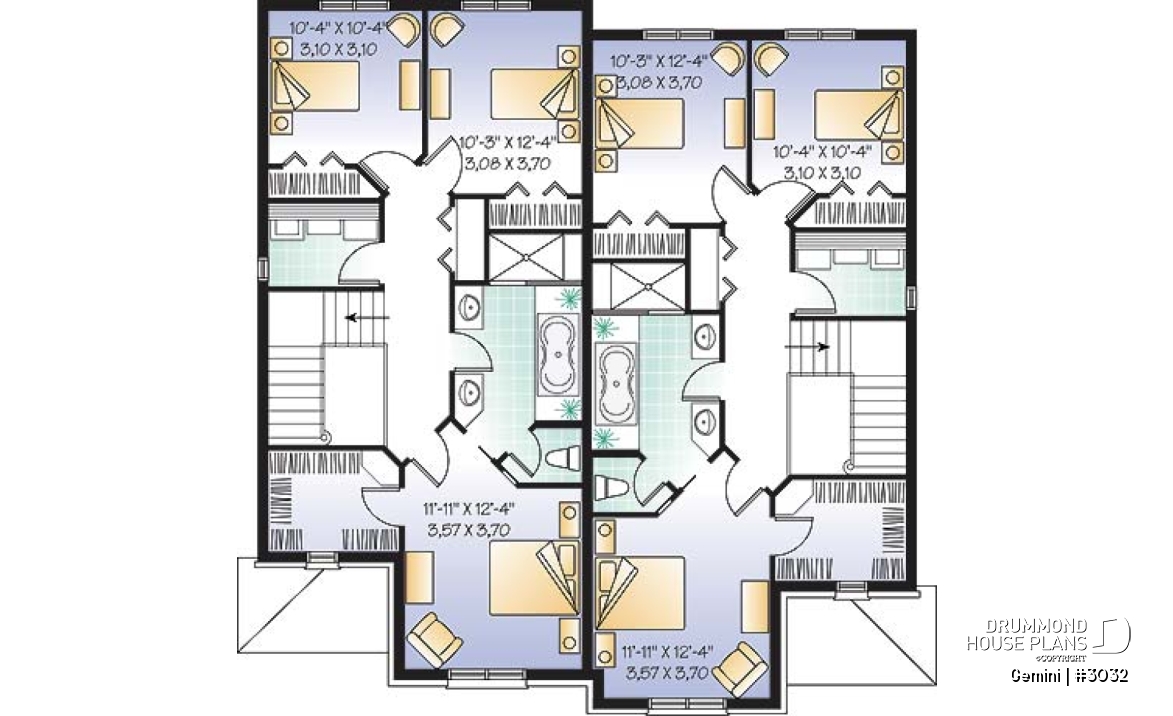

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'5" x 12'8" | ~ 8'0" |
| Bedroom | 11'11" x 12'4" | ~ 8'0" |
| Walk-in closet | 8'8" x 6'10" | ~ 8'0" |
| Bedroom | 10'3" x 12'4" | ~ 8'0" |
| Closet | 6'1" x 2'0" | ~ 8'0" |
| Bedroom | 10'4" x 10'4" | ~ 8'0" |
| Closet | 6'11" x 2'0" | ~ 8'0" |
| Laundry room | 7'6" x 5'6" | ~ 8'0" |
| Storage | 2'0" x 5'6" | ~ 8'0" |
| Bedroom | 11'11" x 12'4" | ~ 8'0" |
| Walk-in closet | 8'8" x 6'10" | ~ 8'0" |
| Bedroom | 10'3" x 12'4" | ~ 8'0" |
| Closet | 6'1" x 2'0" | ~ 8'0" |
| Bedroom | 10'4" x 10'4" | ~ 8'0" |
| Closet | 6'11" x 2'0" | ~ 8'0" |
| Full bathroom | 8'5" x 16'8" | ~ 8'0" |
| Storage | 2'0" x 5'6" | ~ 8'0" |
| Laundry room | 7'6" x 5'6" | ~ 8'0" |
General specifications
| Total living area | 3188 sq.ft. |
| 1st level | 1358 sq.ft. |
| 2nd level | 1830 sq.ft. |
| Width | 44'0" |
| Depth | 48'0" |
| Ridge height from top of foundation | 34'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | MD |
Rooms specifications
| Bedroom(s) | 3 |
| Full baths | 1 |
| Half baths | 1 |
| Garage type | One-car garage (528 sq.ft.) |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 70 sq.ft. |
Units specifications
Other useful information on this plan
Splitting images of 2 storey duplex house plan
Mirrored units in this semi-detached will have you thinking you are seeing double. A private covered entry welcomes you to each unit. Surprisingly spacious, each unit boasts 679 sq. ft. of living on the main level and 915 on the upper plus a one-bay garage each.
Featuring an open floor plan, the living areas feel large and bright. Three bedrooms up allow space for all and the master suite enjoys a walk-in closet and private bathroom access. A small laundry room is ideally located close to all of the bedrooms.
Distinctive elements
Impressive entry. Original kitchen with bar-style dinette. Abundant windows at rear in dining and family rooms. Three very lovely rooms on 2nd level. Attractive laundry facilities. Bathroom with large independant shower and toilet in cabin.
Plan feature(s)
Mezzanine, Panoramic view, Island, Second floor laundry room, Walk-in master bed., Separate bath and shower, Double sinks
