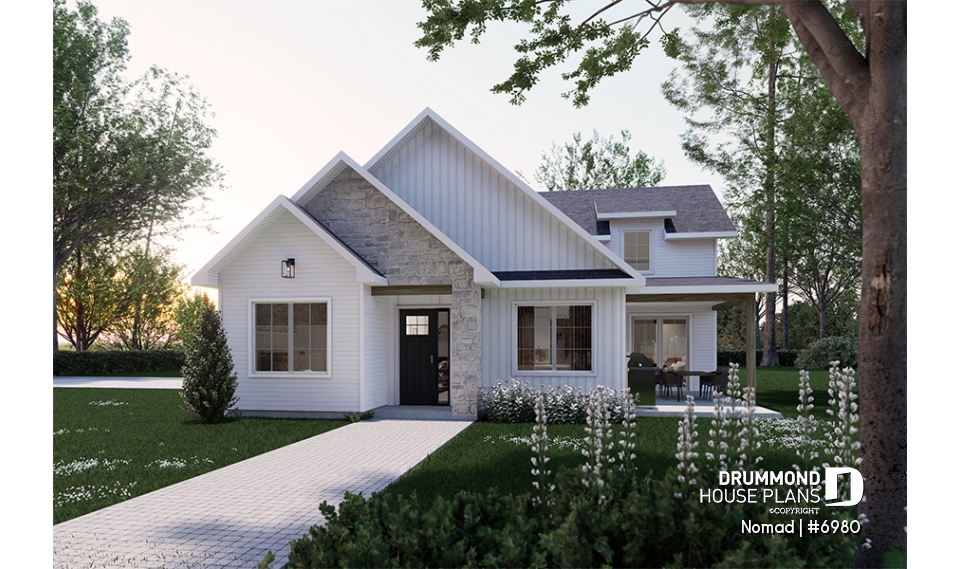

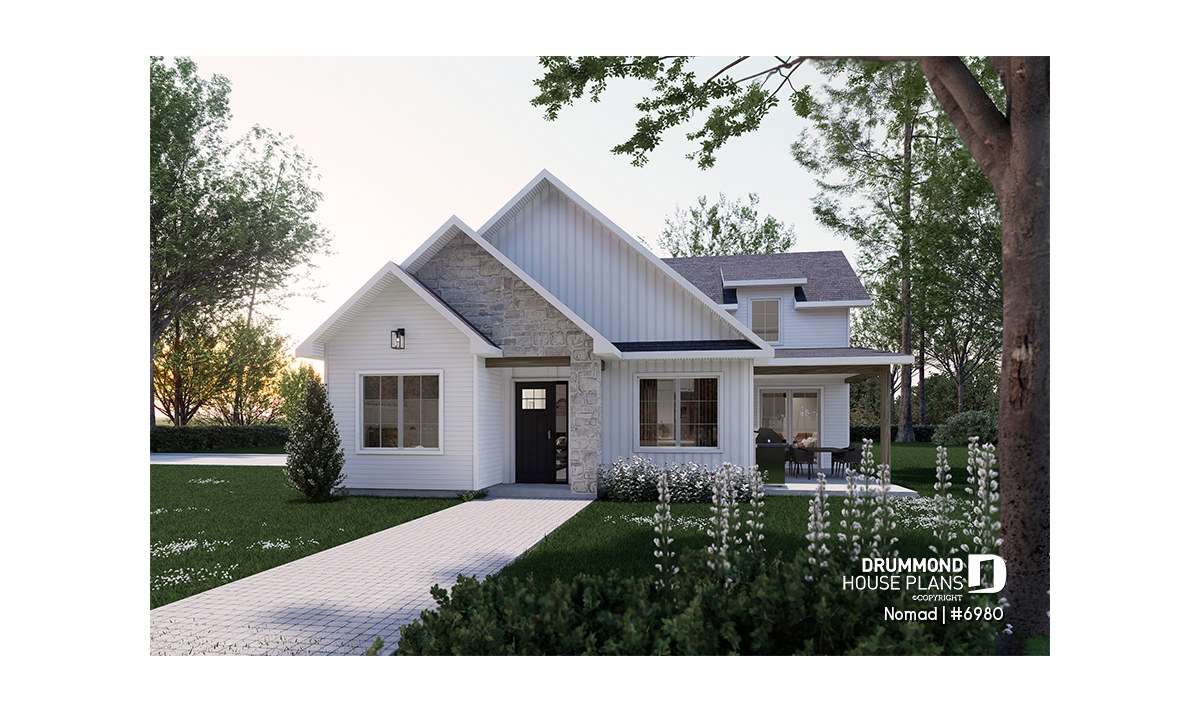

House plan Nomad (6980)
Small one bedroom house with attached RV garage, with option to convert RV garage into extra beds/baths
View the size of the rooms and height of the ceilings
| 1st level option 1 | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living room | 18'6" x 17'2" | ~ 16'4" |
| Storage | 5'0" x 3'6" | ~ 16'4" |
| Bathroom | 9'10" x 5'0" | ~ 16'4" |
| Bedroom | 13'10" x 11'8" | ~ 16'4" |
| Walk-in closet | 7'4" x 5'10" | ~ 16'4" |
| Bedroom | 12'0" x 13'0" | ~ 16'4" |
| Walk-in closet | 5'4" x 7'10" | ~ 16'4" |
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Covered porch | 8'0" x 4'0" | ~ 9'4" |
| Bedroom | 10'0" x 10'2" | ~ 9'0" |
| Closet | 6'0" x 2'2" | ~ 9'0" |
| Covered deck | 11'0" x 13'0" | ~ 9'4" |
| Bathroom/laundry room | 8'4" x 10'8" | ~ 9'0" |
| Linen | 2'4" x 1'2" | N/A |
| Closet | 5'6" x 2'0" | ~ 9'0" |
| Kitchen | 15'10" x 8'10" | ~ 9'0" |
| Kitchen island | 7'8" x 2'6" | N/A |
| Pantry | 2'6" x 2'0" | N/A |
| Living room/dining room | 20'0" x 10'6" | ~ 9'0" |
| Mechanical room | 8'4" x 3'0" | ~ 16'4" |
| Garage | 45'0" x 20'8" | ~ 16'4" |
| Porch | 11'0" x 6'0" | N/A |
| Deck | 28'0" x 10'0" | N/A |
General specifications
| Total living area | 2300 sq.ft. |
| 1st level option 1 | 1650 sq.ft. |
| 1st level | 650 sq.ft. |
| Width | 46'4" |
| Depth | 46'4" |
| Ridge height from top of foundation | 24'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | F |
Rooms specifications

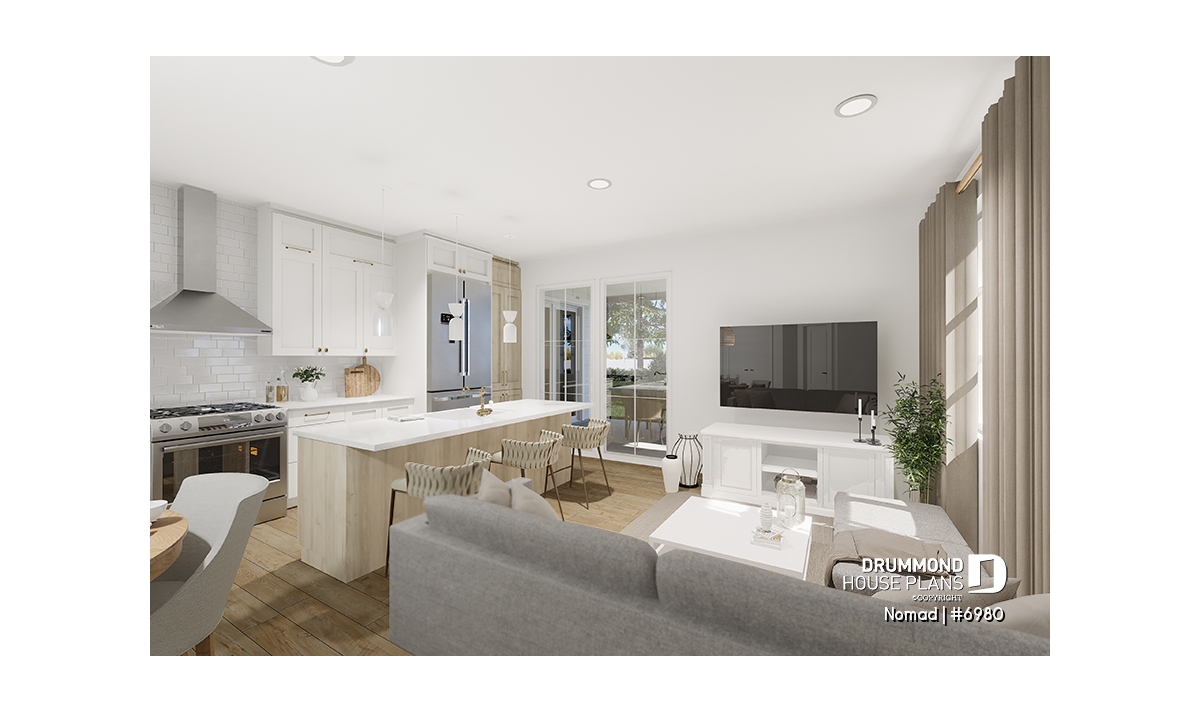

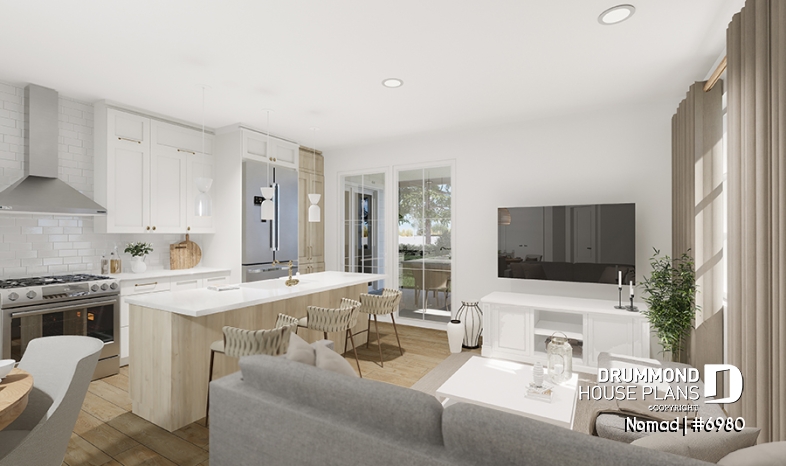

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

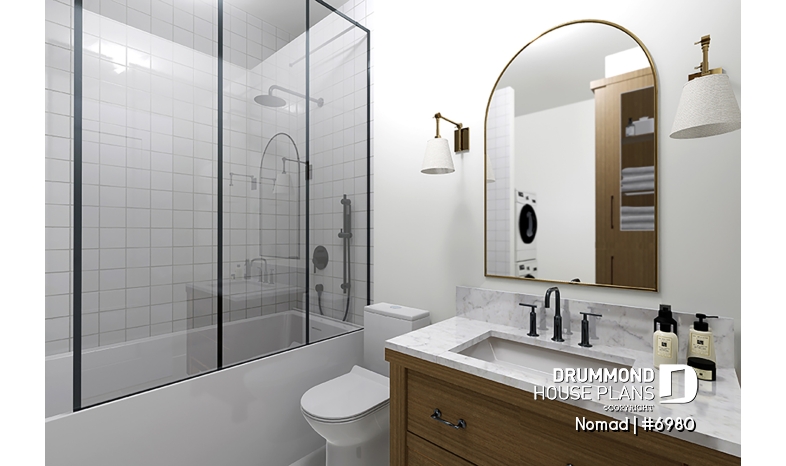

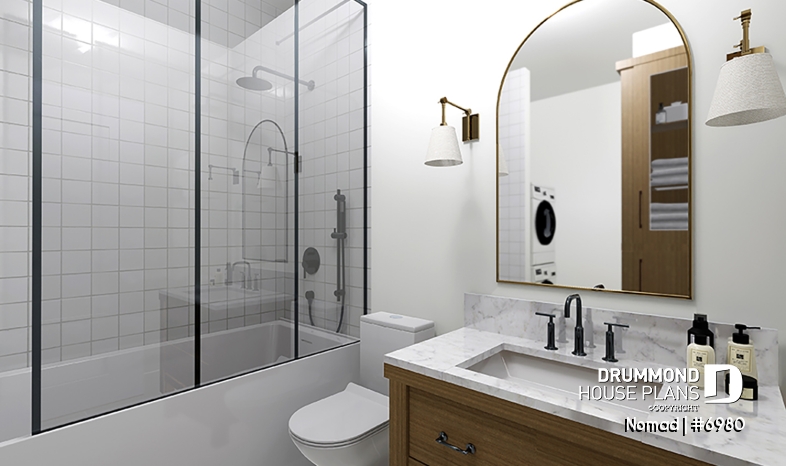

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

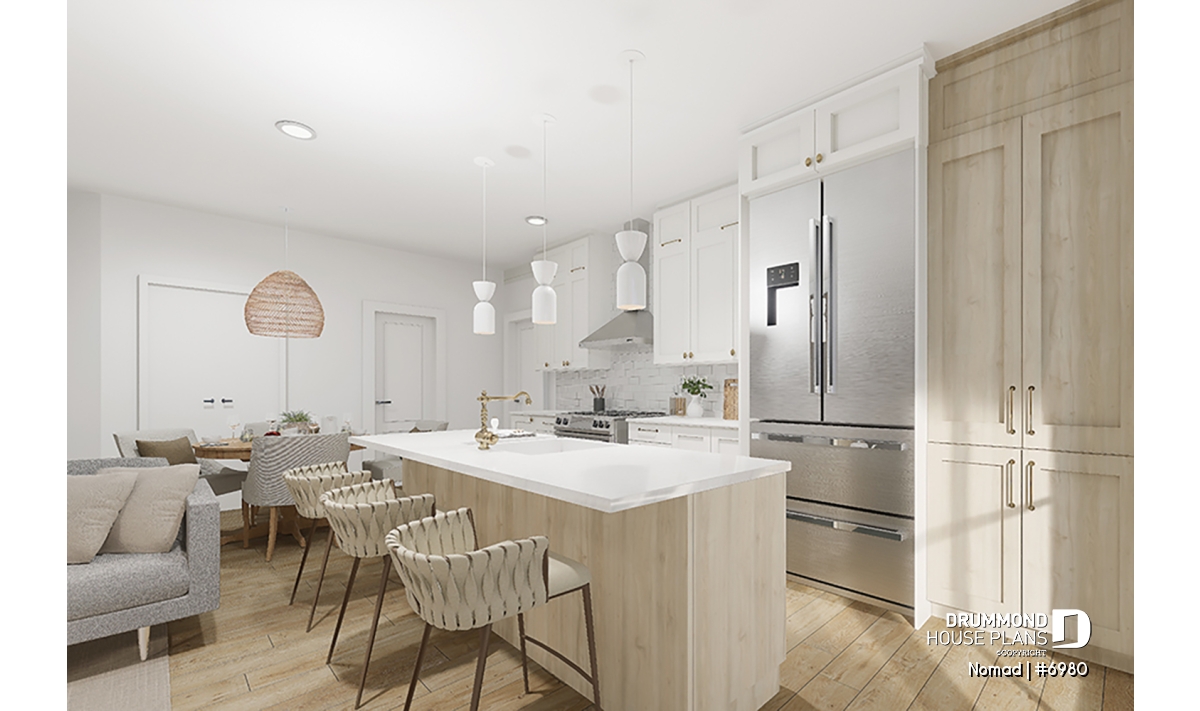

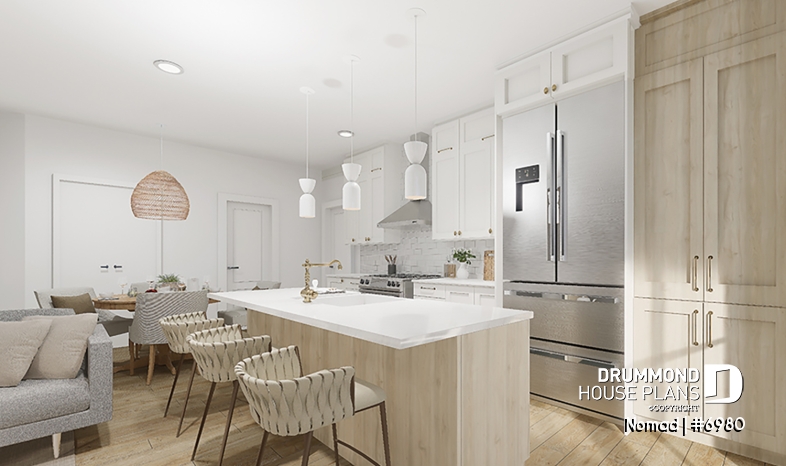

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

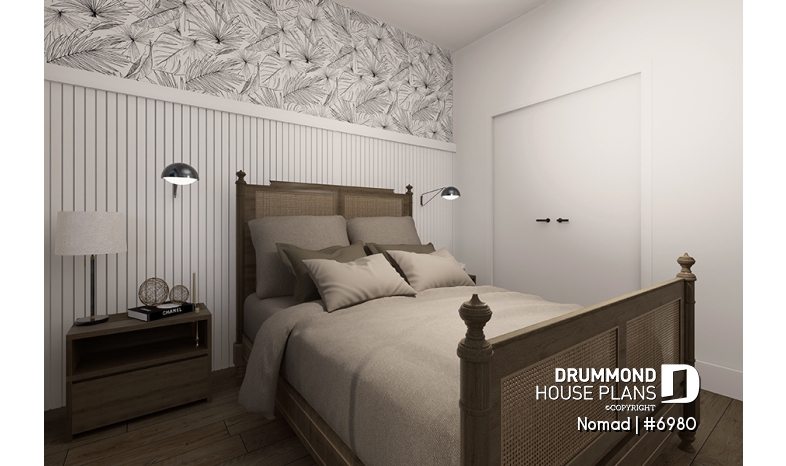

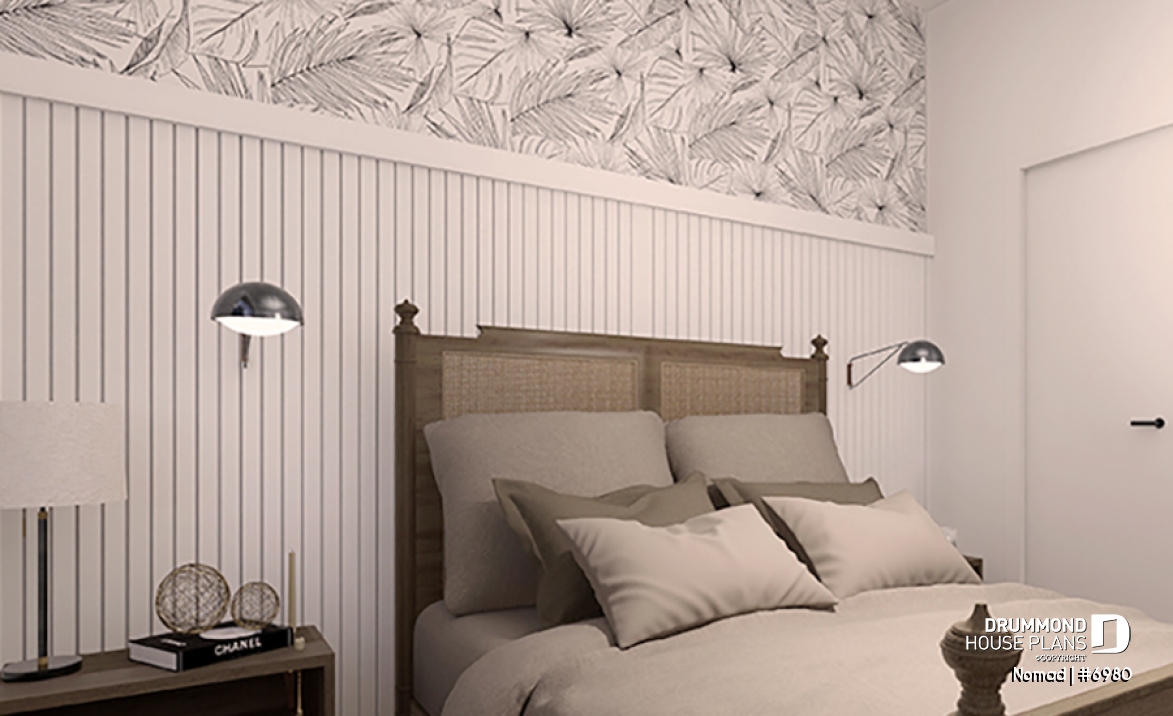

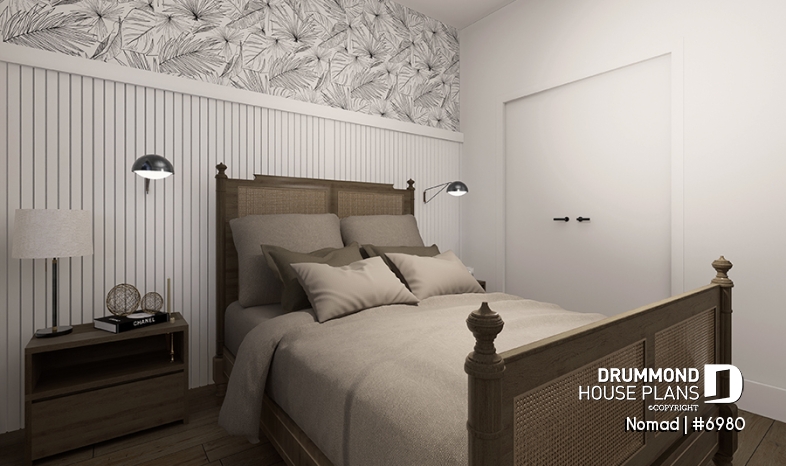

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

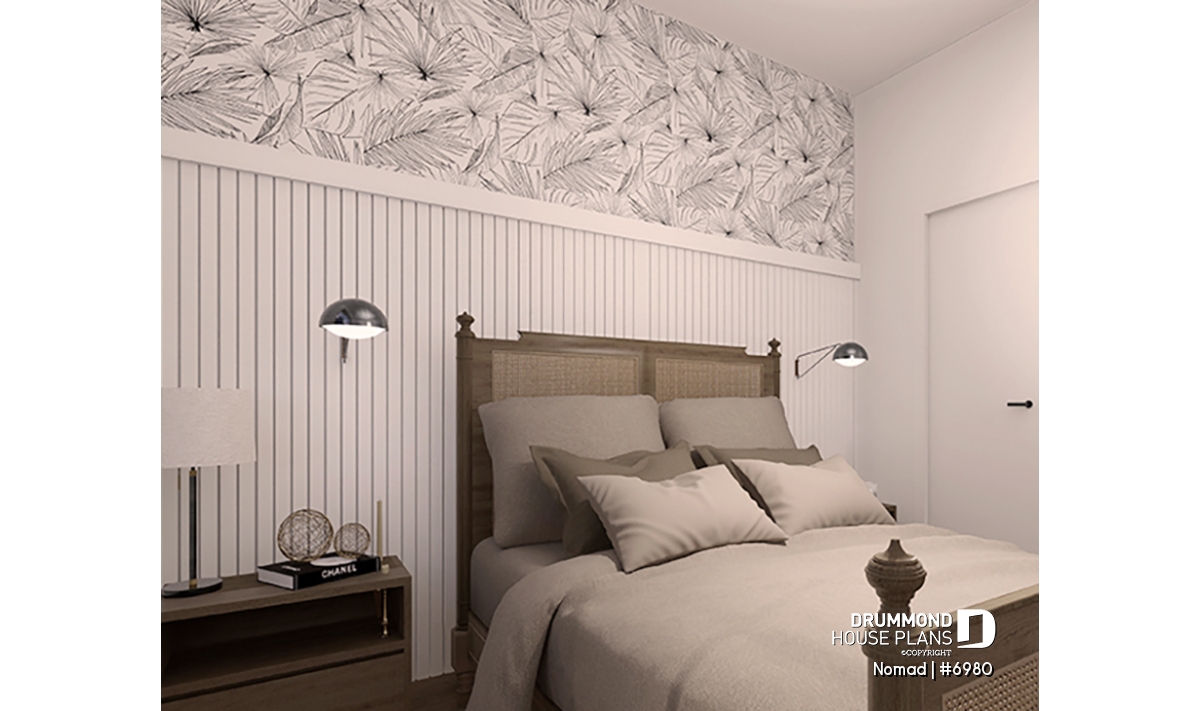

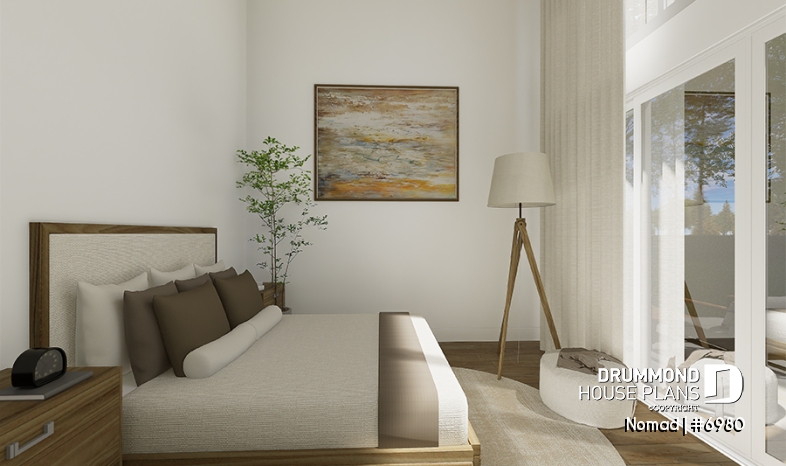

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

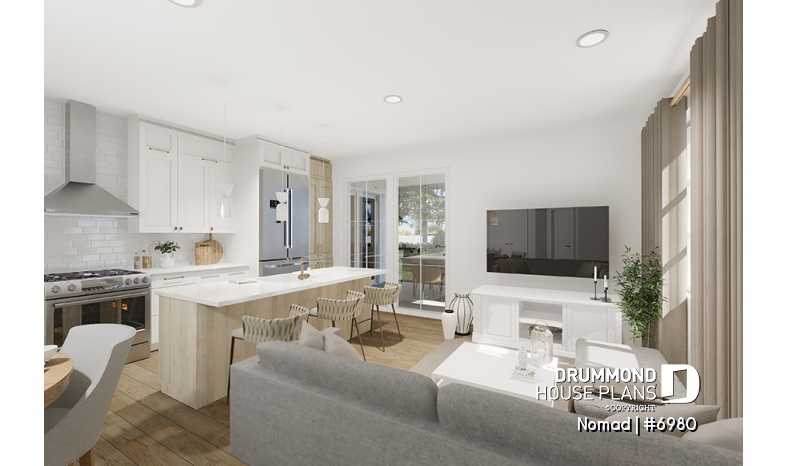

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Economical small house plan with attached RV garage!
Nomad house plan (#6980) is the first in a series of 6 models from the HYBRID collection. This project was developed for a home builder wishing to offer a scalable home concept to a group of customers who own a recreational vehicle (RV), such as a motorhome, a fifth wheel or a trailer home. This collection offers alternative accommodations for travelers, retirees and/or adventurers, wishing to have a "home away from home" with family and friends as well as a garage space allowing storage and access to their RV directly from their home.
In addition, for each of the 6 models, one or two options are offered for a potential conversion of the RV garage space into livable space. Whether for the addition of bedrooms and bathrooms, bi-generational housing or a family room, this flexible space will be able to adjust to your evolving needs.

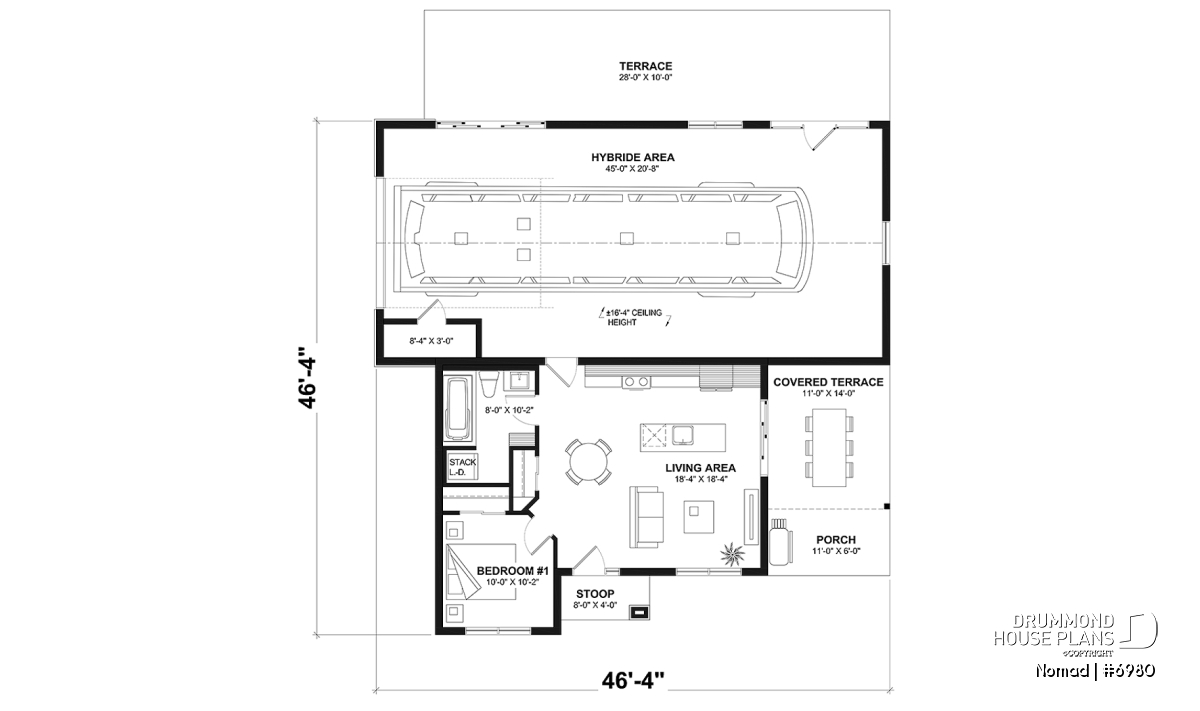

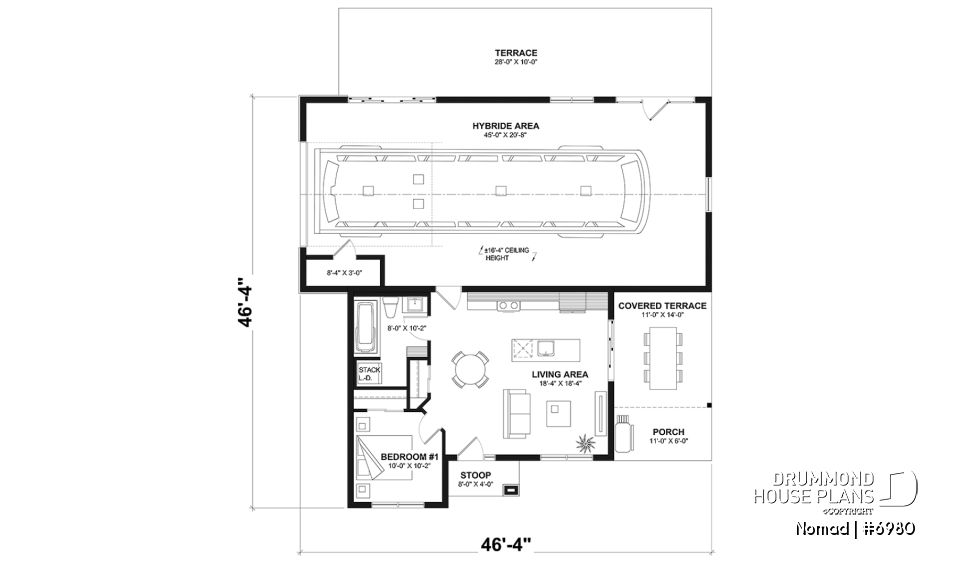

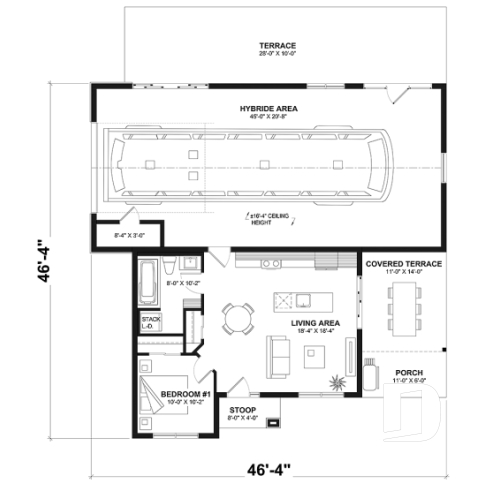

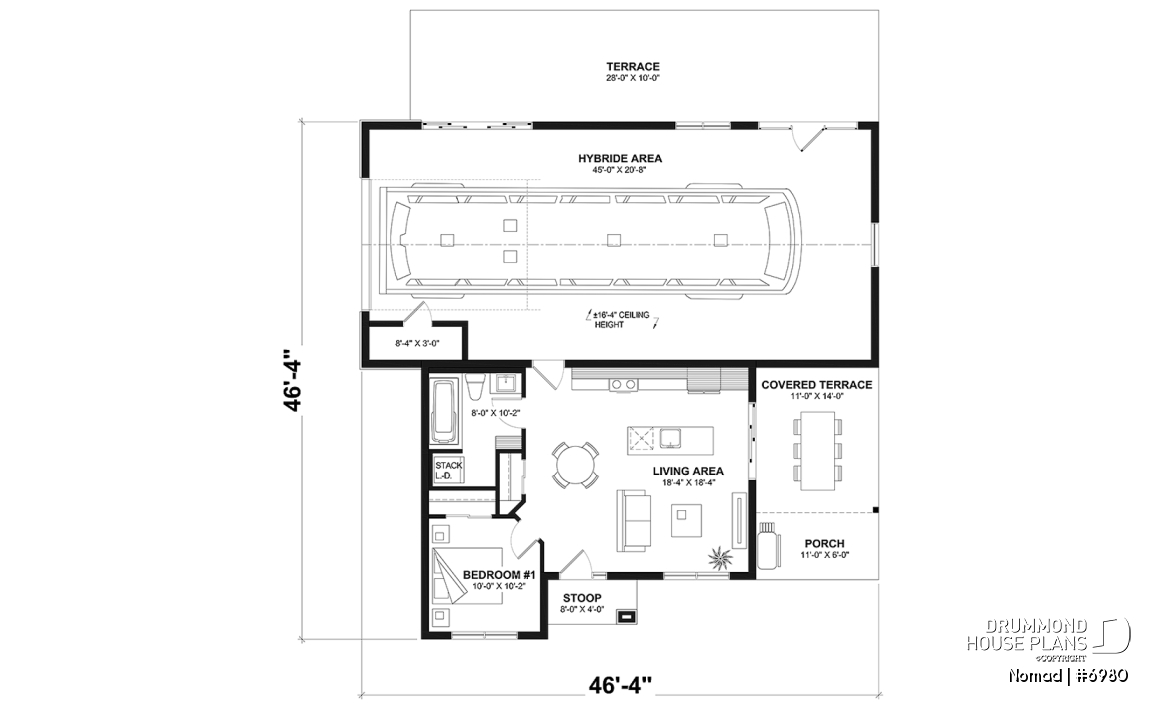

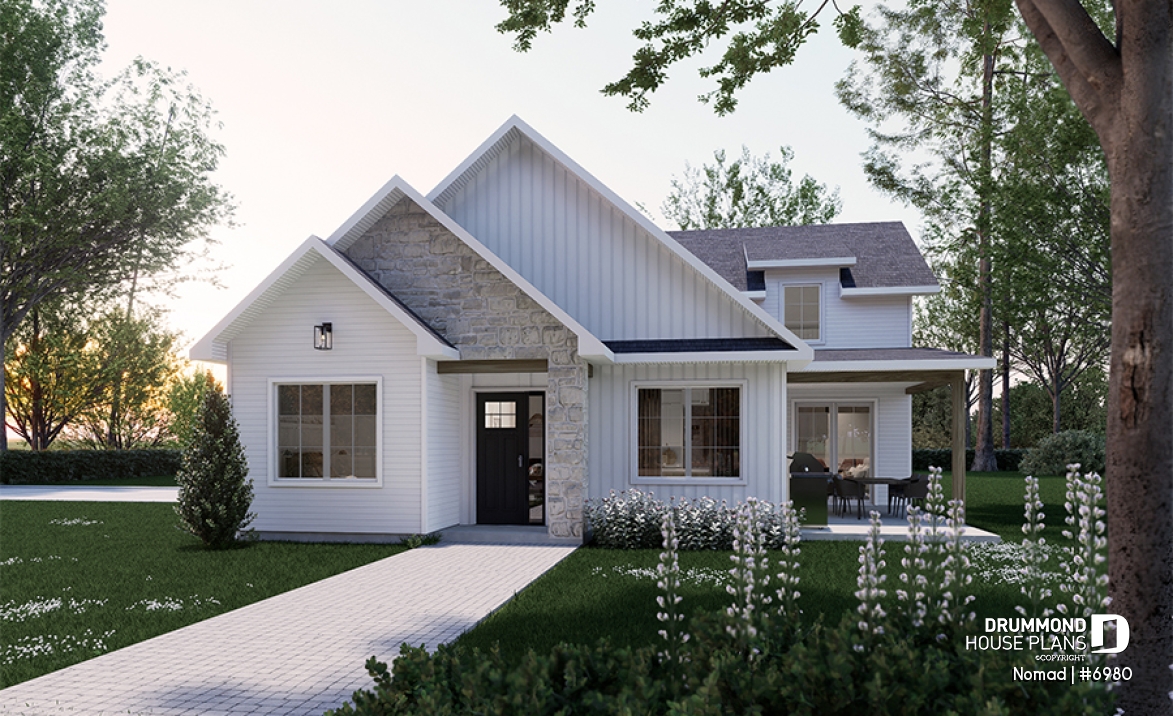

BASIC FLOOR LAYOUT

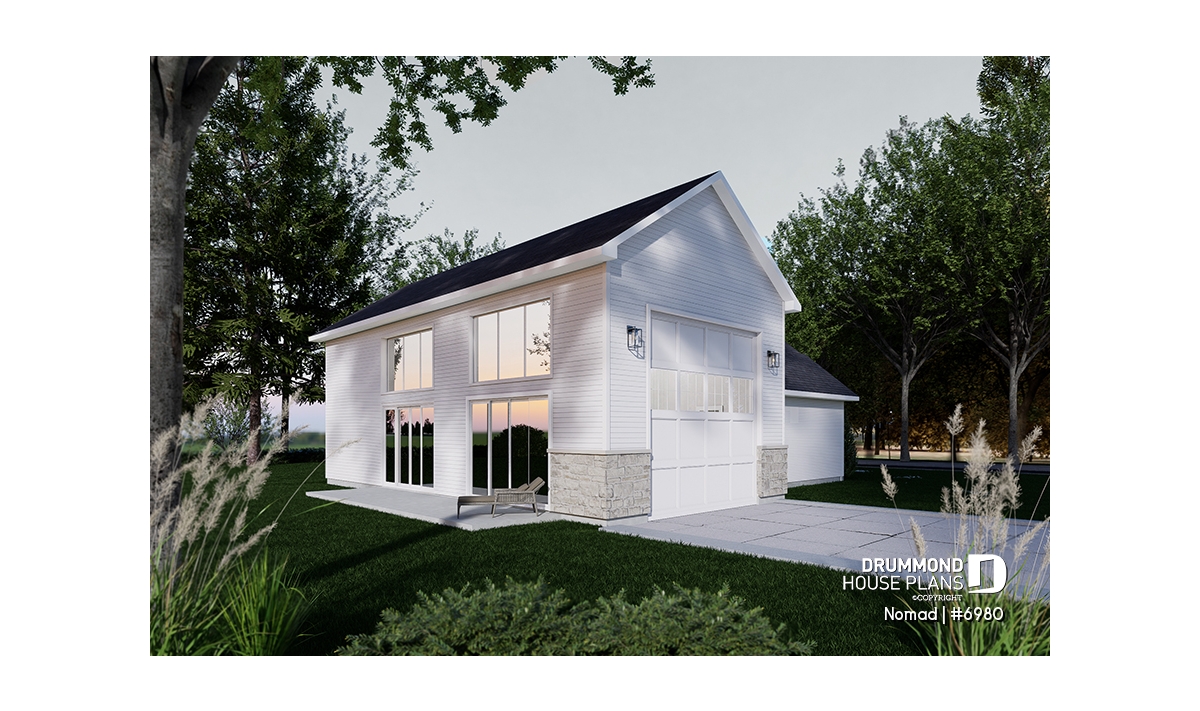

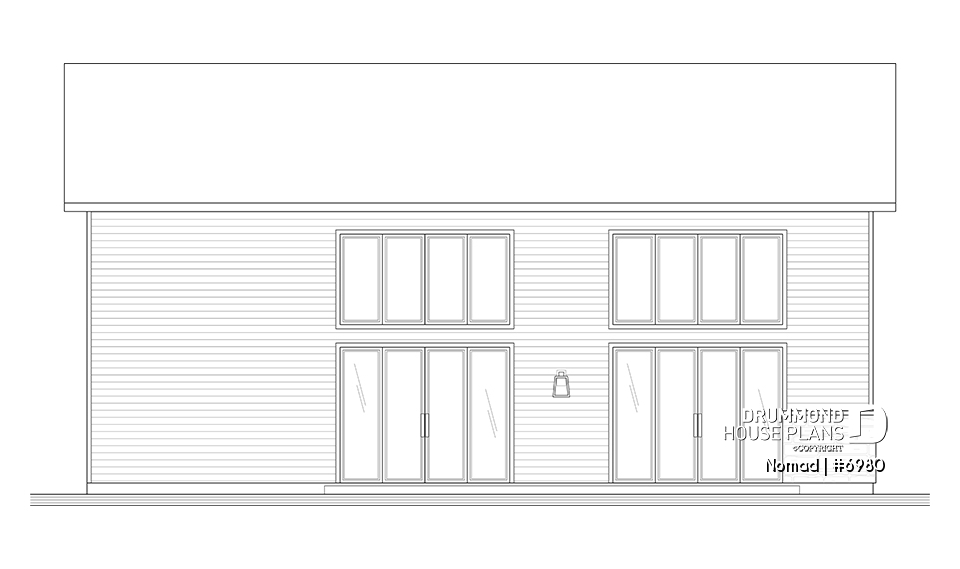

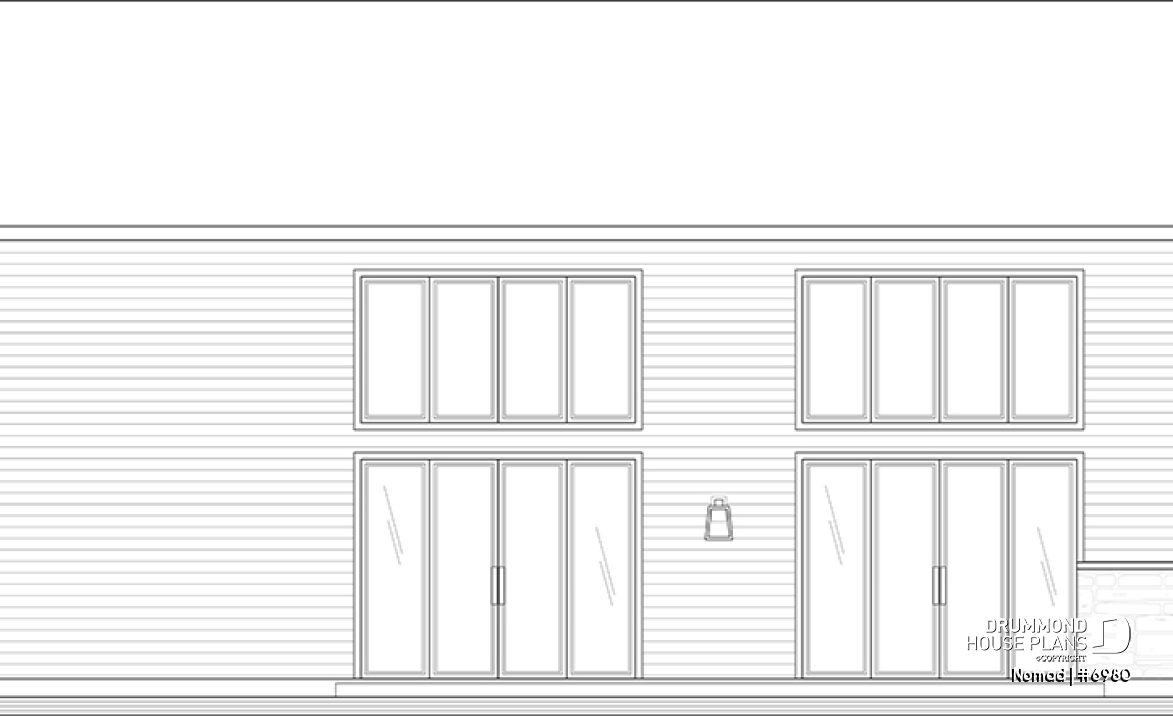

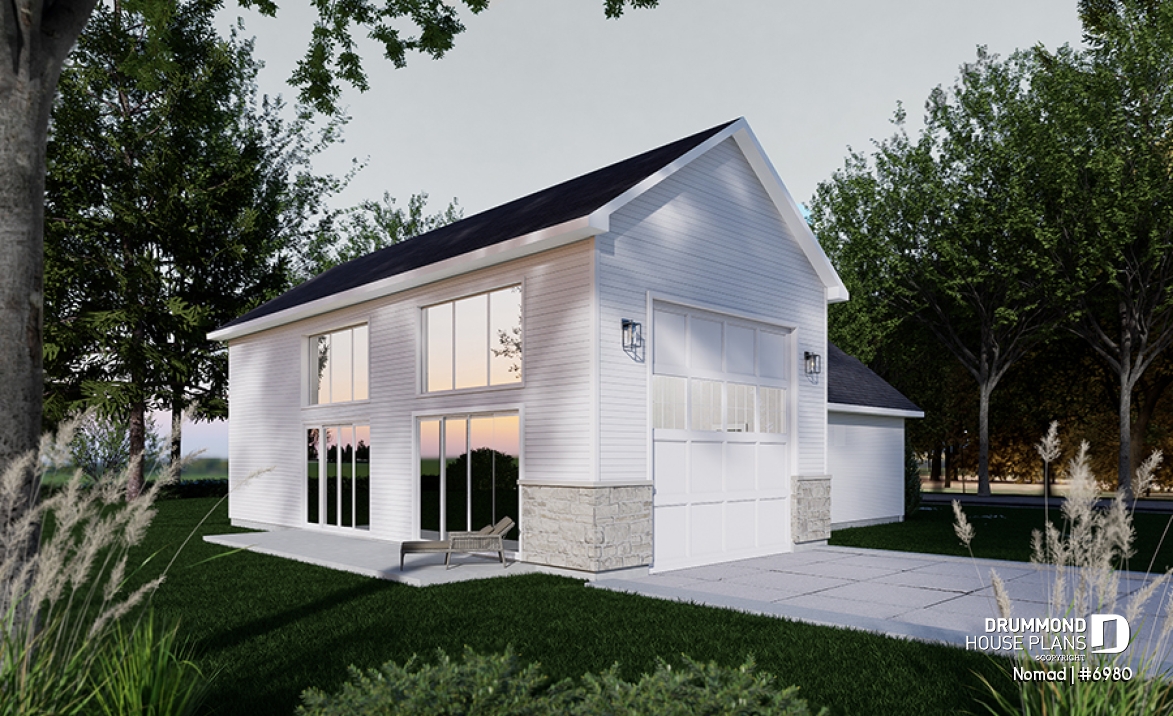

The basic plan of the NOMAD house (plan #6980) offers a floor space of 650 sq.ft. concentrated on one level. The attached RV garage is 45' x 20'-8'', or 1119 sq.ft., and two double patio doors are fitted there allowing the possible addition of a terrace or patio towards the backyard. Also the RV garage has a 16' x 4'' ceiling height. A magnificent and large sheltered side terrace is accessible from both the kitchen and the garage. The foundation of this house is on a floating slab, but it should be noted that other foundation options are available on our website, or via our plan modification service; contact us for details.
The ceiling of the living space of the NOMAD plan is 9' high giving an effect of amplitude to this small format style home. The front porch is sheltered, welcoming visitors while protecting them from bad weather. A practical closet, near the front entrance, can accommodate jackets and coats, if the temperature requires it. The only bedroom provided in this house receives beautiful natural light through the large front window. It also has a regular sized wardrobe. The kitchen offers a beautiful 7’8’’ x 2’6’’ island and also receives natural light from the patio door leading to the side covered terrace. A portion of this terrace is not covered. The kitchen area, dining room and living room are open concept, thus allowing for great exchanges between the occupants or when meeting friends or family. The bathroom offers a bath (with shower), a stacked washer/dryer as well as a small linen closet.
SCALABLE MODEL - OPTION 1
Included in the plan you will receive, OPTION 1 of the NOMAD house converts the RV garage into a habitable area. You will therefore find two large bedrooms with walk-in closets in each of them, as well as an additional bathroom. In addition, a large family room and a pantry-style closet (or storage) complete this option.
Enjoy discovering the flexibility of this magnificent new HYBRID house plans collection because no matter what life throws at you, there will be a style or option that will satisfy your current and future lifestyle!
Distinctive elements
Magnificent classic design that can suit both retirees and families, depending on the option you choose!
Please note that the 2 floor options (1 or 3 bedrooms) are included in the plan you will receive.
The basic layout (1 bedroom) of this plan is ideal for those who spend the winter in the south and who have an RV, trailer home or other recreational vehicle that they wish to store at home!
This versatile plan also has an OPTION 1 where the garage has been converted into additional living space offering 3 bedrooms, a large family room and an additional bathroom.
The ceiling is 9 feet across the entire ground floor, and over 16' in the garage portion.
This home is ideal for lots with panoramic views.
The intended foundation is a floating slab, but other foundation options are also available.
*The basic floor layout and option #1 are included in the construction plan you will receive. You can build the floor that best suits your family. If you initially go with the basic floor (with RV garage), eventually and depending on your needs you could convert your garage into living space as suggested on the option(s).
Plan feature(s)
Deck, Ceiling over 8', Oversized garage, Side entry garage, Gound floor laundry room, Island, Panoramic view, Open floor layout
Plan architectural style(s)
. Farmhouse, Modern Craftsman, Modern farmhouse, . Country, . Vacation and waterfront, . American, . Traditional, . Cottage, chalet, cabin, Classic
