House plan Eskal (6983)
Modern one bedroom home with attached RV garage and single and four bedroom garage option

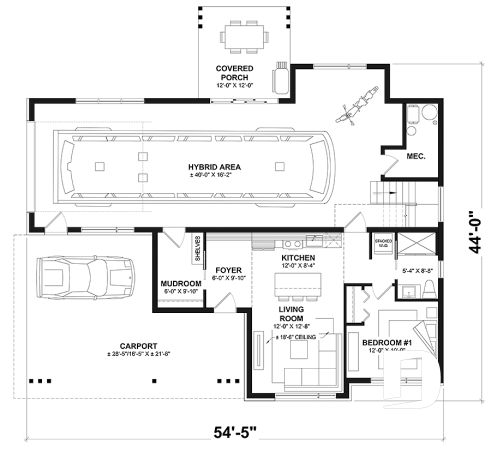

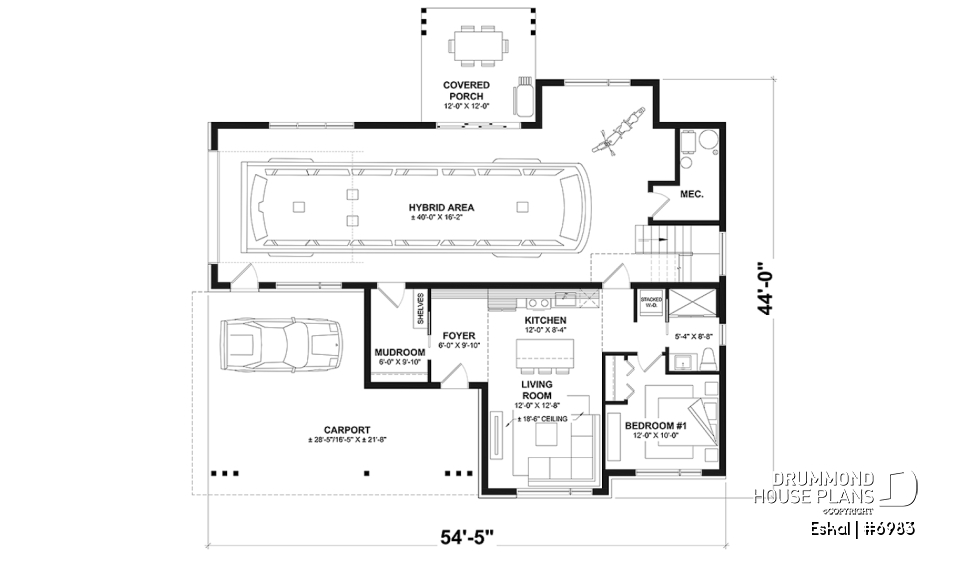

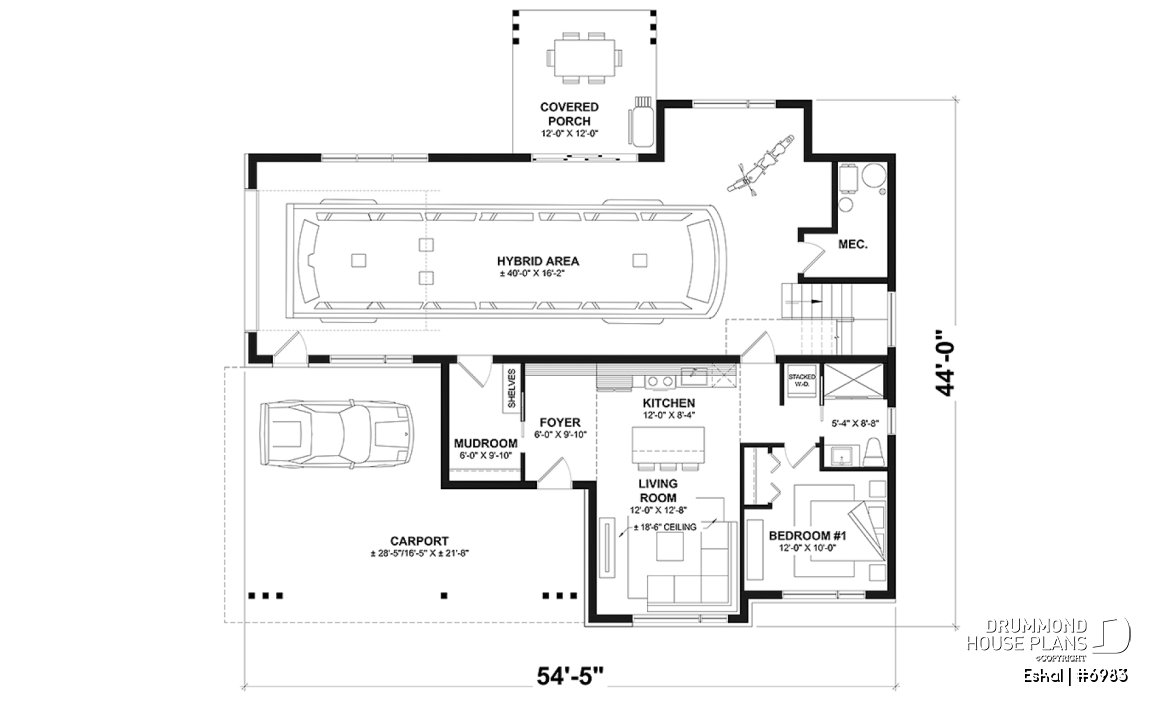

1st level

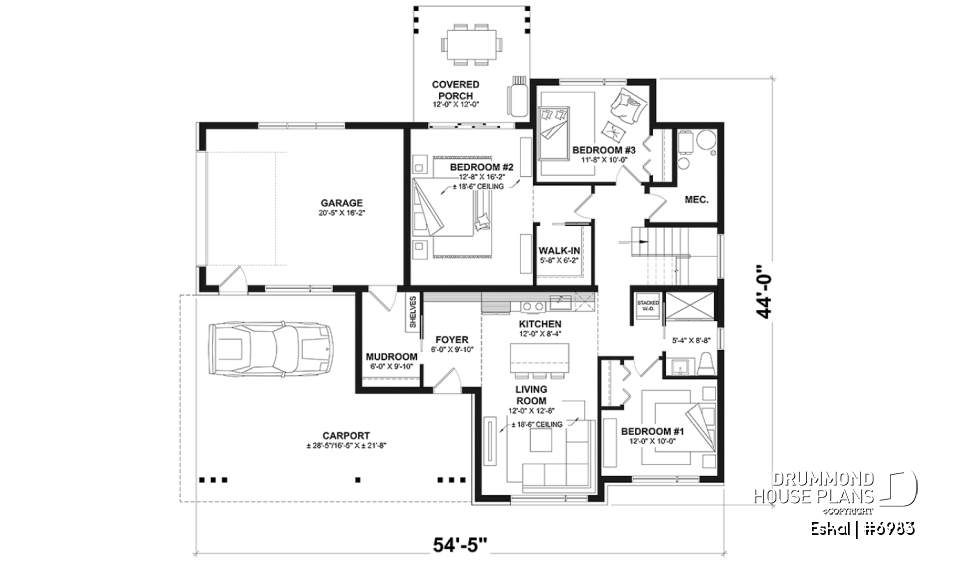

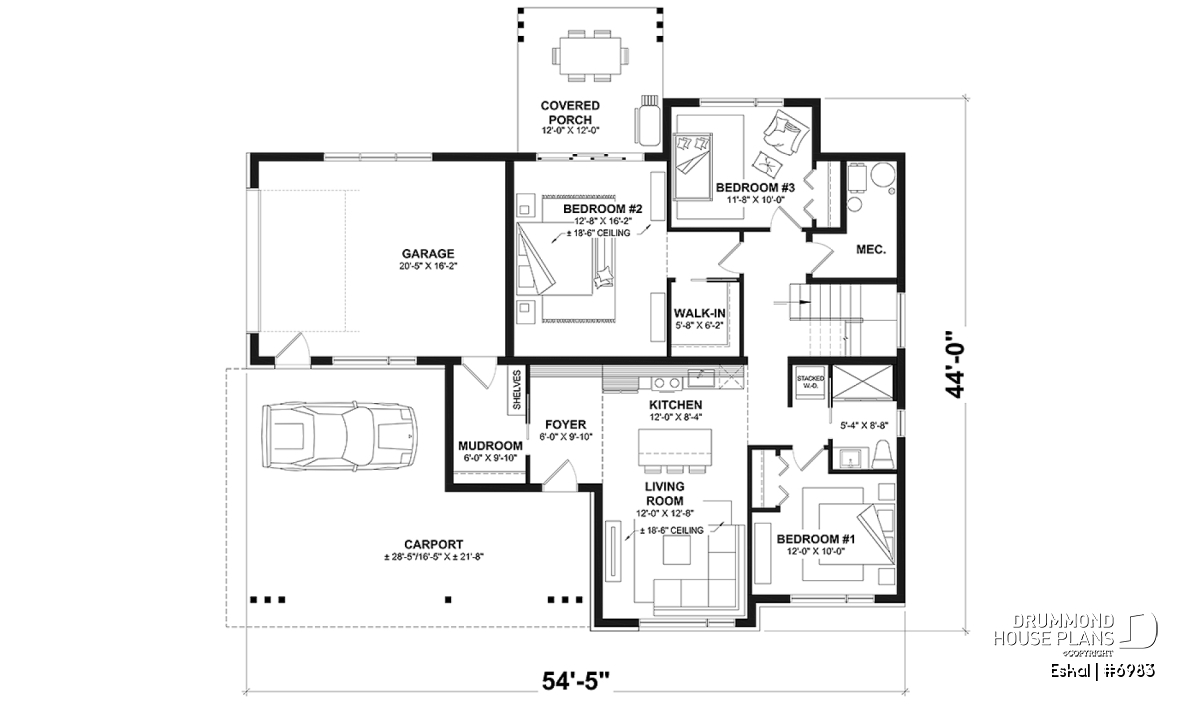

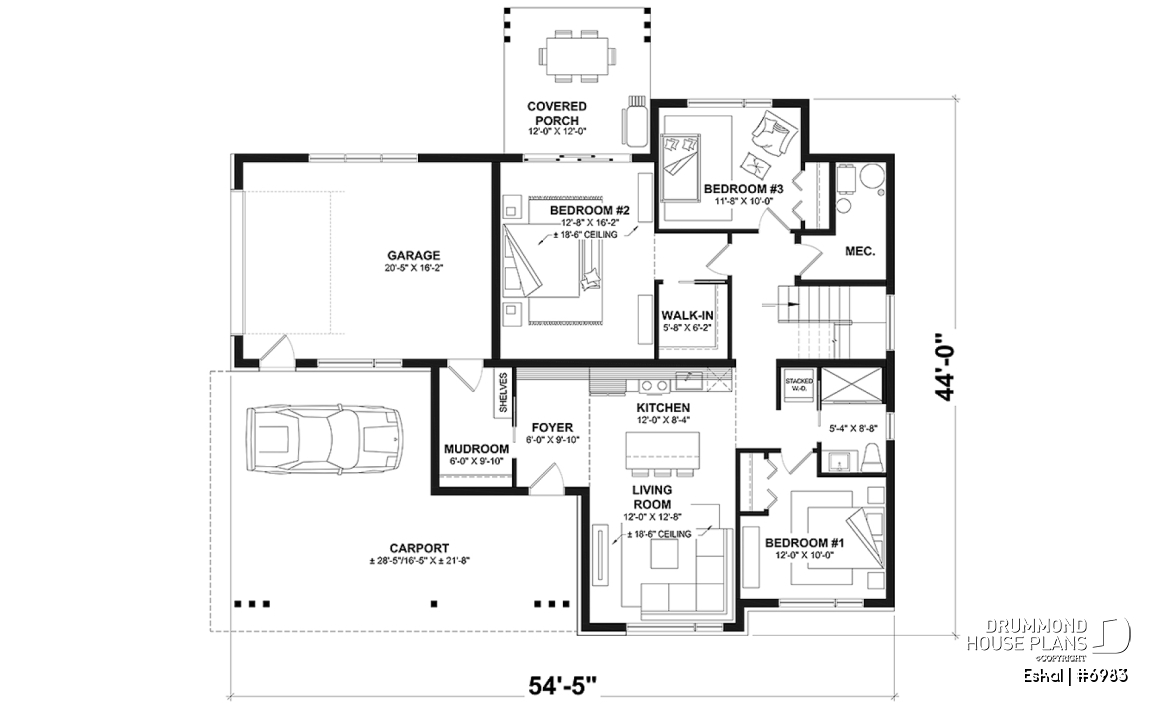

1st level option 1

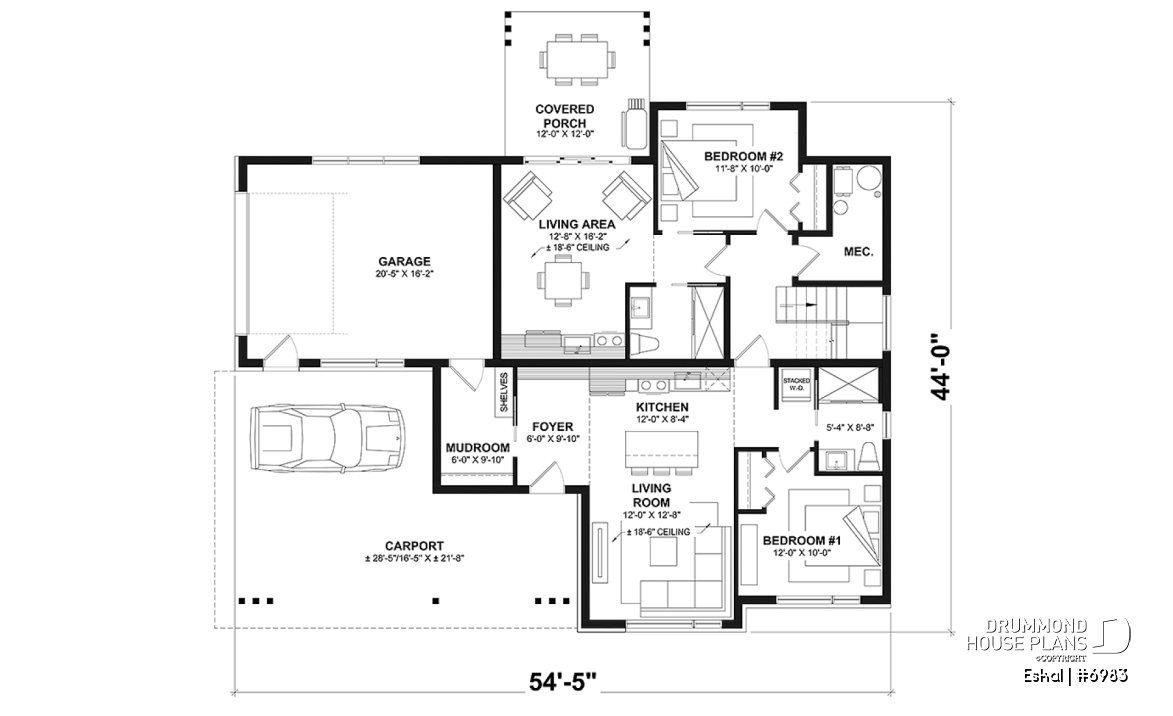

1st level option 2

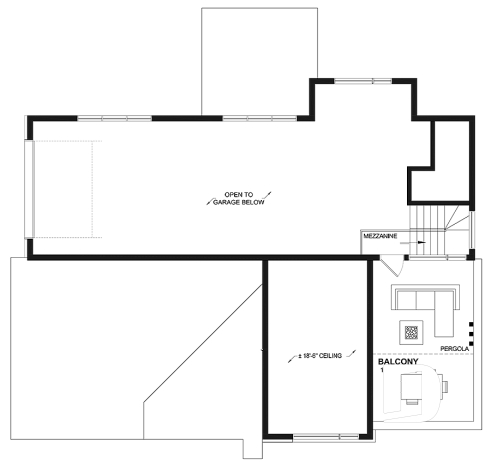

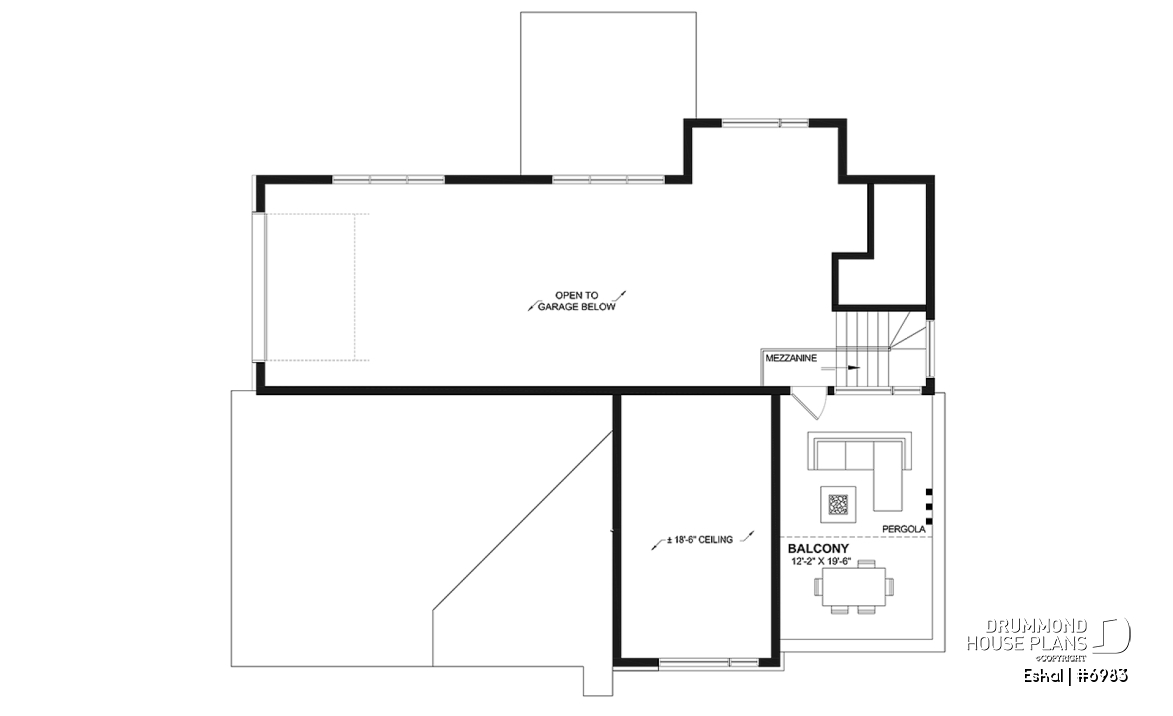

2nd level

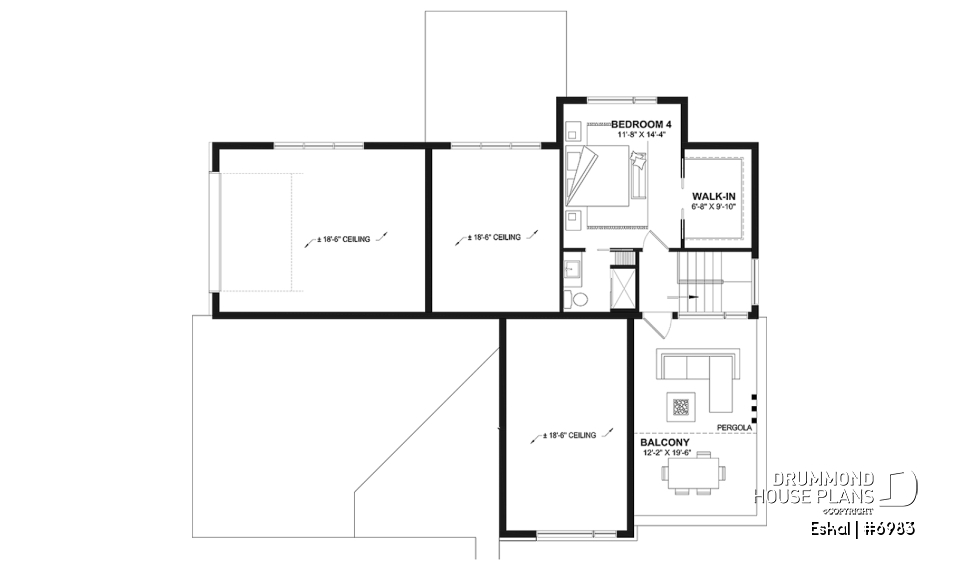

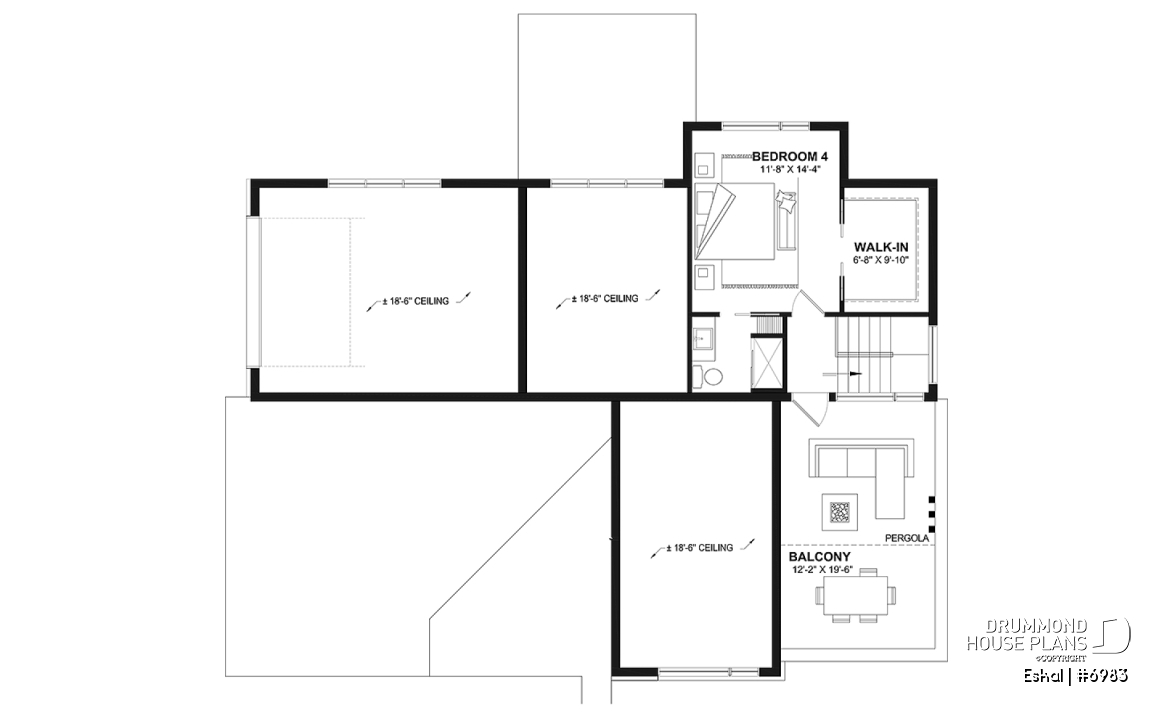

2nd level option 1

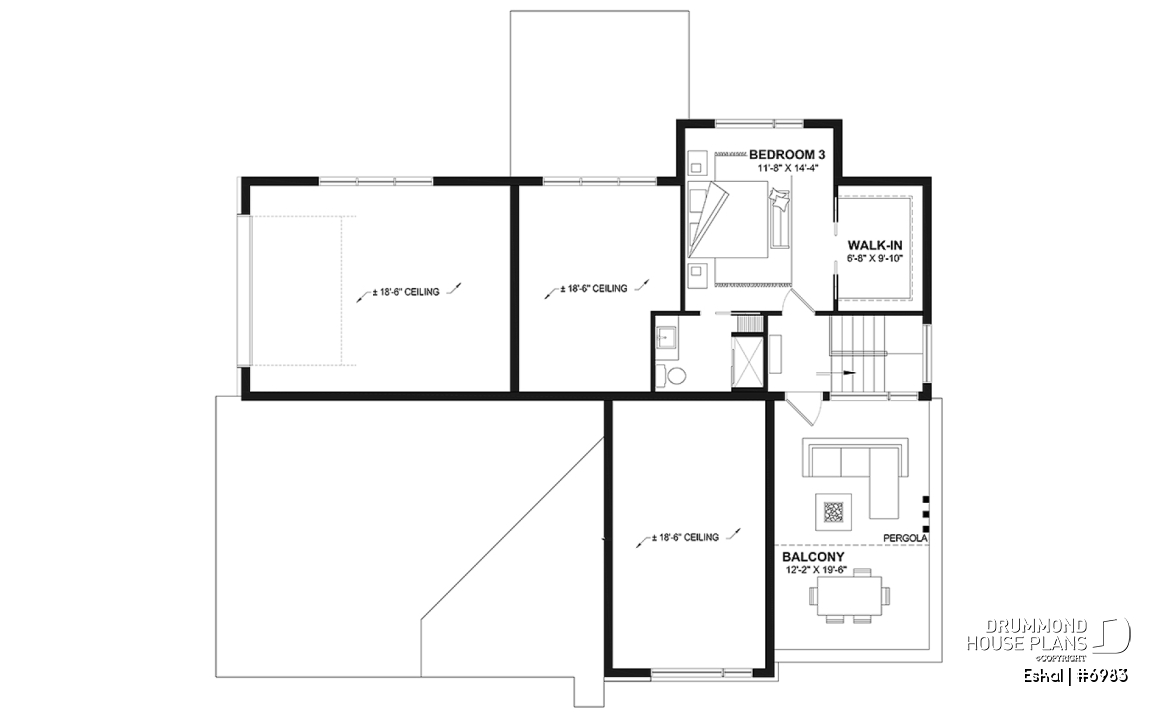

2nd level option 2
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Carport | 12'0" x 11'4" | ~ 10'8" |
| Mud room | 6'0" x 9'10" | ~ 8'0" |
| Foyer | 6'0" x 9'10" | ~ 8'0" |
| Kitchen | 12'0" x 8'4" | ~ 18'6" |
| Kitchen island | 6'0" x 3'0" | N/A |
| Living room | 12'0" x 12'8" | ~ 18'6" |
| Bedroom | 12'0" x 10'0" | ~ 8'0" |
| Closet | 4'10" x 2'0" | ~ 8'0" |
| Bathroom | 5'4" x 8'8" | ~ 8'0" |
| Shower | 5'0" x 3'0" | N/A |
| Laundry space | 3'0" x 3'6" | ~ 8'0" |
| Mechanical room | 7'0" x 9'8" | ~ 8'0" |
| Garage | 40'0" x 16'2" | ~ 17'6" |
| Covered deck | 12'0" x 12'0" | ~ 8'4" |
| 1st level option 1 | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 20'5" x 16'2" | ~ 17'6" |
| Bedroom | 12'8" x 16'2" | ~ 17'6" |
| Walk-in closet | 5'8" x 6'2" | ~ 8'0" |
| Bedroom | 11'8" x 10'0" | ~ 8'0" |
| Closet | 5'6" x 2'0" | ~ 8'0" |
| Mechanical room | 7'0" x 9'8" | ~ 8'0" |
| 1st level option 2 | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 20'5" x 16'2" | ~ 17'6" |
| Living room/dining room | 12'8" x 16'2" | ~ 17'6" |
| Shower room or three quarter bath | 7'10" x 6'0" | ~ 8'0" |
| Shower | 6'0" x 2'8" | N/A |
| Bedroom | 11'8" x 10'0" | ~ 8'0" |
| Closet | 5'6" x 2'0" | ~ 8'0" |
| Mechanical room | 7'0" x 9'8" | ~ 8'0" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Balcony | 12'2" x 19'6" | ~ 8'4" |
| 2nd level option 1 | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'8" x 14'4" | ~ 8'0" |
| Walk-in closet | 6'8" x 9'10" | ~ 8'0" |
| Shower room or three quarter bath | 7'2" x 6'0" | ~ 8'0" |
| Shower | 4'0" x 2'6" | N/A |
| Linen | 1'4" x 2'0" | N/A |
| Balcony | 12'2" x 19'6" | ~ 8'4" |
| 2nd level option 2 | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower room or three quarter bath | 8'6" x 6'0" | ~ 8'0" |
| Shower | 4'0" x 2'6" | N/A |
| Linen | 1'4" x 2'0" | N/A |
| Balcony | 12'2" x 19'6" | ~ 8'4" |
| Bedroom | 11'8" x 14'4" | ~ 8'0" |
| Walk-in closet | 6'8" x 9'10" | ~ 8'0" |
General specifications
| Total living area | 2659 sq.ft. |
| 1st level | 700 sq.ft. |
| 1st level option 1 | 1313 sq.ft. |
| 1st level option 2 | 1313 sq.ft. |
| 2nd level | 237 sq.ft. |
| 2nd level option 1 | 409 sq.ft. |
| 2nd level option 2 | 0 sq.ft. |
| Width | 54'5" |
| Depth | 44'0" |
| Ridge height from top of foundation | 25'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G |
Rooms specifications
Other useful information on this plan
Small modern house with RV garage offers 2 flexible options, one with accommodation and the other for a large family!
.
Distinctive elements
Mid-century inspired house, offering 3 very different floor layouts!
A carport that can accommodate 2+ cars is present in all options.
The basic floor layout, offering a single bedroom, will be ideal for person(s) owning a Class A, B or C motorhome, or RV. This version offers a 40' x 16'2'' RV garage, with rooms for motorcycle or bicycle(s) and mechanical room.
In addition you will find a staircase leading to a beautiful pergola terrace, upstairs.
Another terrace, sheltered, is on the ground floor and can be accessed from the RV garage, for a total of 2 terraces in this option.
The kitchen area and living room are open concept and offer an 18'6'' ceiling giving an effect of grandeur to this still compact room.
A large entrance with cloakroom, a kitchen with island, a shower room, a 12' x 10' bedroom as well as a stacked washer/dryer area complete this basic layout. Everything is there for guaranteed comfort during the months of the year when you will not be on vacation with your RV!
Option #1 offers a more family-style house with a total of 4 bedrooms, including a beautiful master or guest suite upstairs.
The RV garage is converted into a large single car garage.
The carport is there and always for 2+ cars.
The 2 terraces are also there, one with access from bedroom #2 and the other is upstairs.
The kitchen area and living room are open concept and offer an 18'6'' ceiling giving an effect of grandeur to this area.
A large entrance with walk-in coat closet, a kitchen with island, a shower room, a 12' x 10' bedroom as well as a stacked washer/dryer area completes this option #1.
Option #2 completely changes its purpose by offering 2 accommodations.
Please note that the 2 accommodations can share the carport which is designed for 2+ cars. However, the single garage will be private to the front accommodation.
It would therefore be possible either to rent the rear or front accommodation, or simply to create a bi-generational (or intergenerational) type dwelling there.
The rear accommodation, arranged over 2 floors, offers 2 bedrooms, 2 shower rooms, kitchen area, dining room and living room, in addition to access to the two terraces: one at the rear, and the other at upstairs.
The main accommodation at the front includes the kitchen area and living room (open concept) and offers an 18'6'' ceiling giving an effect of grandeur to this area.
A large entrance with cloakroom, a kitchen with island, a shower room, a 12' x 10' bedroom as well as a stacked washer/dryer area.
*The basic floor layout and OPTIONS 1 and 2 are included in the construction plan you will receive. You can build the floor that suits your family. If you initially go with the basic floor (with RV garage), eventually and depending on your needs you could convert your garage into living space as suggested on the option(s).
Plan feature(s)
Sloped ceiling, Entrance hall, Mud room, Gound floor laundry room, Shelves, Island, Oversized garage, Open floor layout
Plan architectural style(s)
. Mid-century, . Modern / Design, . Contemporary
