House plan Andrews (3268)
Contemporary split bedroom home with 3 bedrooms, den and a 2-car garage
Virtual visit
View the size of the rooms and height of the ceilings

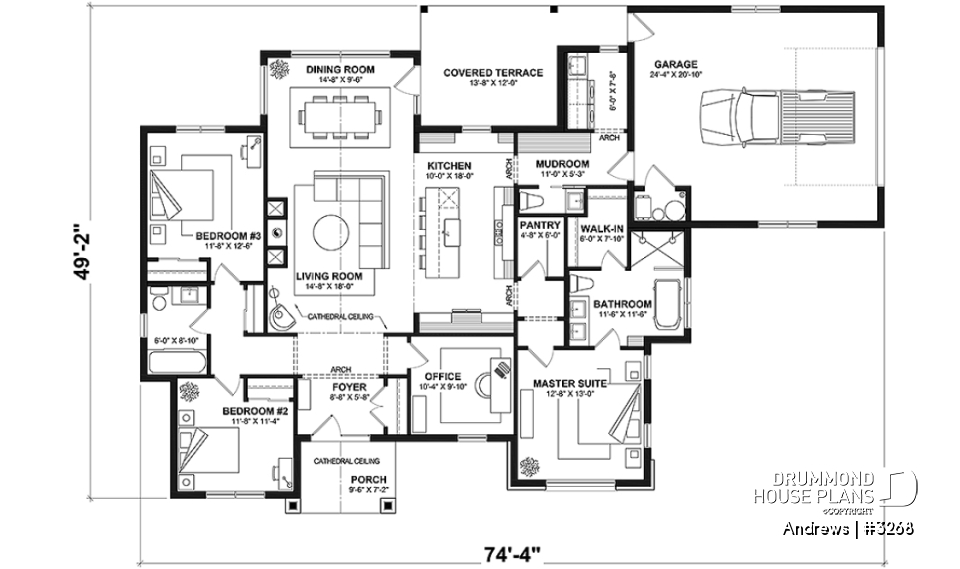

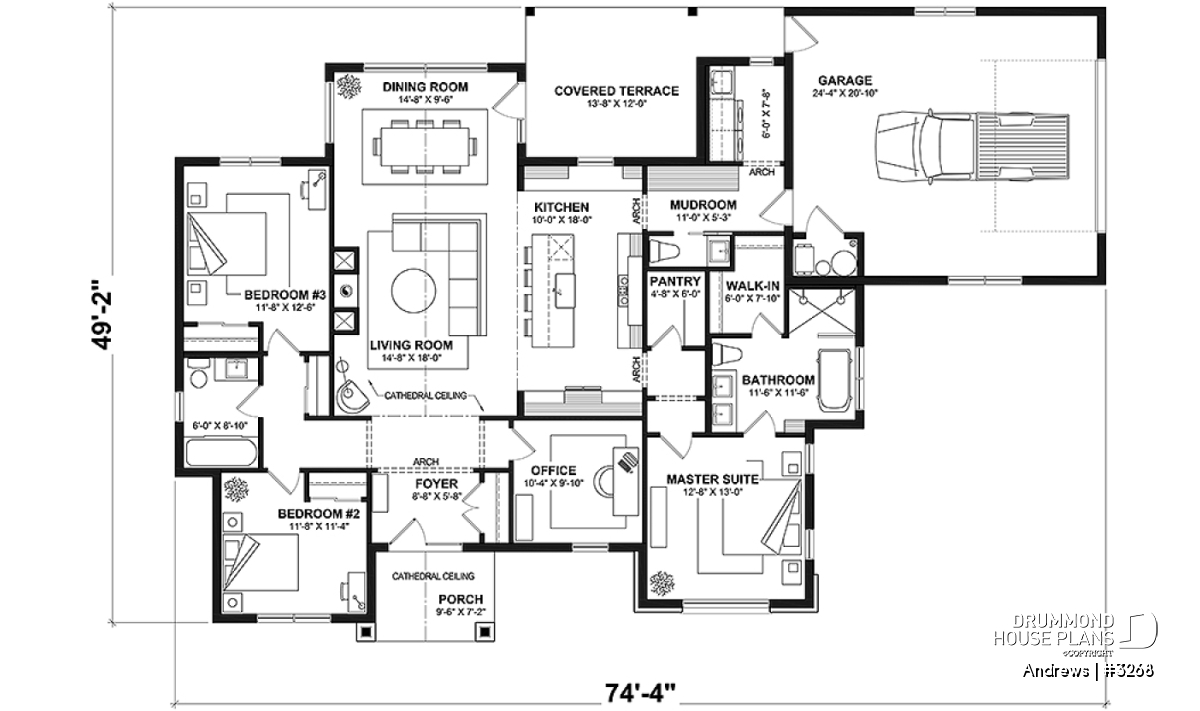

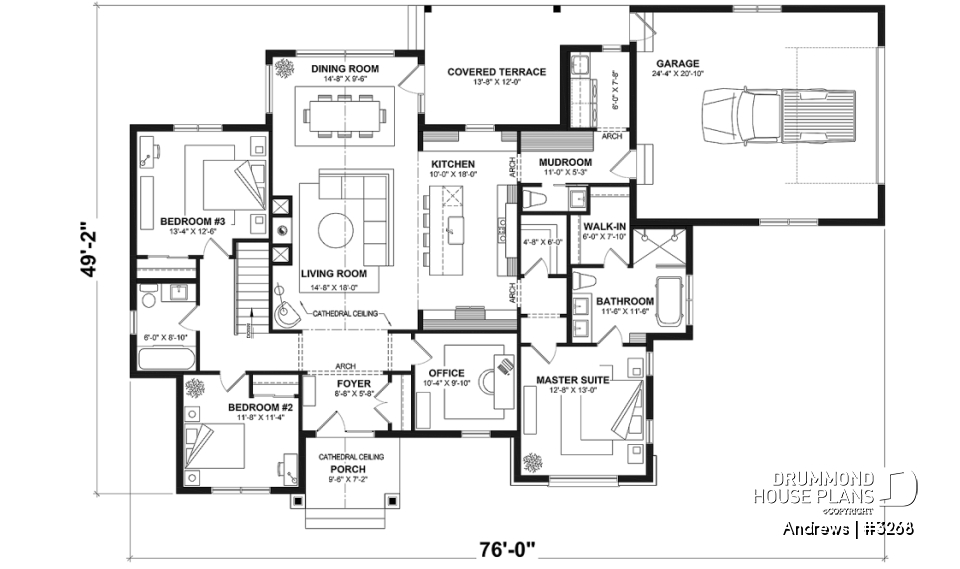

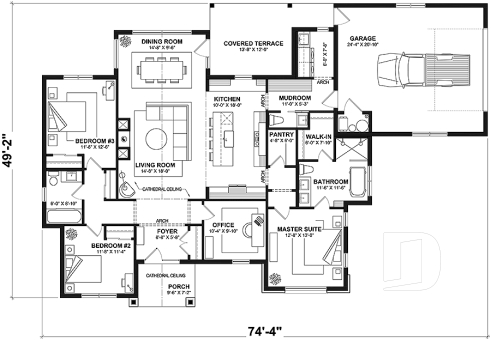

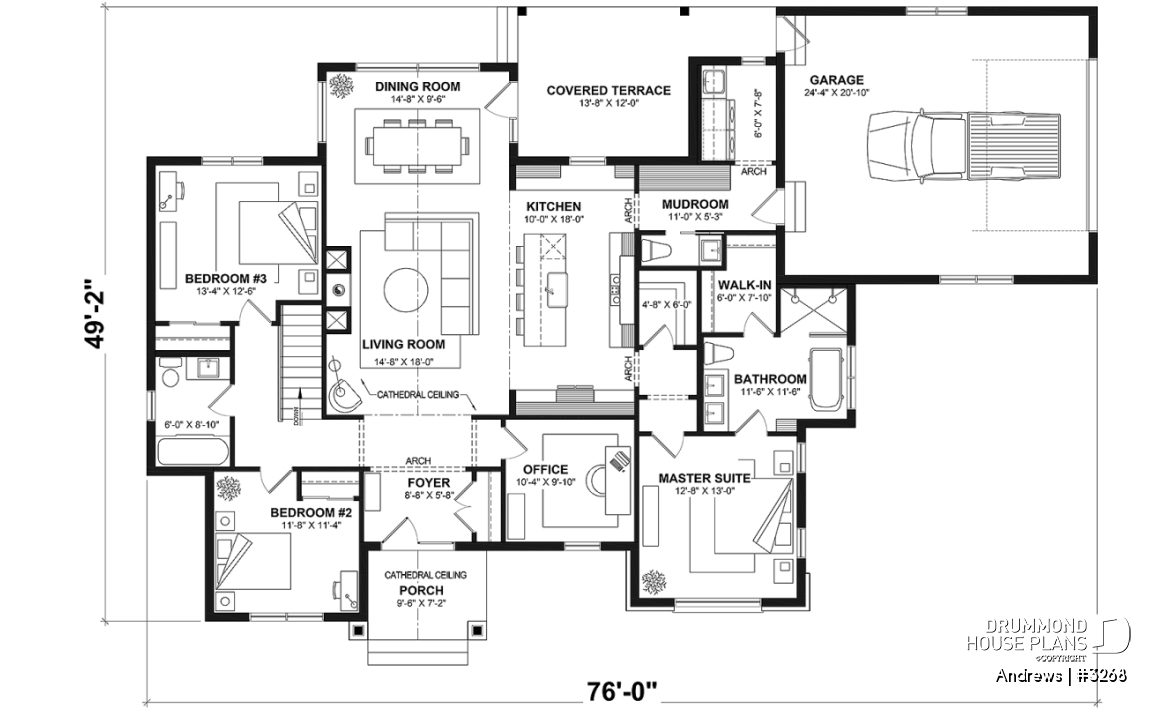

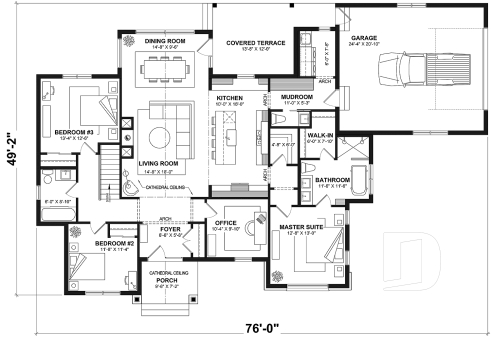

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 8'8" x 5'8" | ~ 9'0" |
| Closet | 5'8" x 2'0" | ~ 9'0" |
| Covered porch | 9'6" x 7'2" | ~ 11'4" |
| Home office | 10'4" x 9'10" | ~ 9'0" |
| Bedroom | 11'8" x 11'4" | ~ 9'0" |
| Closet | 4'8" x 2'0" | ~ 9'0" |
| Closet | 4'10" x 1'8" | ~ 9'0" |
| Bathroom | 6'0" x 8'10" | ~ 9'0" |
| Bedroom | 11'8" x 12'6" | ~ 9'0" |
| Closet | 6'0" x 2'0" | ~ 9'0" |
| Covered deck | 13'8" x 12'0" | ~ 9'4" |
| Laundry room | 6'0" x 7'8" | ~ 9'0" |
| Mud room | 11'0" x 5'3" | ~ 9'0" |
| Powder room | 6'6" x 2'6" | ~ 9'0" |
| Kitchen | 10'0" x 18'0" | ~ 9'0" |
| Kitchen island | 9'0" x 3'4" | N/A |
| Dining room | 14'8" x 9'6" | ~ 13'3" |
| Living room | 14'8" x 18'0" | ~ 13'3" |
| Pantry | 4'8" x 6'0" | ~ 9'0" |
| Master suite | 12'8" x 13'0" | ~ 9'0" |
| Full bathroom | 11'6" x 11'6" | ~ 9'0" |
| Walk-in closet | 6'0" x 7'10" | ~ 9'0" |
| Shower | 6'4" x 3'7" | ~ 9'0" |
| Linen | 1'8" x 1'0" | N/A |
| Garage | 24'4" x 20'10" | ~ 9'6" |
General specifications
| Total living area | 1947 sq.ft. |
| 1st level | 1947 sq.ft. |
| Width | 74'4" |
| Depth | 49'2" |
| Ridge height from top of foundation | 18'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

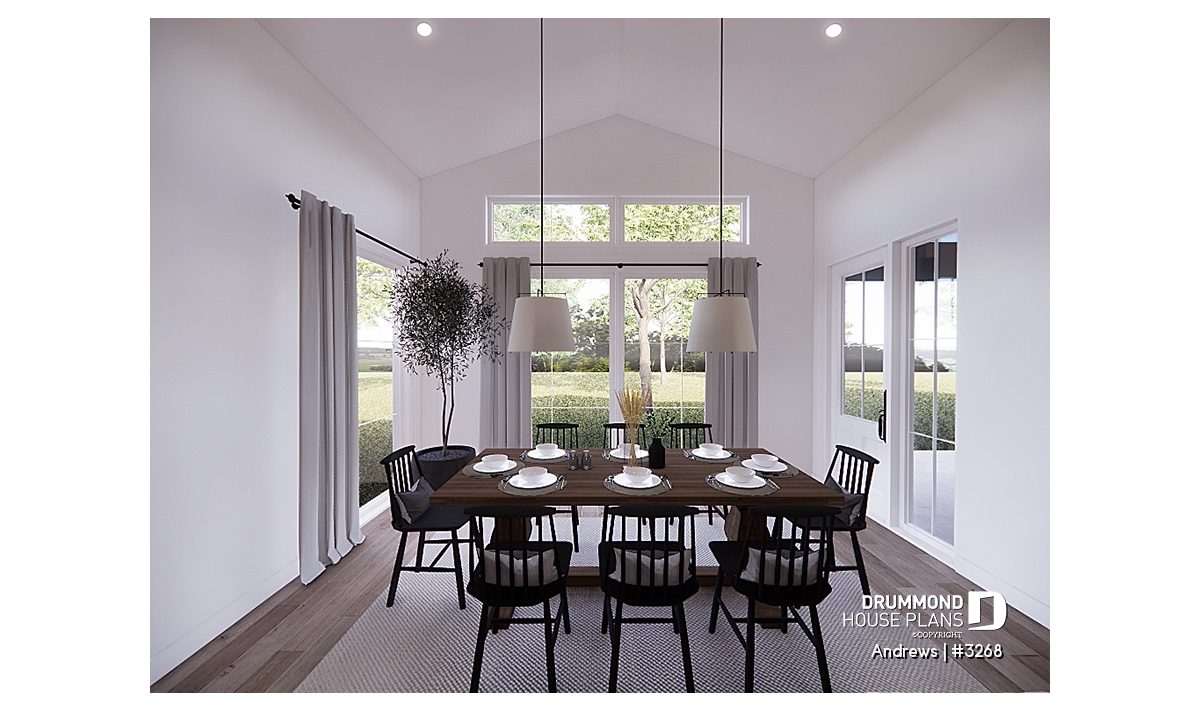

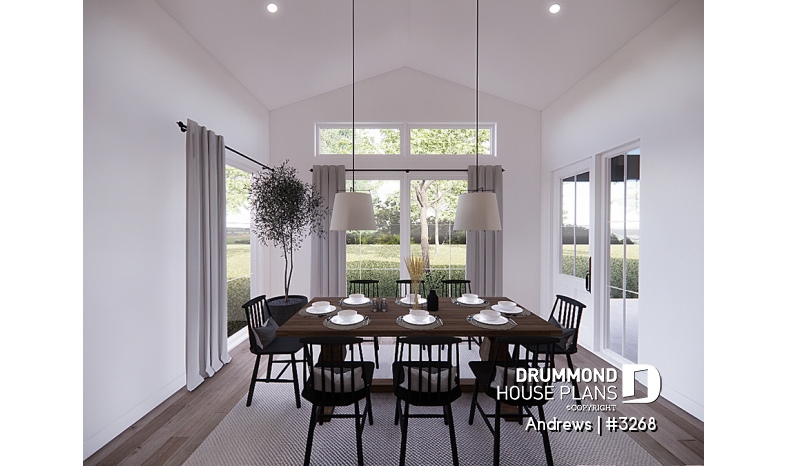

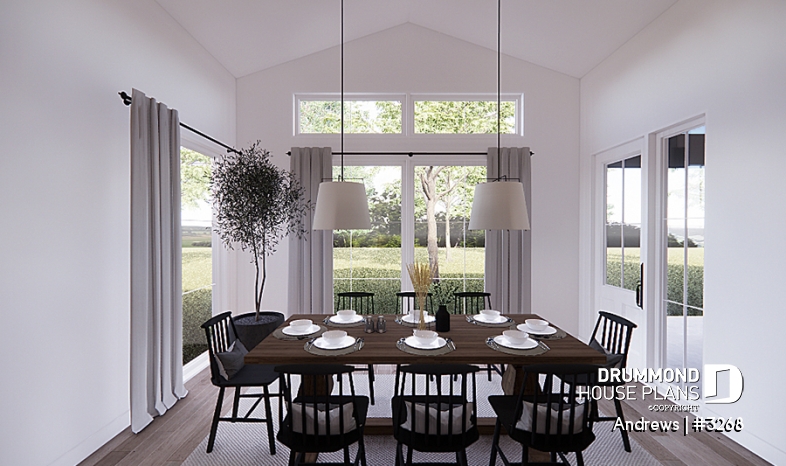

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

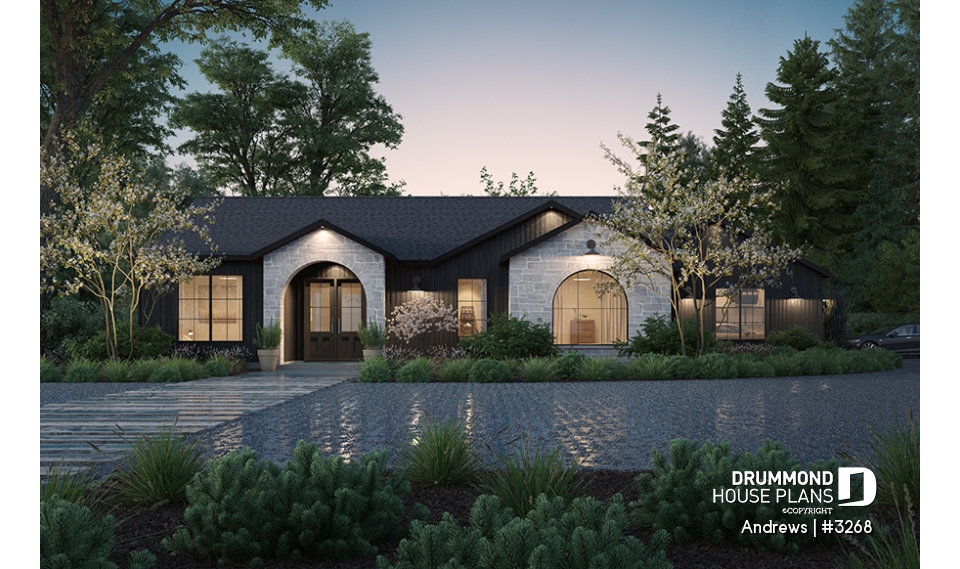

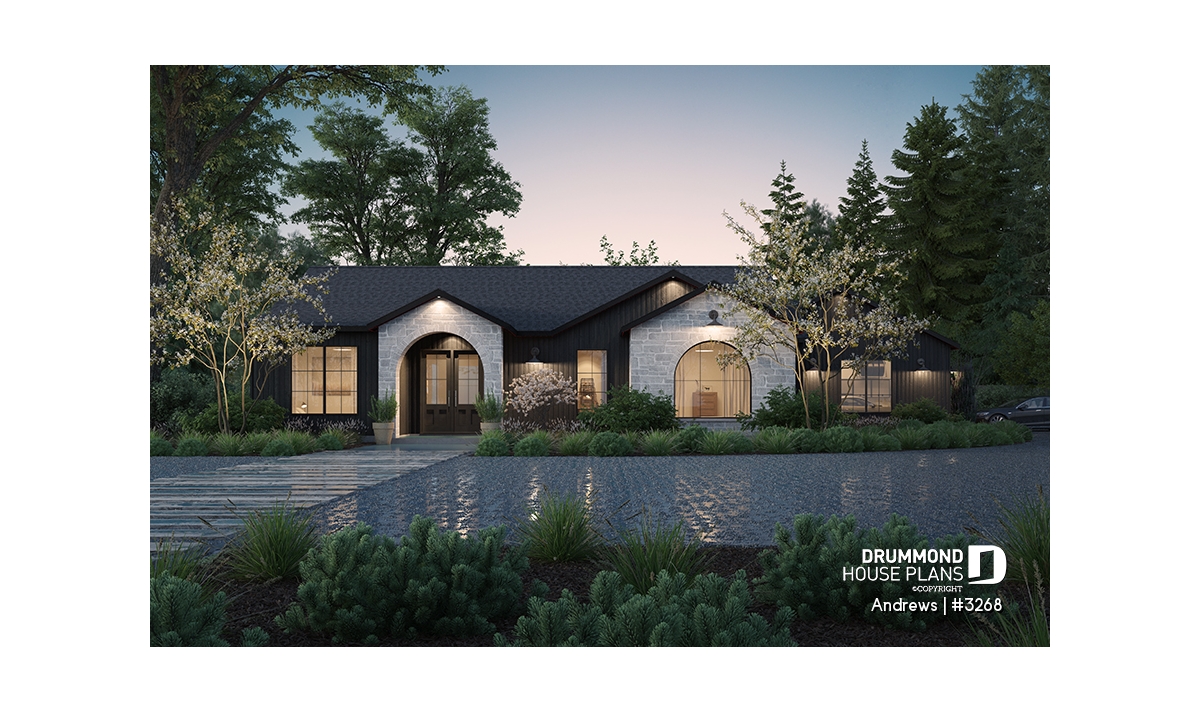

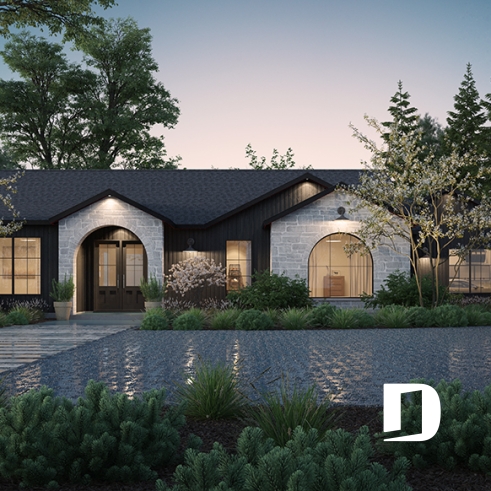

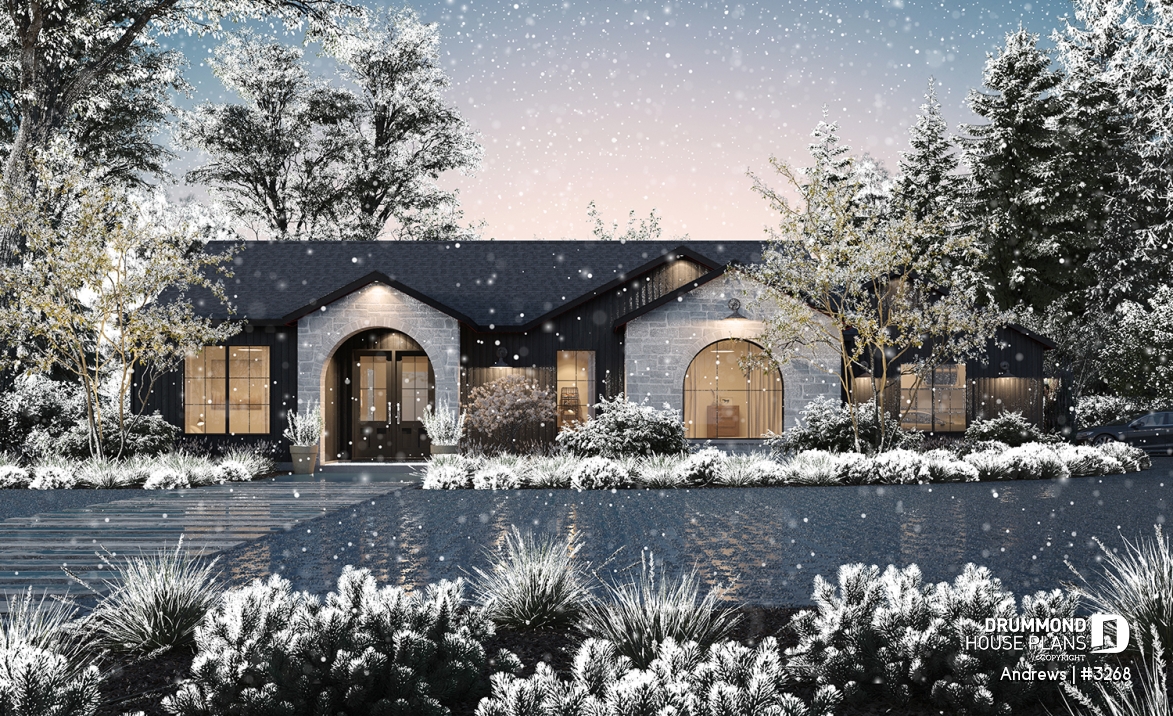

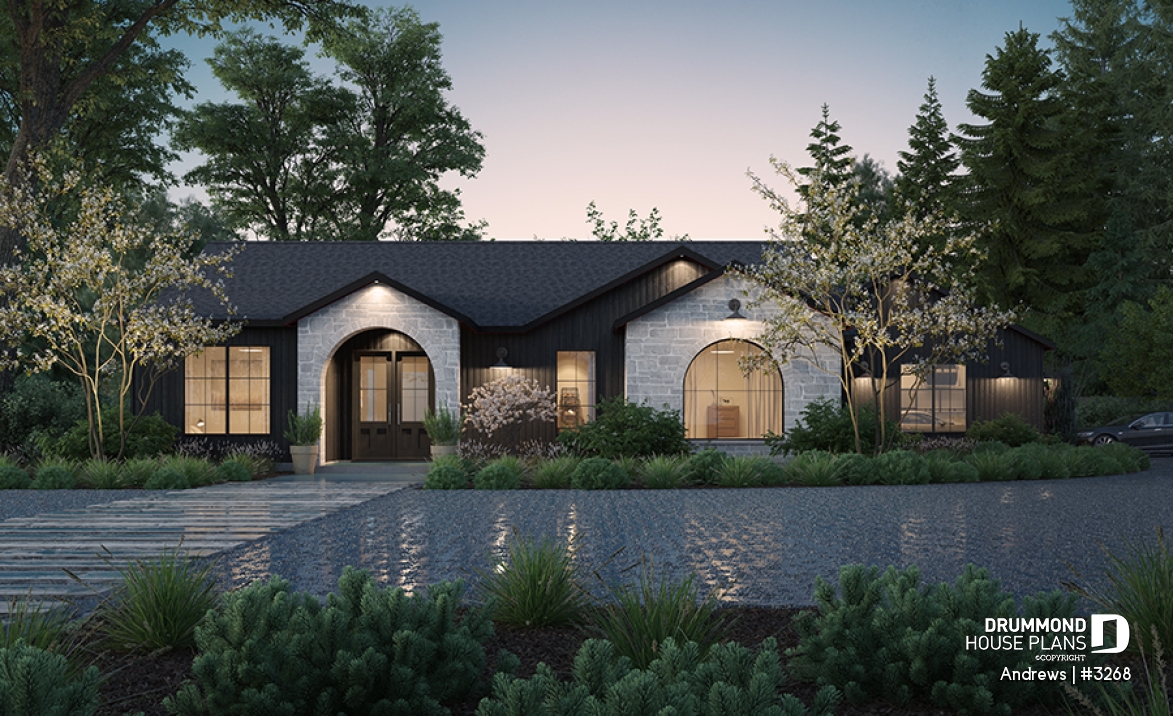

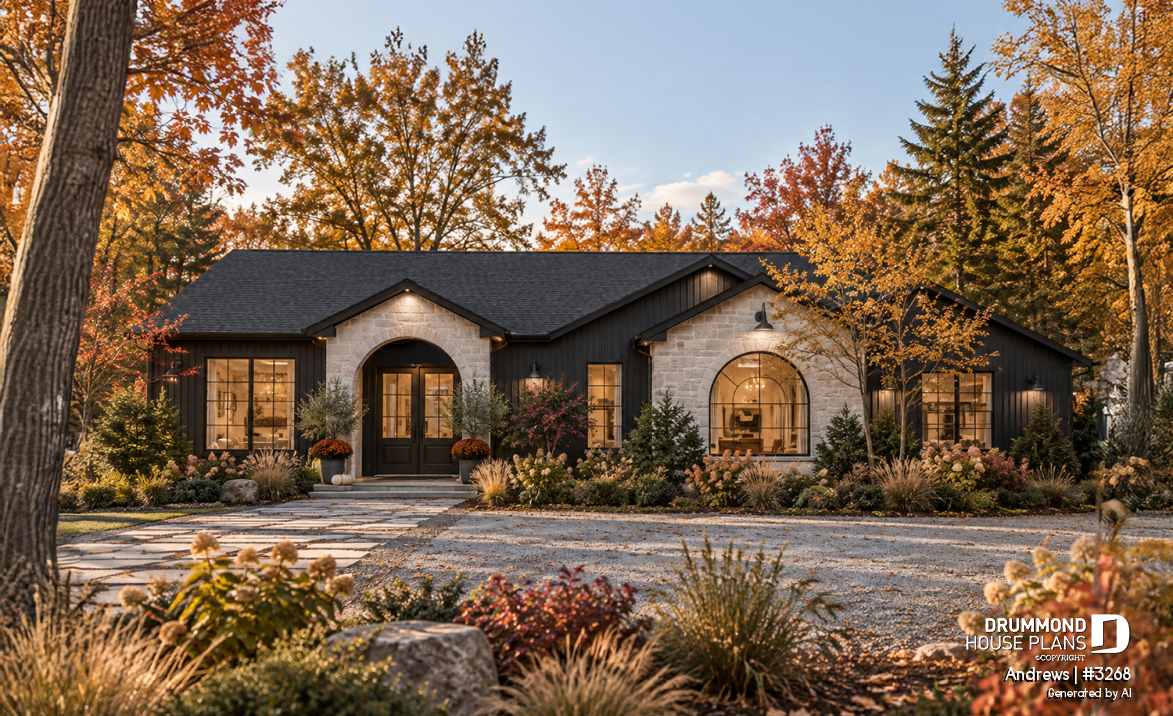

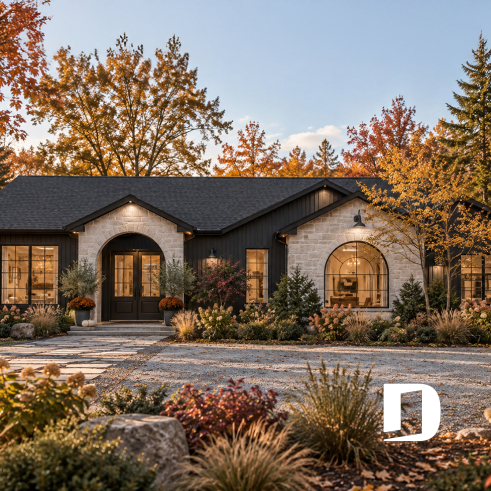

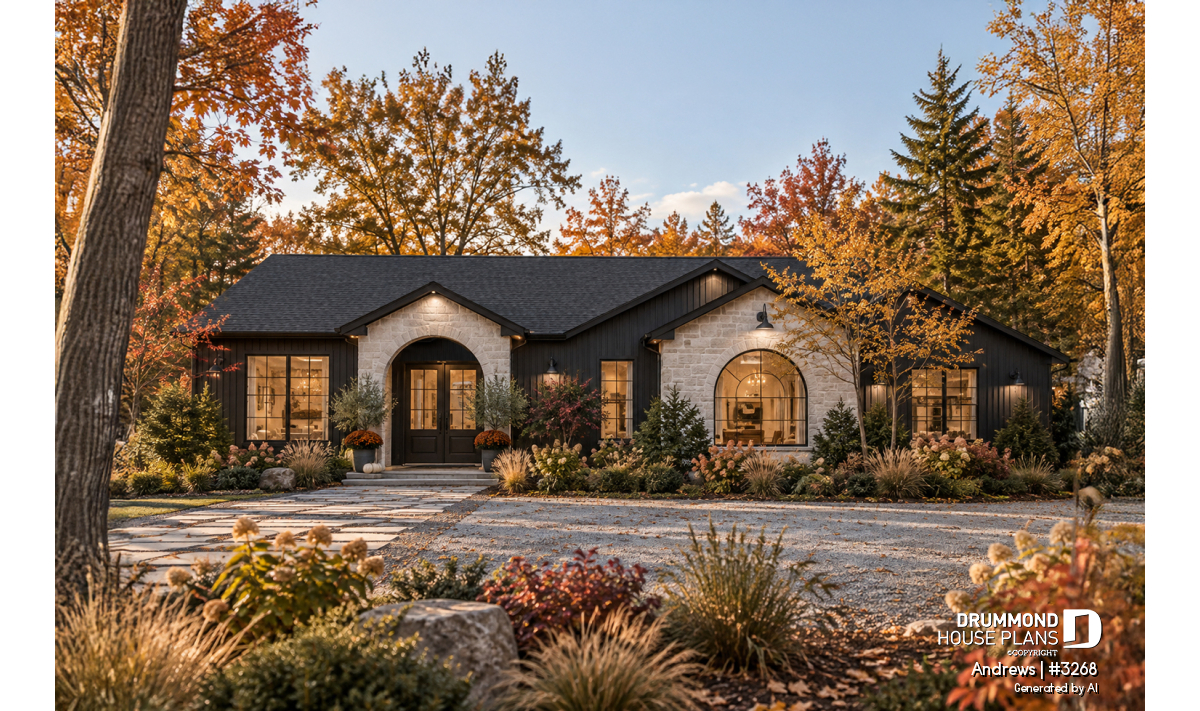

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

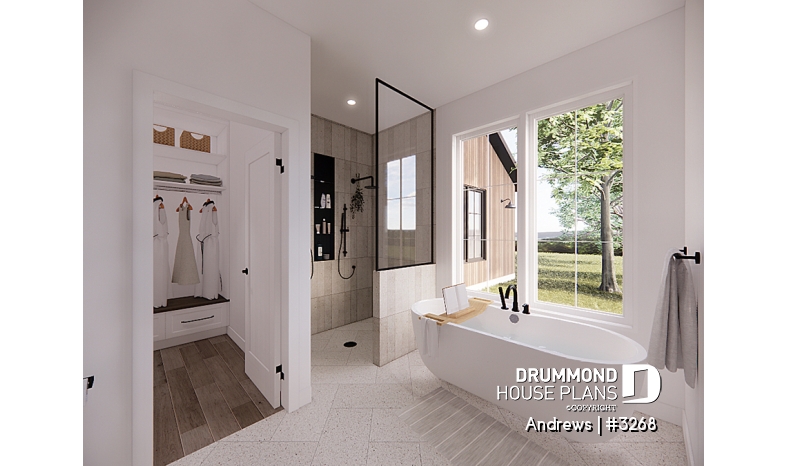

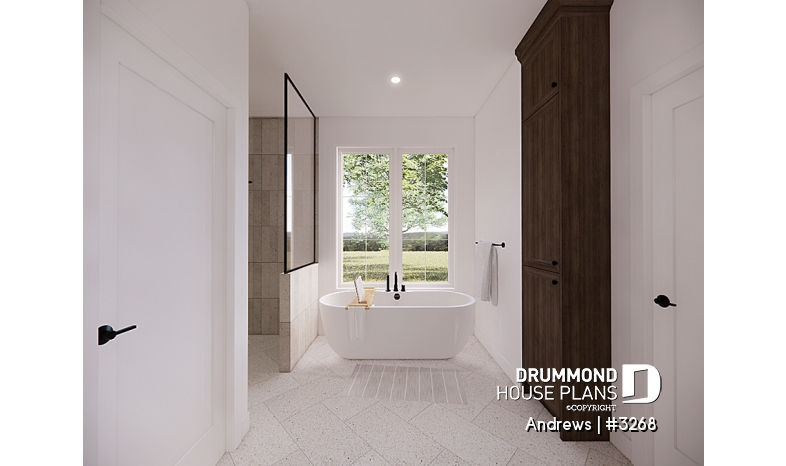

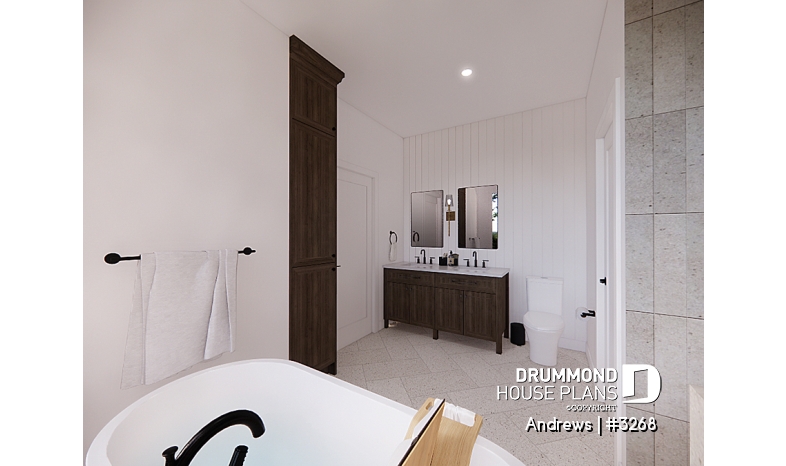

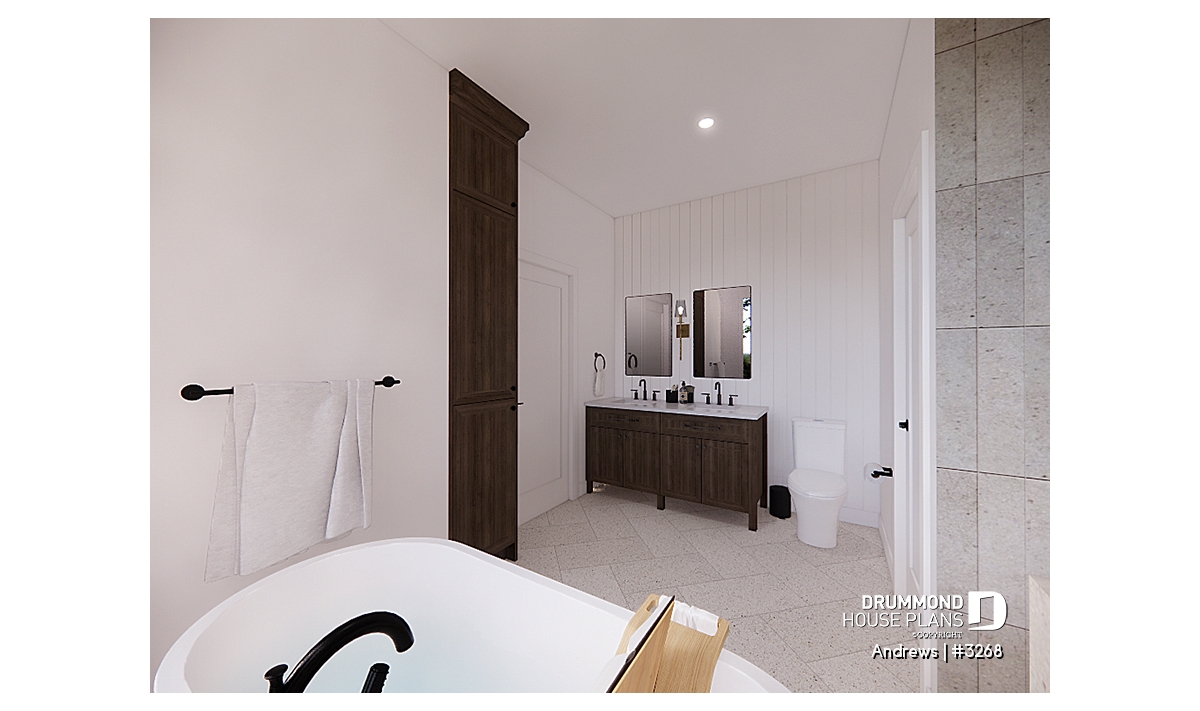

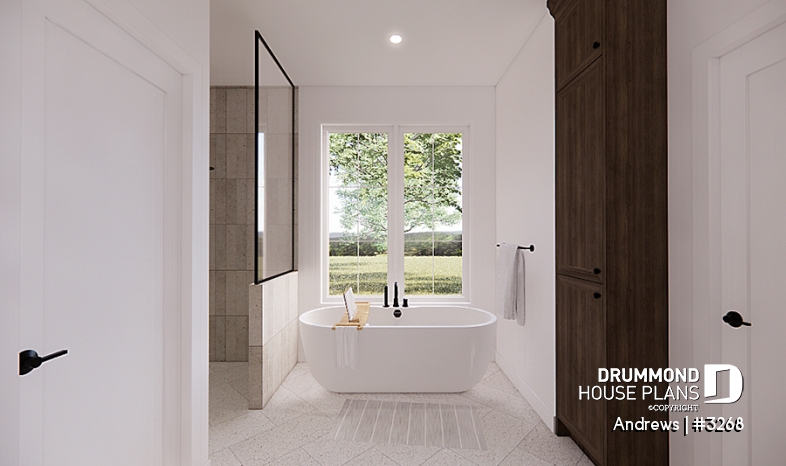

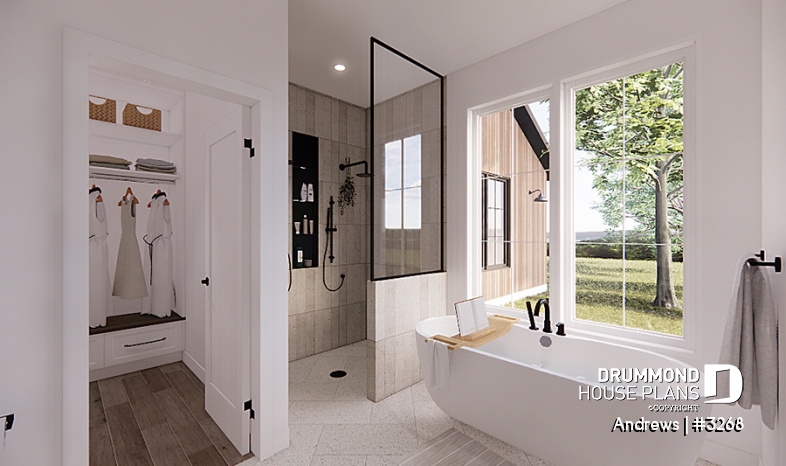

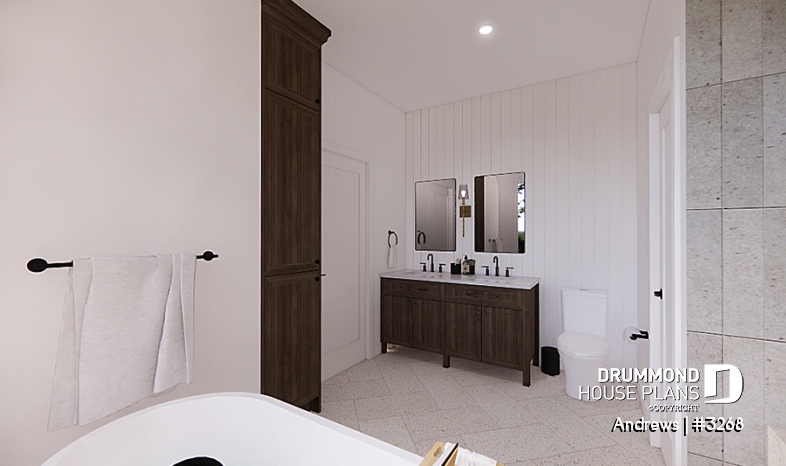

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

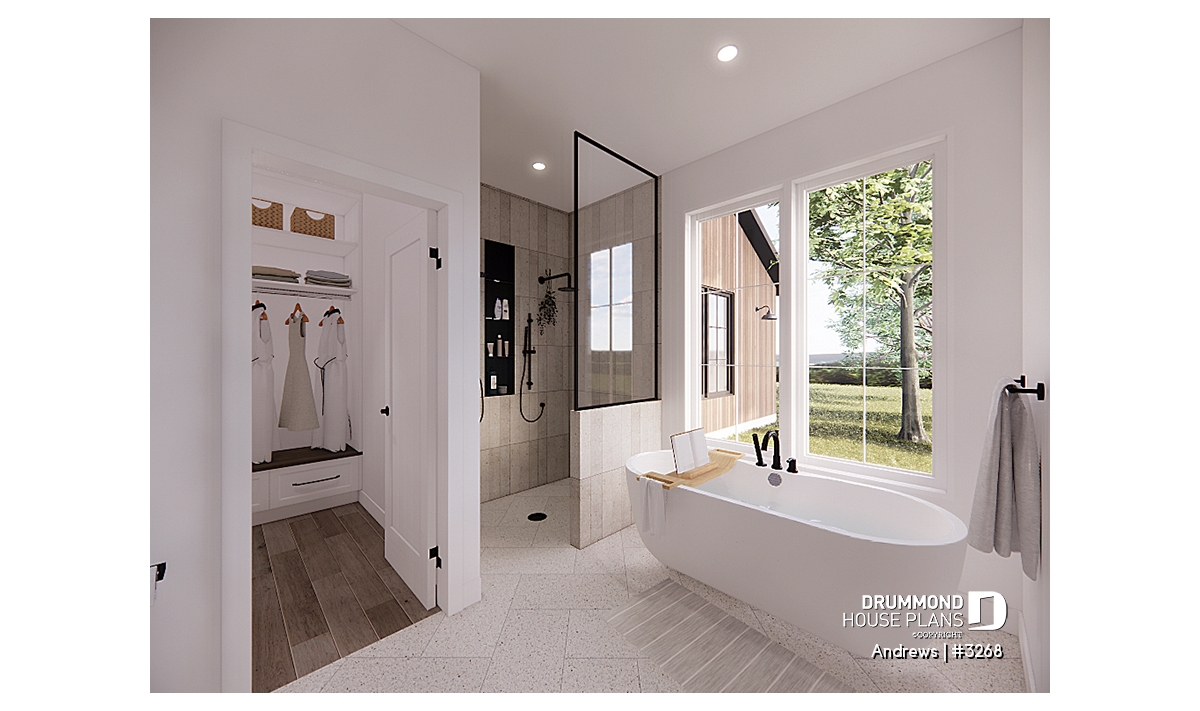

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

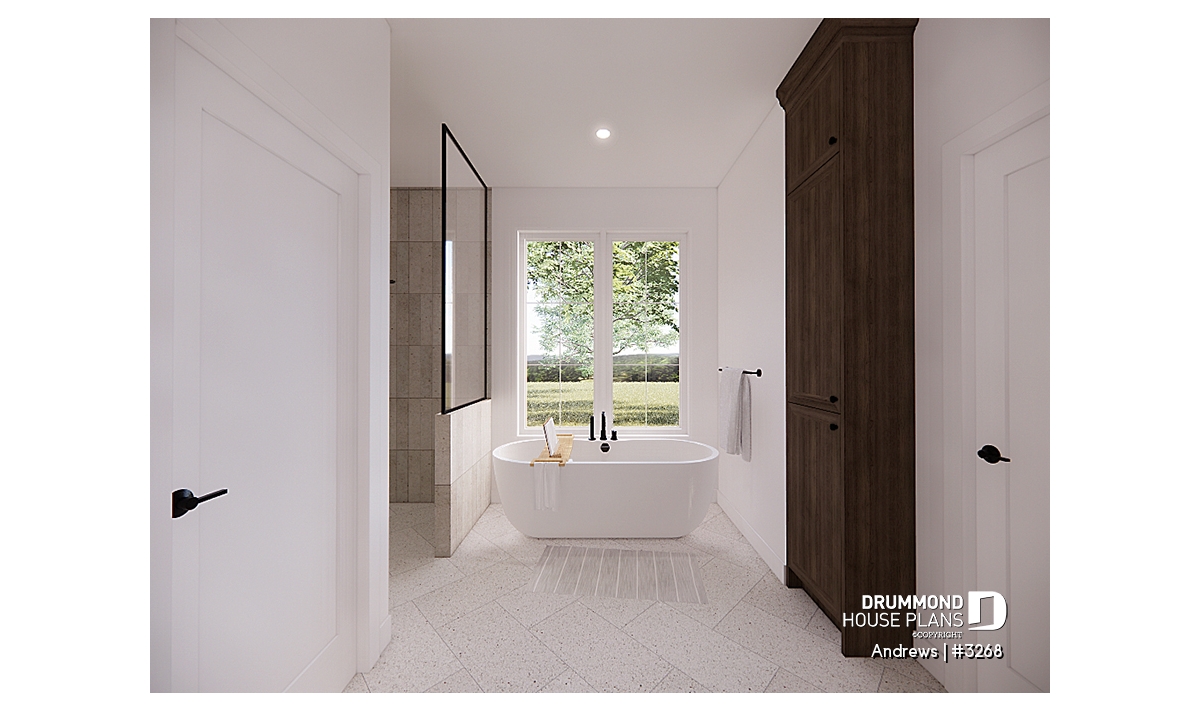

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

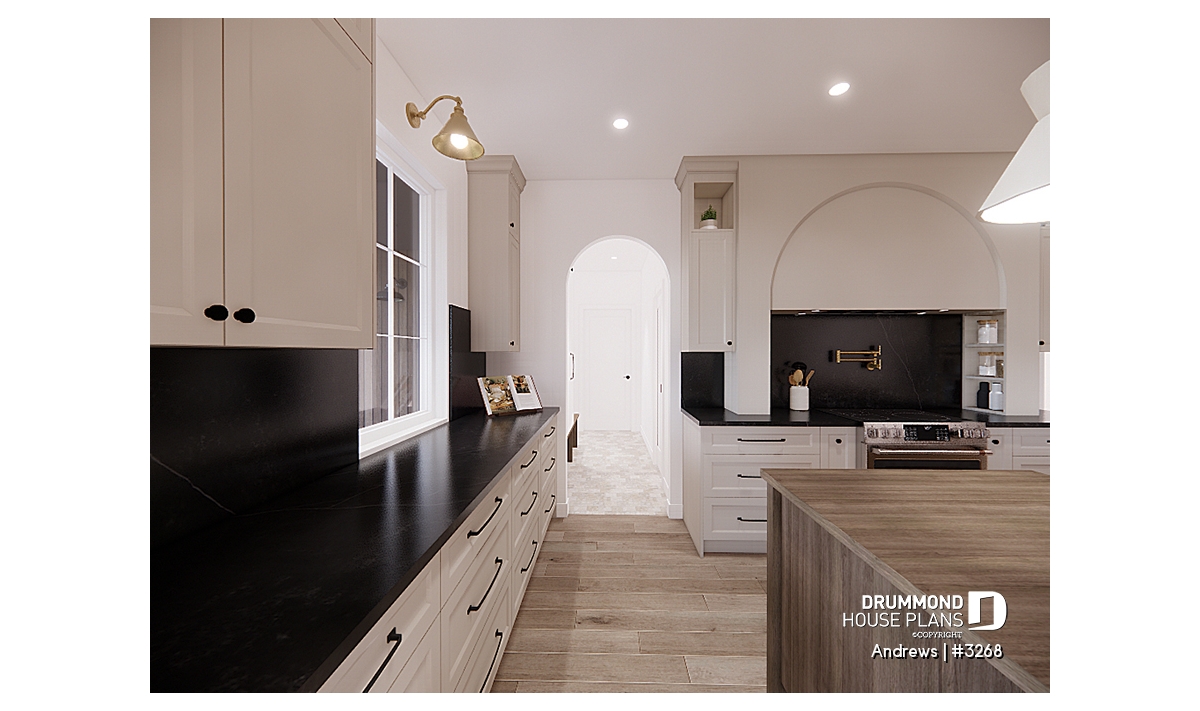

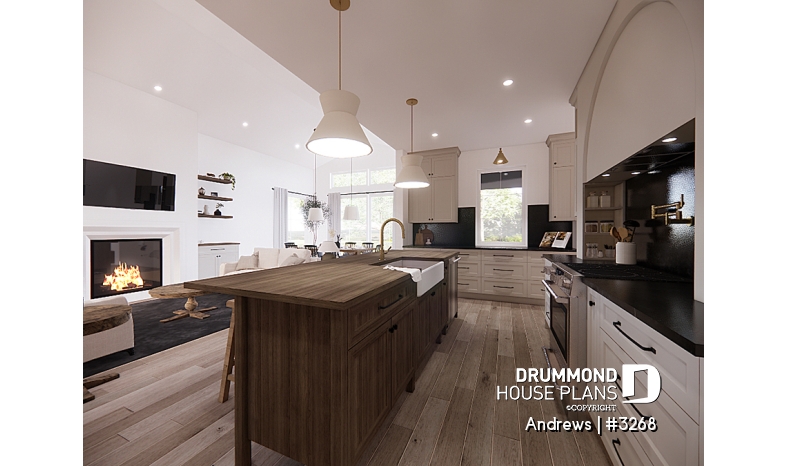

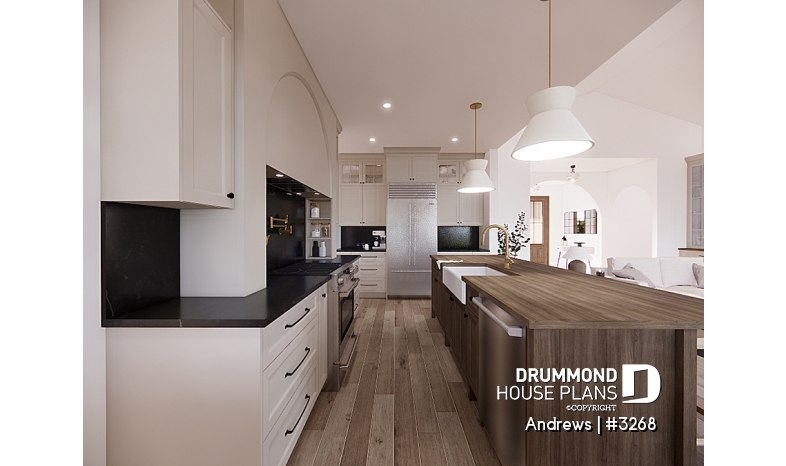

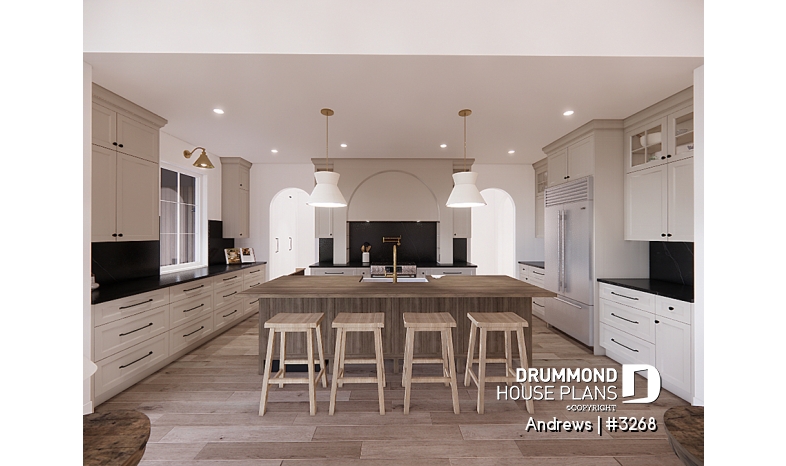

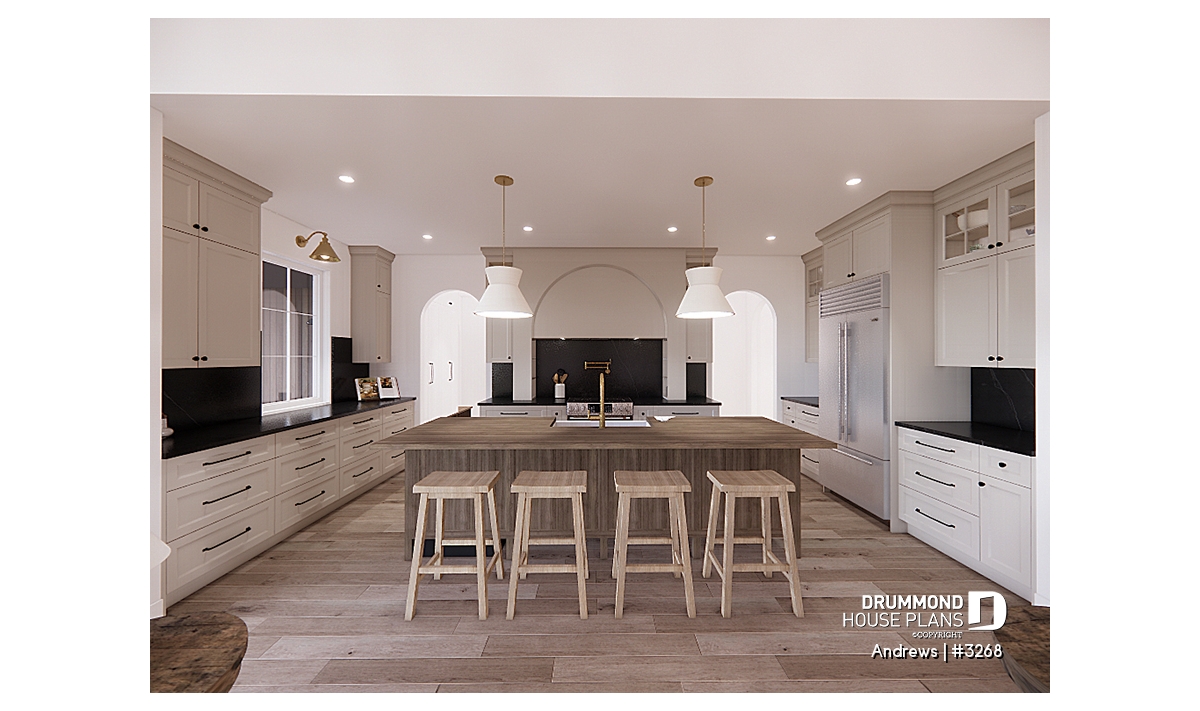

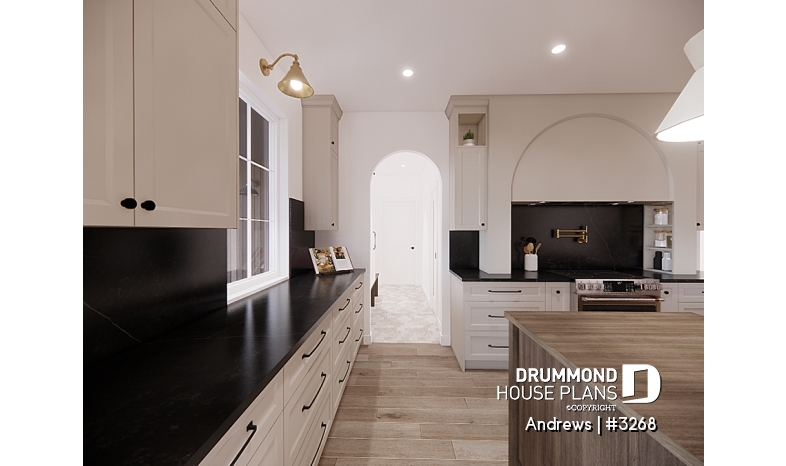

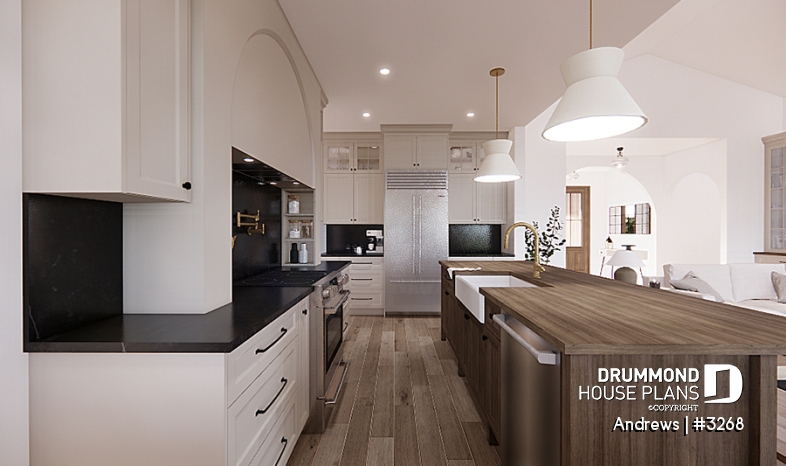

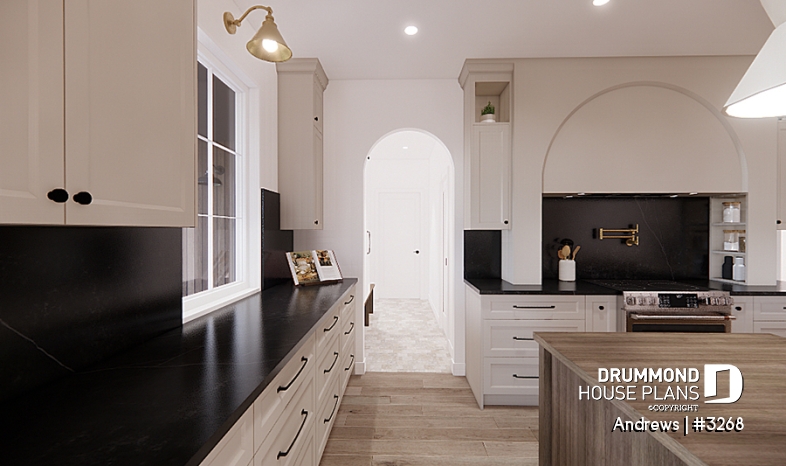

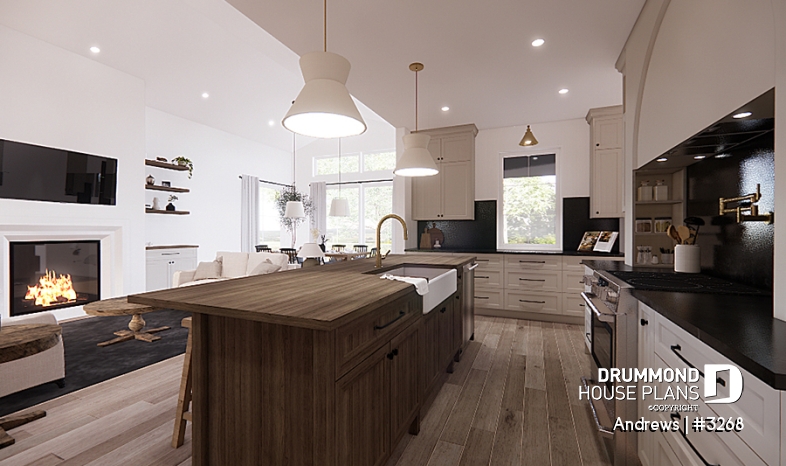

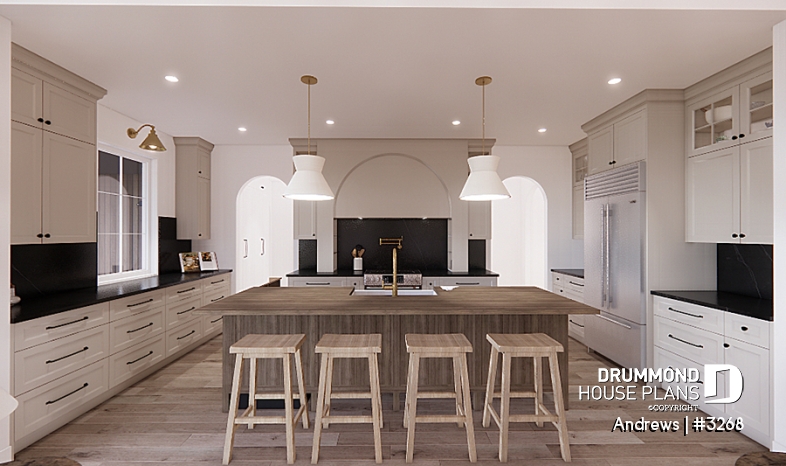

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

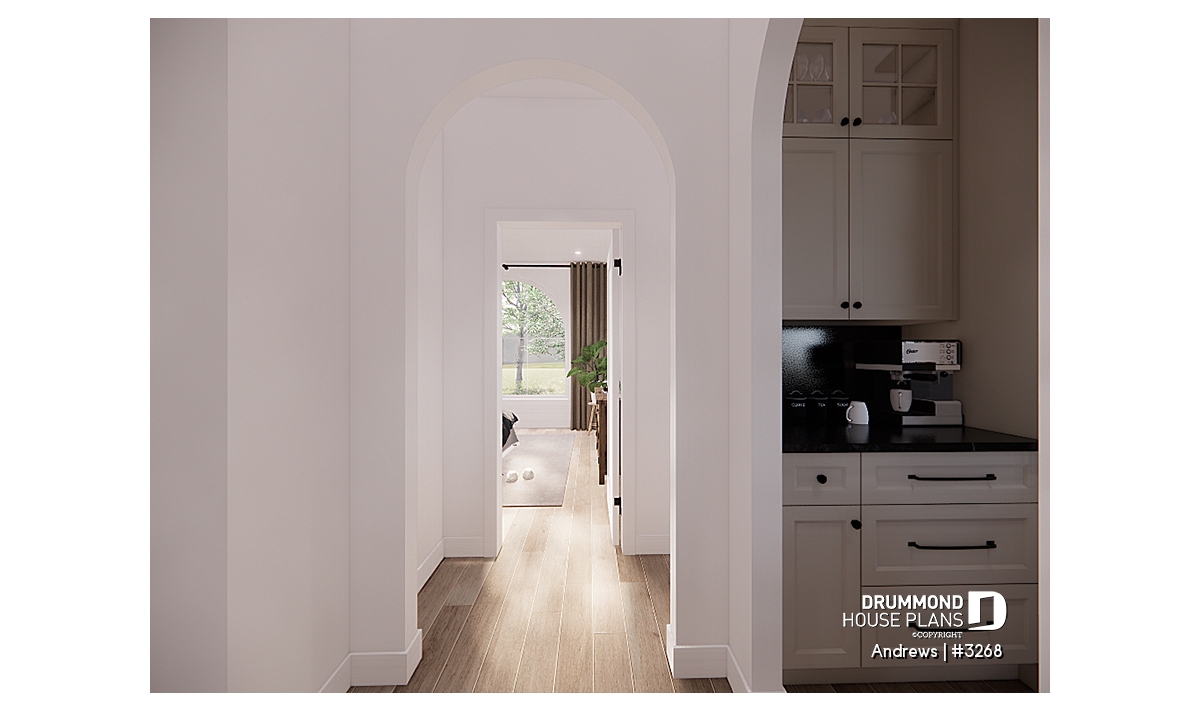

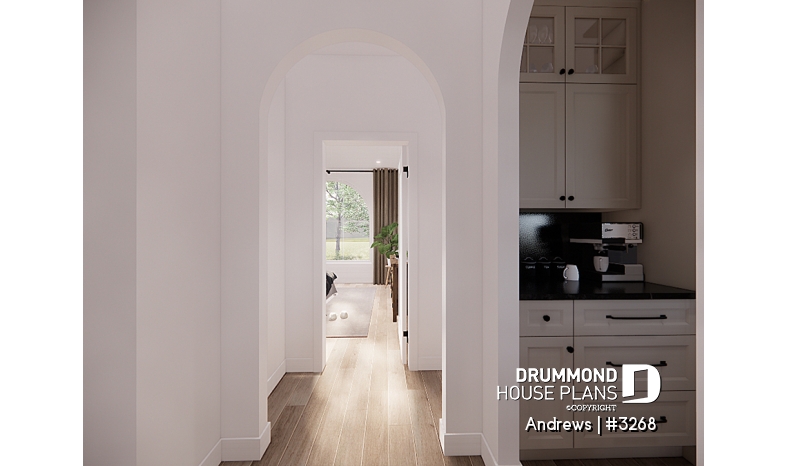

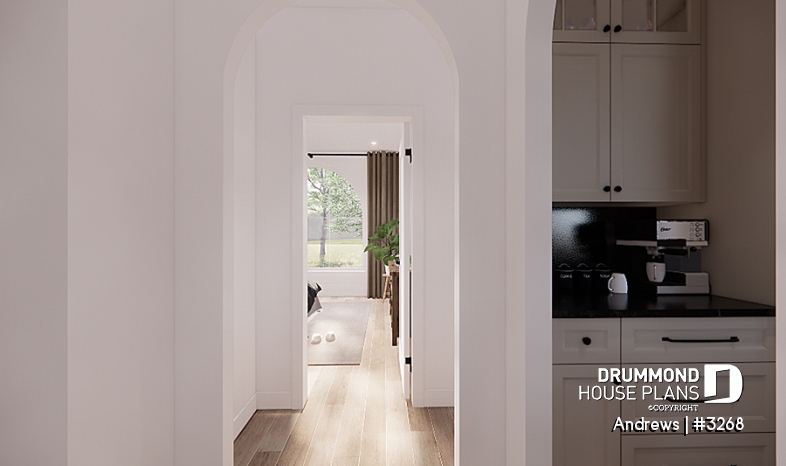

Breakfast room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

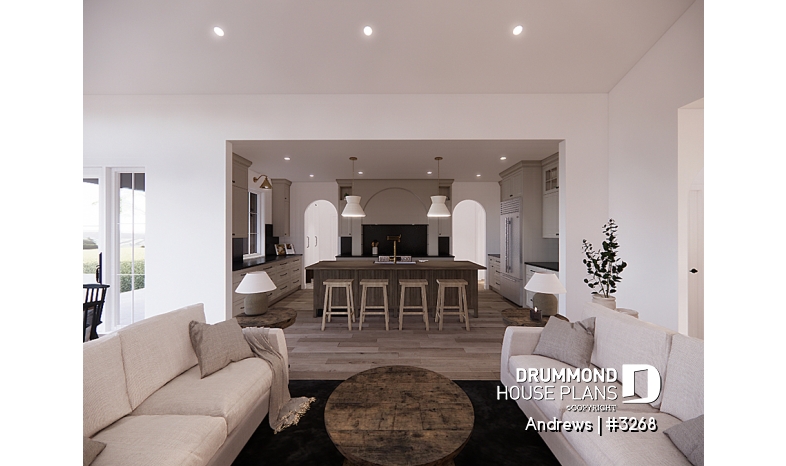

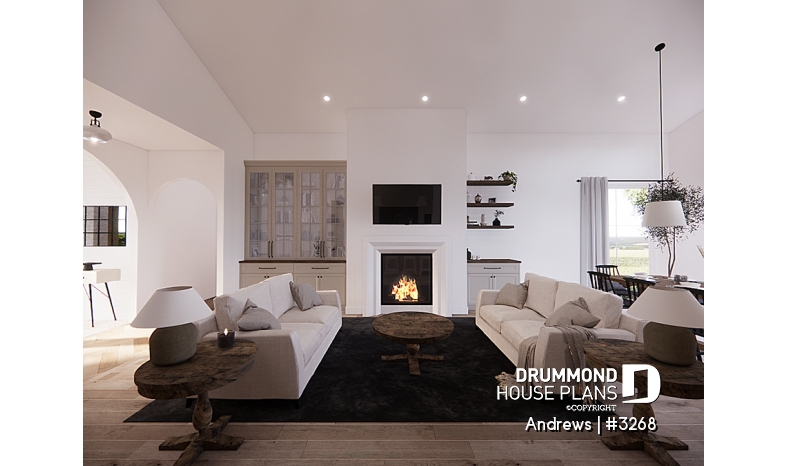

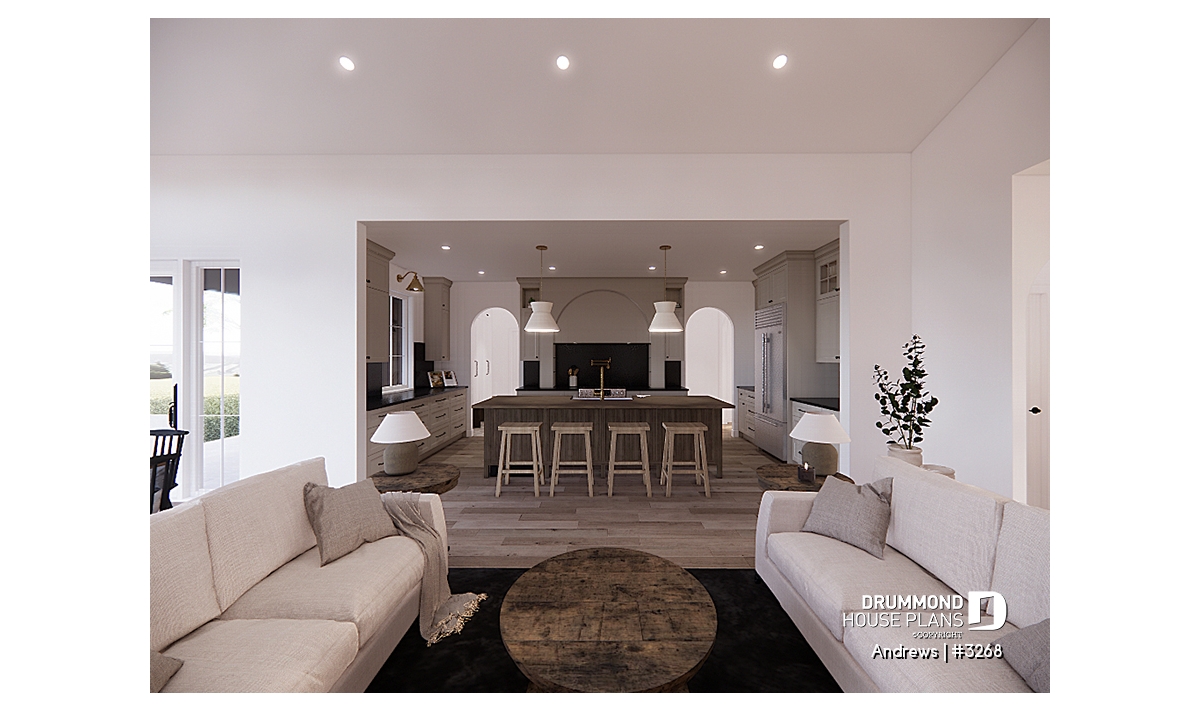

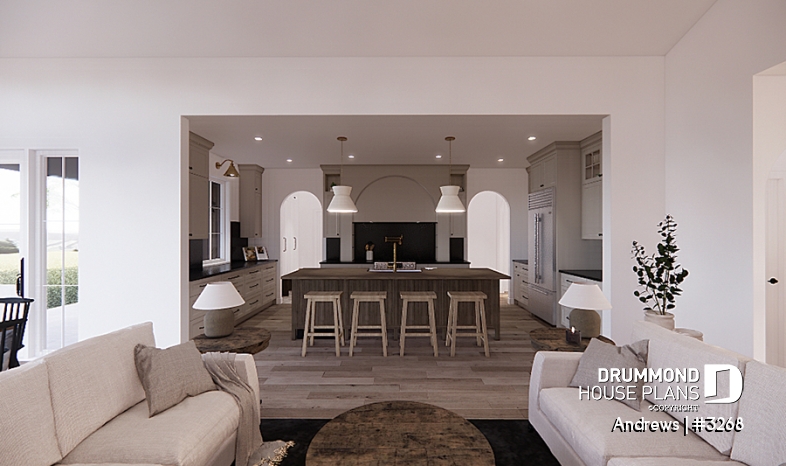

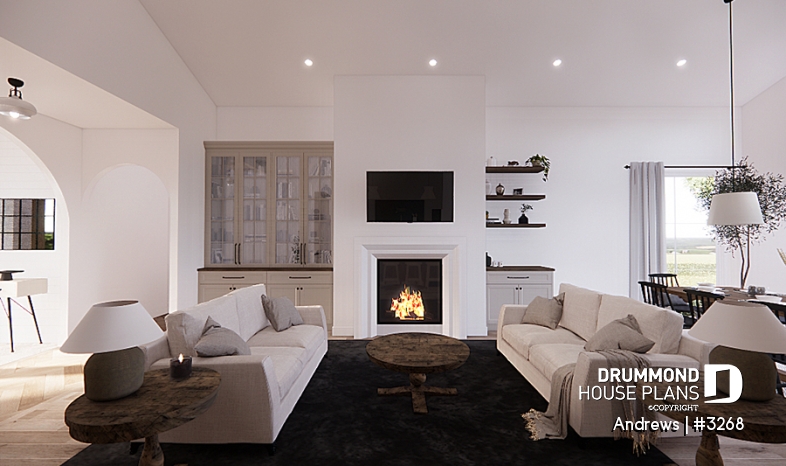

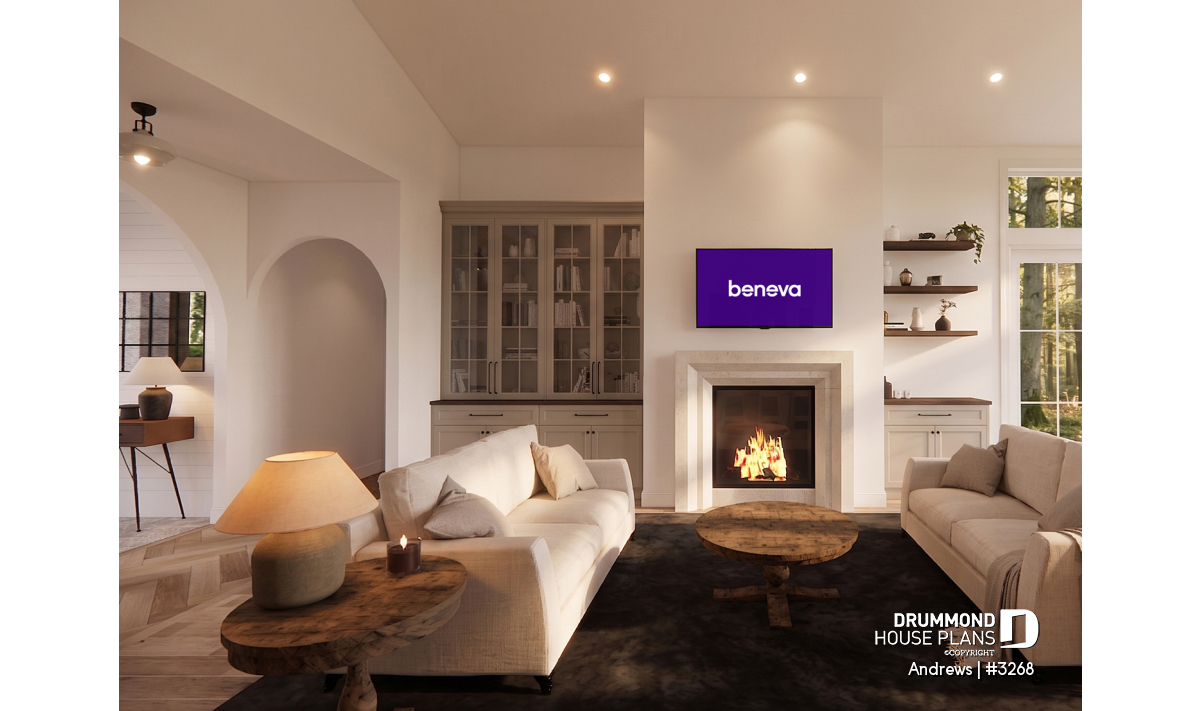

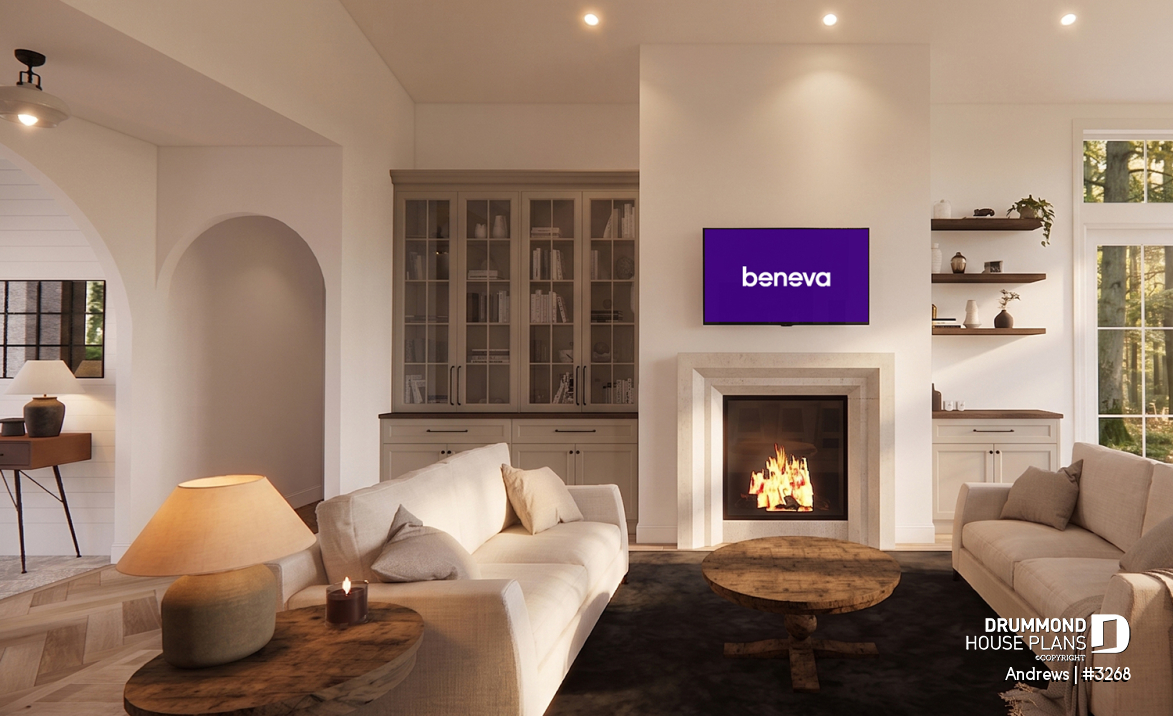

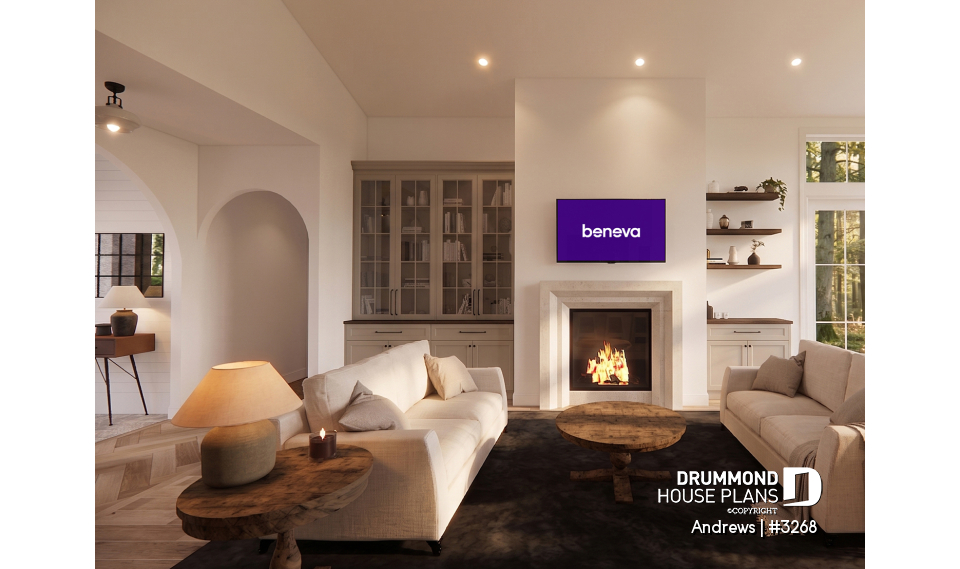

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

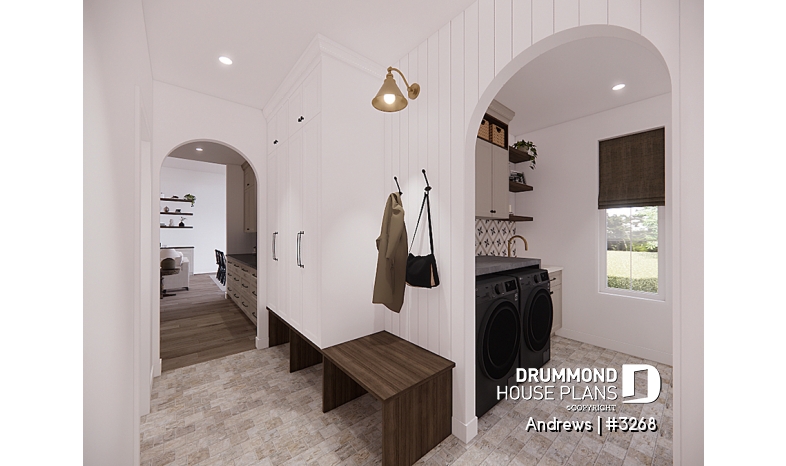

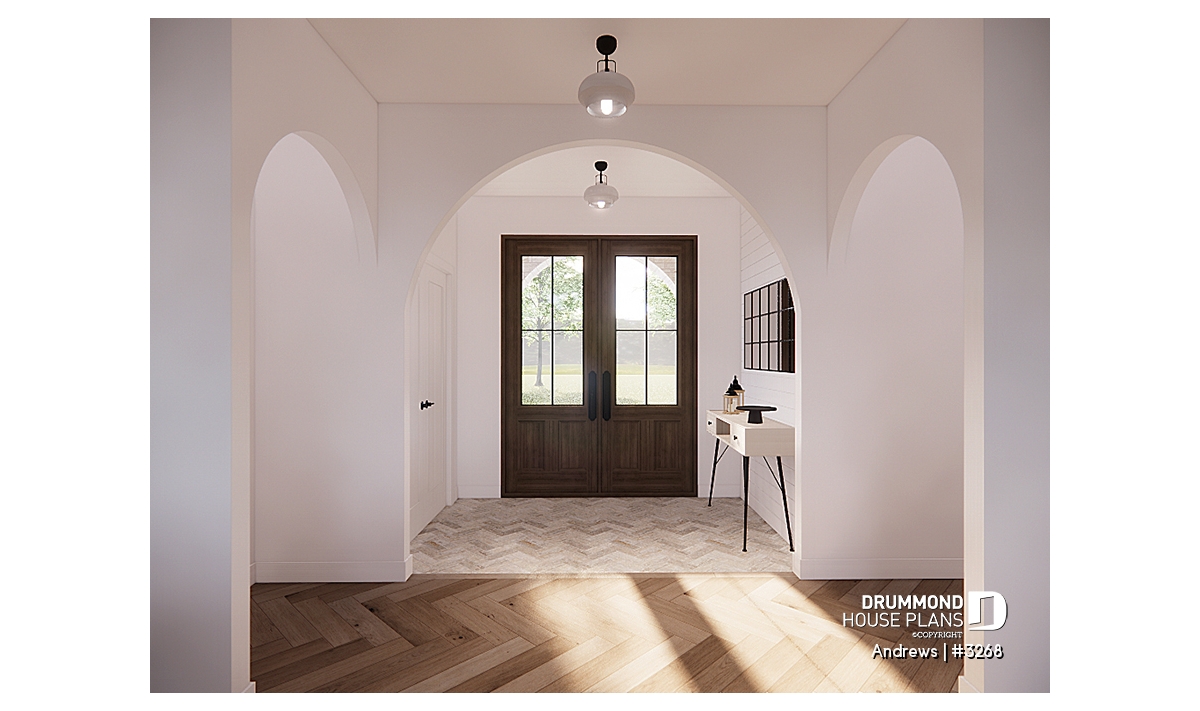

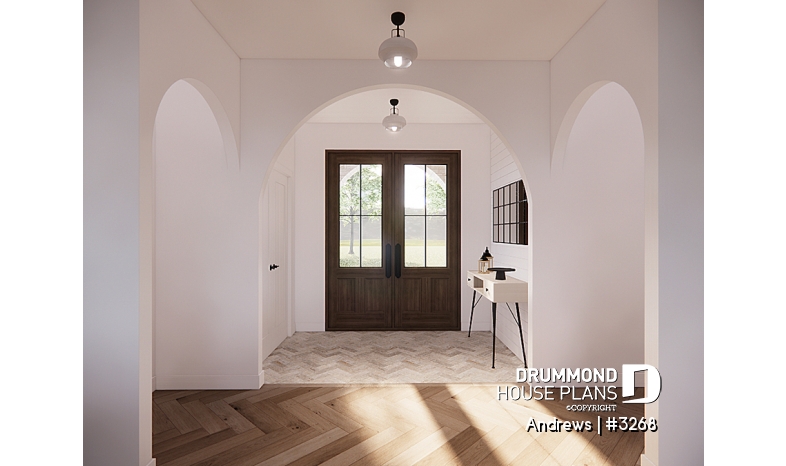

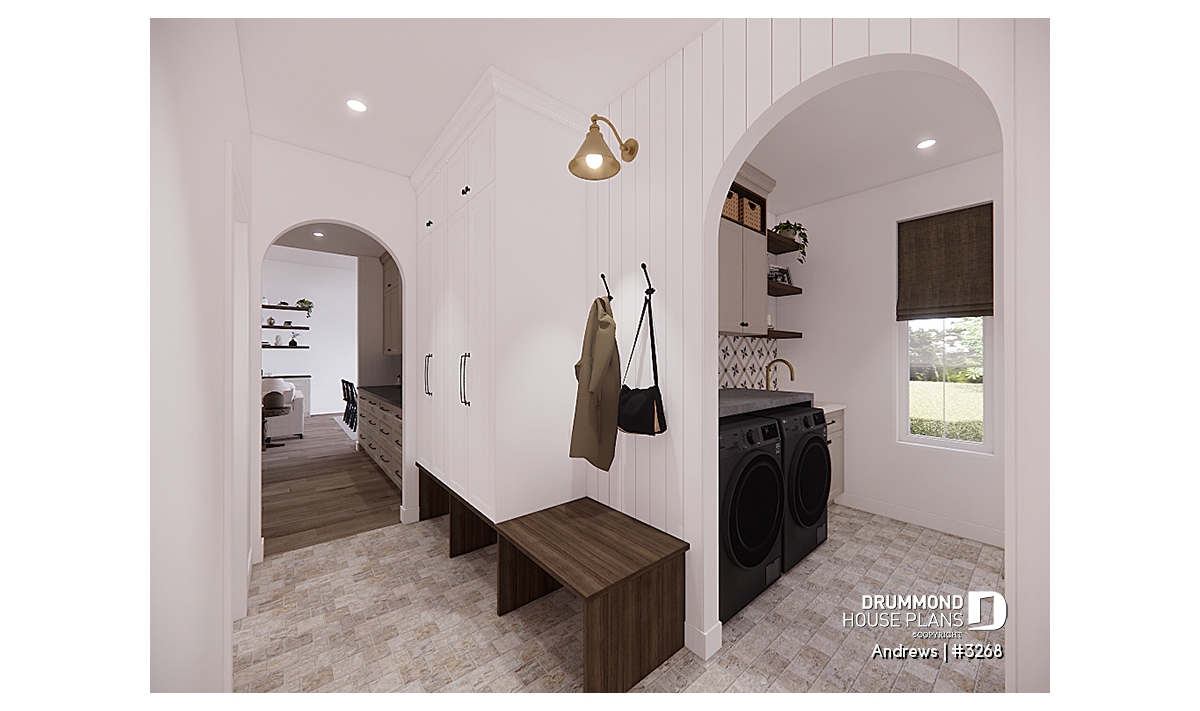

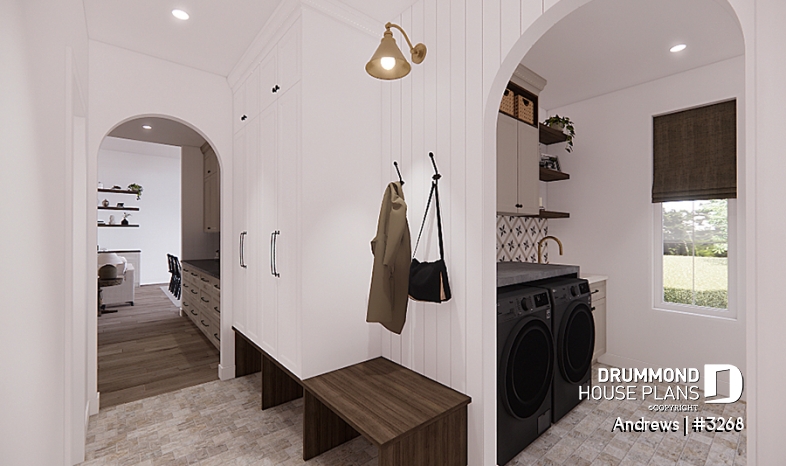

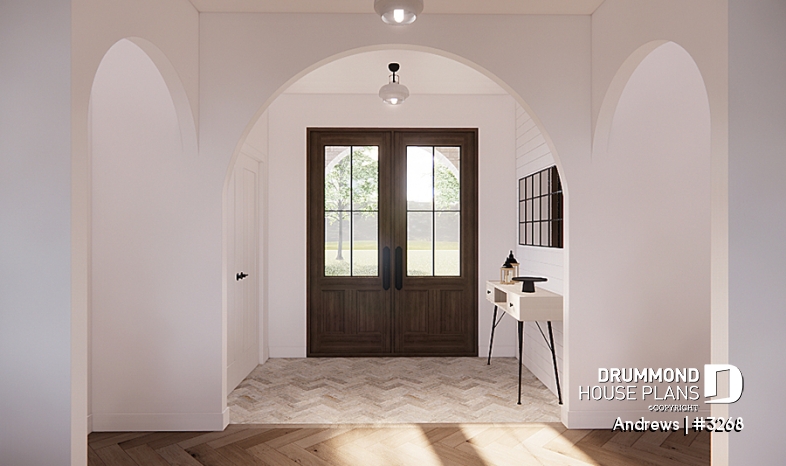

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

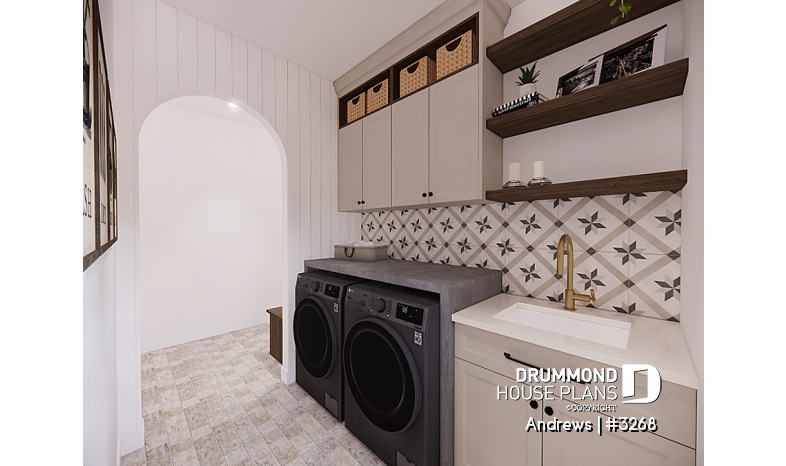

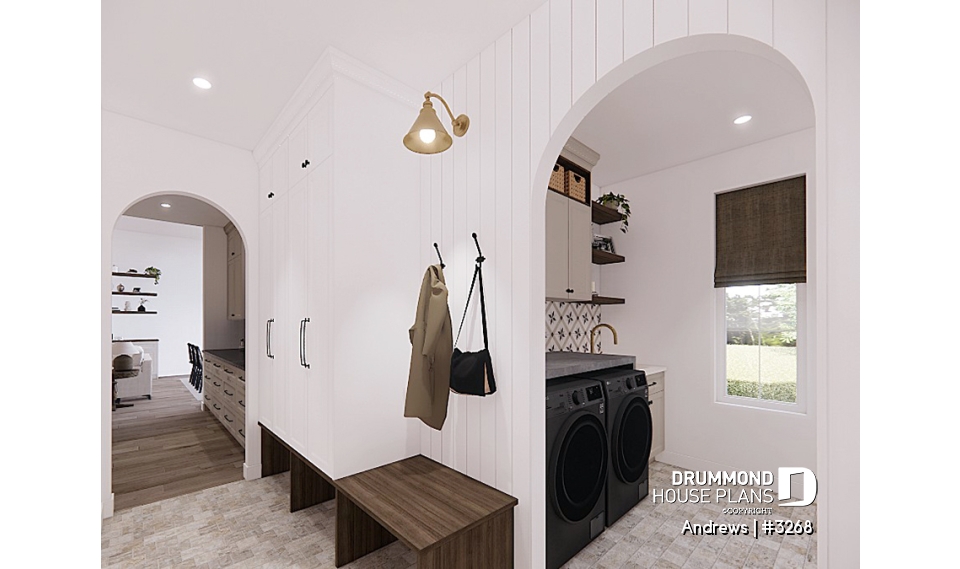

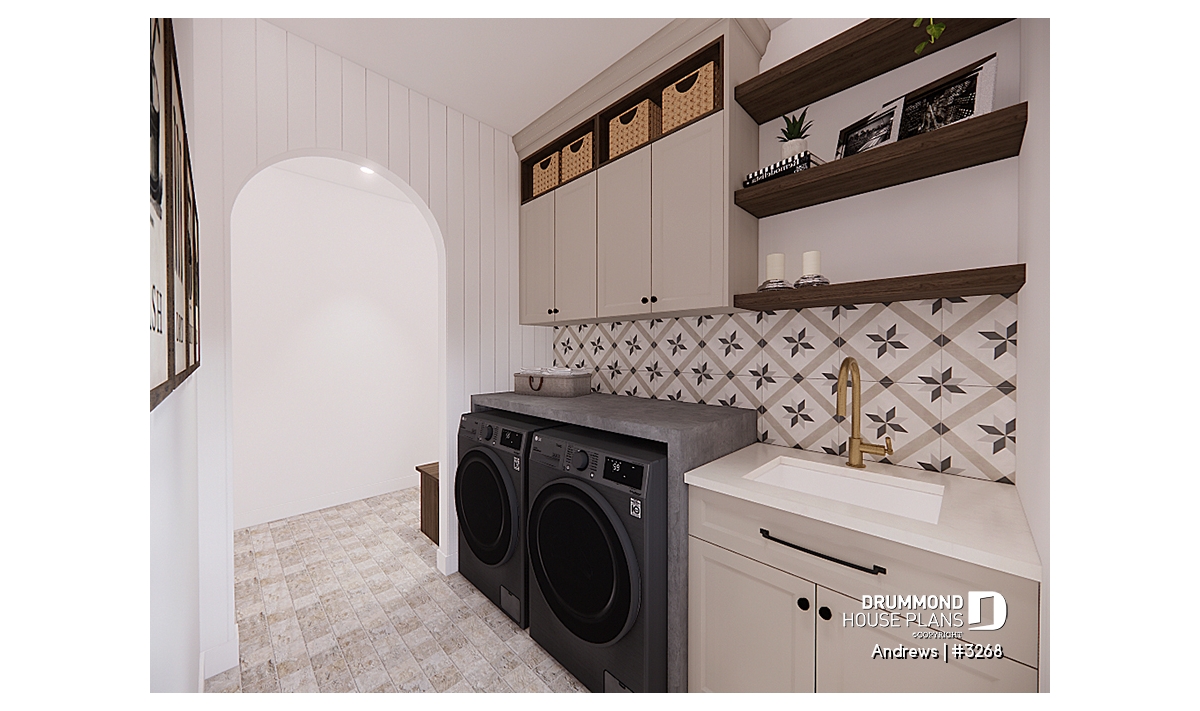

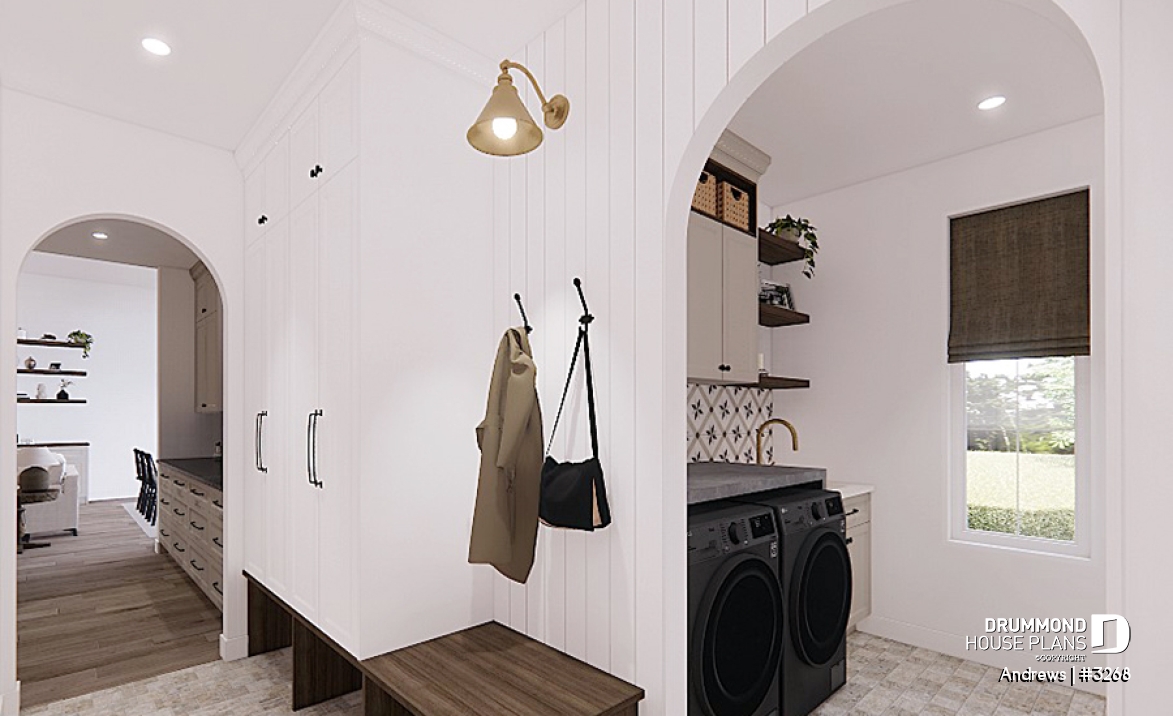

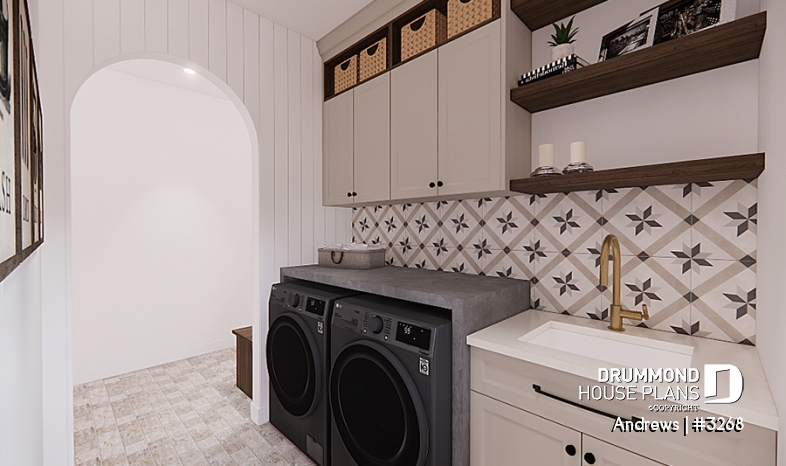

Utility room/laundry room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

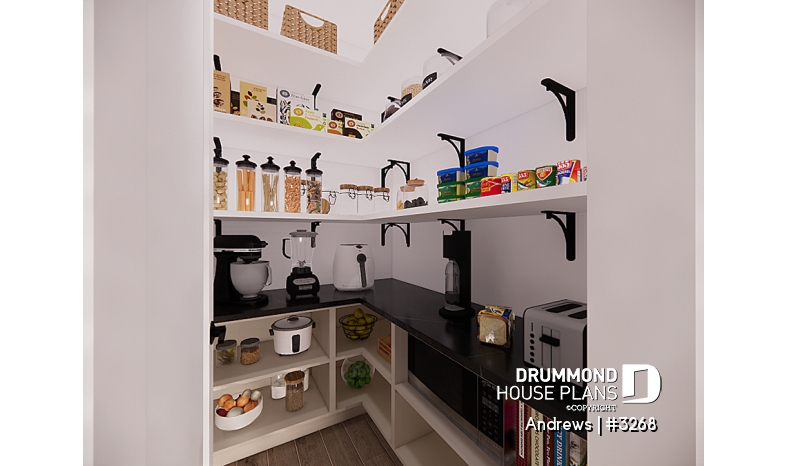

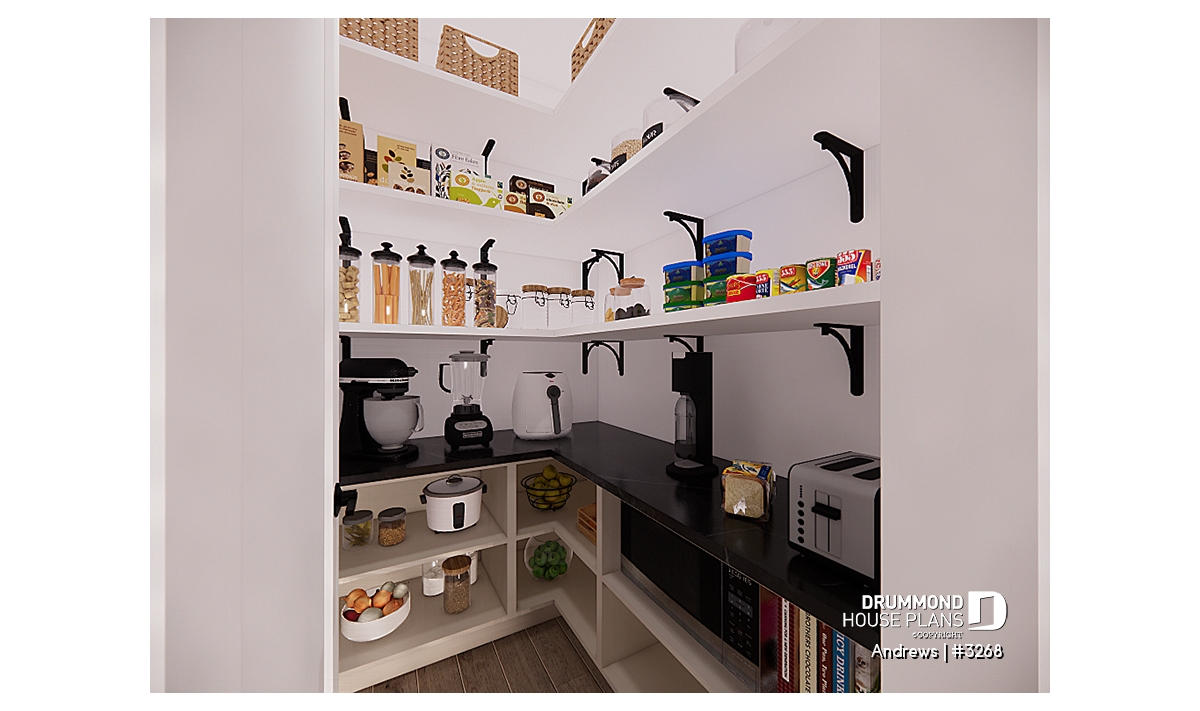

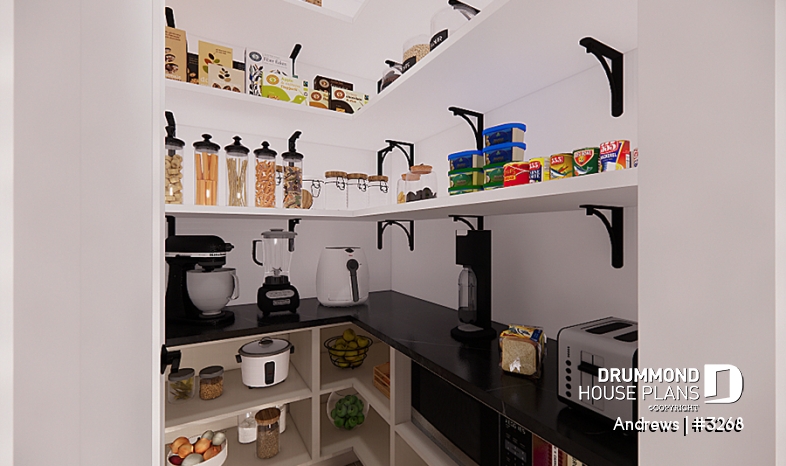

Pantry
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

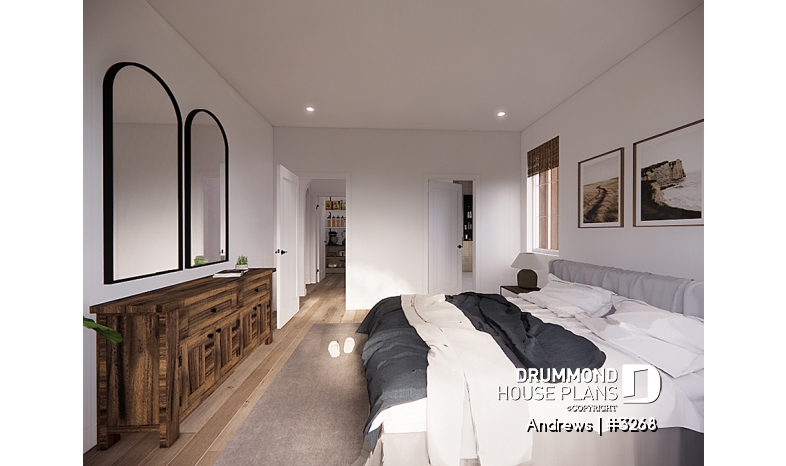

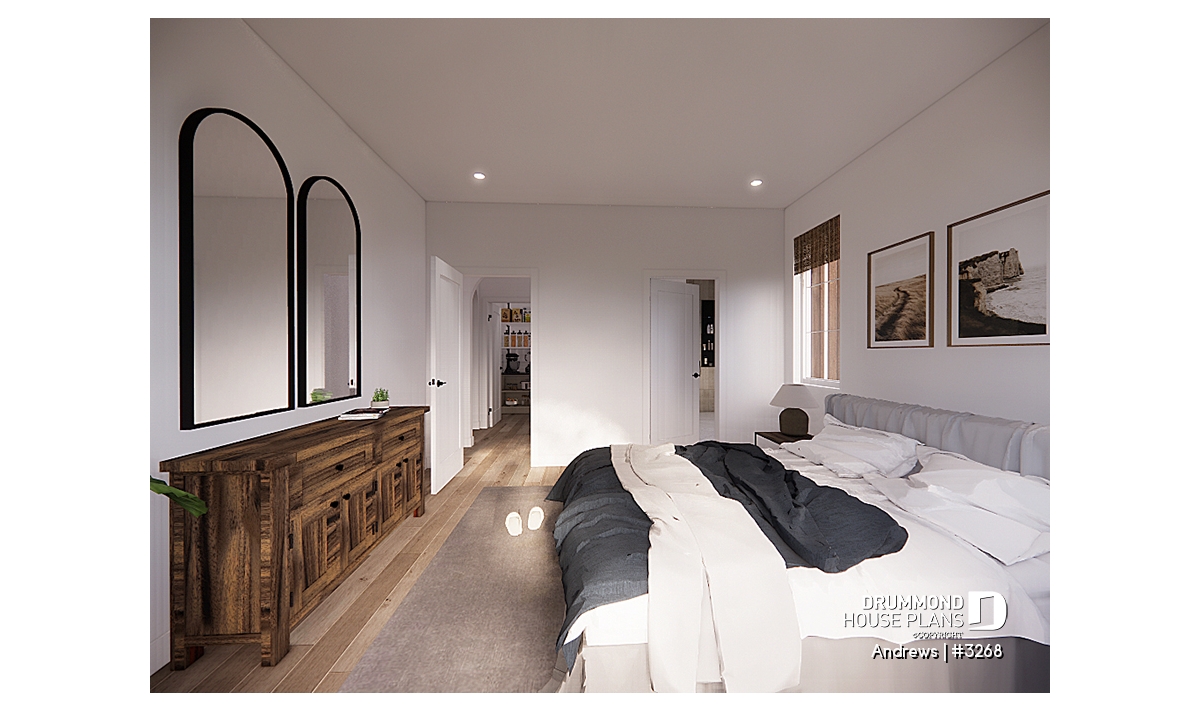

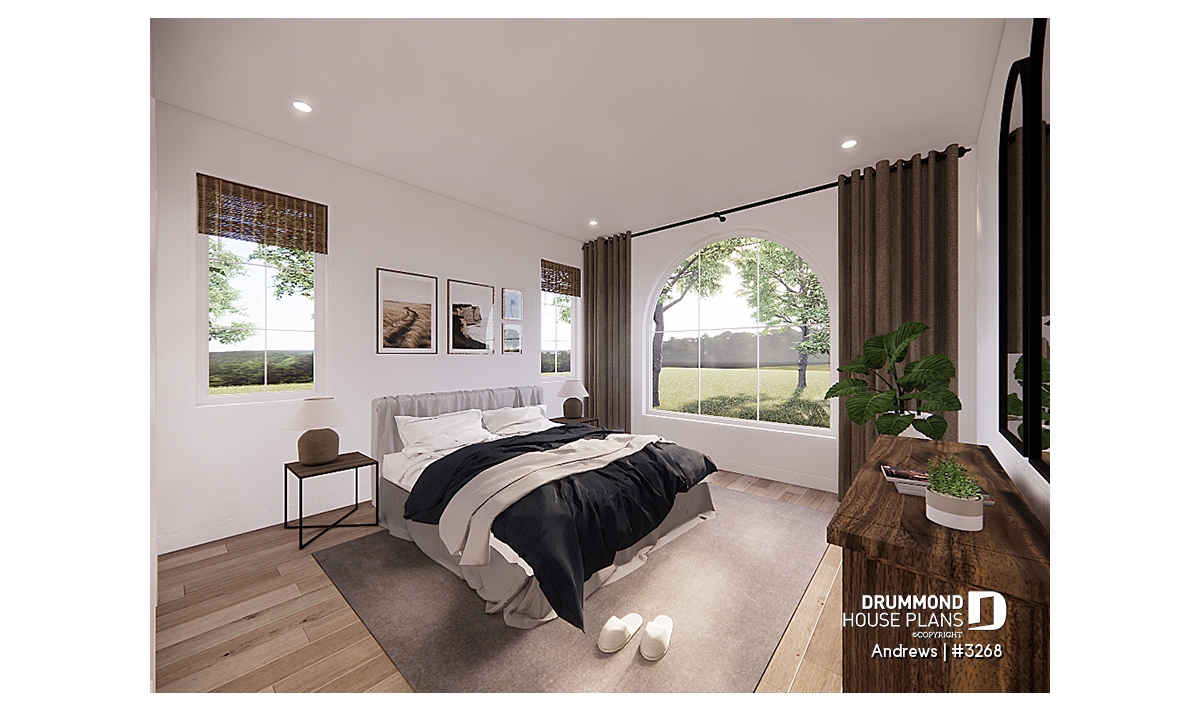

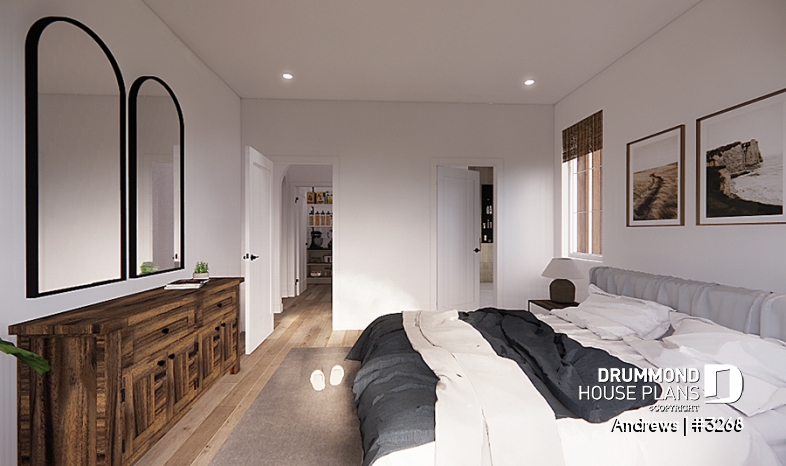

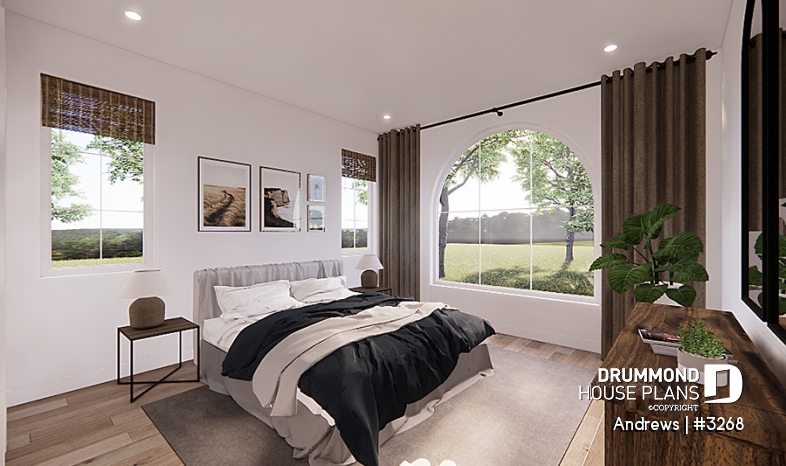

Master suite
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Master suite
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

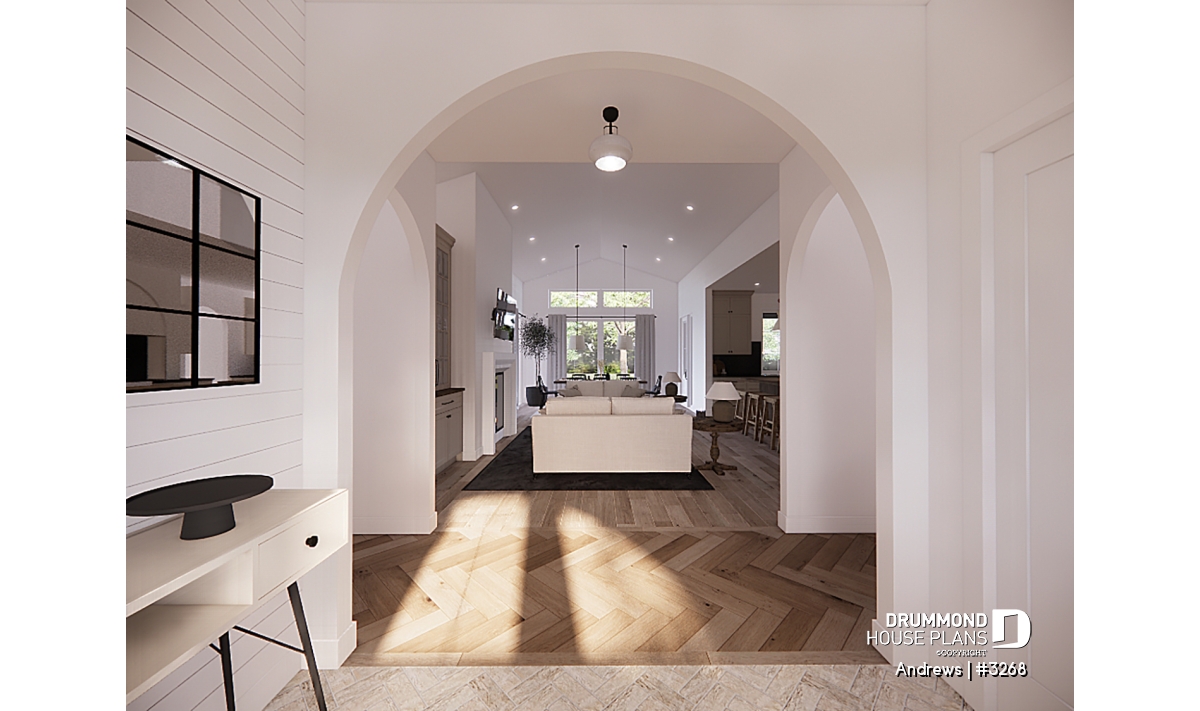

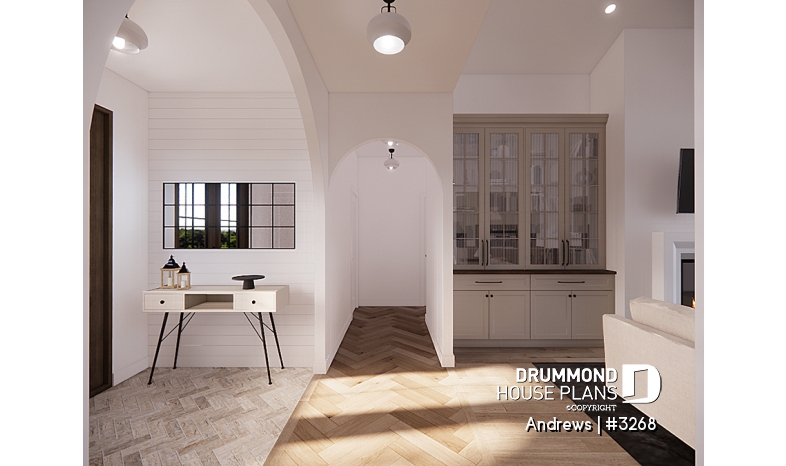

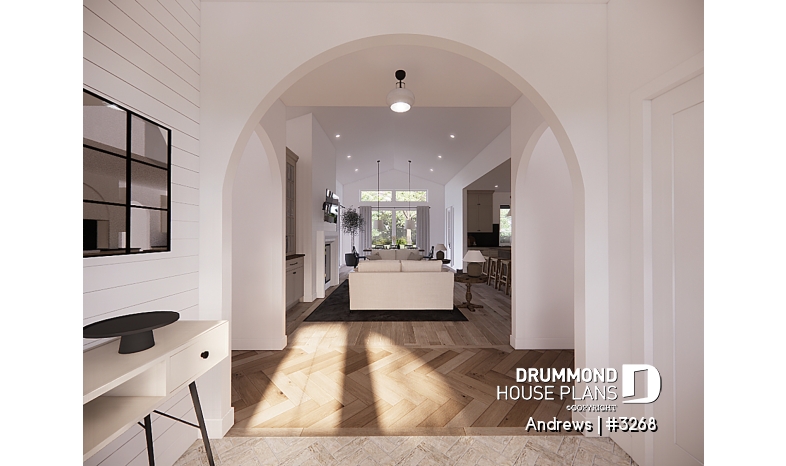

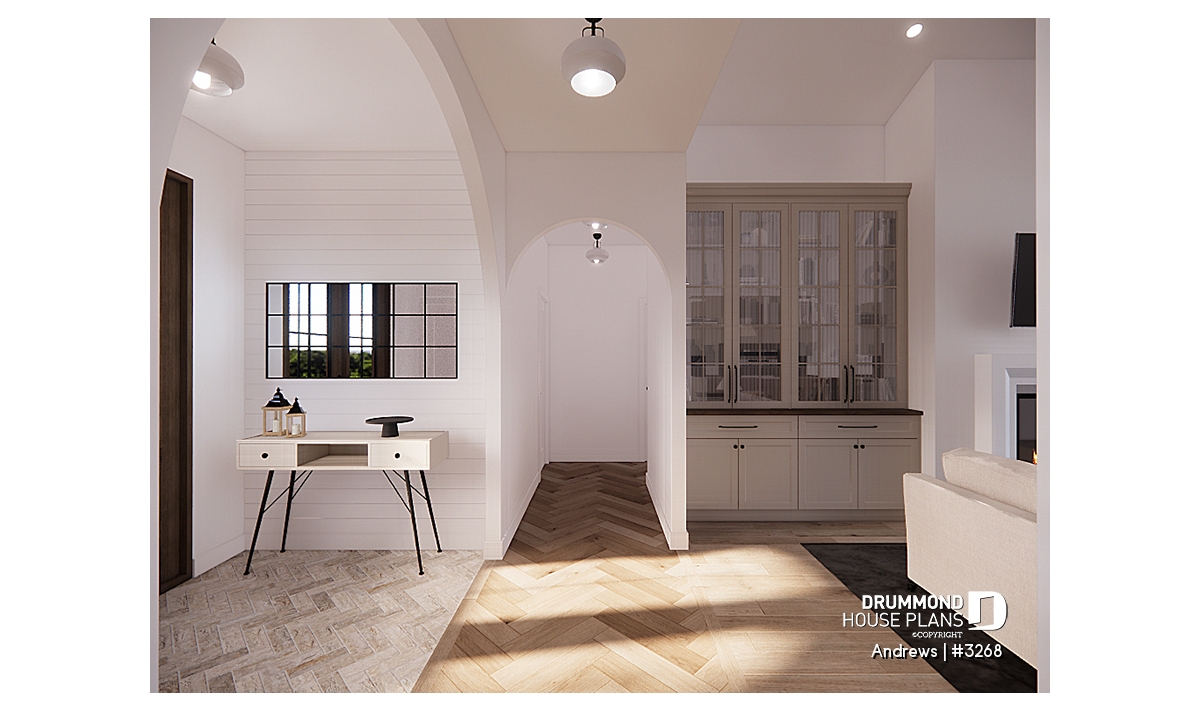

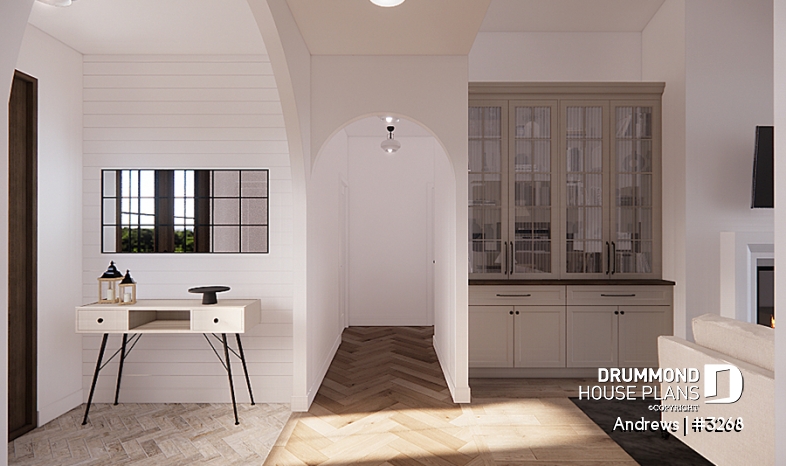

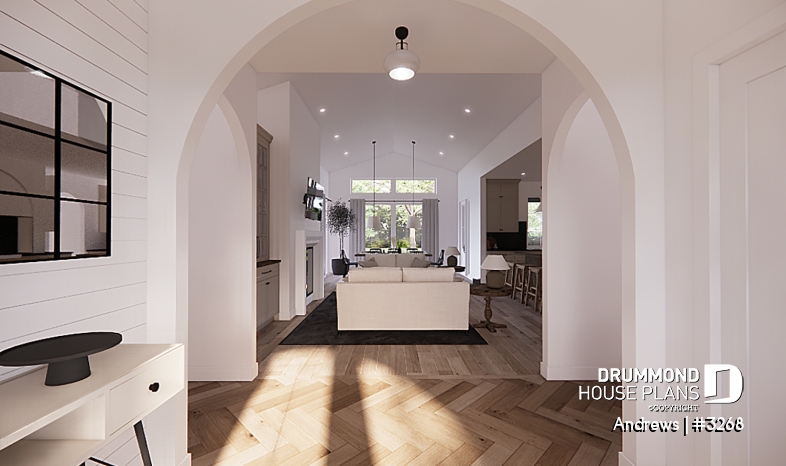

Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Stunning one-storey spacious ranch style house plan offers lots of natural light!
.
Distinctive elements
Magnificent one-story European style home offering 3 to 4 bedrooms and a side-load 2-car garage.
This home offers a split floor plan where the parents' suite is on one side of the house, and the children's (or guest) bedrooms are on the other side of the house.

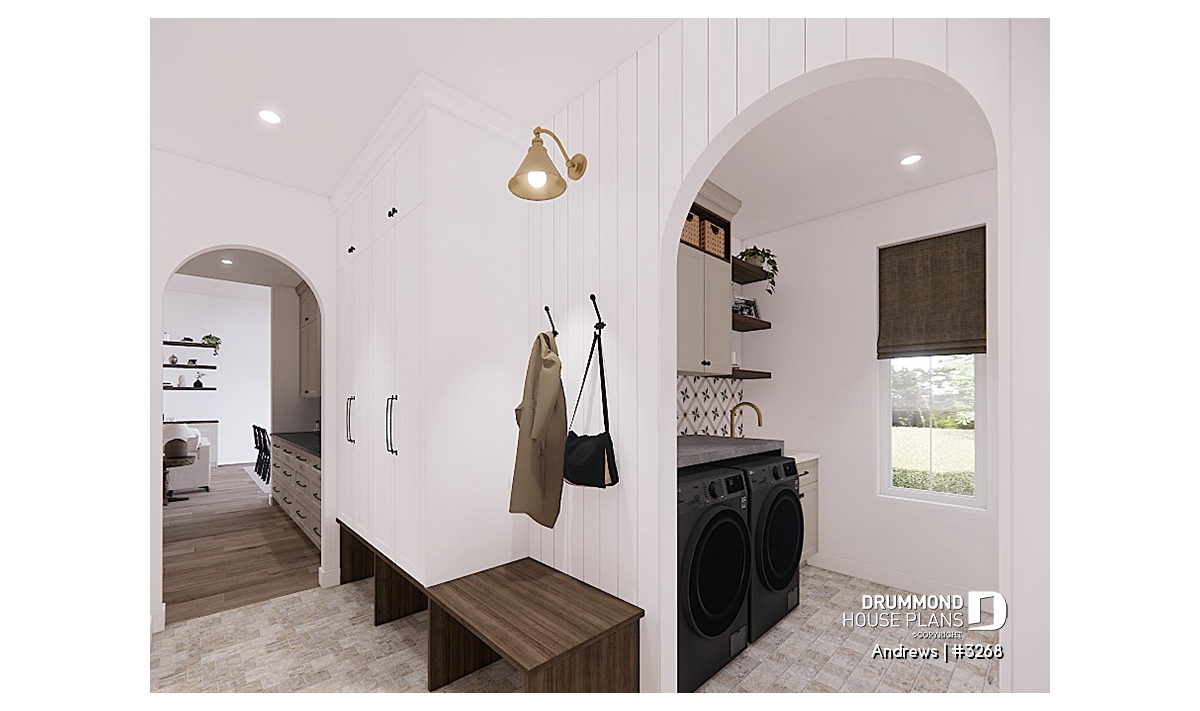

The side double garage leads to a mudroom, a laundry room and the kitchen.
The sheltered front balcony opens onto a remarkable and spacious entrance.
A wall with an arched opening makes the transition to the living room.
All the ceilings in the house are 9' high except in the living room where there is a cathedral ceiling.
An office (or bedroom #4) is planned near the front entrance.
The living room offers a fireplace and is open to the dining room on one side and the kitchen on the other.
The dining room gets plenty of natural light.
The kitchen has the essentials: island and pantry.
Near the kitchen, but still set back, a powder room is fitted out for guests.
The parents' suite has a private bathroom with separate bath and shower, as well as two sinks and a walk-in closet.
The two secondary bedrooms share a bathroom.
The rear sheltered terrace is big enough to include a large sitting and or lounge area.
The foundation provided for in this plan is a floating slab.
Several types of foundation are available for each of our plans, you can select in the shopping cart ($).
Plan feature(s)
Side entry garage, Split bedrooms, Pantry, Island, Cathedral ceiling, Mud room, Walk-in master bed., Master suite on main, Open floor layout, Office / Study / Den, Fireplace, Deck, Gound floor laundry room, Separate bath and shower, Double sinks, Arch
Plan architectural style(s)
. Ranch, . European, French Country, Modern French Country, Tuscan, . Contemporary, Trending
