House plan Lohan 2 (3259-V1)
Spacious single-storey house plan, floating slab, 3 beds, 2 bathrooms, large kitchen island with bench seat

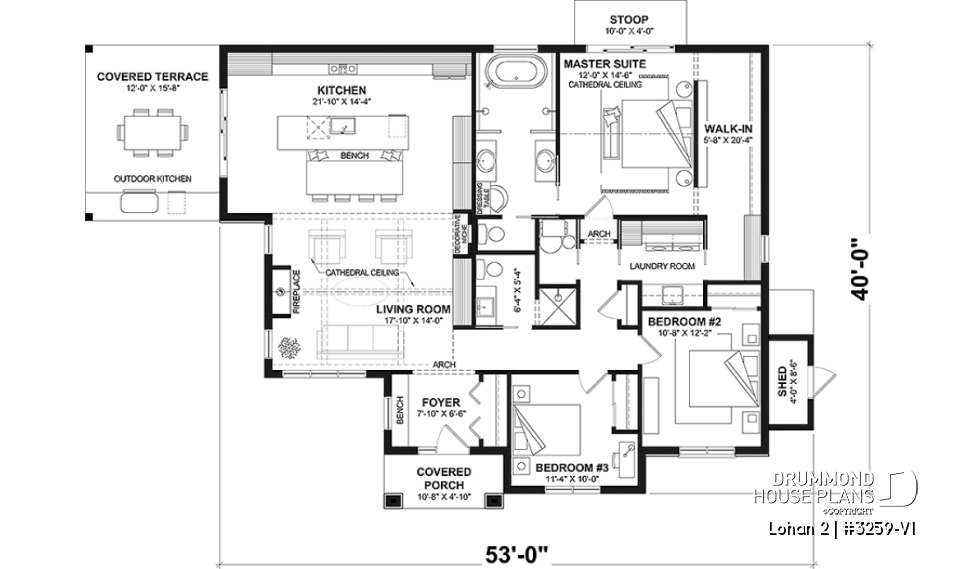

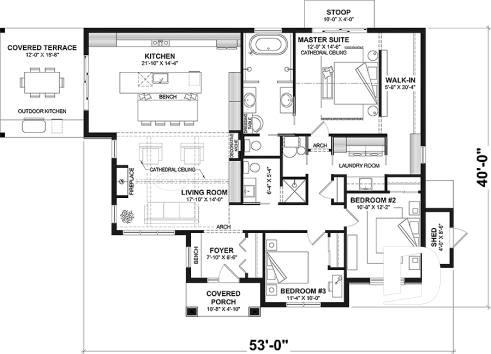

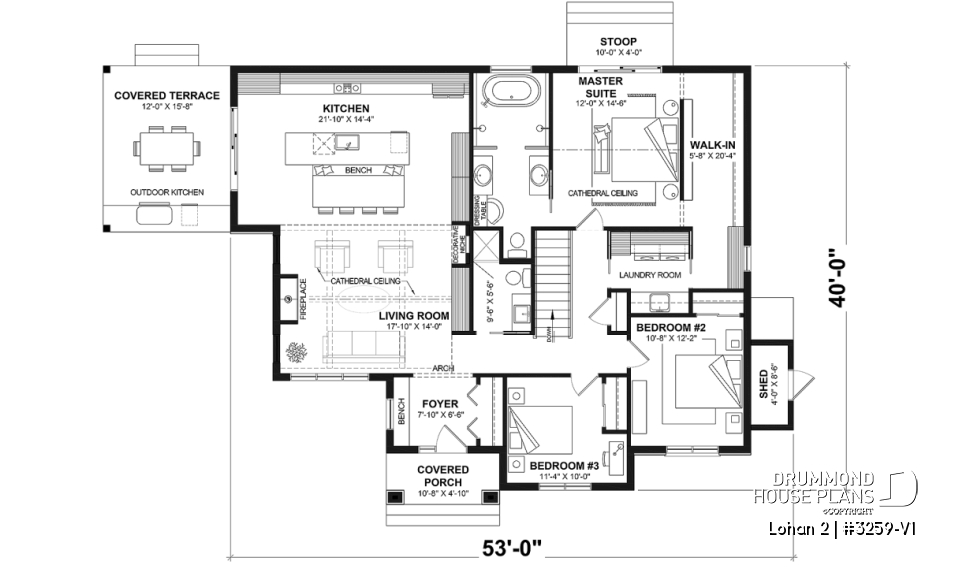

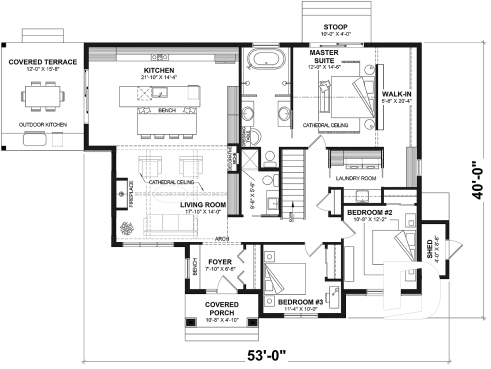

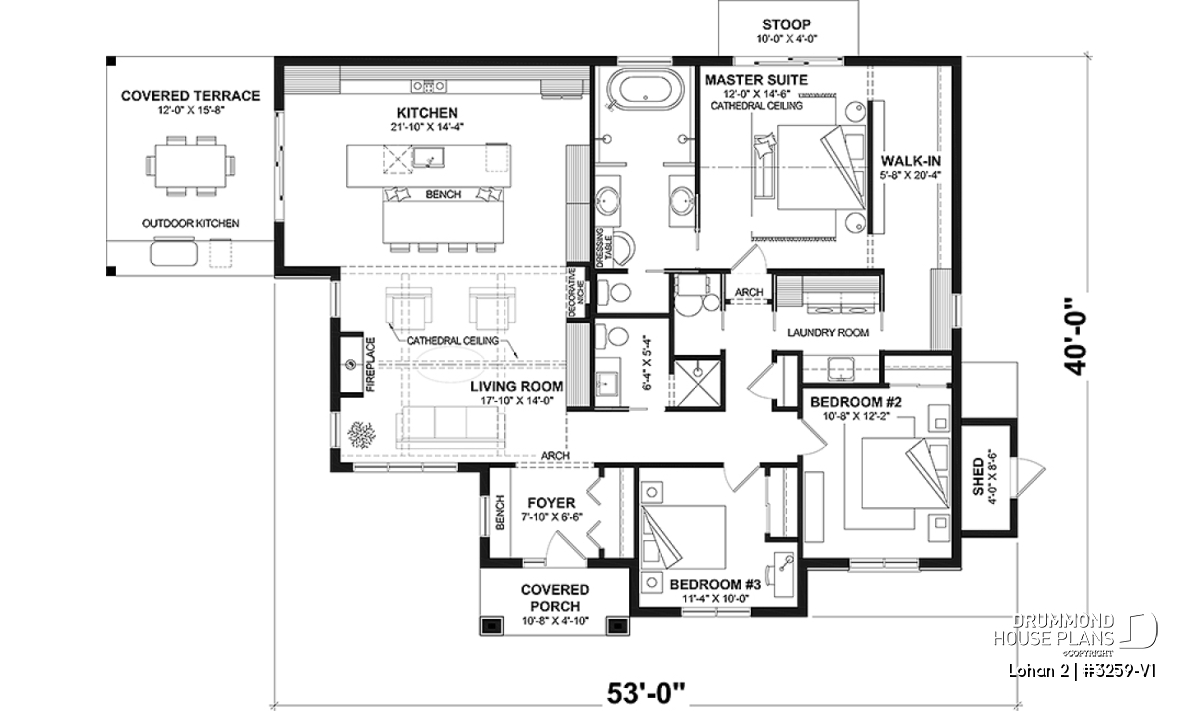

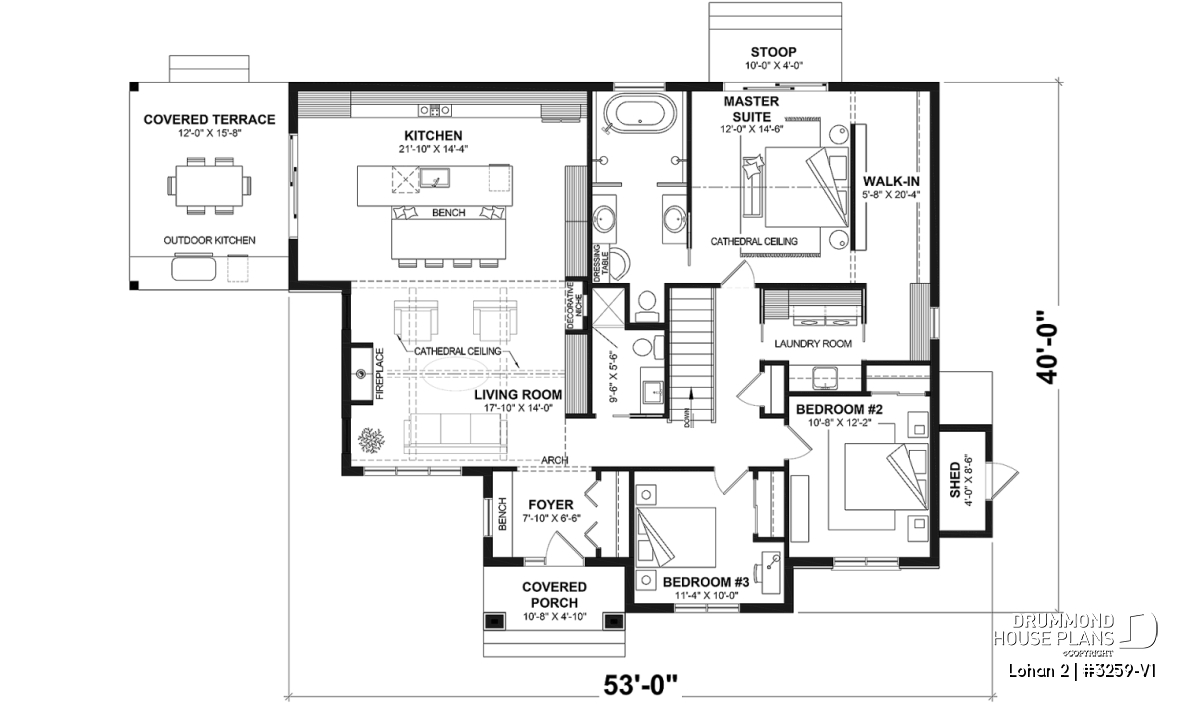

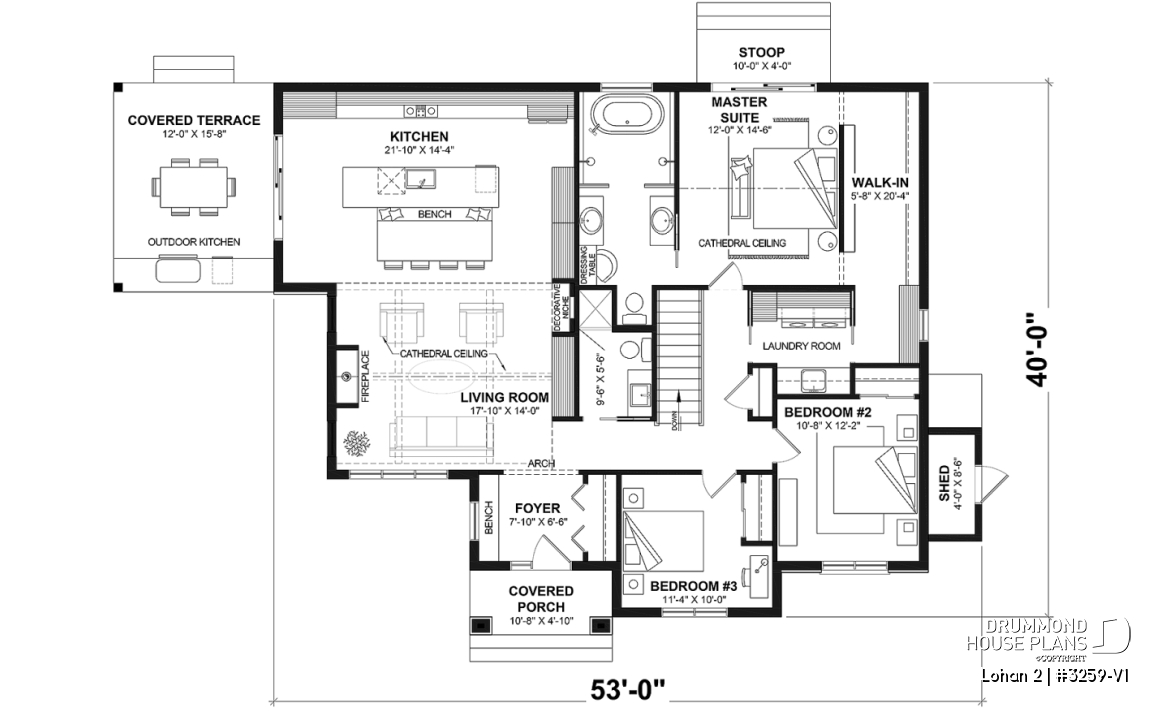

View the size of the rooms and height of the ceilings

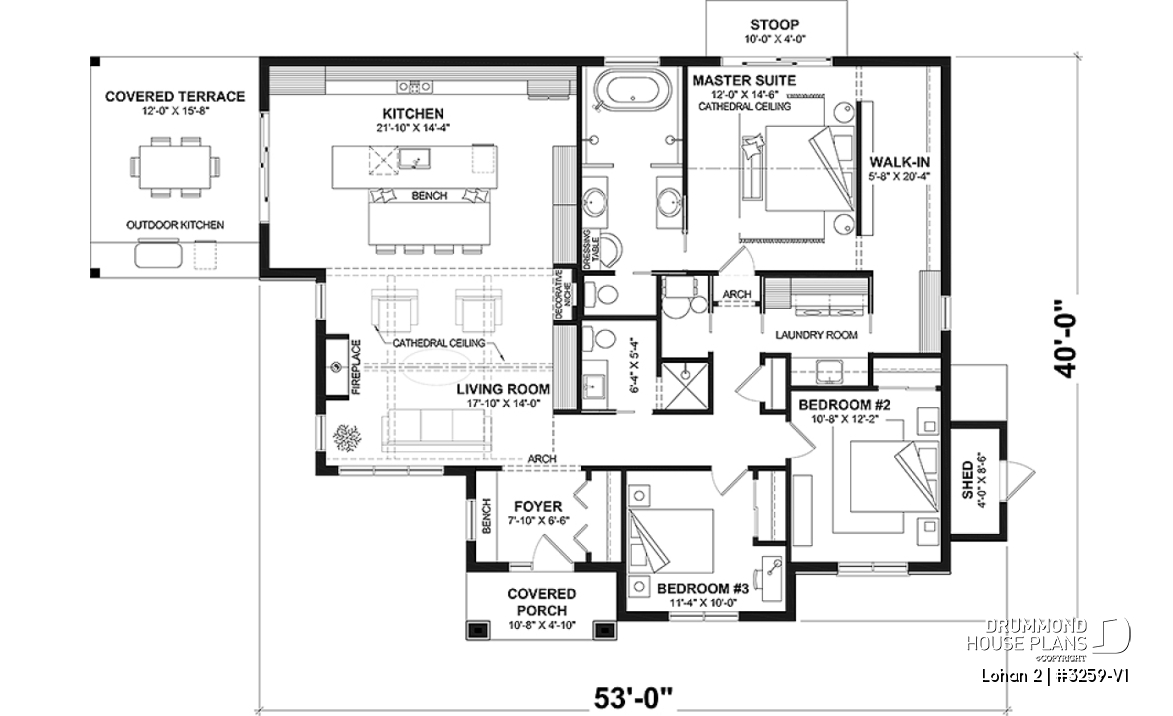

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Covered deck | 12'0" x 15'8" | ~ 9'4" |
| Covered porch | 10'8" x 4'10" | ~ 9'4" |
| Foyer | 7'10" x 6'6" | ~ 9'0" |
| Closet | 6'6" x 2'2" | ~ 9'0" |
| Living room | 17'10" x 14'0" | ~ 12'8" |
| Shower room or three quarter bath | 5'4" x 6'4" | ~ 9'0" |
| Shower | 3'4" x 3'4" | N/A |
| Mechanical room | 5'10" x 3'4" | ~ 9'0" |
| Closet | 3'8" x 1'6" | ~ 9'0" |
| Master suite | 12'0" x 14'6" | ~ 12'9" |
| Walk-in closet | 20'4" x 5'8" | ~ 10'0" |
| Full bathroom | 7'2" x 14'6" | ~ 10'0" |
| Enclosed toilet space | 2'10" x 5'2" | ~ 10'0" |
| Porch | 10'0" x 4'0" | N/A |
| Exterior storage | 4'0" x 8'6" | ~ 7'0" |
| Laundry room | 7'4" x 7'8" | ~ 9'0" |
| Bedroom | 10'8" x 12'2" | ~ 9'0" |
| Closet | 4'10" x 2'0" | ~ 9'0" |
| Bedroom | 11'4" x 10'0" | ~ 9'0" |
| Closet | 5'0" x 2'0" | ~ 9'0" |
| Kitchen/dining room | 21'10" x 14'4" | ~ 9'0" |
| Kitchen island | 11'8" x 3'0" | N/A |
General specifications
| Total living area | 1676 sq.ft. |
| 1st level | 1676 sq.ft. |
| Width | 53'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 21'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |

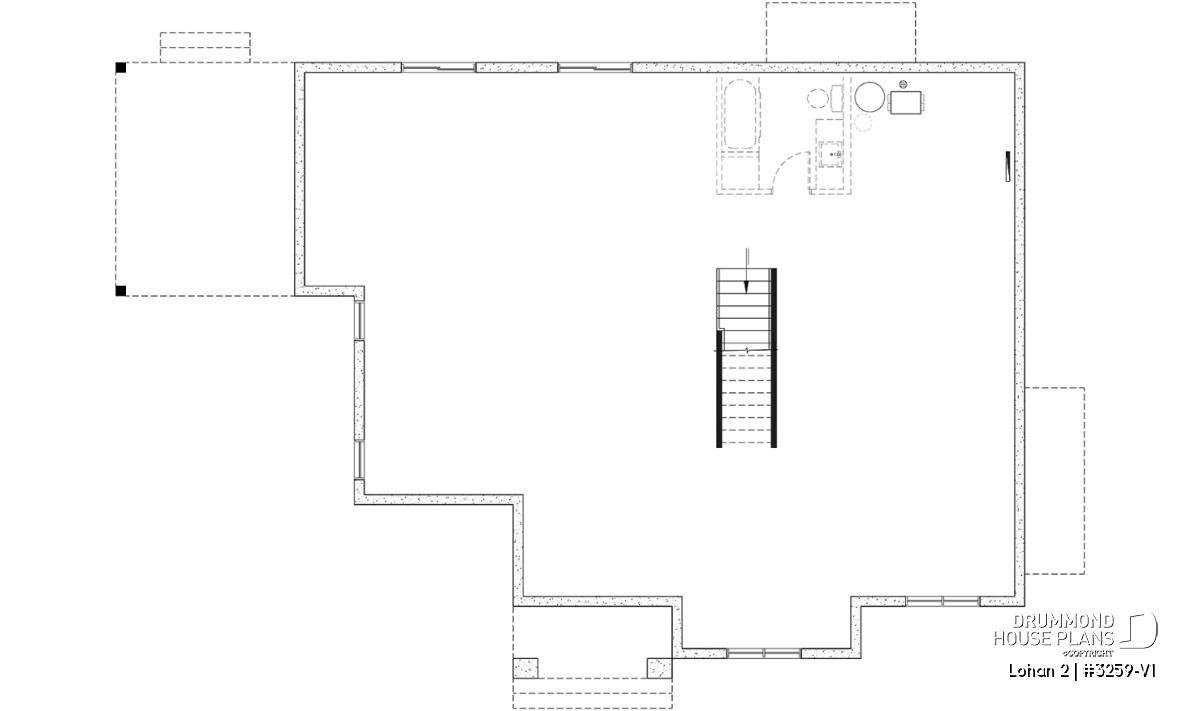

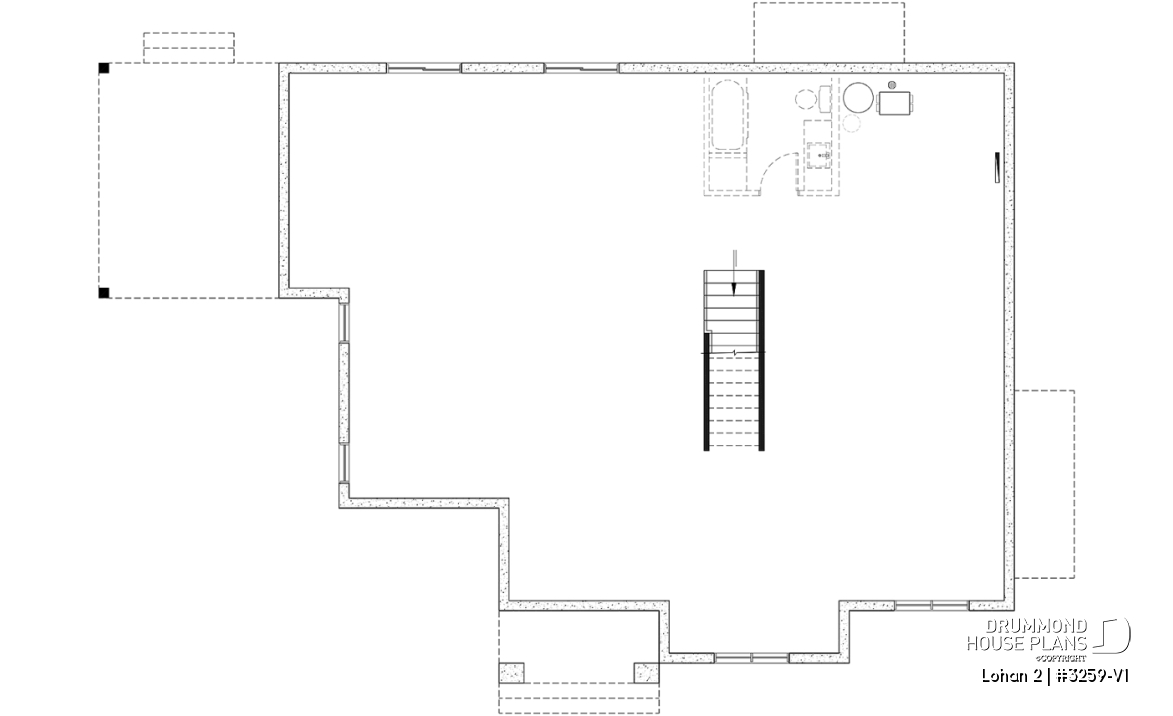

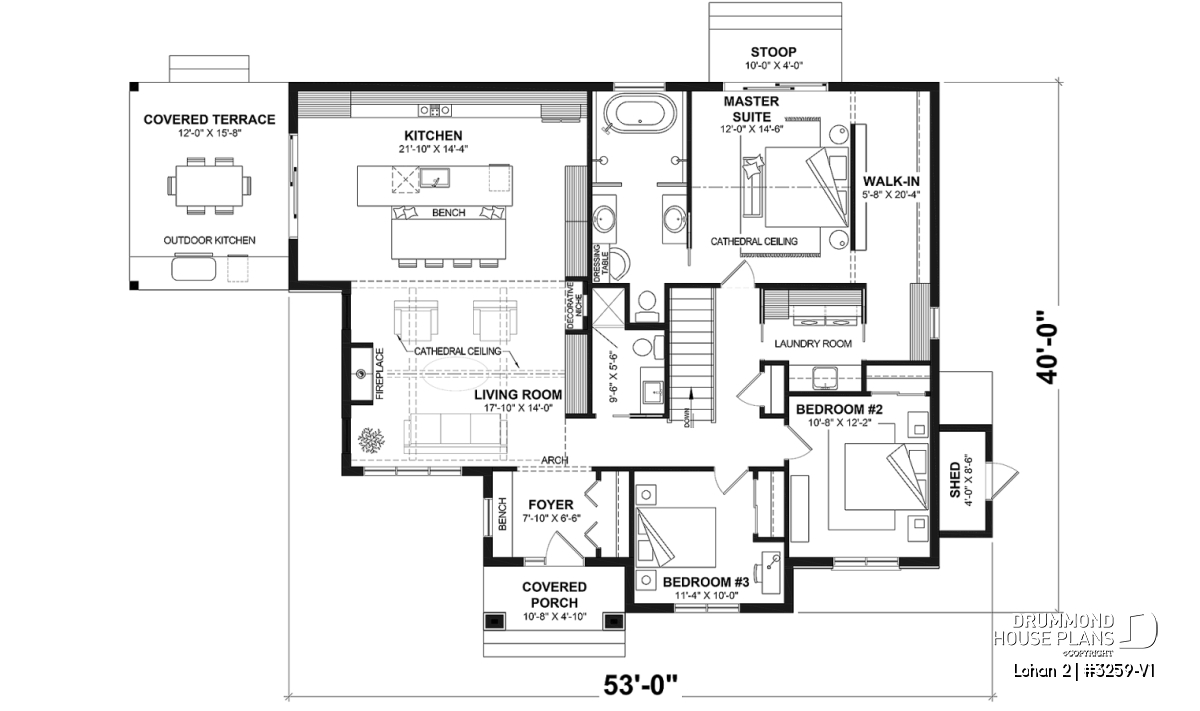

| Other available foundations (a fee may apply) | Unfinished Basement, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Superb good sized chef style kitchen designed for serious entertaining!
.
Distinctive elements

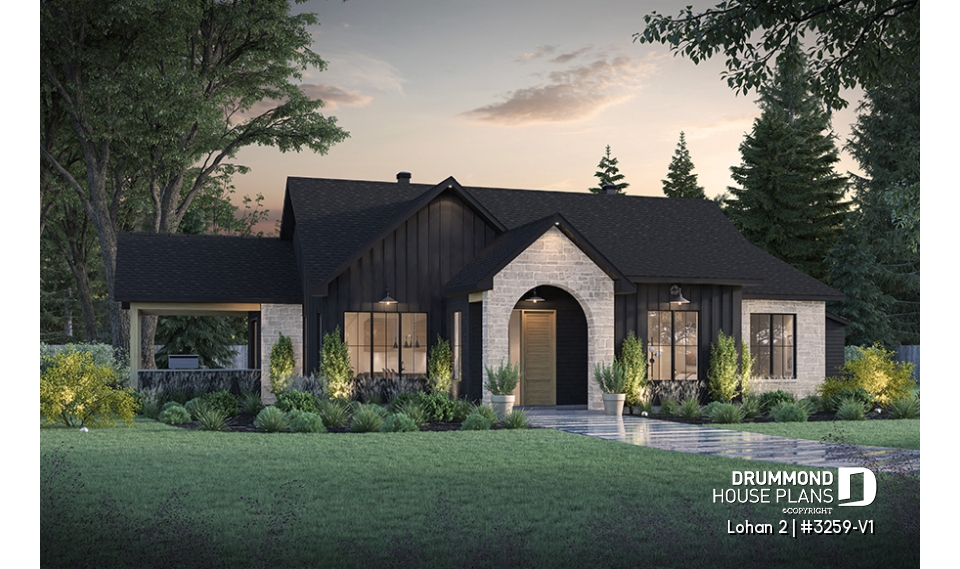

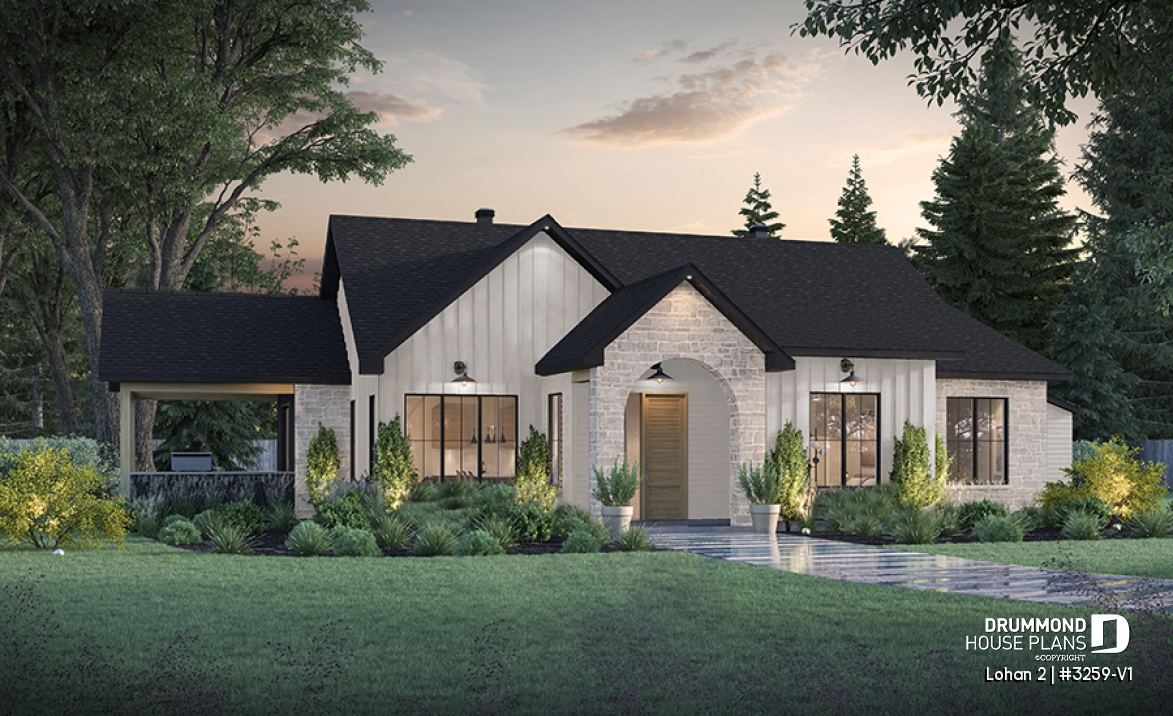

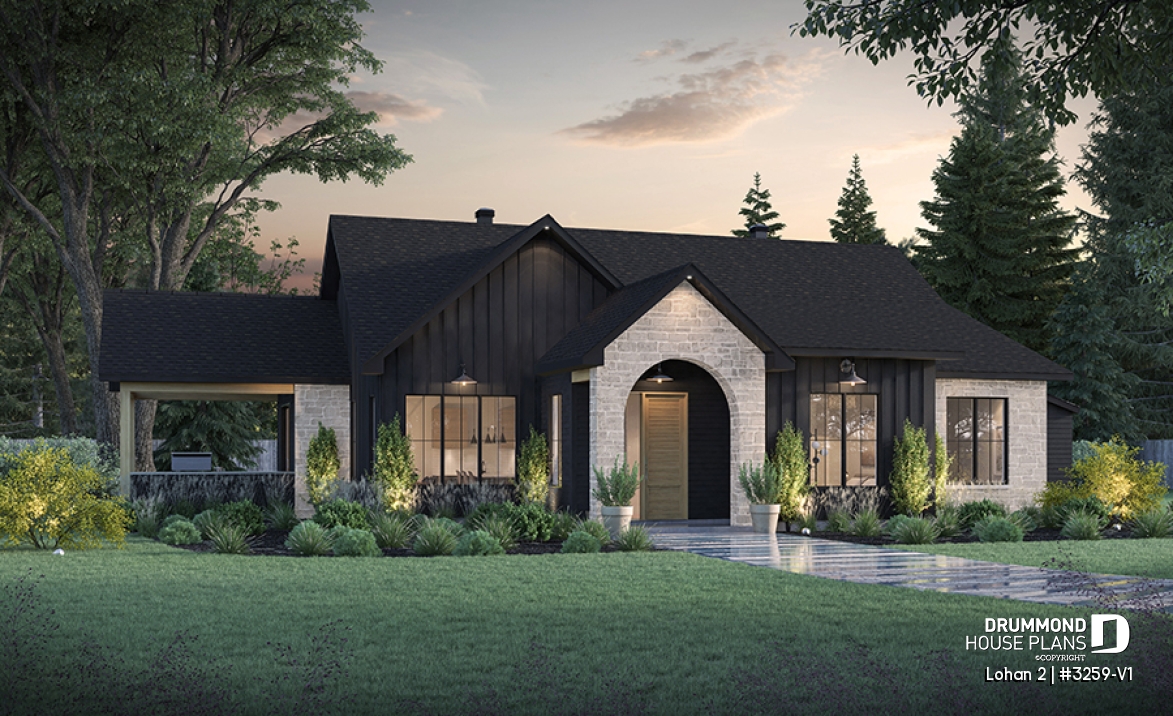

Spacious single-story Modern Ranch style home.
Foundation included in the plan: floating slab.
Several other types of foundations available ($).
All floors in the house are 9' high with cathedral in the living room and master bedroom.
Several decorative arches are inserted into the interior architecture (front entrance, master bedroom entrance and living room).
The front entrance offers a good-sized closet as well as a bench, practical for putting down bags or putting on/off shoes.
The living room has a cathedral ceiling with exposed beams on the ceiling, as well as a fireplace.
The large kitchen includes a very large island with a bench serving as a seating area at the dining table. Access to the covered terrace is also in this area.
The master bedroom receives beautiful natural light through a patio door leading to a small private porch. In addition, it offers a private bathroom with two sinks, a toilet in the cabin, and a combined bath and shower combo. In addition, a large walk-in closet and access to the laundry room complete this part of the house.
The two secondary bedrooms share a shower room, which is also used by guests.
Plan feature(s)
Outdoor kitchen, Fireplace, Built-ins, Plafond avec fausses poutres, Cathedral ceiling, Deck, Entrance hall, Ceiling over 8', Open floor layout, Arch, Bench seat(s), Wine cellar, Shelves, Bath in the shower, Shower niche
Plan architectural style(s)
Modern farmhouse, . Ranch, . Transitional, . American, . Country, . Farmhouse, . Craftsman / Northwest
