House plan Whitehill (3740)
Two-story Classic style home, open area and games room on the ground floor, 3 bedrooms
View the size of the rooms and height of the ceilings

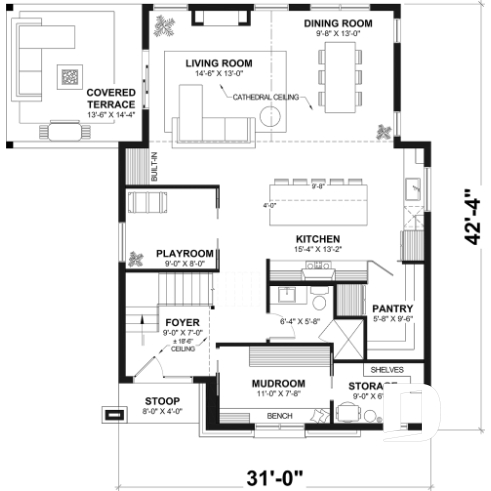

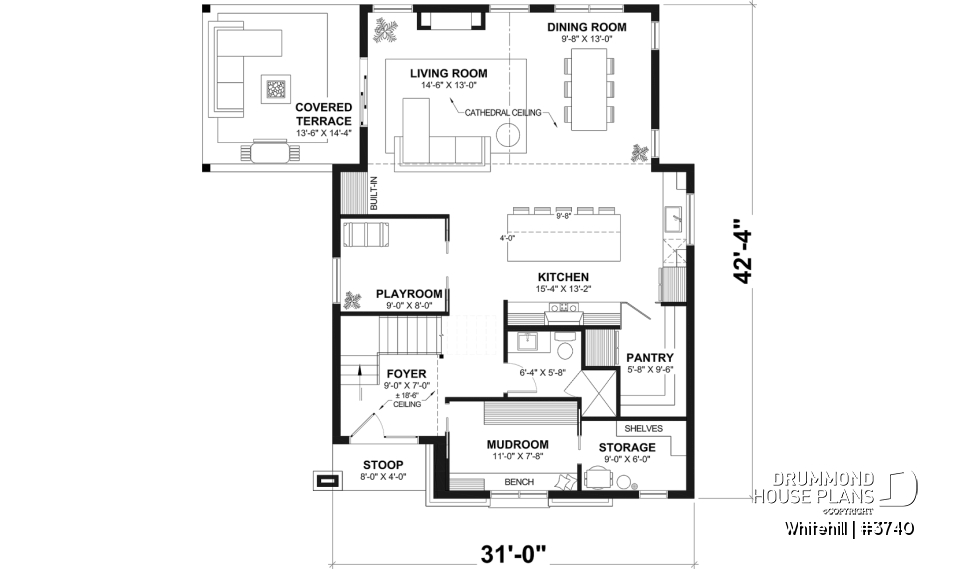

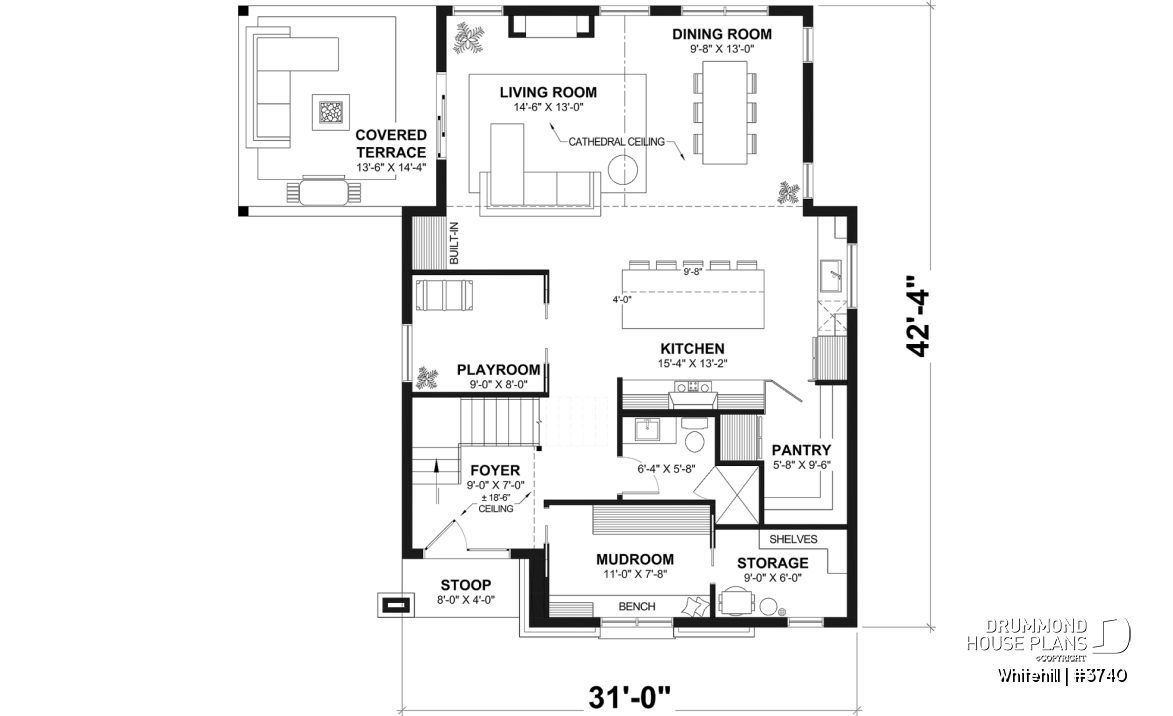

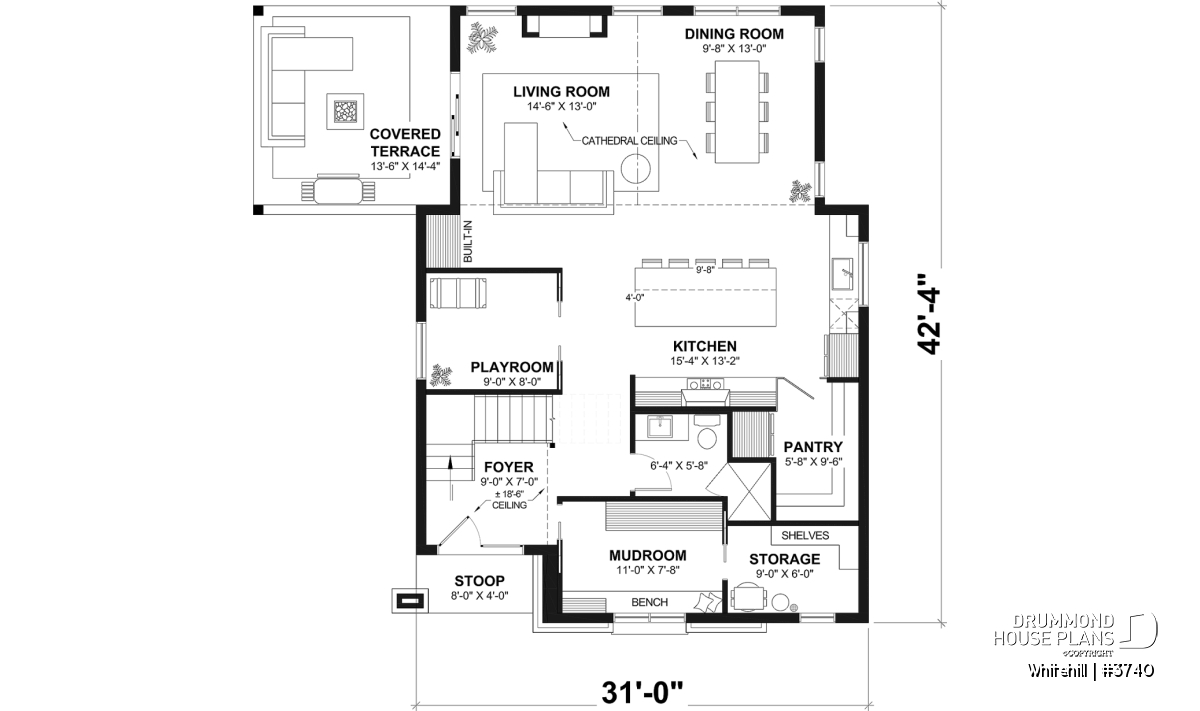

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Covered deck | 13'6" x 14'4" | ~ 9'0" |
| Living room | 14'6" x 13'0" | ~ 14'4" |
| Dining room | 9'8" x 13'0" | ~ 14'4" |
| Kitchen | 15'4" x 13'2" | ~ 9'0" |
| Pantry | 5'8" x 9'6" | ~ 9'0" |
| Kitchen island | 9'8" x 4'0" | N/A |
| Shower room or three quarter bath | 6'4" x 5'8" | ~ 9'0" |
| Shower | 4'0" x 3'0" | N/A |
| Playroom | 9'0" x 8'0" | ~ 9'0" |
| Mud room | 11'0" x 7'8" | ~ 9'0" |
| Mechanical room | 9'0" x 6'0" | ~ 9'0" |
| Foyer | 9'0" x 7'0" | ~ 18'6" |
| Covered porch | 8'0" x 4'0" | ~ 9'0" |

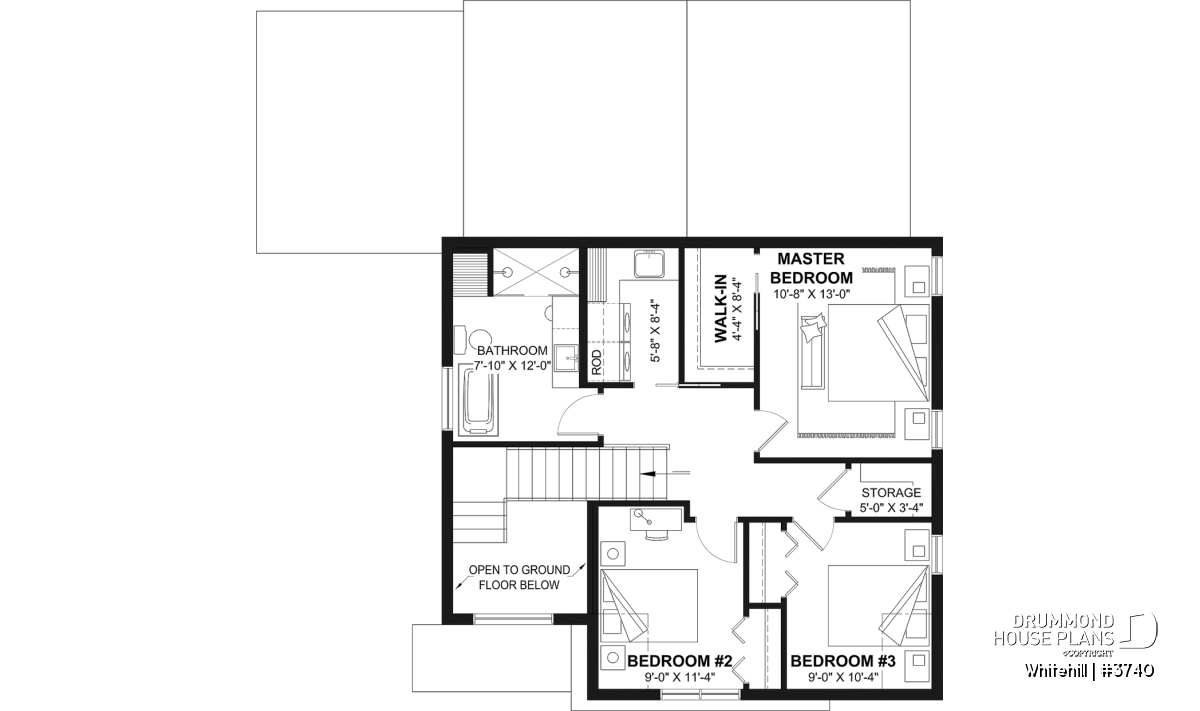

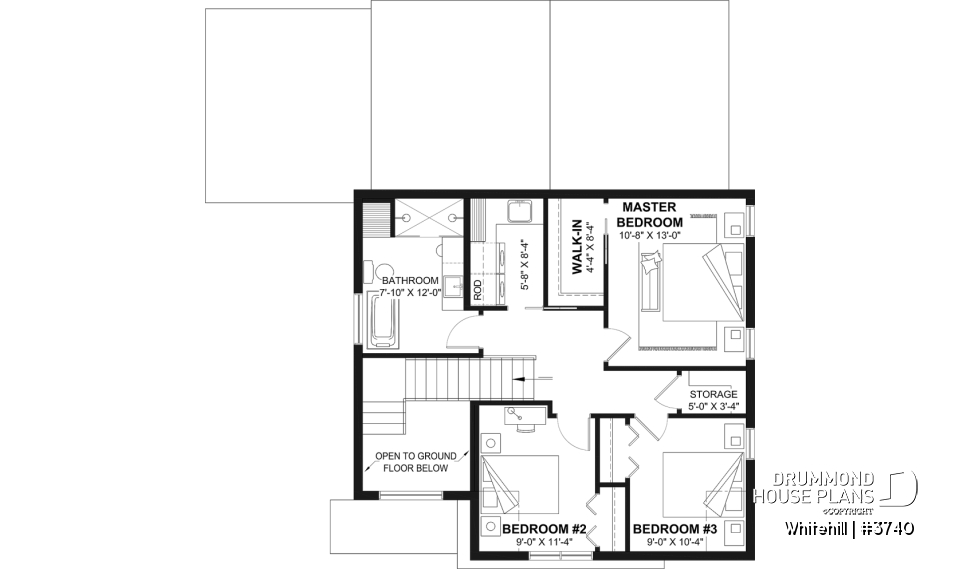

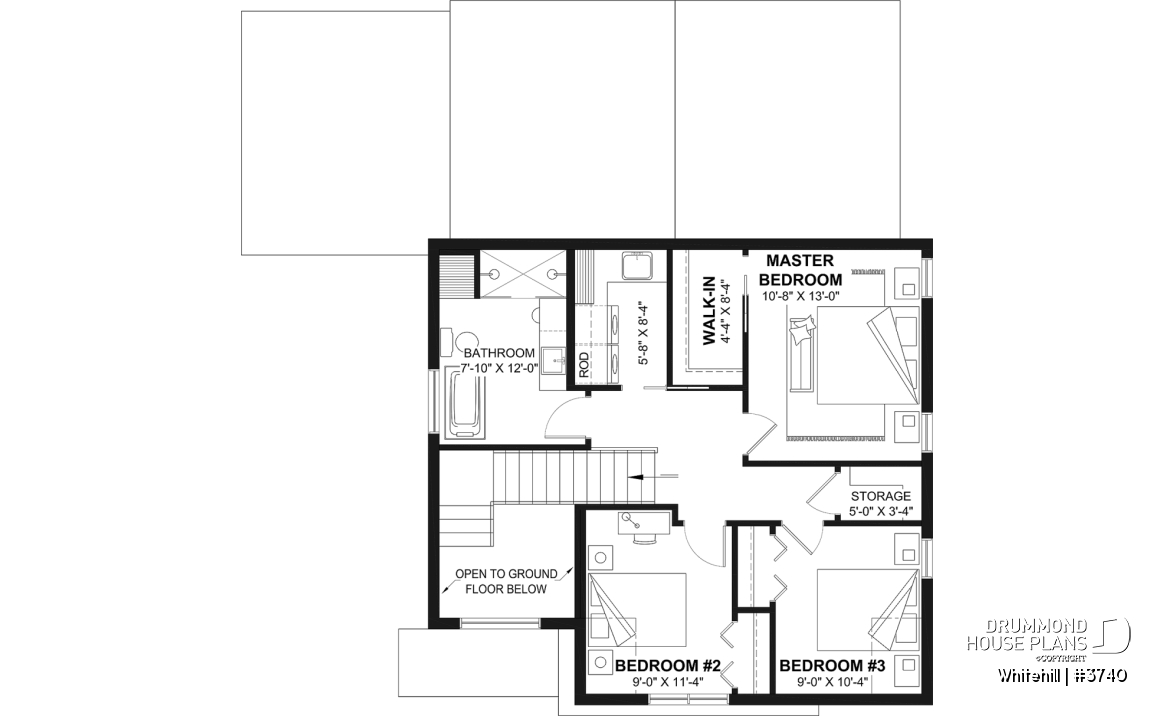

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'0" x 10'8" | ~ 8'0" |
| Walk-in closet | 4'4" x 8'4" | ~ 8'0" |
| Storage | 5'0" x 3'4" | ~ 8'0" |
| Bedroom | 9'0" x 11'4" | ~ 8'0" |
| Closet | 5'0" x 2'0" | ~ 8'0" |
| Bedroom | 9'0" x 10'4" | ~ 8'0" |
| Closet | 5'0" x 2'0" | ~ 8'0" |
| Laundry room | 8'4" x 5'8" | ~ 8'0" |
| Full bathroom | 12'0" x 7'10" | ~ 8'0" |
| Shower | 5'4" x 3'0" | N/A |
| Linen | 2'2" x 2'8" | N/A |
General specifications
| Total living area | 1928 sq.ft. |
| 1st level | 1197 sq.ft. |
| 2nd level | 731 sq.ft. |
| Width | 31'0" |
| Depth | 42'4" |
| Ridge height from top of foundation | 27'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |

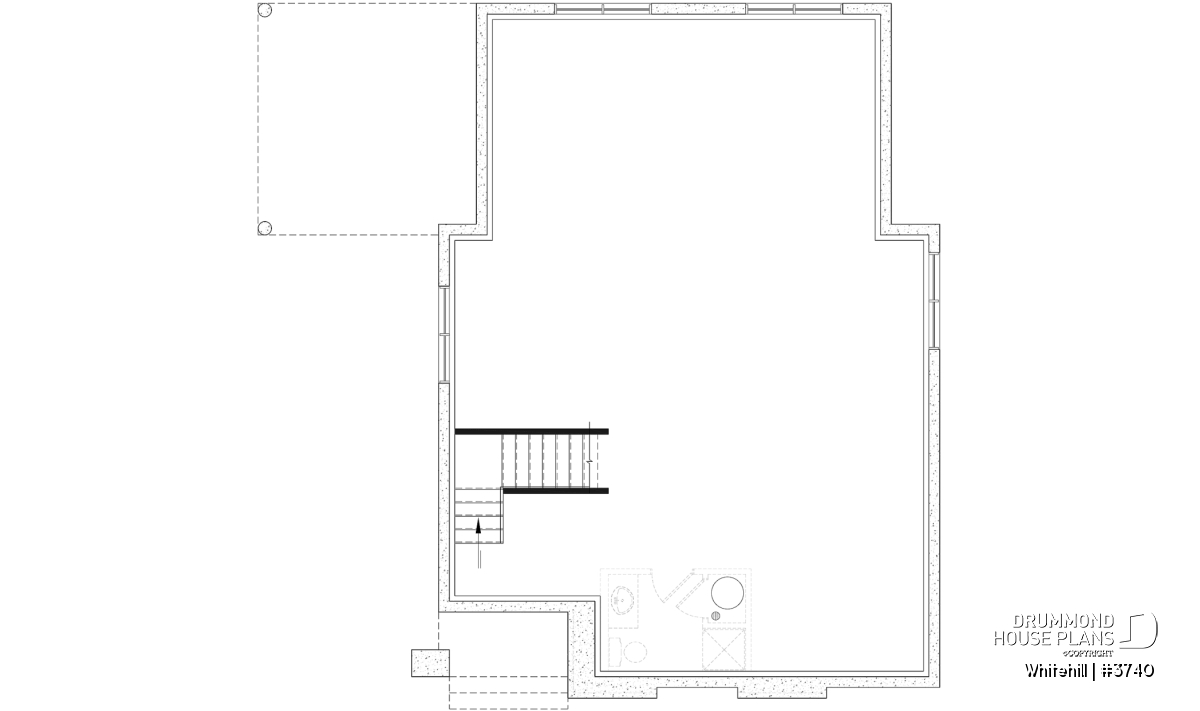

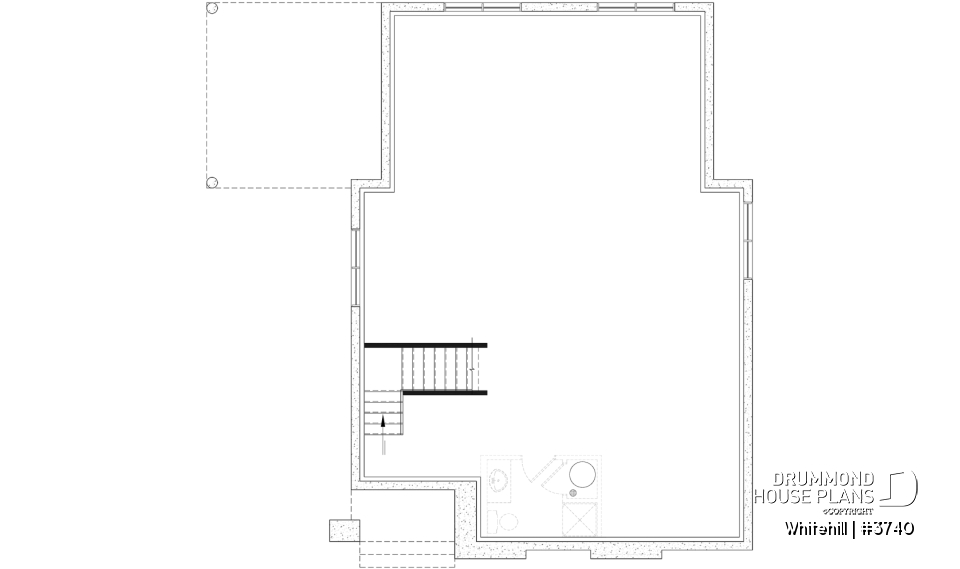

| Other available foundations (a fee may apply) | Unfinished Basement, Finished basement, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

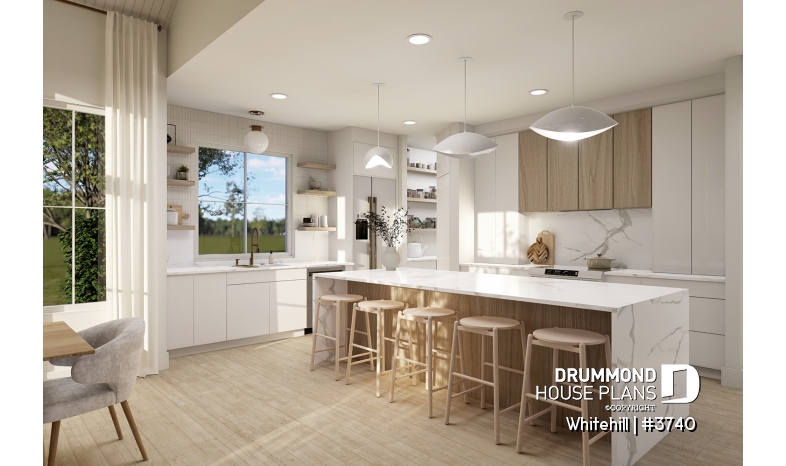

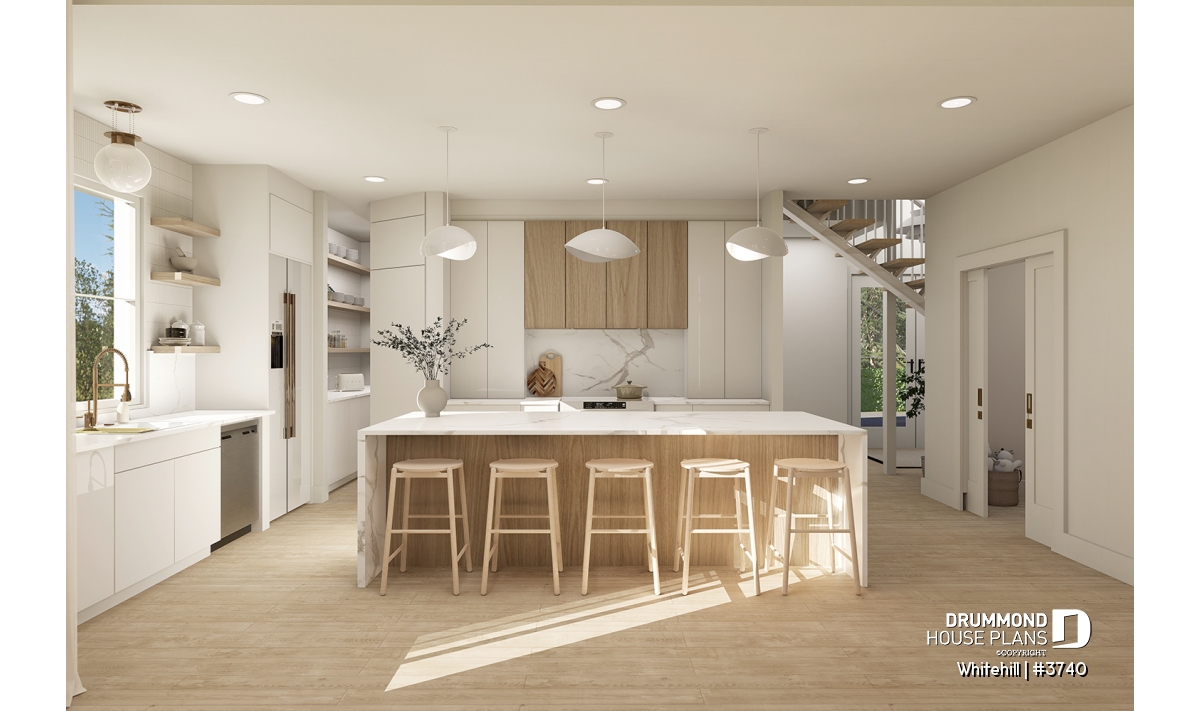

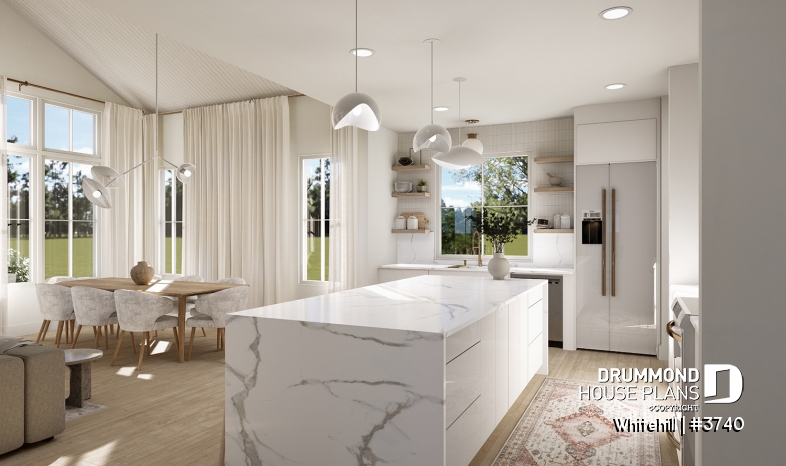

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

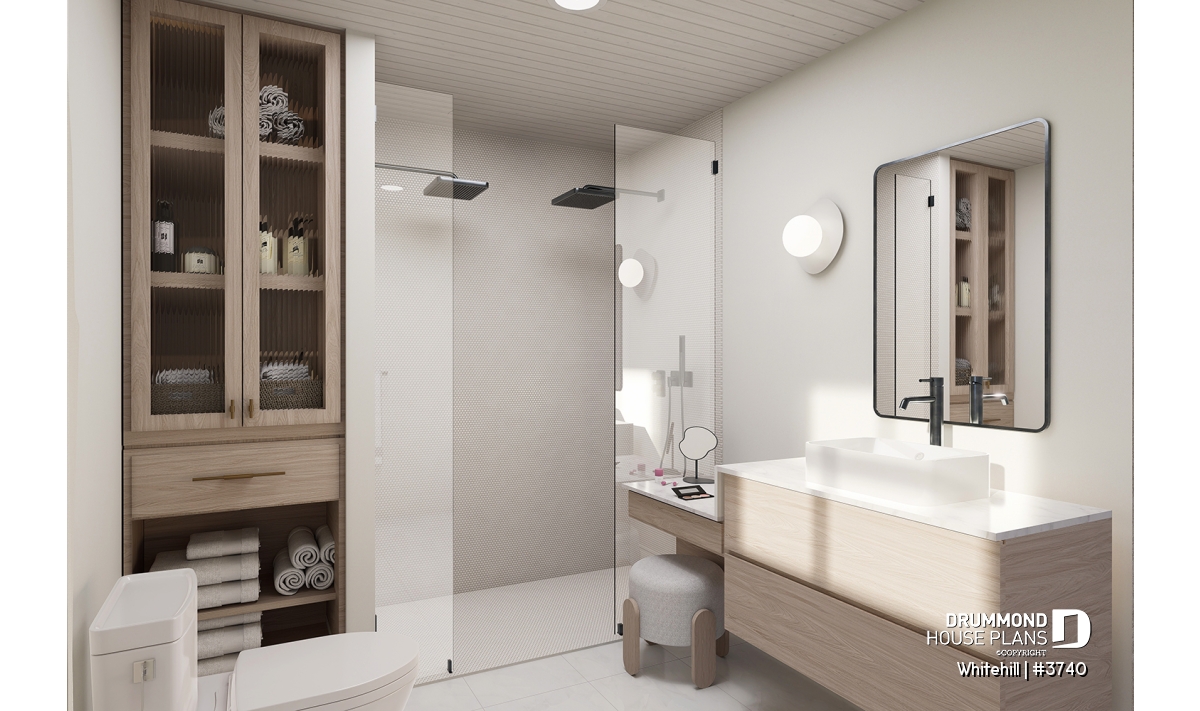

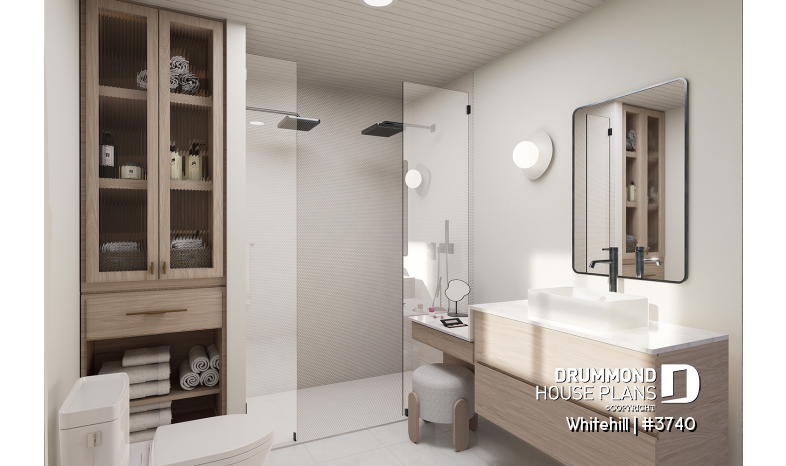

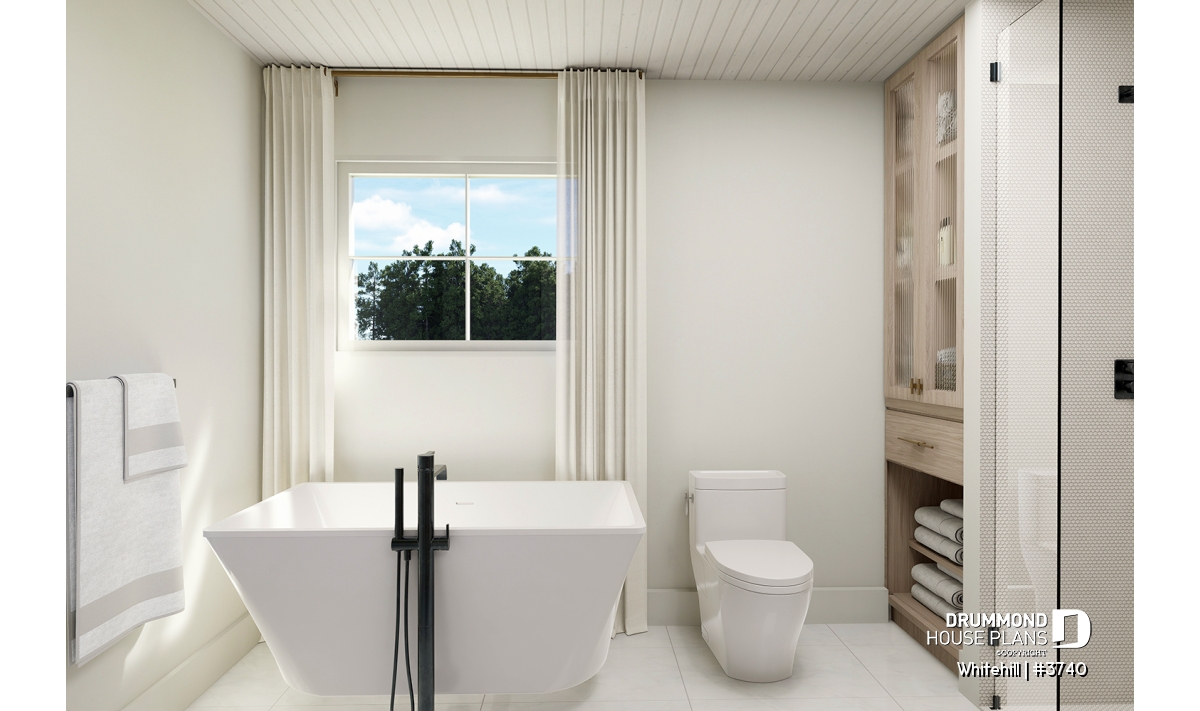

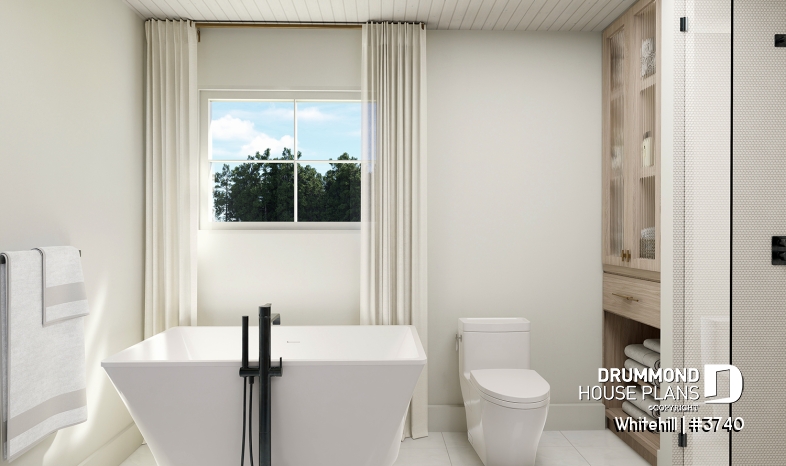

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

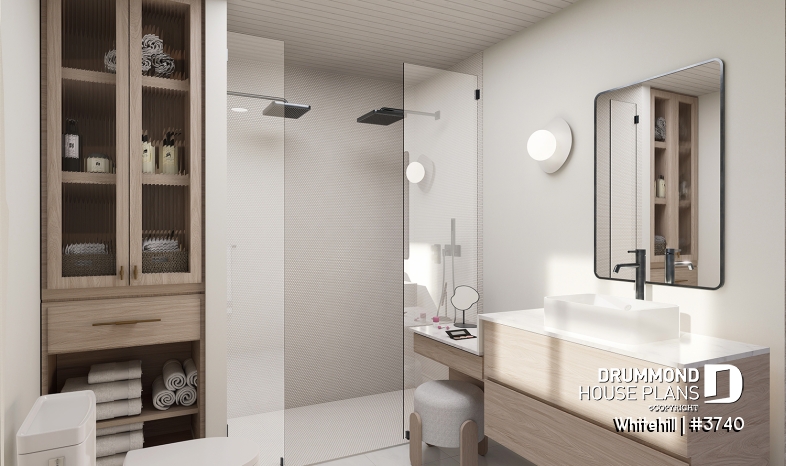

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

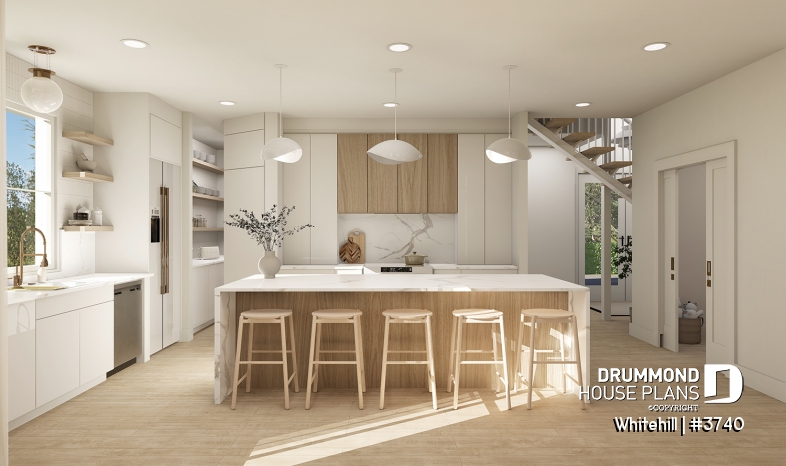

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

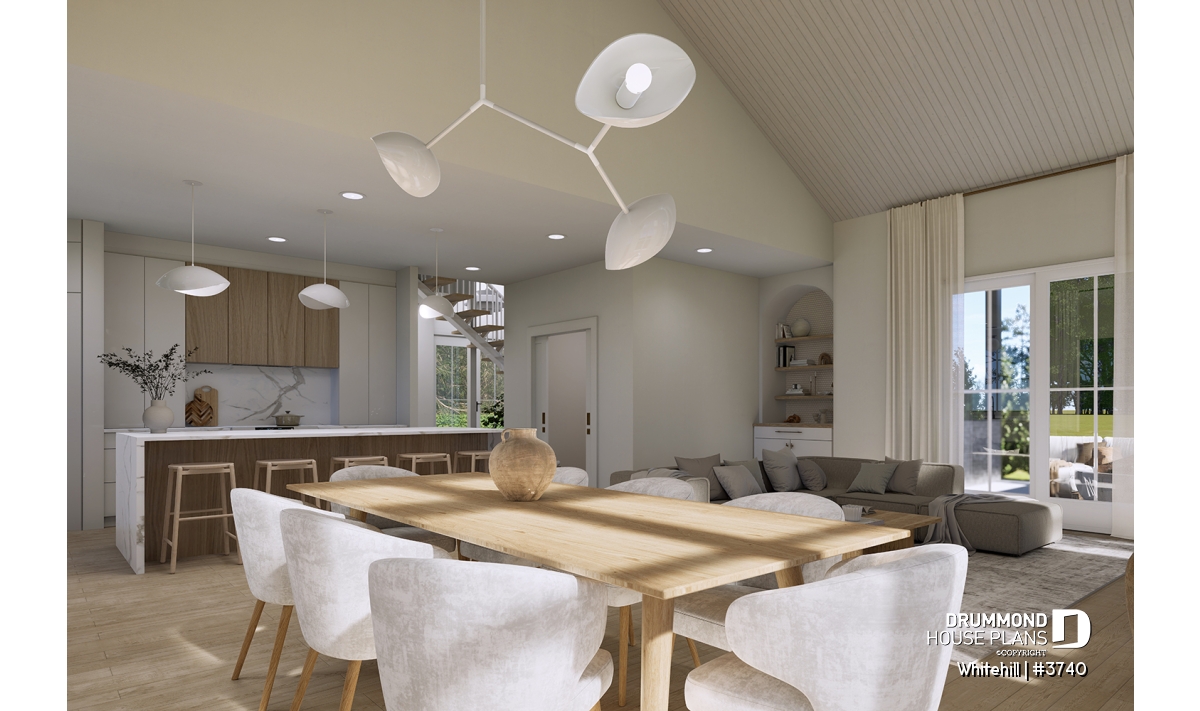

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

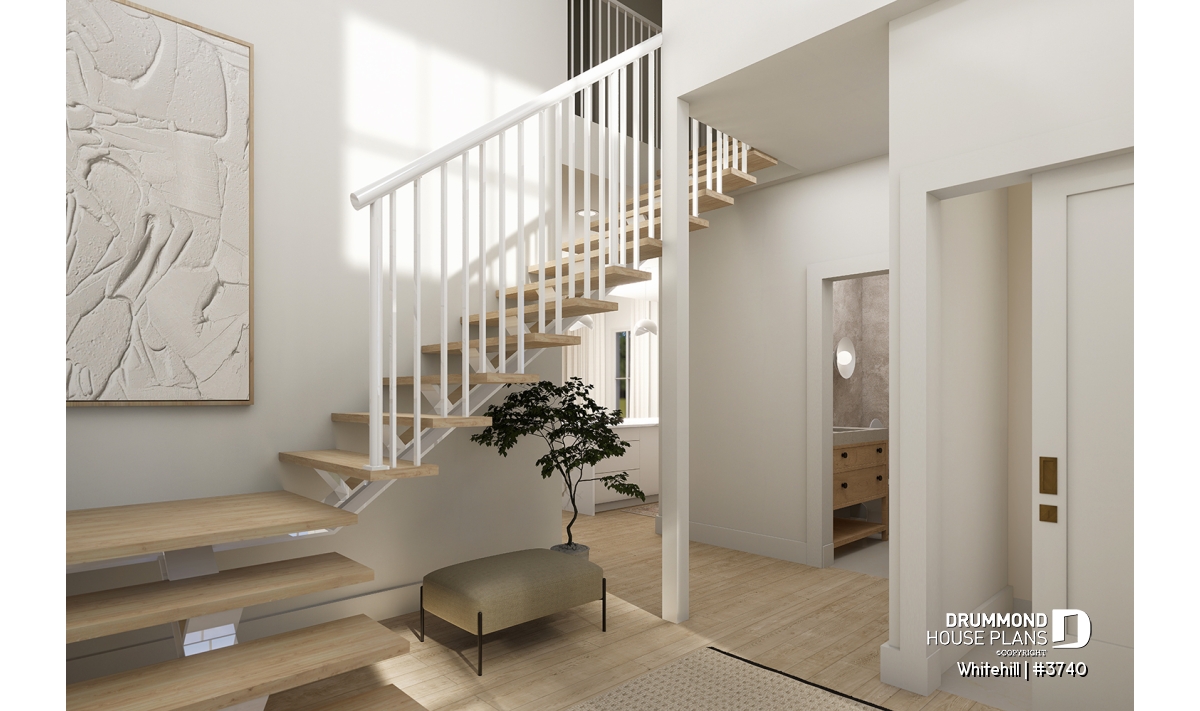

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

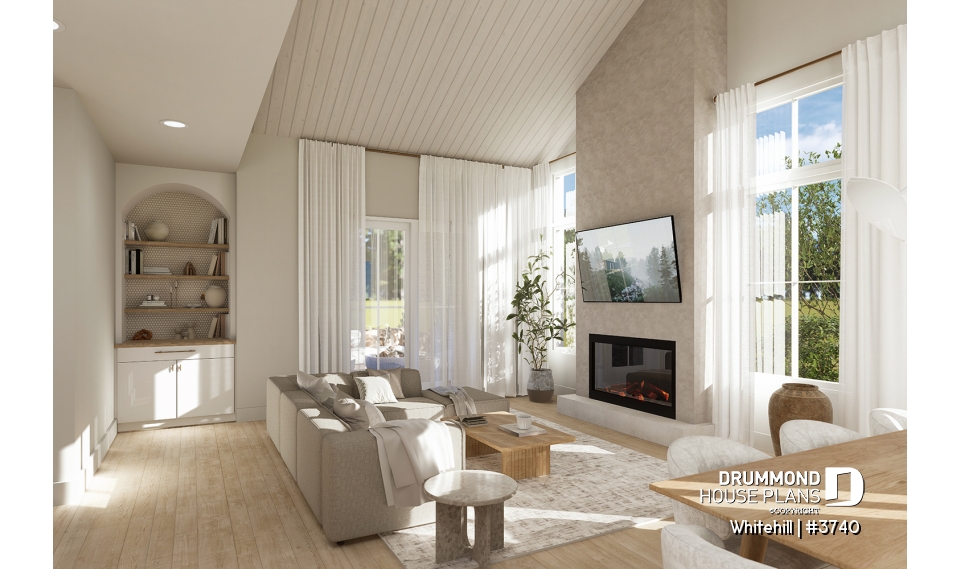

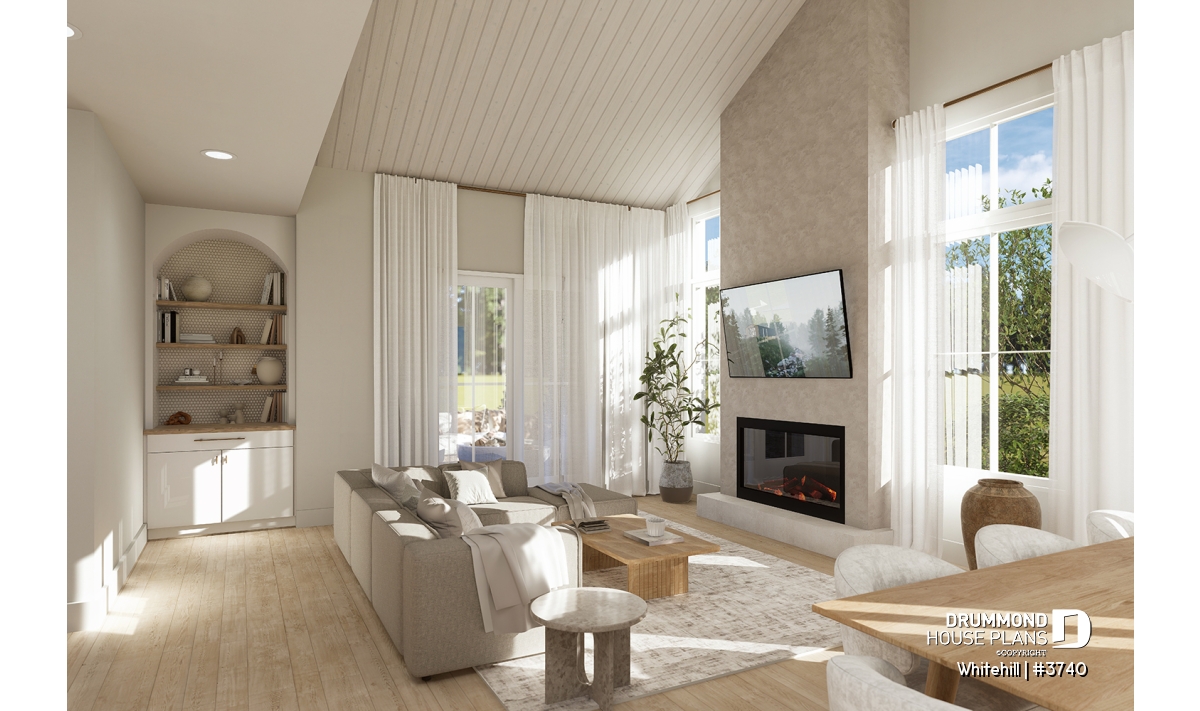

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Great open floor plan for families who know how and love to entertain!
.
Distinctive elements

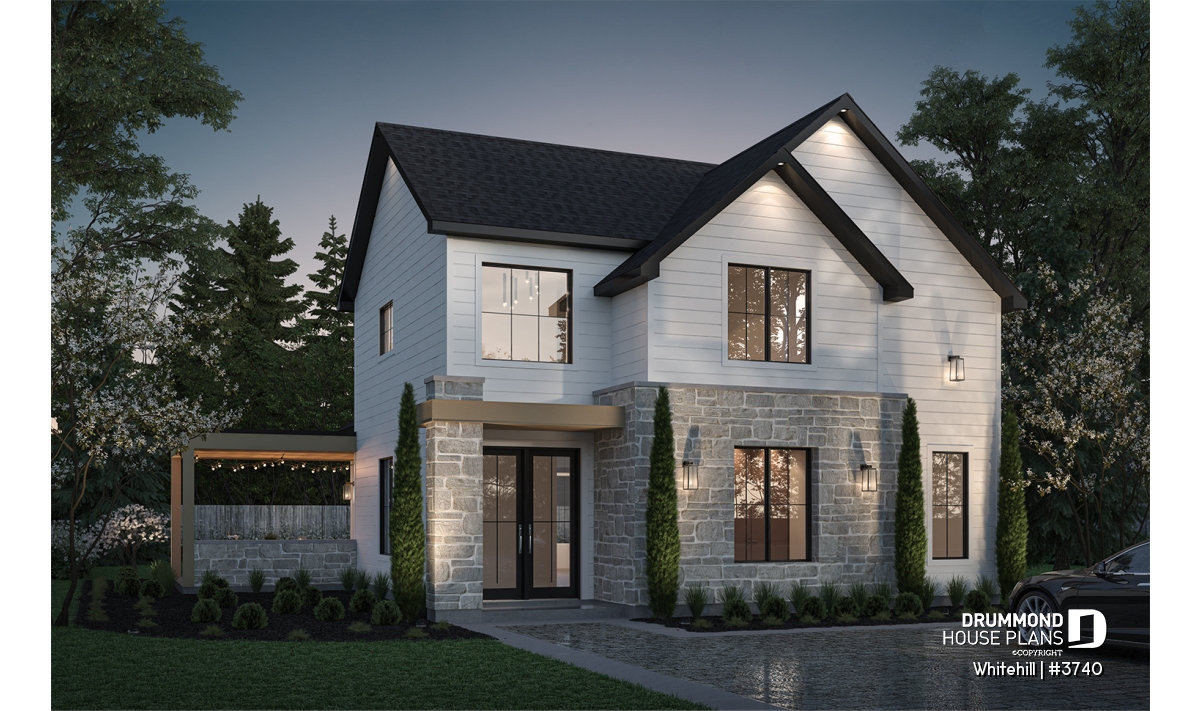

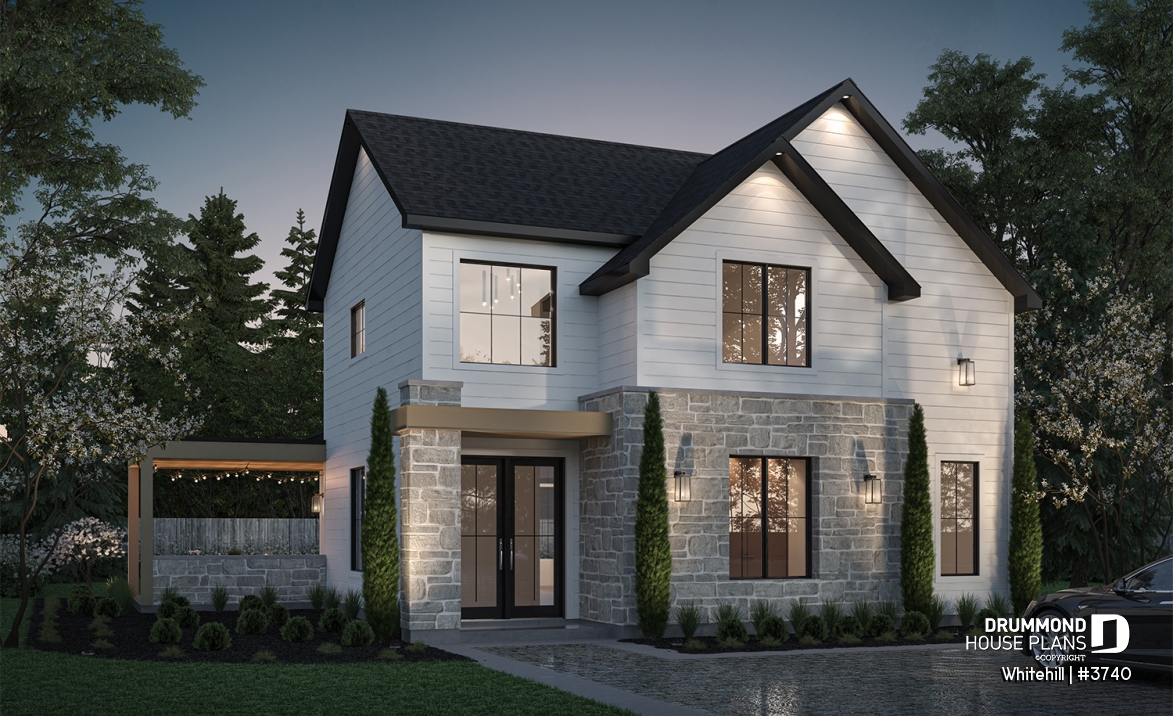

House with stone on the front elevation adding a rustic effect to this classic style.
Front entrance open on two floors with 18'-6'' ceiling.
Large walk-in coat closet with seating area and built-in furniture.
Storage possible in the mechanical room area.
Shower room set back from the common areas.
Game room (or bedroom #4) near the kitchen.
Kitchen with large pantry and island.
Dining room and living room with cathedral ceiling that welcomes plenty of natural light. Fireplace in living room.
9' ceiling throughout the main floor.
Living room leading to the covered terrace on the left side.
Parents' bedroom upstairs with walk-in closet.
2 good-sized secondary bedrooms.
Laundry room with good sized sink planned for the upstairs.
Family bathroom with separate bath and shower.
Planned foundation: floating slab. Several types of foundations available for all our plans.
Plan feature(s)
2-Story foyer, Game room, Deck, Pantry, Master suite upstairs, Mud room, Open floor layout, Shelves, Cathedral ceiling, Ceiling over 8', Island, Fireplace, Panoramic view, Walk-in master bed., Separate bath and shower, Second floor laundry room, Bench seat(s), Built-ins
Plan architectural style(s)
Modern French Country, . Farmhouse, . Transitional, . Modern / Design, . Modern rustic, Classic
