House plan Gable House (3642)
French Modern style house with garage, 3 to 4 bedrooms, open floor plan, lots of natural light!
View the size of the rooms and height of the ceilings

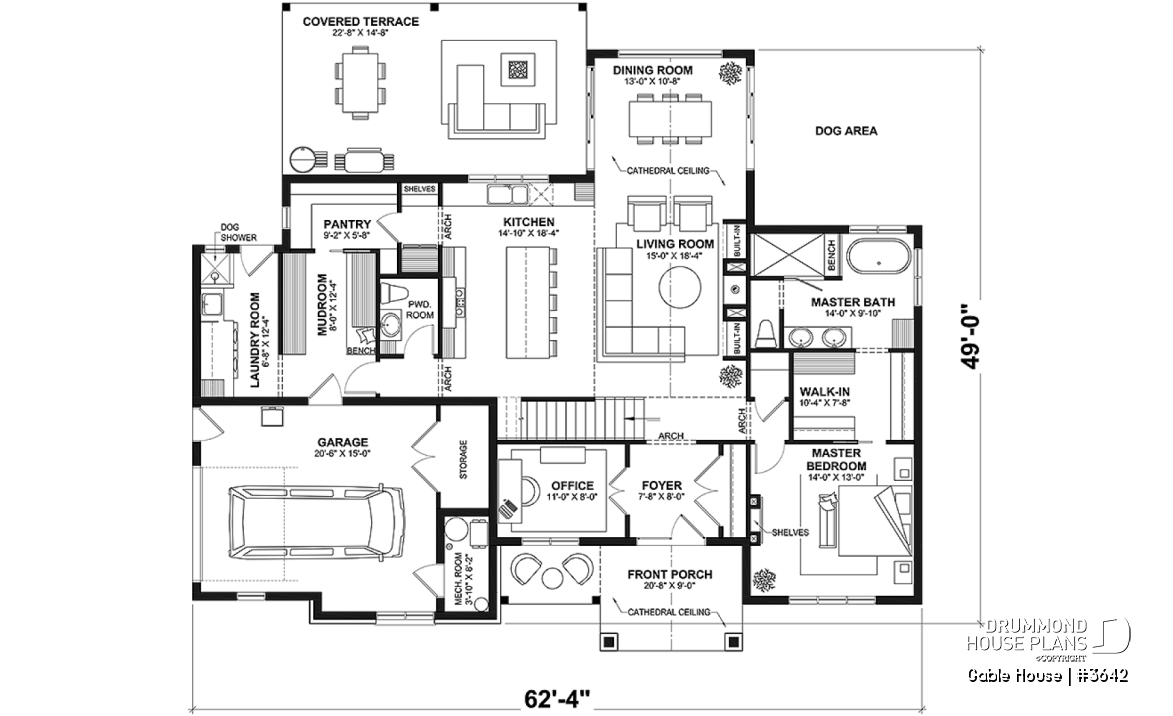

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Home office | 11'0" x 8'0" | ~ 9'0" |
| Foyer | 7'8" x 8'0" | ~ 9'0" |
| Closet | 2'0" x 8'0" | ~ 9'0" |
| Garage | 20'6" x 15'0" | ~ 9'0" |
| Storage room | 4'2" x 8'10" | ~ 9'0" |
| Kitchen | 14'10" x 18'4" | ~ 9'0" |
| Pantry | 9'2" x 5'8" | ~ 9'0" |
| Butler's pantry | 3'2" x 7'8" | ~ 9'0" |
| Kitchen island | 9'6" x 3'8" | N/A |
| Covered deck | 22'8" x 14'8" | ~ 9'0" |
| Master suite | 14'0" x 13'0" | ~ 9'0" |
| Walk-in closet | 10'4" x 7'8" | ~ 9'0" |
| Full bathroom | 14'0" x 9'10" | ~ 9'0" |
| Shower | 6'0" x 3'8" | N/A |
| Linen | 2'6" x 1'10" | N/A |
| Storage | 3'4" x 3'10" | ~ 9'0" |
| Mud room | 8'0" x 12'4" | ~ 9'0" |
| Laundry room | 6'8" x 12'4" | ~ 9'0" |
| Shower | 2'10" x 3'0" | N/A |
| Powder room | 5'0" x 6'6" | ~ 9'0" |
| Linen | 1'2" x 1'4" | N/A |
| Covered porch | 20'8" x 9'0" | ~ 13'7" |
| Living room | 15'0" x 18'4" | ~ 12'9" |
| Dining room | 13'0" x 10'8" | ~ 12'9" |
| Mechanical room | 3'10" x 8'2" | ~ 9'0" |

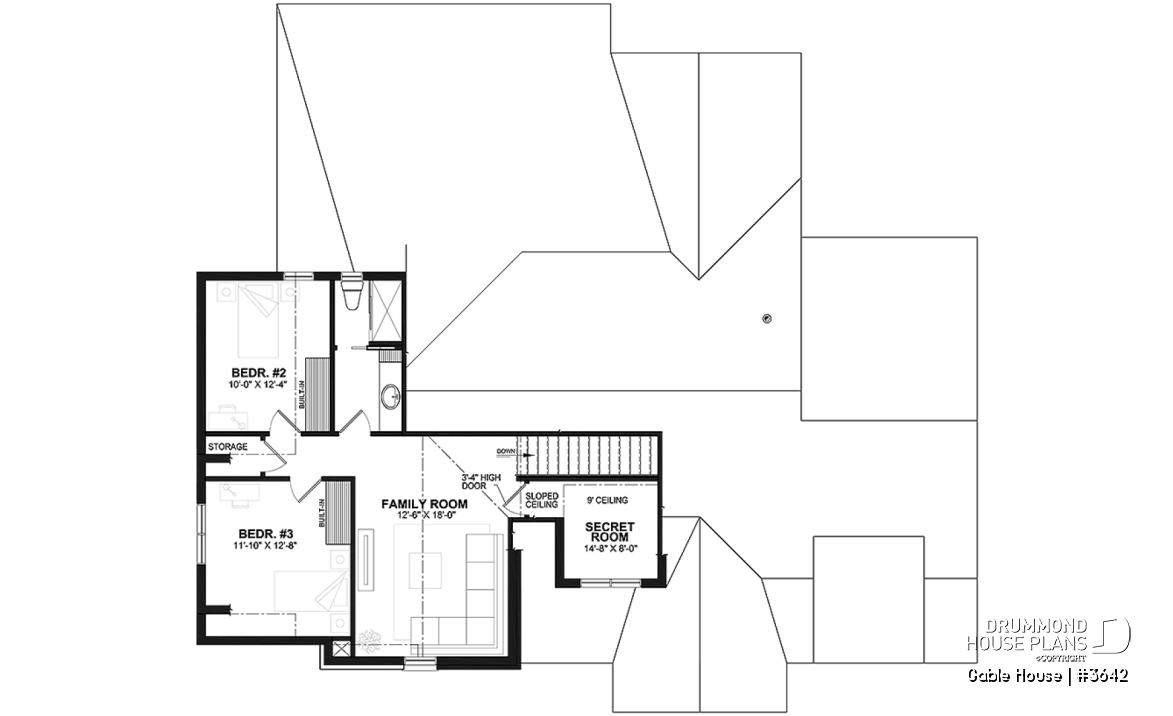

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'10" x 12'8" | ~ 9'0" |
| Storage | 4'6" x 3'4" | ~ 9'0" |
| Bedroom | 10'2" x 12'4" | ~ 8'0" |
| Bathroom | 5'6" x 12'4" | ~ 9'0" |
| Shower | 2'8" x 5'0" | N/A |
| Linen | 1'0" x 1'10" | N/A |
| Great room or Family room | 12'6" x 18'0" | ~ 9'0" |
General specifications
| Total living area | 2660 sq.ft. |
| 1st level | 1792 sq.ft. |
| 2nd level | 868 sq.ft. |
| Width | 62'4" |
| Depth | 49'0" |
| Ridge height from top of foundation | 25'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Full Basement, Crawl space, Monolithic Slab |
| Builder price code | G |
Rooms specifications

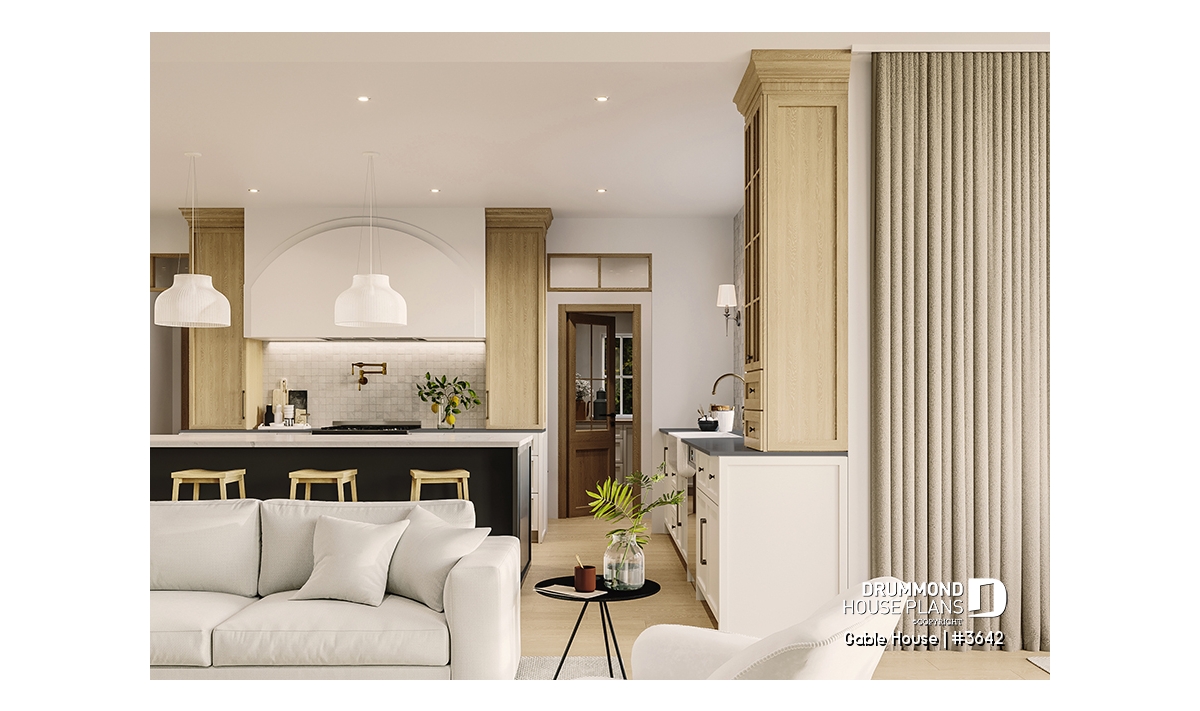

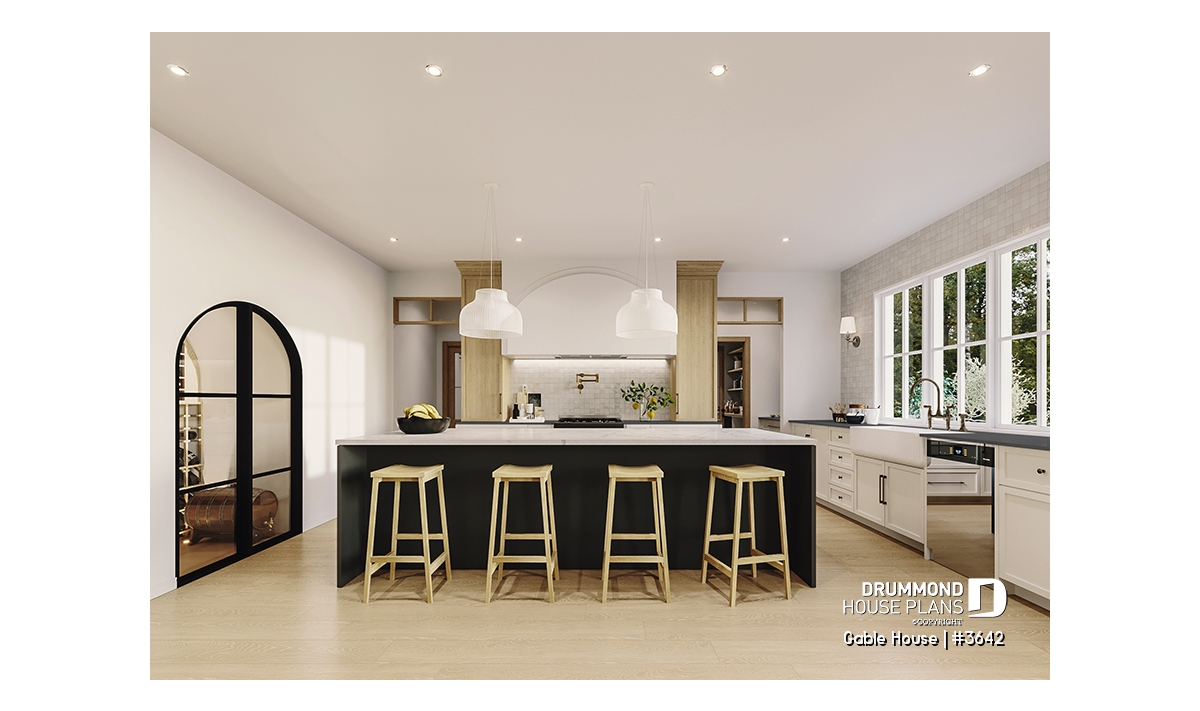

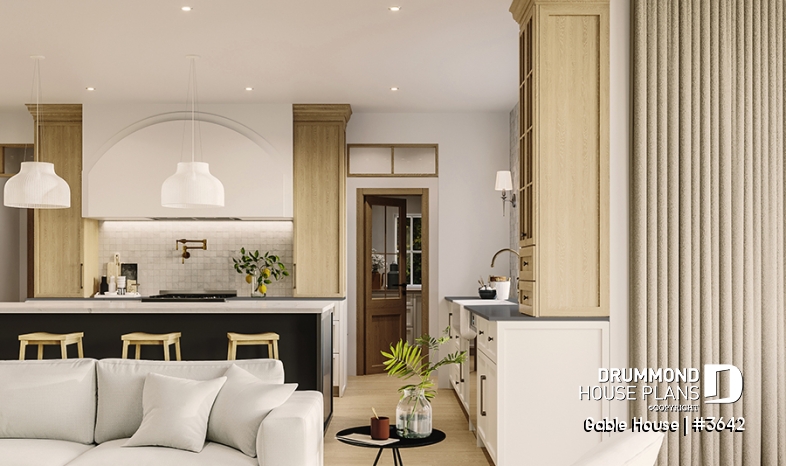

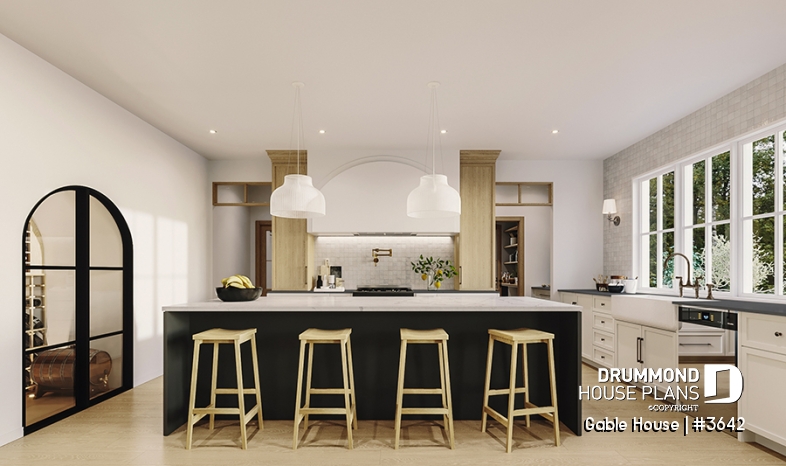

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

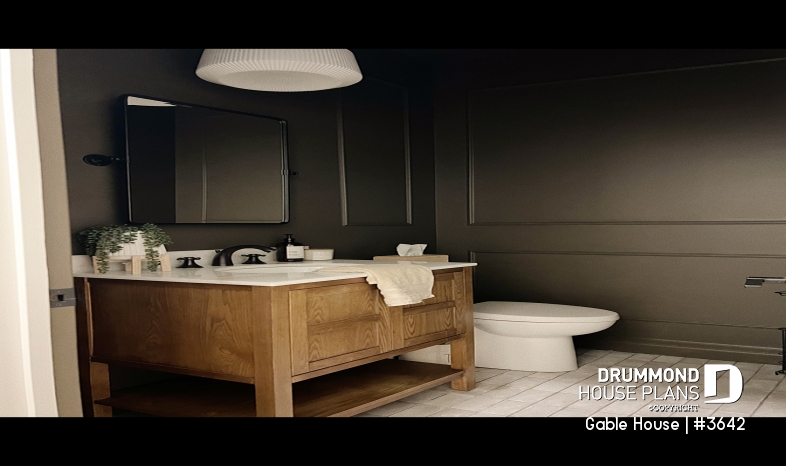

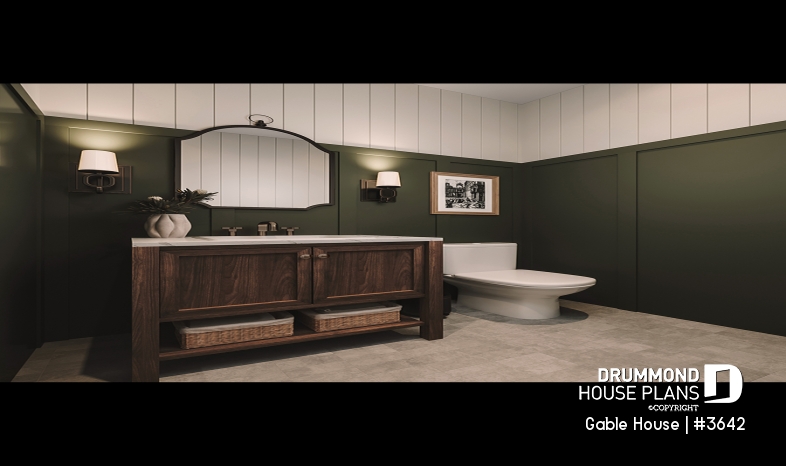

Half bath
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Half bath
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

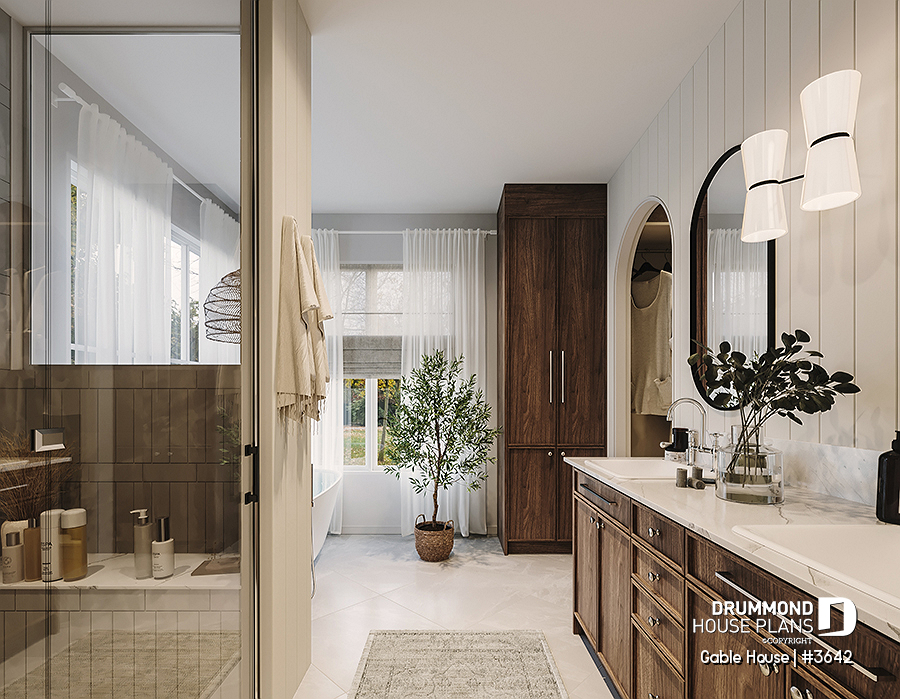

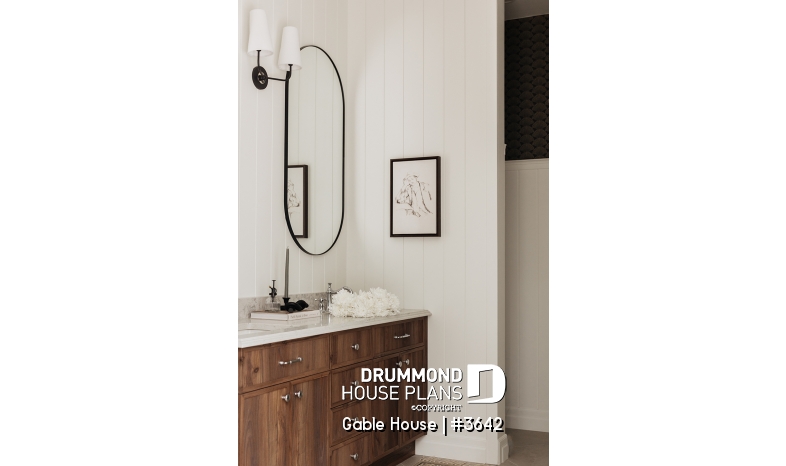

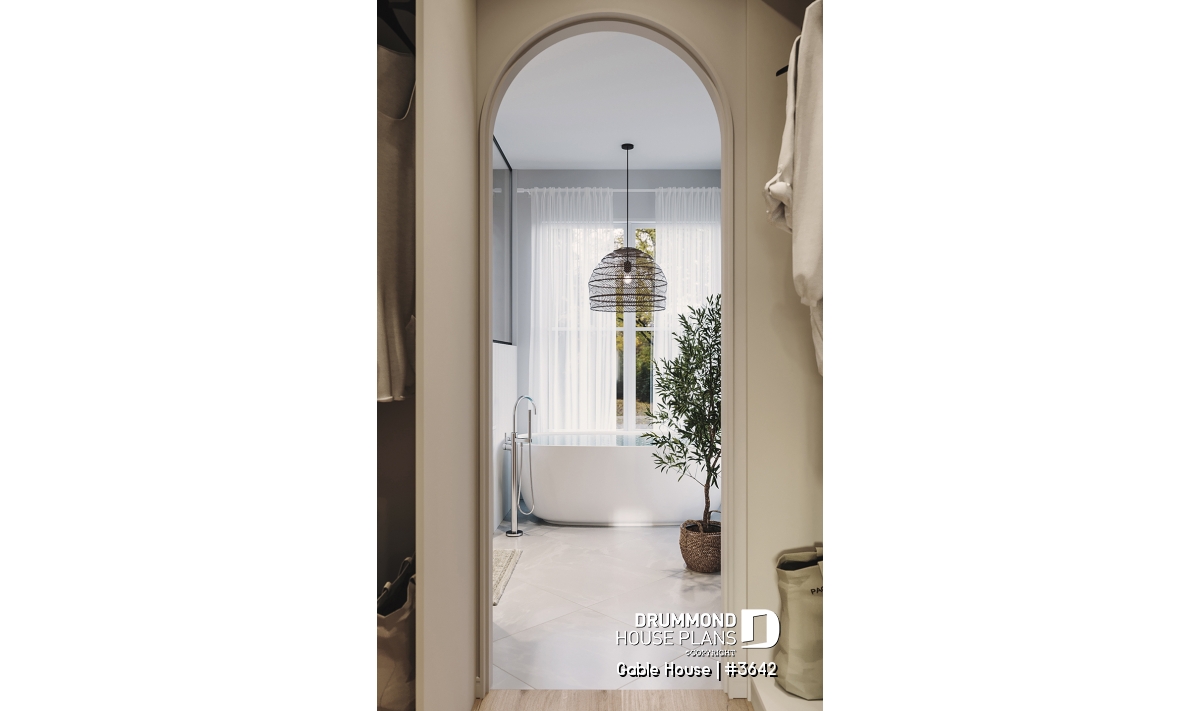

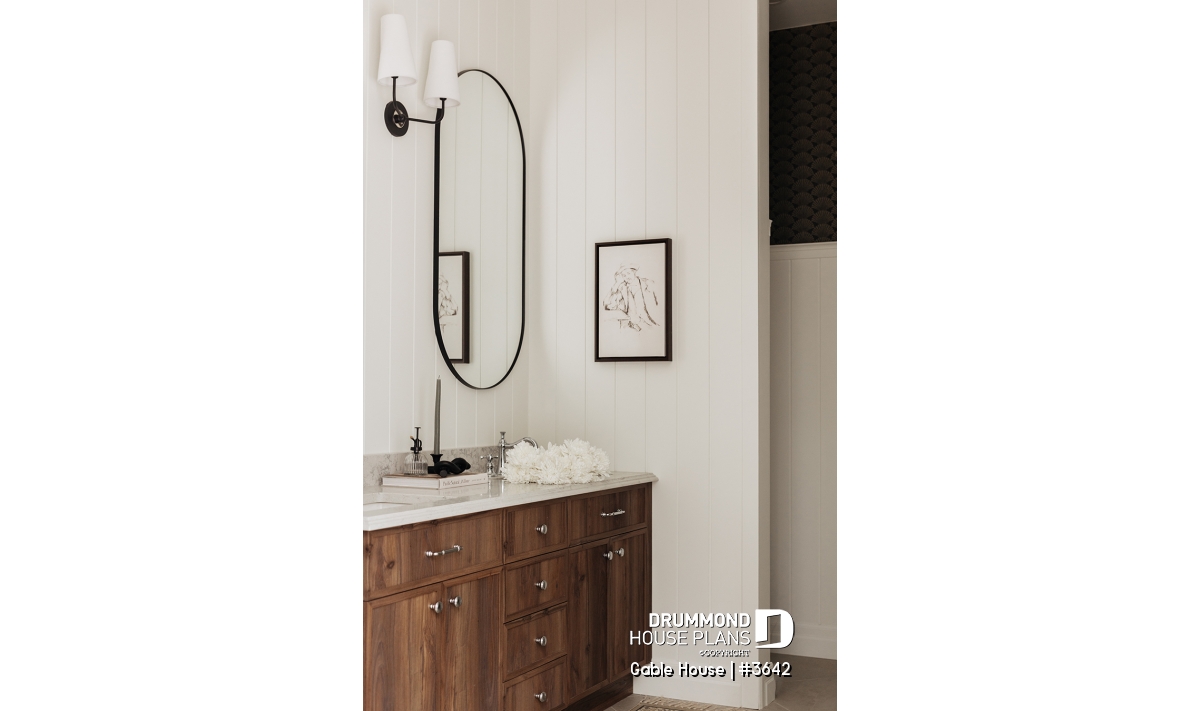

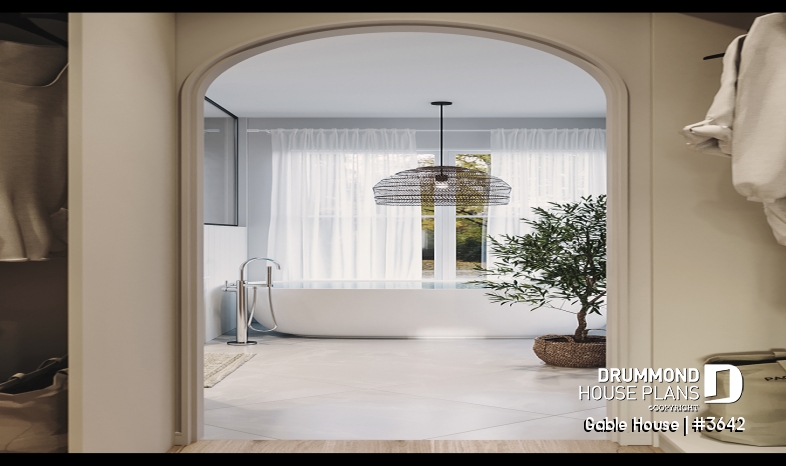

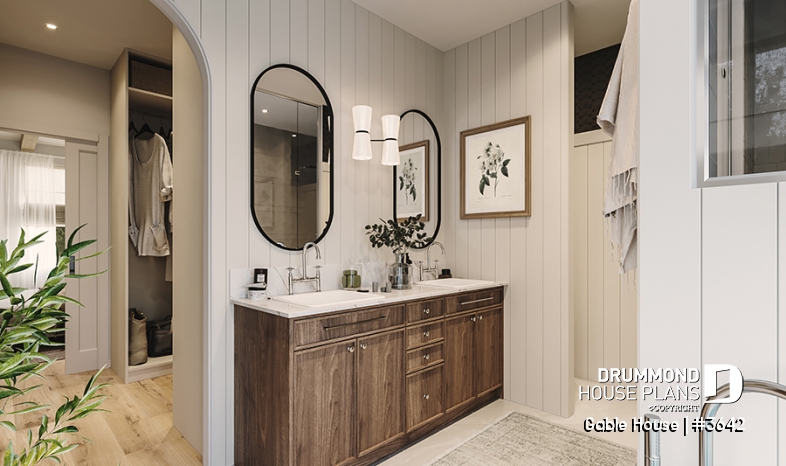

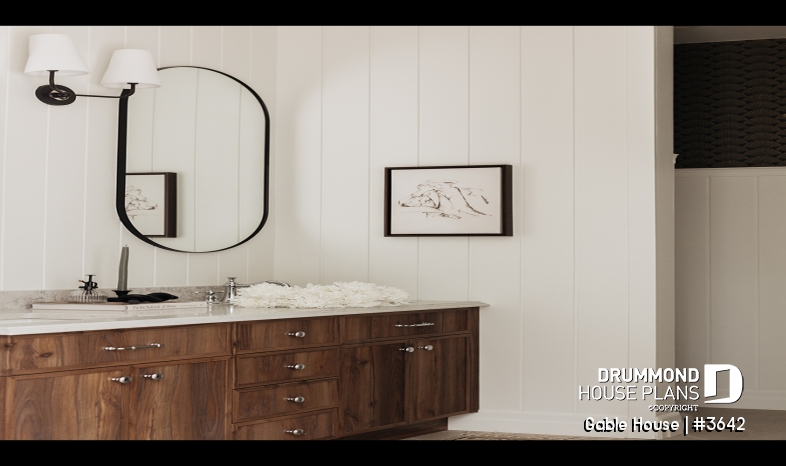

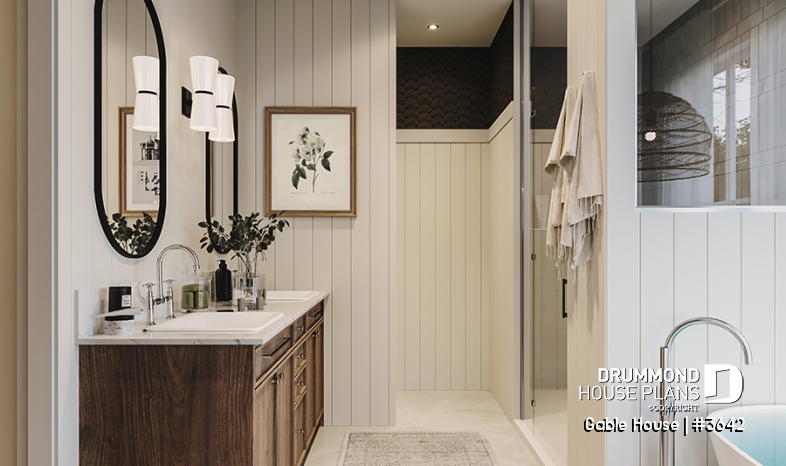

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

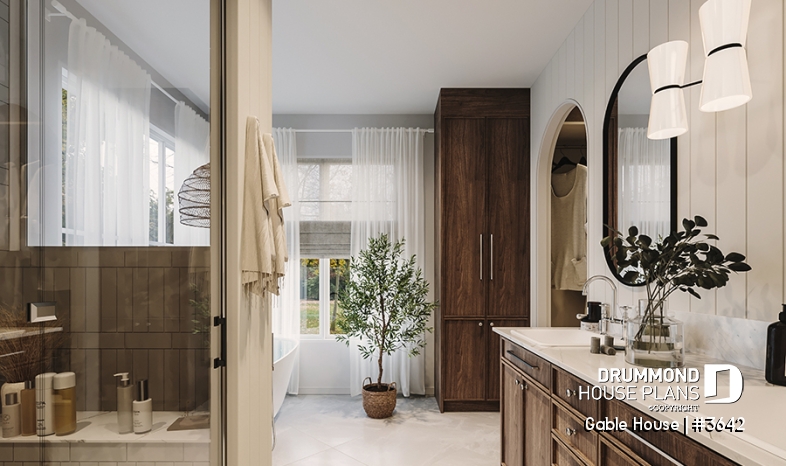

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

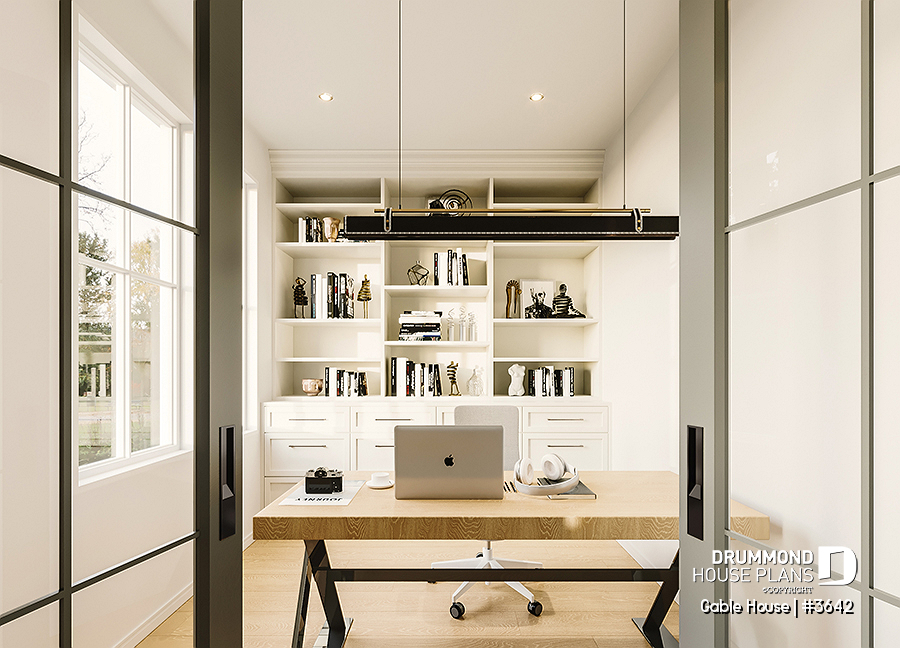

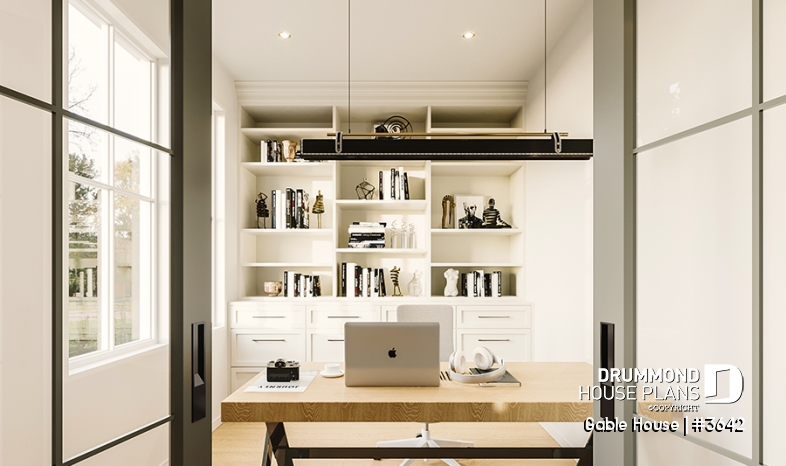

Home office
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

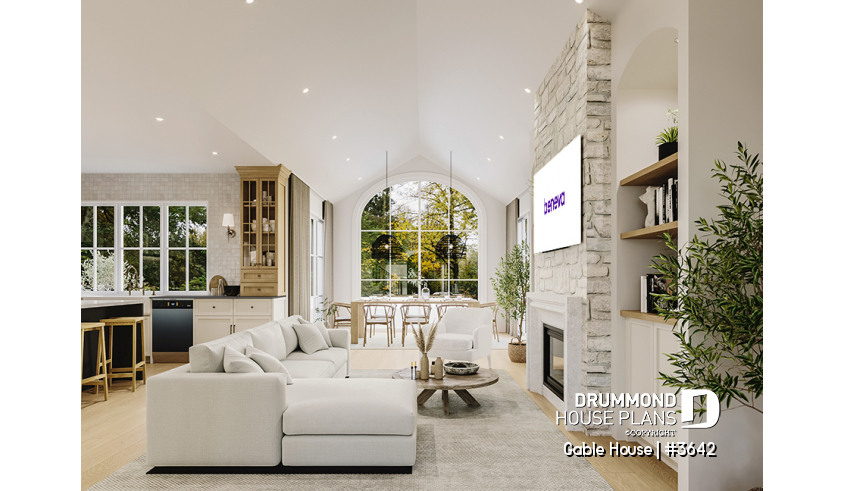

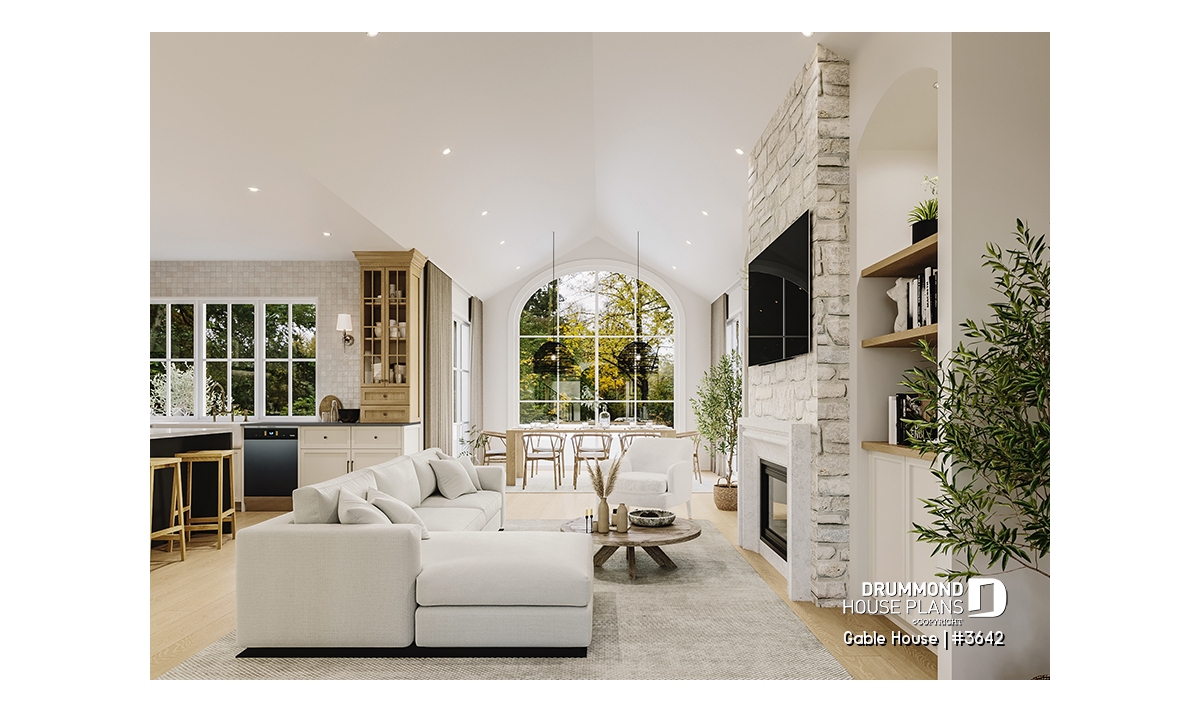

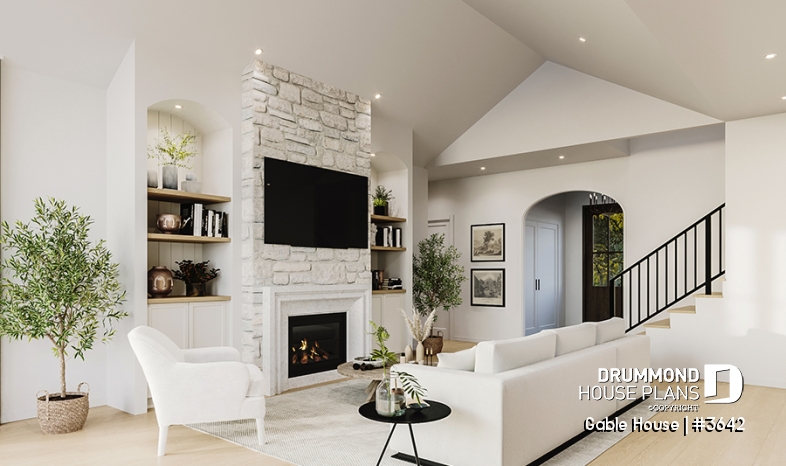

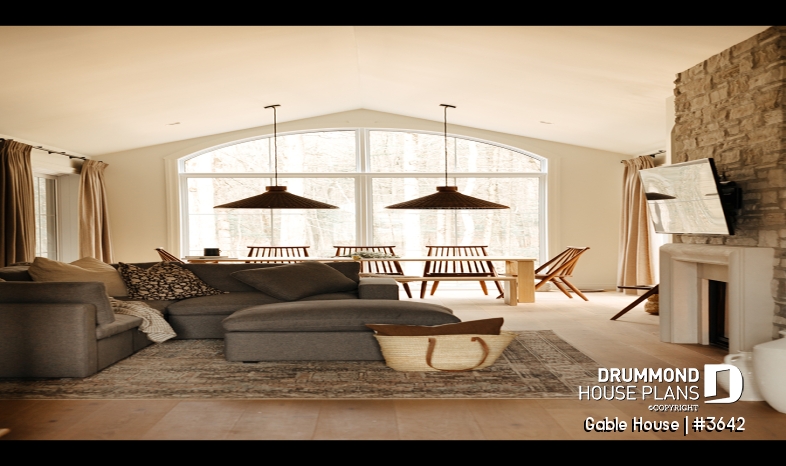

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

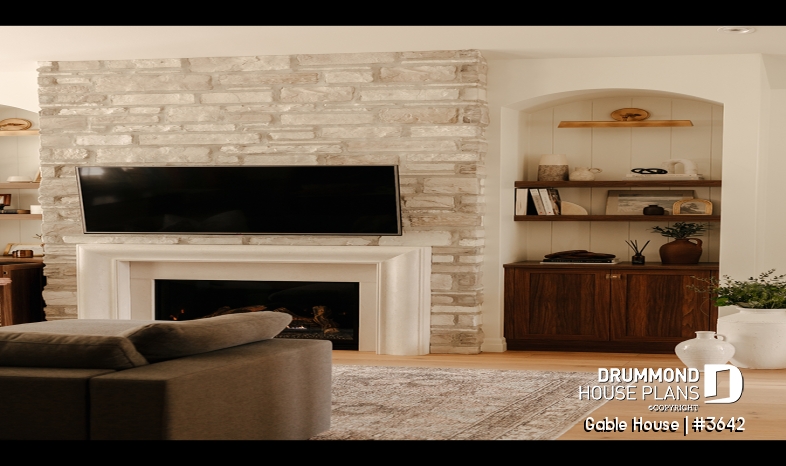

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

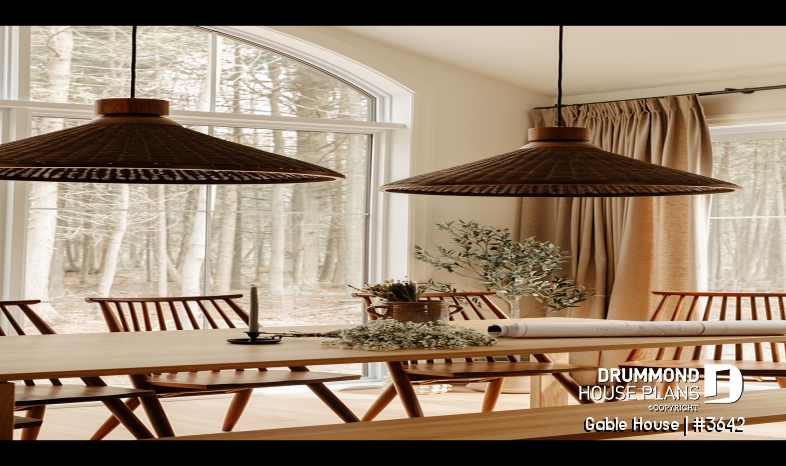

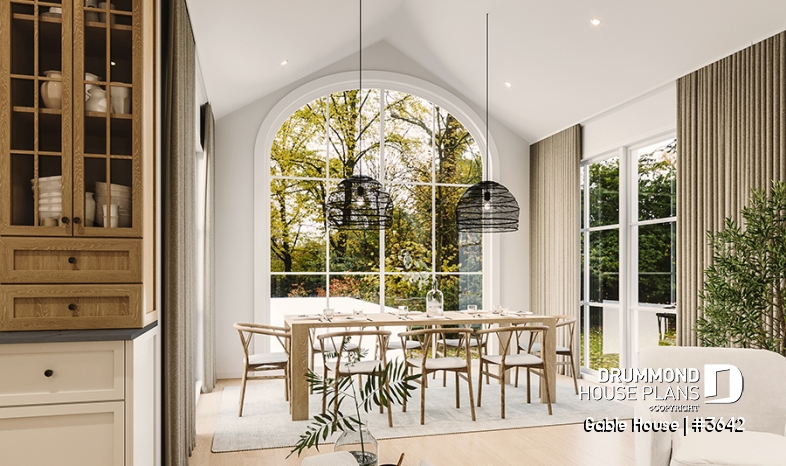

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

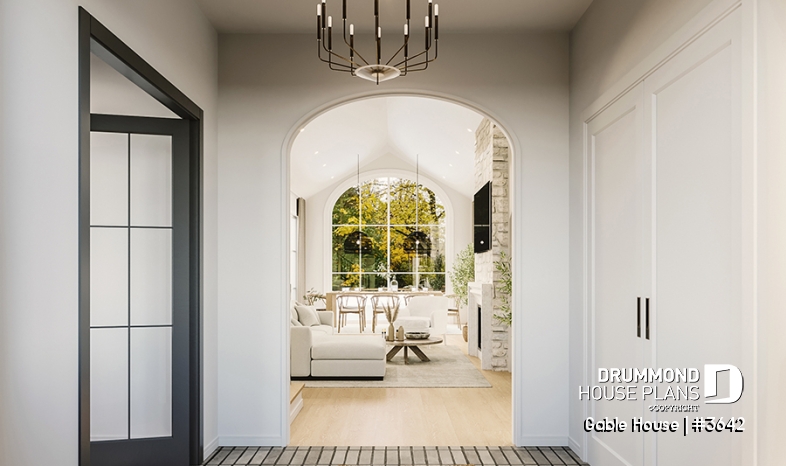

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

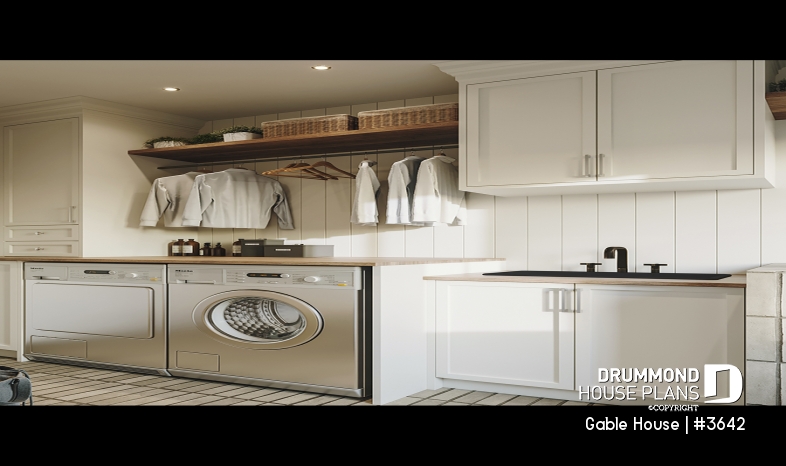

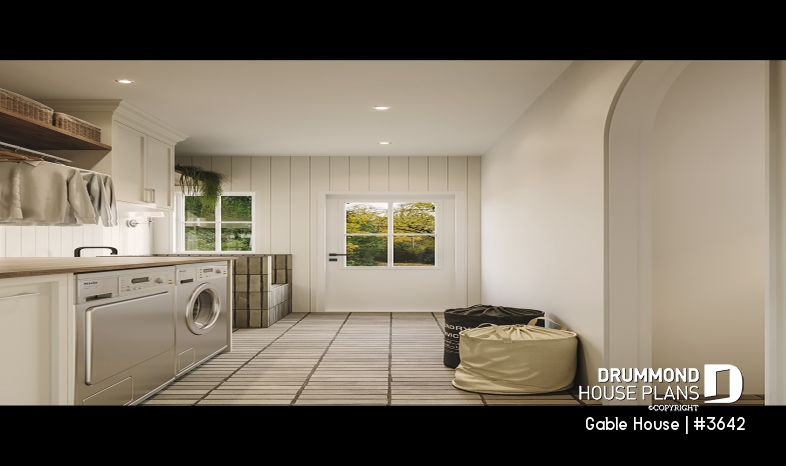

Utility room/laundry room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Utility room/laundry room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

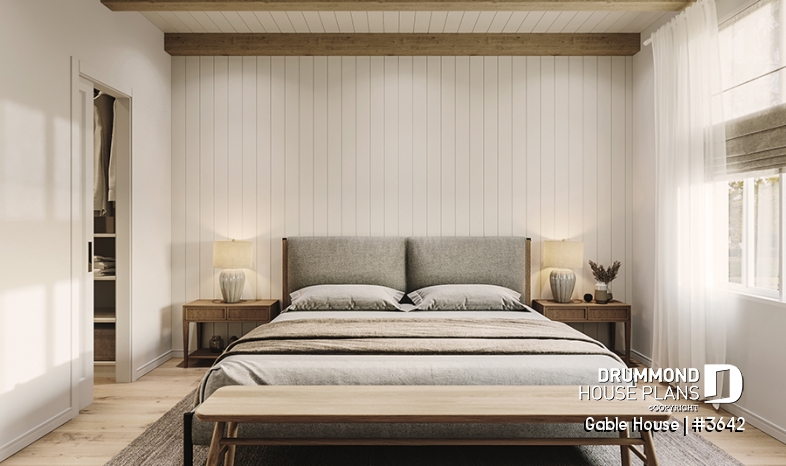

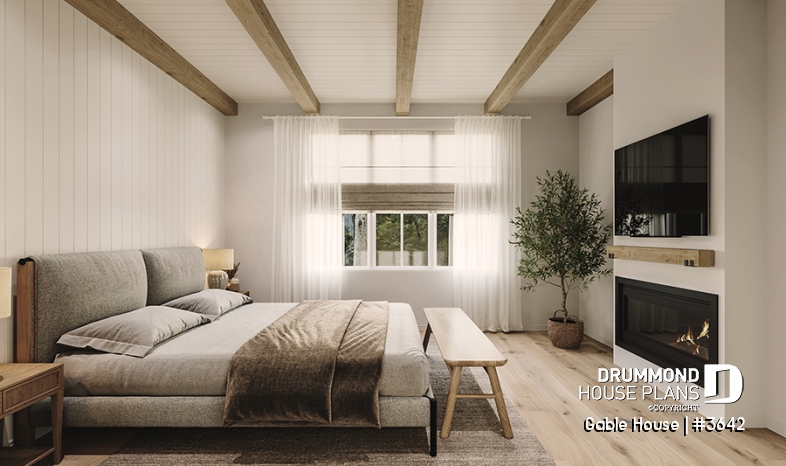

Master suite
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Master suite
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

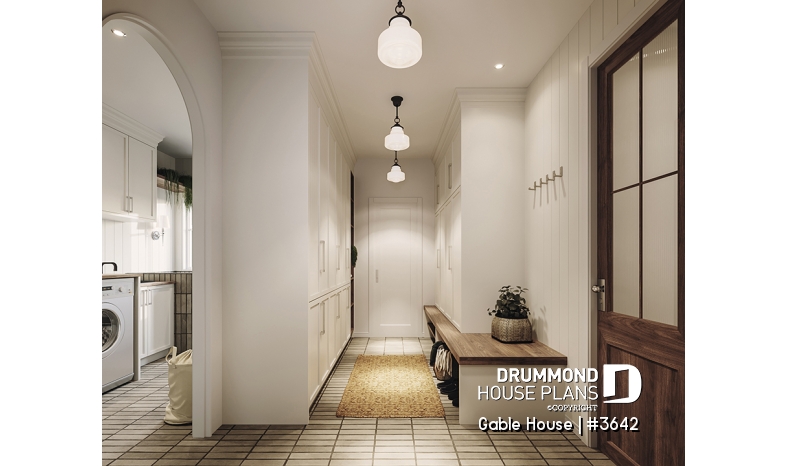

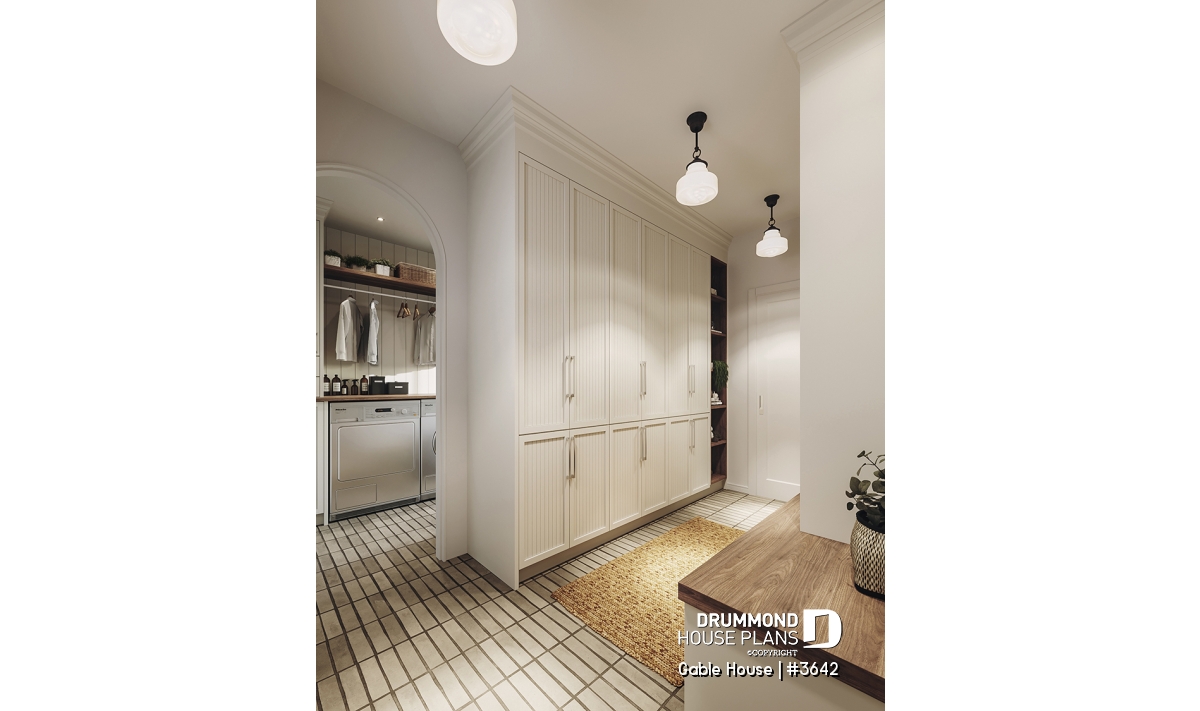

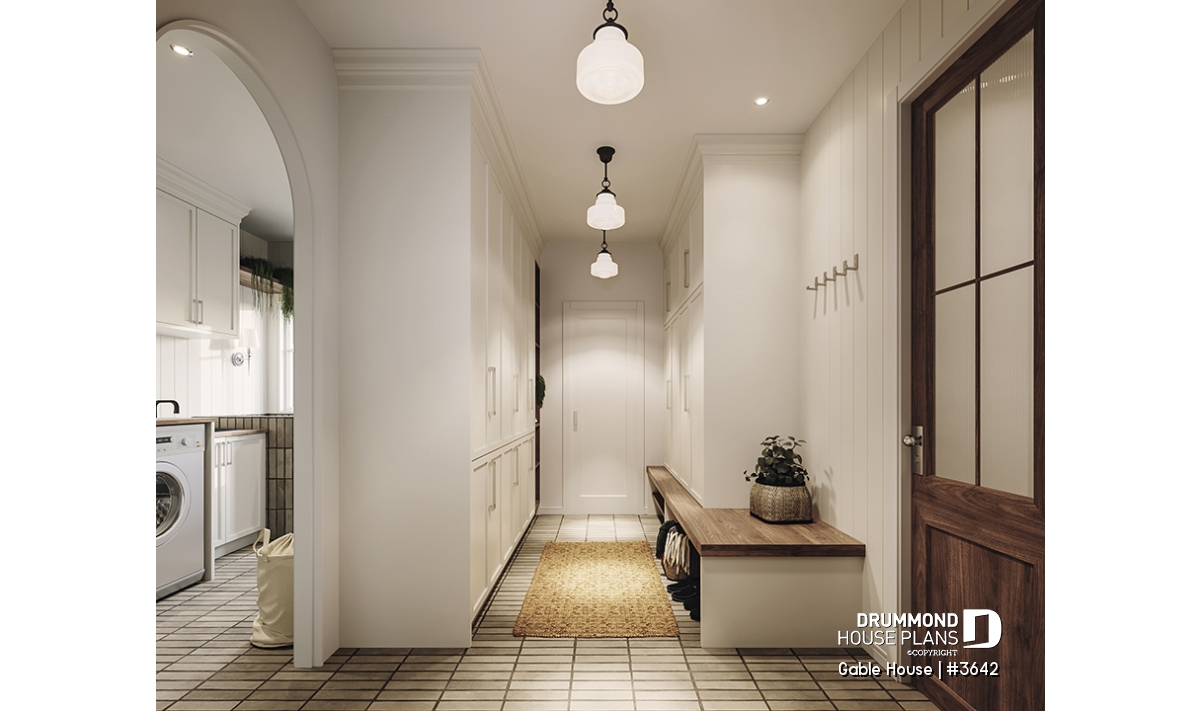

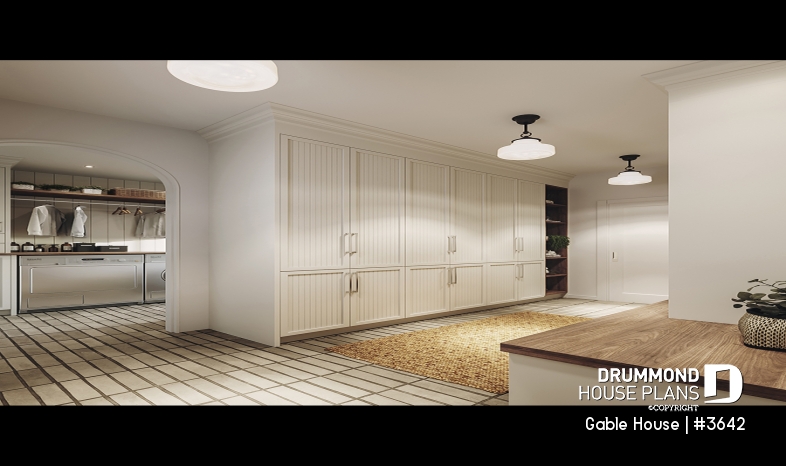

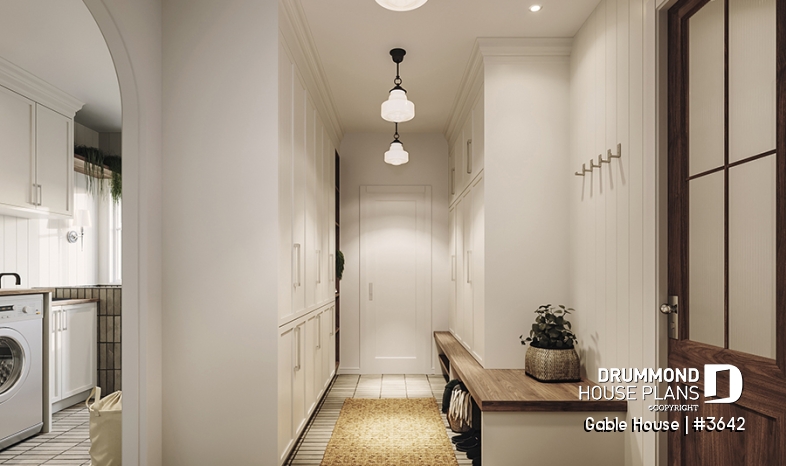

Mud room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Mud room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

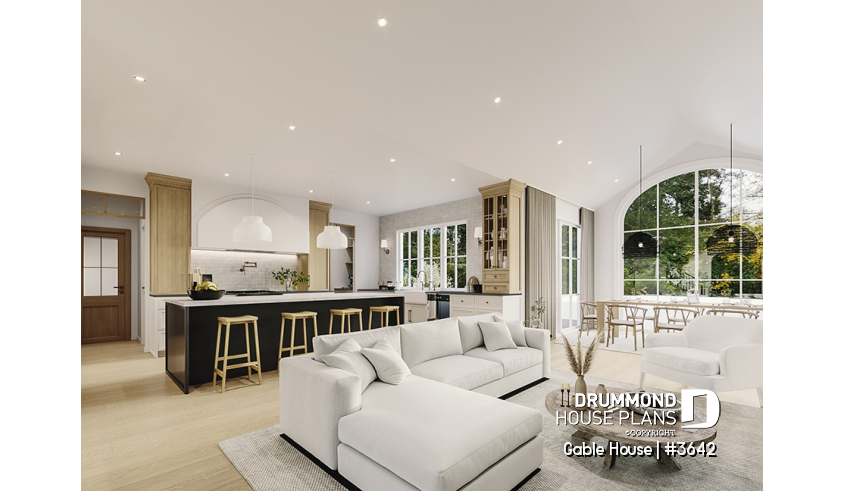

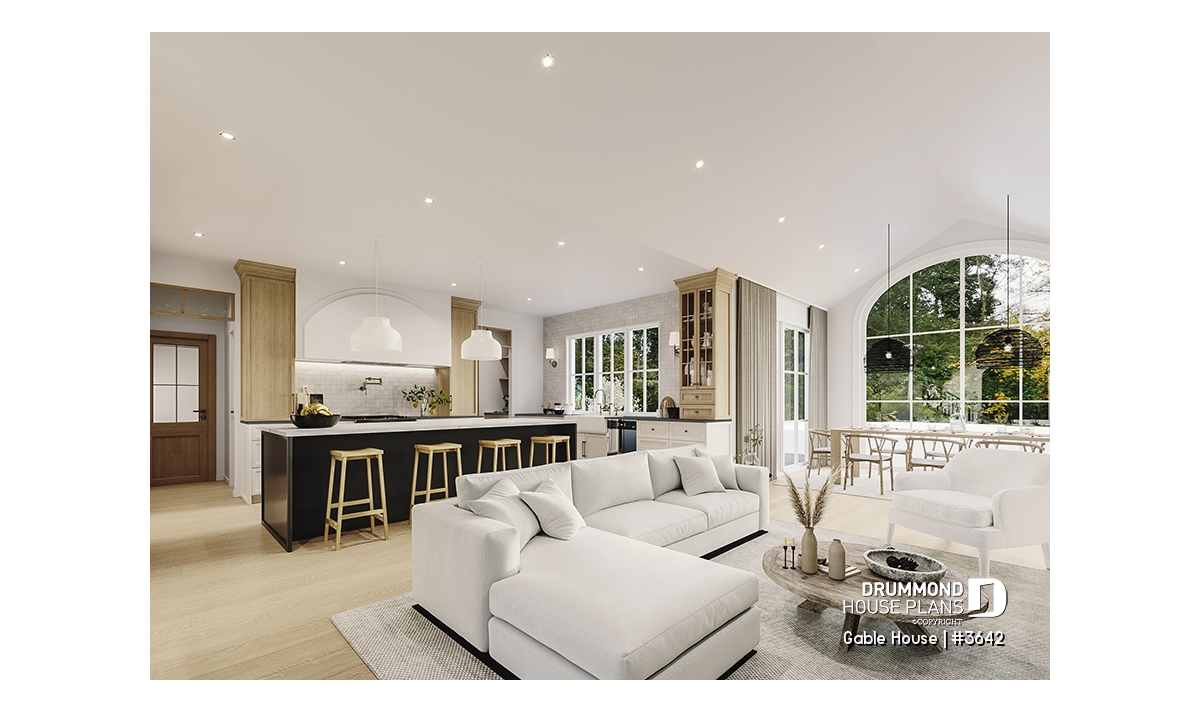

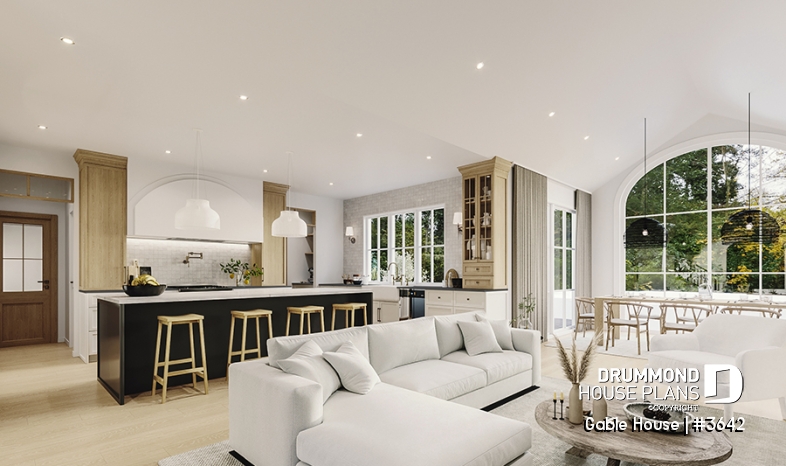

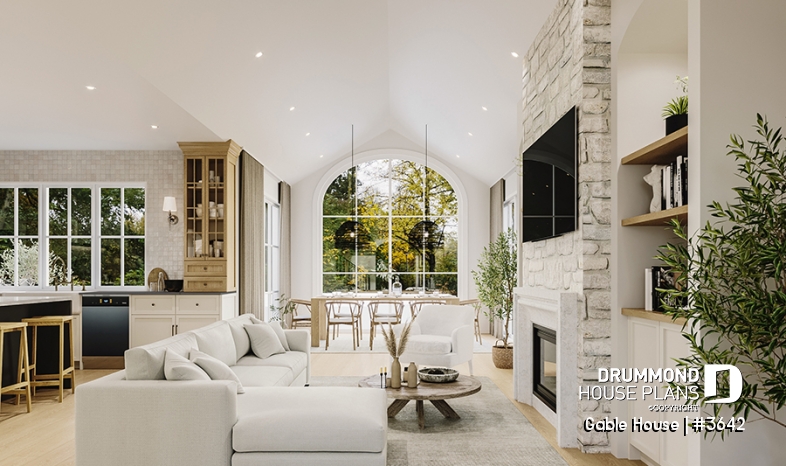

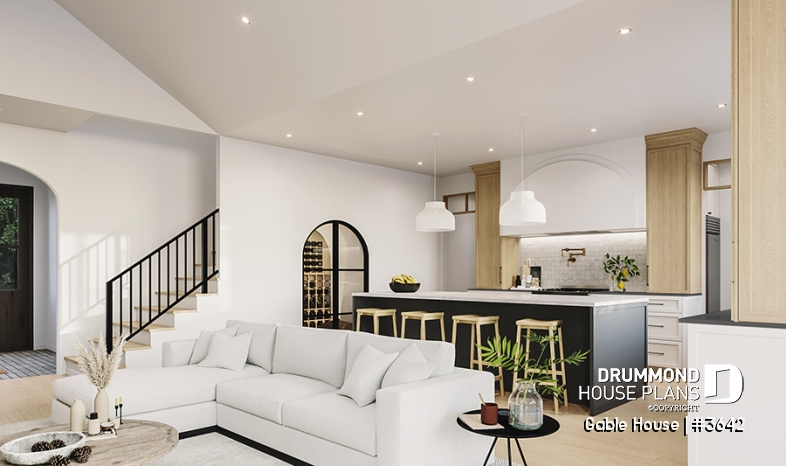

Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Note: The photos of this house differ from the original plan, from which they come.
Other useful information on this plan
GABLE HOUSE PROJECT Jenn x DrummondHousePlans
The Gable House Project is the new house construction project of our senior designer Jennifer Larocque, which will take place during the fall of 2022 and the winter of 2023. Via our blog and our social medias, you will have the opportunity to follow its evolution from week to week. I invite you to consult our blog immediately for details!
A little more about the house...
The GABLE HOUSE (plan no. 3642), a Modern French style home, offers 2660 square feet of living space on two floors. All ceilings are 9' on the ground floor except in the dining room and living room which have a cathedral ceiling at 12'9''. The initial planned foundation is on a slab, however several other foundation options are available ($) if you want a partial or full basement. The 485 square foot garage includes practical storage and the mechanical room.
The sheltered front balcony offers a section with a cathedral ceiling and a corner to set up 2 beautiful reading chairs sheltered from the weather. The front entrance of the house has a large coat closet for guests as well as an office, practical for maintaining privacy and separating office meetings from the family area. An arched ceiling separates the entrance from the living room. This architectural touch is repeated in other areas of the home and is just one of the impressive aesthetic touches provided for this beautiful classic style home plan.
The master bedroom is on the right and is accessed through a small corridor which also has a wall with an arch in the ceiling. A large walk-in closet leading to the private bathroom will delight its occupants! The private bathroom for the parents offers 2 sinks in addition to a bath and a large separate shower.

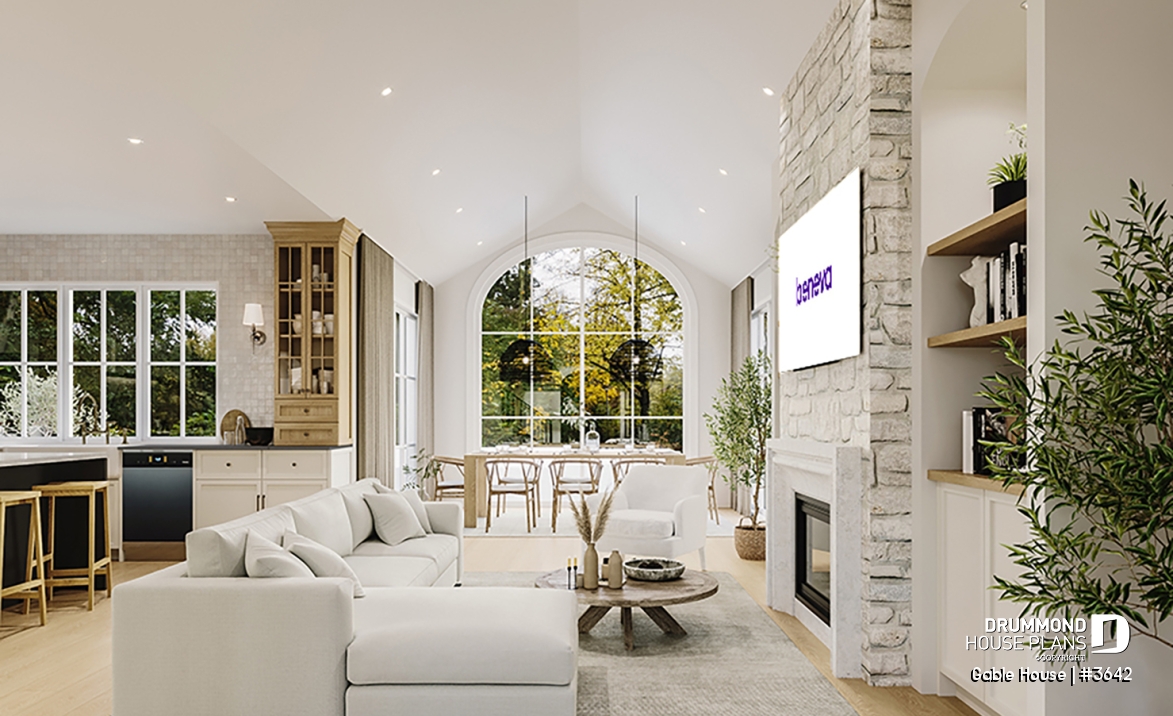

At the heart of the house is the family area which is bathed in natural light thanks to the imposing window installed in the dining room! In addition, the amplitude brought by the cathedral ceiling to the dining room and living room, as well as a fireplace with built-in furniture on each side, make this area a place of choice to entertain family and friends. To add pleasure to your moments of relaxation, we have planned a large sheltered terrace at the back, large enough to accommodate a BBQ, smoking room, dining room and living room!!
The superb kitchen (see photos!!) offers an imposing central island that can easily accommodate 4 to 5 guests, as well as a 9'2'' x 5'8'' pantry and an area provided for a 2nd refrigerator. A large mudroom is attached to the pantry and located opposite the entrance to the garage, convenient for quickly storing groceries! Finally, a shower for dogs is provided in the laundry room.
Upstairs you will find 2 good sized bedrooms, a shower room, a small living room (or games room or bedroom #4) as well as a secret room for children! Enough to entertain your little ones for hours!!!
The GABLE HOUSE aims to be the perfect home for a growing young family! Several versatile spaces allow different configurations that will follow the evolution of your family! Den, playroom, additional bedroom, all this is possible in this warm and inviting house!
Distinctive elements
GABLE HOUSE | Step by step construction project by Drummond House Plans:
Follow the evolution of its construction as well as all the references in connection with materials and decoration. See it on our blog and various social mediads in the fall of 2022!!
GABLE HOUSE (#3642):

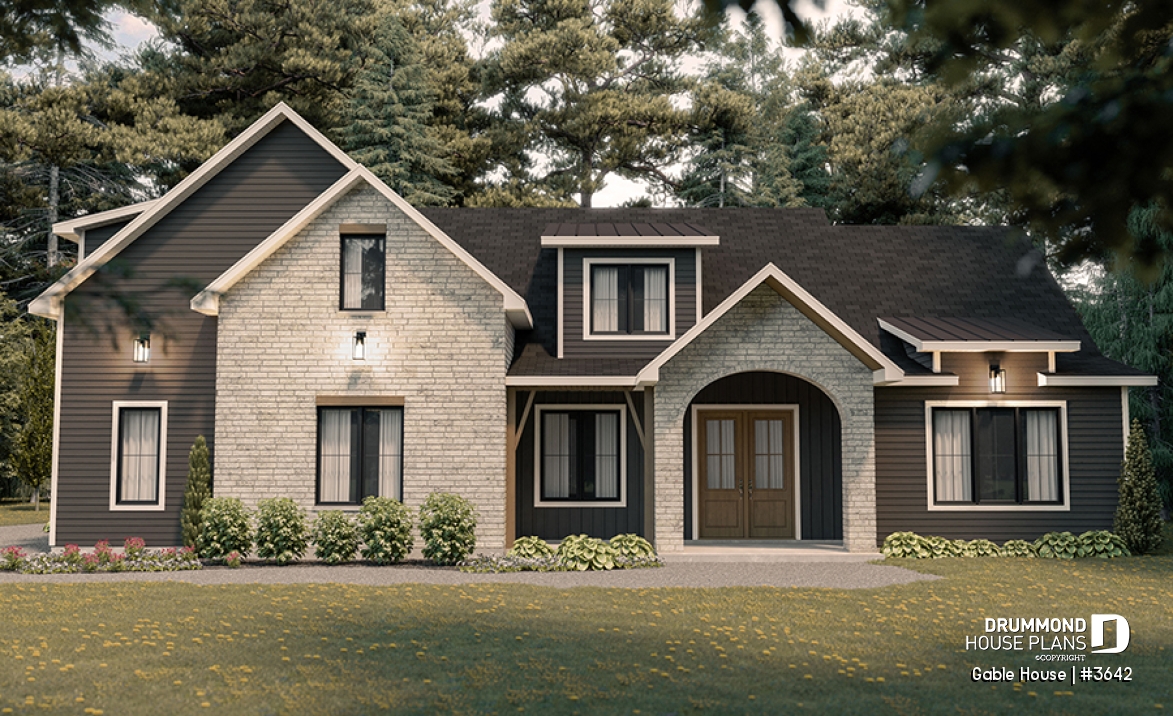

Two-storey house in a classic, timeless style.
Partial cathedral ceiling on the front balcony.
Front entrance leading to an office.
The transition between the entrance and the living room is made by an elegant wall with an arch in the ceiling. There are also arches in other places of the house.
All floors on the ground floor are 9' high with the exception of the living room ceiling which is 12'9''.
The parents' bedroom offers a large walk-in closet as well as a bathroom with 2 sinks and a separate bath and shower.
The kitchen is open to the living room and has a pantry. The latter communicates with the cloakroom which is located opposite the entrance to the garage.
The living room and dining room have a cathedral ceiling.
In the living room there is a fireplace as well as built-in furniture on each side.
The laundry room includes a shower for dogs.
Upstairs there are 2 secondary bedrooms, a shower room, a playroom (small living room or bedroom #4) and a secret room (for children).

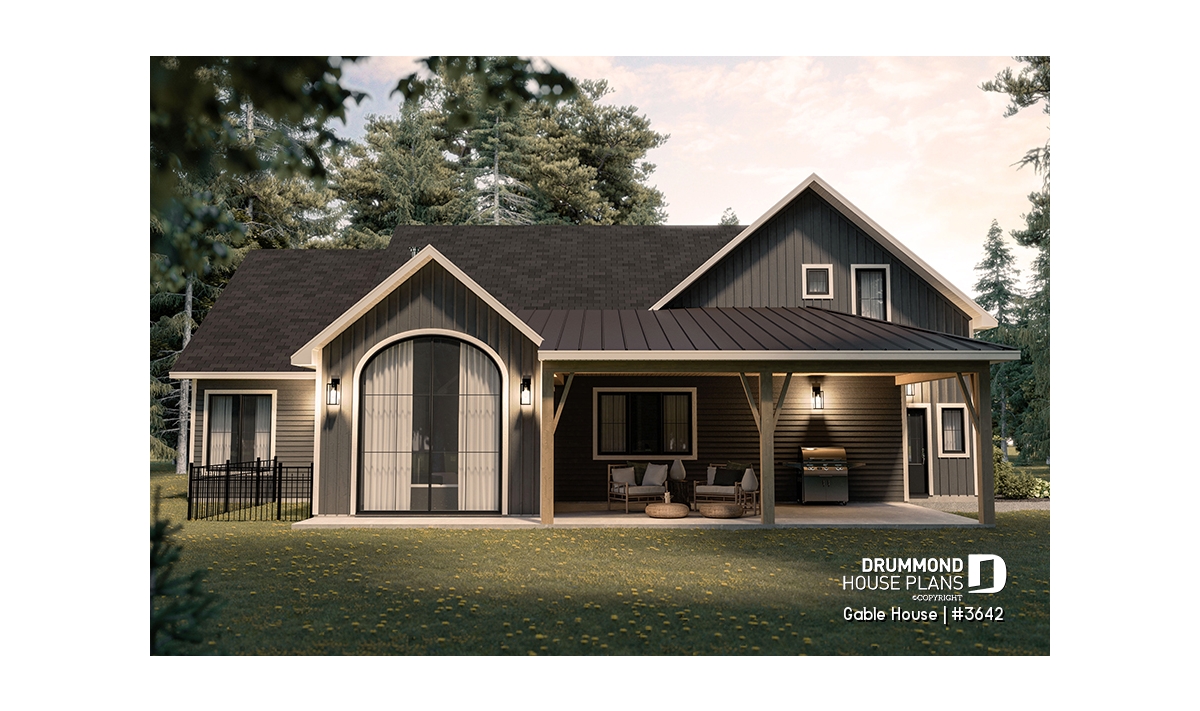

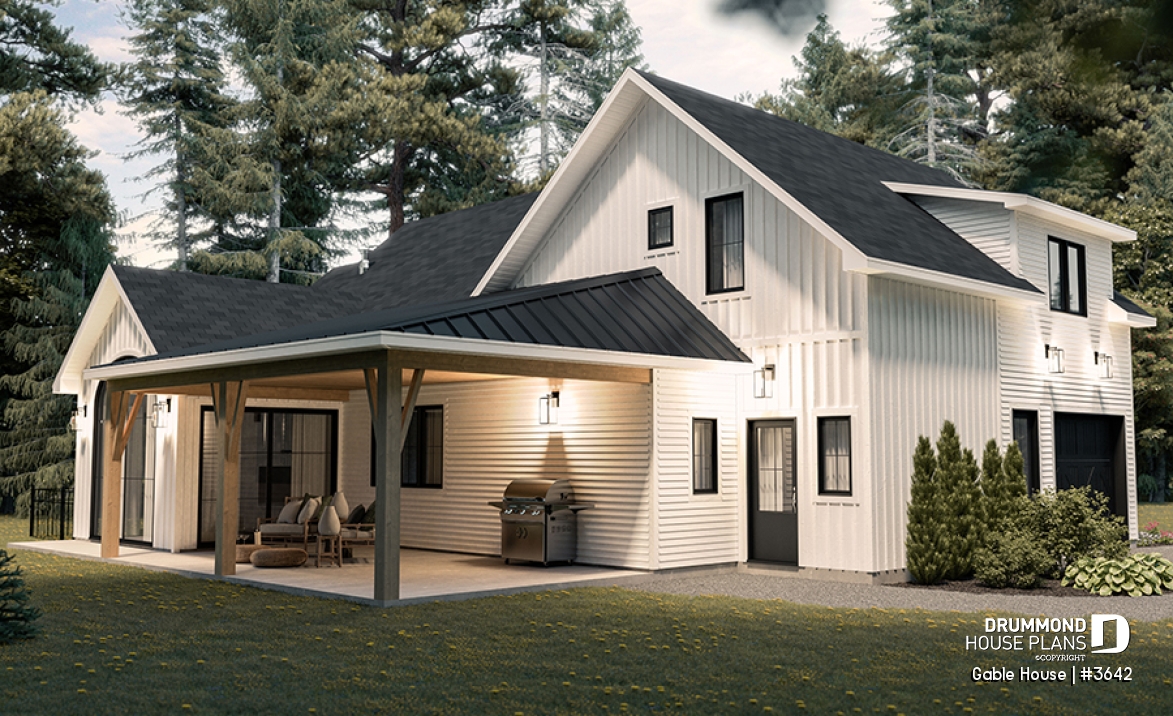

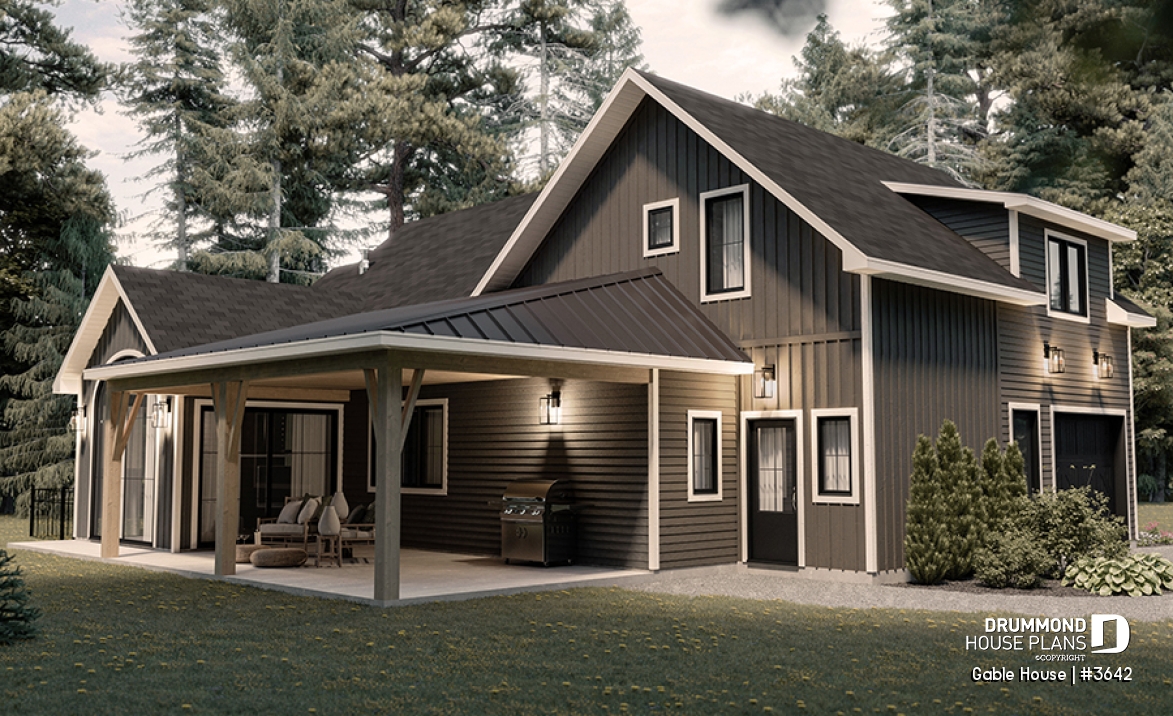

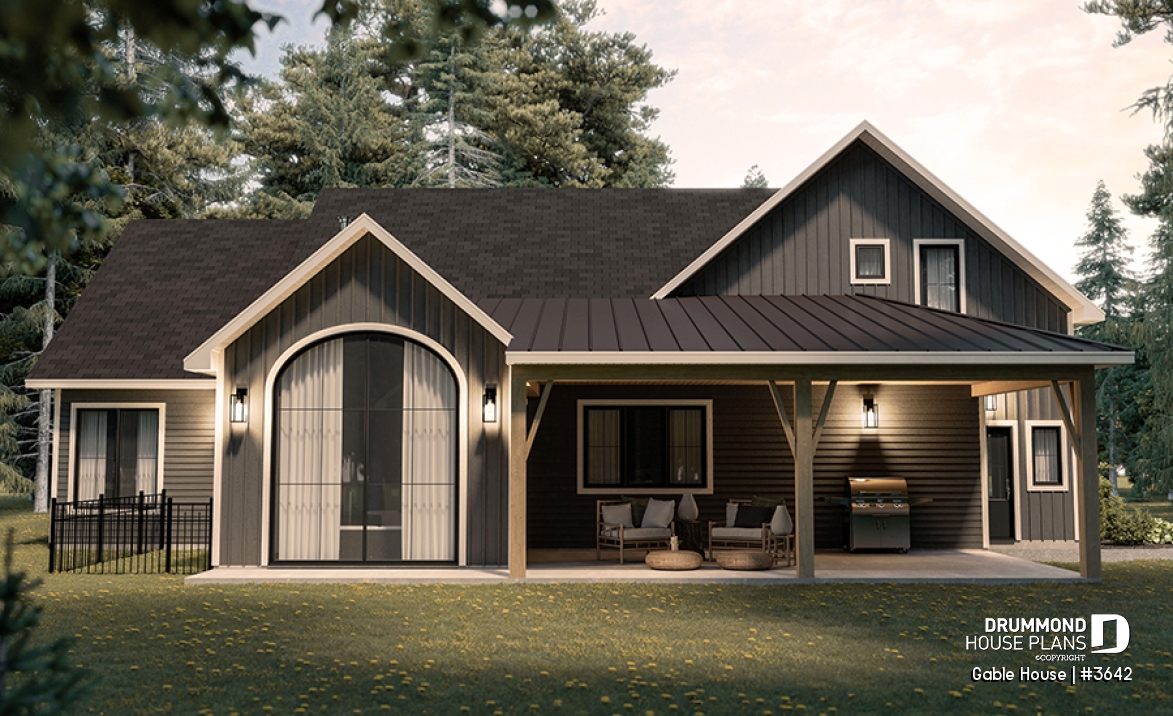

A large sheltered rear terrace of 22'8'' x 14'8'' allows the development of a dining room and a living room.
A single garage with storage and mechanical room complete this beautiful and elegant home.
Plan feature(s)
Side load garage, Open floor layout, Office / Study / Den, Split bedrooms, Fireplace, Side entry garage, Pantry, Island, Cathedral ceiling, Gound floor laundry room, Master suite on main, Walk-in master bed., Mud room, Deck, Built-ins, Ceiling over 8', Separate bath and shower, Double sinks, Arch
Plan architectural style(s)
Modern French Country, . American, . Ranch, . Farmhouse, . Traditional, Classic, Modern Craftsman, Modern farmhouse, . Transitional, . Mountain, . Cottage, chalet, cabin
