House plan Voyageur (6981)
Flexible floor plans: 1 bedroom tiny house with attached RV garage OR 3 bedroom, 3 bathroom house with garage
View the size of the rooms and height of the ceilings

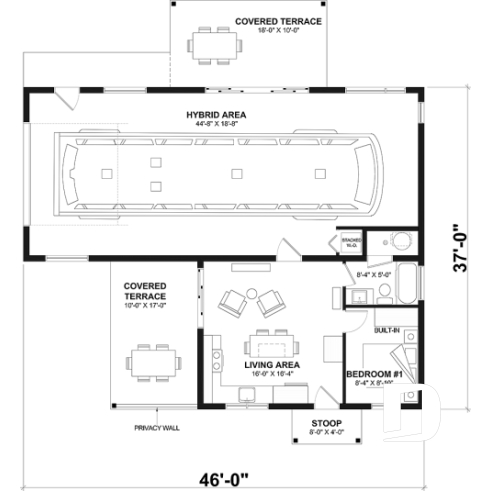

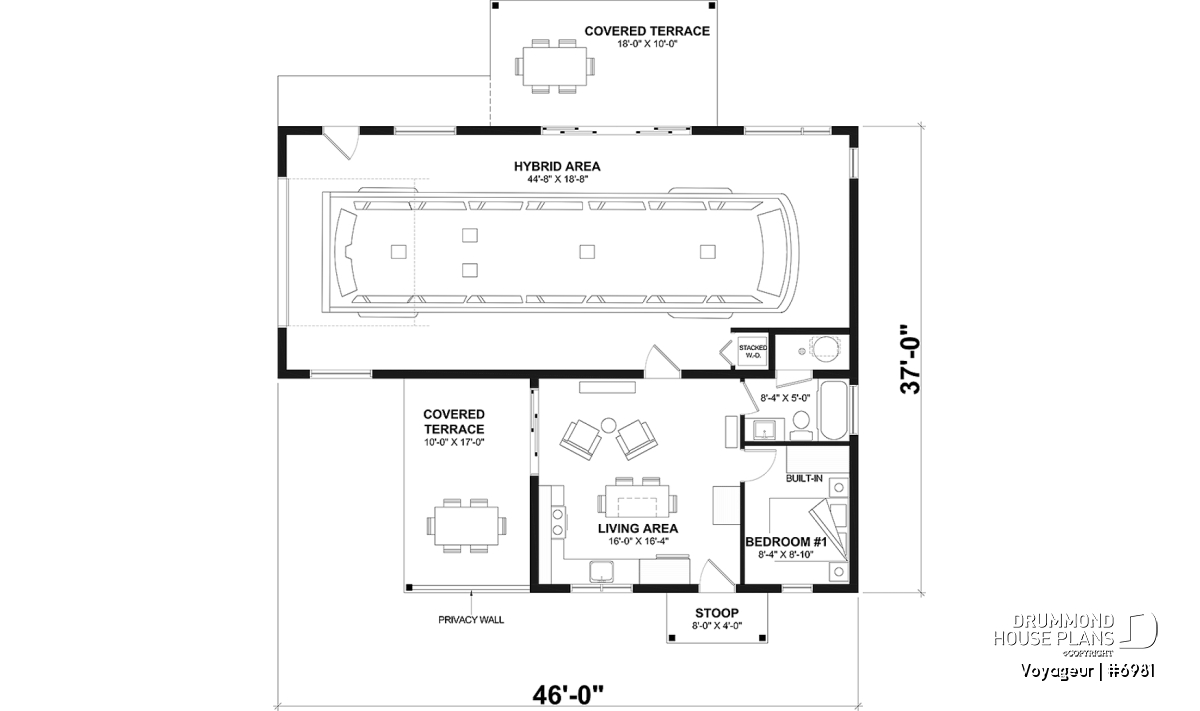

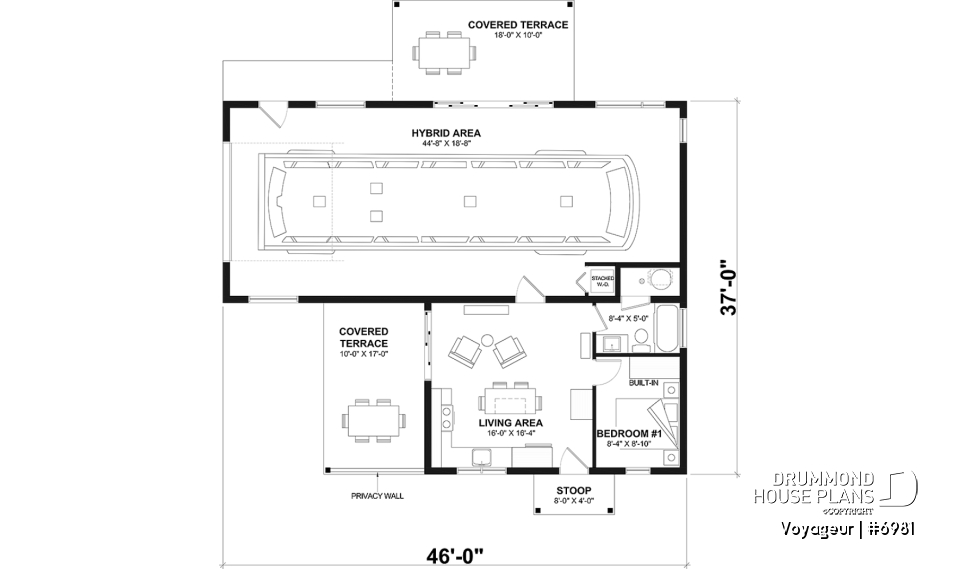

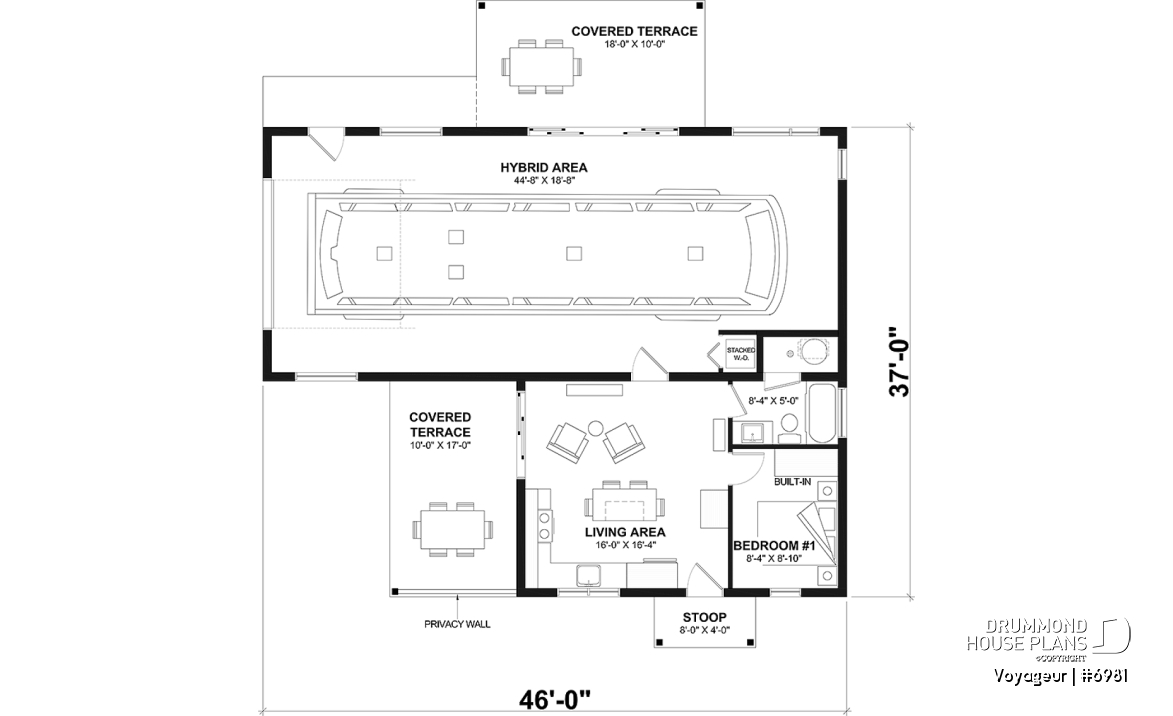

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Covered porch | 8'0" x 4'0" | ~ 9'4" |
| Bedroom | 8'4" x 8'10" | ~ 9'0" |
| Bathroom | 8'4" x 5'0" | ~ 9'0" |
| Covered deck | 10'0" x 17'0" | ~ 9'4" |
| Kitchen/dining room | 16'0" x 16'4" | ~ 9'0" |
| Kitchen island | 5'0" x 2'6" | N/A |
| Pantry | 3'0" x 2'2" | N/A |
| Covered deck | 18'0" x 10'0" | ~ 9'4" |
| Garage | 44'8" x 18'8" | ~ 17'8" |
| Shower room or three quarter bath | 8'4" x 3'0" | ~ 17'8" |
| Laundry space | 3'0" x 3'4" | ~ 9'0" |

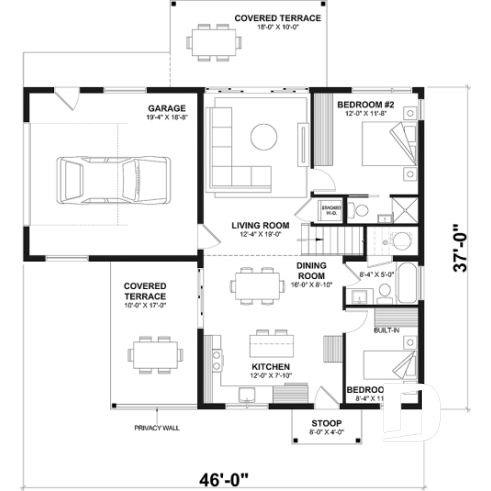

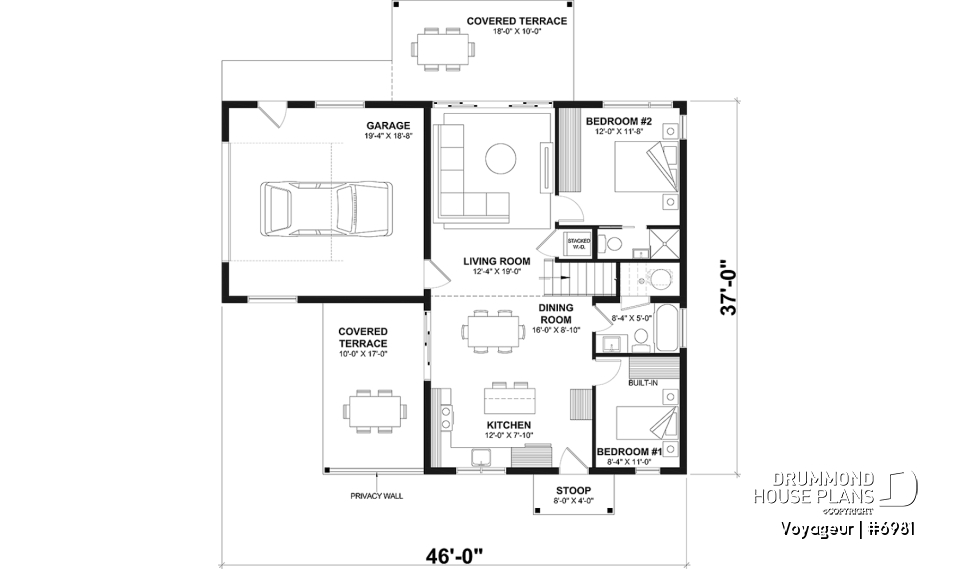

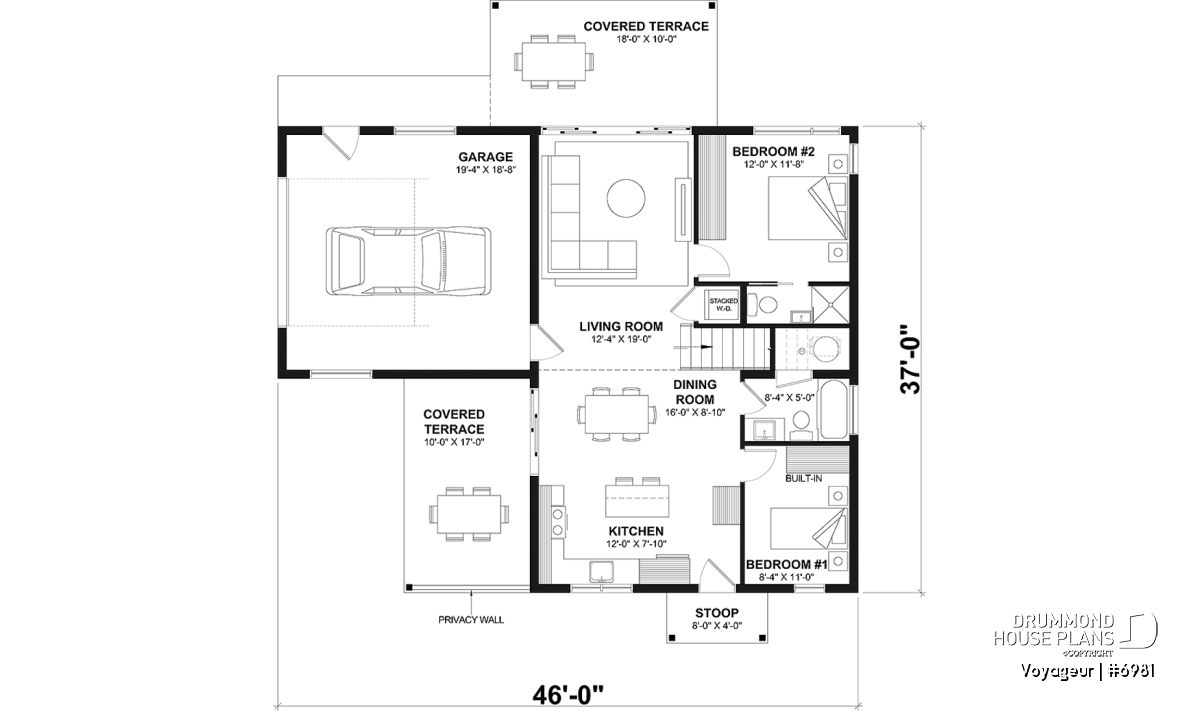

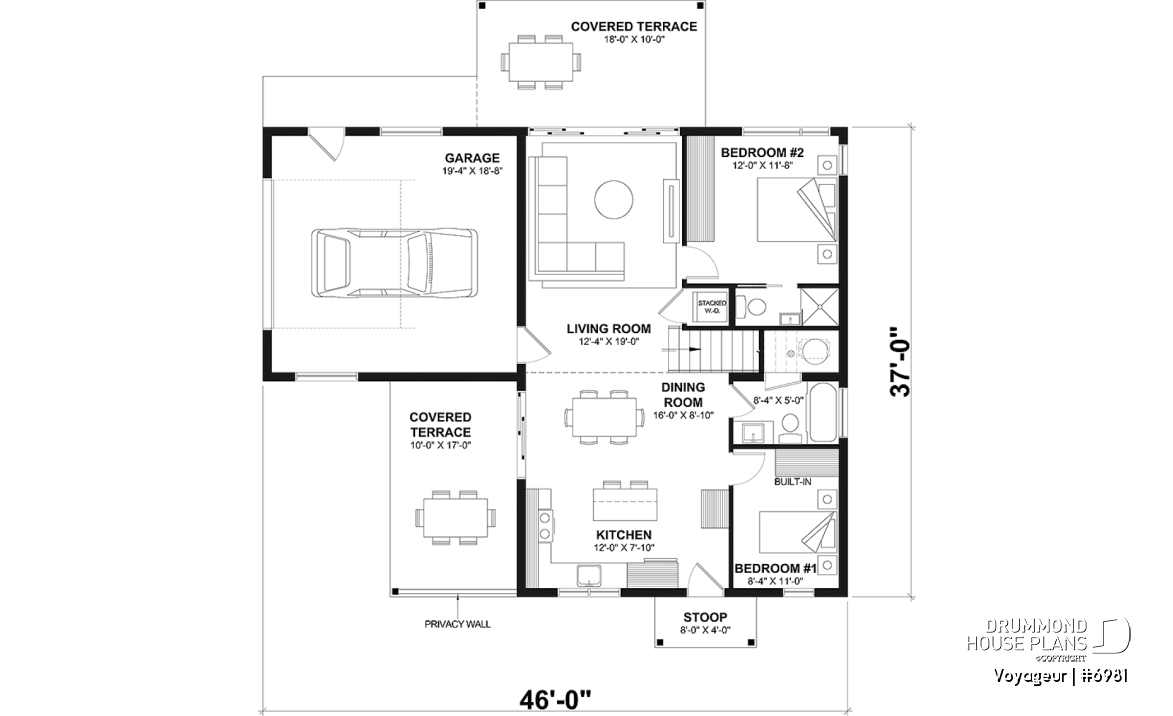

| 1st level option 1 | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'0" x 7'10" | ~ 9'0" |
| Dining room | 16'0" x 8'10" | ~ 9'0" |
| Living room | 12'4" x 19'0" | ~ 8'0" |
| Bedroom | 12'0" x 11'8" | ~ 8'0" |
| Shower room or three quarter bath | 8'4" x 3'0" | ~ 8'0" |
| Garage | 19'4" x 18'8" | ~ 17'8" |
| Laundry space | 3'0" x 3'4" | ~ 8'0" |

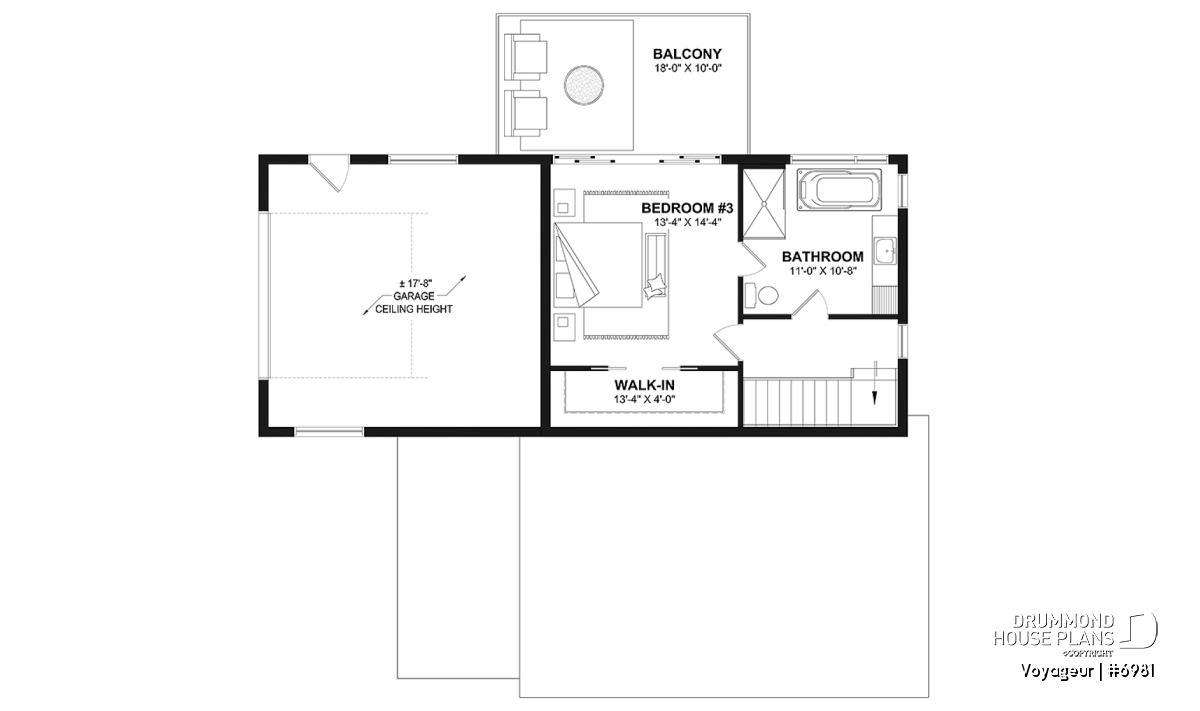

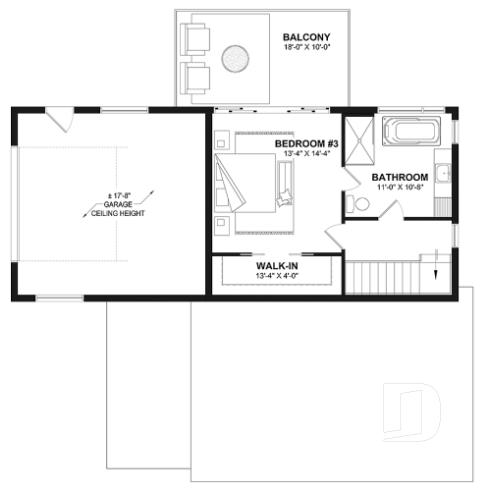

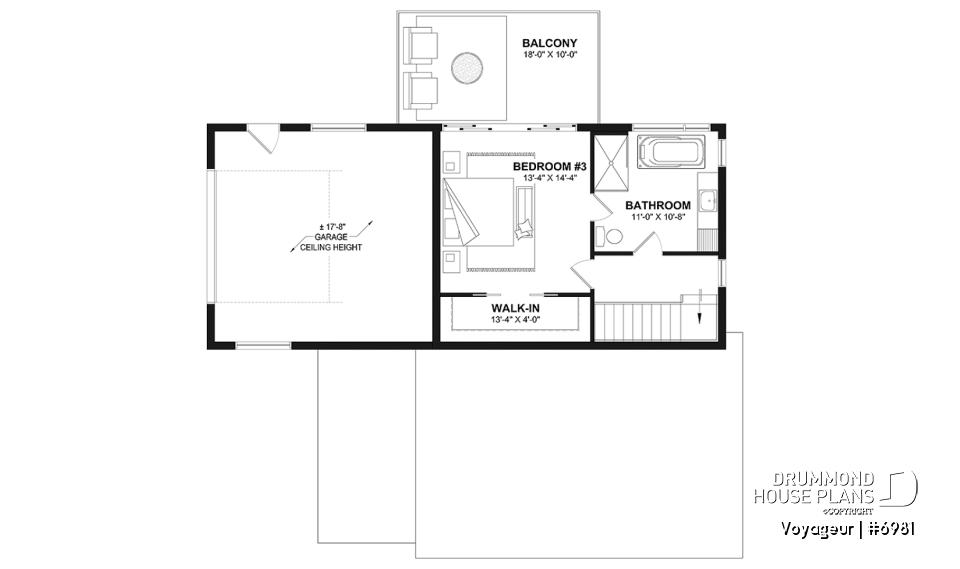

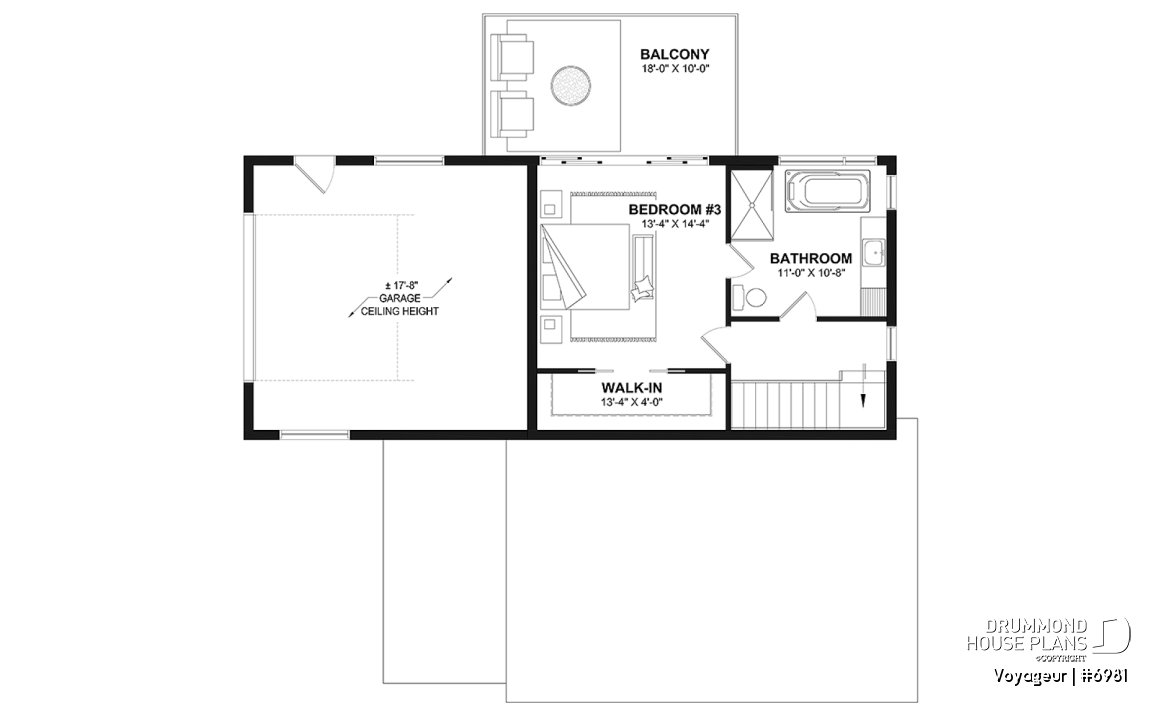

| 2nd level option 1 | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'4" x 14'4" | ~ 8'0" |
| Walk-in closet | 13'4" x 4'0" | ~ 8'0" |
| Full bathroom | 11'0" x 10'8" | ~ 8'0" |
| Shower | 5'0" x 3'0" | N/A |
| Linen | 2'0" x 1'10" | N/A |
| Balcony | 18'0" x 10'0" | N/A |
General specifications
| Total living area | 1942 sq.ft. |
| 1st level | 460 sq.ft. |
| 1st level option 1 | 962 sq.ft. |
| 2nd level option 1 | 520 sq.ft. |
| Width | 46'0" |
| Depth | 37'0" |
| Ridge height from top of foundation | 0'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | E |
Rooms specifications

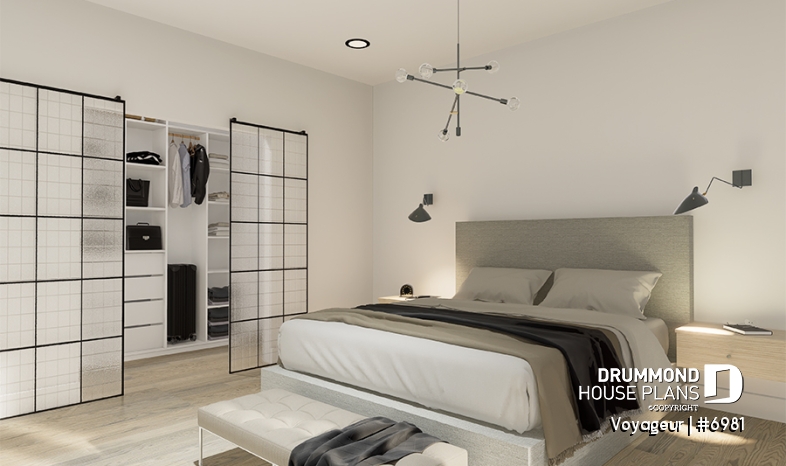

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

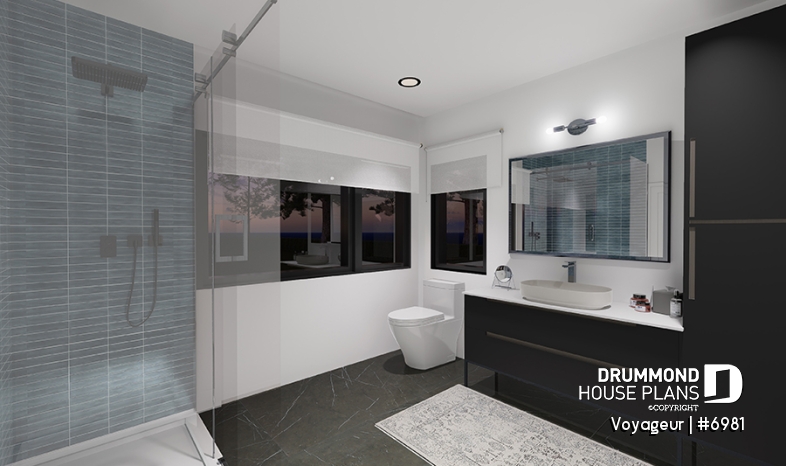

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

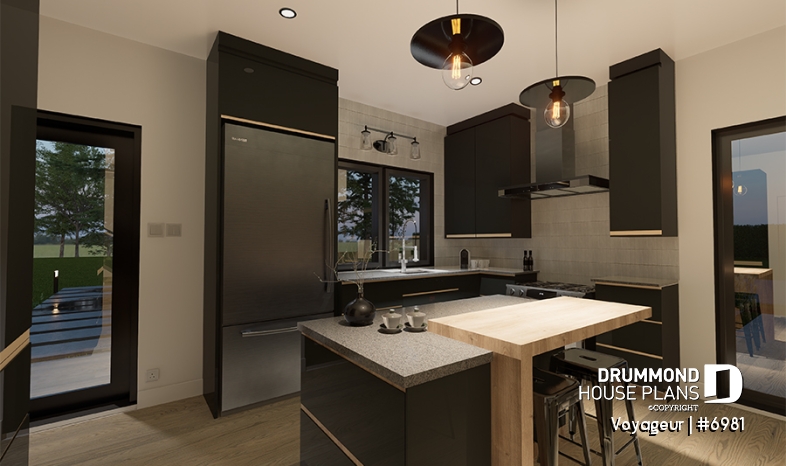

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

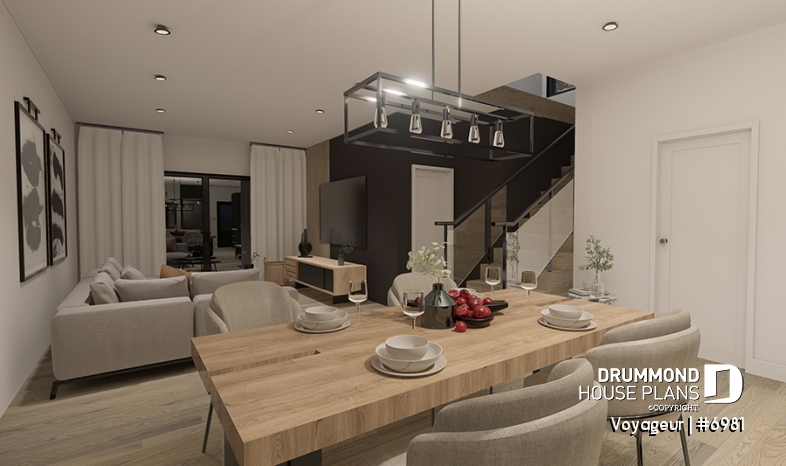

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan

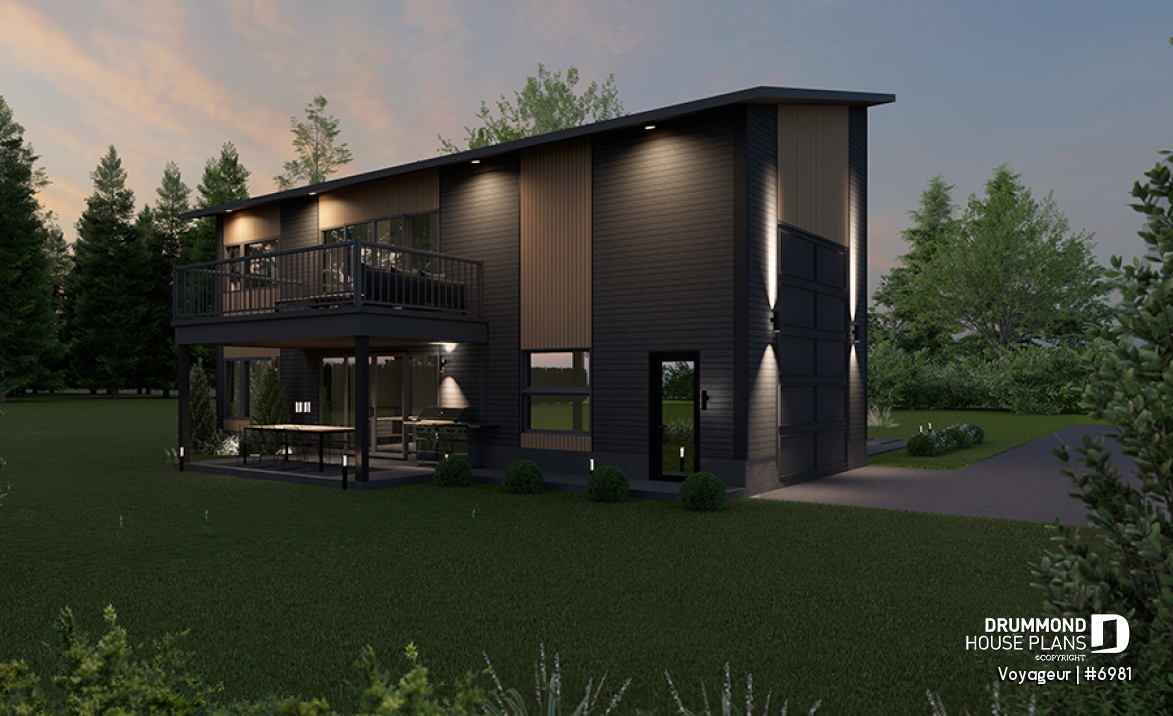

Modern tiny house plan with attached RV garage, and a 1 or 3 bedroom option!
.
Distinctive elements
Modern 1 bedroom house plan with 3 bedroom option, 2 of which have private bathrooms.
The basic floor layout offers a small open concept for the kitchen and living room and despite its small size it still offers 2 beautiful large covered terraces, and a large RV garage measuring 44'8'' 8''.
It includes a ceiling of 9' for the house and 17'8'' for the garage and its shower room.
Able to accommodate your class A, B and C motorhome!!
OPTION 1 offers a large single side garage as well as 3 bedrooms, 2 of which have their private bathroom (total 3 bathrooms).
The ceilings on the ground floor and the first floor are 8' and 9' depending on the rooms of the house, and 17''8'' for the single garage.
The upstairs master suite offers a private balcony (uncovered), a large walk-in closet as well as a private bathroom with separate bath and shower.
A large family room with access to the covered rear terrace, as well as a dining room are also added.
The sheltered side terrace remains but is now accessible from the new dining room.
*The basic floor layout and option #1 are included in the construction plan you will receive. You can build the floor that best suits your family. If you initially go with the basic floor (with RV garage), eventually and depending on your needs you could convert your garage into living space as suggested on the option(s).
Plan feature(s)
Open floor layout, Ceiling over 8', Deck, Side entry garage, Oversized garage, Gound floor laundry room
Plan architectural style(s)
. Modern / Design, . Contemporary, . Mid-century
