3032-V1 (Normandy)

Craftsman Duplex design, open floor plan, master with walk-in & access to bath, laundry on second floor

Bedrooms

6, 3

Bathroom(s)

2

Living area

3220 sq.ft.

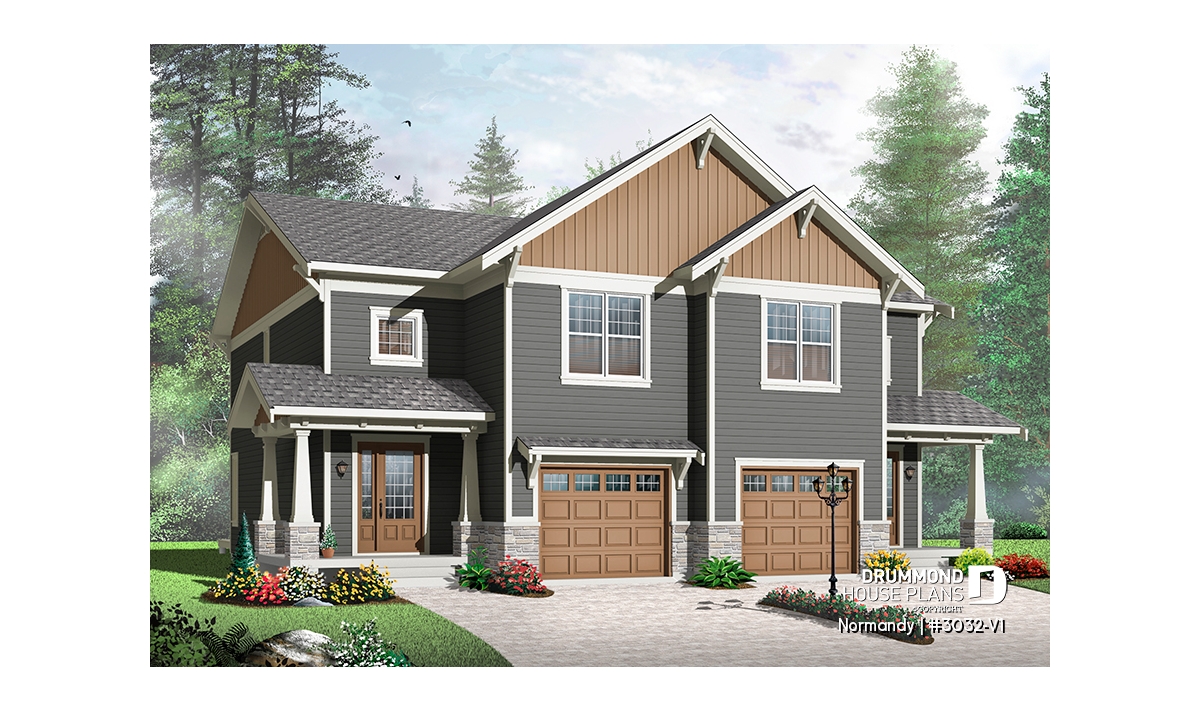

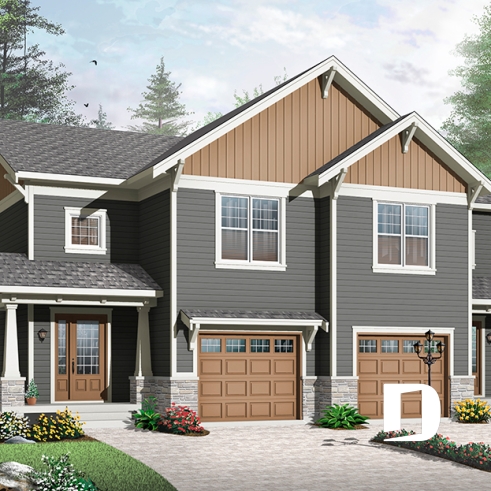

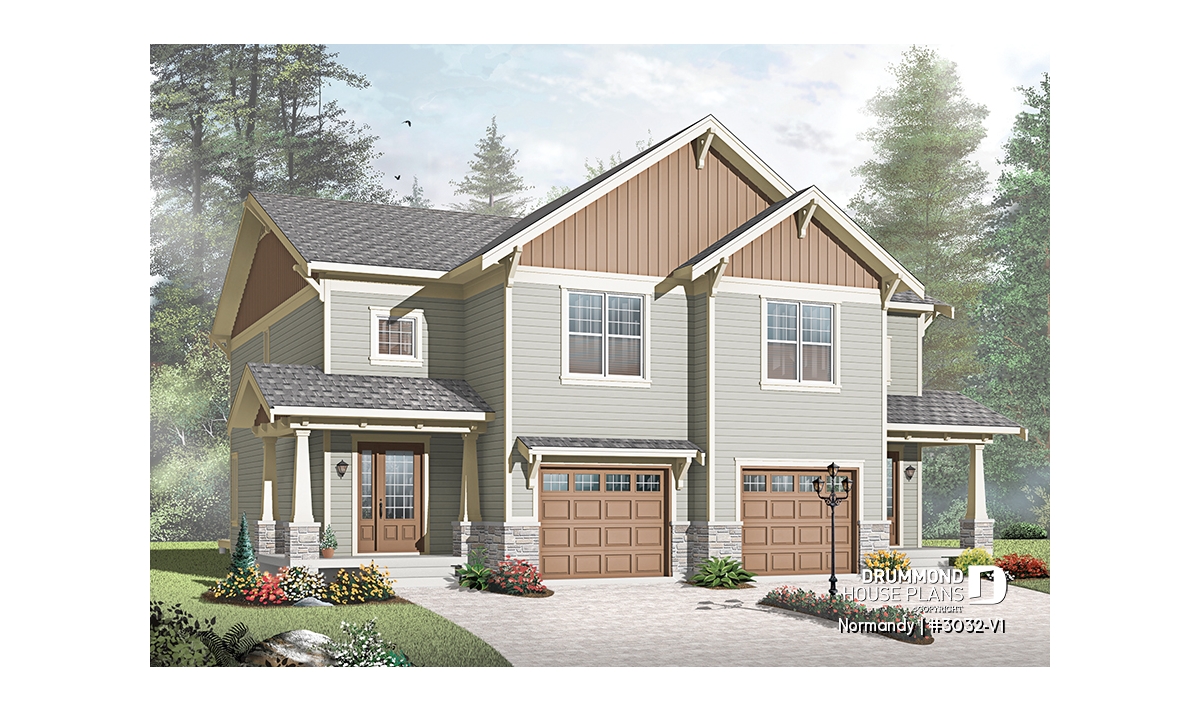

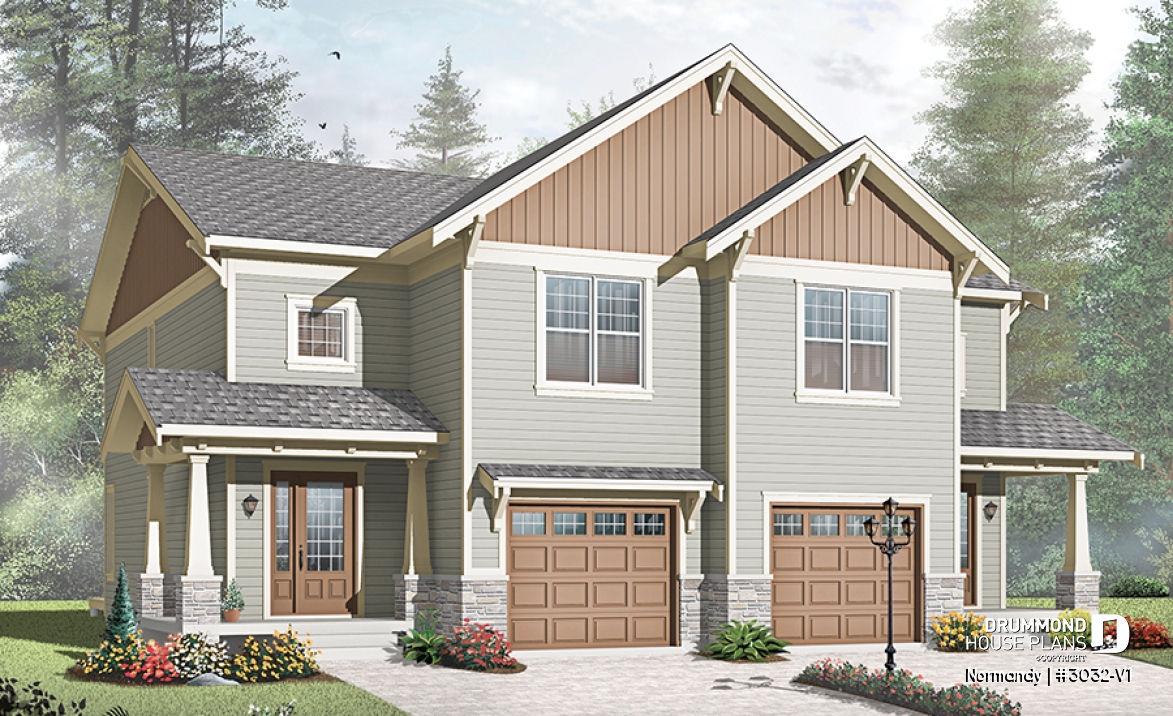

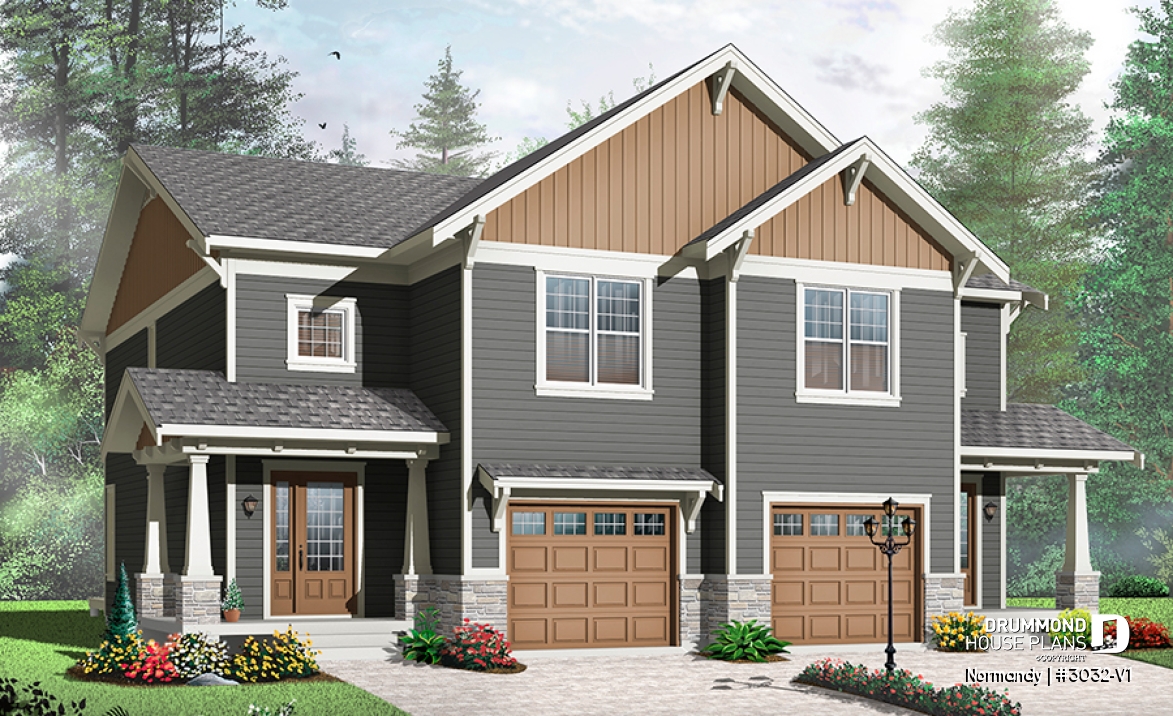

  • front - BASE MODEL - Craftsman Duplex design, open floor plan, master with walk-in & access to bath, laundry on second floor - Normandy

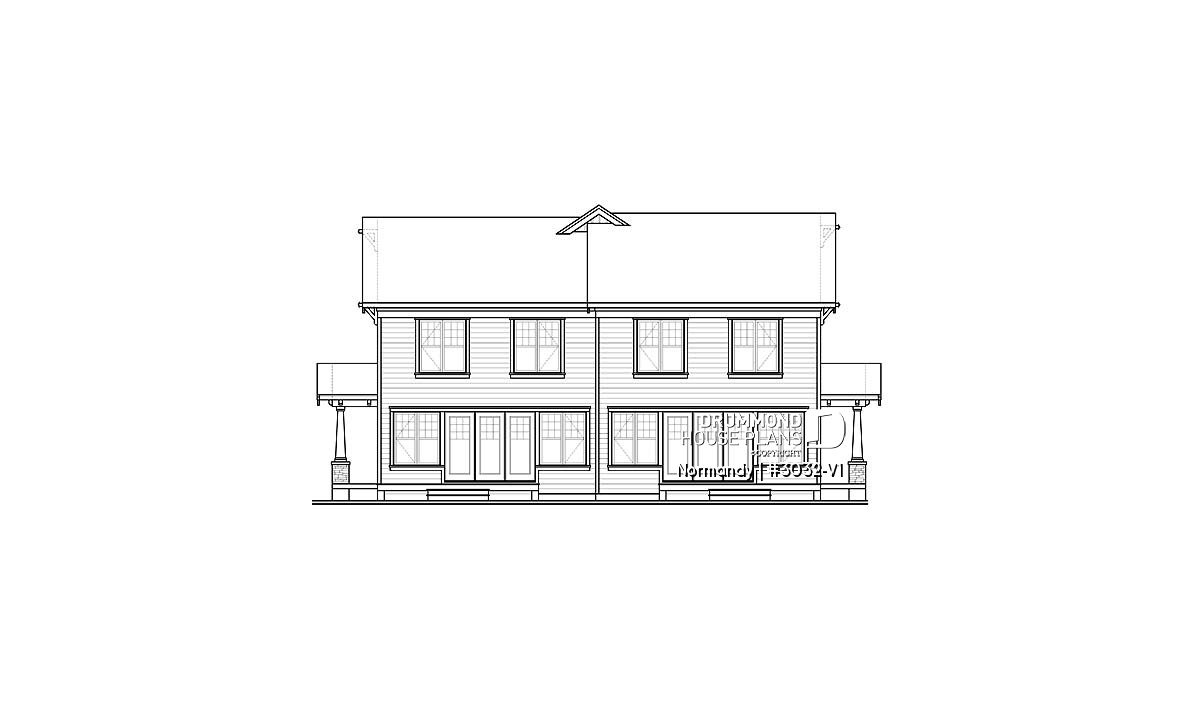

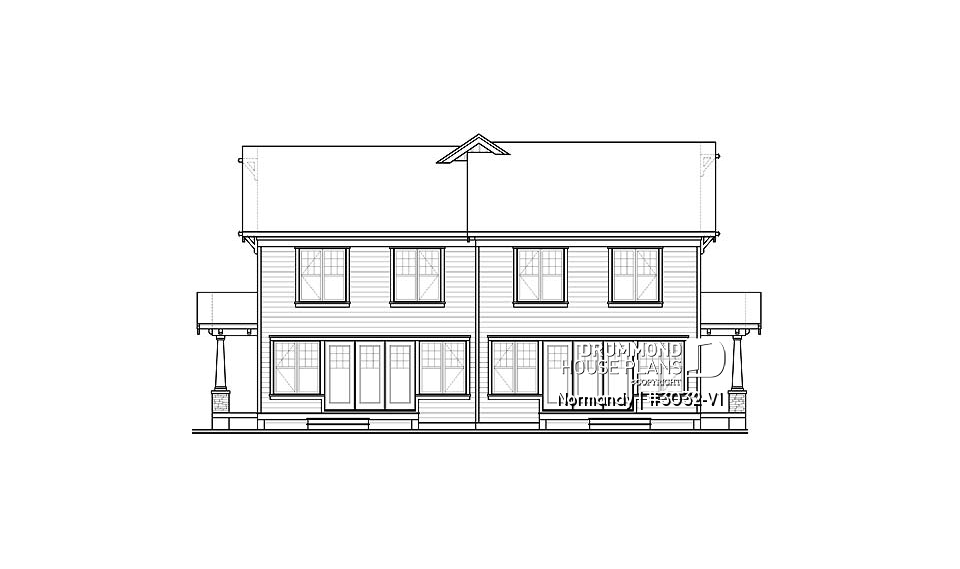

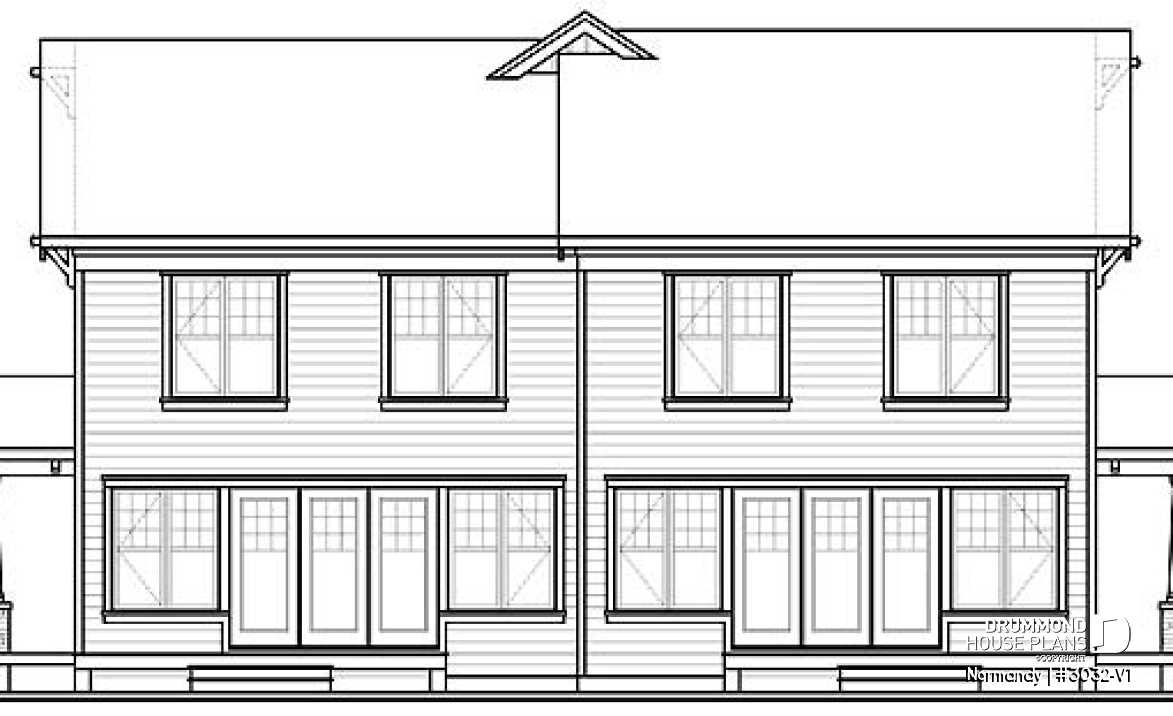

  • rear elevation - Normandy

front - BASE MODEL

rear elevation

Vignette front - BASE MODEL - 3032-V1
Vignette rear elevation - 3032-V1

View by floor

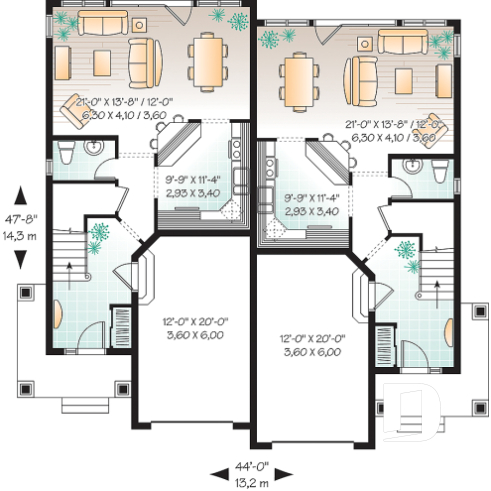

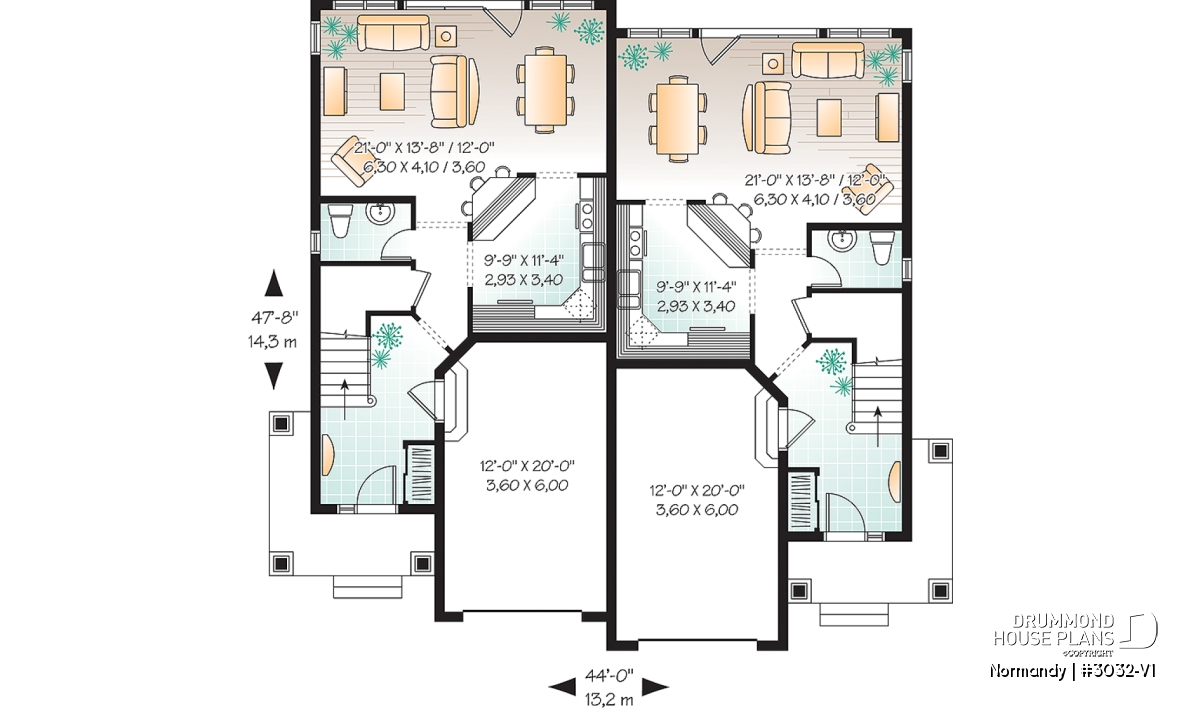

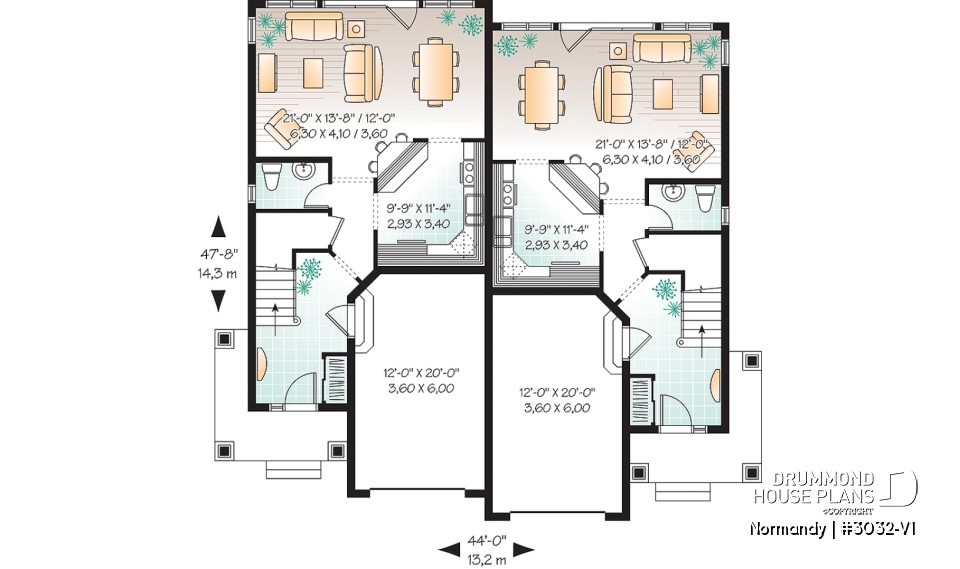

  • 1st level

    1st level - Craftsman Duplex design, open floor plan, master with walk-in & access to bath, laundry on second floor - Normandy

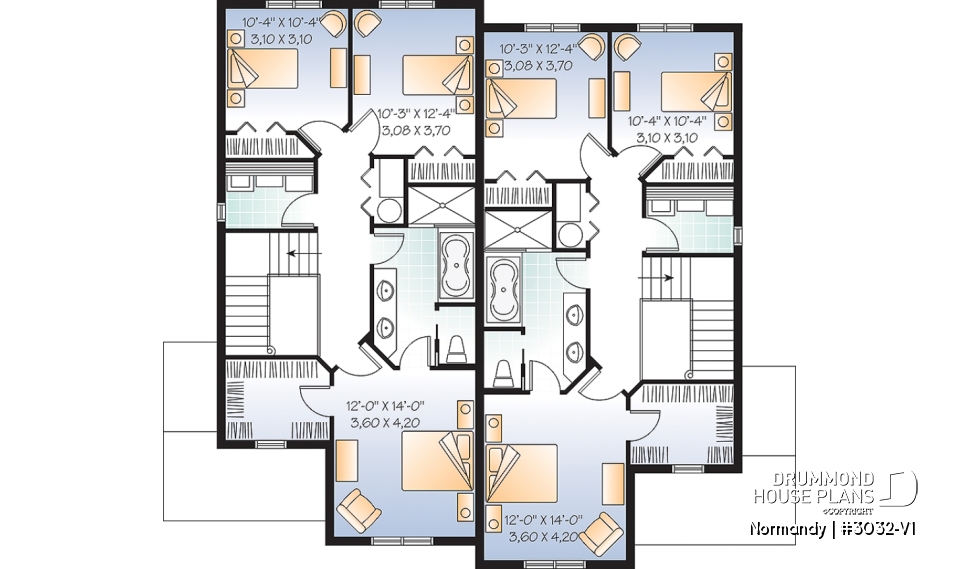

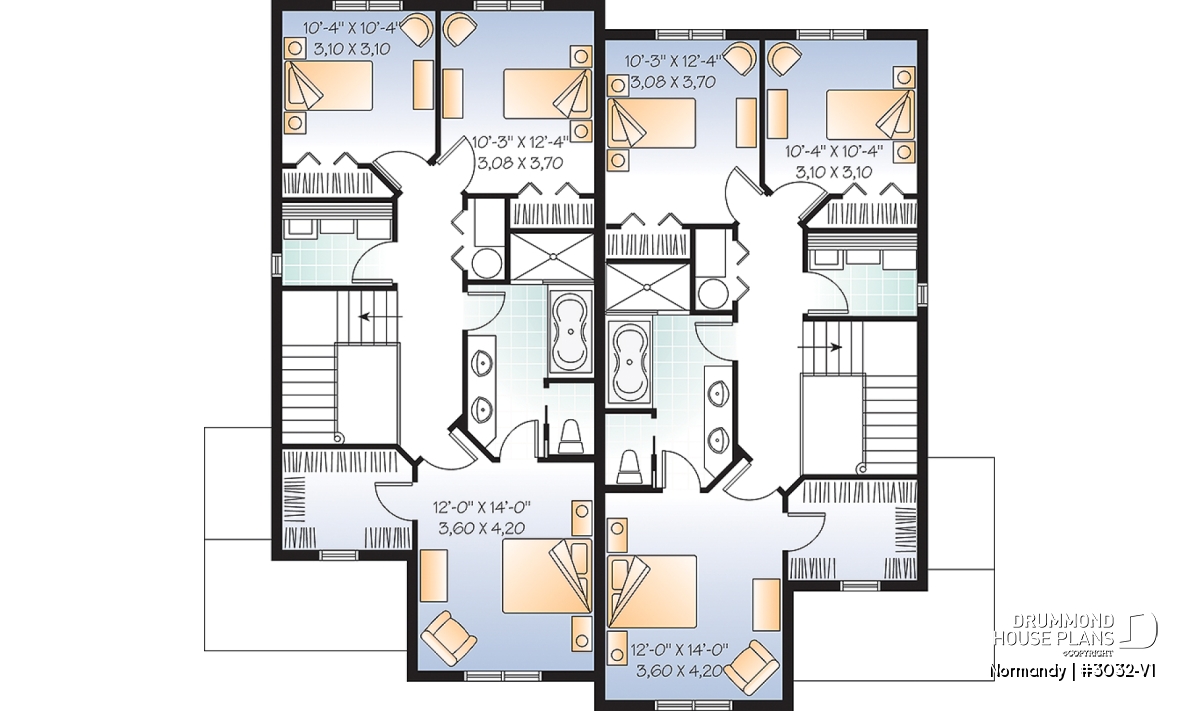

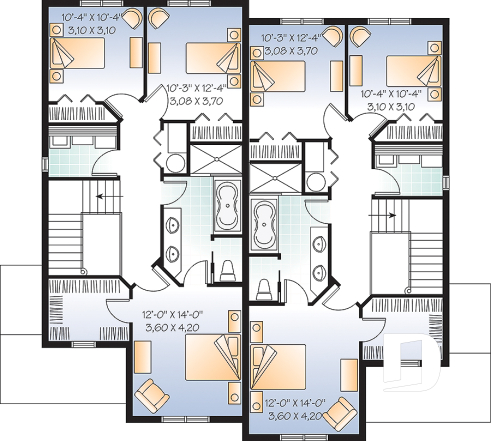

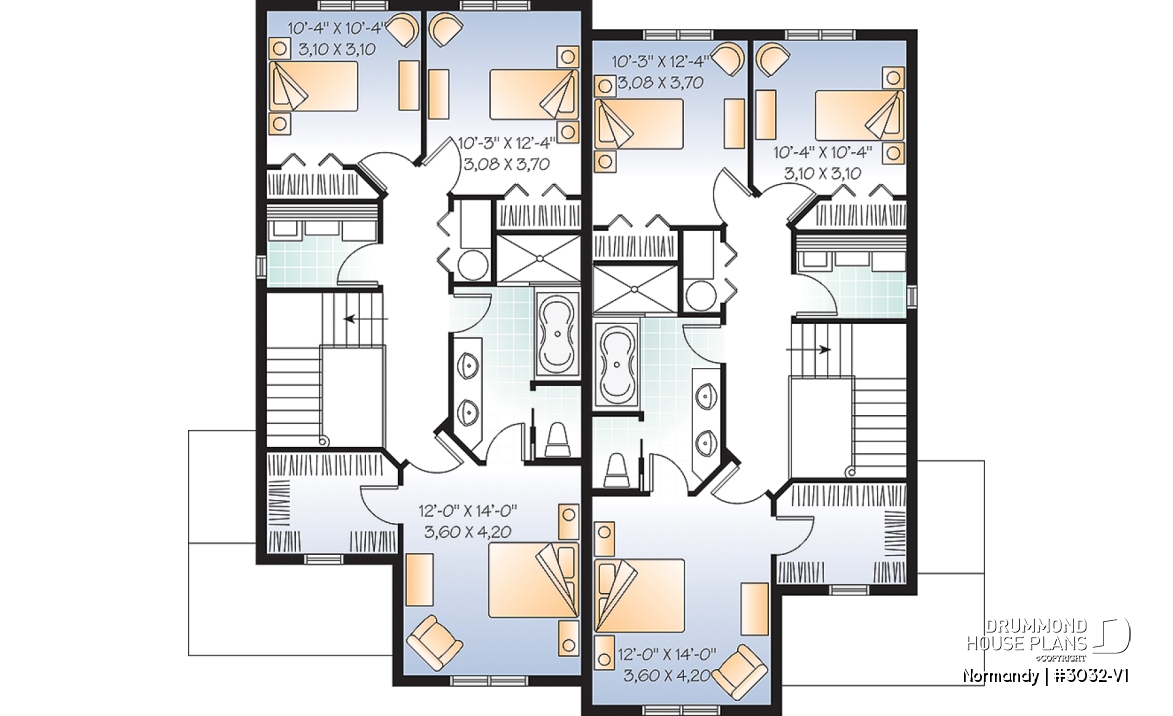

  • 2nd level

    2nd level - Craftsman Duplex design, open floor plan, master with walk-in & access to bath, laundry on second floor - Normandy
Vignette 1st level - 3032-V1
Vignette 2nd level - 3032-V1

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Kitchen 9'9" x 11'4" ~ 8'0"
Dining room 9'9" x 12'0" ~ 8'0"
Living room 11'2" x 13'8" ~ 8'0"
Foyer 7'2" x 6'0" ~ 8'0"
Half bath or powder room 6'8" x 4'4" ~ 8'0"
Garage 12'0" x 20'0" ~ 9'4"
Covered porch 12'0" x 12'0" ~ 0'0"
Deck 16'0" x 8'0" ~ 0'0"
Kitchen 9'9" x 11'4" ~ 8'0"
Pantry 1'10" x 2'0" ~ 0'0"
Half bath or powder room 6'8" x 4'4" ~ 8'0"
Foyer 7'2" x 6'0" ~ 8'0"
Closet 2'0" x 4'6" ~ 8'0"
Garage 12'0" x 20'0" ~ 9'4"
Covered porch 12'0" x 12'0" ~ 0'0"
Dining room 9'9" x 12'0" ~ 8'0"
Living room 11'2" x 13'8" ~ 8'0"
Deck 16'0" x 8'0" ~ 0'0"
2nd level
Rooms Sizes Ceiling
Bedroom 10'3" x 12'4" ~ 8'0"
Bedroom 10'4" x 10'4" ~ 8'0"
Bedroom 12'0" x 14'0" ~ 8'0"
Master suite 12'0" x 14'0" ~ 8'0"
Laundry room 7'6" x 5'6" ~ 8'0"
Full bathroom 8'5" x 15'0" ~ 8'0"
Storage 2'6" x 5'6" ~ 8'0"
Laundry room 7'6" x 5'6" ~ 8'0"
Bedroom 10'4" x 10'4" ~ 8'0"
Closet 7'0" x 2'0" ~ 8'0"
Master suite 12'0" x 14'0" ~ 8'0"
Walk-in closet 8'8" x 6'10" ~ 8'0"
Bedroom 10'3" x 12'4" ~ 8'0"
Closet 5'7" x 2'0" ~ 8'0"
Storage 2'6" x 5'6" ~ 8'0"
Full bathroom 8'5" x 15'0" ~ 8'0"

General specifications

Total living area 3220 sq.ft.
1st level 1353 sq.ft.
2nd level 1867 sq.ft.
Width 44'0"
Depth 47'8"
Ridge height from top of foundation 28'8"
Exterior wall 2 X 6
Foundation type included in the plan Crawl space
Other available foundations ($) Floating Slab, Monolithic Slab
Builder price code MD

Rooms specifications

Bedroom(s) 6, 3
Full baths 2
Half baths 2
Garage type One-car garage (514 sq.ft.)
Living bonus space -
Bonus storage -

Units specifications

UNIT 1 (LEFT) UNIT 2 (RIGHT)
Total living area 3220 sq.ft. 3220 sq.ft.
1st level 676 sq.ft. 676 sq.ft.
2nd level 934 sq.ft. 934 sq.ft.
Width 22' 0" 22' 0"
Depth 23' 6" 23' 6"
Ridge height from top of foundation 28' 8" 28' 8"
Exterior wall 2 X 6 2 X 6
Foundation type Crawl space Crawl space
Bedroom(s) 3 3
Full baths 1 1
Half baths 1 1
Garage type One-car garage (257 sq.ft.) One-car garage (257 sq.ft.)
Living bonus space - -
Bonus storage - -
Find a builder

General specifications

Total living area 3220 sq.ft.
1st level 1353 sq.ft.
2nd level 1867 sq.ft.
Width 44'0"
Depth 47'8"
Ridge height from top of foundation 28'8"
Exterior wall 2 X 6
Foundation type included in the plan Crawl space i
Other available foundations ($) Floating Slab, Monolithic Slab
Builder price code MD

Rooms specifications

Bedroom(s) 6, 3
Full baths 2
Half baths 2
Garage type One-car garage (514 sq.ft.)
Living bonus space - i
Bonus storage - i

Units specifications

UNIT 1 (LEFT) UNIT 2 (RIGHT)
Total living area 3220 sq.ft. 3220 sq.ft.
1st level 676 sq.ft. 676 sq.ft.
2nd level 934 sq.ft. 934 sq.ft.
Width 22' 0" 22' 0"
Depth 23' 6" 23' 6"
Ridge height from top of foundation 28' 8" 28' 8"
Exterior wall 2 X 6 2 X 6
Foundation type Crawl space Crawl space
Bedroom(s) 3 3
Full baths 1 1
Half baths 1 1
Garage type One-car garage (257 sq.ft.) One-car garage (257 sq.ft.)
Living bonus space - -
Bonus storage - -

Buy this plan

From : 1349$

Modify this plan

Get a quote

Description

1st level: Foyer, half-bath, family room, dining room, kitchen with island and lunch counter. 2nd level: Master bedroom with large walk-in closet and access to bathroom, two secondary bedrooms, laundry facilities, bathroom.

Other useful information on this plan

Craftsman style Duplex

Modified version of plan 3032 http://www.drummondhouseplans.com/house-plan-detail/info/the-gemini-american-1001757.html , this northwest style semi-detached, has a distinctive and less expensive approach than plan 3032, from which we eliminated the basement. We will see more and more of this type of house in our area.

Here, the garage is even more important and will possibly become the house's storage since there is no basement, but what a storage!

Except for the basement, this plan keeps the same appealing elements as the original plan: a well-covered main entrance outside, and confortable enough inside, an open staircase providing a remarkable mezzanine effect, abundant windows in the activity area which is located towards the back of the house. Three nice bedrooms on second level, including the masgter suite with walk-in closet and private access to the bathroom, which has a large independant shower and a closed toilet. Nearby, a genuine laundry room that everyone will appreciate on this floor where we find the linen closet which is gaining in popularity.

Distinctive elements

Impressive entry.
Original kitchen with bar-style dinette.
Abundant windows at rear in dining and family rooms.
Three very lovely rooms on 2nd level.
Master bedroom with large walk-in and access to large family bathroom that can also be converted to two smaller bathrooms.
Attractive laundry facilities on 2nd level.
Bathroom with large independant shower and toilet in cabin.
Unfinished basement (other fondation options available).
One-car garage.

Plan feature(s)

Mezzanine

Other useful information on this plan

Full description

Craftsman style Duplex

Modified version of plan 3032 http://www.drummondhouseplans.com/house-plan-detail/info/the-gemini-american-1001757.html , this northwest style semi-detached, has a distinctive and less expensive approach than plan 3032, from which we eliminated the basement. We will see more and more of this type of house in our area.

Here, the garage is even more important and will possibly become the house's storage since there is no basement, but what a storage!

Except for the basement, this plan keeps the same appealing elements as the original plan: a well-covered main entrance outside, and confortable enough inside, an open staircase providing a remarkable mezzanine effect, abundant windows in the activity area which is located towards the back of the house. Three nice bedrooms on second level, including the masgter suite with walk-in closet and private access to the bathroom, which has a large independant shower and a closed toilet. Nearby, a genuine laundry room that everyone will appreciate on this floor where we find the linen closet which is gaining in popularity.

Distinctive elements

Impressive entry.
Original kitchen with bar-style dinette.
Abundant windows at rear in dining and family rooms.
Three very lovely rooms on 2nd level.
Master bedroom with large walk-in and access to large family bathroom that can also be converted to two smaller bathrooms.
Attractive laundry facilities on 2nd level.
Bathroom with large independant shower and toilet in cabin.
Unfinished basement (other fondation options available).
One-car garage.

Plan feature(s)
