Starting from $1515

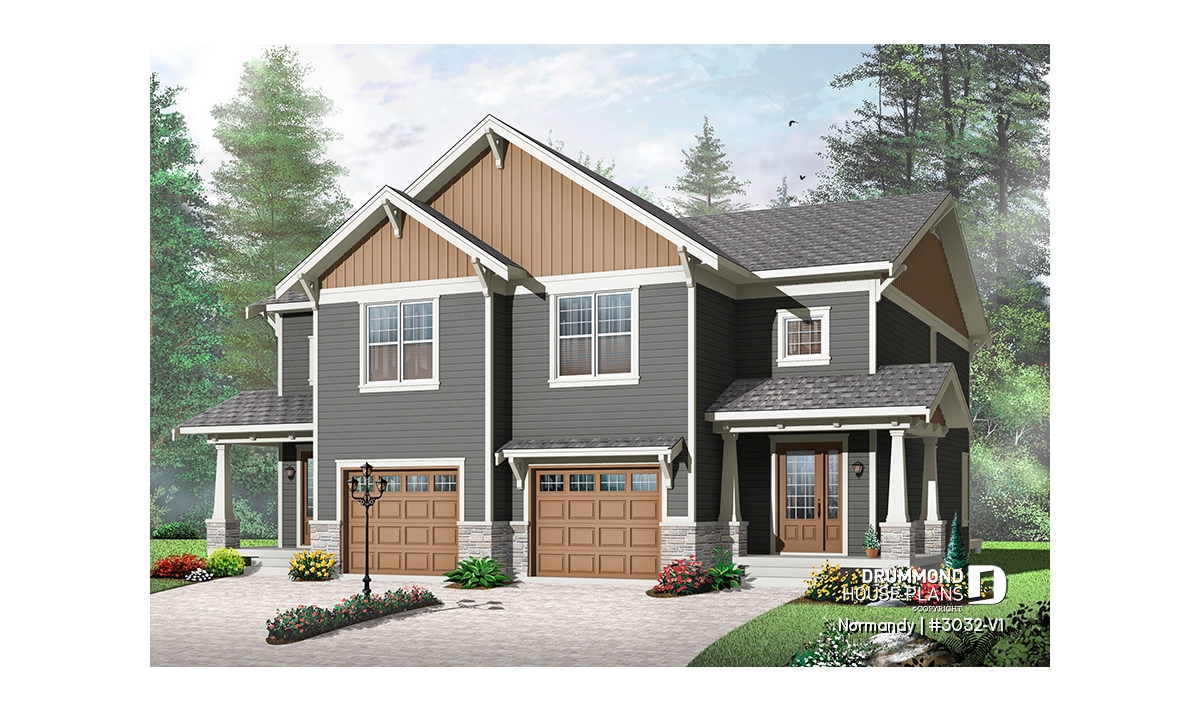

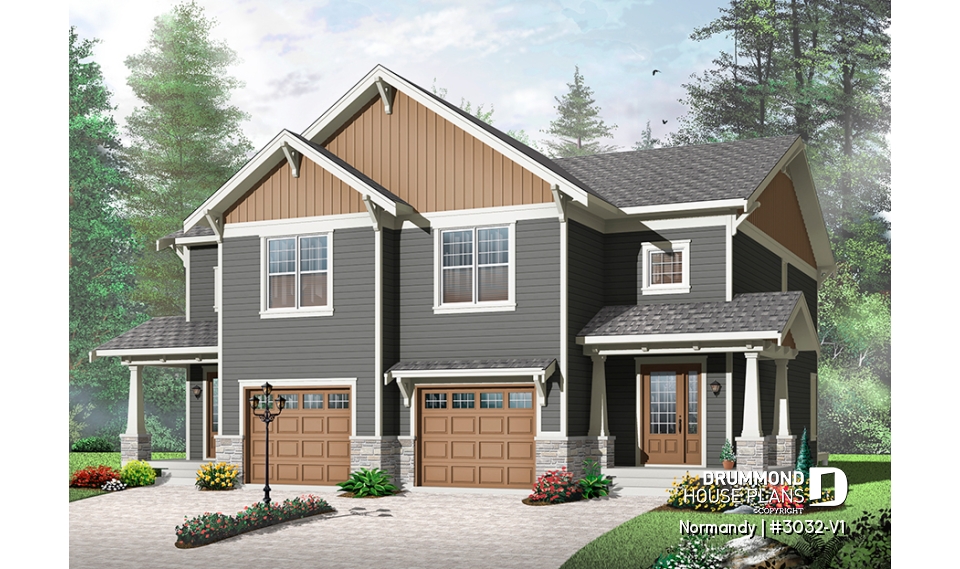

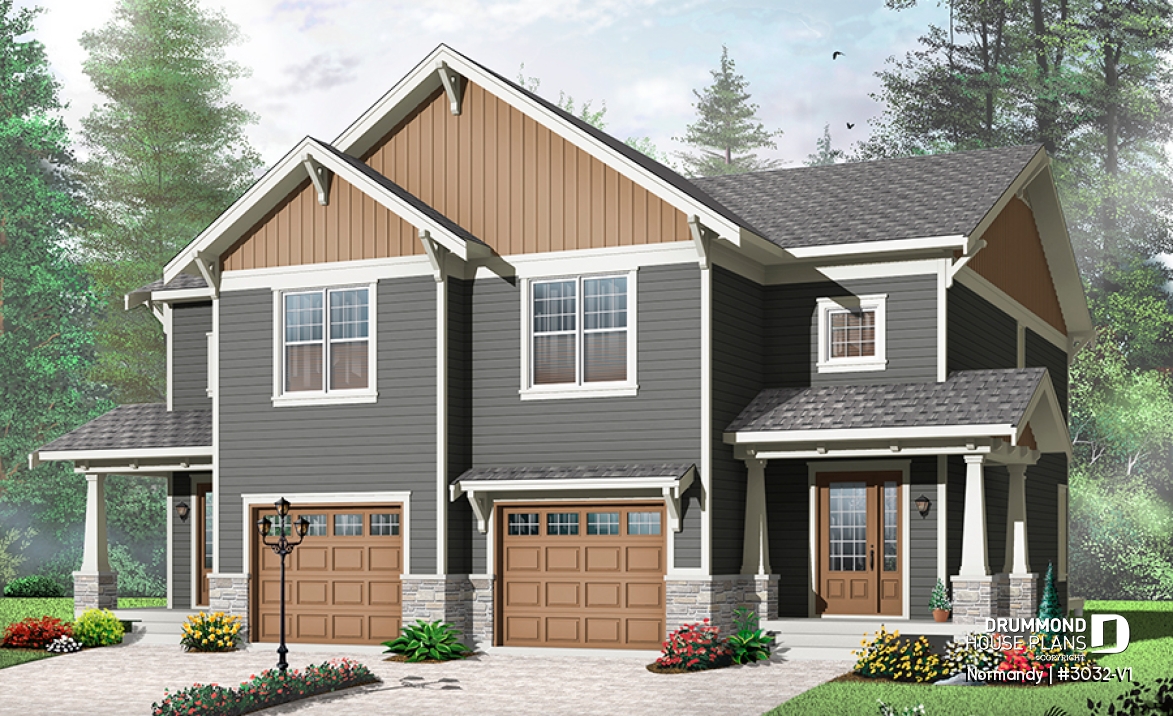

front - BASE MODEL
1st level
2nd level

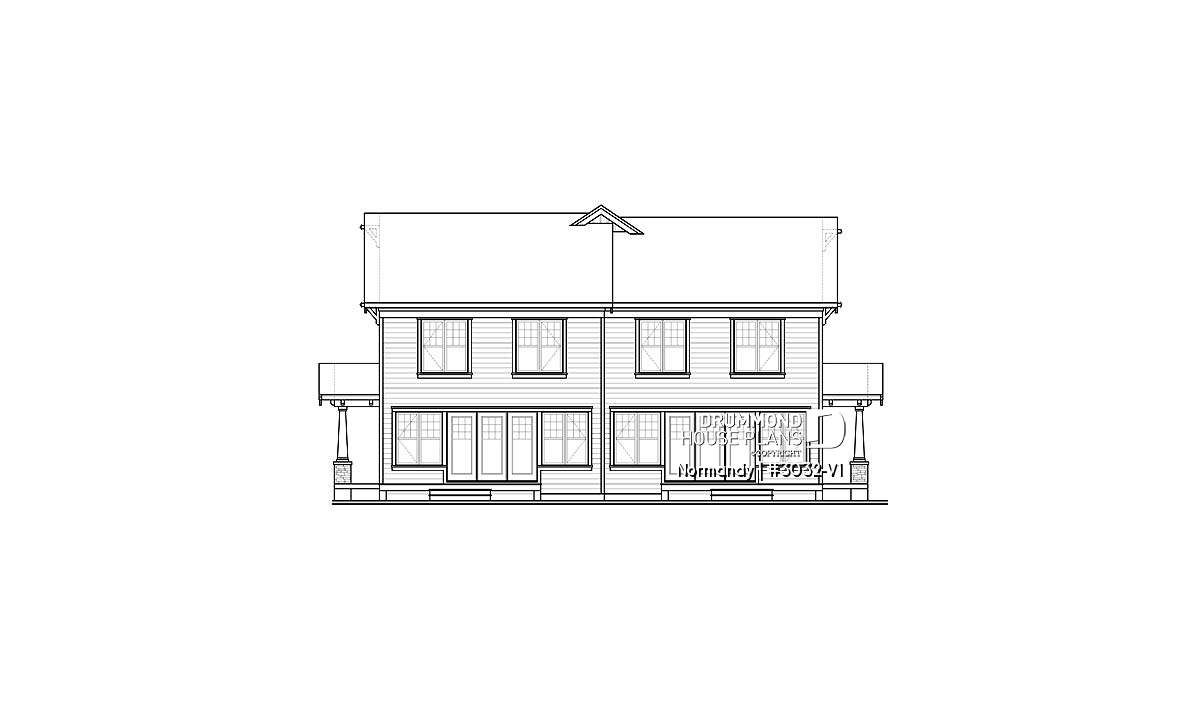

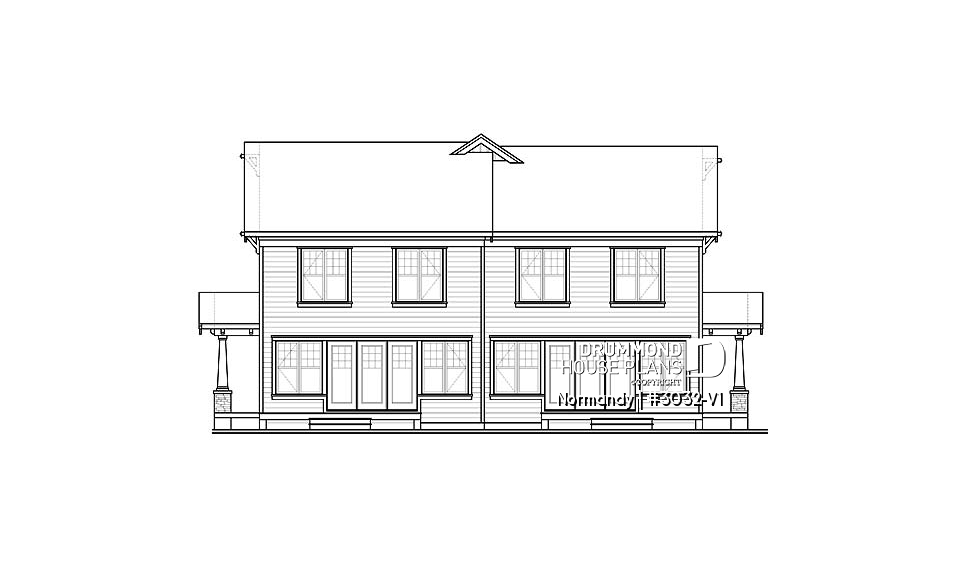

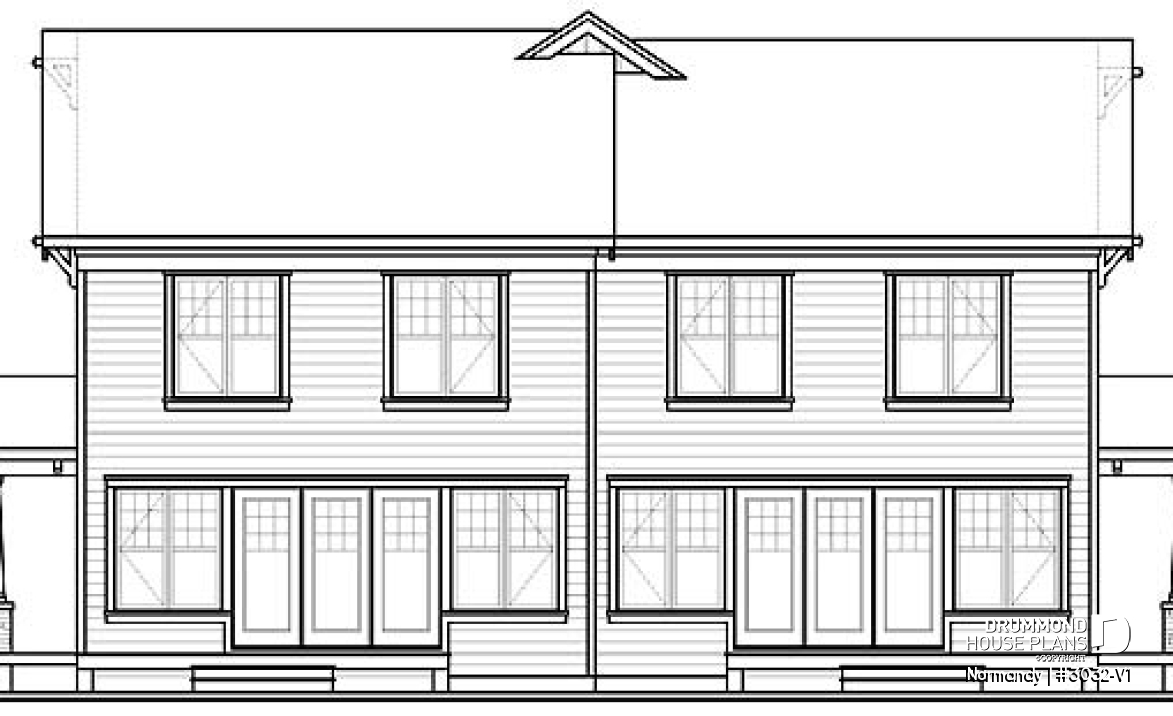

rear elevation

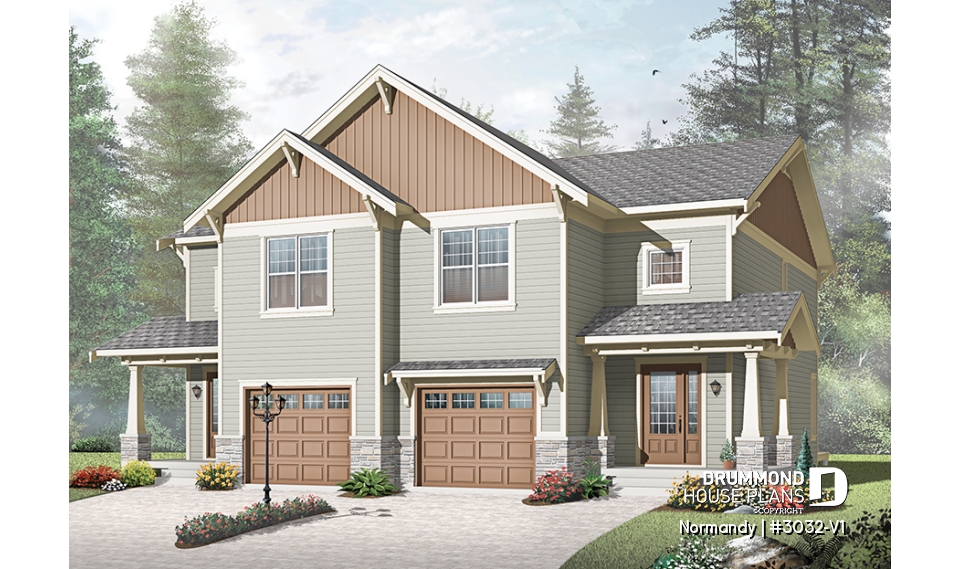

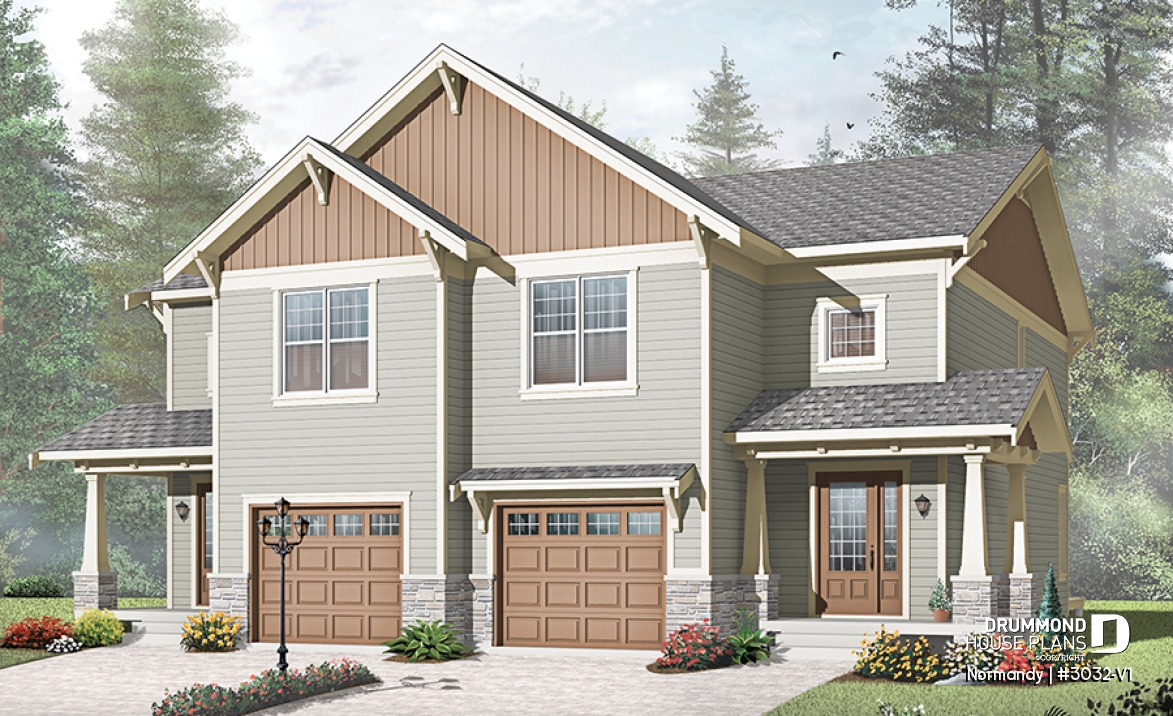

Color version 1 - Front
Normandy House plan 3032-V1
Craftsman Duplex design, open floor plan, master with walk-in & access to bath, laundry on second floor
Starting from
2415$
| Technical details summary | Plan #3032-V1 | ||
|---|---|---|---|
| Total living area | 3220 sq.ft. | Bedroom | 3 |
| Full baths | 1 | Half baths | 1 |
| Foundation included | Crawl space | Garage | One-car garage |
| Width | 44'0" | Depth | 47'8" |
Additional details
General specifications
Total living area
3220 sq.ft.
1st level
1353 sq.ft.
2nd level
1867 sq.ft.
Width
44'0"
Depth
47'8"
Ridge height from top of foundation
28'8"
Exterior wall
2 X 6
Crawl space
Other available foundations (a fee may apply)
Unfinished Basement, Floating Slab, Monolithic Slab
Builder price code
MD
Rooms specifications
Bedroom(s)
3
Full baths
1
Half baths
1
Garage type
One-car garage (514 sq.ft.)
Covered porch area
288 sq.ft.
Units specifications
UNIT 1 (LEFT)
UNIT 2 (RIGHT)
Total living area
1610 sq.ft.
1610 sq.ft.
1st level
676 sq.ft.
676 sq.ft.
2nd level
934 sq.ft.
934 sq.ft.
Width
22' 0"
22' 0"
Depth
23' 6"
23' 6"
Ridge height from top of foundation
28' 8"
28' 8"
Exterior wall
2 X 6
2 X 6
Foundation type
Crawl space
Crawl space
Bedroom(s)
3
3
Full baths
1
1
Half baths
1
1
Garage type
One-car garage (257 sq.ft.)
One-car garage (257 sq.ft.)
Living bonus space
-
-
Bonus storage
-
-
1st level
Rooms
Sizes
Ceiling
Kitchen
9'7" x 11'4"
~ 8'0"
Dining room
9'7" x 12'0"
~ 8'0"
Living room
11'2" x 13'8"
~ 8'0"
Foyer
7'2" x 6'0"
~ 8'0"
Half bath or powder room
6'8" x 4'4"
~ 8'0"
Garage
11'9" x 20'0"
~ 9'4"
Covered porch
12'0" x 12'0"
N/D
Deck
16'0" x 8'0"
N/D
Kitchen
9'7" x 11'4"
~ 8'0"
Pantry
1'10" x 2'0"
N/A
Half bath or powder room
6'8" x 4'4"
~ 8'0"
Foyer
7'2" x 6'0"
~ 8'0"
Closet
2'0" x 4'6"
~ 8'0"
Garage
11'9" x 20'0"
~ 9'4"
Covered porch
12'0" x 12'0"
N/D
Dining room
9'7" x 12'0"
~ 8'0"
Living room
11'2" x 13'8"
~ 8'0"
Deck
16'0" x 8'0"
N/D
2nd level
Rooms
Sizes
Ceiling
Bedroom
10'1" x 12'4"
~ 8'0"
Bedroom
10'4" x 10'0"
~ 8'0"
Master suite
11'9" x 14'0"
~ 8'0"
Laundry room
7'6" x 5'6"
~ 8'0"
Full bathroom
8'3" x 15'0"
~ 8'0"
Storage
2'4" x 5'6"
~ 8'0"
Laundry room
7'6" x 5'6"
~ 8'0"
Bedroom
10'4" x 10'0"
~ 8'0"
Closet
7'0" x 2'0"
~ 8'0"
Master suite
11'9" x 14'0"
~ 8'0"
Walk-in closet
8'8" x 6'10"
~ 8'0"
Bedroom
10'1" x 12'4"
~ 8'0"
Closet
5'7" x 2'0"
~ 8'0"
Storage
2'4" x 5'6"
~ 8'0"
Full bathroom
8'3" x 15'0"
~ 8'0"
Craftsman style Duplex
Modified version of plan 3032 http://www.drummondhouseplans.com/house-plan-detail/info/the-gemini-american-1001757.html , this northwest style semi-detached, has a distinctive and less expensive approach than plan 3032, from which we eliminated the basement. We will see more and more of this type of house in our area.
Here, the garage is even more important and will possibly become the house's storage since there is no basement, but what a storage!
Except for the basement, this plan keeps the same appealing elements as the original plan: a well-covered main entrance outside, and confortable enough inside, an open staircase providing a remarkable mezzanine effect, abundant windows in the activity area which is located towards the back of the house. Three nice bedrooms on second level, including the masgter suite with walk-in closet and private access to the bathroom, which has a large independant shower and a closed toilet. Nearby, a genuine laundry room that everyone will appreciate on this floor where we find the linen closet which is gaining in popularity.
Distinctive elements
Impressive entry.
Original kitchen with bar-style dinette.
Abundant windows at rear in dining and family rooms.
Three very lovely rooms on 2nd level.
Master bedroom with large walk-in and access to large family bathroom that can also be converted to two smaller bathrooms.
Attractive laundry facilities on 2nd level.
Bathroom with large independant shower and toilet in cabin.
Unfinished basement (other fondation options available).
One-car garage.
Plan feature(s)
Plan architectural style(s)
Craftsman / Northwest, Rustic, Country, Ski chalets, American, Cottage, chalet, cabin, Traditional, Mountain
The plan Normandy is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
