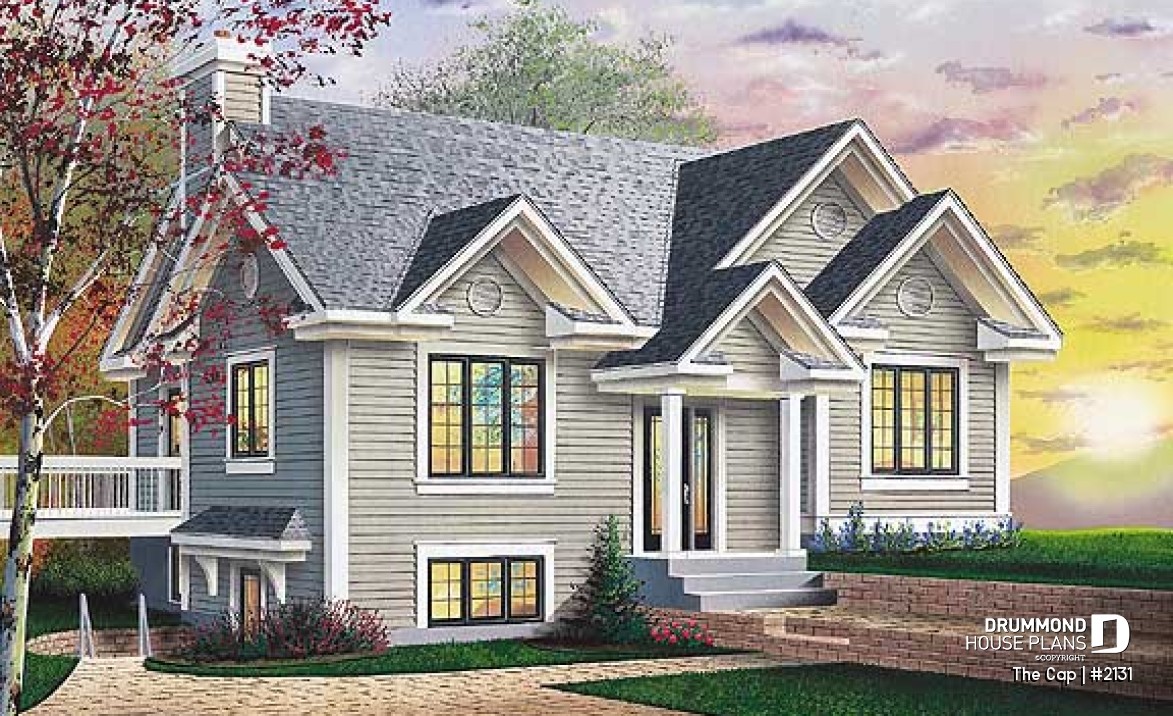

House plan The Cap (2131)
1 to 3 bedroom split-level house plan, master bedroom on main floor, finished daylight basement with 3 beds
View the size of the rooms and height of the ceilings

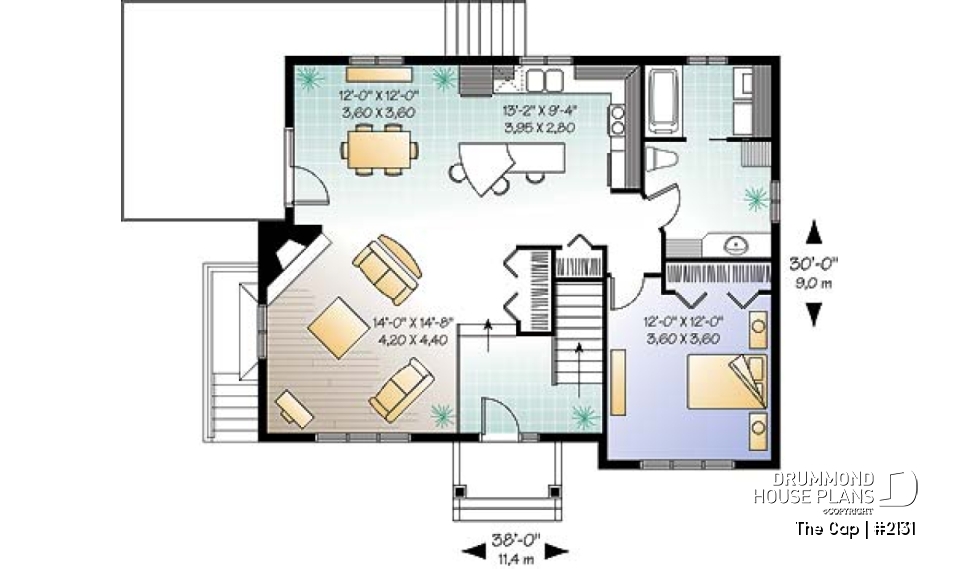

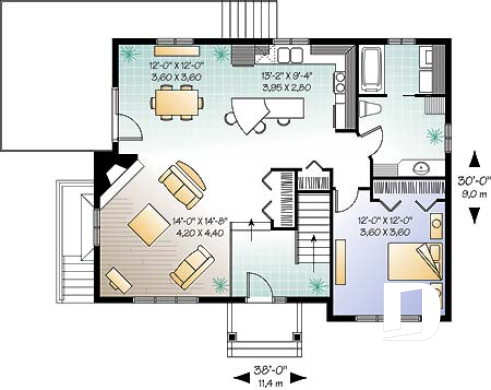

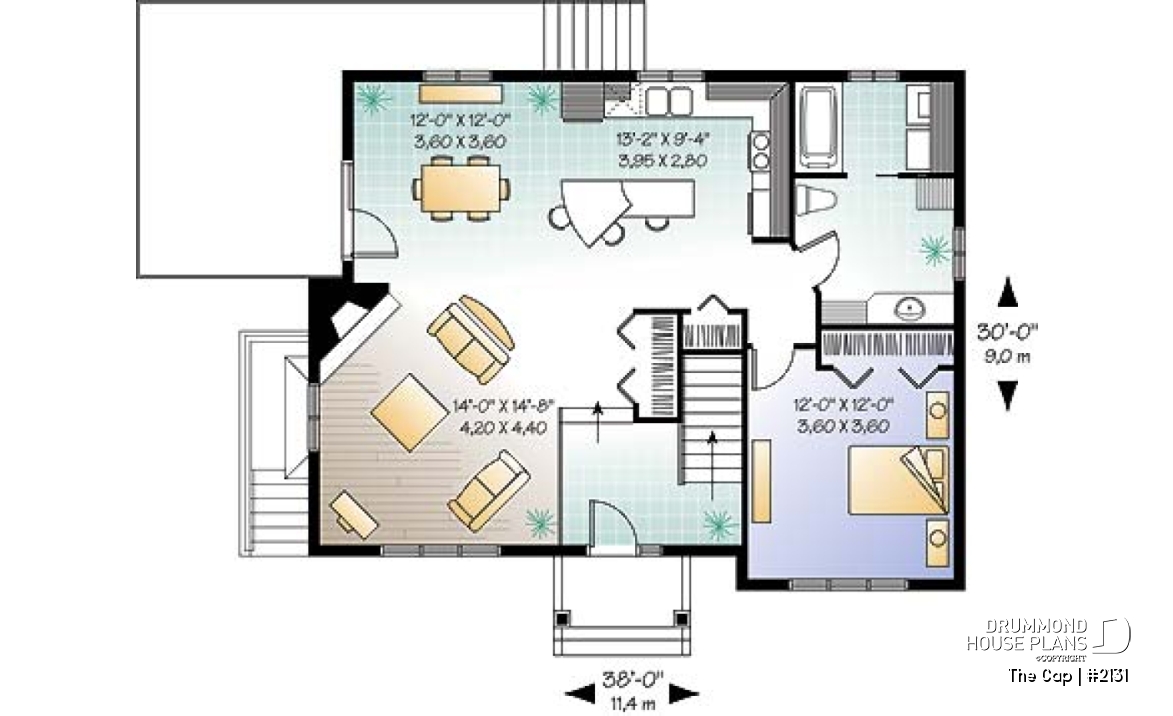

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'2" x 8'8" | ~ 8'0" |
| Kitchen | 13'2" x 9'4" | ~ 8'0" |
| Closet | 3'4" x 2'0" | ~ 8'0" |
| Pantry | 2'6" x 2'0" | N/A |
| Dining room | 12'0" x 12'0" | ~ 8'0" |
| Living room | 14'0" x 14'8" | ~ 8'0" |
| Closet | 6'0" x 2'0" | ~ 8'0" |
| Bedroom | 12'0" x 12'0" | ~ 8'0" |
| Closet | 7'6" x 2'0" | ~ 8'0" |
| Covered porch | 8'0" x 4'0" | N/A |
| Deck | 12'0" x 16'0" | N/A |
| Laundry room | 9'0" x 5'0" | ~ 8'0" |
| Foyer | 10'4" x 7'0" | ~ 9'5" |

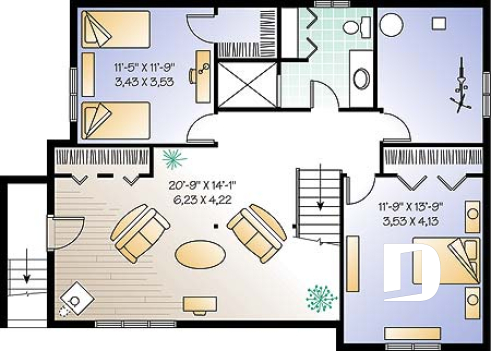

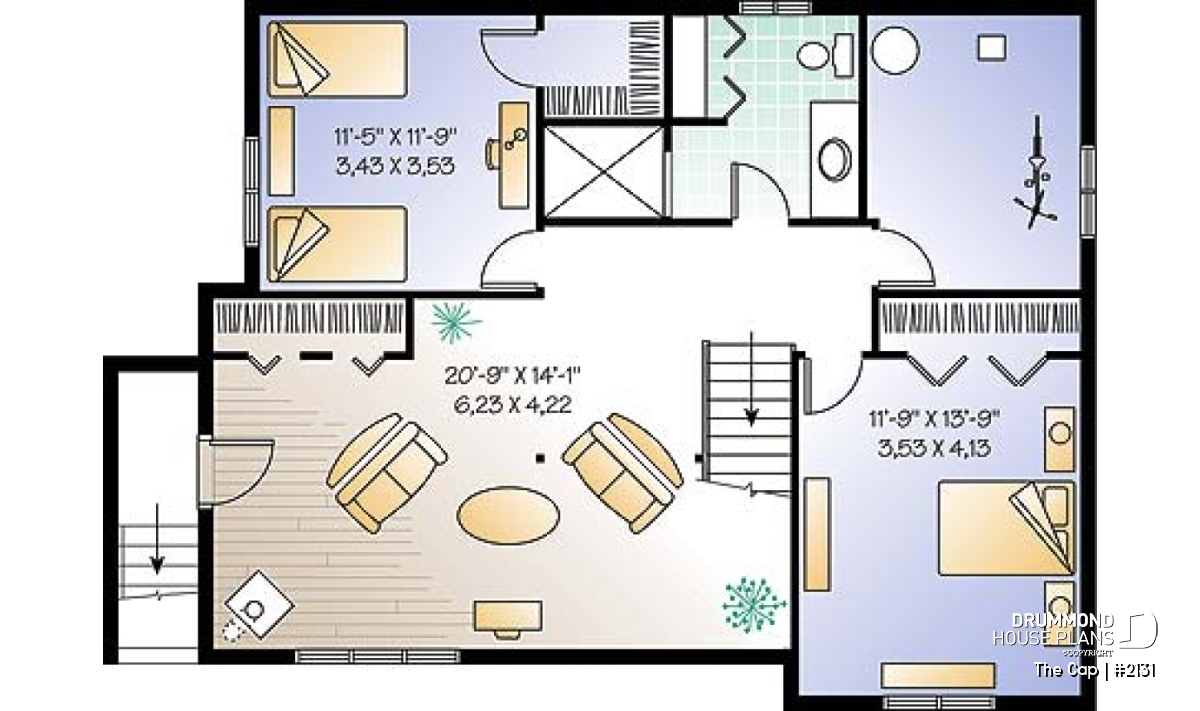

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'5" x 11'9" | ~ 8'0" |
| Walk-in closet | 4'10" x 4'3" | ~ 8'0" |
| Bedroom | 11'9" x 13'9" | ~ 8'0" |
| Closet | 8'0" x 2'0" | ~ 8'0" |
| Full bathroom | 8'0" x 8'3" | ~ 8'0" |
| Linen | 2'0" x 4'3" | ~ 8'0" |
| Storage | 8'10" x 11'8" | ~ 8'0" |
| Great room or Family room | 20'9" x 14'1" | ~ 8'0" |
| Closet | 8'2" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 2134 sq.ft. |
| 1st level | 1067 sq.ft. |
| Basement | 1067 sq.ft. |
| Width | 38'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 21'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
A very bright split level house plan offering 1 to 3 bedrooms

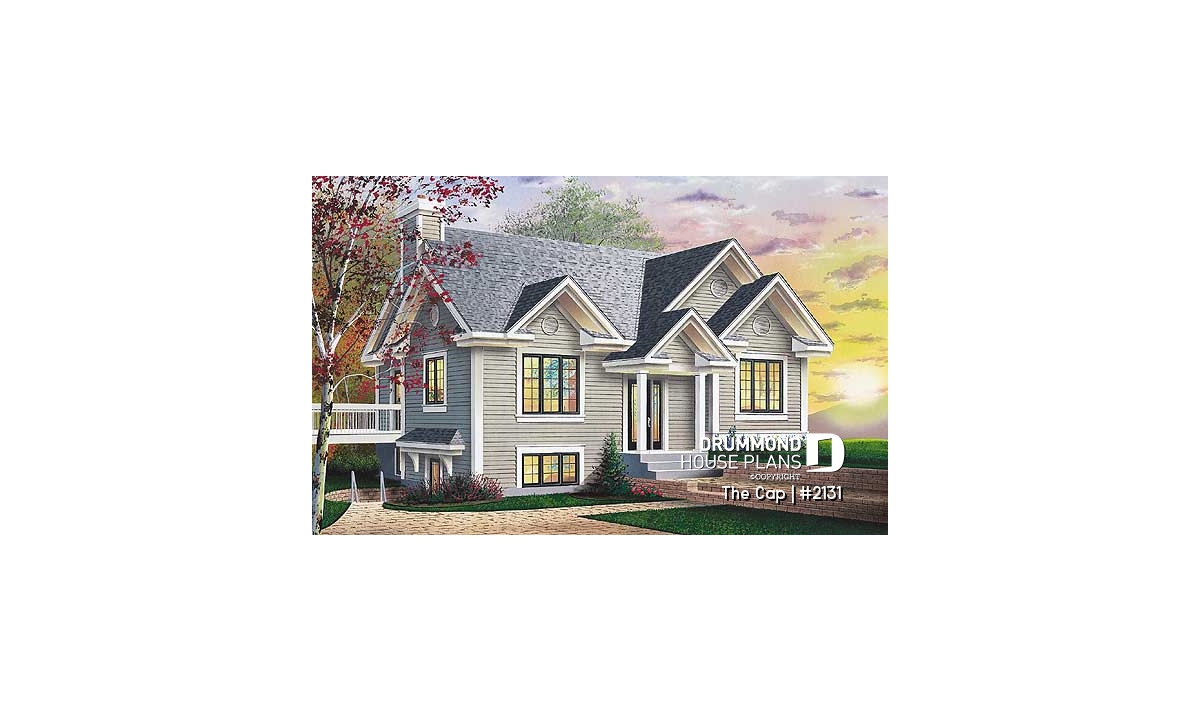

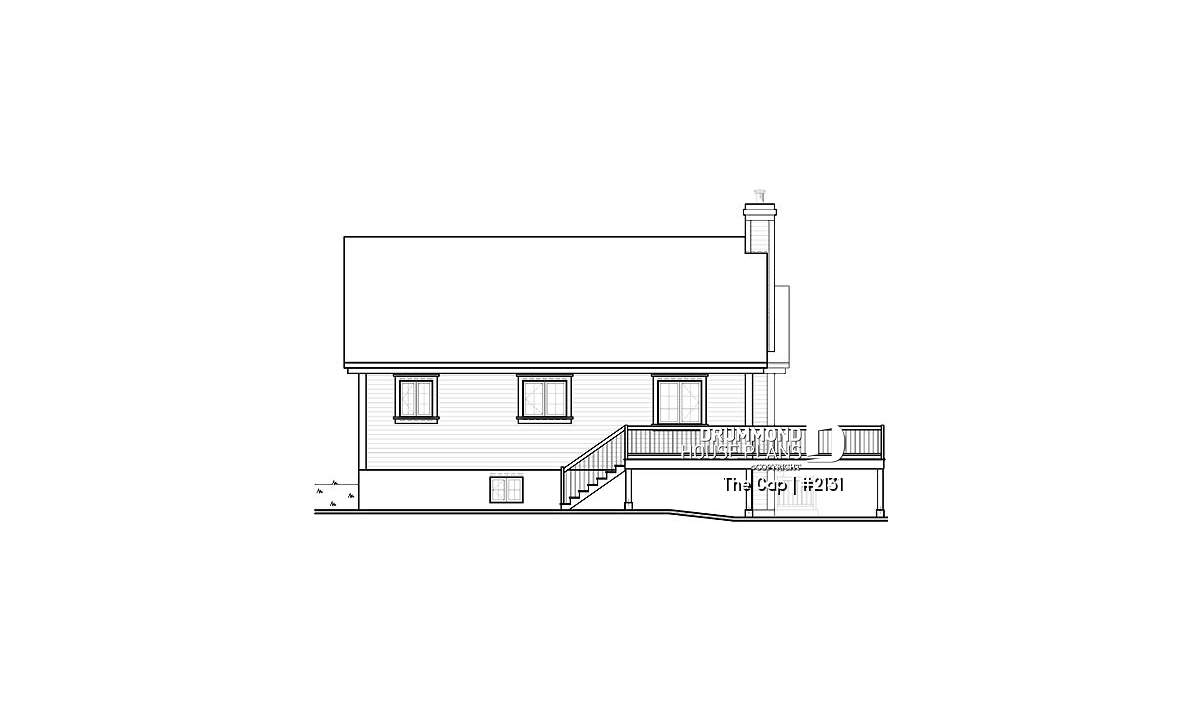

By offering a split entrance and direct access to the basement, this model, plan # 2131 also named The Cap, is more like a two-storey house than a single-storey house. Indeed, its abundant fenestration, its large side/rear terrace in the back and its exposed daylight / walkout basement make it a very luminous house.
The lobby is large and offers a convenient coat closet located nearby. The good size living room receives natural light from windows located at the front and on the side of it. Moreover, an imposing fireplace located centrally, will contribute to the ambience of the living room as well as to the kitchen / dining area. A good size dining area provides lots of natural light and direct access to the large side terrace through French doors, and is large enough to accommodate a table for 6 people. The L-shaped kitchen features a large island and again, windows over the kitchen sink, for lots of natural light.
The master bedroom is conveniently located on the ground floor, right next to a large bathroom. This last is segmented with a bath-shower and laundry on one side, and toilet, sink and linen closet on the other.
The basement is accessible from the ground floor, but also directly from the outside via a covered staircase. This could allow, if your municipality offers you this option, to set up a bachelor or dwelling in the basement (income property ?). Two to three bedrooms, a shower room and a family room are located in the daylight / walkout basement.
An updated exterior look of this model is available, see Plan # 2131-V1 or Cape 2.
Do you want to have this home plan modified to better suit your needs? Please contact us for more information and to get your free cost estimate 1-800-567-5267 or [email protected]
Distinctive elements
One to three bedroom split level house.
Master bedroom on main floor.
Covered front entrance.
Covered service door to basement.
Abundant fenestration.
Large side balcony to rear.
Fireplace in living room.
Laundry room on main floor.
Large kitchen island.
Family room in daylight / walkout basement.
Lots of storage.
Plan feature(s)
Fireplace, Access to basement from exterior, Island, Gound floor laundry room, Open floor layout, Game room
Plan architectural style(s)
. Traditional, . Country, . American
