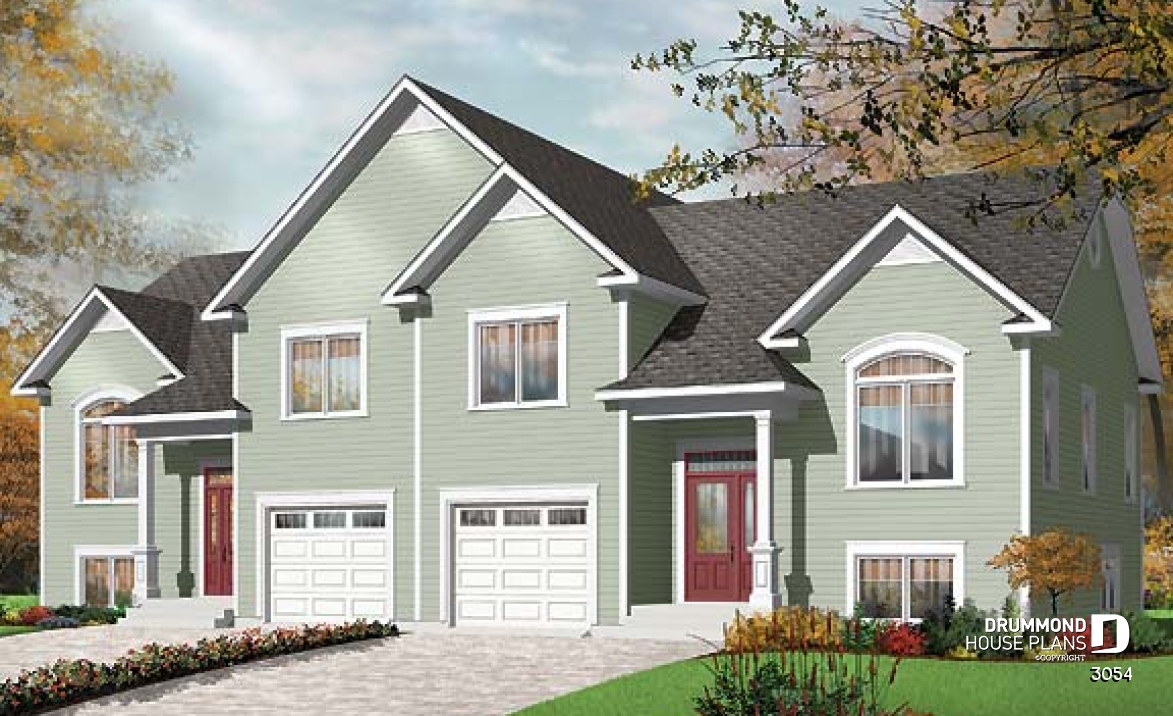

front - BASE MODEL
1st level
Basement

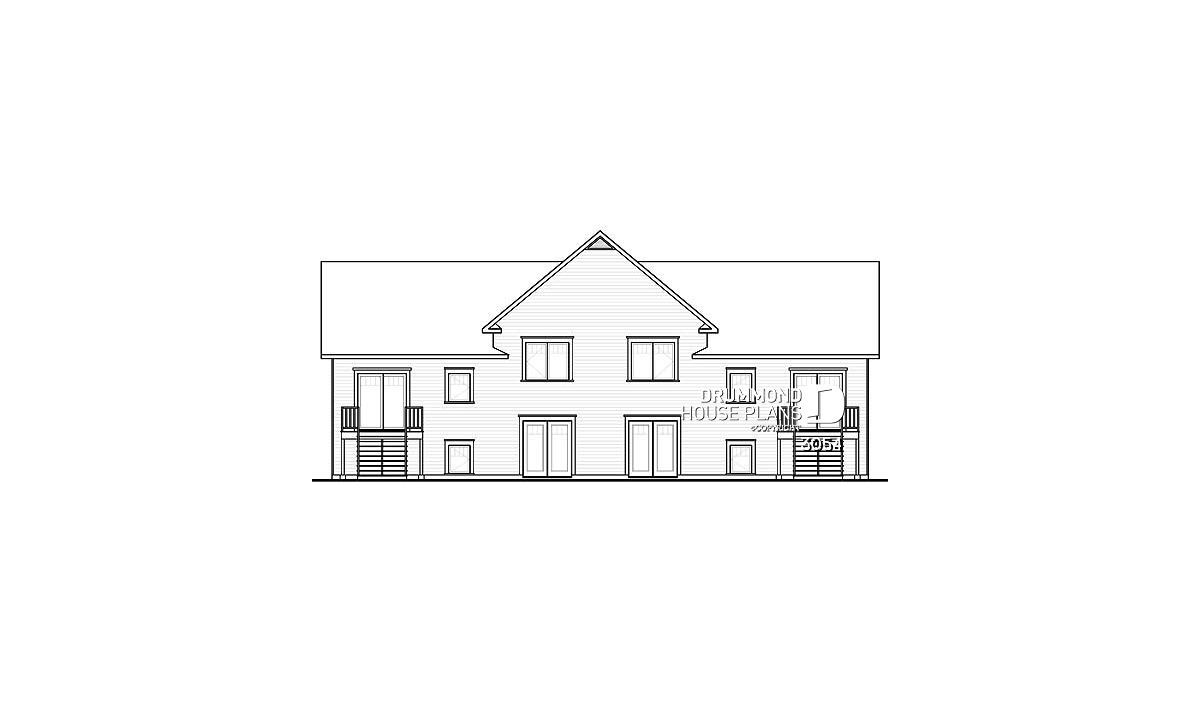

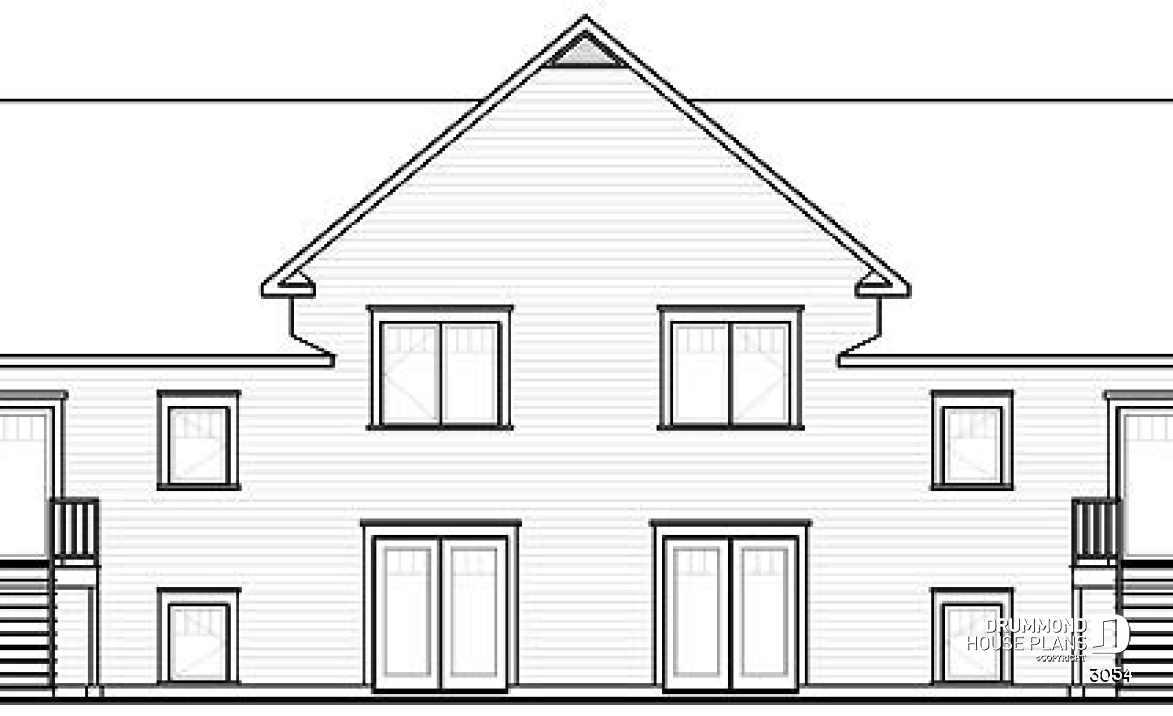

rear elevation
House plan 3054
Duplex house plan with open floor plan concept, 3 bedrooms and garage for each unit
Starting from
2415$
| Technical details summary | Plan #3054 | ||
|---|---|---|---|
| Total living area | 3498 sq.ft. | Bedroom | 3, 6 |
| Full baths | 4 | Half baths | - |
| Foundation included | Finished basement | Garage | Two-car garage |
| Width | 66'0" | Depth | 36'0" |
Additional details
General specifications
Total living area
3498 sq.ft.
1st level
2200 sq.ft.
Basement
1298 sq.ft.
Width
66'0"
Depth
36'0"
Ridge height from top of foundation
30'1"
Exterior wall
2 X 6
Finished basement
Builder price code
MD
Rooms specifications
Bedroom(s)
3, 6
Full baths
4
Half baths
-
Garage type
Two-car garage (901 sq.ft.)
Covered porch area
64 sq.ft.
Units specifications
UNIT 1 (LEFT)
UNIT 2 (RIGHT)
Total living area
1749 sq.ft.
1749 sq.ft.
Basement
649 sq.ft.
649 sq.ft.
1st level
1100 sq.ft.
1100 sq.ft.
Width
33' 0"
33' 0"
Depth
31' 8"
31' 8"
Ridge height from top of foundation
30' 1"
30' 1"
Exterior wall
2 X 6
2 X 6
Foundation type
Finished basement
Finished basement
Bedroom(s)
3
3
Full baths
2
2
Half baths
-
-
Garage type
One-car garage (450 sq.ft.)
One-car garage (450 sq.ft.)
Living bonus space
-
-
Bonus storage
-
-
Basement
Rooms
Sizes
Ceiling
Bedroom
9'8" x 10'4"
~ 8'0"
Playroom
12'0" x 13'0"
~ 8'0"
Storage
6'0" x 5'8"
~ 8'0"
Storage
2'8" x 5'2"
~ 8'0"
Garage
12'0" x 34'8"
~ 9'0"
Shower room or three quarter bath
6'2" x 8'8"
~ 8'0"
Bedroom
9'8" x 10'4"
~ 8'0"
Closet
2'0" x 4'10"
~ 8'0"
Garage
12'0" x 34'8"
~ 9'0"
Storage
6'0" x 5'8"
~ 8'0"
Storage
2'8" x 5'2"
~ 8'0"
Shower room or three quarter bath
6'2" x 8'8"
~ 8'0"
Playroom
12'0" x 13'0"
~ 8'0"
1st level
Rooms
Sizes
Ceiling
Kitchen
9'2" x 11'4"
~ 8'8"
Dining room
11'0" x 14'10"
~ 8'8"
Living room
12'0" x 15'6"
~ 8'8"
Foyer
6'6" x 5'10"
~ 13'2"
Full bathroom
8'4" x 9'0"
~ 8'0"
Bedroom
12'0" x 11'4"
~ 8'0"
Bedroom
12'0" x 9'0"
~ 8'0"
Laundry room
3'0" x 5'2"
~ 8'0"
Storage
4'6" x 2'10"
~ 8'8"
Linen
1'8" x 2'0"
~ 8'0"
Covered porch
8'0" x 4'0"
N/D
Deck
10'0" x 5'0"
N/D
Laundry room
3'0" x 5'2"
~ 8'0"
Bedroom
12'0" x 11'4"
~ 8'0"
Closet
8'4" x 2'0"
~ 8'0"
Bedroom
12'0" x 9'0"
~ 8'0"
Closet
6'4" x 2'0"
~ 8'0"
Kitchen
9'2" x 11'4"
~ 8'8"
Pantry
1'10" x 2'0"
N/A
Foyer
6'6" x 5'10"
~ 13'2"
Closet
2'0" x 5'6"
~ 13'2"
Linen
1'8" x 2'0"
~ 8'0"
Covered porch
8'0" x 4'0"
N/D
Storage
4'6" x 2'10"
~ 8'8"
Dining room
11'0" x 14'10"
~ 8'8"
Full bathroom
8'4" x 9'0"
~ 8'0"
Living room
12'0" x 15'6"
~ 8'8"
Deck
10'0" x 5'0"
N/D
Distinctive elements
8'-8" ceiling height for activity area, including living room, dining room and kitchen-dinette. A large enough landing to the entry. Bedroom with adequate storage and comfortable bathroom with bath and corner shower. Garage with good depth with double garden doors giving access to the back. Well suited finished basement with large windows. Laundry facility close to the bedrooms.
Plan architectural style(s)
The plan is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
