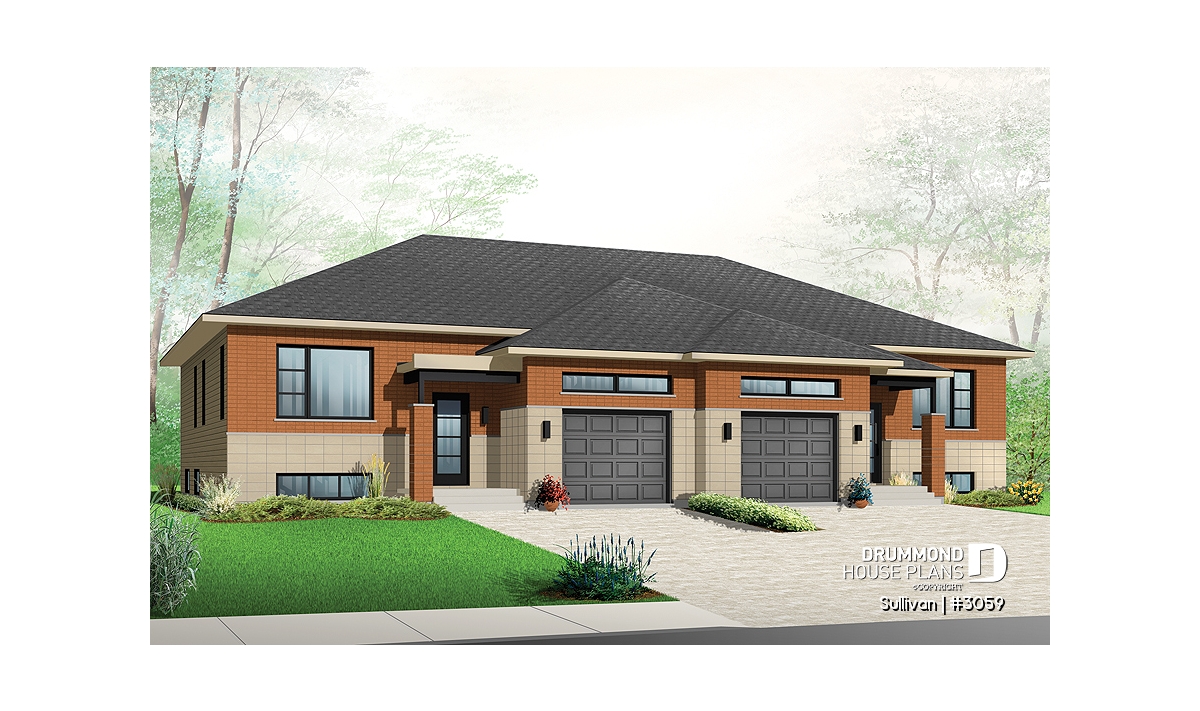

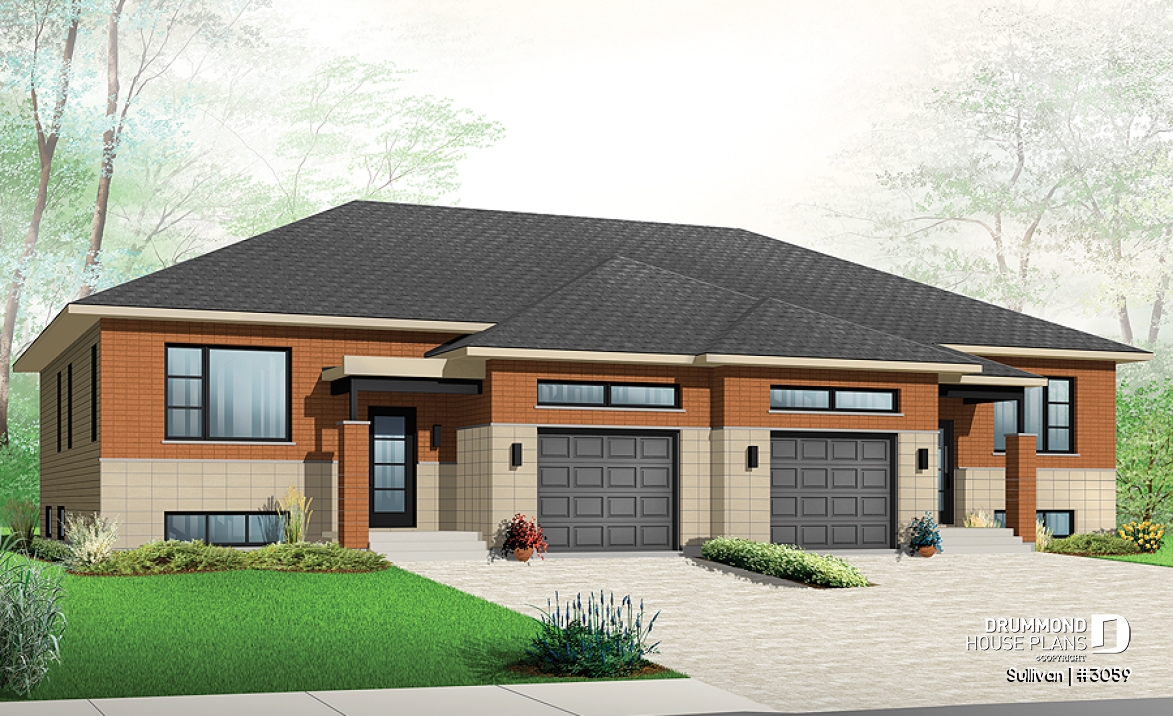

front - BASE MODEL
1st level
Basement

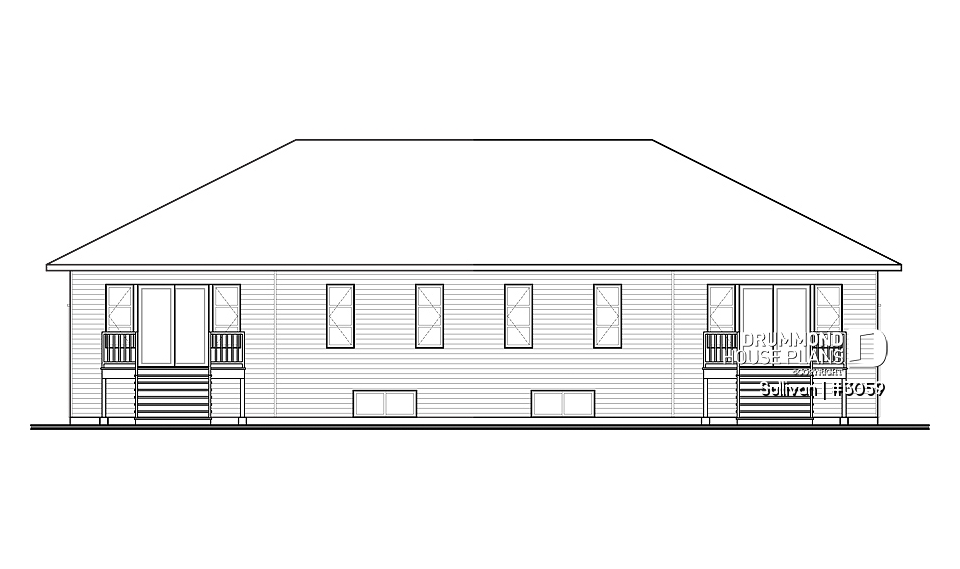

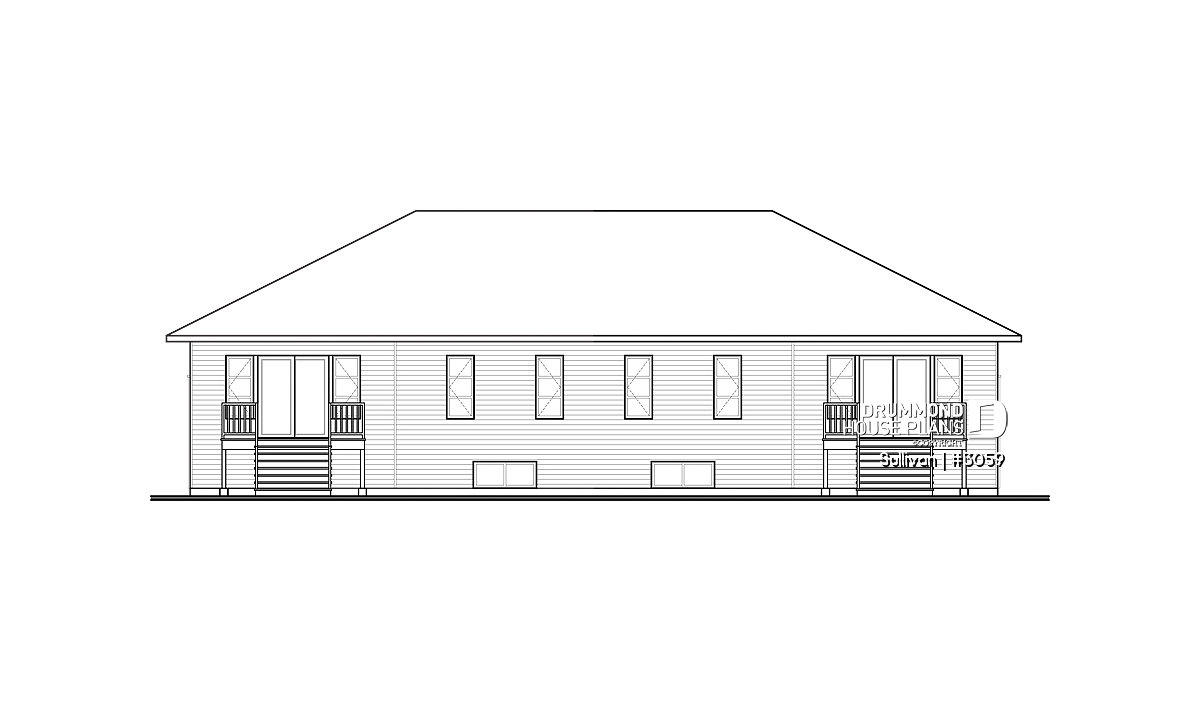

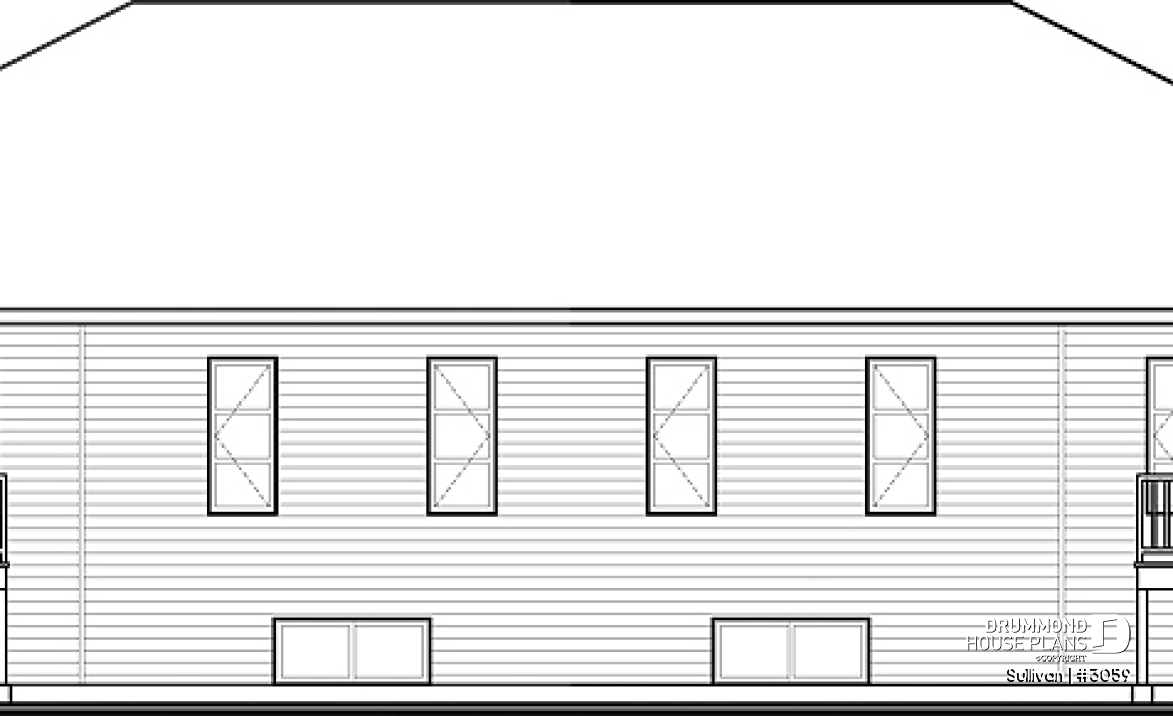

rear elevation
Sullivan House plan 3059
Modern duplex house plan with garage,up to 3 bedrooms per unit, large shower, great kitchen island
Starting from
2785$
| Technical details summary | Plan #3059 | ||
|---|---|---|---|
| Total living area | 4200 sq.ft. | Bedroom | 2, 3, 4 |
| Full baths | 2 | Half baths | - |
| Foundation included | Finished basement | Garage | One-car garage |
| Width | 68'0" | Depth | 45'4" |
Additional details
General specifications
Total living area
4200 sq.ft.
1st level
2180 sq.ft.
Basement
2020 sq.ft.
Width
68'0"
Depth
45'4"
Ridge height from top of foundation
19'2"
Exterior wall
2 X 6
Finished basement
Builder price code
MF
Rooms specifications
Bedroom(s)
2, 3, 4
Full baths
2
Half baths
-
Garage type
One-car garage (593 sq.ft.)
Covered porch area
-
Units specifications
Left
Right
Total living area
1090 sq.ft.
2100 sq.ft.
Basement
1010 sq.ft.
1st level
1090 sq.ft.
1090 sq.ft.
Width
34' 0"
34' 0"
Depth
45' 4"
44' 0"
Ridge height from top of foundation
19' 2"
19' 2"
Exterior wall
2 X 6
2 X 6
Foundation type
Finished basement
Finished basement
Bedroom(s)
1
3
Full baths
1
2
Half baths
-
-
Garage type
One-car garage (306 sq.ft.)
One-car garage (306 sq.ft.)
Living bonus space
-
-
Bonus storage
-
-

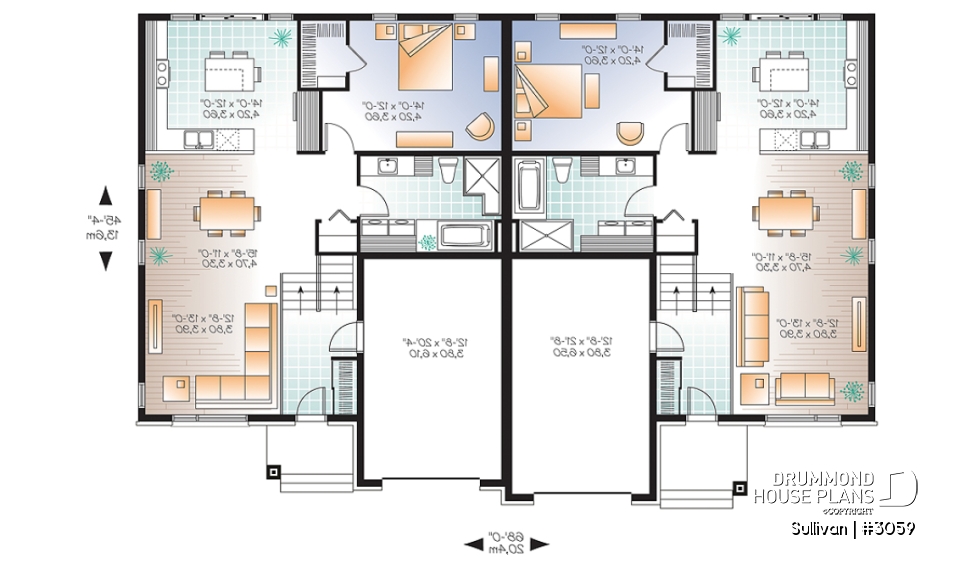

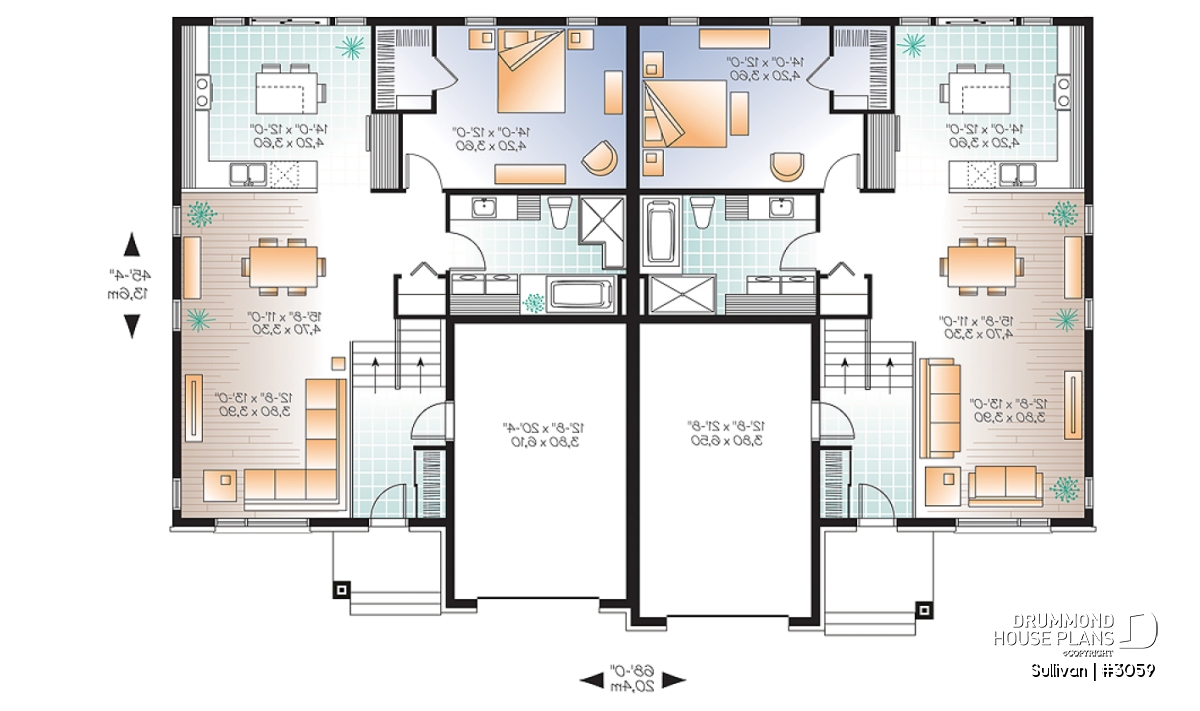

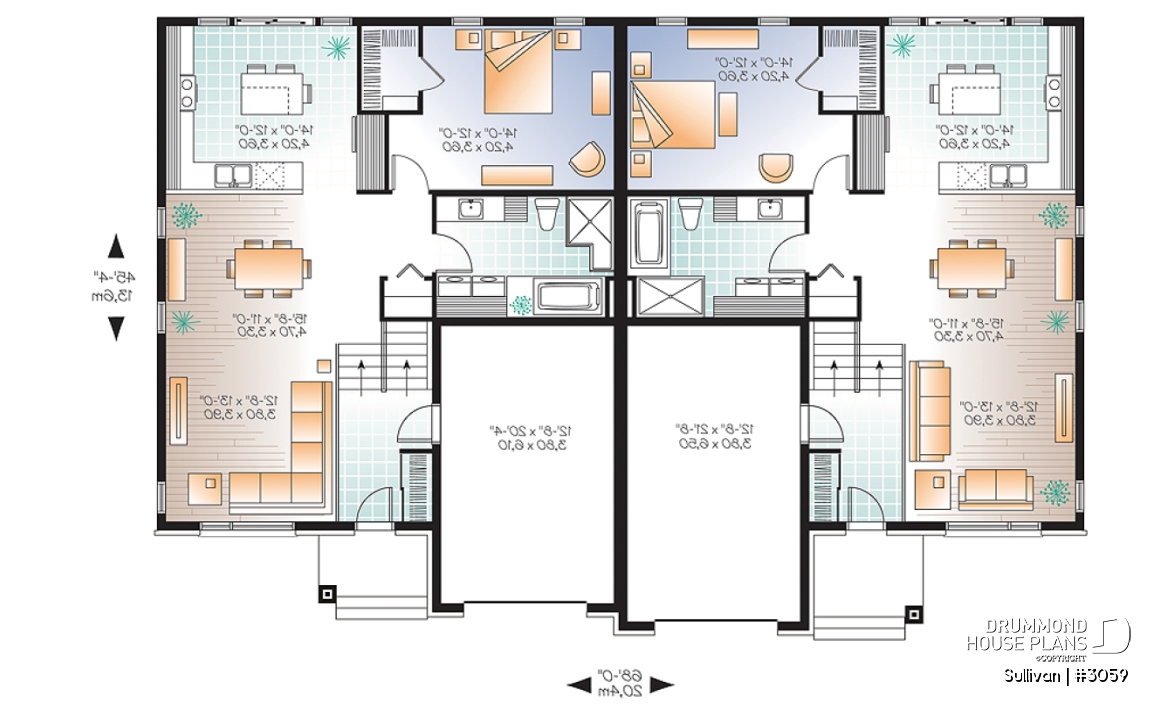

1st level
Rooms
Sizes
Ceiling
Foyer
6'10" x 9'8"
~ 11'2"
Closet
2'0" x 5'0"
~ 8'0"
Living room
12'8" x 13'0"
~ 8'0"
Dining room
15'8" x 11'0"
~ 8'0"
Kitchen/dinette
14'0" x 12'0"
~ 8'0"
Pantry
2'6" x 2'0"
N/A
Bedroom
14'0" x 12'0"
~ 8'0"
Walk-in closet
4'2" x 6'2"
~ 8'0"
Bathroom/laundry room
13'0" x 8'10"
~ 8'0"
Linen
1'8" x 1'10"
N/A
Linen
6'8" x 1'6"
N/A
Storage
3'6" x 2'8"
~ 8'0"
Bedroom
14'0" x 12'0"
~ 8'0"
Walk-in closet
4'2" x 6'2"
~ 8'0"
Kitchen/dinette
14'0" x 12'0"
~ 8'0"
Pantry
2'6" x 2'0"
N/A
Foyer
6'10" x 9'8"
~ 11'2"
Closet
2'0" x 5'0"
~ 8'0"
Storage
3'6" x 2'8"
~ 8'0"
Dining room
15'8" x 11'0"
~ 8'0"
Bathroom/laundry room
13'0" x 8'10"
~ 8'0"
Linen
1'8" x 1'10"
N/A
Linen
5'2" x 1'6"
N/A
Living room
12'8" x 13'0"
~ 8'0"

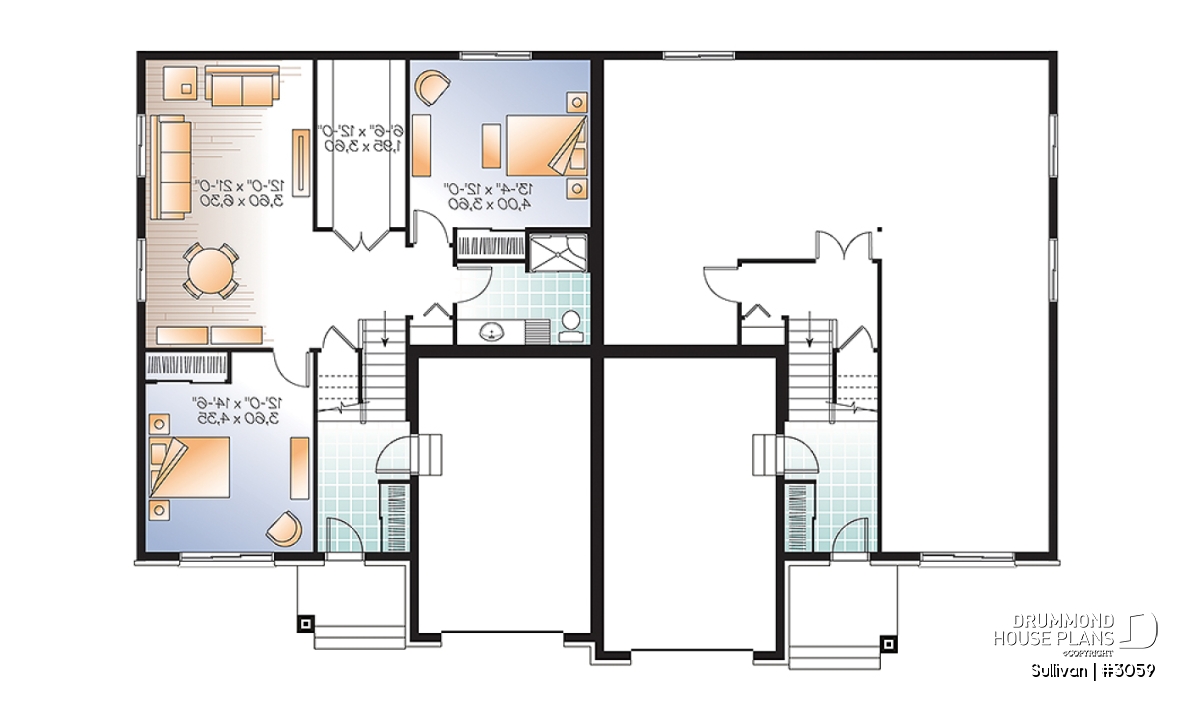

Basement
Rooms
Sizes
Ceiling
Bedroom
13'4" x 12'0"
~ 8'0"
Closet
5'0" x 2'0"
~ 8'0"
Bedroom
12'0" x 14'6"
~ 8'0"
Closet
5'8" x 2'0"
~ 8'0"
Great room or Family room
12'0" x 21'0"
~ 8'0"
Storage
6'6" x 12'0"
~ 8'0"
Shower room or three quarter bath
9'10" x 6'0"
~ 8'0"
Linen
1'10" x 1'10"
N/A
Linen
3'2" x 1'10"
~ 8'0"
Start climbing the property ladder!
Looking for a house plan that gets you started investing without breaking the bank? This may be the elegant solution you are looking for!
This semi-detached includes a fully developed, 3-bedroom unit on the right and an owner unit with unfinished basement on the left which can be completed to suit as your budget allows or used creatively for a business or workshop space.
The main floor of each unit boasts a very pleasing open activities area and master bedroom. A generous kitchen includes an indispensable prep island/eating bar easy access to the backyard and grill. The master bedroom enjoys a walk-in closet and easy access to a well-appointed bathroom with independent shower and tub and laundry.
The owner’s unit basement can be finished as circumstances allow. The other unit features two bedrooms, family room, a shower room and a storage of over 6ft x 12ft.
A perfect way to get in on the ground floor or home-ownership!
Distinctive elements
Stunning Modern duplex plan.
Open floor plan layout.
Kitchen with central lunch island.
Master bedroom on main floor and with walk-in closet.
Bathroom with separate shower and washer/dryer area.
Basement unit on left available to develop as an expansion to the unit above as required.
Plan feature(s)
Gound floor laundry room, Island, Walk-in master bed., Open floor layout, Game room, Panoramic view
Plan architectural style(s)
The plan Sullivan is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
